Today the dawn of a new breed of product from Prism Sound has arrived, The Dream ADA-128. Over the past five years Prism Sound has been developing a new innovative architecture. Defining a new standard in conversion technology, from early conversations with key partners through to prototype testing every step pf the journey has been a defining moment in this revolutionary new unit.
The Dream ADA-128 will be the latest in the acclaimed range of Prism Sound ‘Dream’ A/D and D/A converters which have become widely regarded as the world’s best sounding converters. Whilst continuing the tried and trusted ‘no compromise’ design philosophy of previous ‘Dream’ products, the Dream ADA-128 adds new flexibility, functionality and greater cost-effectiveness.
Modular analogue and digital I/O up to 128 channels in a 2U frame with 8 channel line / Out and Mic/Line cards.
The ADA-128 provides independent synchronisation of I/O cards, enabling operation with up to four different clock domains.
The ADA-128 offers accurate, ultra detailed A/D and D/A conversion providing complete focus of sound to ensure you're not distracted by colouration while allowing every nuance of a performance to be heard.

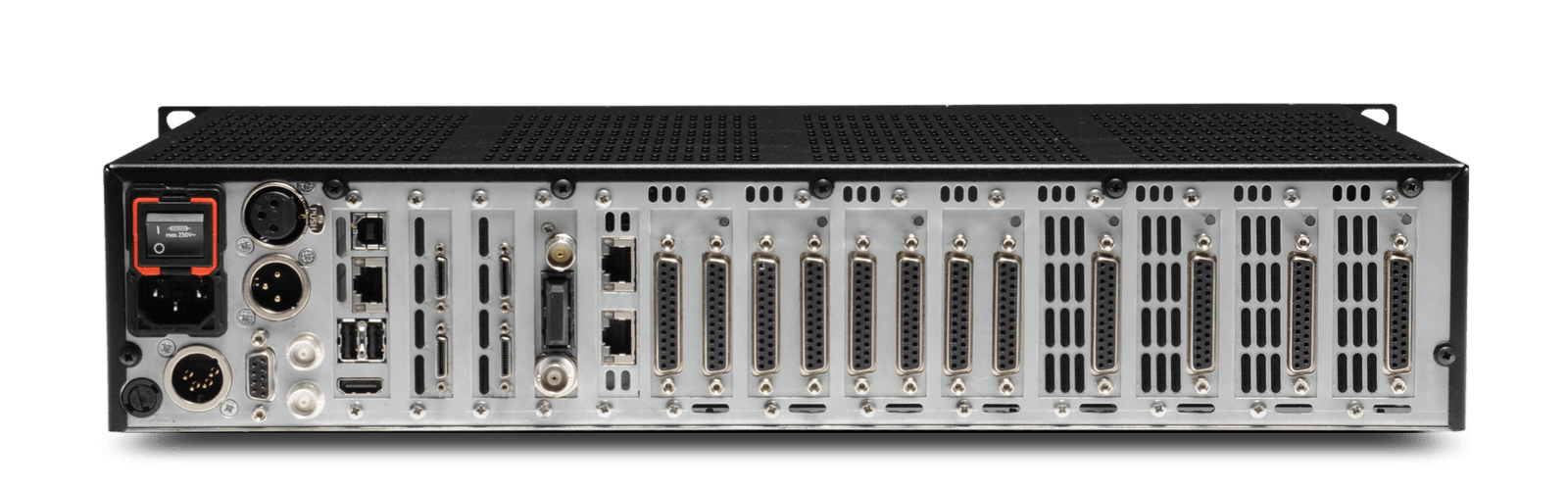

With 4 modular host slots alongside 16 modular I/O slots, the Dream ADA128 offers unrivalled and almost unlimited flexibility.
CONFIGURATIONS
I/O Modular Expansion

The Dream ADA-128 is not just a conversion system, but a high-performance networkable audio distribution and processing system which meets the most exacting requirements of a recording studio through to a film sound stage.
FEATURES:
- Modular analogue and digital IO up to 128 channels in a 2U frame
- High-performance 32-bit A/D and D/A conversion
- Sample rates up to 384kHz
- Modular host interfacing (computers, recorders, consoles, network etc) options

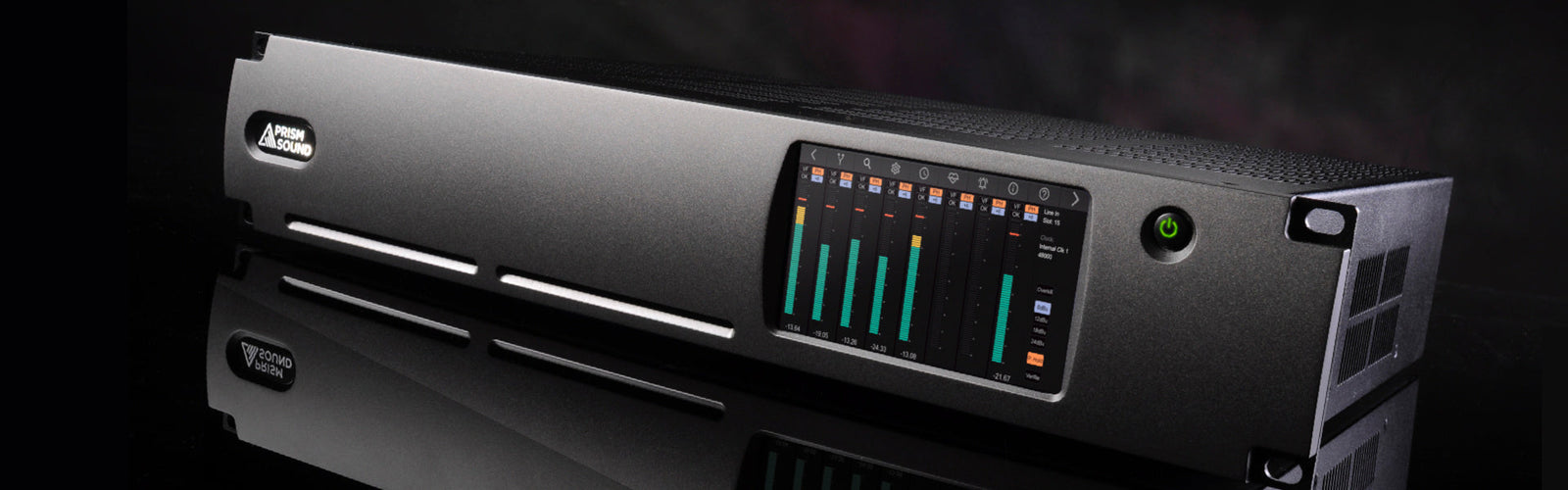

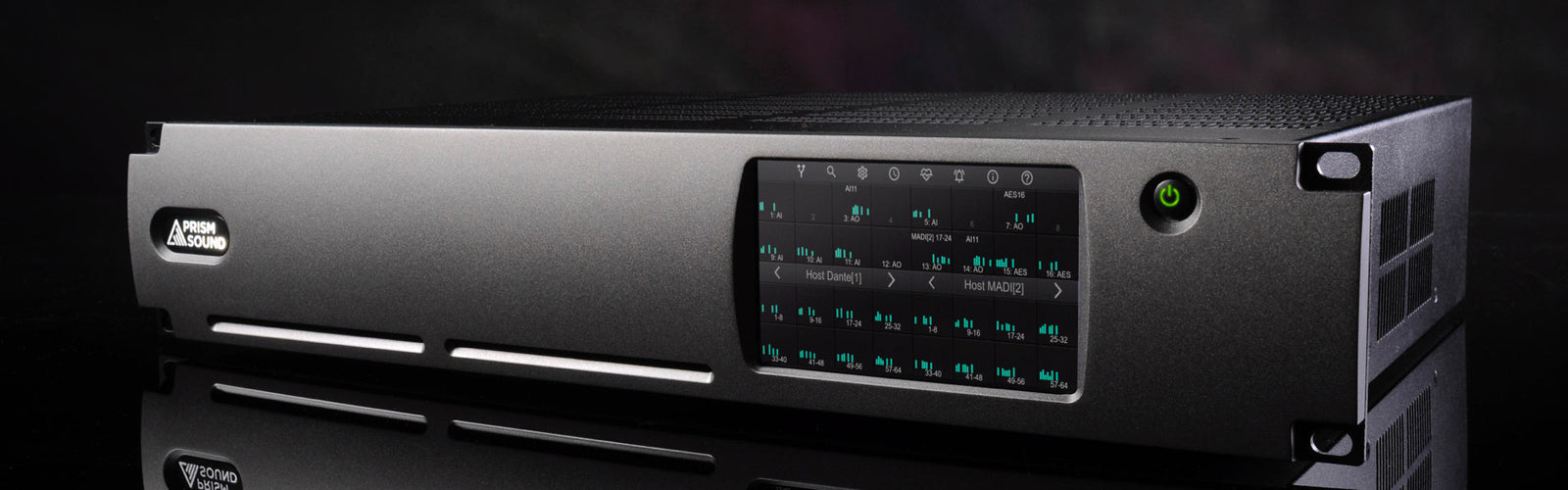

- Control and metering via front-panel touch-screen
- Prism Sound CleverClox jitter-rejecting hybrid PLLs and low-jitter master clocks
- Flexible synchronization options, including sync to AES11, Wordclock or Hosts
- Independent synchronization of I/O cards, enabling operation with different clocks
- Flexible routing
- Comprehensive store system for fast-access factory and user presets
- Modular architecture provides future-proofing: A/D conversion, D/A conversion, DSP, digital interfacing and networking implementation can all be individually upgraded
-
Firmware field upgradeable via USB or network interface
