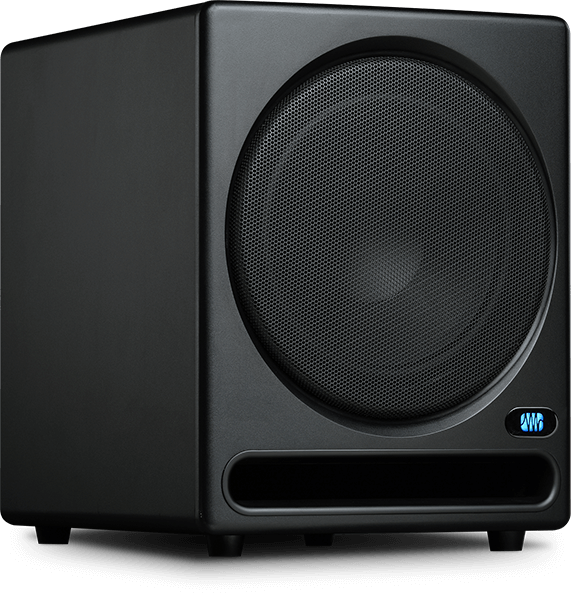

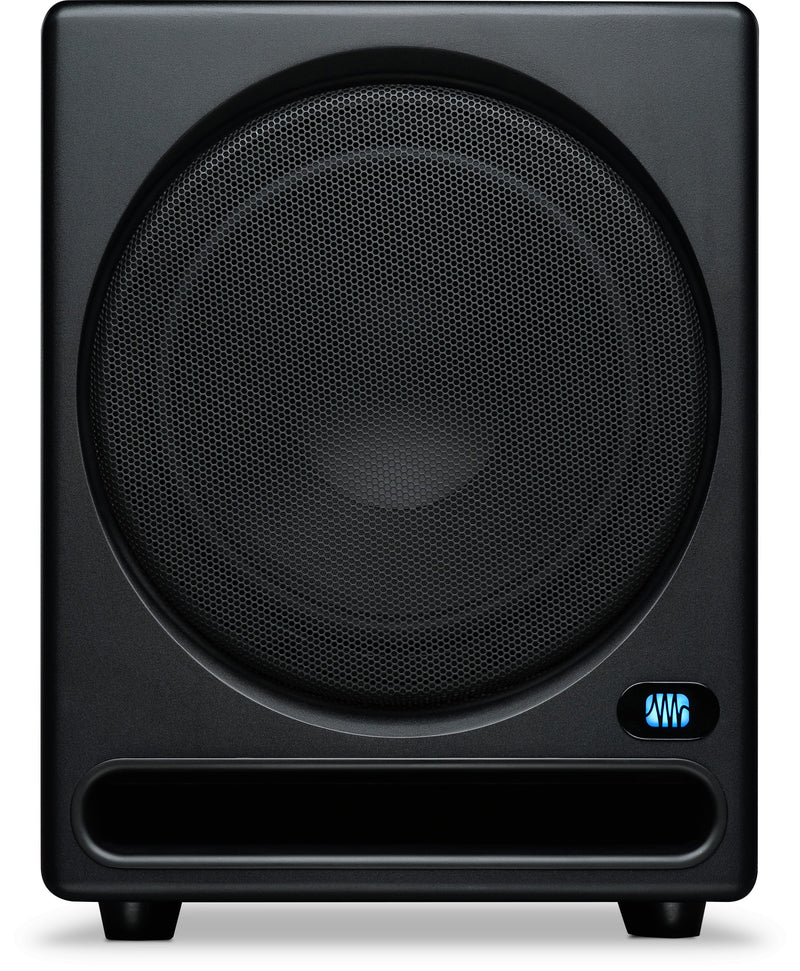

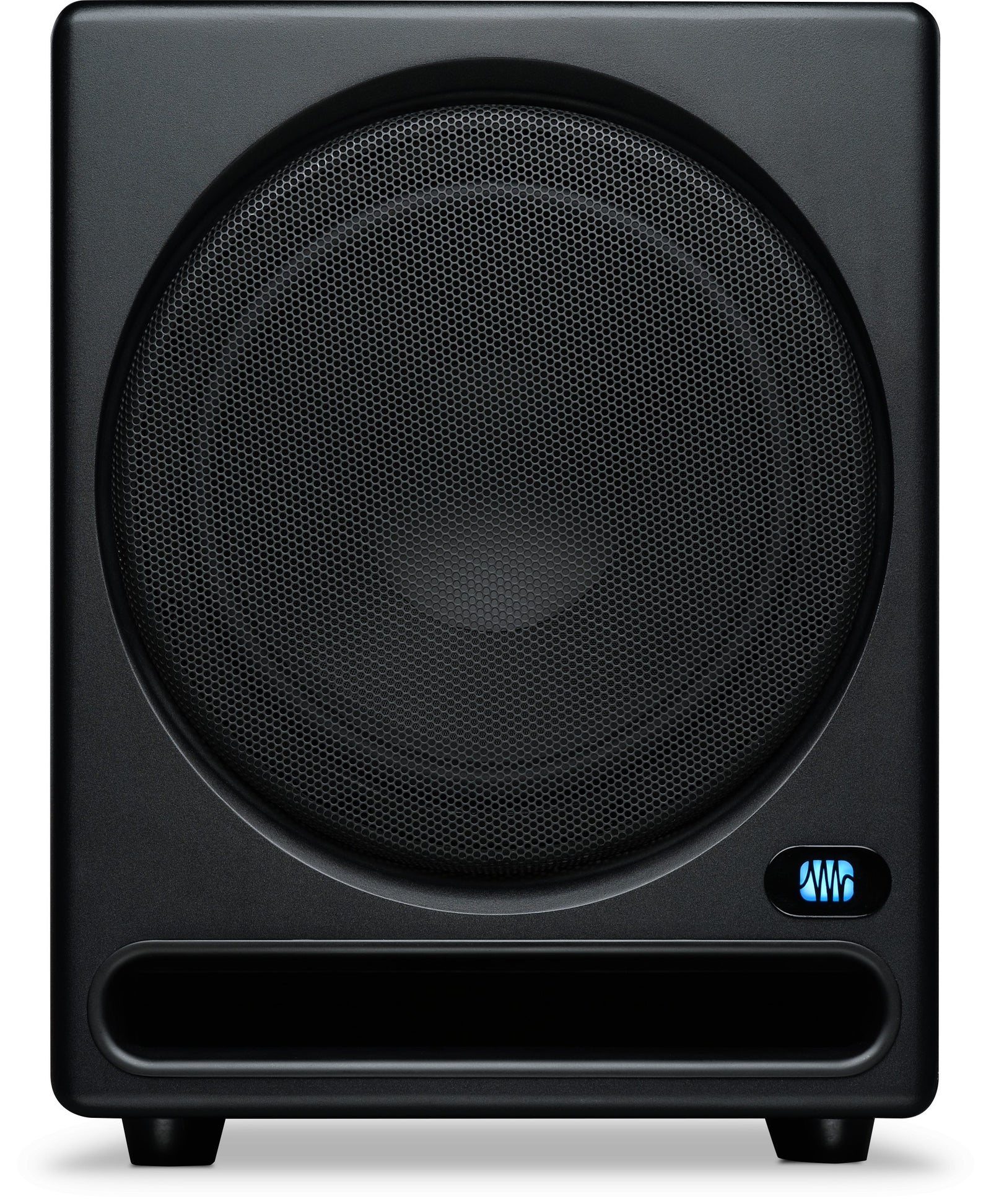

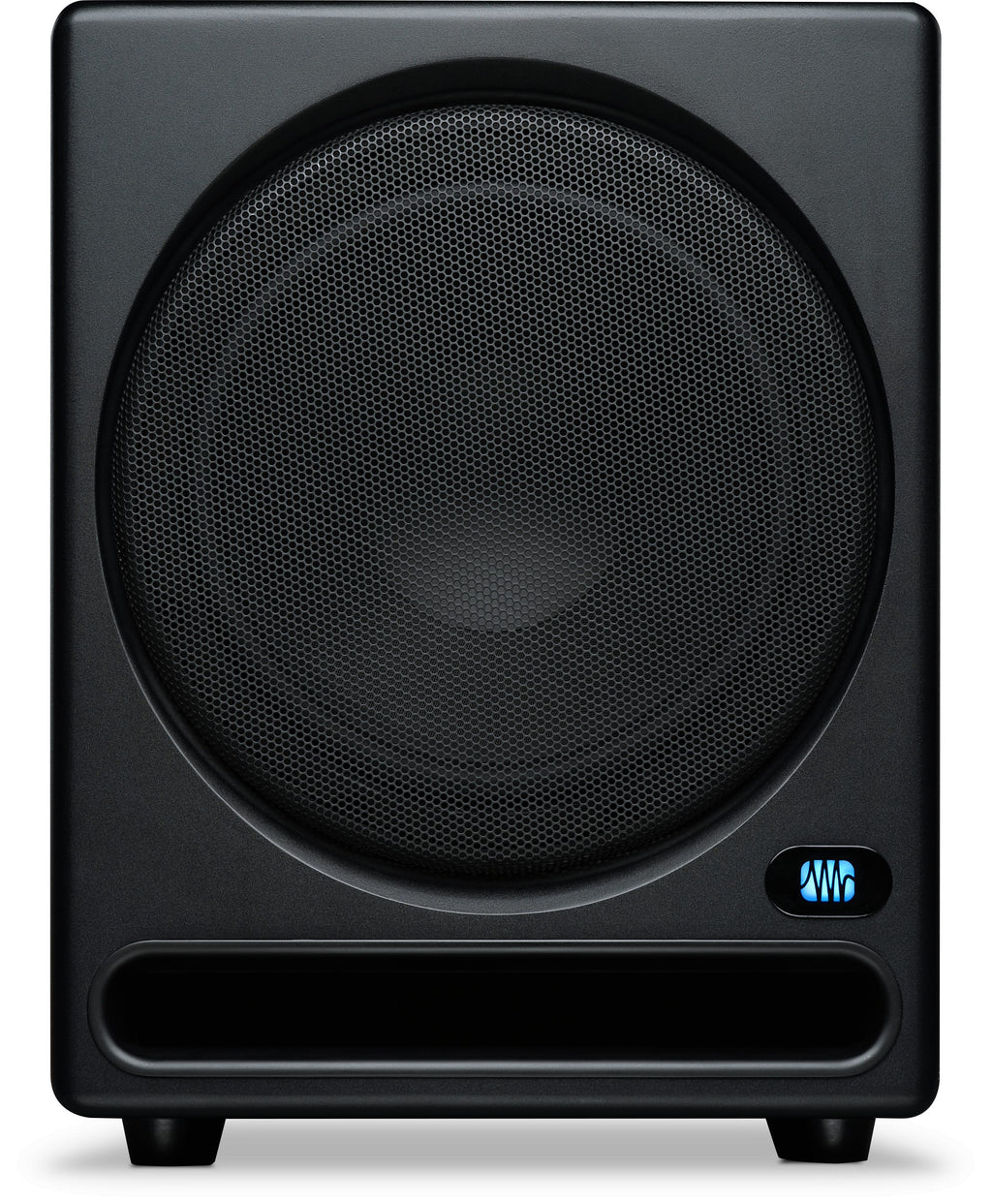

Presonus Temblor T10 Active Subwoofer

PresonusSKU: T10EU

Price:
Sale price €449.00

A solid foundation for mixing.

Powerful and musical, Temblor® T10 active, front-firing subwoofers are designed to deliver fast and accurate transient response, extending low frequencies without a hint of “tubbiness” or overshoot. This ensures that Temblor-series subwoofers complement full-range monitors without overshadowing them, naturally extending the reach of your full-range system’s low end so that you can produce your best mix from top to bottom.

Tight, clean, responsive bass.

The Temblor T10’s glass-composite low-frequency driver delivers tight and responsive bass, thanks to its lightweight and rigid cone. This design also provides lower distortion than other materials, ensuring that the sub-bass reproduction in your monitoring system is as coherent and clear as your full-range monitors.

A perfect fit with your full-range monitors.

Temblor-series subwoofers make integrating a subwoofer into your monitoring setup easy so you can create the flattest possible response. The Temblor T10 provides a continuously variable lowpass filter (50 Hz to 130 Hz), allowing you to create a seamless crossover transition between your full-range studio monitors and subwoofer for the most accurate listening environment possible.

The central hub of your monitoring setup.

Temblor T10 subwoofers provide the connections and controls necessary to act as the central hub for a basic monitoring setup. A switchable highpass filter on the full-range outputs helps to avoid frequency cancellation and reinforcement in the subwoofer’s upper range. A polarity invert ensures your system is in phase.

The Temblor T10 also features a momentary footswitch (included), making it easy to compare your mix with or without sub-bass frequencies and ensure it will sound good on a wide variety of systems.

Accuracy defined.

When you hear the low-frequency foundation of your mix accurately, you can make more informed decisions and create more translatable mixes. Temblor T10 subwoofers are the natural sub-bass extension for virtually any full-range monitoring system.

Features

Main components

  • 10-inch, front-firing, glass-composite low-frequency transducer
  • Front-firing, bass-reflex acoustic port

Controls and filters

  • Input gain control (-30 dB to +6 dB, continuously variable)
  • Continuously variable lowpass filter (50 Hz to 130 Hz)
  • Built-in crossover
  • Switchable highpass filter removes frequency content below 80 Hz from the full-range signal sent from the Temblor outputs to the main monitors
  • Momentary footswitch (included) bypasses the subwoofer, highpass filter, and Sub Out
  • Polarity invert
  • Ground-lift switch

Power and safety

  • 250 watt, Class AB amplification
  • Internal damping and heat sink
  • Integrated rubber feet for stable placement

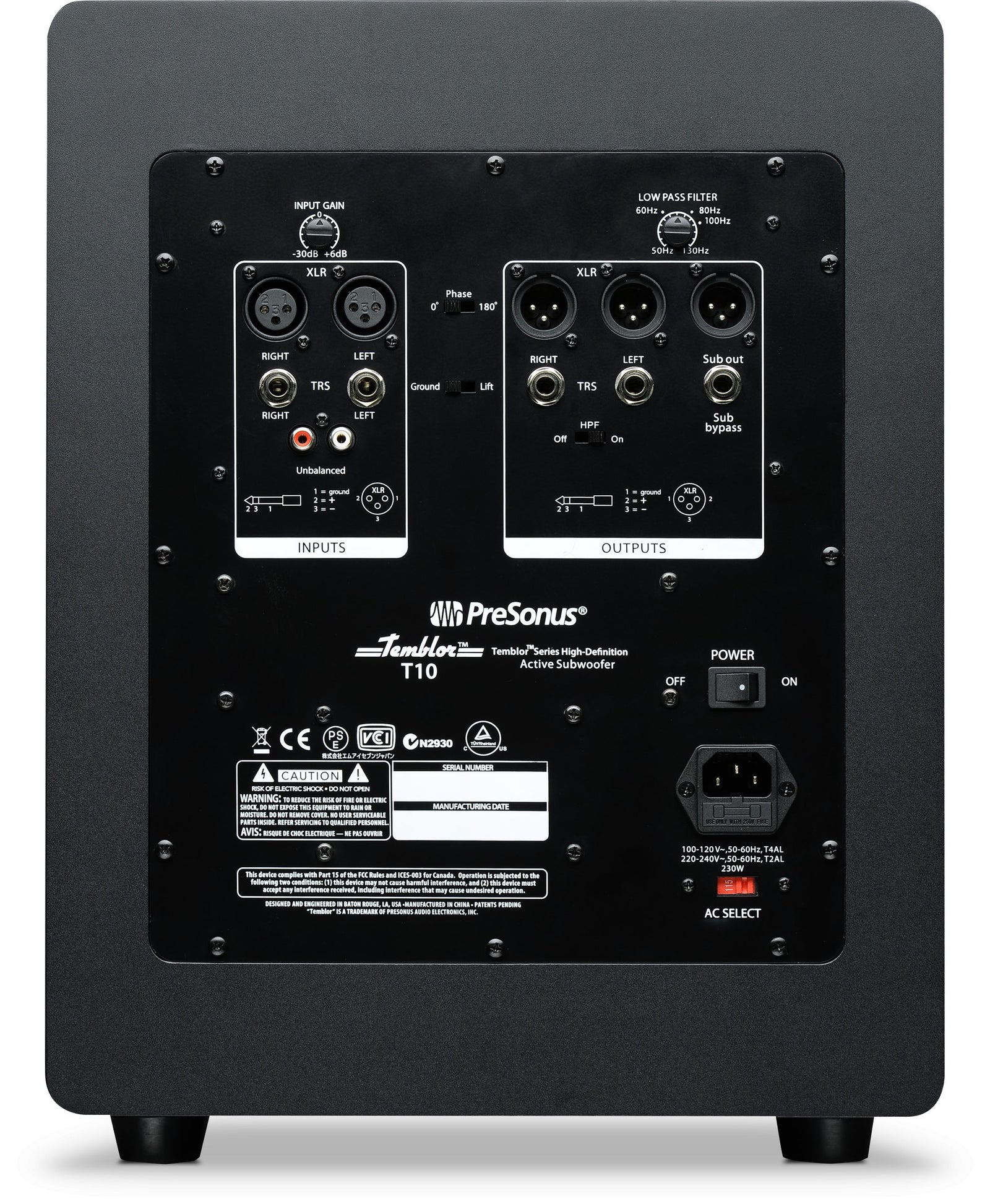

Inputs and outputs

  • Left and right, balanced XLR and ¼” TRS and unbalanced RCA main inputs
  • Left and right balanced XLR and ¼” TRS outputs
  • XLR subwoofer output for connecting a second Temblor® T10

Technical Specifications

Inputs





2- Balanced XLR

2- Balanced ¼” TRS

2- Unbalanced RCA

Outputs





2- Balanced XLR (full range with 80 Hz HPF option)

2- Balanced ¼” TRS (full range with 80 Hz HPF option)

1- Balanced XLR (Sub Out)

Performance



Frequency Response

20 Hz – 200 Hz

Low Pass Filter Frequency

50 – 130 Hz (variable)

Signal-to-Noise Ratio

>98 dB (A weighted)

THD

0.019% @ power <160W

Amplifier Power

250W peak, 170W RMS

Power Consumption

230W

Amplifier Type

Class AB

Peak SPL at 1m

113 dB

Woofer

10” glass-composite, front-firing

Acoustic Port

Front-firing bass reflex

User Controls



Input Gain Range

-30 to +6 dB

Polarity Switch

0° or 180°

Low Pass Filter Control

50 Hz to 130 Hz

Ground Lift Switch

On/Off

High Pass Filter Switch

On/Off

Bypass Footswitch

On/Off

Protection





RF interference

Output-current limiting

Over-temperature

Turn-on/off transient

Subsonic filter

External mains fuse

Power





100-120V ~50/60 Hz or 220-240V ~50/60 Hz

Cabinet





Vinyl-laminated MDF

Physical



Width

12.6” (320 mm)

Depth

15.75” (400 mm)

Height

15.75” (400 mm)

Weight

39.46 lbs (17.9 kg)
