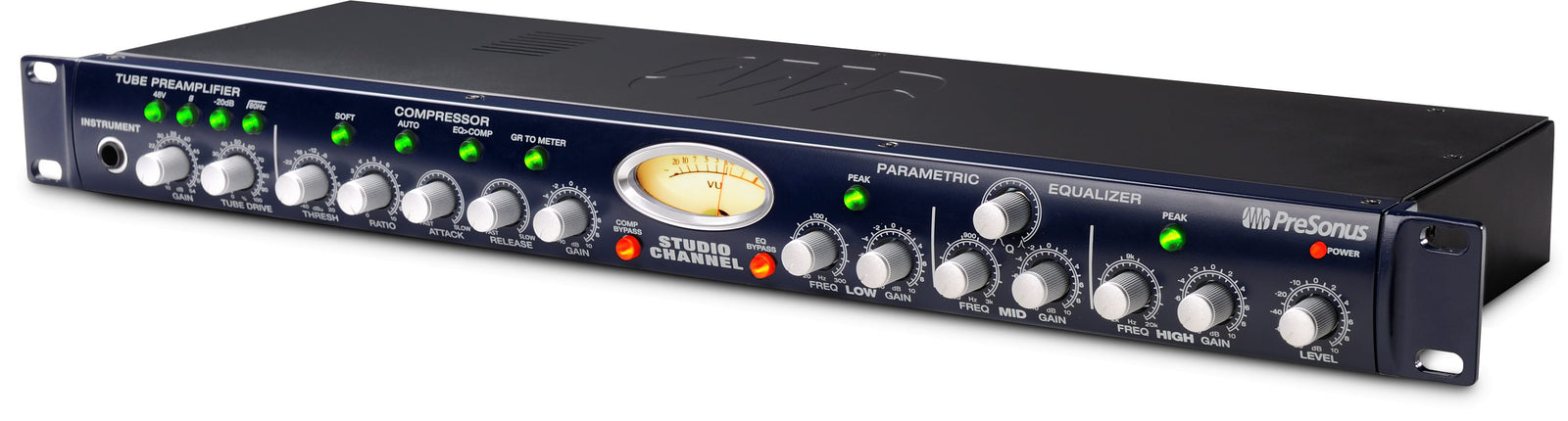

Presonus Studio Channel Valve Channel Strip

PresonusSKU: STUDIOCHANNELEU

Price:
Sale price €355.00

The Anywhere Channel.

We named this channel strip the Studio Channel, and indeed it’s a wonderful studio tool. But it’s great for live performance, too. Featuring tube preamplification, a VCA-based compressor, and three-band EQ, it delivers a huge variety of timbres. Produce luscious, in-your-face vocals, dynamic acoustic piano, and fat, solid bass guitar, not to mention crystal-clear acoustic guitars and cracking snare. Yes, we got the name wrong; we should have called it the Anywhere Channel. But we got the design right.

Impressive headroom and a huge variety of fat sounds.

The Studio Channel’s Class A preamplifier starts with a high-output 12AX7 tube that operates on voltages double that of other preamplifiers in its class. The result is lots of headroom and big tone. Gain and Tube Drive controls enable a wide range of sounds, from transparent and clear to edgy and overdriven. A -20 dB pad, 80 Hz highpass filter, and polarity reverse let you tweak your signals to sit properly in the mix.

Fast, smooth, musical VCA compression.

Our VCA-based compressor is known for musicality and fast attack, with the ability to tame the fastest transients. From slap bass, to snare drum, to vocals, the Studio Channel’s compressor allows you to record blazing-hot signals with accurate dynamics control. In addition to ratio, threshold, attack, release and gain controls, it offers a convenient Auto Attack/Release feature with preset attack and release curves. The backlit VU meter can display gain reduction or output gain.

Sweet three-band EQ—before or after the compressor.

The three-band equaliser in the Studio Channel is a precision tool, with the ability to carve out unwanted frequencies as well as tailor your tone to enhance your sound. The EQ can be pre- or post-compressor, and you can bypass each stage independently. Custom-designed amplifiers deliver sweet-sounding gain and cut for smooth highs; deep, solid lows; and clear midrange. The midrange band is fully parametric, with variable Q, while the high- and low-frequency bands are semi-parametric, with Frequency and Gain controls but fixed Q, and can be either shelving or peak bands.

Tasty spices that work with virtually everything.

In the lunch room at PreSonus’® Baton Rouge headquarters, it’s an article of faith that Cajun spices taste great with almost everything. The Studio Channel is equally versatile, delivering great sound for virtually any type of recording or live music. And with separate XLR mic, balanced ¼-inch line, and unbalanced ¼-inch instrument inputs and balanced XLR and ¼-inch outputs, you can connect it to almost any recording interface, amp, or P.A. This really is an Anywhere Channel!

Features

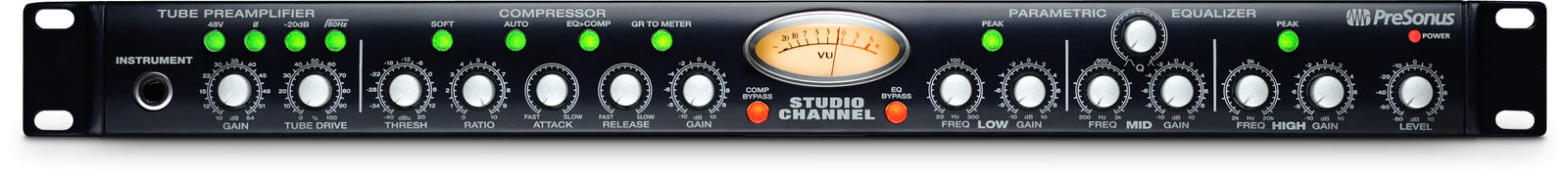

1 channel with Class A 12AX7 vacuum-tube mic/instrument preamplifier

  • Gain control with +10 dB to +54 dB gain range
  • Tube Drive control
  • 48V phantom power switch
  • 80 Hz high-pass filter
  • -20 dB pad
  • Polarity-reverse switch

Fully Variable VCA compressor

  • Attack, Release, Ratio, Threshold, and (makeup) Gain
  • Auto Attack/Release switch
  • Soft/Hard Knee switch
  • Bypass switch

3-band parametric equaliser

  • Gain, Frequency, and Q controls (mid band)
  • Gain and Frequency controls (low and high bands)
  • Shelving/peak switches (low and high bands)
  • Switchable pre-/post-compressor
  • Bypass switch

Master level control

  • Backlit VU meter
    • Gain Reduction to Meter switch (selects gain reduction or output gain)

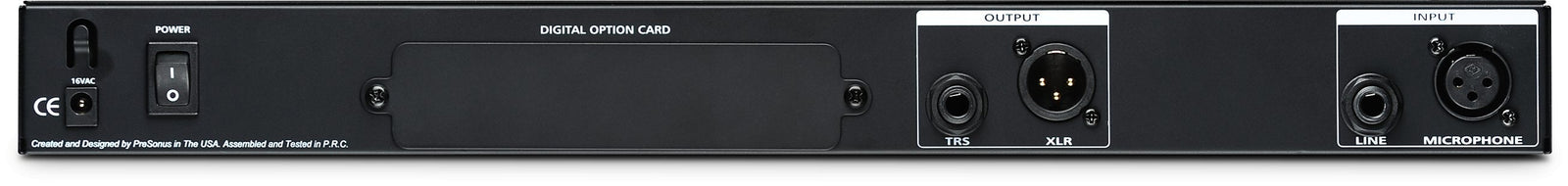

Input/Output

  • 1 unbalanced ¼” instrument input (front panel)
  • 1 balanced ¼” line input
  • 1 balanced XLR mic input
  • 1 balanced ¼” line output
  • 1 balanced XLR line output

Physical

  • 1U 19” rack-mountable, rugged steel chassis
  • Sealed, detented, metal rotary controls
  • External 16 VAC power supply

Technical Specifications

General



Channels

1

Dynamic Range

>115 dB

Frequency Response

10 Hz to 50 kHz

Internal Operating Level

0 dBu = 0 dB

Microphone Preamp



Gain

-6 dB to +66 dB (± 10 dB trim on line input)

Noise Floor

-96 dBu

EIN

-126 dB

THD + Noise (0% Tube Drive)

< 0.050%

THD + Noise (100% Tube Drive)

< 0.10%

Microphone Input Connector

XLR

Microphone Input Impedance

1.3 kΩ

Instrument Input Connector

¼” TS

Instrument Input Impedance

1 MΩ

Line Input Connector

¼” TRS

Line Input Impedance

10 kΩ

Phantom Power (switchable)

+48V

Pad (switchable)

0 dB / -20 dB

Phase (switchable)

0°, 180°

High-pass filter (switchable)

-3 dB at 80 Hz

Compressor



Threshold (variable)

-40 dBu to +-2 dBu

Ratio (variable)

1-10 (1:1 to 10:1)

Attack (variable)

0.1 to 200 ms

Release (variable)

0.05 ms to 3S

Gain Makeup

-10 dB to +10 dB

Metering

Analog VU (Gain Reduction / Output)

Equalizer



LF Band Controls:



Frequency

Variable from 40 Hz to 500 kHz

Gain

Variable between ±10 dB

Q

0.7 (on Peak setting)

MF Band Controls:



Frequency

Variable from 200 Hz to 3 kHz

Gain

Variable from -10 dB to +10 dB

Q

Variable from 0.7 to 2.5

HF Band Controls:



Frequency

Variable from 2 kHz to 20 kHz

Gain

Variable between ±10 dB

Q

0.7 (on Peak setting)

Master



Output Fader

-80 dB to +10 dB

Output Connectors

XLR Balanced and ¼” TRS Balanced/Unbalanced

Output Impedance

51Ω

Metering (Output level)

Analog VU (-20 dBu to +6 dBu)

Metering (Gain Reduction)

Analog VU -20 dB to 0 dB

Output Headroom

+22 dBu

Power Supply



Type

Linear

Input

16 VAC / 1000 mA

Power Requirements (Continuous)

16W

Transformer

External (country specific)

Physical



Dimensions

1U rackmount

Height

1.75” (44.45 mm)

Depth

5.5” (139.7 mm)

Width

19” (482.6 mm)

Weight

5 lbs. (2.27 kg)
