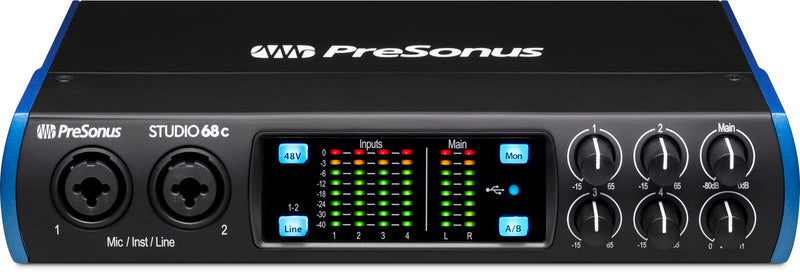

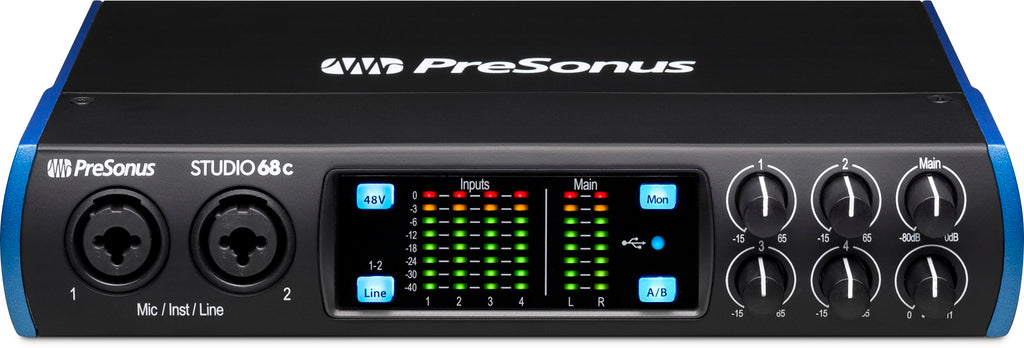

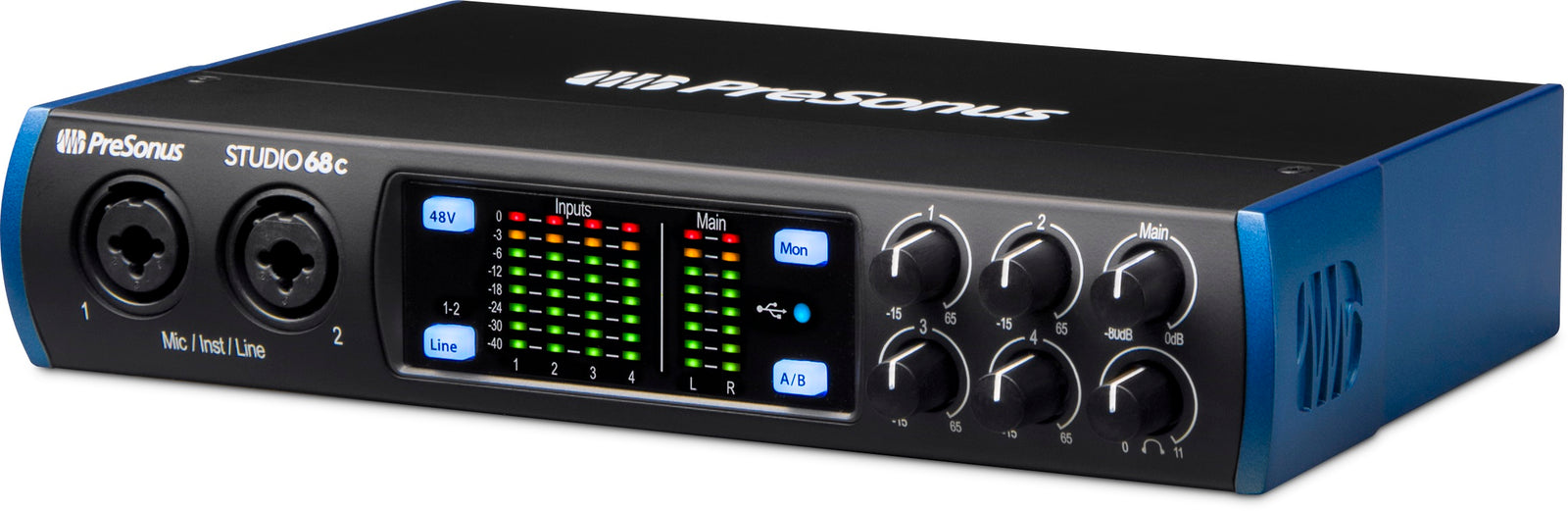

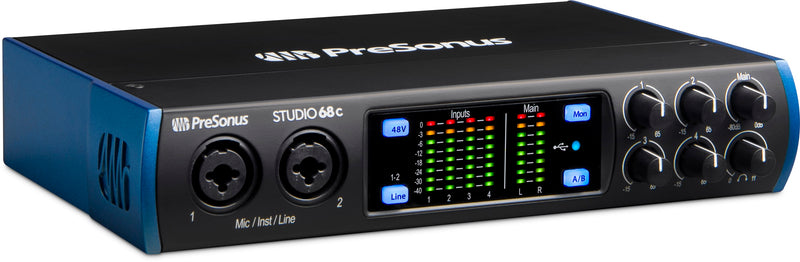

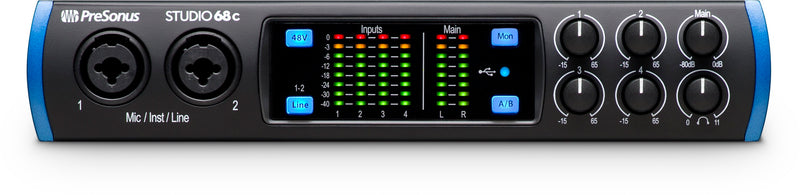

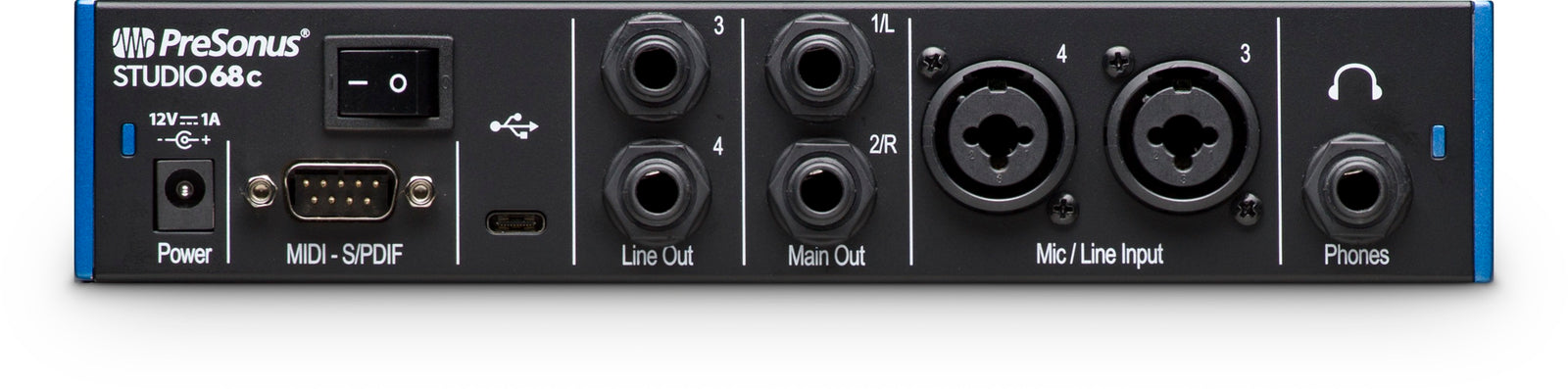

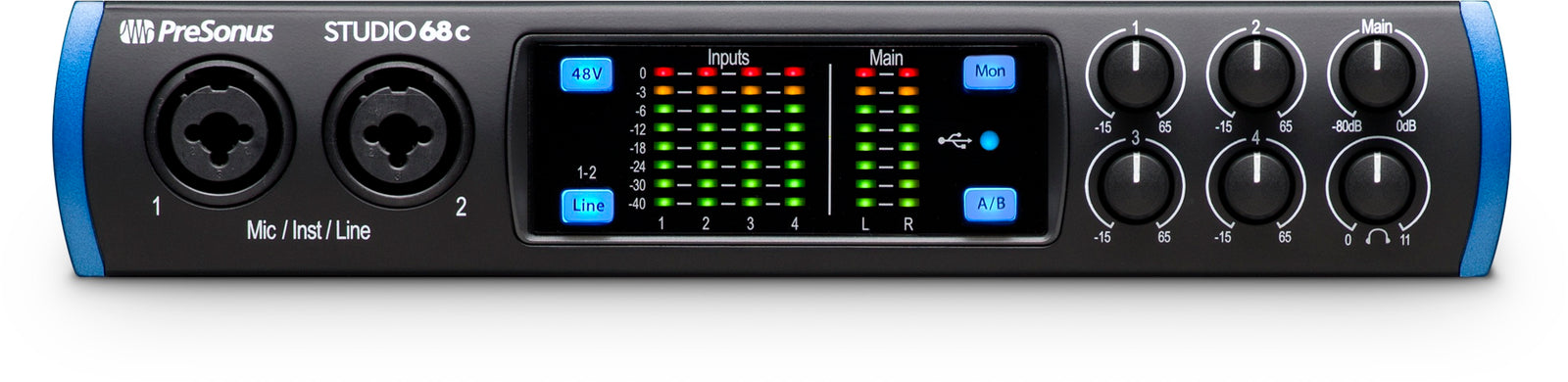

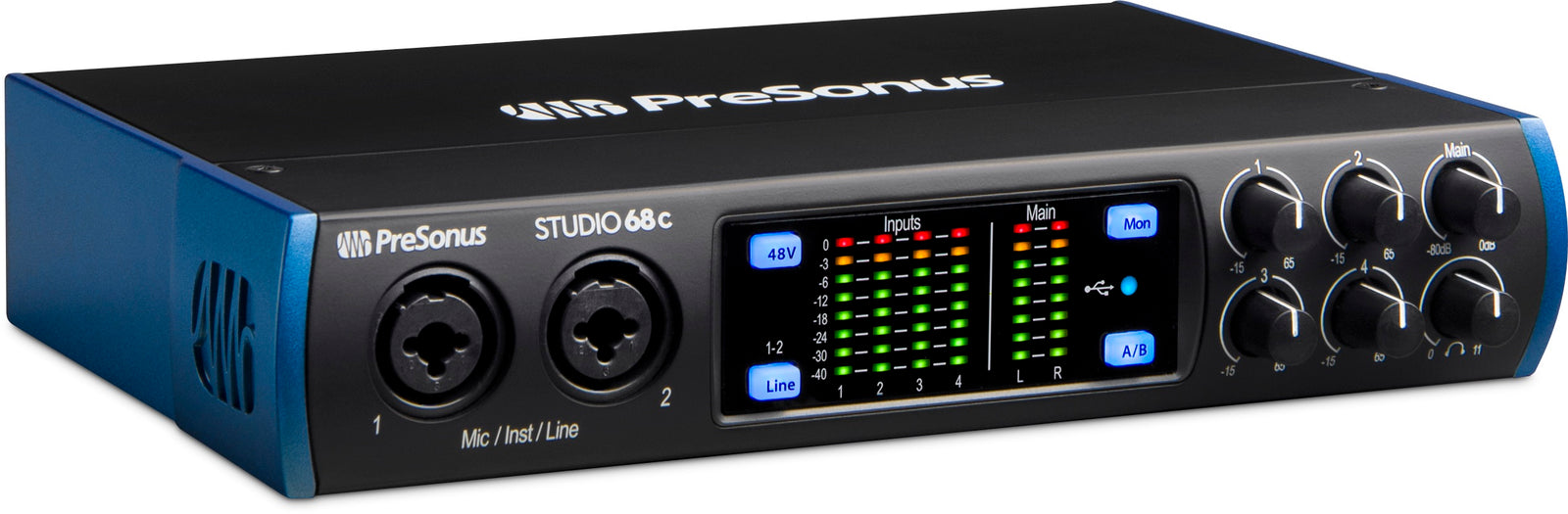

An excellent choice for small bands, producers, and small studios, the Studio 68c 6-in, 6-out, USB-C audio interface can record at up to 192 kHz and features 2 front-panel combo mic/line/instrument inputs and 2 rear-panel mic/line inputs, all with XMAX preamps. In addition to the L/R main outputs, you get two balanced line outputs for monitor mixing plus MIDI and S/PDIF I/O. A Cue Mix A/B function lets you toggle between two mixes while monitoring through headphones—perfect to listen in on a performer’s monitor mix. A complete all-in-one recording solution, the Studio 68c comes with PreSonus’ Studio One® Artist recording software and Studio Magic Plug-in Suite for macOS® and Windows®. USB-C to USB-C and USB-C to USB-A cables are included for compatibility with most computers.
Main Features:
- 6x6 USB-C audio interface with MIDI (4x4 at 192 kHz)
- 24-bit resolution; 44.1, 48, 88.2, 96, 176.4, and 192 kHz sampling rates
- 2 mic/instrument/line inputs with XMAX Class A mic preamps
- 2 mic/line inputs with XMAX Class A mic preamps
- +48V phantom power (global)
- 2 DC coupled, balanced, ¼” TRS line outputs for monitor mixing
- 2 DC coupled, balanced, ¼” TRS main outputs with front-panel level control
- 6 ladder-style LED level meters (4 input, 2 main output)
- Stereo headphone output with Cue Mix A/B
- Direct monitoring
- MIDI I/O
- USB-C to USB-C and USB-C to USB-A cables included
- Studio One® Artist and Studio Magic Plug-in Suite included
Computer system requirements:
Below are the minimum computer-system requirements.
Mac
- Mac® OS X 10.8.5 64-bit or later
- Intel® i-series 2 GHz multicore processor (or AMD equivalent) or faster
- 4 GB RAM (8 GB or more recommended)
Windows
- Windows® 7 x64/x86 SP1 + platform update, Windows 8.1 x64/x86, Windows 10 x64/x86
- Intel i-series 2 GHz multicore processor (or AMD equivalent) or faster
- 4 GB RAM (8 GB or more recommended)
Mac and Windows Systems
- USB-C or USB-A 2.0 port
- 32 GB hard disk space
- PreSonus Universal Control 2.0 or higher
- Monitor with 1366x768 resolution (high-dpi monitor recommended)
- Multitouch-enabled monitor required for touch operation
Technical Specifications
General |
|
Sample Rates |
44.1, 48, 88.2, 96, 176.4, or 192 kHz |
Converter Resolution |
24 bit |
Converter Dynamic Range |
114 dB |
Converter Dynamic Range |
114 dB |
Microphone Inputs |
|
Maximum Level |
+16 dBu (balanced, min gain) |
Gain Range |
80 dB |
Frequency Response |
20 Hz - 20 kHz (±0.15 dB, min gain, 48 kHz) |
Dynamic Range |
114 dB (A-wtd, min gain) |
THD + N |
0.007% (1 kHz, -1 dBFS, min gain) |
EIN |
-130 dBu (max gain, 150Ω, A-wtd) |
Input Impedance |
1.6 kΩ |
Phantom Power |
+48 VDC (10 mA per channel) |
Line Inputs |
|
Maximum Level |
+22 dBu (balanced, min gain) |
Gain Range |
40 dB |
Frequency Response |
20 Hz - 20 kHz (±0.15 dB, min gain, 48 kHz) |
Dynamic Range |
113.9 dB (A-wtd, min gain) |
THD + N |
0.007% (1 kHz, -1 dBFS, min gain) |
Input Impedance |
10 kΩ |
Instrument Inputs |
|
Maximum Level |
+15 dBu (unbalanced, min gain) |
Gain Range |
80 dB |
Frequency Response |
20 Hz - 20 kHz (±0.1 dB, 48 kHz, min gain) |
Dynamic Range |
114.7 dB (A-wtd, min gain) |
THD + N |
0.012% (1 kHz, -1 dBFS, min gain) |
Input Impedance |
1 MΩ |
Line Outputs (Mains) |
|
Type |
¼" TRS Female, DC Coupled |
Maximum Level |
+18 dBu (balanced) |
Frequency Response |
20Hz - 20kHz (±0.2dB, unity gain, 48 kHz) |
Dynamic Range |
109 dB (A-wtd) |
THD + N |
0.001% (1 kHz, -1 dBFS) |
Line Outputs (3/4) |
|
Type |
¼" TRS Female, DC coupled |
Maximum Level |
+18 dBu (balanced) |
Frequency Response |
20 Hz - 20 kHz (+/- 0.2 dB, unity gain, 48 kHz) |
Dynamic Range |
109 dB (A-wtd) |
THD + N |
0.0015% (1 kHz, -1 dBFS) |
Headphone Outputs |
|
Maximum Power |
150 mW/channel (56Ω load) |
Frequency Response |
20 Hz - 20 kHz (±0.2 dB, 56Ω load, 48 kHz) |
Dynamic Range |
107 dB (A-wtd, 56Ω load) |
THD + N |
0.002% (1 kHz, -1 dBFS, no load) |
Impedance Working Range |
32Ω to 300Ω |
Physical |
|
Height |
1.75" (44 mm) |
Width |
9" (229 mm) |
Depth |
5.5" (140 mm) |
Weight |
2.4 lbs (1 kg) |
