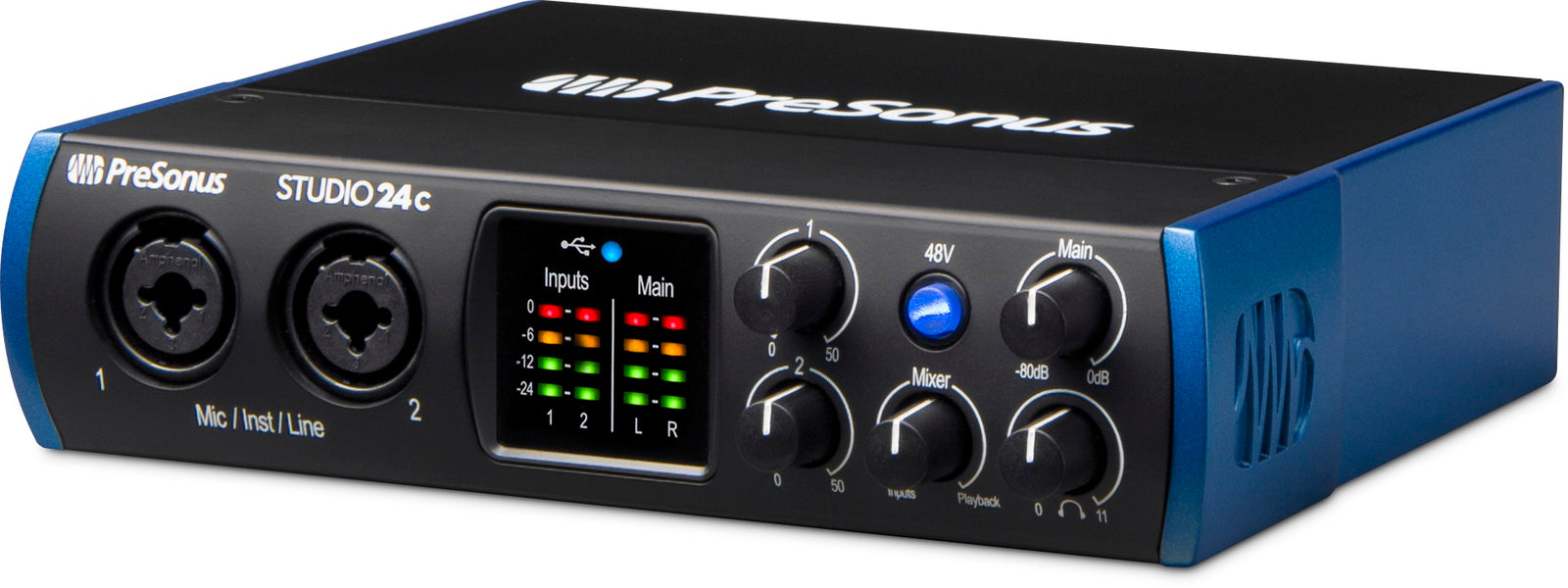

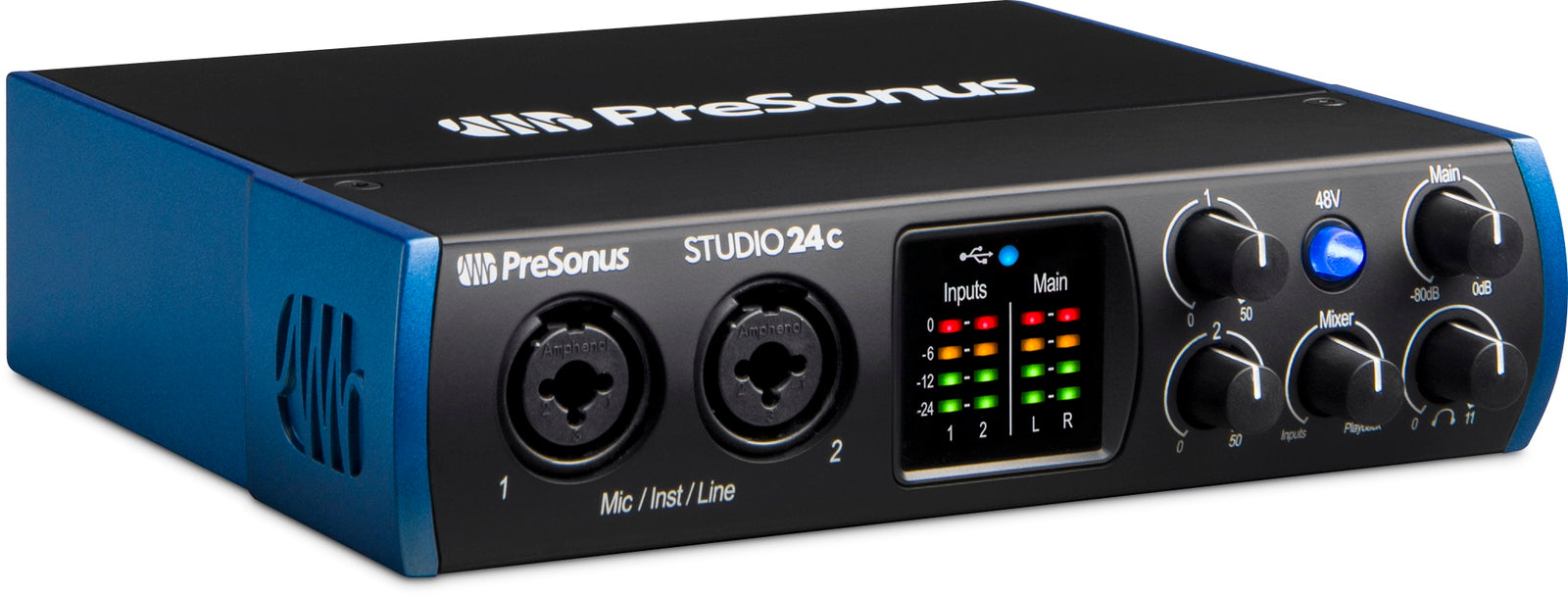

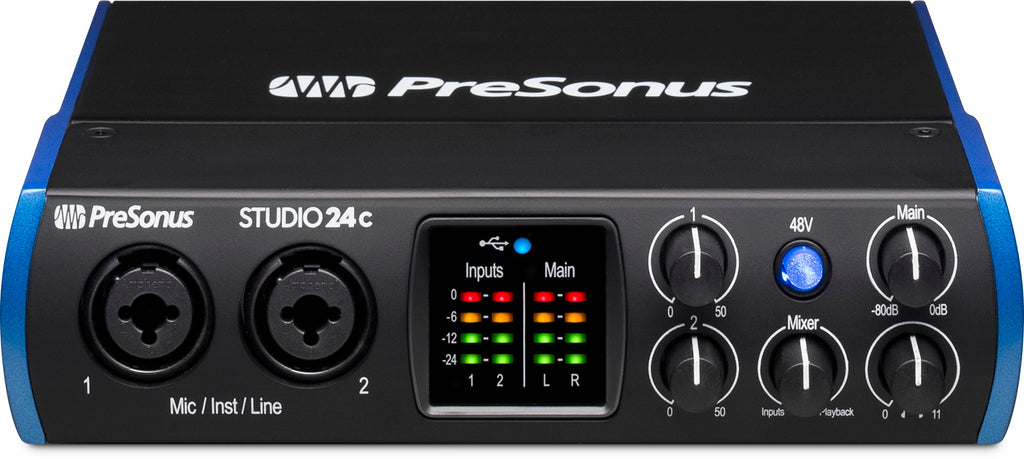

Great for solo vocalists/rappers, mobile musicians, guitarists, podcasters, and live streaming, the Studio 24c 2x2 USB-C bus-powered audio interface for macOS® and Windows® can record at up to 192 kHz and features 2 front-panel combo mic/line/instrument inputs with PreSonus XMAX-L solid-state mic preamps; two rear-panel, balanced line outputs; and MIDI I/O. A Mixer knob blends analog input and computer playback for low-latency direct monitoring. A complete recording solution, the Studio 24c comes with PreSonus’ award-winning Studio One® Artist recording software for macOS® and Windows®, and the Studio Magic Plug-in Suite. USB-C to USB-C and USB-C to USB-A cables are included for compatibility with most computers.
Main Features:
- USB-C bus-powered, 2x2 audio interface with MIDI for macOS® and Windows®
- 24-bit resolution; 44.1, 48, 88.2, 96, 176.4 and 192 kHz sampling rates

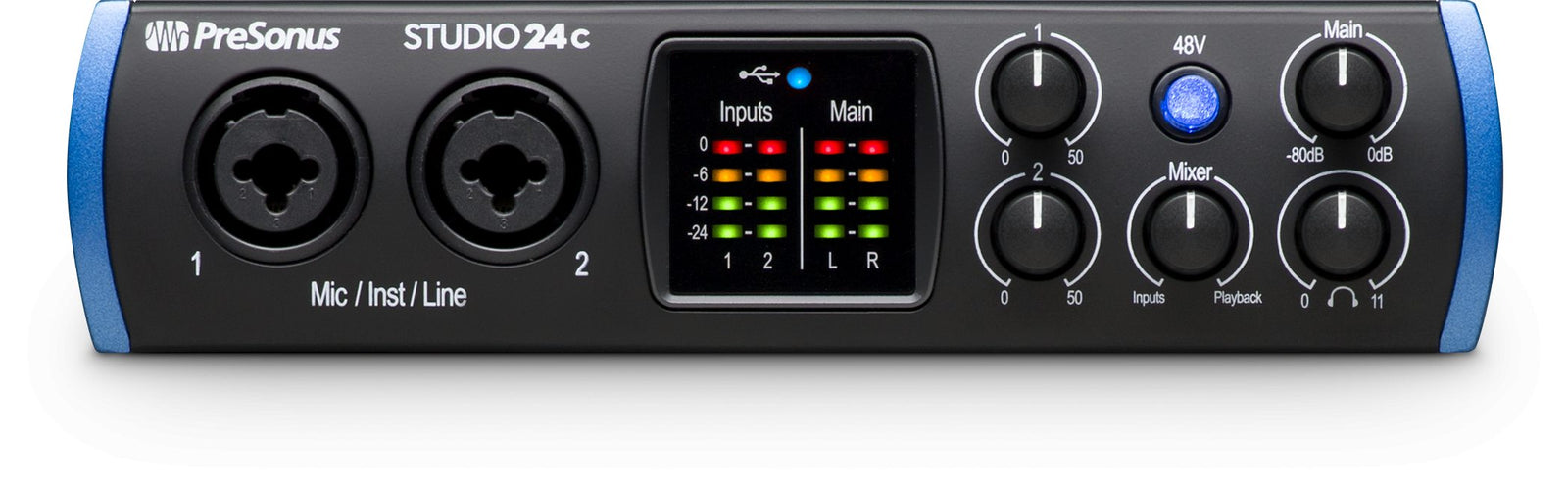

- 2 mic/instrument/line inputs with XMAX-L solid-state mic preamps
- +48V phantom power (global)

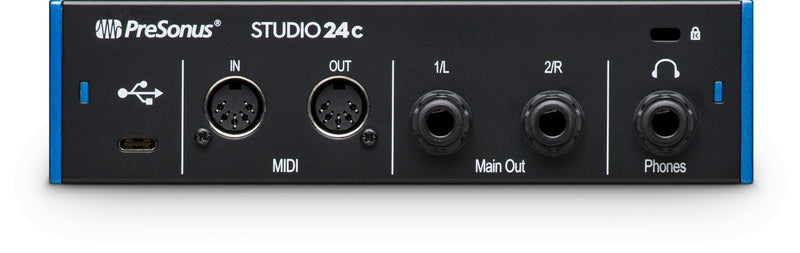

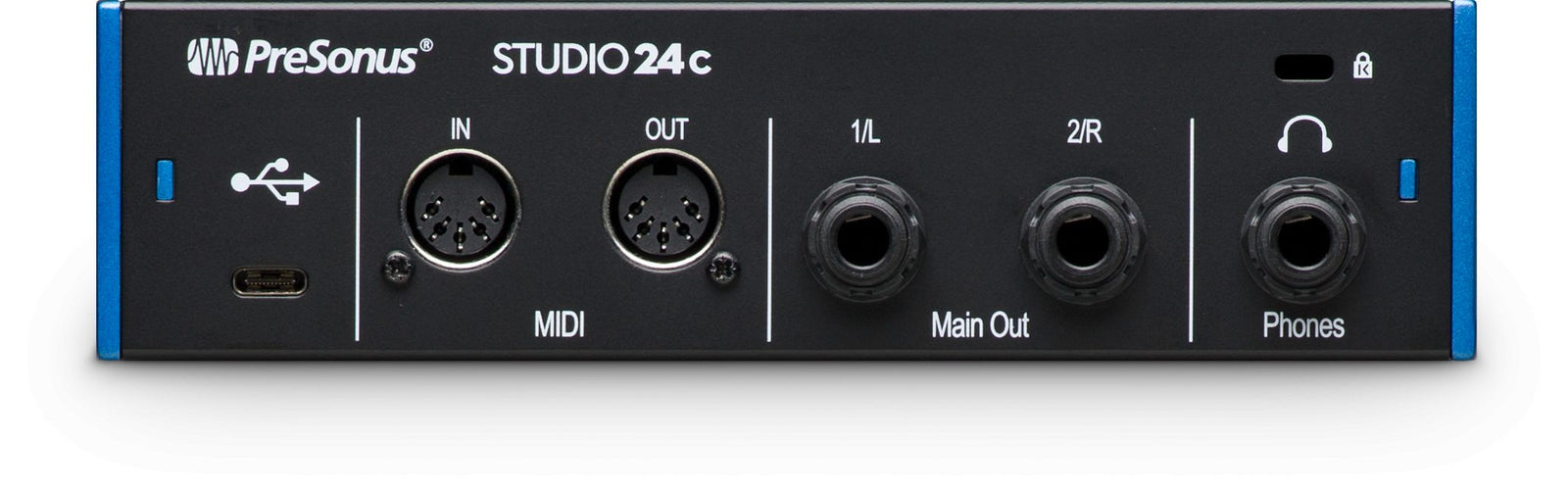

- 2 balanced ¼” TRS main outputs with front-panel level control
- 4 ladder-style LED level meters (2 input, 2 main output)
- Stereo headphone output
- Mixer knob for low-latency direct input monitoring
- Kensington lock security hole
- Studio One® Artist and Studio Magic Plug-in Suite included
- USB-C to C and USB-C to A cables included
Computer system requirements:
Below are the minimum computer-system requirements.
Mac
- Mac® OS X 10.8.5 64-bit or later
- Intel® i-series 2 GHz multicore processor (or AMD equivalent) or faster
- 4 GB RAM (8 GB or more recommended)
Windows
- Windows® 7 x64/x86 SP1 + platform update, Windows 8.1 x64/x86, Windows 10 x64/x86
- Intel i-series 2 GHz multicore processor (or AMD equivalent) or faster
- 4 GB RAM (8 GB or more recommended)
Mac and Windows Systems
- USB-C or USB-A 2.0 port
- 32 GB hard disk space
- PreSonus Universal Control 2.0 or higher
- Monitor with 1366x768 resolution (high-dpi monitor recommended)
- Multitouch-enabled monitor required for touch operation
VST is a registered trademark of Steinberg Media Technologies GmbH
ASIO is a trademark and software of Steinberg Media Technologies GmbH
Technical Specifications
|
General |
|
|
Sample Rates |
44.1, 48, 88.2, 96, 176.4, or 192 kHz |
|
Converter Resolution |
24 bit |
|
ADC Converter Dynamic Range |
108 dB |
|
DAC Converter Dynamic Range |
108 dB |
|
Microphone Inputs |
|
|
Maximum Level |
+10 dBu (±0.5 dBu, min gain) |
|
Gain Range |
50 dB |
|
Frequency Response |
20 Hz - 20 kHz (±0.3 dBu, unity gain, unwtd) |
|
Dynamic Range |
106 dB (A-wtd, min gain) |
|
THD + N |
0.004% (1 kHz, -1 dBFS, min gain) |
|
EIN |
-126 dBu (A-weighted, 150Ω, max gain) |
|
Input Impedance |
1.4 kΩ |
|
Phantom Power |
+48 VDC (10 mA total) |
|
Instrument Inputs |
|
|
Maximum Level |
+19 dBu (min gain) |
|
Gain Range |
50 dB |
|
Frequency Response |
20 Hz – 20 kHz (±0.1 dBu, unity gain, unwtd) |
|
Dynamic Range |
105 dB (A-wtd, unity gain) |
|
THD + N |
0.002% (1 kHz, min gain) |
|
Input Impedance |
750 kΩ |
|
Main Outputs |
|
|
Type |
¼" TRS, Female |
|
Maximum Level |
+10 dBu (1 kHz, unity gain, balanced) |
|
Frequency Response |
20 Hz – 20 kHz (±0.3 dBu, unity gain, unwtd) |
|
Dynamic Range |
104 dB (unity gain, unwtd) |
|
THD + N |
0.001% ( 1 kHz, -1 dBFS, unity gain) |
|
Headphone Outputs |
|
|
Maximum Power |
47 mW / channel @ 56Ω |
|
Frequency Response |
20 Hz – 20 kHz (±0.5 dBu, unity gain, unwtd) |
|
Dynamic Range |
83 dB (A-wtd, 56Ω load) |
|
THD + N |
0.01% (1 kHz, 0 dBFS, loaded) |
|
Impedance Working Range |
32Ω to 300Ω |
|
Physical |
|
|
Height |
1.75" (44 mm) |
|
Width |
7" (180 mm) |
|
Depth |
5.5" (144 mm) |
|
Weight |
2 lbs. (0.9 kg) |
