Now include a full perpetual license for Studio One Professional V7.

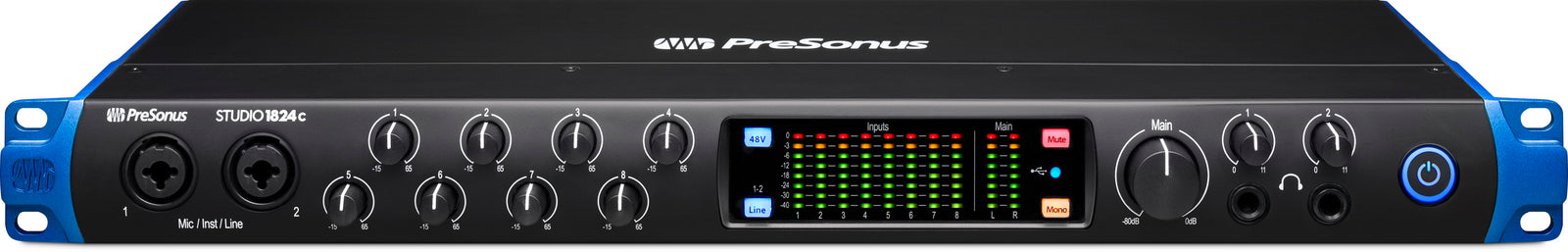

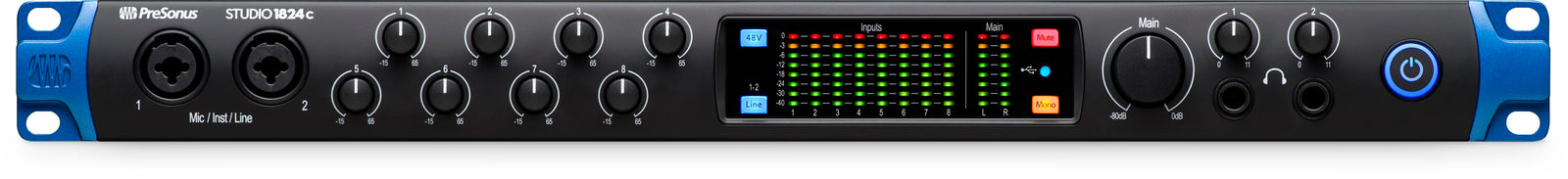

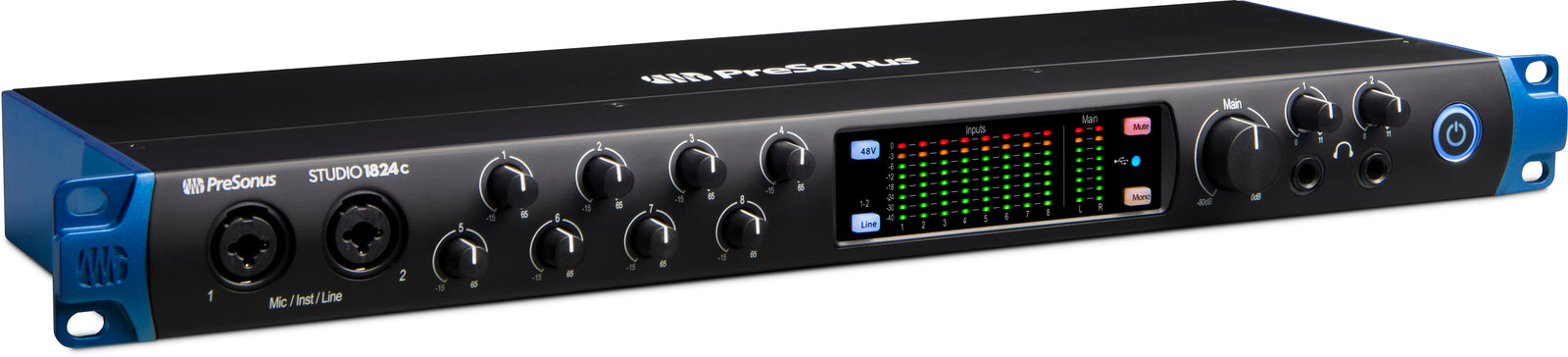

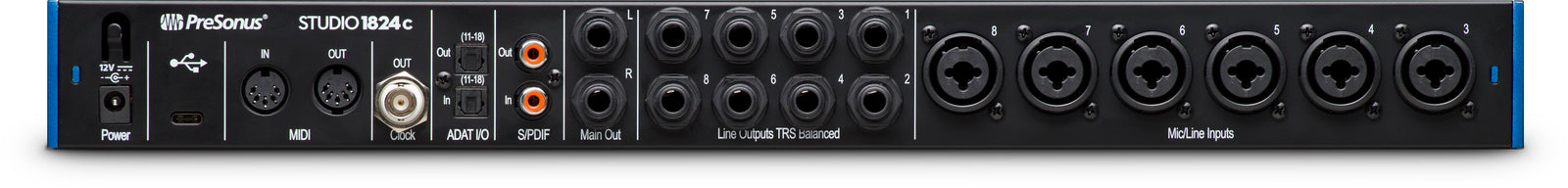

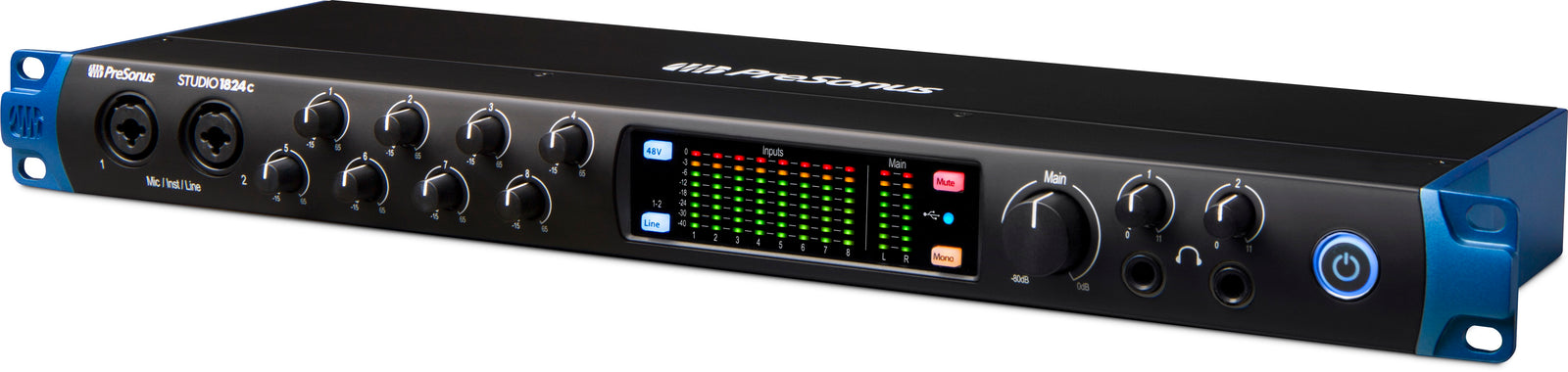

The Studio 1824c USB-C audio interface is ideal for project studios and bands/producers interested in recording full bands including multi-channel drums. It records up to 18 simultaneous inputs at up to 24-bit/192 kHz and offers 8 microphone inputs with XMAX Class A preamps and ADAT and S/PDIF I/O. Its 18 outputs offer flexible routing with zero-latency DSP-based monitor mixing and control-room integration with included Studio One® Pro for macOS® and Windows® and UC Surface for macOS, Windows, iPad®, and Android™. In addition to stereo main outputs with a dedicated mute and mono button, you get eight balanced, DC-coupled line outputs;; two headphone outputs with independent mix streams; word clock output; and MIDI I/O. PreSonus’ Studio Magic Plug-in Suite is included, and USB-C to USB-C and USB-C to USB-A cables are provided for compatibility with most computers.
Main Features:
- 24-bit/192 kHz, USB-C 18x18 1U rack mounted audio interface (8x8 at 192 kHz)
- 2 mic/instrument/line inputs and 6 mic/line inputs all with XMAX Class A mic preamps and +48V phantom power
- 8 channels of ADAT Optical I/O (4 channels at 96 kHz)
- 2 ¼” TRS balanced main outputs with front-panel level control and dedicated Mute and Mono buttons (duplicate line outs 1/2)
- 8 ¼” TRS balanced DC coupled line outputs
- 2 stereo headphone outputs with independent mix streams
- LED metering on all analog inputs and main outs
- S/PDIF I/O
- MIDI I/O
- BNC word clock output
- Flexible routing, zero-latency monitor mixing, and control-room integration with included Studio One Artist
- Monitor mix control with free UC Surface for macOS®, Windows®, iPad®, and Android™
- USB-C to USB-C and USB-C to USB-A cables included
- Studio Magic Plug-in Suite included
Computer system requirements:
Below are the minimum computer-system requirements.
Mac
- Mac® OS X 10.8.5 64-bit or later
- Intel® i-series 2 GHz multicore processor (or AMD equivalent) or faster
- 4 GB RAM (8 GB or more recommended)
Windows
- Windows® 7 x64/x86 SP1 + platform update, Windows 8.1 x64/x86, Windows 10 x64/x86
- Intel i-series 2 GHz multicore processor (or AMD equivalent) or faster
- 4 GB RAM (8 GB or more recommended)
Mac and Windows Systems
- USB-C or USB-A 2.0 port
- 32 GB hard disk space
- PreSonus Universal Control 2.0 or higher
- Monitor with 1366x768 resolution (high-dpi monitor recommended)
- Multitouch-enabled monitor required for touch operation
iOS
- iOS 9.3 or later
- iPad Pro, iPad Air 2, iPad Air, iPad mini 4, iPad mini with Retina display, iPad (4th generation), iPad mini, iPad (3rd generation), iPad 2
Android
- Android™ 5.0 (Lollipop) or later
- Android tablet (8-inch) with 1024x768 resolution (UC Surface)
Technical Specifications
|
General |
|
|
Sample Rates |
44.1, 48, 88.2, 96, 176.4, 192 kHz |
|
Converter Resolution |
24-bit |
|
Converter Dynamic Range |
114 dB |
|
Converter Dynamic Range |
114 dB |
|
Microphone Inputs |
|
|
Maximum Level |
+16 dBu, min gain |
|
Gain Range |
80 dB |
|
Frequency Response |
20 Hz - 20 kHz (unity gain) |
|
Dynamic Range |
110 dB (A-wtd, min gain) |
|
THD + N |
0.005% (1 kHz, 0dBu, unity gain) |
|
EIN |
-128 dBu (A-wtd, 20 kHz BW, Rs=150Ω, max gain) |
|
Input Impedance |
1400Ω |
|
Phantom Power |
48V (>10 mA per channel) |
|
Line Inputs |
|
|
Maximum Level |
+21 dBu (balanced, min gain) |
|
Gain Range |
40 dB |
|
Frequency Response |
20 Hz-20 kHz (unity gain) |
|
Dynamic Range |
112 dB (A-wtd, min gain) |
|
THD + N |
0.005% (1 kHz, +18 dBu, min gain) |
|
Input Impedance |
10 kΩ |
|
Instrument Inputs |
|
|
Maximum Level |
+15 dBu (unbalanced, min gain) |
|
Gain Range |
80 dB |
|
Frequency Response |
20 Hz - 20 kHz (min gain) |
|
Dynamic Range |
112 dB (A-wtd, min gain) |
|
THD + N |
0.020% (1 kHz, +10 dBu, min gain) |
|
Input Impedance |
1M Ω |
|
Main Outputs |
|
|
Type |
¼" TRS female, DC Coupled |
|
Maximum Level |
+18 dBu, balanced |
|
Frequency Response |
20Hz - 20kHz (unity gain) |
|
Dynamic Range |
108 dB (A-wtd, unity gain) |
|
THD + N |
0.004% (1 kHz, -1 dBFS, unity gain) |
|
Line Outputs |
|
|
Type |
¼" TRS female, DC coupled |
|
Maximum Level |
+18 dBu, balanced |
|
Frequency Response |
20 Hz - 20 kHz |
|
Dynamic Range |
108 dB (A-wtd, -60 dBFS) |
|
THD + N |
0.004% (1 kHz, -1 dBFS, unity gain) |
|
Headphone Outputs |
|
|
Maximum Power |
150 mW/channel (60Ω load) |
|
Frequency Response |
20 Hz - 20 kHz (unity gain) |
|
Dynamic Range |
103 dB (A-weighted, 1 kHz, unity gain) |
|
THD + N |
0.250% (1 kHz, 150 mW, unity gain) |
|
Impedance Working Range |
32Ω to 600Ω |
|
Physical |
|
|
Height |
1.75" (44 mm) |
|
Width |
19" (483 mm) |
|
Depth |
5.5" (140 mm) |
|
Weight |
4.8 lbs (2.2 kg) |
