Bus-powered USB-C® compatible dynamic broadcast microphone with built-in mixer featuring two channels for loopback audio to add Skype calls, backing tracks, and more; onboard voice effects with easy-to-use presets; high-powered headphone amplifier; zero-latency monitoring; superior 24-bit, 96 kHz recording; PTS-1 extendable desktop mic stand included; Studio One Studio One® Artist and Studio Magic Software Suite included.
The Revelator Dynamic USB microphone takes the clarity and warmth of PreSonus’ fan-favourite PD-70 microphone and adds easy-to-use, customisable presets to further polish your voice. The custom-built microphone capsule in the Revelator Dynamic is built to capture your voice cleanly and clearly with superior off-axis rejection that lets you set up your broadcast or recording studio in just about any space. You won’t record any unwanted room noise—just the pristine, natural sound of your voice.

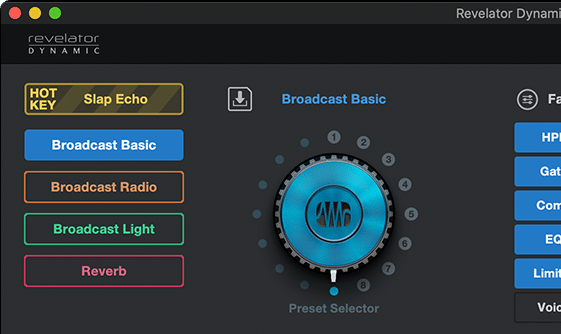

Eight professionally-crafted presets to make your voice sound polished right from the start with the option to record your vocals fully processed, making for less work in post-production. And when you’re ready to create your own unique sound, you’ll find all the studio tools you need to create a preset that’s just right for you—it’s all built into the Revelator Dynamic’s advanced onboard DSP engine. Need to add backing tracks, Zoom calls, or podcast guest audio? Revelator Dynamic makes it simple and fast to blend your voice with audio from other applications and send a professional-quality mix to your stream or podcast.
Features:
- Professional bus-powered USB-C®-compatible dynamic microphone for podcasting, streaming, vlogging, gaming, and more
- Custom-designed microphone capsule provides vocal clarity and superior off-axis rejection
- Integrated mixer with two dedicated loopback audio channels to add backing tracks, Skype calls, gameplay audio, and more!
- Headphone output with volume control and zero-latency monitoring
- 96 kHz / 24-bit operation for pristine audio recording
- Unique Multi Mode configures Revelator Dynamic as three stereo devices—Revelator, Revelator Virtual A, and Revelator Virtual B—to make recording Zoom calls or streaming gameplay a breeze
- PTS-1 extendable desktop mic stand included
- 6-in/6-out audio interface
- 2 dedicated input streams for the Revelator Dynamic microphone
- 2 dedicated output streams for headphone monitoring
- 4-in/4-out virtual streams for application-to-application recording and playback with loopback options for macOS and Windows
- Built-in Fat Channel with EQ, compressor, gate, and limiter plus voice effects, and reverb, with 8 easy-to-use factory presets and 8 user presets.
- Access up to 4 presets from Revelator Dynamic; additional presets are available in Universal Control

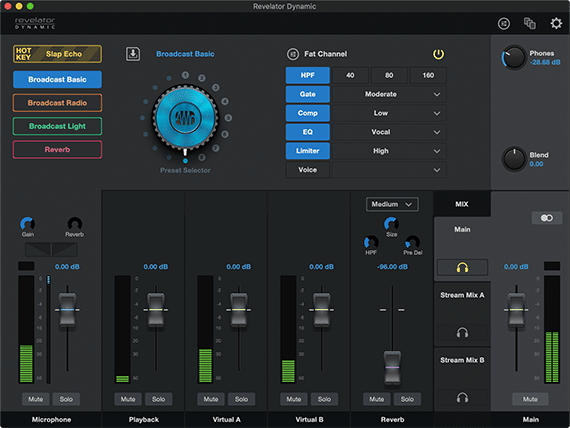

- Universal Control Surface software mixer with effects editing and hardware control
- Studio One® Artist recording and production software included
- Studio Magic software bundle included (over $1000 of effects, instruments, sounds, and more!)
- macOS® and Windows® compatible
- iOS® and iPadOS® compatible (may require a Camera Connection Kit)
- Chromebook compatible
Computer system requirements:
Below are the minimum computer-system requirements for Revelator™.
macOS®
- macOS version 10.13 or later
- 200 MB storage space and 4 GB RAM for Universal Control (required for firmware updates)
- Available USB port
Windows®
- Windows 10 or later (64-Bit Only)
- 200 MB storage space and 4 GB RAM for Universal Control (required for firmware updates and low-latency ASIO support)
- Available USB port
Chrome OS
For information on compatibility with Chrome OS, click here.
iOS/iPadOS
For information on compatibility with iOS/iPadOS, click here.
Android
For information on compatibility with Android devices, click here.
The above are the hardware system requirements for this product.
DAW software and Operating System requirements vary.
Click here for Studio One’s system requirements.
Technical Specifications
|
Microphone |
|
|
Type |
Mono Dynamic |
|
Polar Pattern |
Cardioid |
|
Frequency Response (±3.0 dB) |
20 Hz to 20 kHz |
|
Sensitivity |
1.6 mV/Pa |
|
Max SPL |
135 dB <3% THD |
|
Headphone Output |
|
|
Type |
1/8" TRS active stereo |
|
Power Output (RMS) |
22.6 mW (16Ω) |
|
THD |
0.01% |
|
Frequency Response |
20 Hz to 20 kHz |
|
Impedance |
16Ω |
|
Dynamic Range |
77.5 dB |
|
Audio Interface |
|
|
Type |
USB-C® compatible USB 2.0 |
|
Sample Rate |
44.1, 48, 88.2, and 96 kHz ( Note: 44.1 and 48 kHz only on macOS while in Multi Mode) |
|
Bit Depth |
24-bit |
|
Power |
USB Bus Power |
|
Hardware Controls |
Direct Monitor, Mic Gain, Headphone Level, Mute, Preset Select |
|
Software Controls |
Mic Gain, Pattern Select, Monitor Mix, Preset Management |
|
Onboard DSP |
PreSonus Fat Channel: High Pass Filter, Noise Gate, 3 Compressor models, 3 EQ models, and Limiter Voice Effects: Comb Filter, Delay, Doubler, Ring Modulator, Vocoder Reverb |
|
Physical |
|
|
Dimensions (HxWxD) |
8.75" x 5.125" x 3.25" (222 x 83 x 130 mm) |
|
Weight |
0.92 lbs. (042 kg) |
