Now include a full perpetual license for Studio One Professional V7.

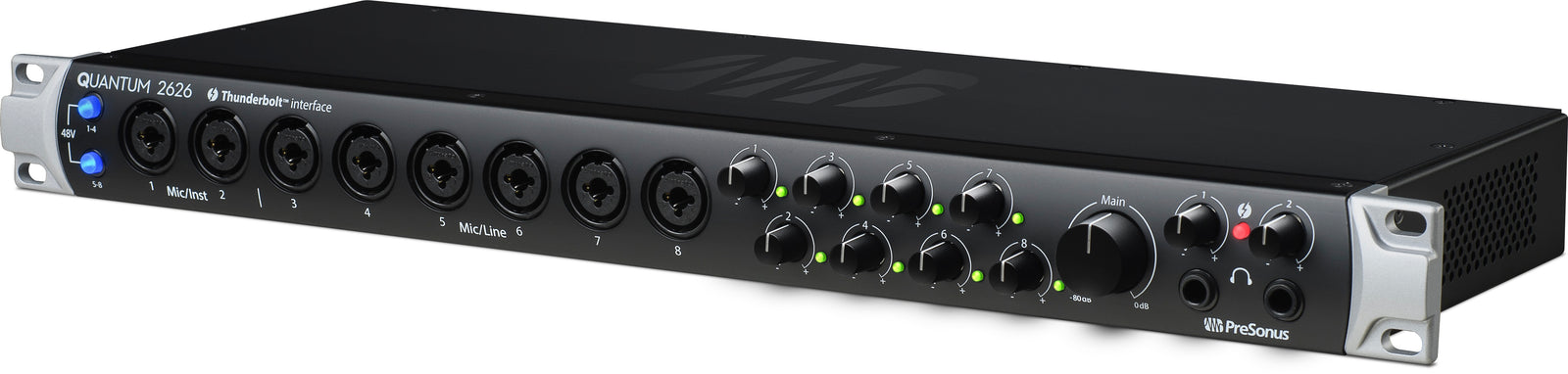

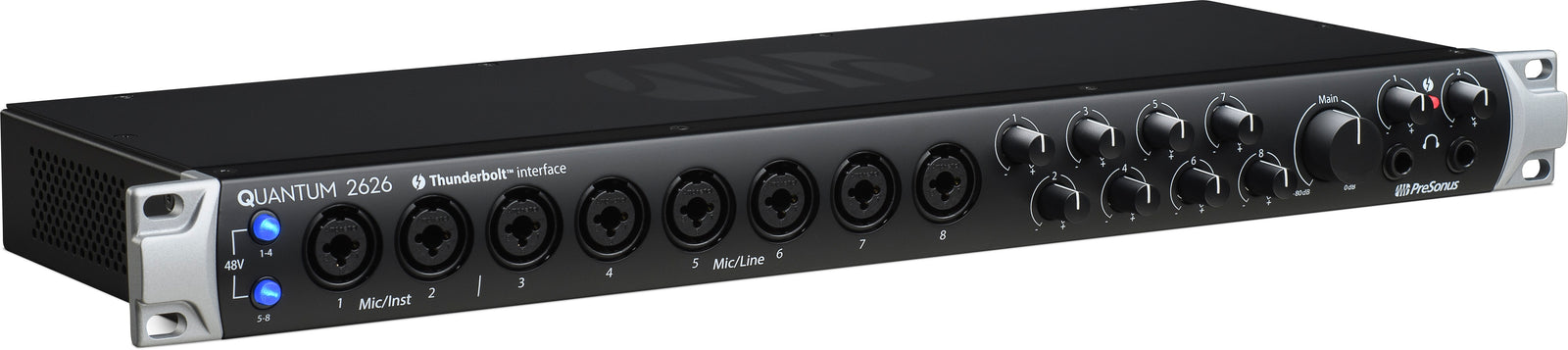

Record and monitor through your favourite plug-ins inside your DAW with the fastest audio interface on the planet. The Quantum 2626 takes advantage of the jaw-dropping speed of Thunderbolt™ 3 to achieve a barely-measurable round-trip latency of less than 1 ms. Superb high-definition digital conversion and eight ultra-transparent analog XMAX mic preamps ensure your audio always sounds its best. Insert your favourite outboard gear with two direct preamp outputs and dedicated line-level returns. Expand your system up to 26 simultaneous inputs and outputs using ADAT Optical. Streamline your recording process and make better music, faster with the Quantum 2626.
FEATURES:
- The world’s fastest Thunderbolt 3 audio interface, with round-trip latency of less than 1 ms

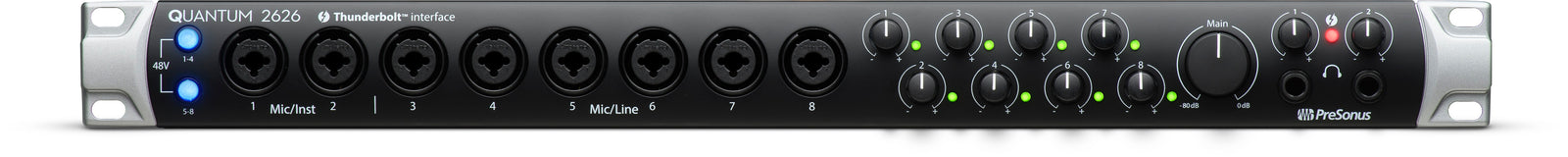

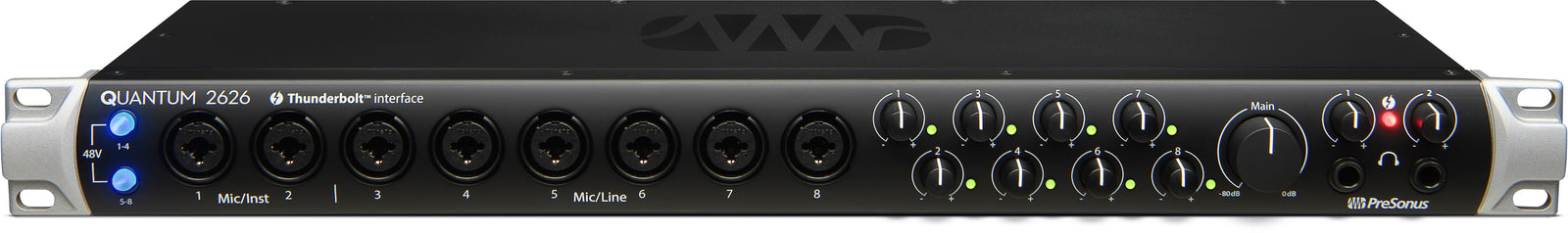

- 8 front-mounted ultra-transparent XMAX analog mic preamps
- High-definition 24-bit A/D/A conversion up to 192 kHz sampling rate
- 2 direct outputs with dedicated line-level returns for inserting output gear
- Up to 26-in/26-out when expanded via dual ADAT Optical
- 2 combo mic/instrument inputs and 6 mic/line inputs
- ¼” TRS Left and Right main outputs
- 8 ¼” TRS line outputs, DC-coupled
- 2 ¼” headphone outputs with dedicated volume

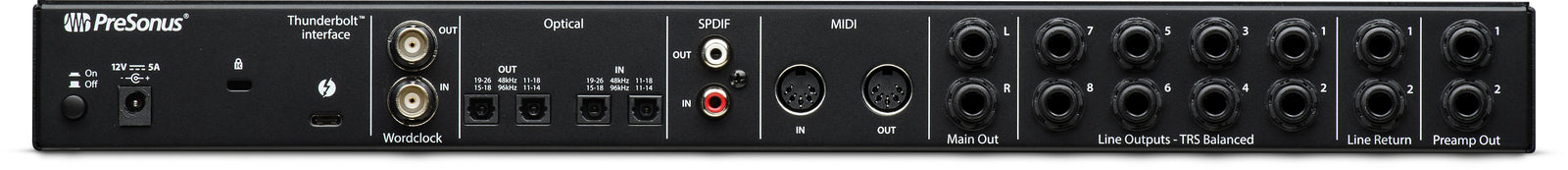

- Dual ADAT Optical, S/PDIF, MIDI, and BNC word clock I/O
- Studio One® Pro and Studio Magic Plug-in Suite included
Computer system requirements:
Below are the minimum computer-system requirements for the Quantum Interface.
Mac
- Mac® OS X 10.11.6 64-bit or later
- Intel® Core™ i5 or better
- 4 GB RAM (8 GB or more recommended)
Windows
- Windows® 10 64-bit or later
- Intel Core i5 or better
- 4 GB RAM (8 GB or more recommended)
Mac and Windows Systems
- Thunderbolt™ 1.0, 2.0, or 3.0 port (NOTE: Your computer's motherboard must support Thunderbolt. Thunderbolt 1 and 2 require an adapter, not included.)
- Internet connection (required for Studio One Activation and Content download)
- Internal or external 7200 RPM storage drive highly recommended
- 30 GB hard disk space
- Monitor with 1366x768 resolution
Note: The minimum system requirements may differ for DAWs other than Studio One. Please check the requirements for your DAW of choice with its manufacturer.
Note that the speed of your processor, amount of RAM and size and speed of your hard drive will greatly affect the overall performance of your recording system. Also, a more powerful system (faster processor with more RAM) will allow for lower latency (signal delay) than you might experience while monitoring audio signals.
Technical Specifications
|
Microphone Preamp |
|
|
Type |
XLR Female (via Combo), Balanced |
|
Maximum Input Level |
+10 dBu (Balanced, min. gain) |
|
Gain Control Range |
60 dB |
|
Frequency Response |
20 Hz to 20 kHz (±0.15 dB, unity gain, 48 kHz) |
|
Dynamic Range |
> 110 dB (A-wtd, min. gain) |
|
Total Harmonic Distortion |
< 0.005% (1 kHz, min. gain) |
|
EIN |
< -131 dBu (max gain, 40Ω, 22 kHz BW, A-wtd) |
|
Input Impedance |
1.6 kΩ |
|
Phantom Power |
+48V, > 8 mA per input |
|
Instrument Inputs |
|
|
Type |
¼” TS Female (via Combo), Unbalanced |
|
Maximum Input Level |
+15 dBu (Unbalanced, min. gain) |
|
Gain Control Range |
60 dB |
|
Frequency Response |
20 Hz to 20 kHz (±0.2 dB, unity gain, 48 kHz) |
|
Dynamic Range |
> 106 dB (A-wtd, min. gain) |
|
Total Harmonic Distortion |
< 0.005% (1kHz, min. gain) |
|
Input Impedance |
> 1 MΩ |
|
Line Inputs |
|
|
Type |
¼” TRS Female (via Combo), Balanced |
|
Maximum Input Level |
+ 18 dBu (Balanced, min. gain) |
|
Frequency Response |
20 Hz to 20 kHz (±0.05 dB, unity gain, 48 kHz) |
|
Dynamic Range |
> 118 dB (A-wtd, min. gain) |
|
Total Harmonic Distortion |
< 0.005% (1 kHz, min. gain) |
|
Input Impedance |
10 kΩ |
|
Main and Line Outputs |
|
|
Type |
¼” TRS Female, impedance balanced, DC Coupled (Line Outputs only) |
|
Maximum Output Level |
+18 dBu (Balanced) |
|
Frequency Response |
20 Hz to 20 kHz (±0.05 dB, unity gain, 48 kHz) |
|
Dynamic Range |
> 118 dB (A-wtd) |
|
Total Harmonic Distortion |
< 0.0035% (1 kHz, +4 dBu) |
|
Output Impedance |
51Ω |
|
Headphone Outputs |
|
|
Type |
¼” TRS Female, Stereo, Unbalanced, x2 |
|
Maximum Output Level |
175 mW/channel (56Ω load) |
|
Frequency Response |
20 Hz to 20 kHz (±0.5 dB, 48 kHz) |
|
Dynamic Range |
> 110 dB (A-wtd) |
|
Total Harmonic Distortion |
< 0.03% (1 kHz) |
|
Headphone Impedance (working range) |
16Ω to 300Ω |
|
Crosstalk |
|
|
Input to Input |
< -110 dB |
|
Output to Output |
< -115 dB |
|
Input to Output |
< -120 dB |
|
Signal Level LEDs |
|
|
Clip |
-0.5 dBFS |
|
Signal |
-50 dBFS |
|
Digital Audio |
|
|
Connection Type |
Thunderbolt 3 (Thunderbolt 1 and 2 compatible) |
|
ADC Dynamic Range |
115 dB (A-wtd) |
|
DAC Dynamic Range |
115 dB (A-wtd) |
|
Bit Depth |
24 bits |
|
Internally Supported Sample Rates |
44.1, 48, 88.2, 96, 176.4, 192 kHz |
|
Clock |
|
|
Jitter |
< 70 ps RMS (20 Hz – 20 kHz) |
|
Jitter Attenuation |
> 60 dB (1 ns in => 1 ps out) |
|
Power |
|
|
|
12 VDC, 5A, external power supply |
|
Physical |
|
|
Dimensions |
|
|
Height |
1.75" (44.45 mm) |
|
Depth |
7" (177.8 mm) |
|
Width |
19" (482.6 mm) |
|
Weight |
6 lbs (2.72 kg) |
