Presonus FaderPort 8 USB DAW Controller

PresonusSKU: FADERPORT8EU

Price:
Sale price €549.00

Now include a full perpetual license for Studio One Professional V7.

Don’t kill that mouse—give it a companion.

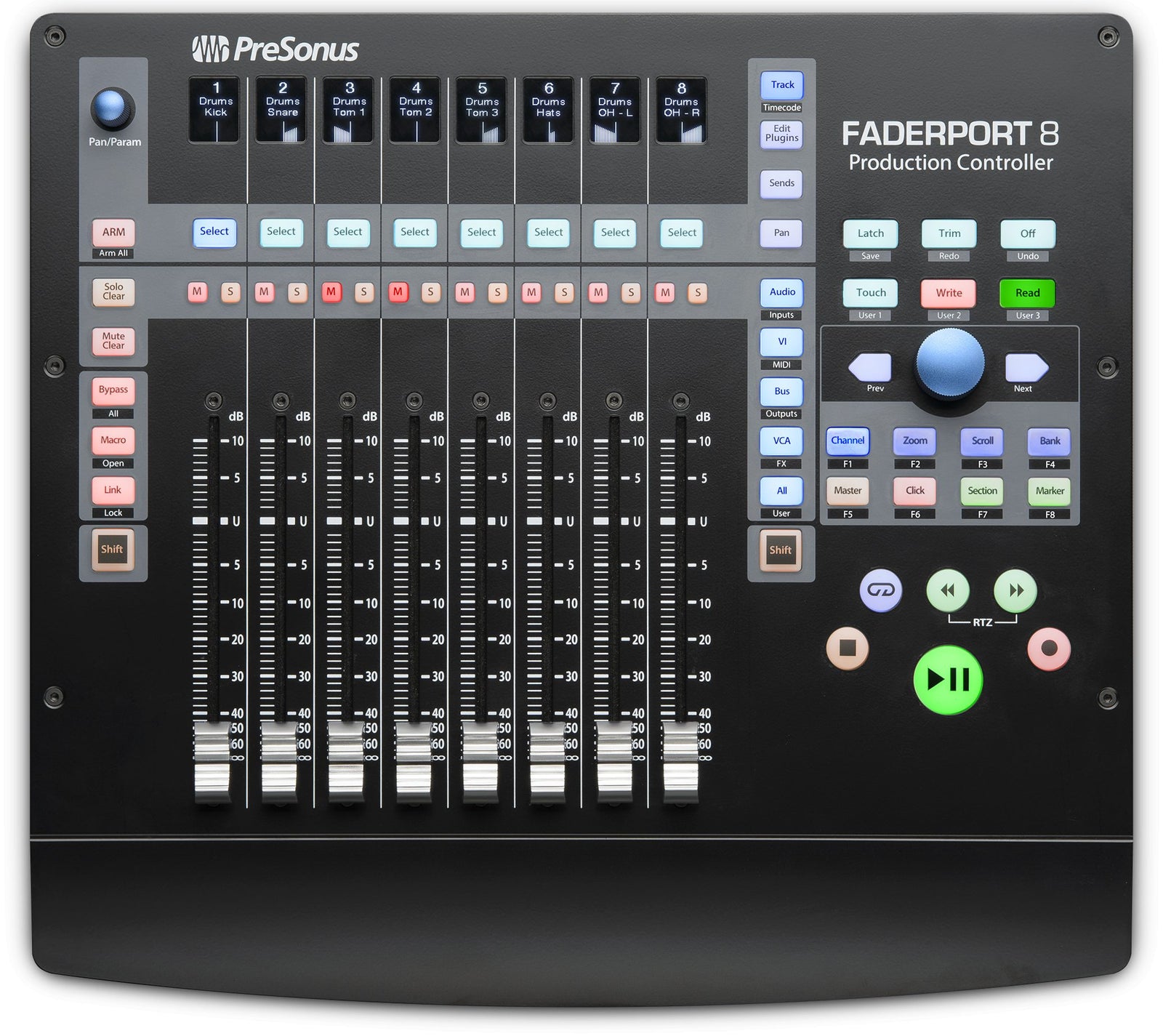

Although a keyboard and mouse are tried-and-true DAW-control devices, they’re far more effective when used in tandem with the FaderPort™ 8’s precise tactile control over mix and automation functions. With 8 touch-sensitive, motorised, 100 mm faders and 65 buttons covering 78 different functions, you can quickly zoom in on audio files for editing, adjust your click-track tempo with a simple tap, modify plug-in parameters, manage aux mixes—and, of course, control track levels with the touch of a finger. With the FaderPort 8, you’ll enjoy the fastest, most efficient workflow you’ve ever experienced.

Work faster and smarter.

Rather than forcing you to revise your mixing method, the FaderPort 8 augments the way you currently mix. You still use your faithful keyboard and mouse for things they do well, and the FaderPort 8 handles the features you want to get your fingers on, allowing you to customise your workflow. Large, illuminated buttons make finding the function you need quick and easy. Eight digital scribble strips provide visual feedback. And if you select a track with your mouse, the FaderPort 8 will follow your selection, giving you yet another way to get to the function you need, right when you need it. This is DAW control the way you always hoped it could be!

One-button access to key functions.*

The FaderPort 8's unique Session Navigator provides easy access to eight mission-critical functions for maximum flexibility. Use the large encoder button and companion buttons to edit and mix with greater efficiency and speed. Scroll through your timeline, using the encoder, or work measure by measure with the arrow buttons; zoom in and out on the timeline with the encoder and make your tracks larger or smaller with the arrow buttons; navigate and drop markers; and maintain constant control of your main level. Once you start using the Session Navigator, you’ll wonder how you mixed without it.

* Features may vary depending on your software.

Universal compatibility and tight Studio One® integration.

FaderPort 8’s streamlined workflow and support for the Mackie Control and HUI protocols make it fast and easy to control virtually any DAW. No driver installation is necessary; just plug the control surface into a USB port and take command of your mix and plug-ins.

But the FaderPort 8 is downright magical when used with PreSonus Studio One. You’ll be amazed how much faster you can work.

Features

  • 8 touch-sensitive, 100 mm long-throw, motorised faders
  • 8 Scribble Strip displays
  • Complete recording-transport controls: Play, Stop, Fast Forward, Rewind, Record, Loop
  • Drop Marker Next / Prev Marker Next / Prev Event
  • General session controls: Undo / Redo, All Arm, Solo / Mute Clear, Track Management, Click On / Off with tap tempo
  • Session Navigator provides quick control over track scrolling, channel banking, timeline scrolling, and much more
  • Channel Controls: Level, Pan, Solo, Mute, Rec Arm
  • Automation Controls: Touch, Latch, Trim, Write, Read, Off
  • Optional Fader functionality: plug-in edit, bus sends, pan
  • macOS® / Windows® compatible with native Studio One® support and HUI and Mackie Control Universal emulation *
  • Footswitch input for hands-free start / stop
  • USB 2.0 connectivity

Computer system requirements:

Below are the minimum computer-system requirements for the FaderPort™ 8:

Mac®

  • macOS® 10.8.5 or higher
  • Intel® Core™ 2 Duo processor (Intel Core i3 or better recommended)

Windows®

  • Windows 10 x64/x86, Windows 8.1 x64/x86, Windows 7 x64/x86 SP1 + platform update
  • Intel Core 2 Duo or AMD® Athlon™ X2 processor (Intel Core i3 or better recommended)

Windows and Mac Systems

  • FaderPort 8 firmware 1.0.1 or later (requires Universal Control v.1.8.3 or later)
  • USB 2.0 port
  • Internet connection required for driver and bundled software installation
  • Universal Control v.1.8.3 (for firmware updates)

PreSonus FaderPort 8 has been tested and approved to work with the following software:

  • Native Mode
    • PreSonus® Studio One® 3.3.2 or later
  • HUI Emulation
    • Supported by Pro Tools
  • Mackie Universal Control Emulation
    • Supported by Logic, Cubase, Ableton, Nuendo, Bitwig, Reaper, Reason, and more

As a commitment to constant improvement, PreSonus Audio Electronics, Inc., reserves the right to change any specification stated herein, at any time, without notification.

Note: A firmware update is currently required for full functionality. Please download and install Universal Control version 1.8.3 or later and run the firmware updater when prompted. See the FaderPort 8 Owner's Manual for instructions.

Technical Specifications

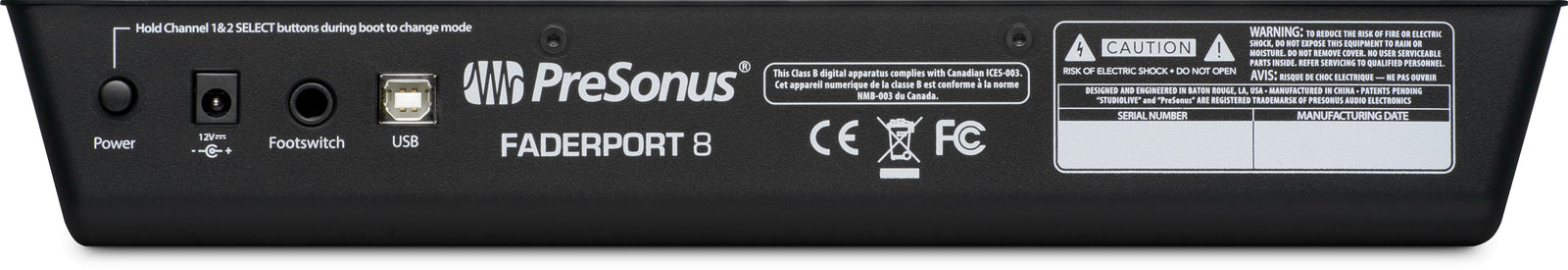

Input / Output





1 USB 2.0 port



1 Footswitch jack for hands-free stop/start

Faders





8 100 mm long-throw, touch-sensitive, motorized faders



Dual-servo motorized drive belt system for fast and quiet operation



Ultra-smooth feel and lightning fast



Heavy-duty construction



Resolution: 10-bit, 1,024 steps

Buttons and Knobs



General Controls

Undo/Redo, Arm All, Solo/Mute Clear, Timecode, Track Management, Click On/Off, 4 programmable User buttons, 8 Function buttons, Macro, Parameter Link, Bypass Plug-ins

Channel Controls

Level, Pan, Solo, Mute, Select, Rec Arm

Automation Controls

Touch, Latch, Trim, Write, Read, Off

Optional Fader Functionality

Plug-in Edit, Bus Sends, Pan

Window View

Mix, Project, Transport, Undo

Transport

Play, Stop, Fast Forward, Rewind, Record, Loop, Return to Zero (Functionality varies slightly depending on the DAW.)

Navigation

Track Scroll, Channel Banking, Timeline Scroll, Horizontal Zoom, Vertical Zoom, Drop Marker, Next/Prev Marker, Next/Prev Event, Nudge

Console Management

Show/Hide: Audio Tracks, Inputs, MIDI Tracks, Buses, Outputs, VCAs, FX; Show All

Displays

8 digital scribble strip displays, timecode display, channel meters

Power





12 VDC, 2A external power supply

Physical



Dimensions



Height

2.25" (57.2 mm)

Depth

11.85" (301 mm)

Width

13.15" (334 mm)

Weight

5 lbs. (2.3 kg)
