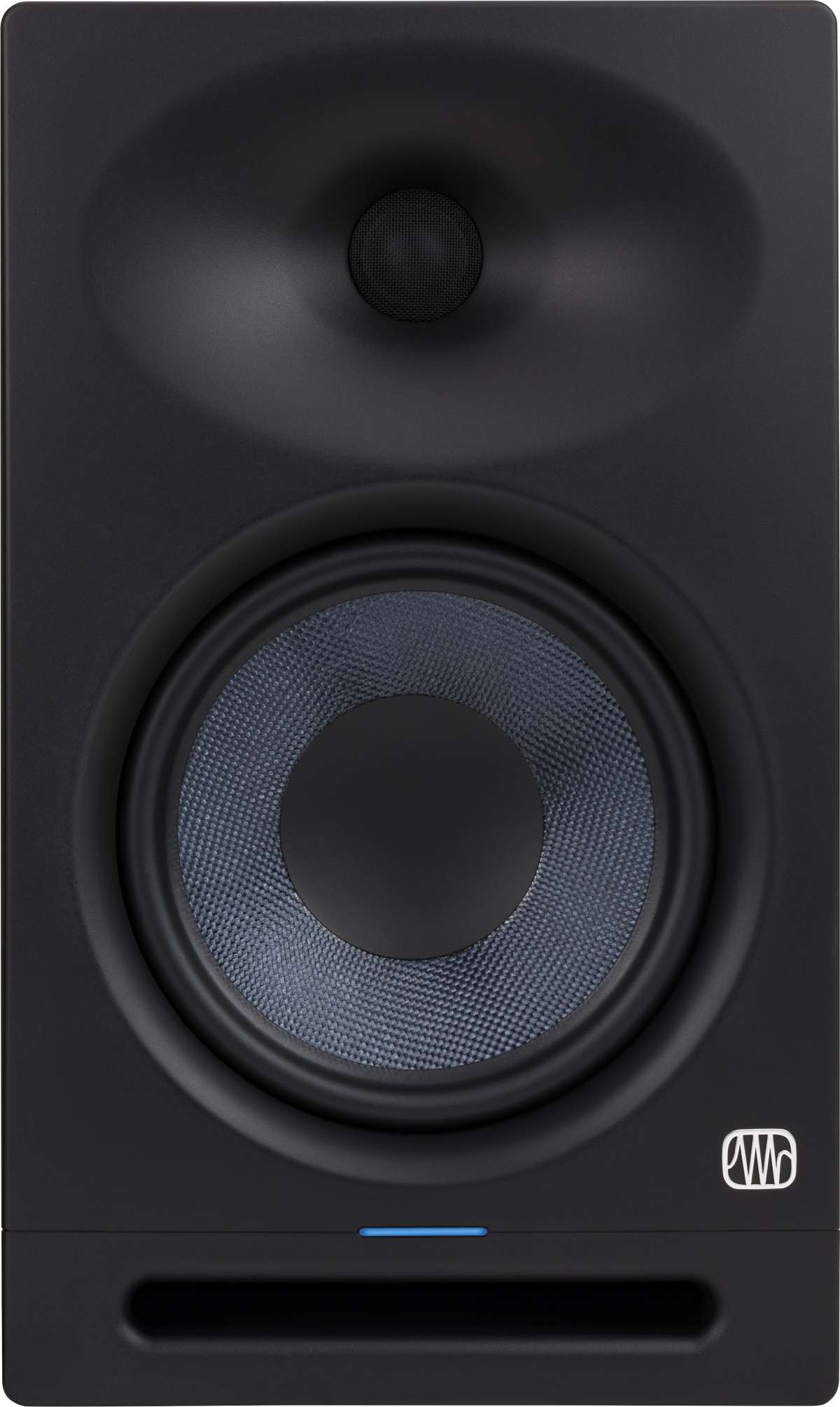

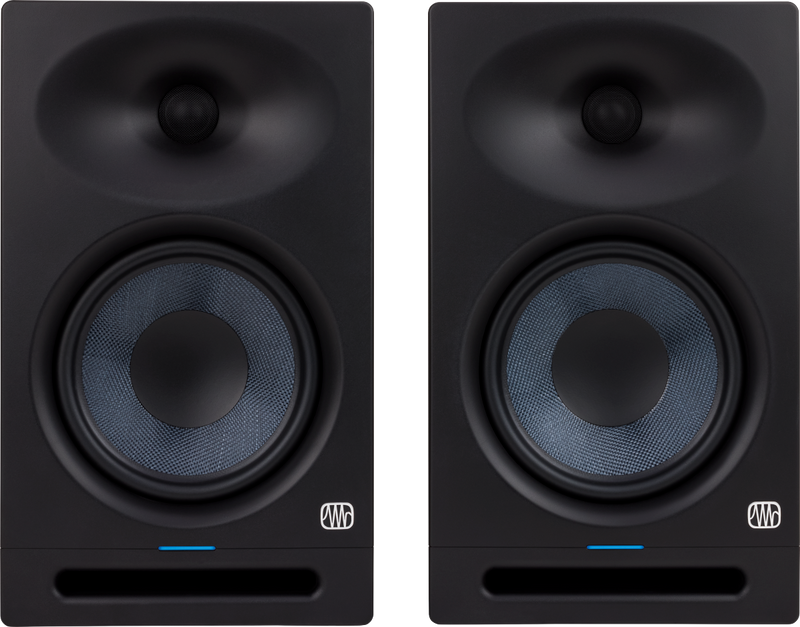

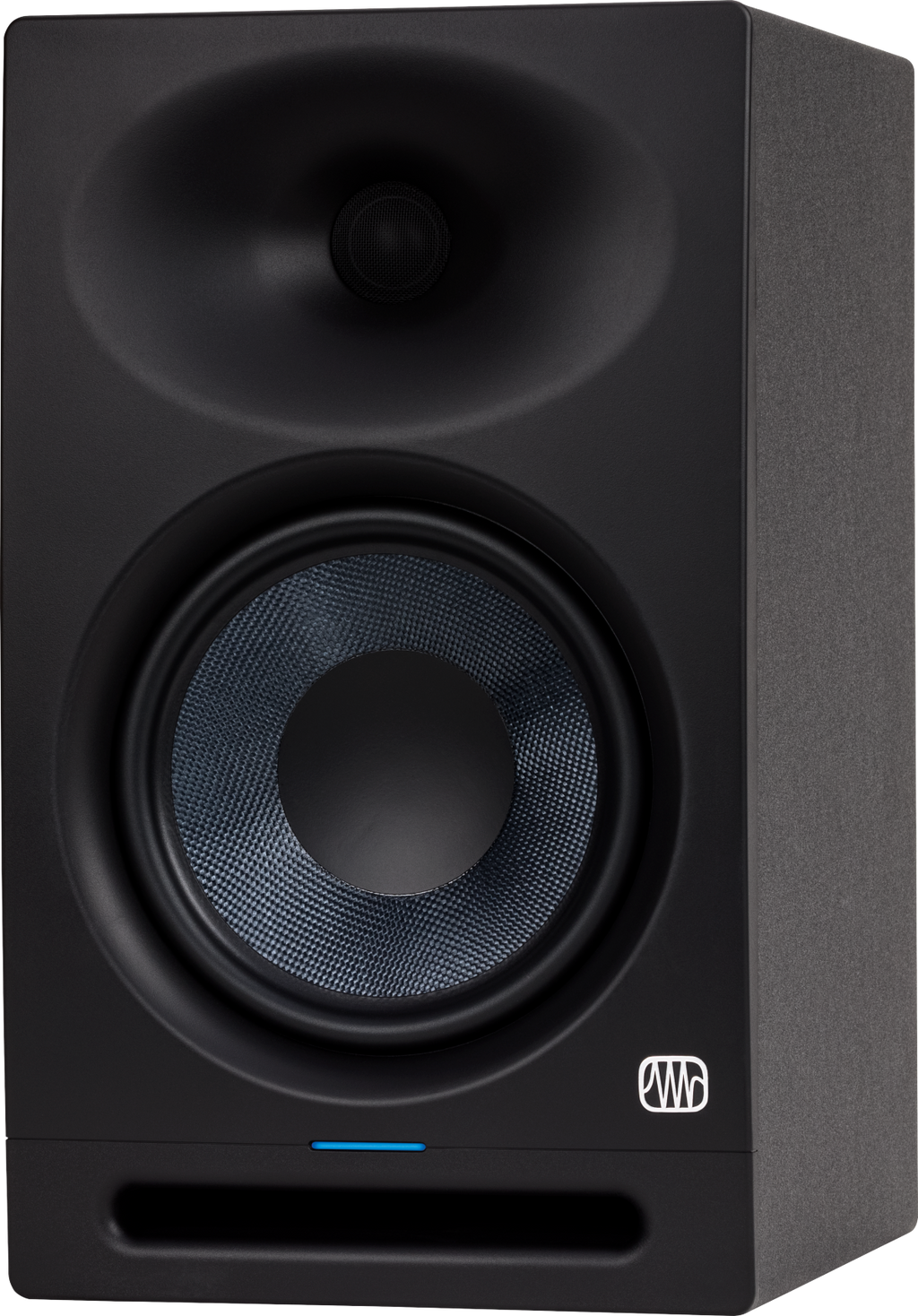

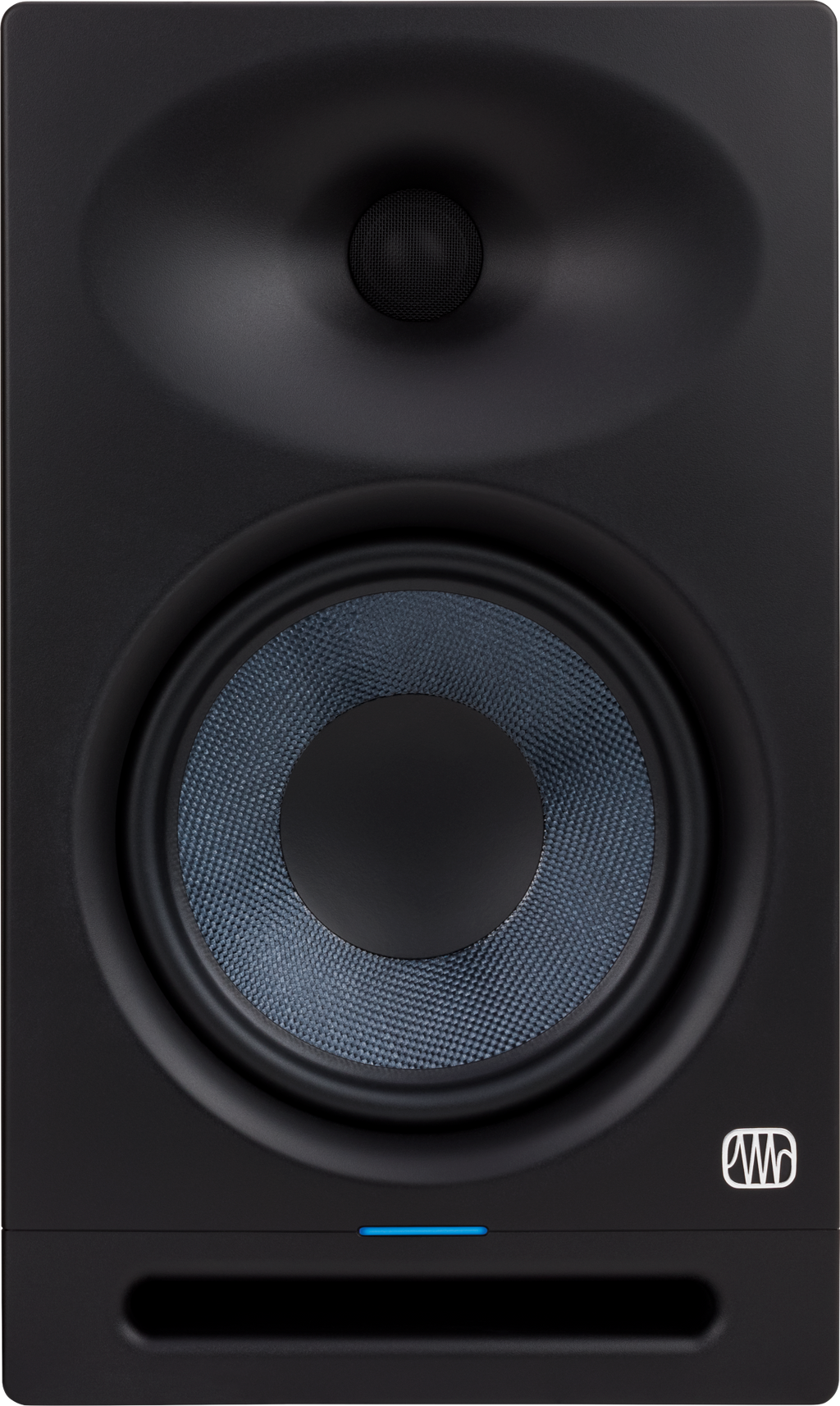

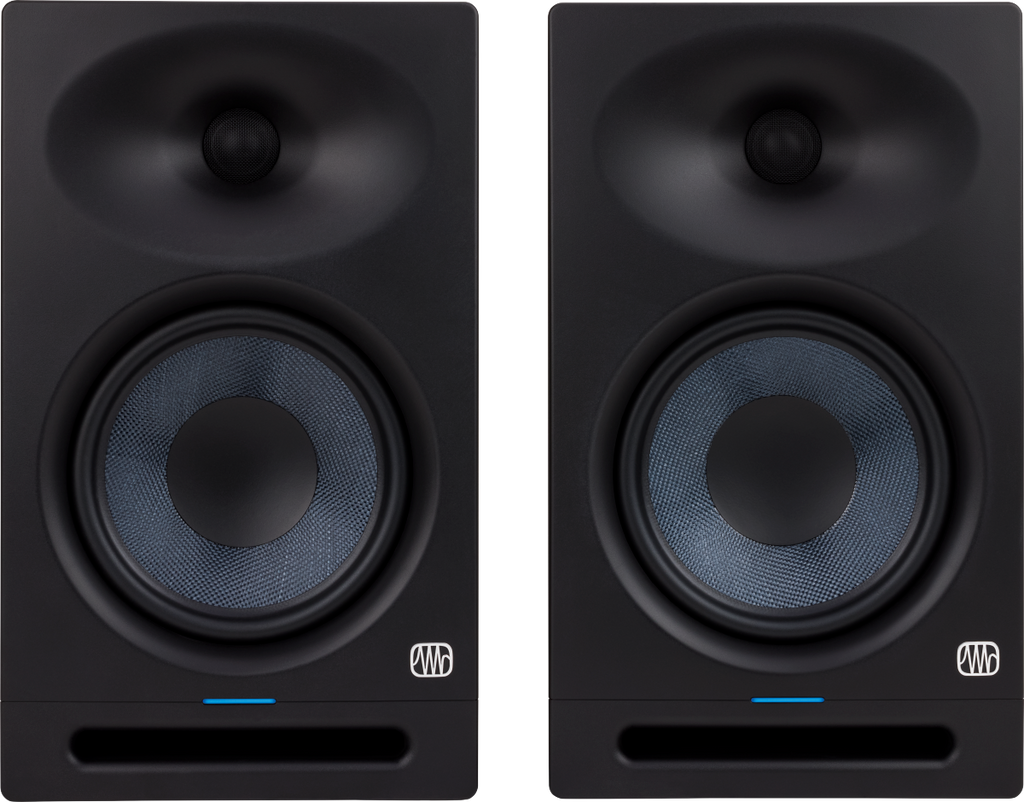

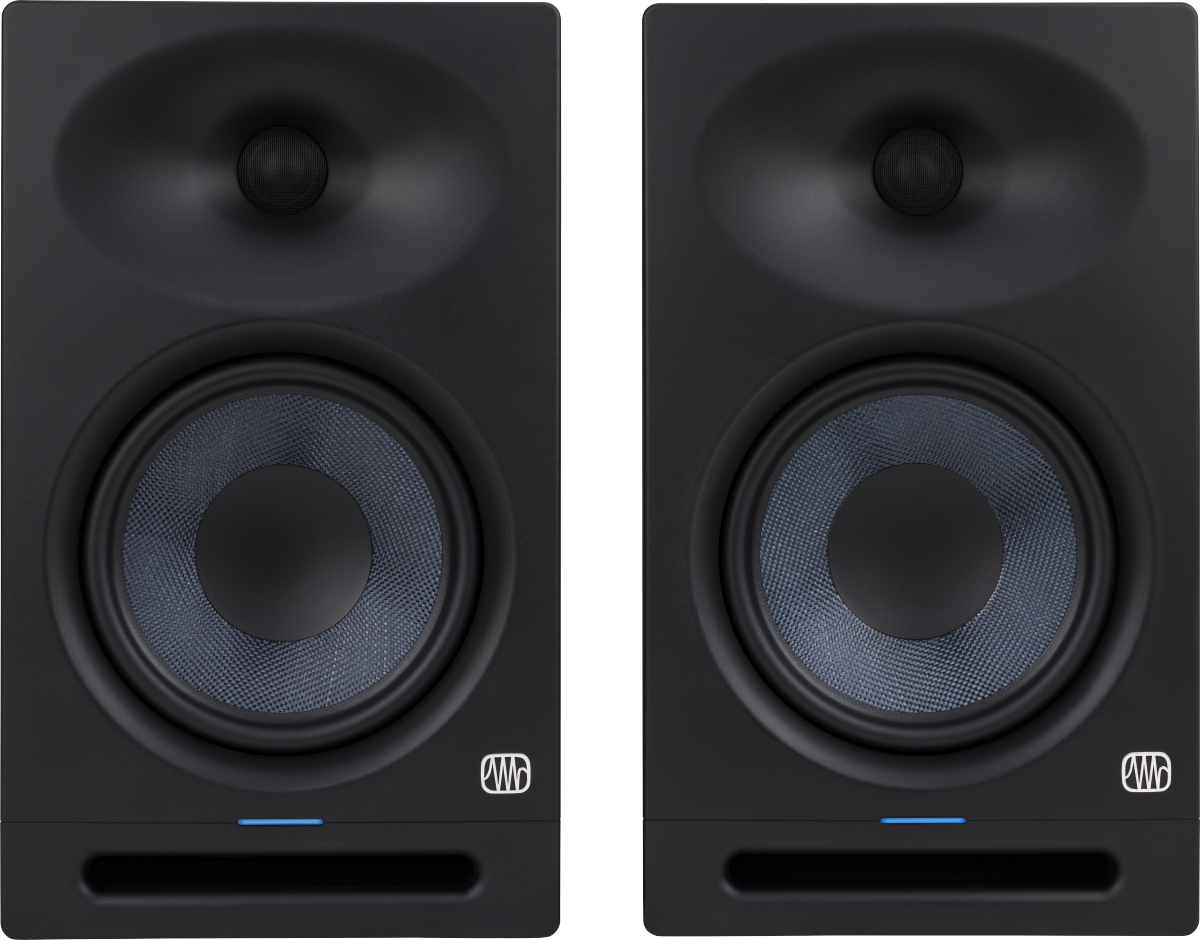

With a smooth, accurate frequency response; powerful amplification with tons of headroom; and Acoustic Tuning functions that ensure you get the best sound, it's no wonder that Eris®-series studio monitors have been a runaway hit since their introduction. Building on the reputation of its award-winning predecessors, the Eris Studio 8 is a substantial update that delivers richer low-end and more controlled high-frequency response, reproducing every detail in your recordings with a natural sound unparalleled in its class.

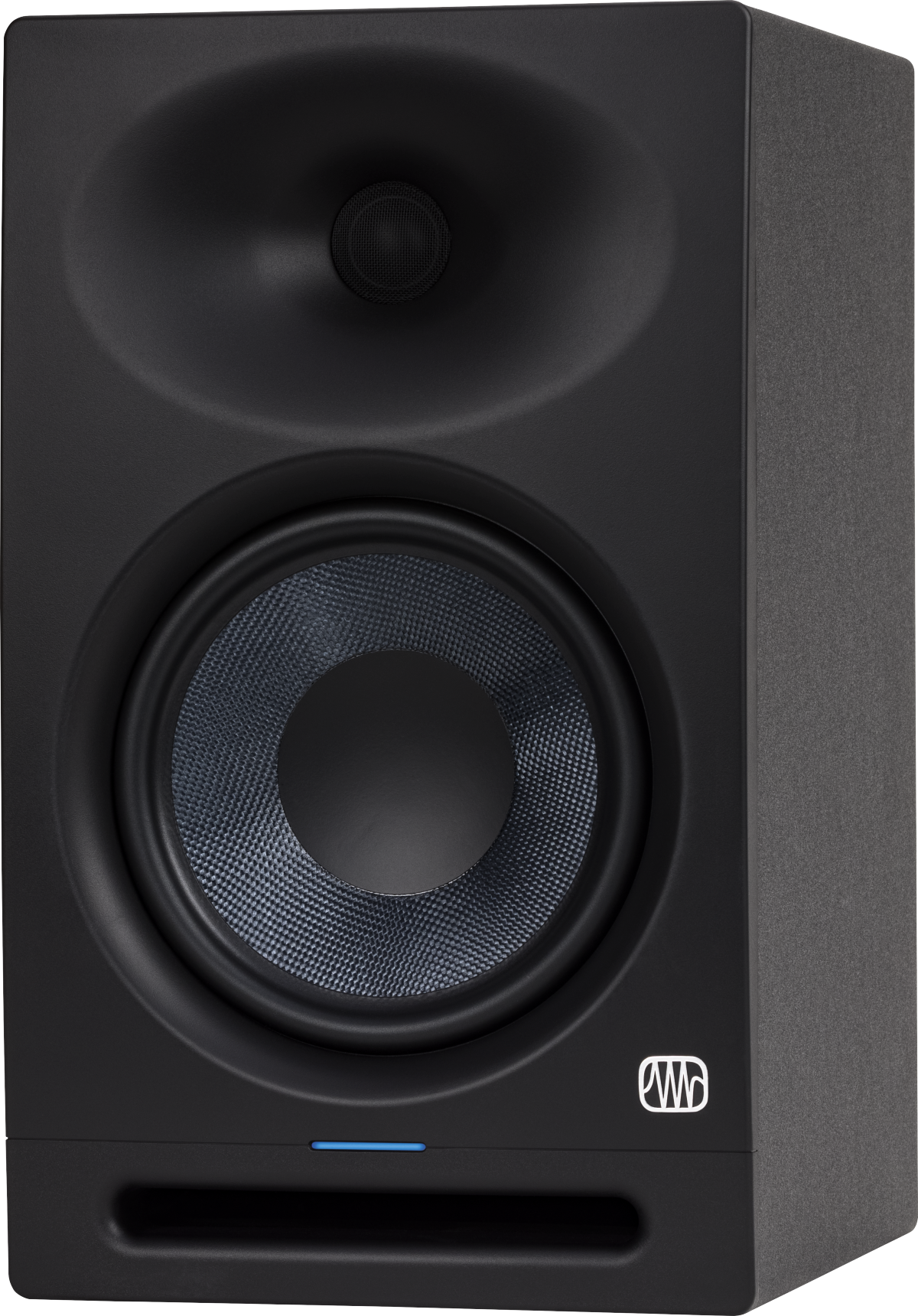

Designed for superior performance in both home studios and professional mix rooms, the Eris Studio 8 features a custom-designed EBM (Elliptical Boundary Modelled) waveguide that provides superior high-frequency response and wide 100-degree horizontal dispersion to create a broader sweet spot. Narrow vertical dispersion reduces reflections from your desk, and a 1.25-inch, silk-dome tweeter ensures snappy, accurate transient reproduction. An elegant new enclosure design improves the waveguide performance so you’ll hear the finest details in your mix.
The woven-composite, 8-inch, low-frequency driver offers Eris' signature tight, clear bass with plenty of punch. Its 140W of bi-amped power make the Eris Studio 5 more efficient than previous designs. The ported enclosure maximises bass response and allows the Eris Studio 8 to reach down to an astonishing 35 Hz — with no subwoofer!
Flexible input options let you connect almost any line-level source, from mixers to audio interfaces and more. You'll have no problem hooking your Eris speakers up to virtually anything.
FEATURES
- 8-inch woven composite, low-frequency transducer
 - 1.25-inch (31.75 mm), ultra-low-mass, silk-dome, high-frequency transducer
 - 100˚(H) x 60˚(V) EBM waveguide for a wide sweet spot
 - Front-firing acoustic port for superior bass-frequency reproduction and optimised, resonance-suppressing internal bracing
 - 140W, Class AB bi-amplification
 - 35 Hz to 20 kHz frequency response
 - 106 dB SPL (Peak, @ 1 meter)
 - Acoustic Tuning controls: HF (±6 dB, continuously variable); Midrange (±6 dB, continuously variable), and Acoustic Space (flat, -2, -4 dB), plus highpass filter (Off, 80 Hz, 100 Hz)
 - RF interference, output-current limiting, over-temperature, transient, subsonic protection, and amplifier “soft start” feature (eliminates popping on power-up)
 - Internal power supply with IEC connector and power switch with on/off LED
 - Balanced XLR and ¼-inch inputs and unbalanced RCA inputs
 - Price is per speaker

Specifications:
- VOLTAGE: 220-240V UK
 - WATTAGE: 80 Watts
 - INPUT IMPEDANCE: 10 kΩ
 - PEAK SPL: 106 dB (@ 1 Meter)
 - CROSSOVER FREQUENCY: 3.5 kHz
 - 100 degree (H) x 60 degree (V)
 - CABINET MATERIAL: Vinyl-Laminated, Medium-Density Fiberboard
 - AUDIO CONTROLS: Volume High Frequency (±6 dB, centre 10 kHz, continuously variable) Mid Frequency (±6 dB, centre 1 kHz, continuously variable)
 - Acoustic Space (Flat, -2 dB, -4 dB) Low Cut (Flat, 80 Hz, 100 Hz @ -12 dB / octave)
 - 1- Balanced XLR, 1- Balanced ¼” TRS, 1- Unbalanced RCA
 - Class AB
 - POWER CABLE: IEC

PROTECTIONS:
- RF interference
 - Output-current limiting
 - Over-temperature
 - Turn-on/off transient
 - Subsonic filter

- DIMENSIONS: 16.50x9.80x11.70 IN
 - SHIPPING WEIGHT: 22.7 LB
 - PRODUCT DEPTH: 11.73" (29.8 cm)
 - PRODUCT HEIGHT: 16.5” (41.91 cm)
 - PRODUCT WIDTH: 9.84" (25 cm)
