Intended for serious personal studios and professional music-production environments, the Eris® Pro Sub 10 helps you take charge of the low-frequency foundation of your mix. An ideal companion to Eris Pro- and Eris Studio-series reference monitors, the Eris Pro Sub 10 complements full-range monitors without overshadowing them and extends the reach of your full-range system’s low end with a natural sound.
Powerful and musical, the PreSonus® Eris Pro Sub 10 active, front-firing studio subwoofer is designed to deliver fast and accurate transient response, extending low frequencies down to 20 Hz, allowing you to hear the full-spectrum range of your mix. Driven by 170W (RMS) Class AB amplification, the Eris Pro Sub 10’s 10-inch, glass-composite, low-frequency driver delivers tight, responsive sub-bass, thanks to its lightweight and rigid cone. This design provides lower distortion than other materials for sub-bass reproduction that’s as coherent and clear as your full-range monitors.
Extensive user controls include input gain, continuously variable lowpass filter for creating a seamless crossover transition, and a switchable highpass filter that removes content below 80 Hz from the full-range signal sent to the monitors. A continuously variable lowpass filter (50 Hz to 130 Hz) allows you to create a seamless crossover transition between the full-range studio monitors and subwoofer for the most accurate listening environment possible.
FEATURES

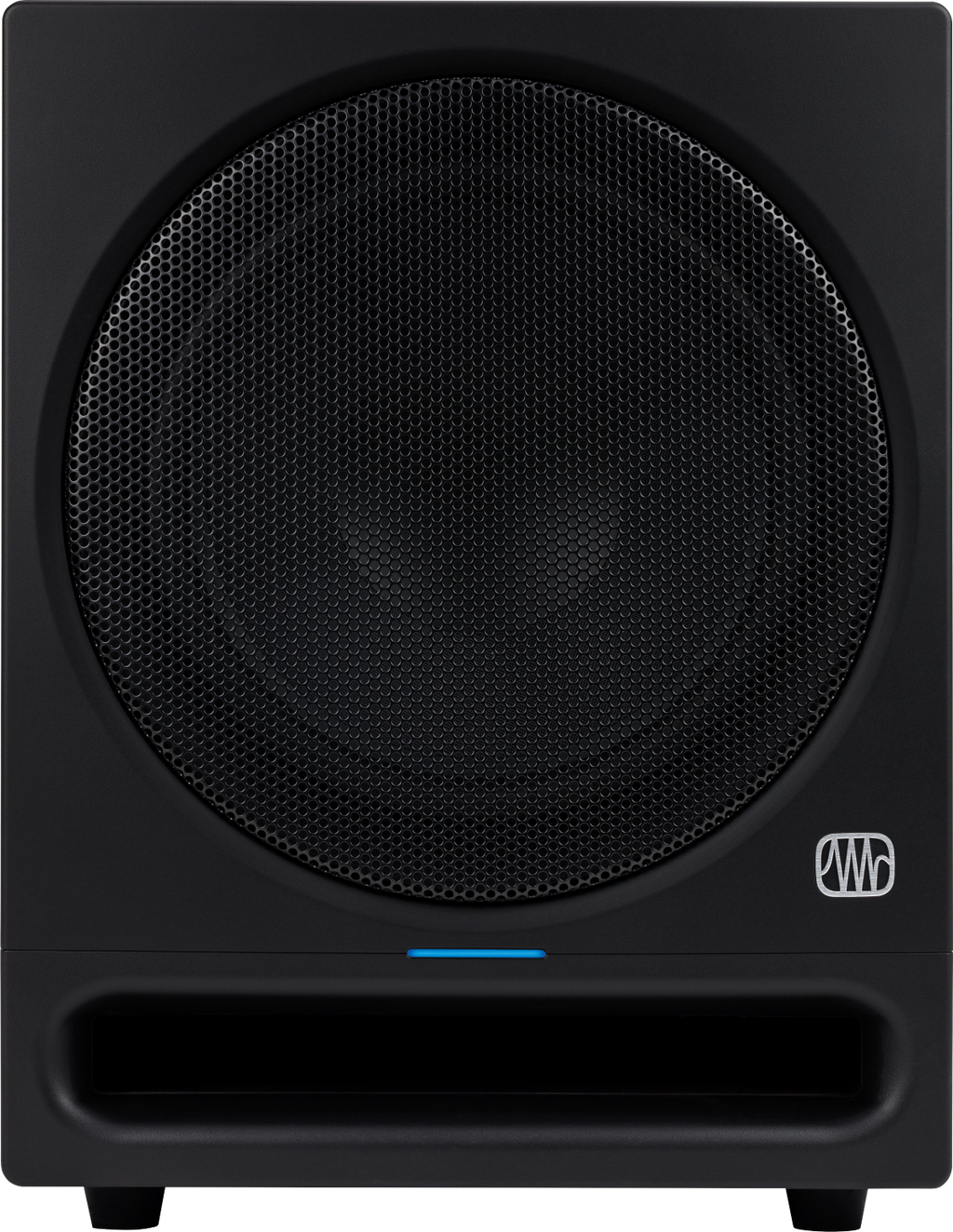

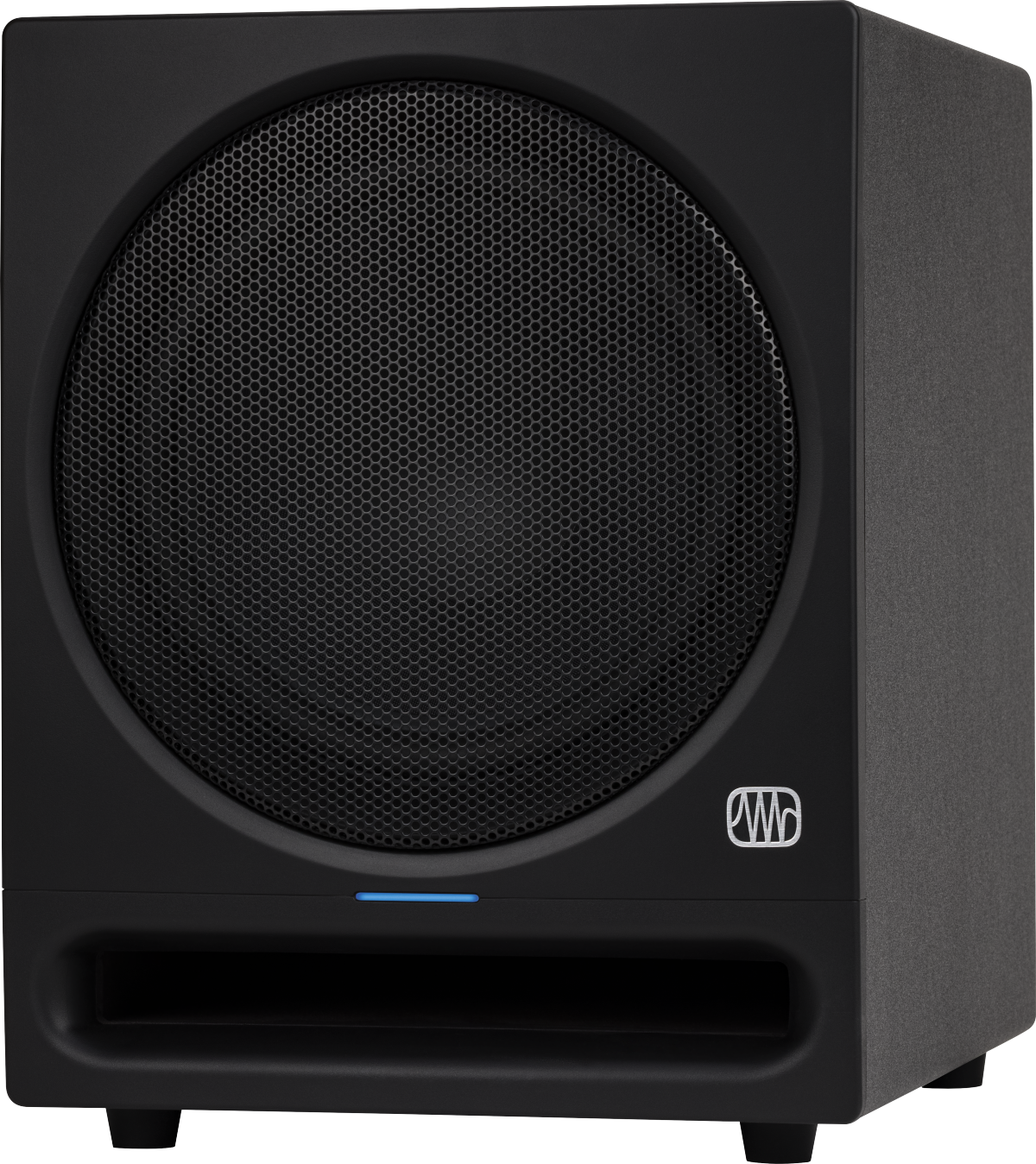

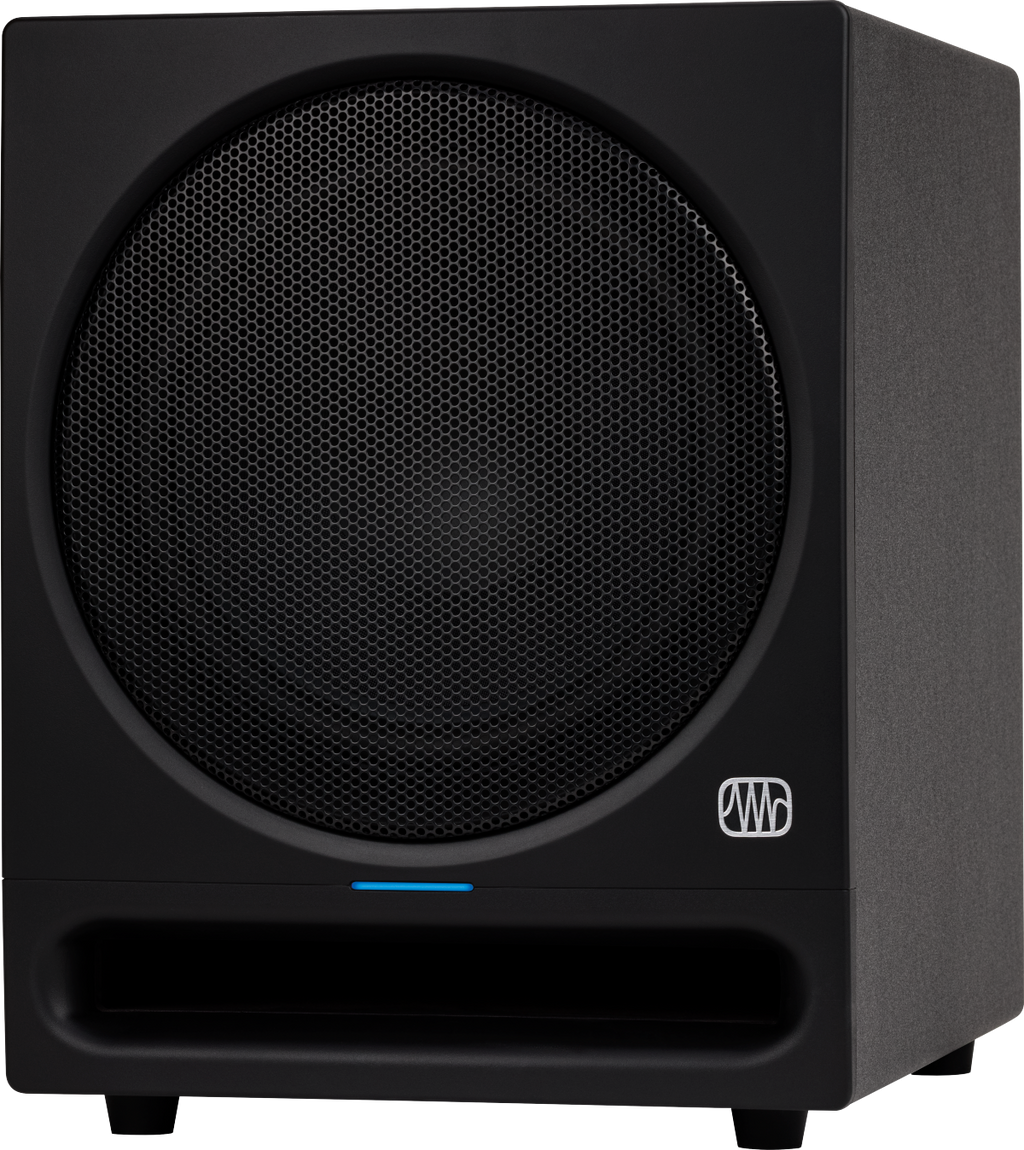

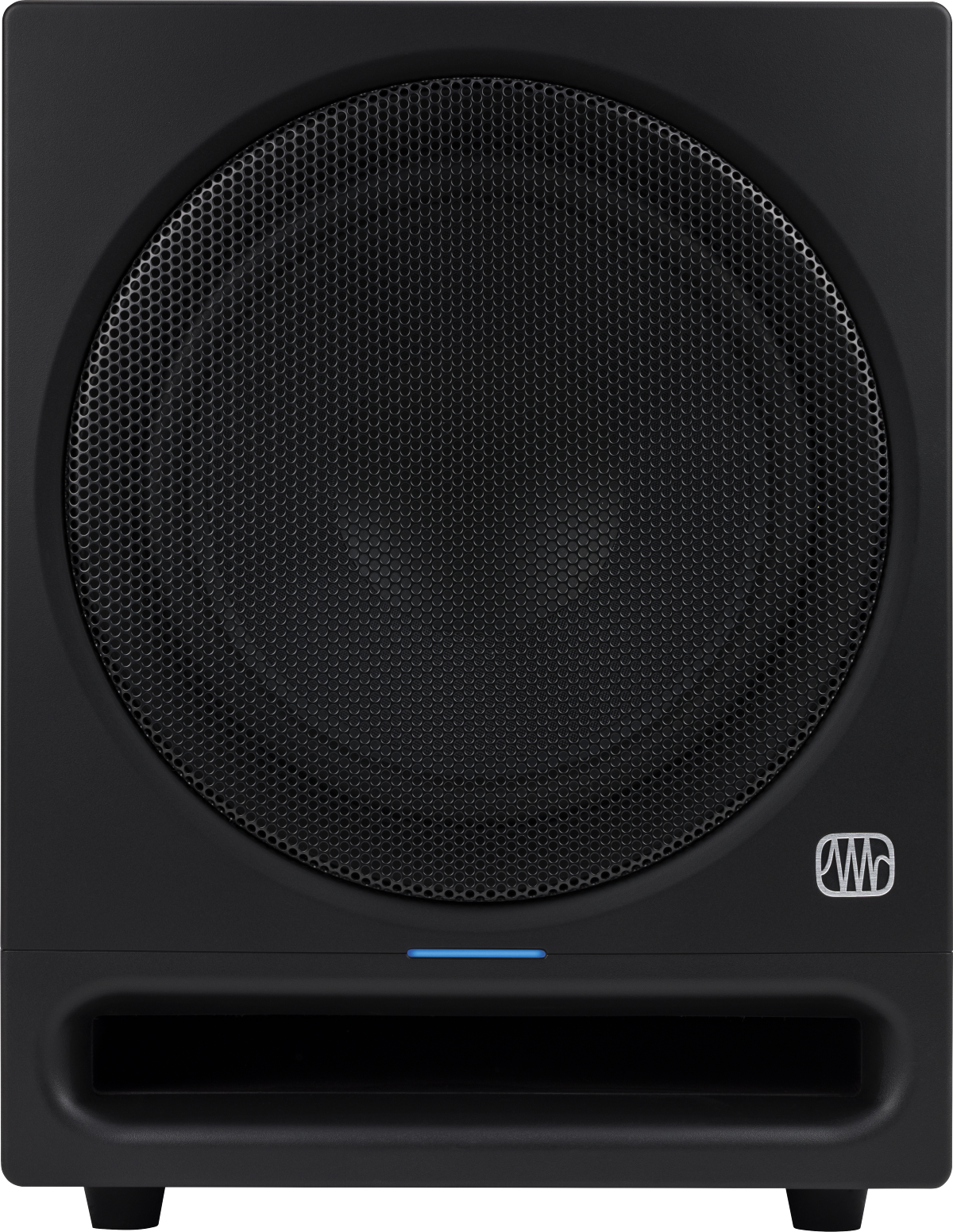

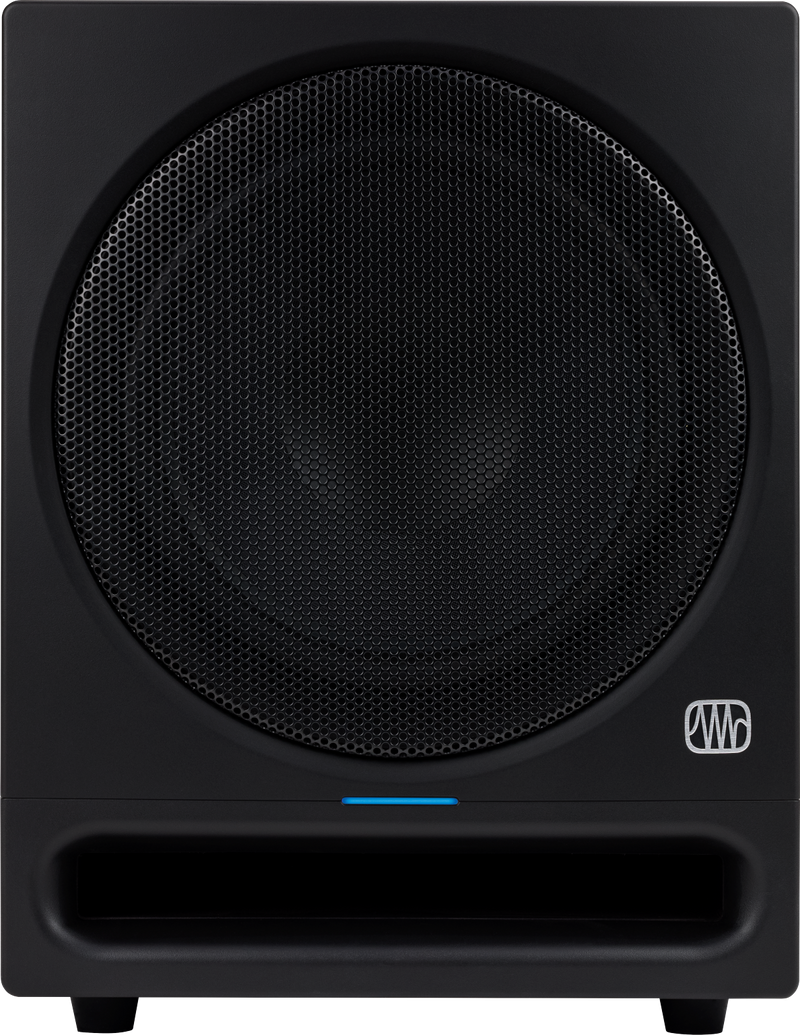

- 10-inch, front-firing, glass-composite, low-frequency transducer
- Front-firing, bass-reflex acoustic port
- Continuously variable lowpass filter (50 Hz to 130 Hz) sets the upper frequency reproduced by the subwoofer
- Switchable highpass filter removes frequency content below 80 Hz from the full-range subwoofer outputs to the main monitors
- Momentary footswitch (included) bypasses the subwoofer, highpass filter, and Sub Out
- Input gain control (-30 dB to +6 dB, continuously variable), polarity invert switch, and ground-lift switch
- 170 watt (RMS), Class AB amplification for up to 113 dB SPL, with a frequency response of 20 to 200 Hz

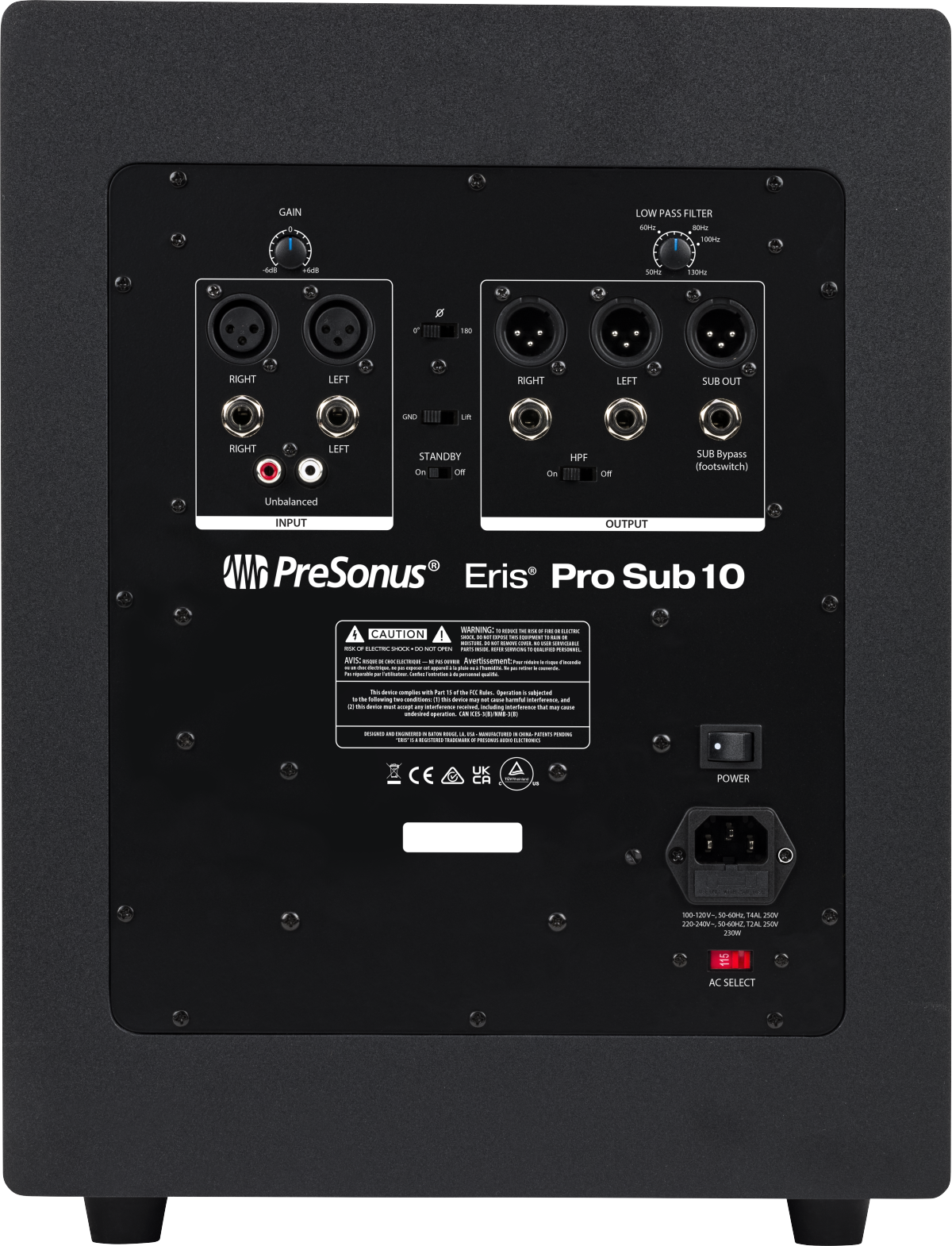

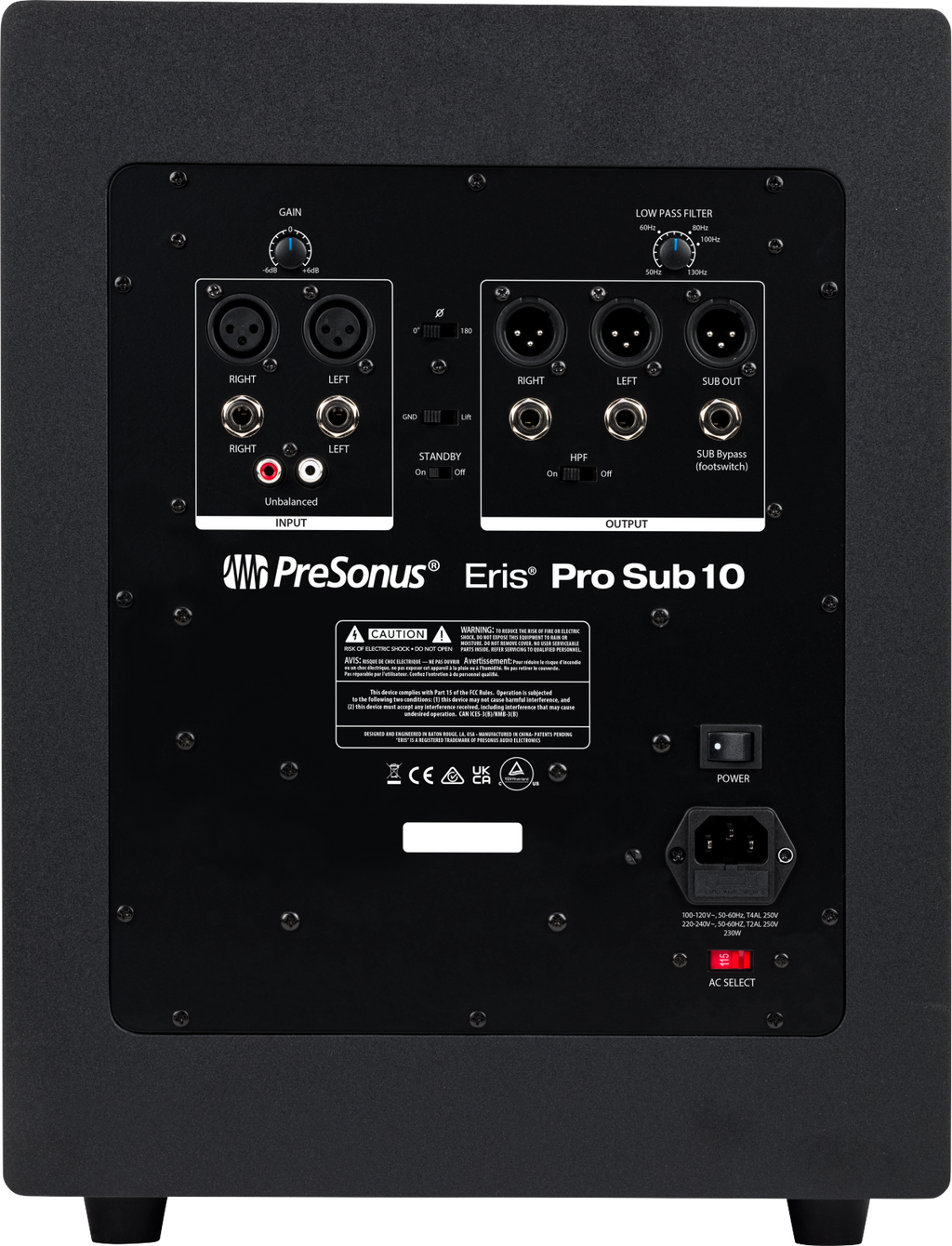

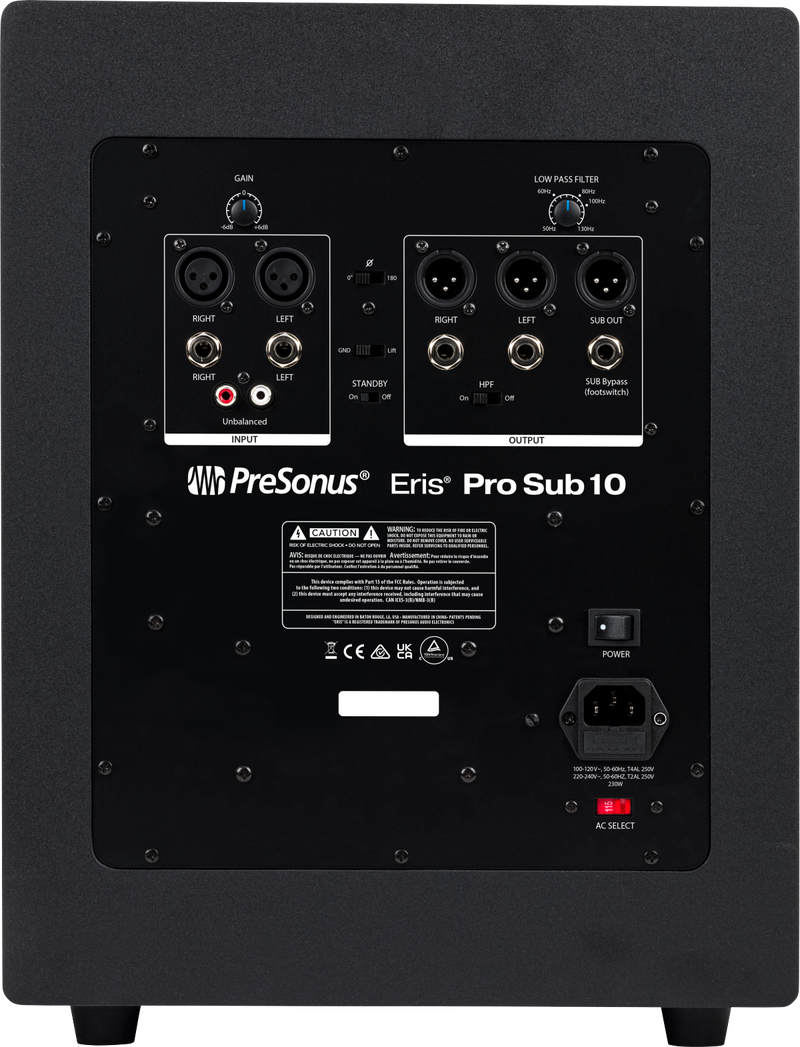

- Left and right, balanced XLR and ¼-inch TRS and unbalanced RCA main inputs
- Left and right balanced XLR and ¼-inch TRS outputs and XLR subwoofer output for connecting a second Eris® Pro Sub 10
Specifications:
Electronics
- VOLTAGE: 220-240V UK
- WATTAGE: 250W Peak, 170W RMS
Performance
- PEAK SPL: 113 dB (@ 1 Meter)
Hardware
- CABINET MATERIAL: Vinyl-Laminated, Medium-Density Fiberboard
- AUDIO CONTROLS: Input Gain Range: -30 to +6 dB Low Pass Filter Control: 50 Hz to 130 Hz
- AUDIO SWITCHES: Polarity Switch: 0 degrees or 180 degrees Ground Lift Switch: On/Off High Pass Filter Switch: On/Off Bypass Footswitch: On/Off
- MONITOR INPUTS: 2- Balanced XLR, 2- Balanced 1/4" TRS, 2- Unbalanced RCA
- POWER AMPLIFIER TYPE: Class AB
Accessories
- FOOTSWITCH: 1-Button Footswitch Included
Miscellaneous
- POWER CABLE: IEC
- LOW PASS FILTER FREQUENCY: 50 – 130 Hz (Variable)
PROTECTIONS
- RF Interference
- Output-Current Limiting
- Over-Temperature
- Turn-On/Off Transient
- Subsonic Filter
Measurements
- DIMENSIONS: 15.70x12.60x16.00 IN
- SHIPPING WEIGHT: 37.00 LB
- PRODUCT DEPTH: 16" (40.6 cm)
- PRODUCT HEIGHT: 15.75" (40 cm)
- PRODUCT WIDTH: 12.6" (32 cm)
- SHIPPING LENGTH: 16.00 IN
- SHIPPING HEIGHT: 15.70 IN
- SHIPPING WIDTH: 12.60 IN
No Downloads Available
