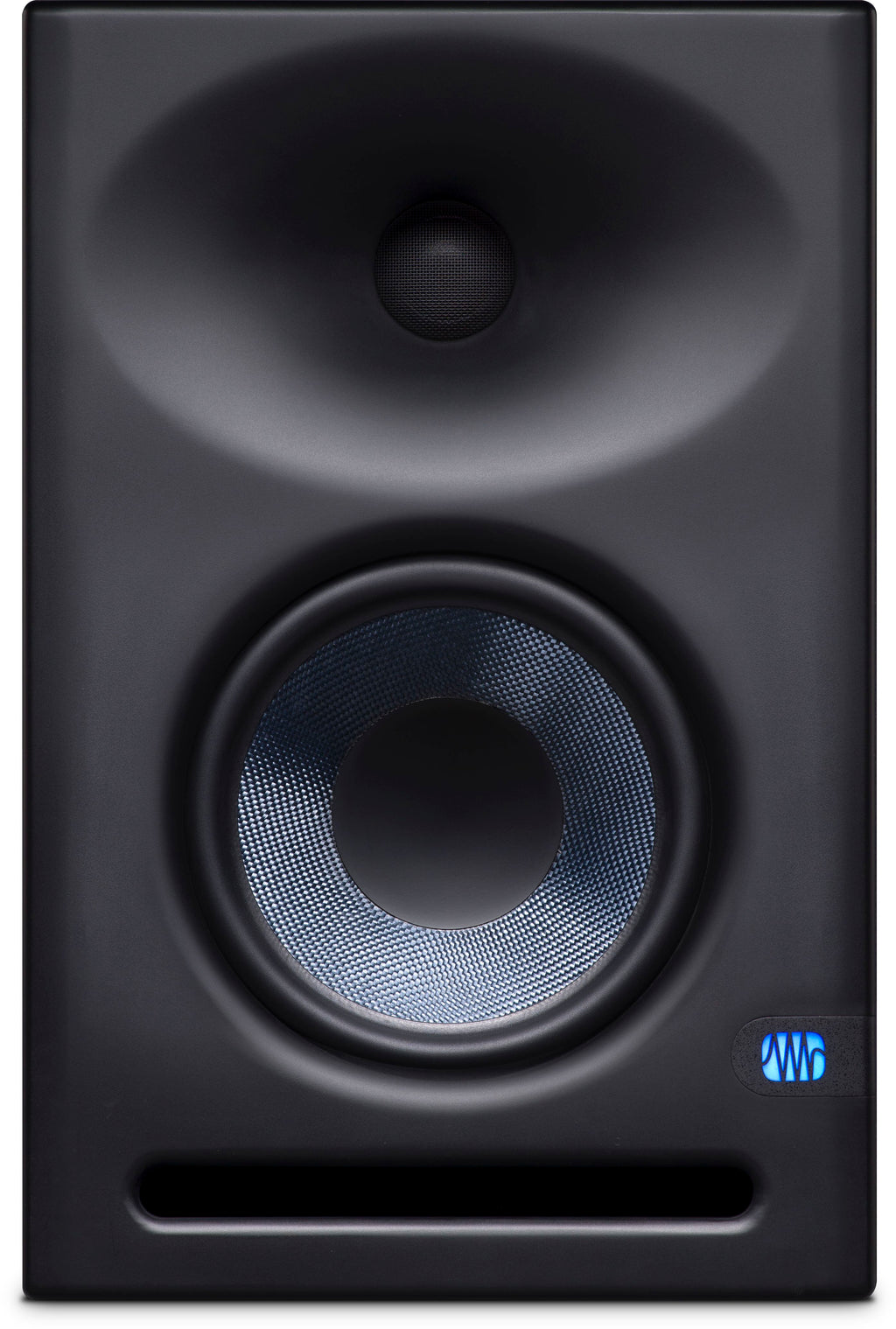

With the same robust connectivity options and powerful, articulate driver combo, the Eris E7 XT studio monitor is a nuanced update to a lauded classic. The 1.25-inch silk-dome tweeter now sports a Hugh Sarvis-designed EBM waveguide, delivering a wider and more controlled sweet spot ideal for group listening and collaboration. A larger, ported enclosure extends the bass response of the 6.5-inch woven composite low-frequency driver without adding any mud. And of course, the acoustic tuning controls let you flatten the frequency response in accordance with your mix environment. It’s Eris, remastered.
FEATURES:
- 6.5-inch woven composite low-frequency transducer
- 1.25-inch (32 mm), ultra-low-mass, silk-dome, high-frequency transducer
- 100˚(H) x 60˚(V) EBM waveguide and ported enclosure

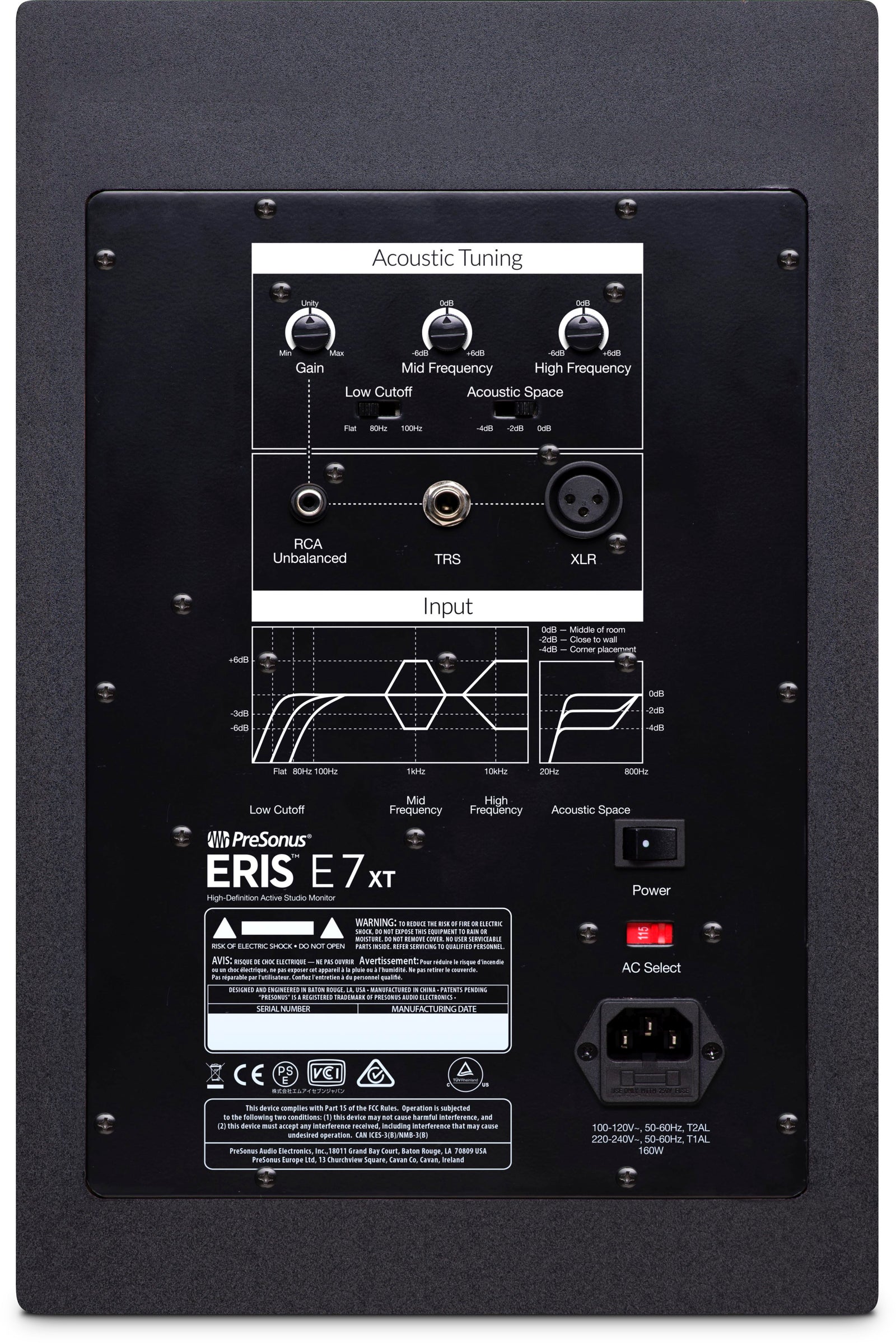

- Tuning Controls for accurate mixing contour (Level, HPF, LF Trim, HF Trim, Acoustic Space)
- 130 Watt, Class AB bi-amplification drives up to 104 dB of sound
- Balanced XLR, TRS, and unbalanced RCA inputs
- 104 dB maximum continuous SPL
- RF interference, output current limiting, over-temperature, transient, external mains fuse, and subsonic protection
Technical Specifications
Inputs |
|
|
1- Balanced XLR |
|
1- Balanced ¼” TRS |
|
1- Unbalanced RCA |
Performance |
|
Frequency Response |
42 Hz - 20 kHz |
Crossover Frequency |
2.5 kHz |
LF Amplifier Power |
75W |
HF Amplifier Power |
65W |
Peak SPL (@ 1 meter) |
104 dB |
LF Driver |
6.5” reinforced woofer |
HF Driver |
1.25” silk dome tweeter |
Input Impedance |
10 kΩ |
Dispersion |
100 degrees horizontal by 60 degrees vertical |
User Controls |
|
Volume Range |
A-type taper |
MF Control |
-6, 0, +6 dB |
HF Control |
-6, 0, +6 dB |
Low Cut |
Flat, 80 Hz, 100 Hz |
Acoustic Space |
Flat, -2 dB, -4 dB |
Protection |
|
|
RF interference |
|
Output-current limiting |
|
Over-temperature |
|
Turn-on/off transient |
|
Subsonic filter |
|
External mains fuse |
Power |
|
|
100-120V ~50/60 Hz or 220-240V ~50/60 Hz |
Cabinet |
|
|
Vinyl-laminated, medium-density fiberboard |
Physical |
|
Width |
9.4” (240 mm) |
Depth |
9.5” (242 mm) |
Height |
14.4” (365 mm) |
Weight |
18.5 lbs (8.4 kg) |
