Compact size with studio-quality sound; 4.5-inch woven composite woofer and 1-inch silk-dome tweeter; ¼-inch balanced TRS, RCA, and 1/8” stereo unbalanced line inputs; convenient front-panel volume control; integrated headphone amplifier; low- and high-frequency tuning controls; 25W/side class AB power amp.
PreSonus® Eris-series studio monitors are used worldwide by studio engineers who need to hear every detail of their recordings. Ideal for gaming and home video production, the Eris E4.5 delivers studio-quality sound yet is compact enough to fit almost anywhere. You get the flexibility of rear-panel, ¼-inch TRS and RCA inputs; front-panel 1/8” stereo, unbalanced line inputs for use with mobile audio devices; a convenient front-panel volume control; and an integrated headphone amplifier. Fine-adjust the speaker’s response with low- and high-frequency tuning controls. It may be small but the E4.5 is loud, as well as clear, thanks to a 25W/side Class AB power amp.
Main Features:
- 4.5-inch woven composite low-frequency transducer
- 1-inch (25 mm), ultra-low-mass, silk-dome, high-frequency transducer

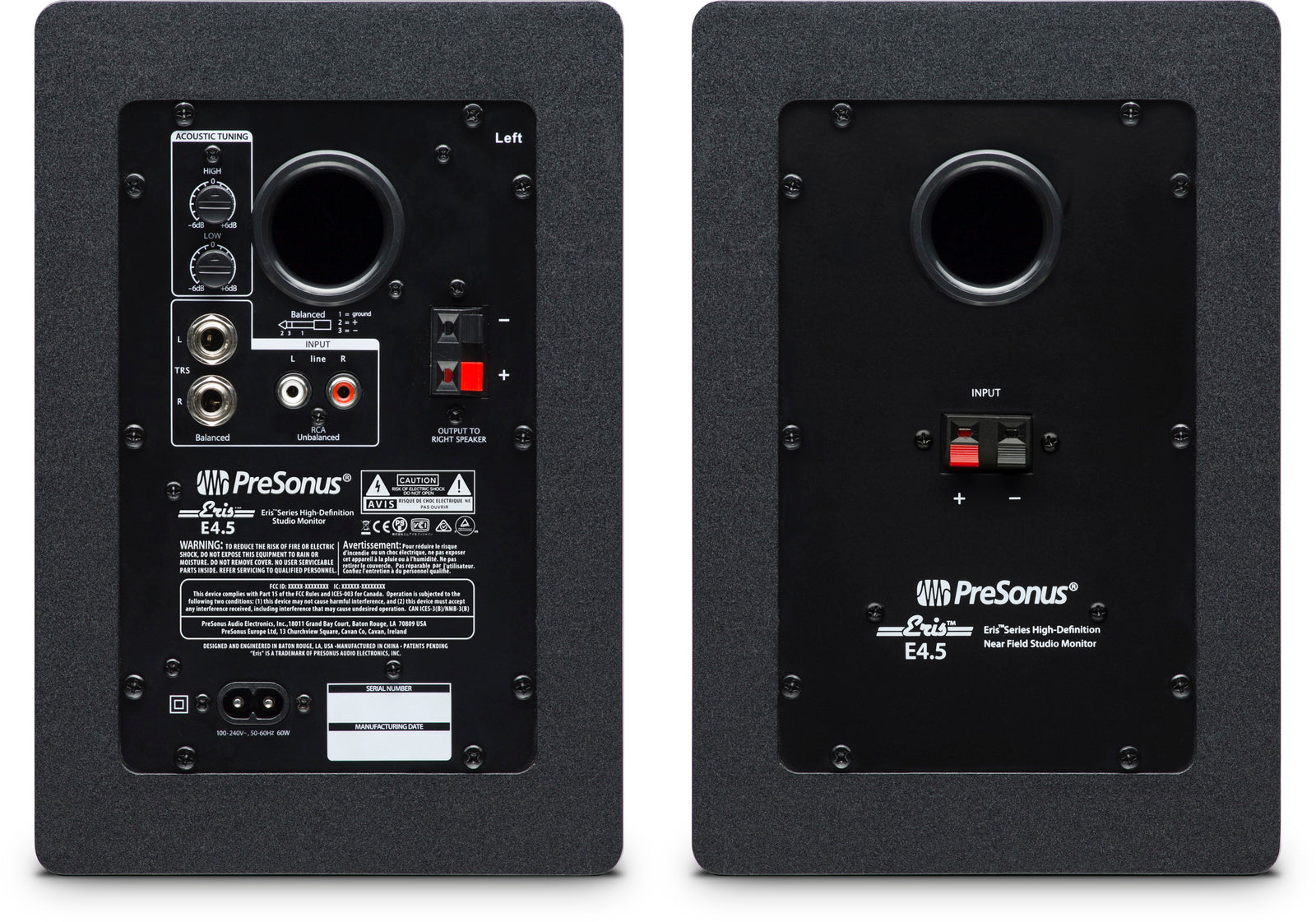

- RCA and ¼-inch balanced TRS rear-panel inputs

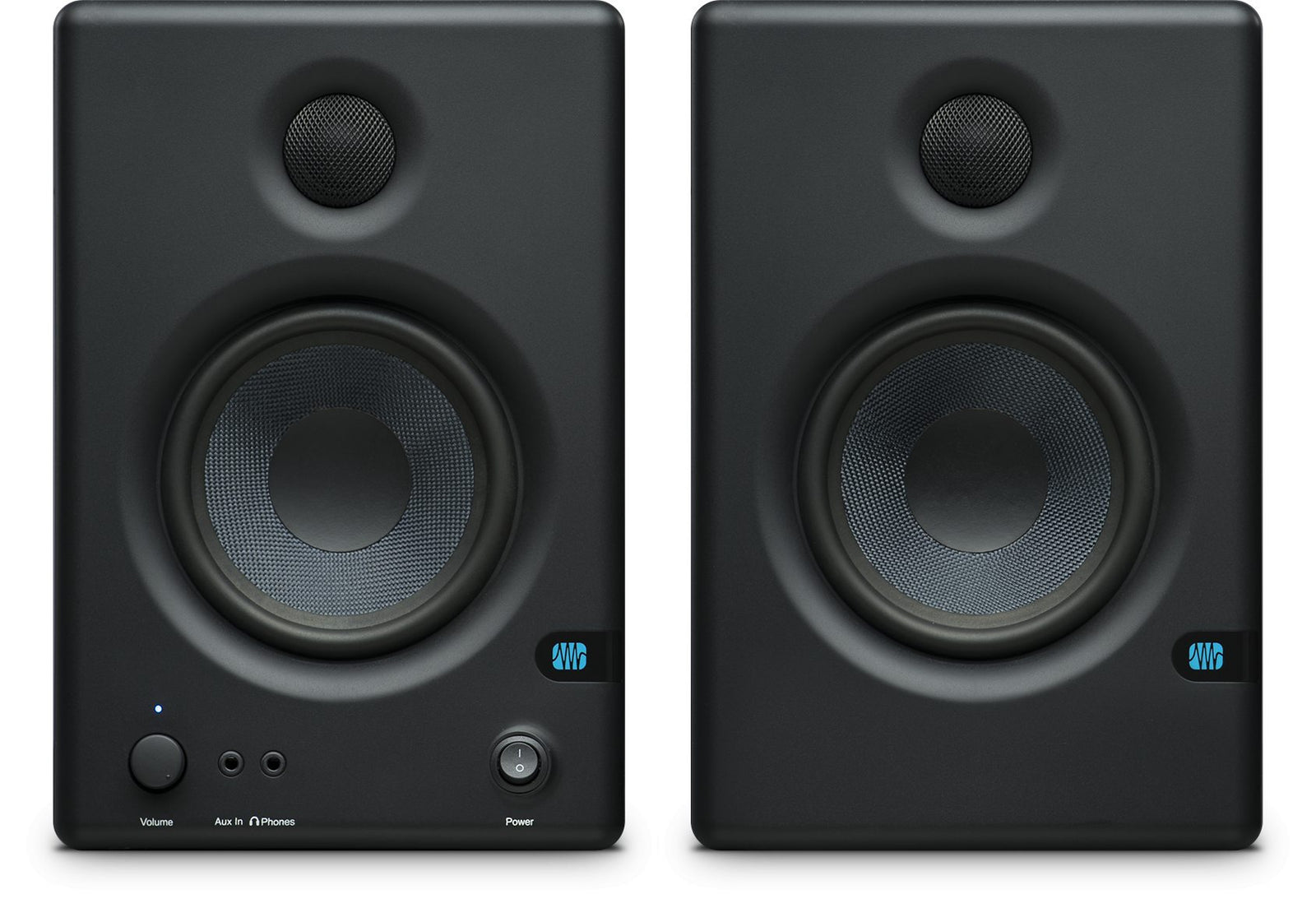

- Front-panel 1/8-inch stereo Aux
- Integrated headphone amplifier with front-panel stereo 1/8-inch jack
- High- and low-frequency controls let you fine-tune the speaker’s response
- Front-panel Volume control
- Rear-firing, round bass-reflex port
- 25W/side Class AB amplification
Technical Specifications
|
Inputs |
|
|
|
1- Stereo 1/8" |
|
|
2- Balanced ¼” TRS |
|
|
2- Unbalanced RCA |
|
Performance |
|
|
Frequency Response |
70 Hz - 20 kHz |
|
Crossover Frequency |
2.8 kHz |
|
LF Amplifier Power |
25W/speaker |
|
HF Amplifier Power |
(not biamped) |
|
Peak SPL (@ 1 meter) |
100 dB |
|
LF Driver |
4.5" Kevlar® |
|
HF Driver |
1” silk dome |
|
Input Impedance |
10 kΩ |
|
User Controls |
|
|
Volume Range |
A-type taper |
|
MF Control |
Variable (-6 to +6 dB) |
|
HF Control |
Variable (-6 to +6 dB) |
|
Low Cut |
Flat, 80 Hz, 100 Hz |
|
Acoustic Space |
Flat, -2 dB, -4 dB |
|
Protection |
|
|
|
RF interference |
|
|
Output-current limiting |
|
|
Over-temperature |
|
|
Turn-on/off transient |
|
|
Subsonic filter |
|
|
External mains fuse |
|
Power |
|
|
|
100-120V ~50/60 Hz or 220-240V ~50/60 Hz |
|
Cabinet |
|
|
|
Vinyl-laminated, medium-density fiberboard |
|
Physical |
|
|
Width |
6.42" (163 mm) |
|
Depth |
7.09" (180 mm) |
|
Height |
9.45" (241 mm) |
|
Weight |
13 lb. (5.9 kg) |
