Presonus CDL12 Full Range Constant Directivity PA Speaker

PresonusSKU: CDL12

Price:
Sale price €2,199.00

Constant Directivity: Consistent, Coherent Sound

The PreSonus® CDL12 is the result of years of research and development, combining the best attributes of point source and line array technology into a unique patent-pending design. Based on the Constant-Directivity Two-Way Loudspeaker System design presented at the 143rd AES Convention in New York by Hugh Sarvis and Don Keele, the CDL12 radiates a highly focused pattern with consistent SPL throughout the frequency response range, both on- and off-axis. The result is clear, articulate speech intelligibility and natural music reproduction.

A unique look with a unique result

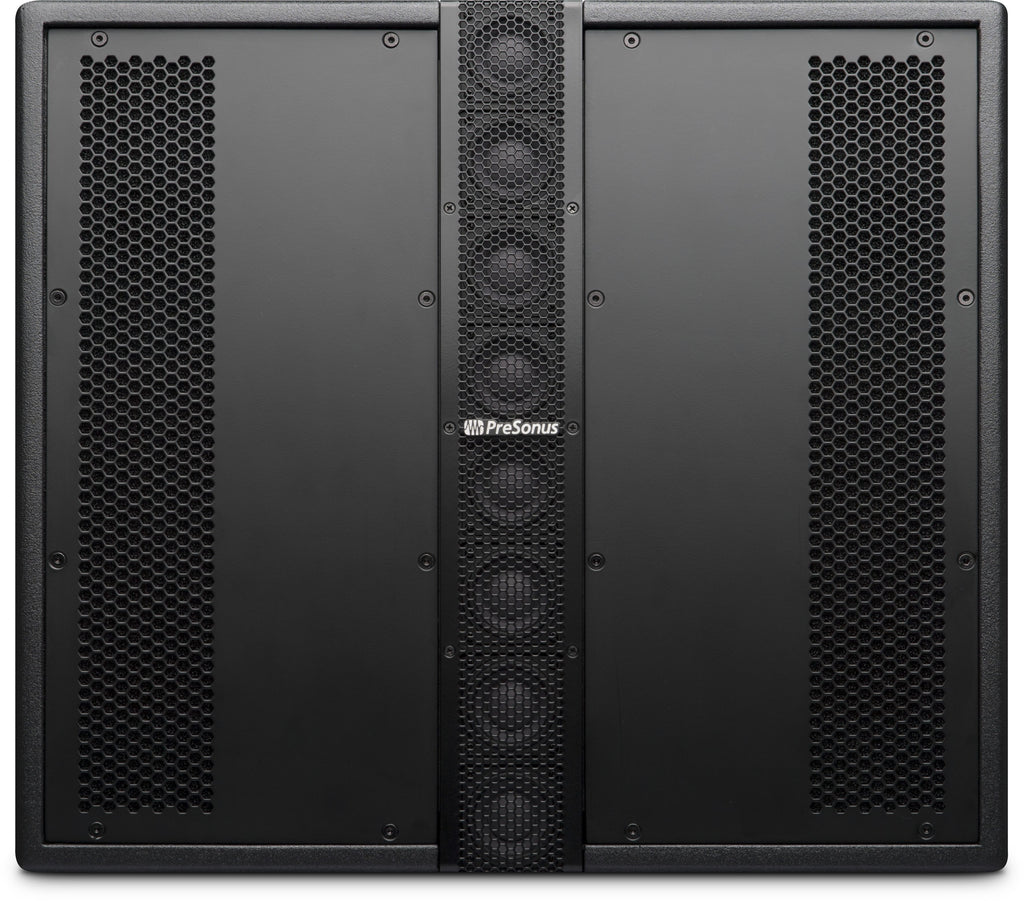

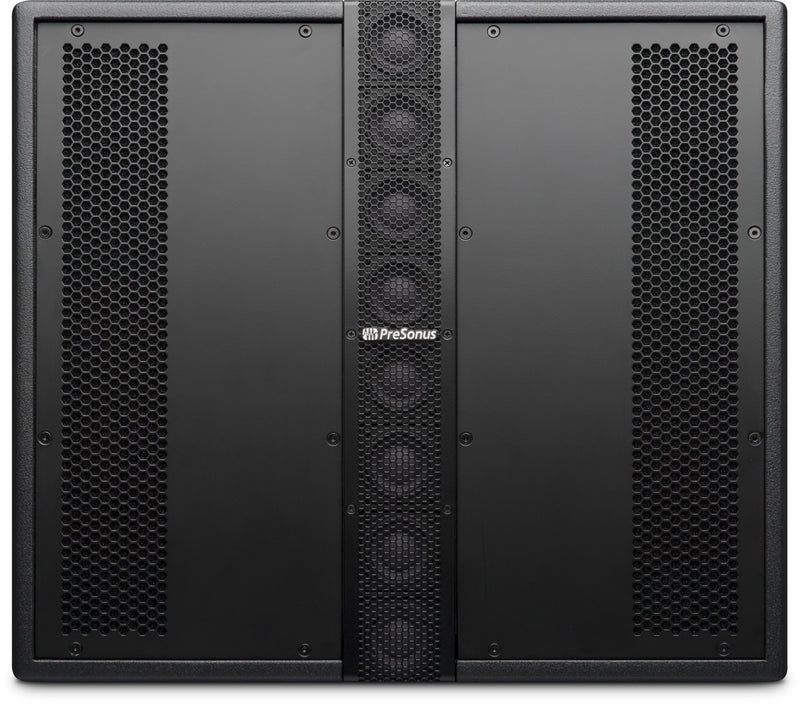

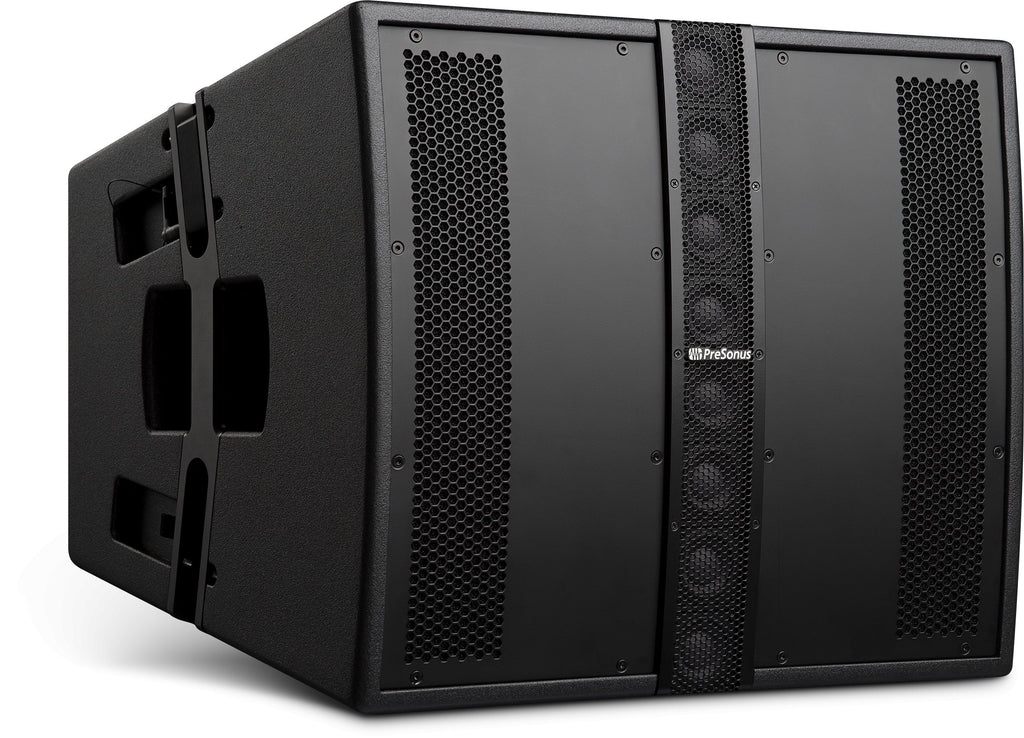

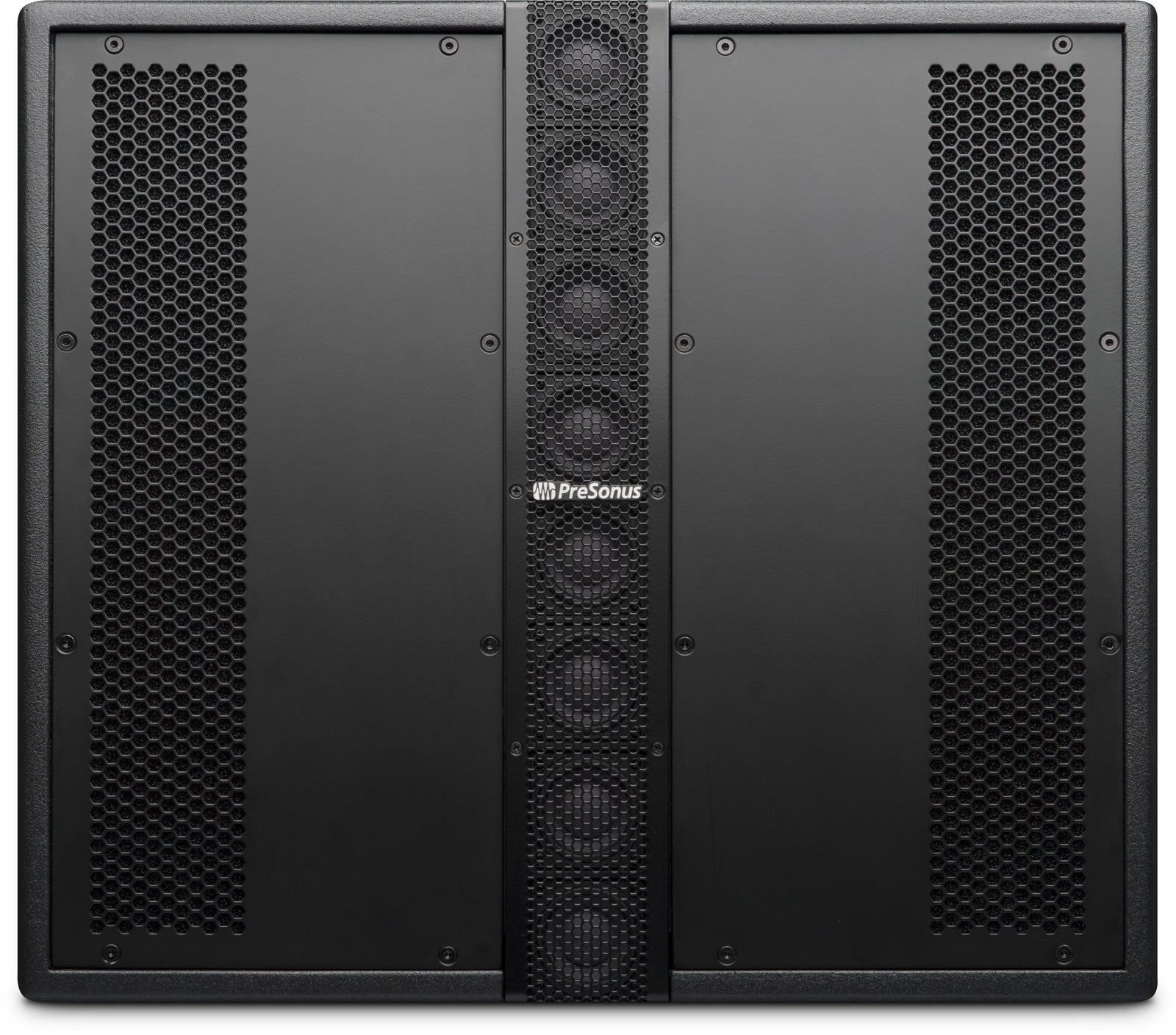

Each CDL12 consists of eight 2-inch drivers aligned in a segmented circular-arc high-frequency array centred in front of a 12-inch woofer. The output of the low-frequency driver travels from the same acoustic axis as the high-frequency array so that the pattern always radiates from the centre of the CDL12. This is true whether the CDL12 is used individually on a tripod speaker stand or as part of an acoustically coupled vertical array with up to six enclosures. Because of this, the CDL12 avoids the near-field anomalies that can interfere with the sound quality of a traditional line array. This makes the CDL12 ideally suited for a broader range of venue sizes, creating a far-field response almost immediately as the sound is projected from the centre of the enclosure.

Symmetrical dispersion matters.

Traditional line array loudspeakers typically place a high-frequency horn on one side of the enclosure and a woofer on the other. To obtain a symmetrical image with those loudspeakers, you'd have to flip one over—something they aren't designed to do in the first place—and you'd still have phase issues. With the CDL12, the eight 2-inch high-frequency drivers arc over a single 12-inch woofer, comparable to the coaxial driver configuration found on top studio monitors. The result is better sonic coherence across the entire venue, with no anomalies to compensate for via time-consuming room correction. Regardless of how many CDL12s you stack, you're working with a shared acoustic axis—and non-turbulent sound propagating throughout the room.

Scalable vertical coverage.

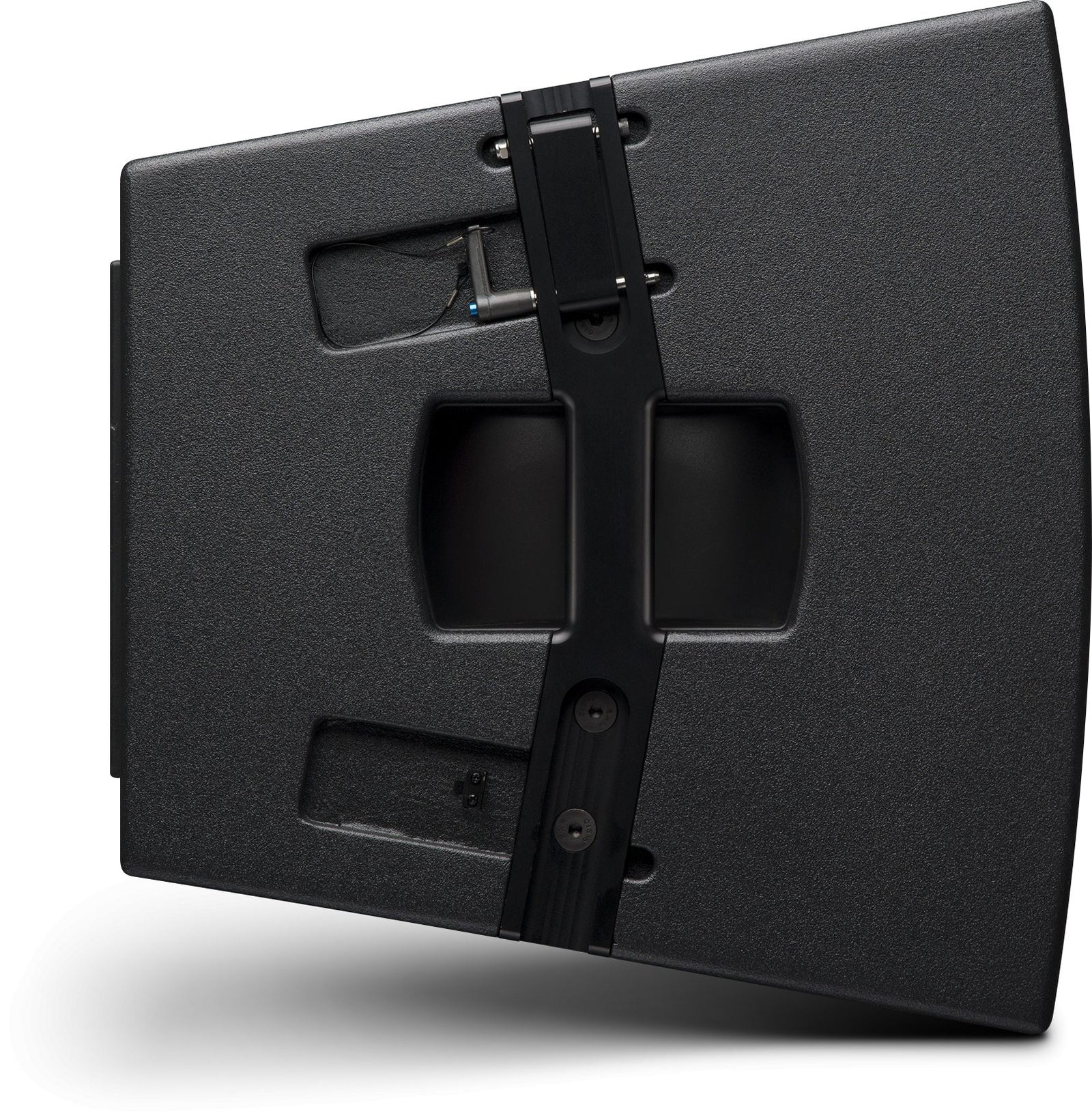

The CDL12’s hybrid point source/line array design delivers focused sound with consistent SPL coverage both on- or off-axis, making it an excellent choice for mobile and installed applications. Rigging CDL12 enclosures is made easier, thanks to integrated pin-loaded rigging hardware. A dual-angle pole mount is provided, supporting the use of one or two enclosures when pole mounted on a tripod stand, or atop the companion CDL18s subwoofer, allowing the system to adapt to varying audience sizes. When vertically arrayed for suspended applications, up to five CDL12 enclosures can be flown beneath one or two CDL18s subwoofers. When flown without a subwoofer, six CDL12 loudspeakers can be arrayed to create a truly symmetric 120˚ x 120˚ design.

Onboard processing power.

The CDL12’s integrated PDA-1000 500W x 500W Class D power amplifier features onboard DSP presets to facilitate and simplify arrayed configurations. For more advanced applications, each CDL12 can be connected to a standard LAN network and remotely controlled using WorxControl software for macOS® and Windows®. When combined with the CDL12, WorxControl provides speaker-management tools that include compression, limiting, and 800 ms of delay. An 8-band EQ with individually selectable filters (High Pass, Low Pass, High Shelf, Low Shelf, Notch, All Pass, Band Pass) is also provided to compensate for room anomalies. Speakers can be grouped and managed individually or together. Performance monitoring indicators allow you to monitor temperature and signal levels remotely.

Dante® spoken here.

The locking Ethernet connection on the CDL12’s integrated PDA-1000 power amplifier also provides audio networking capability via Dante. Dante’s multi-channel digital media networking technology delivers near-zero latency and synchronisation and has been adopted by many pro-audio manufacturers, facilitating the CDL12 loudspeaker’s interoperability with a wide range of equipment.

Now hear this.

The patent-pending Constant Directivity design of the PreSonus CDL12 delivers exceptional performance and versatile configuration options in a visually stunning, compact form factor. Superior phase coherence and controlled dispersion result in an articulate, natural listening experience, making the CDL12 an outstanding choice for both portable PA and installed sound applications. The result of years of research and development, the CDL12 combines the directivity of a point-source design with the scalable coverage of a line array to create a unique loudspeaker that provides the flexibility demanded by modern sound reproduction applications.

Trouble-free performance guaranteed—for six years.

Quality runs deep in our corporate culture and we strive to build feature rich, the best sounding, and most reliable products available anywhere. We’re confident you’ll love the PreSonus CDL12. By choosing PreSonus, you’re assured of robust, trouble-free performance—for six years. In the unlikely event you do experience an issue, you can count on us to make it right. This is our commitment to you.

Technical Specifications

Acoustic Performance



Configuration

Active 2-way

Frequency Response (-3 dB)

48 Hz – 18 kHz

Frequency Response (-10 dB)

42 Hz – 19 kHz

Nominal Coverage (-6 dB)

120° x 20° per enclosure

Maximum Peak SPL

131 dB

Crossover Frequency

420 Hz

Transducer



LF Transducer

12” (2.5” voice coil)

HF Transducer

8 x 2” (1” Voice Coil)

Amplifier



Type

Class D

Total Power Output

2000W Peak, 1000W Program (500W RMS)

LF Power

1000W Peak, 500W Program (250W RMS)

HF Power

1000W Peak, 500W Program (250W RMS)

Cooling

Free air convection

Rated THD

<0.05% (20 Hz - 20 kHz)

Dynamic Range

119 dB (A-weighted)

Bandwidth

20 Hz - 20 kHz

Mains Connection

powerCON™ In and Out

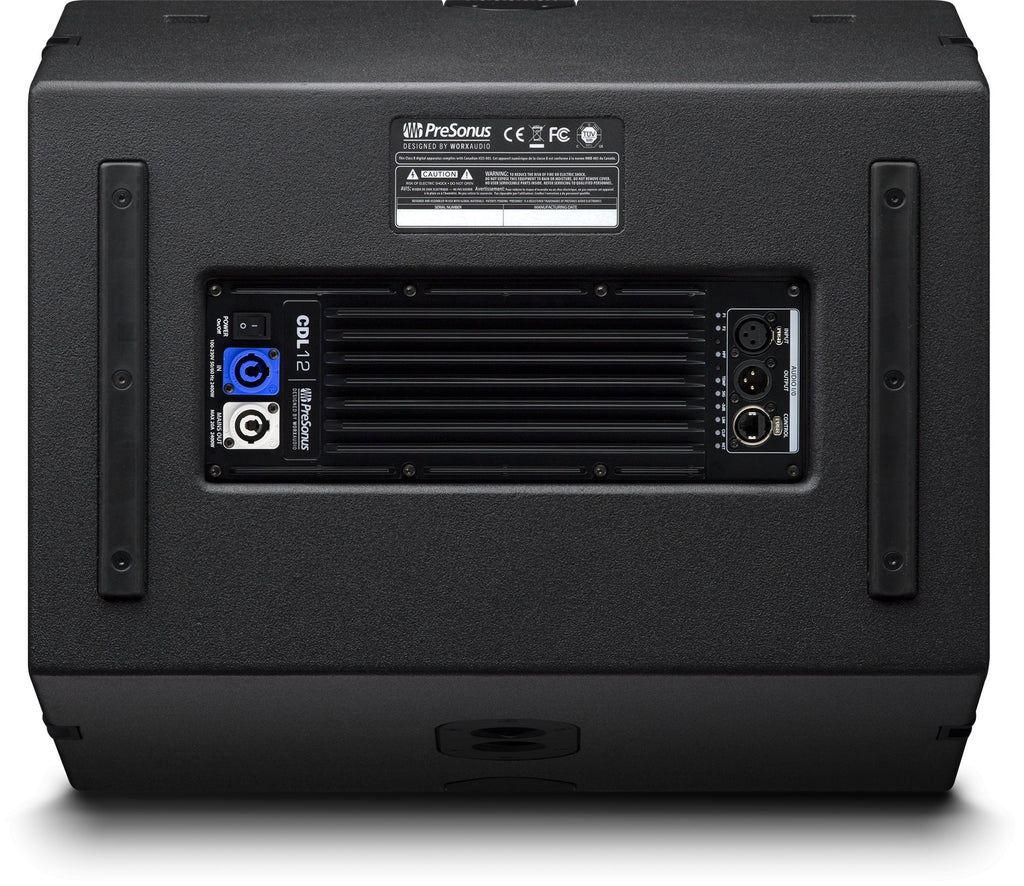

Connections and Controls



Input Channels

1 Line

Input Connector Types

1 XLR

Line Input Impedance

40 kΩ

Maximum Input

+4 dBu

Output Connector

Direct Line Out (XLR)

Networking

Dante® (Audio and Control), Control (only) via Locking Ethernet

Controls

Preset Select

HPF On/Off

Indicators

Over Temperature, Signal, -3 dB, Limiter, Clip, Network Status

DSP



Effects

Compression, Limiting, Delay, 8-band EQ and preset selection via WorxControl

HPF

90 Hz, 4th-order Butterworth

Bit Depth

24-bit

Sample Rate

48 kHz

Enclosure



Material

15 mm Eucalyptus plywood

Finish

Chemline™ Polyurea

Grille

Powder-coated steel

Dimensions (HxDxW)

18.6” x 20.8” x 17.5” (473 mm x 529 mm x 444.5 mm)

Unit Weight

65 lbs. (29.5 kg)

Safety



Amplifier Protection

Over-current, DC, over/under-voltage, over-temperature, high frequency

Transducer Protection

Limiter

Power



AC Power Input

90-260V~, 50-60 Hz

AC Power Consumption (1/8 Power)

4.2 Amps

Suspension Mounting



Rigging Points

Integrated Rigging (10:1 load)

Mounting

Dual-position pole mount (0° and 10°) 35 mm

Optional Accessories



Rigging

CDL Rigging Grid, CDL Rigging Extension Bar, CDL Rigging Sling

Other

CDL12-Tote Tote Bag
