Now includes a full perpetual license for Studio One Professional V7.
Everything you need to record and produce—and beyond
Produce and record like a pro with a single-purchase bundle! The core of this package is the AudioBox USB® 96 audio/MIDI interface and award-winning Studio One recording and production software. You also get PreSonus®’ best-selling Eris E3.5 Active Media Reference Monitors and HD7 headphones, allowing you to monitor your work loud and proud or quietly to yourself. Lastly, the M7 dynamic microphone is a superior all-purpose condenser mic ideal for guitar and vocals—and we even included all the necessary cables and a desktop mic stand.

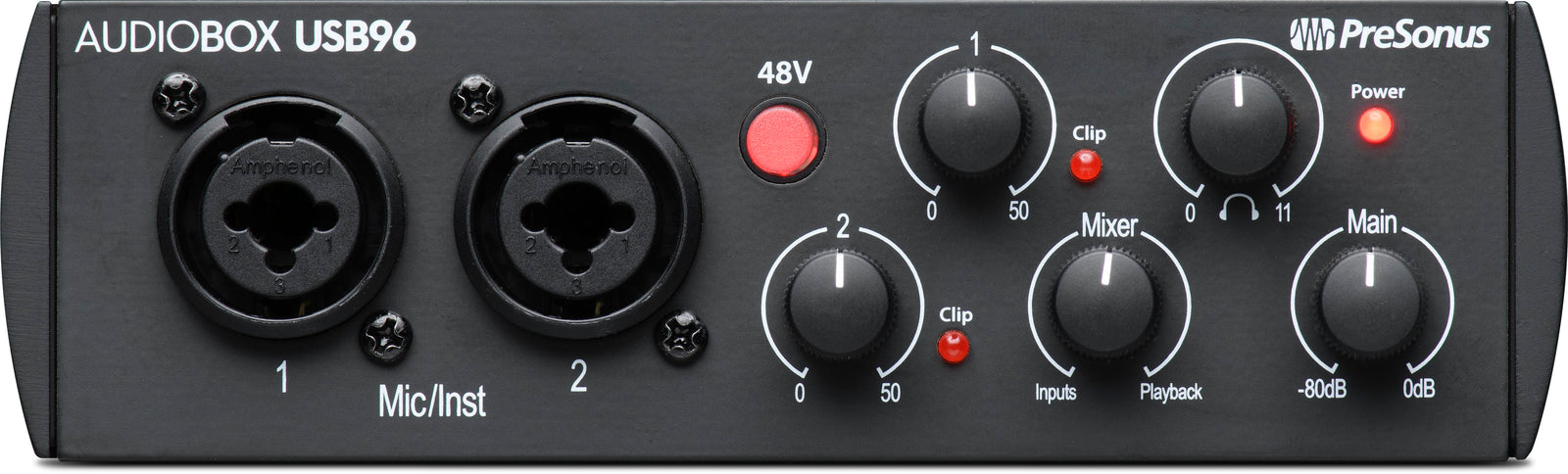

AudioBox USB 96: Simple, reliable, and portable.
The AudioBox USB 96 is the heart of the AudioBox 96 Studio. This simple, handy little audio/MIDI interface has just the right features for basic recording needs, including two combo mic/instrument inputs and zero-latency monitoring, so you can simply plug in and start recording right away. Bus-powered, built to travel, compatible with most recording software for Mac and Windows, and equipped with high-performance microphone preamplifiers and professional-quality, 24-bit, 96 kHz converters, the AudioBox USB 96 makes high-definition recording easy.

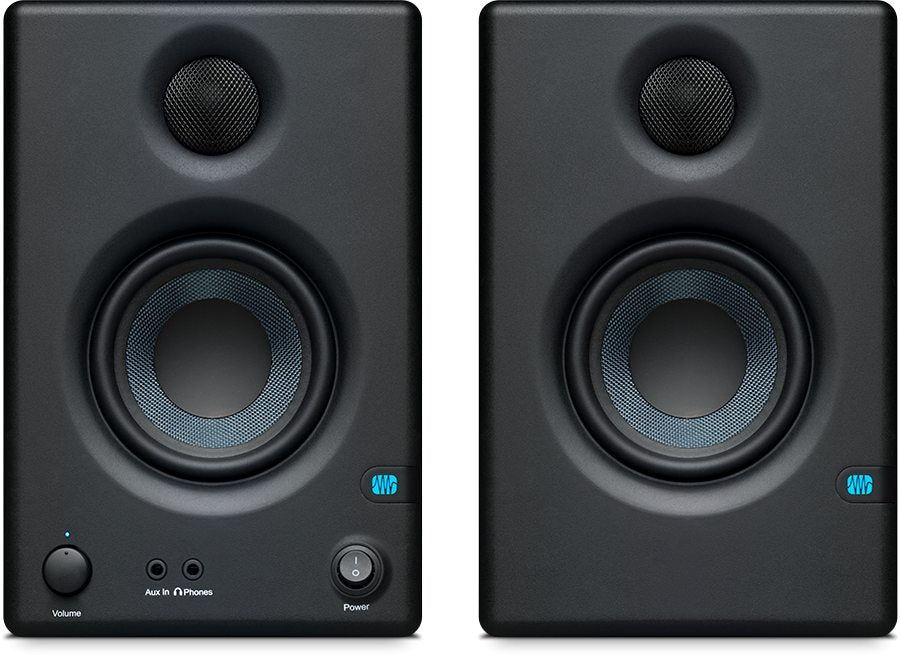

Sound you can trust. Eris 3.5
PreSonus® Eris-series studio monitors are used worldwide by audio engineers who need to hear every detail of their recordings. Eris E3.5 employs the same technology as the larger Eris models to deliver studio-quality sound, with a smooth and accurate frequency response. They’re compact enough to fit almost anywhere, but still offer robust I/O—you can connect them to nearly anything.

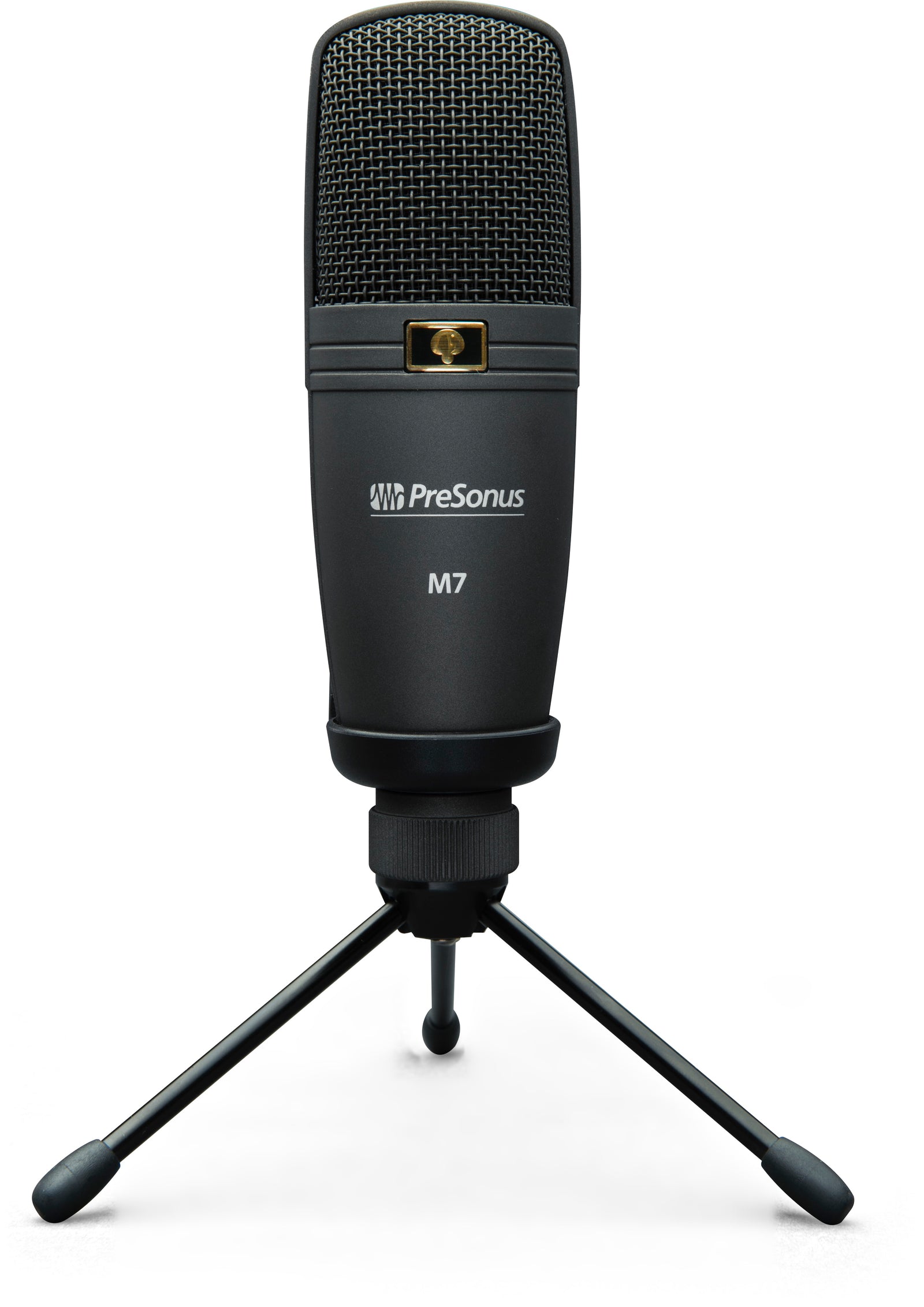

Capture every nuance with the M7 condenser microphone.
Get your mic collection off to a good start with the M7 large-diaphragm condenser microphone. Condenser mics are the overwhelming choice of recording studio professionals, enabling you to capture musical details, harmonics, and subtle nuances that would get lost with dynamic mics. Large-diaphragm condenser microphones, like the M7, tend to “warm up” a sound, making them the go-to microphone for recording vocals and a wide range of instruments.

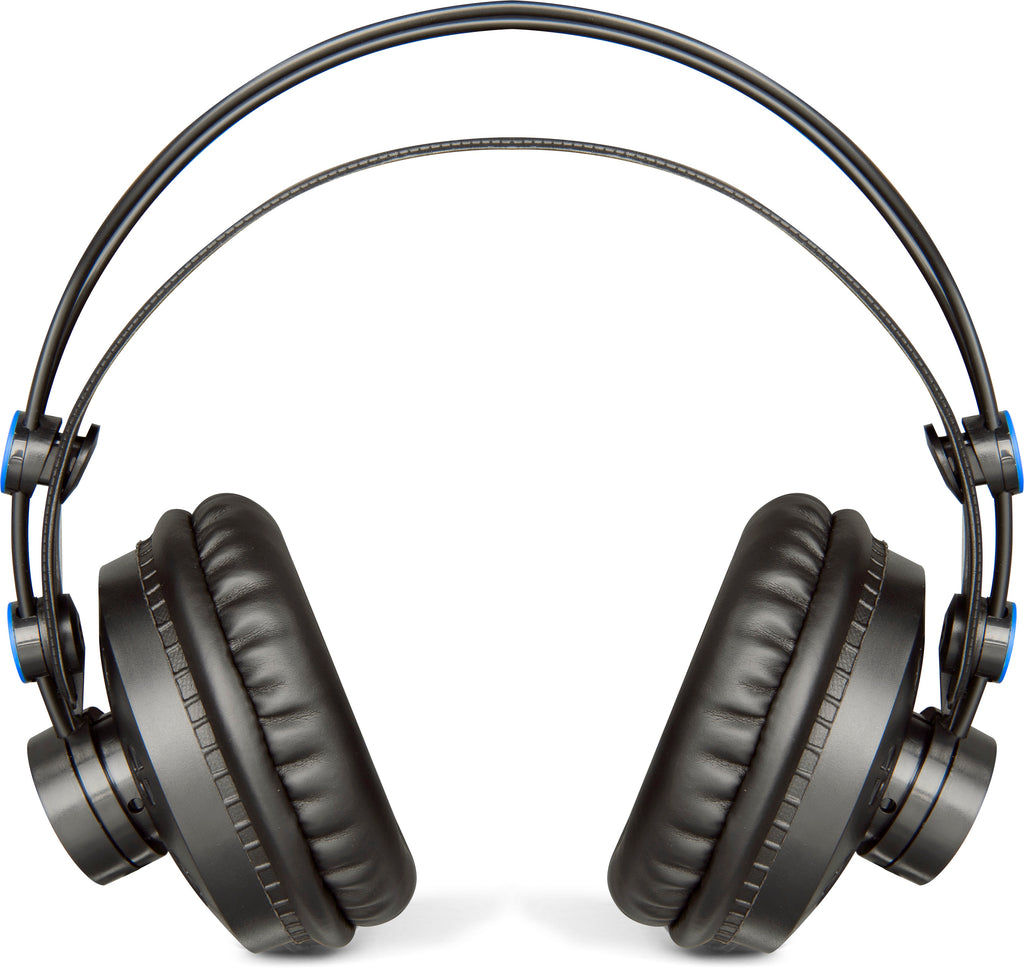

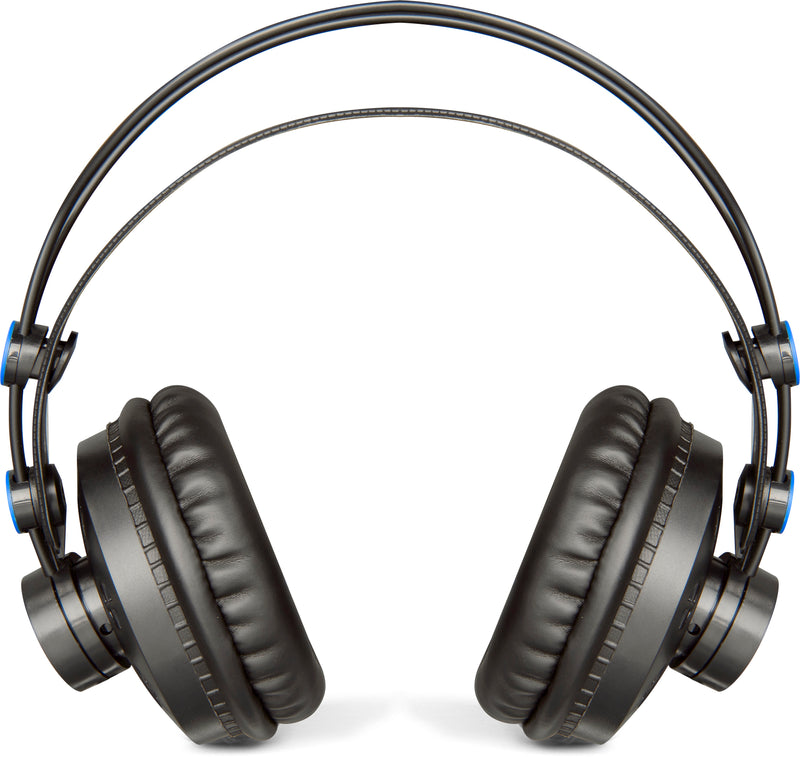

Hear every detail with HD7 professional headphones.
PreSonus’ high-definition HD7 headphones take advantage of a patented, semi-open sound chamber to deliver exceptionally deep low frequencies with a balanced and yet powerful bass punch. Accurate midrange and extended treble response let you pick out the fine details of a mix or track. The lightweight, ergonomic design adjusts to any head size, offering a comfortable listening experience during long recording sessions.
A classic that deserves celebration.
The AudioBox USB96 has been responsible for the great sound on countless albums, podcasts, live streams, and Zoom calls and here at PreSonus, we wanted to honour that with a special 25th Anniversary Edition featuring a sleek, black enclosure. Now you can choose your colour: classic PreSonus blue or 25th Anniversary matte black.
Make your own magic.
At PreSonus, we want to make sure that our audio interfaces come with everything you need to craft your own mesmerising spells in the studio. But here in Louisiana, we have a word: lagniappe. It means "a little something extra," and it’s in that spirit that we also include the Studio Magic Suite of software with our audio interface products.
The 2020 Studio Magic is a major step up from the 2019 edition, and includes Ableton Live Lite, tutorials from Melodics, 6 virtual instruments, and 9 effects plug-ins in VST, AU, and AAX formats... all unlocked for use inside Studio One Artist with a retail value of over $1000 (US).
Features
AudioBox USB® 96
- Bus-powered USB audio and MIDI interface
- Perfect match with Studio One Pro® Pro software for Mac® and Windows®
- 24-bit resolution, 44.1, 48, 88.1, and 96 kHz sampling rate
- 2 combo mic/instrument inputs with Class A mic preamplifiers
- 48V phantom power (for included M7 microphone or other condenser microphones)
- Zero-latency monitoring via internal analog mixer
- Headphone jack with level control (for included HD7 headphones or other headphones)
- 1/3U rack-mountable
- Computer-to-interface connection cable included
M7 Microphone
- Large-diaphragm design
- Captures far more detail than a dynamic mic
- Mic stand adaptor
- Phantom-powered via AudioBox USB
- 9' / 3 m cable included
- Cloth carry bag included
HD7 Headphones
- High neodymium resolution drivers
- Precision-tuned acoustic chamber
- Extended bass response
- Built tough to withstand abuse
- Auto-fit head pads
- Comfortable and long-lasting ear pads
- 98" / 2.5m single-side cable
- Optimised pressure
- Lightweight
Computer system requirements:
Studio One® is a modern, cross-platform DAW that is capable of operating as a 32-bit or 64-bit application. While we make every effort to ensure Studio One will run well on the widest variety of computers possible, please read these specifications carefully to determine compatibility with your system.
Below are the minimum computer-system requirements for Studio One.
Mac
- macOS® 10.11 or higher (64-bit only) or later
- Intel® Core Duo processor (Intel Core™ 2 Duo or Intel Core i3 or better recommended)
- 2 GB RAM (4 GB or more recommended)
Windows
- Windows® 7x 64/x86 SP1 or Windows 8/8.1 x64/x86 or Windows 10 x64/x86
- Intel Core 2 processor (Intel Core i3 processor or better recommended)
- 4 GB RAM (8 GB or more recommended)
Windows and Mac Systems
- USB 2.0 Port
- Internet connection (for activation)
- Monitor with at least 1024x768 resolution
- 20 GB hard-disk space
- Internal or external 7200 RPM storage drive highly recommended
The minimum system requirements may differ for DAWs other than Studio One. Please check the requirements for your DAW of choice with its manufacturer.
Note that the speed of your processor, amount of RAM and size and speed of your hard drive will greatly affect the overall performance of your recording system. Also, a more powerful system (faster processor with more RAM) will allow for lower latency (signal delay) than you might experience while monitoring audio or MIDI signals. Monitor resolution for both PC and Macintosh should be no lower than 1024x768 pixels.
Technical Specifications
AudioBox USB®96 Specifications |
|
Microphone Preamp |
|
Type |
XLR Female Balanced |
Frequency Response (±3.0 dB) |
20 Hz to 20 kHz |
Input Impedance (Balanced) |
1200Ω |
THD+N (unwtd, 1 kHz @ +4 dBu Output, Unity Gain) |
< 0.008% |
S/N Ratio (Unity Gain, Ref. = +4 dBu, 20 Hz to 22 kHz) |
> 95 dB |
Common Mode Rejection Ratio (1 kHz, 55 dB Gain) |
> 45 dB |
Gain Control Range (± 1 dB) |
0 dB to 35 dB |
Max Input Level (Unity Gain, 1 kHz @ 0.5% THD+N) |
-3 dBu |
Phantom Power (±2 VDC) |
+48 VDC |
Instrument Input |
|
Type |
¼" |
TRS Female Unbalanced Input Impedance |
0.5 MΩ |
Line Outputs |
|
Type |
¼" |
Balanced Output Impedance |
51Ω |
Headphone Output |
|
Type |
¼" TRS Active Stereo |
Maximum Output |
60 mW/Ch @ 60Ω Load |
Frequency Response (±1.0 dB) |
20 Hz - 30 kHz |
MIDI I/O |
|
Type |
Dual 5-pin Female DIN |
Digital Audio |
|
ADC Dynamic Range (A-wtd, 48 kHz Sample Rate) |
105 dB |
DAC Dynamic Range (A-wtd, 48 kHz Sample Rate) |
105 dB |
Bit Depth |
24 |
Reference Level for 0 dBFS |
+4 dBu |
Internal Sample Frequency Selections (kHz) |
44.1, 48, 88.2, 96 |
Power |
USB 2.0 Bus-powered |
Physical |
|
Dimensions |
1/3U (steel chassis) |
Height |
5.5” (139.7 mm) |
Depth |
1.75" (44.45 mm) |
Width |
5.5” (139.7 mm) |
Weight |
1.4 lbs (0.64 kg) |
M7 Microphone Specifications |
|
General |
|
Type |
Large-diaphragm condenser microphone |
Element |
Electret |
Polar Pattern |
Cardioid |
Frequency Response |
40 Hz - 18 kHz |
Sensitivity |
-39 dBV/pa (12.2 mV/pa) |
Rated Impedance |
200Ω |
Equivalent Input Noise (EIN) |
20 dB |
Maximum SPL |
136 dB SPL |
Phantom Power Required |
+12 to +52 VDC, 3 mA |
S/N Ratio |
74 dB |
Dynamic Range |
11 dB |
Current Consumption |
3.5 mA |
Physical |
|
Diameter |
2.13" (54 mm), maximum |
Length |
6.69" (170 mm) |
Weight |
11.3 oz. (320g) |
HD7 Headphone Specifications |
|
General |
|
Acoustic Design |
Dynamic, semi-open |
Driver |
50 mm, neodymium |
Frequency Response |
10 Hz to 30 kHz |
Sensitivity |
98 dB SPL (1 mW) |
Maximum Power |
300 mW |
Rated Impedance |
56Ω |
Earpad |
Leather |
Physical |
|
Weight, without Cable |
7.8 oz (222g) |
Cable |
8' 2" (2.5m) straight, single-sided |
Plug Adapter |
1/8" to 1/4" (3.5 to 6.3 mm), screw-on, gold-plated, stereo mini-plug |
<
