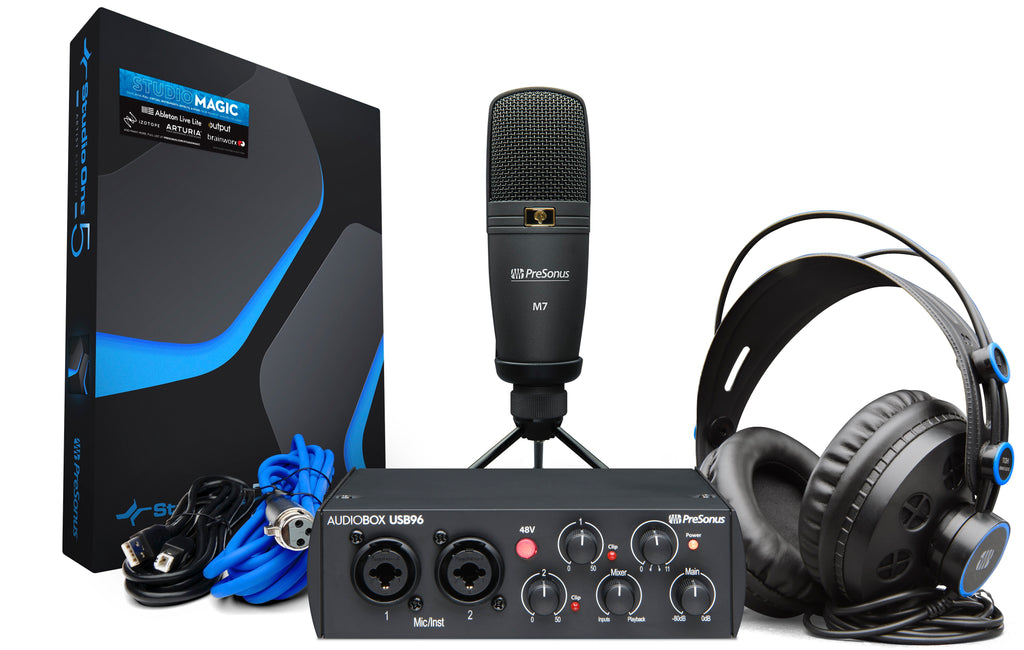

Portable, bus-powered, 2-channel USB 2.0 interface with up to 24-bit, 96 kHz recording; powerful, easy-to-use DAW software; large-diaphragm condenser mic; high-def headphones with semi-open sound chamber; cables; and Quick Start guide.
Start recording at up to 96 kHz today with this complete, all-PreSonus package! Record with the ultra-mobile AudioBox USB® 96 bus-powered, 2-channel USB 2.0 audio/MIDI interface and easy-to-use Studio One® Artist DAW software. Capture sound with the M7 large-diaphragm condenser mic and monitor with high-definition HD7 headphones.
Features:
-

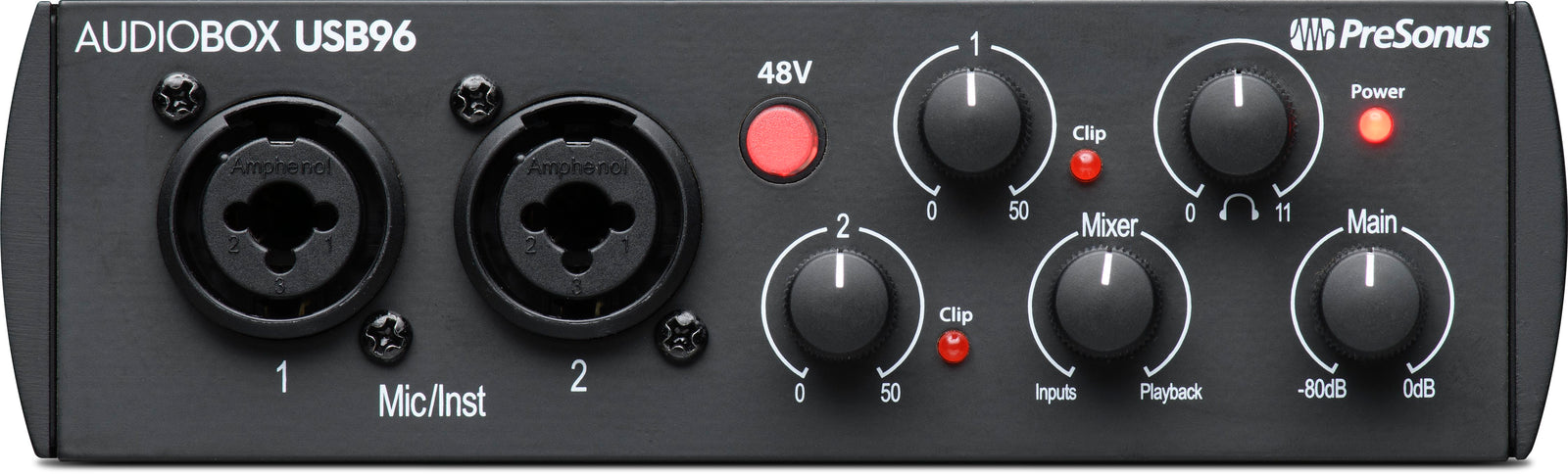

AudioBox USB® 96 audio/MIDI interface with cable
- ◦ 24-bit resolution, up to 96 kHz sampling rate
- ◦ 2 combo mic/instrument inputs
- ◦ 48V phantom power for M7 condenser microphone
- ◦ Zero-latency monitoring via internal mixer
- ◦ USB 2.0 bus-powered
- Studio One® Artist recording and production software (DAW)
- ◦ Elegant single-window work environment
- ◦ Powerful drag-and-drop functionality
- ◦ Unlimited audio tracks, MIDI tracks, virtual instruments, buses, and FX channels
- ◦ Instantly configures to PreSonus audio interfaces
- ◦ 26 Native Effects 32-bit effects and 4 virtual instrument plug-ins
- ◦ 6+ GB of third-party resources
- ◦ Compatible with Mac® and Windows®

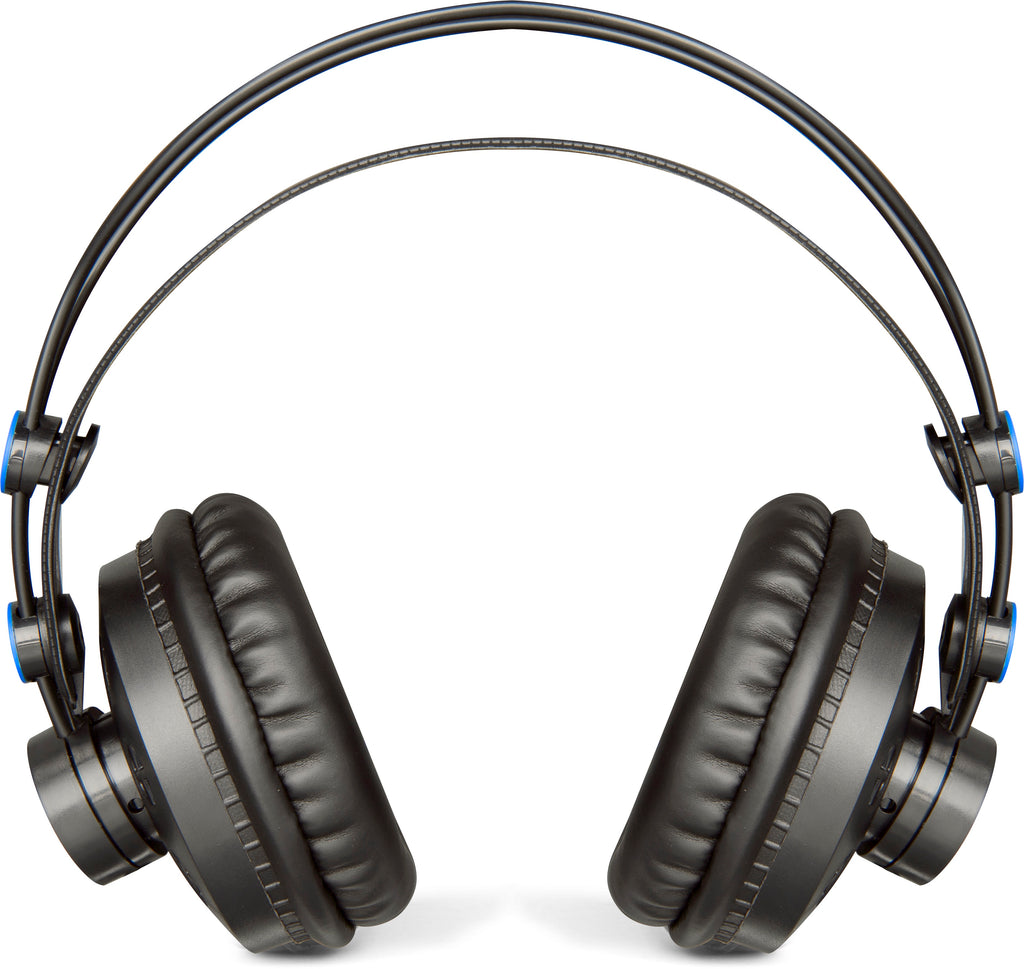

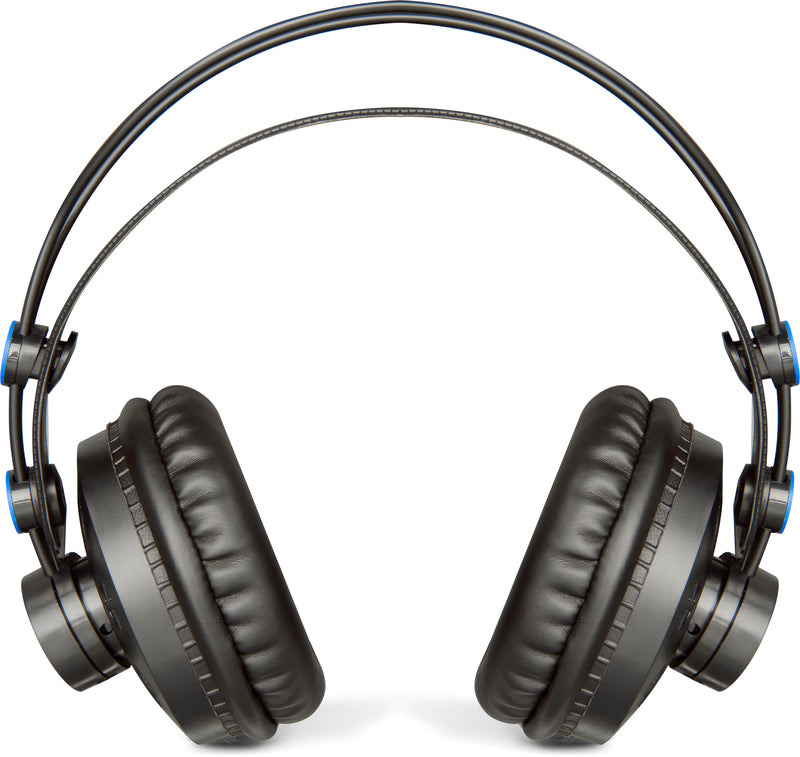

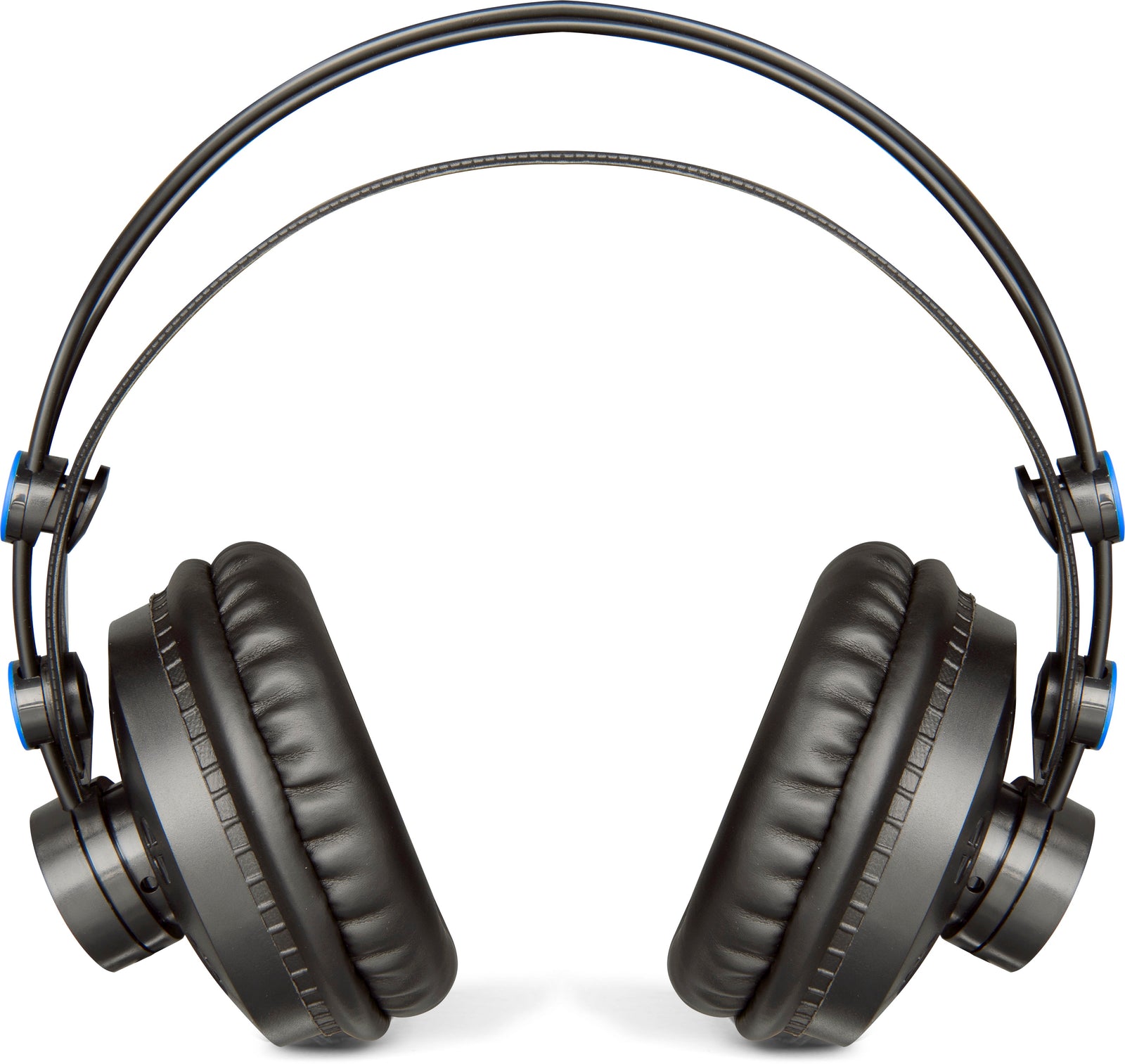

- HD7 studio monitoring headphones with:
- ◦ High-resolution neodymium drivers
- ◦ Precision-tuned acoustic chamber
- ◦ Extended bass response
- ◦ Lightweight

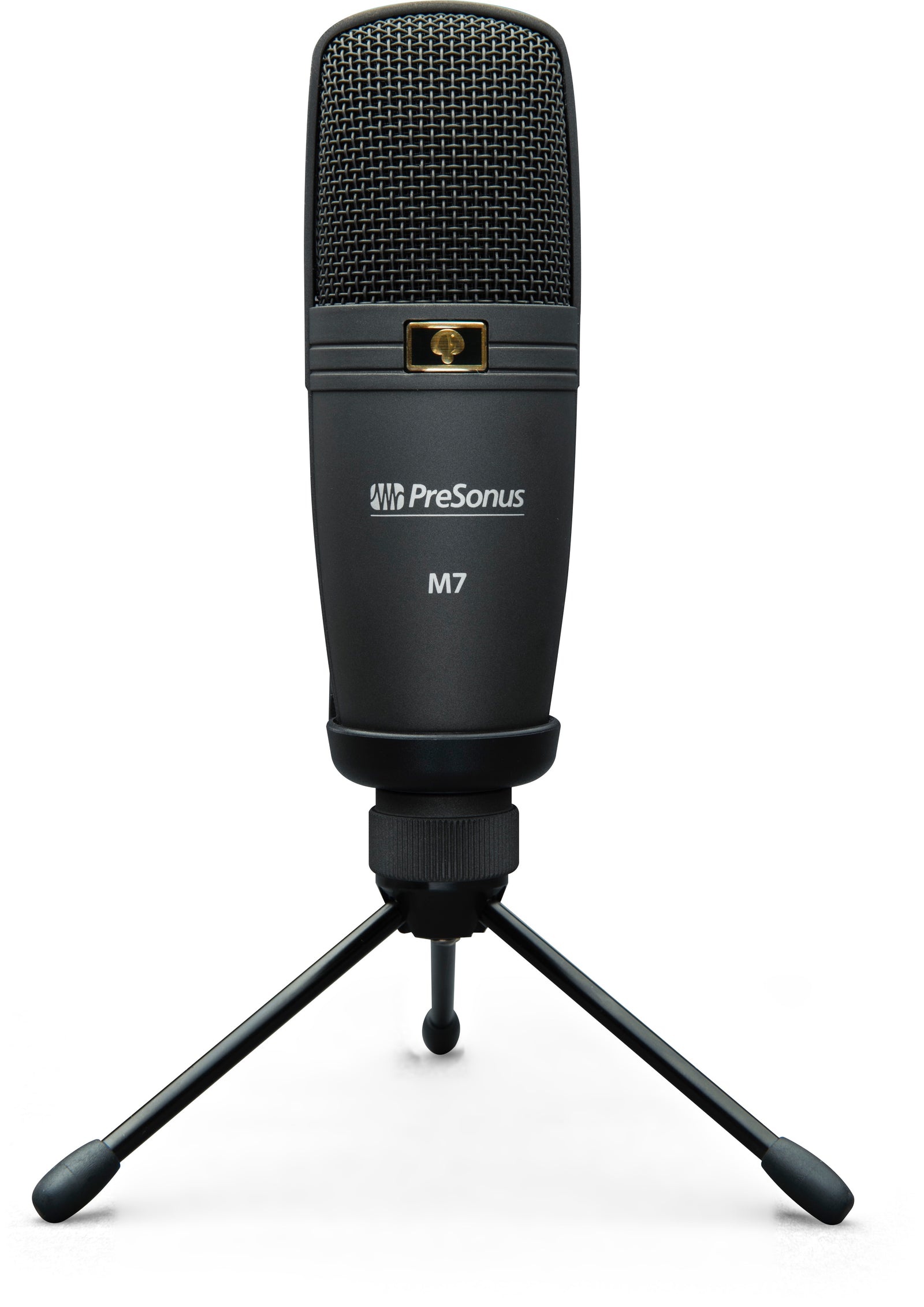

- M7 large-diaphragm studio condenser microphone with cable
- ◦ Mic stand
- ◦ Mic-stand adapter
- ◦ Cloth carry bag included
Computer system requirements:
Studio One® is a modern, cross-platform DAW that is capable of operating as a 32-bit or 64-bit application. While we make every effort to ensure Studio One will run well on the widest variety of computers possible, please read these specifications carefully to determine compatibility with your system.
Below are the minimum computer-system requirements for Studio One.
Mac
- macOS® 10.11 or higher (64-bit only) or later
- Intel® Core Duo processor (Intel Core™ 2 Duo or Intel Core i3 or better recommended)
- 2 GB RAM (4 GB or more recommended)
Windows
- Windows® 7x 64/x86 SP1 or Windows 8/8.1 x64/x86 or Windows 10 x64/x86
- Intel Core 2 processor (Intel Core i3 processor or better recommended)
- 4 GB RAM (8 GB or more recommended)
Windows and Mac Systems
- USB 2.0 Port
- Internet connection (for activation)
- Monitor with at least 1024x768 resolution
- 20 GB hard-disk space
- Internal or external 7200 RPM storage drive highly recommended
The minimum system requirements may differ for DAWs other than Studio One. Please check the requirements for your DAW of choice with its manufacturer.
Note that the speed of your processor, amount of RAM and size and speed of your hard drive will greatly affect the overall performance of your recording system. Also, a more powerful system (faster processor with more RAM) will allow for lower latency (signal delay) than you might experience while monitoring audio or MIDI signals. Monitor resolution for both PC and Macintosh should be no lower than 1024x768 pixels.
Technical Specifications
|
AudioBox USB® 96 Specifications |
|
|
Microphone Preamp |
|
|
Type |
XLR Female Balanced |
|
Frequency Response (±3.0 dB) |
20 Hz to 20 kHz |
|
Input Impedance (Balanced) |
1200Ω |
|
THD+N (unwtd, 1 kHz @ +4 dBu Output, Unity Gain) |
< 0.008% |
|
S/N Ratio (Unity Gain, Ref. = +4 dBu, 20 Hz to 22 kHz) |
> 95 dB |
|
Common Mode Rejection Ratio (1 kHz, 55 dB Gain) |
> 45 dB |
|
Gain Control Range (± 1 dB) |
0 dB to 35 dB |
|
Max Input Level (Unity Gain, 1 kHz @ 0.5% THD+N) |
-3 dBu |
|
Phantom Power (±2 VDC) |
+48 VDC |
|
Instrument Input |
|
|
Type |
¼" |
|
TRS Female Unbalanced Input Impedance |
0.5 MΩ |
|
Line Outputs |
|
|
Type |
¼" |
|
Balanced Output Impedance |
51Ω |
|
Headphone Output |
|
|
Type |
¼" TRS Active Stereo |
|
Maximum Output |
60 mW/Ch @ 60Ω Load |
|
Frequency Response (±1.0 dB) |
20 Hz - 30 kHz |
|
MIDI I/O |
|
|
Type |
Dual 5-pin Female DIN |
|
Digital Audio |
|
|
ADC Dynamic Range (A-wtd, 48 kHz Sample Rate) |
105 dB |
|
DAC Dynamic Range (A-wtd, 48 kHz Sample Rate) |
105 dB |
|
Bit Depth |
24 |
|
Reference Level for 0 dBFS |
+4 dBu |
|
Internal Sample Frequency Selections (kHz) |
44.1, 48, 88.2, 96 |
|
Power |
USB 2.0 Bus-powered |
|
Physical |
|
|
Dimensions |
1/3U (steel chassis) |
|
Height |
5.5” (139.7 mm) |
|
Depth |
1.75" (44.45 mm) |
|
Width |
5.5” (139.7 mm) |
|
Weight |
1.4 lbs (0.64 kg) |
|
M7 Microphone Specifications |
|
|
General |
|
|
Type |
Large-diaphragm condenser microphone |
|
Element |
Electret |
|
Polar Pattern |
Cardioid |
|
Frequency Response |
40 Hz - 18 kHz |
|
Sensitivity |
-39 dBV/pa (12.2 mV/pa) |
|
Rated Impedance |
200Ω |
|
Equivalent Input Noise (EIN) |
20 dB |
|
Maximum SPL |
136 dB SPL |
|
Phantom Power Required |
+12 to +52 VDC, 3 mA |
|
S/N Ratio |
74 dB |
|
Dynamic Range |
11 dB |
|
Current Consumption |
3.5 mA |
|
Physical |
|
|
Diameter |
2.13" (54 mm), maximum |
|
Length |
6.69" (170 mm) |
|
Weight |
11.3 oz. (320g) |
|
HD7 Headphone Specifications |
|
|
General |
|
|
Acoustic Design |
Dynamic, semi-open |
|
Driver |
50 mm, neodymium |
|
Frequency Response |
10 Hz to 30 kHz |
|
Sensitivity |
98 dB SPL (1 mW) |
|
Maximum Power |
300 mW |
|
Rated Impedance |
56Ω |
|
Earpad |
Leather |
|
Physical |
|
|
Weight, without Cable |
7.8 oz (222g) |
|
Cable |
8' 2" (2.5m) straight, single-sided |
|
Plug Adapter |
1/8" to 1/4" (3.5 to 6.3 mm), screw-on, gold-plated, stereo mini-plug |
