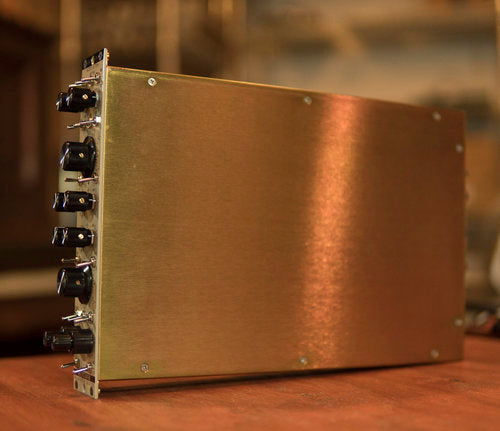

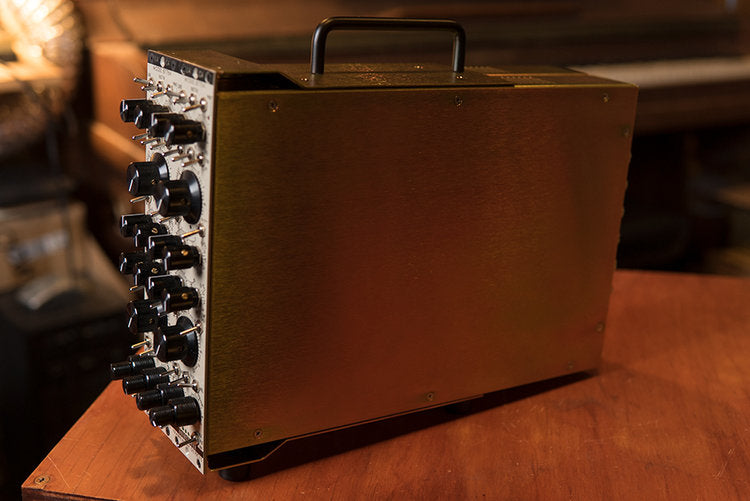

The 877 series modules are self powered, self contained channels that can be used on their own (no chassis required) or as part of a larger framework for recording and mixing.

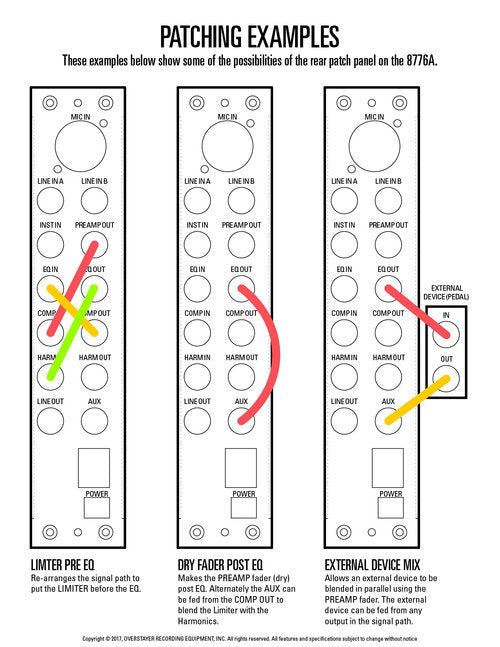

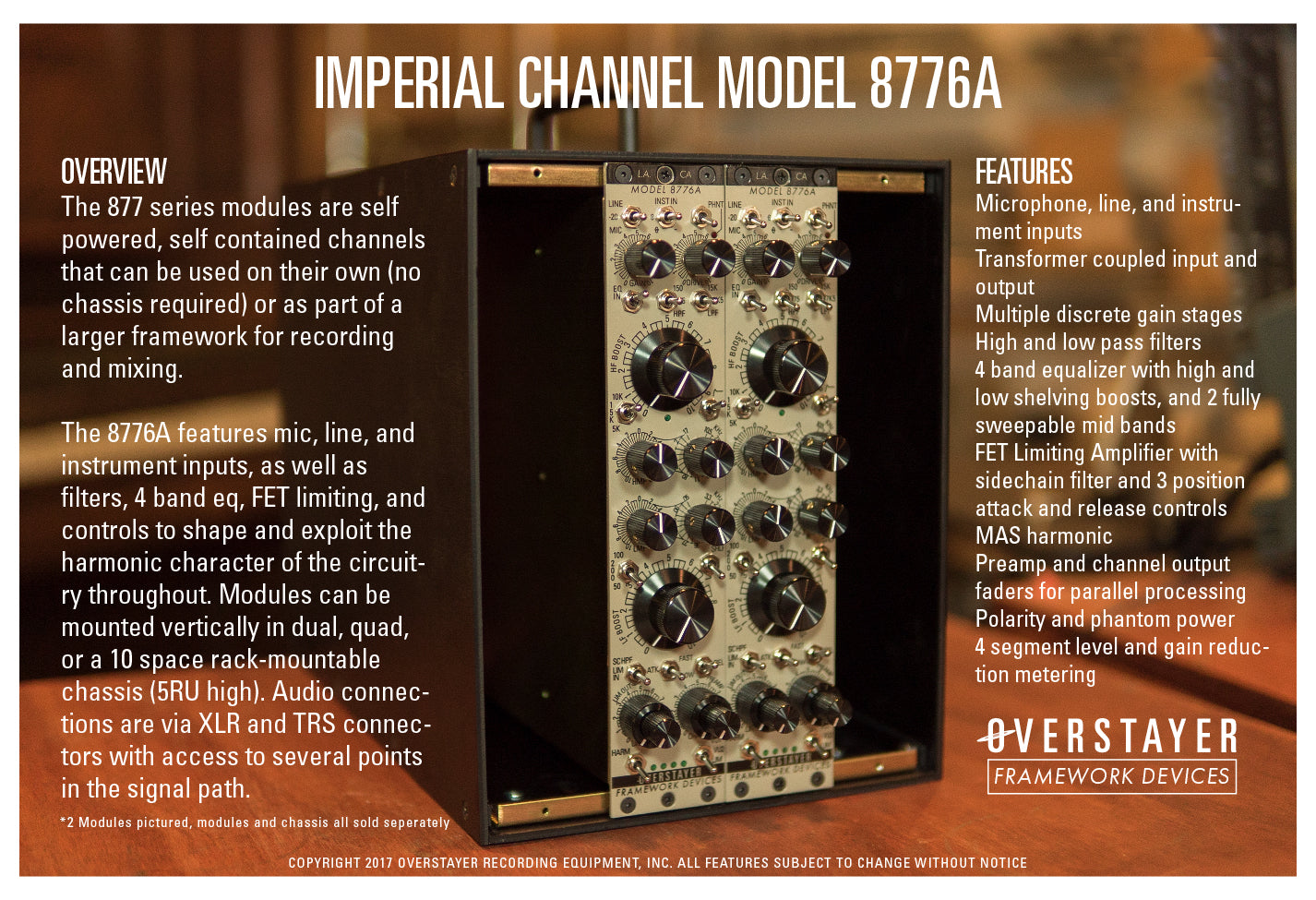

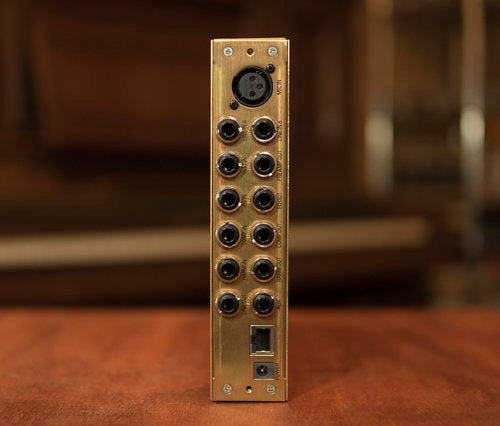

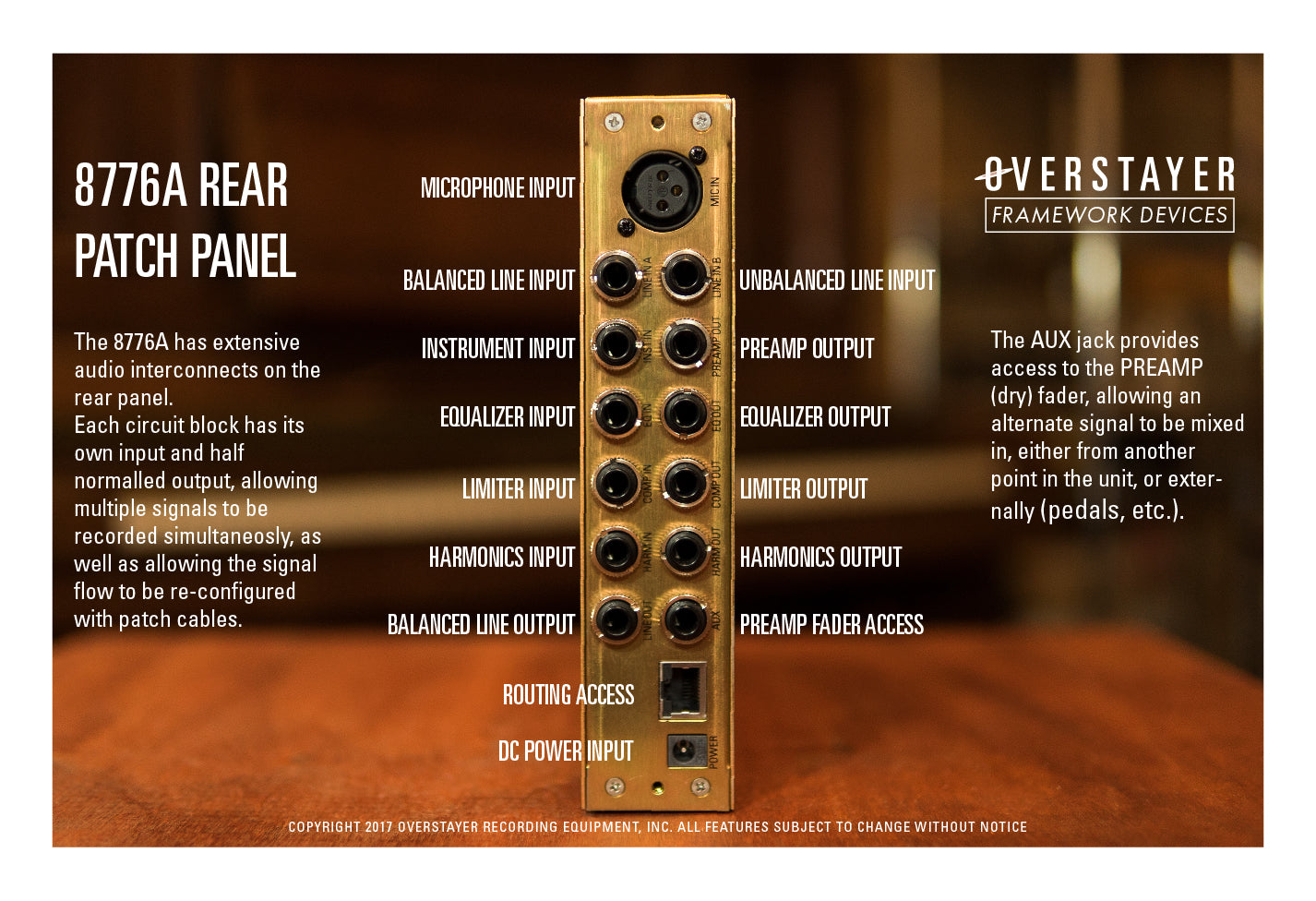

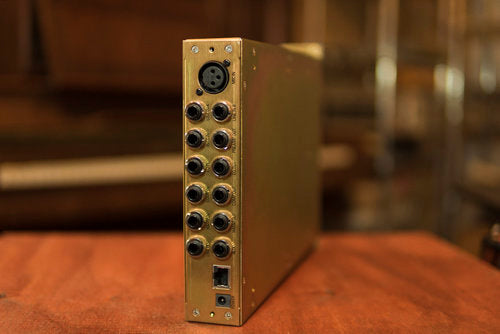

The 8776A Imperial Channel features mic, line and instrument inputs, as well as filter, 4 band EQ, FET limiting, and controls to shape and exploit the harmonic character of the circuitry throughout. Modules can be mounted vertically in dual, quad or a 10-space rackmountable chassis (5RU high). Audio connections are via XLR and TRS connectors with access to several points in the signal path.
Features:
- Microphone, Line and Instrument inputs
- Transformer coupled input and output
- Multiple discrete gain stages
- High and Low Pass filters
- 4-band equalizer with high and low shelving boosts, and 2 fully sweepable mid bands
- FET limiting amplifier with sidechain filter and 3 position attack and release controls
- MAS harmonic
- Preamp and channel output faders for parallel processing
- Polarity and phantom power
- 4-segment level and gain reduction metering
See User Manual in Downloads
