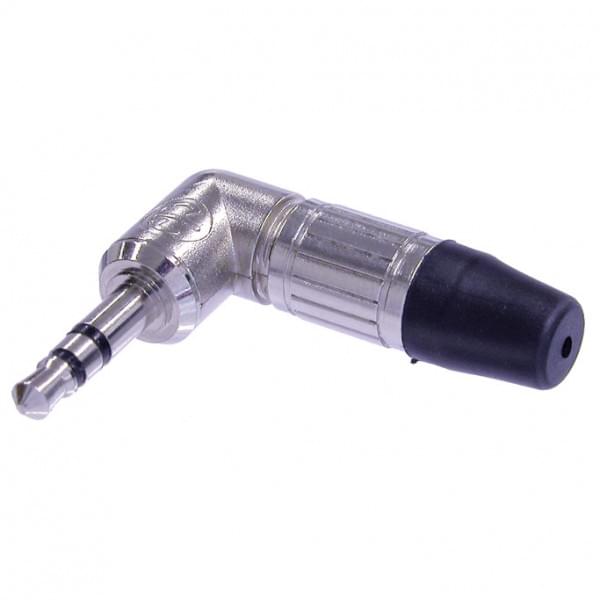

The only right-angled metal bodied 3.5 mm jack plug with chuck type strain relief for secure cable retention. It accepts cables from 2.0 to 4.5 mm.
Features & Benefits
- All metal housing - robust and reliable
- Chuck type cable clamp and rubber gland - excellent cable protection
- Slim design - space saving
Product | |
Title | NTP3RC |
Connection Type | Jack |
Gender | Male |
Electrical | |
Contact resistance | depends on mating connector mΩ |
Dielectric strength | 1 kVdc |
Insulation resistance | > 2 GΩ (initial) |
Rated Voltage | <50 V |
Mechanical | |
Cable O.D. | 2 - 4.5mm |
Wiresize | 0.22 mm² |
Wiresize | 24 AWG |
Wiring | Solder contacts |
Material | |
Bushing | Brass (CuZn39Pb3) + PU, Ni |
Contact plating | 2 µm Ni (Su) |
Contacts | Brass (CuZn39Pb3) |
Insert | Polyamide (PA 6.6 15 % GR) |
Shell | Zinc diecast (ZnAl4Cu1) |
Shell Plating | Nickel |
Strain Relief | Polyacetal (POM) |
Environmental | |
Solderability | Complies with IEC 68-2-20 |
Temperature Range | -25 °C to +65 °C |
