The industry-standard for loudspeaker connections offer extremely reliable and robust cable connectors with a reliable locking system. They feature solid contacts with screw-type terminals including a stranded wire protection which offer also solder termination.
Features & Benefits
- Current rating 30 A rms
- Glass reinforced materials make it extremely robust and dependable
- Precise keyway for secure mating
- Accurate twist lock latching system
- Metal insert in locking area
- Airtight design - optimised for speaker applications
- Branded with unique hologram - guarantees genuine and authentic Neutrik product
| Product | |

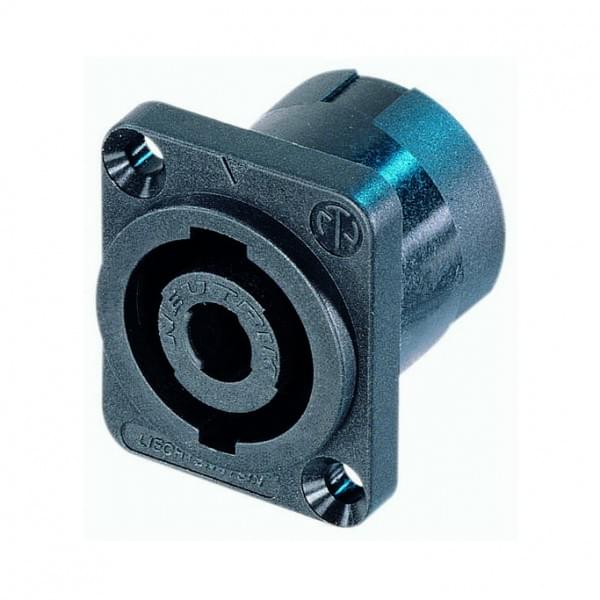

| Title | NL4MP |
| Gender | Male |
| Electrical | |
| Contact resistance | < 3 mΩ (after lifetime) |
| Dielectric strength | 4 kVdc (peak) |
| Insulation resistance | > 1 GΩ (after dampheat) |
| Rated current per contact | 30 A rms continuous |
| Rated current per contact | 40 A audiosignal, duty cycle 50 % |
| Rated voltage | 250 V (insulation) |
| Attention | speakON is not to be used as an AC mains or power supply connector! |
| Mechanical | |
| Lifetime | > 5000 mating cycles |
| Locking Device | Quick Lock |
| Chassis shape | D |
| Layout | standard hole position, thru holes |
| Material | |
| Contact plating | 4 µm Ag |
| Contacts | Bronze (CuSn6) |
| Shell | Polyamide (PA 6 30 % GR) black |
| Environmental | |
| Temperature Range | -30 °C to +80 °C |
| Please note | Does not intermate with 4 pole cable connector |
