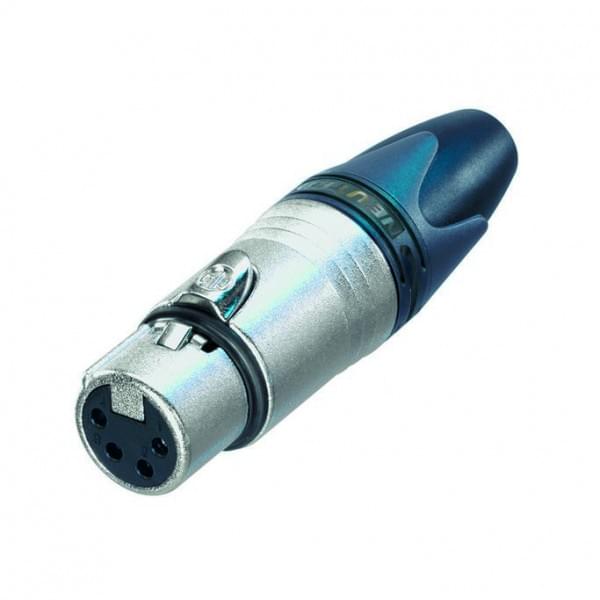

Neutrik NC4FXX 4-Pin Female XLR Connector

NeutrikSKU: NC4FXX

Price:
Sale price €7.75

The next generation of the worldwide accepted standard of XLR cable connectors. The successor of the X series offers several new features which make it more reliable, easier to assemble and improves contact integrity as well cable strain relief.

Features & Benefits

  • Unique cage design of female contact for low contact resistance and high integrity
  • Female contact incorporates a solder barrier to prevent solder running into the contact mating area
  • Female connector with improved solid metal latch which is larger and easier to handle
  • Additional ground spring contacts for better shell ground continuity
  • Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster
  • Boot with polyurethane gland gives high protection to cable bending stresses
  • Coloured rings and boots available for coding or identification
  • Sleek and ergonomic design - valuable and handy
  • Rugged zinc diecast shell, long-lasting and dependable
  • Internal thread on shell is well protected against any damage
  • Branded with unique hologram - guarantees genuine and authentic Neutrik product
    Product
    Title NC4FXX
    Connection Type XLR
    Gender Female
    Electrical
    Capacitance between contacts ≤ 7 pF
    Contact resistance ≤ 3 mΩ
    Dielectric strength 1,5 kVdc
    Insulation resistance > 10 GΩ (initial)
    Rated current per contact 16 A
    Rated voltage < 50 V
    Mechanical
    Cable O.D. 3.5 - 8.0 mm
    Insertion force ≤ 20 N
    Withdrawal force ≤ 20 N
    Lifetime > 1000 mating cycles
    Wiresize max. 1.5 mm²
    Wiresize max. 16 AWG
    Locking device Latch Lock
    Material
    Boot Polyurethan
    Contact plating 2 µm Ag over 2 µm Ni
    Contacts Brass (CuZn39Pb3)
    Insert Polyamide (PA 6.6 30 % GR)
    Locking Element Zinc diecast (ZnAl4Cu1) / Ck 67 (spring)
    Shell Zinc diecast (ZnAl4Cu1)
    Shell Plating Nickel
    Strain Relief Polyacetal (POM)
    Environmental
    Flammability UL 94 HB
    Standard compliance IEC 61076-2-103
    Protection class IP 40
    Solderability Complies with IEC 68-2-20
    Temperature Range -30 °C to +80 °C
