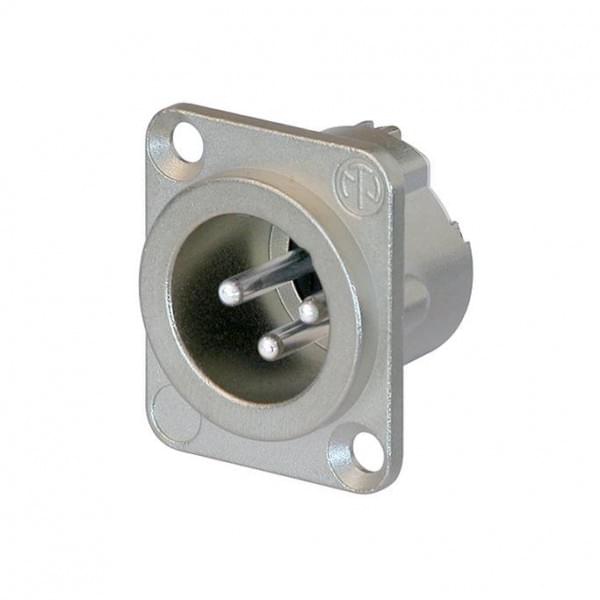

Universal D-size metal body XLR panel mount series. UL recognised component.
Features & Benefits
- Robust "D" metal shell
- Standardised D sized 24 mm panel cutout
- Solder cups on 3 - 7 pole version
| Product | |
| Title | NC3MD-L-1 |
| Connection Type | XLR |
| Gender | Male |
| Electrical | |
| Capacitance between contacts | ≤ 4 pF |
| Contact resistance | ≤ 5 mΩ |
| Dielectric strength | 1,5 kVdc |
| Insulation resistance | > 2 GΩ (initial) |
| Rated current per contact | 16 A |
| Rated voltage | < 50 V |
| Mechanical | |
| Insertion force | ≤ 20 N |
| Withdrawal force | ≤ 20 N |
| Lifetime | > 1000 mating cycles |
| Wiring | Solder contacts |
| Locking device | Latch Lock |
| Mounting Direction | Front mounting |
| Chassis shape | D |
| Material | |
| Contact plating | 2 µm Ag over 2 µm Ni |
| Contacts | Brass (CuZn35Pb2) |
| Insert | Polyamide (PA 6.6 30 % GR) |
| Locking Element | Steel Ck67 |
| Shell | Zinc diecast (ZnAl4Cu1) |
| Shell Plating | Nickel |
| Environmental | |
| Approvals | UL |
| Flammability | UL 94 HB |
| Standard compliance | IEC 61076-2-103 |
| Protection class | IP 40 |
| Solderability | Complies with IEC 68-2-20 |
| Temperature Range | -30 °C to +80 °C |
