Features & Benefits
- Versatile, pre-wired and ready to use adapters to reliably interlock various connector systems
- Professional look and compact space saving design, based on the X Series (XLR worldwide accepted standard)
- Rugged diecast shell for best reliability.
| Product | |

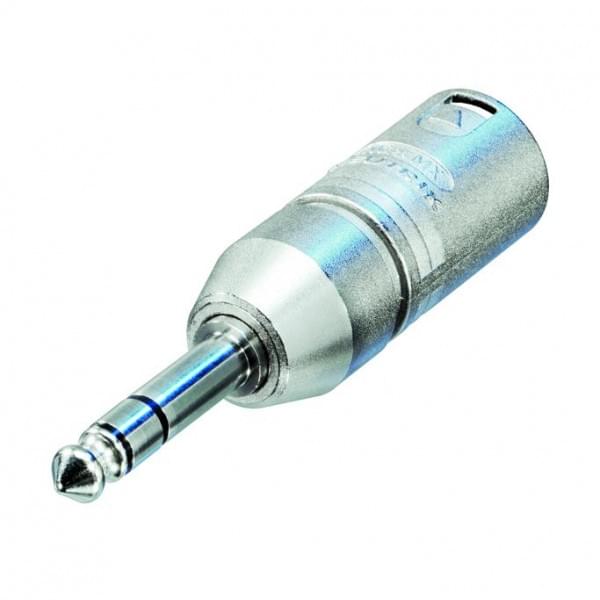

| Title | NA3MP |
| Connection Type | Adapter |
| Electrical | |
| Contact resistance | ≤ 3 mΩ (XLR) |
| Dielectric strength | 1,5 kVdc / > 1 kVdc (XLR/Jack) |
| Insulation resistance | > 2 GΩ |
| Mechanical | |
| Locking device | Latch Lock |
| Material | |
| Contact plating | 2 µm Ag over 2 µm Ni |
| Contacts | Brass (CuZn39Pb3) (plug) |
| Insert | Polyamide (PA 6.6 30 % GR) |
| Shell | Zinc diecast (ZnAl4Cu1) |
| Shell plating | gal Cu/Ni |
| Environmental | |
| Temperature range | -20 °C to +65 °C |
