Wired according to IEC 268-12:
Pin 2: signal
Pin 1 and 3: connected to ground
Features & Benefits
- Versatile, pre-wired and ready to use adapters to reliably interlock various connector systems
- Professional look and compact space saving design, based on the X Series (XLR worldwide accepted standard)
- Rugged diecast shell for best reliability.
Product
Title

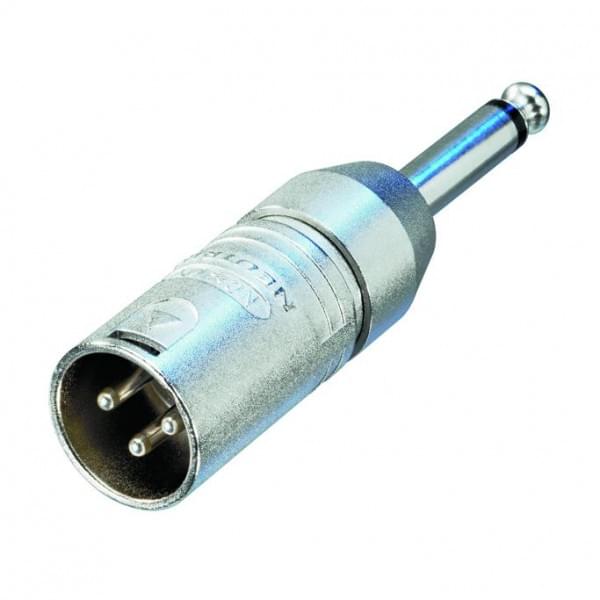

NA2MP
Connection Type
Adapter
Electrical Contact resistance
≤ 3 mΩ (XLR)
Contact resistance
≤ 6 mΩ
Dielectric strength
1.5 kV dc / > 1 kVdc (XLR/Plug)
Insulation resistance
> 2 GΩ
Mechanical
Wiring
according to IEC 268-12 pin 2 = signal, pin 1 and 3 connected to ground
Locking device
Latch lock
Material
Contact plating
2 µm Ag over 2 µm Ni
Contacts
Brass (CuZn39Pb3) (plug)
Insert
Polyamide (PA 6.6 30 % GR)
Shell
Zinc diecast (ZnAl4Cu1)
Shell plating
gal Cu/Ni
Environmental
Temperature range
-20 °C to +65 °C
