Neumann MT-48 Premium USB-C Audio Interface

NeumannSKU: NEU700260

Price:
Sale price €1,995.00

The MT 48 is an audio interface without compromise. With its huge dynamic range, superior converters, preamps and headphone amplifiers, it sets new standards in sound quality. Internal DSP power allows for monitor mixes with sophisticated EQ and dynamics processing - all intuitively controlled via touchscreen.

  • Class-leading AD/DA converters with enormous dynamic range
  • 2 premium-quality mic/line preamps, 2 pristine line/instrument inputs
  • 4 line/monitor outputs, 2 high-performance headphone outputs
  • USB, ADAT and AES67 connectivity, integrated MIDI interface
  • Intuitive touchscreen user interface
  • DSP processing (EQ, dynamics, reverb), 4 independent mixers
  • Two driver outputs per input channel for pre-FX and/or post-FX recording

The MT 48 brings Neumann quality to the digital workflow. It is the first audio interface in its class that is able to capture the full dynamic range of Neumann microphones and is optimally matched to the KH-Line of studio monitors and Neumann headphones. The result is an ideal signal chain without any bottlenecks: uncompromising sound quality from the microphone diaphragm to your ear.

Swiss Precision Inside

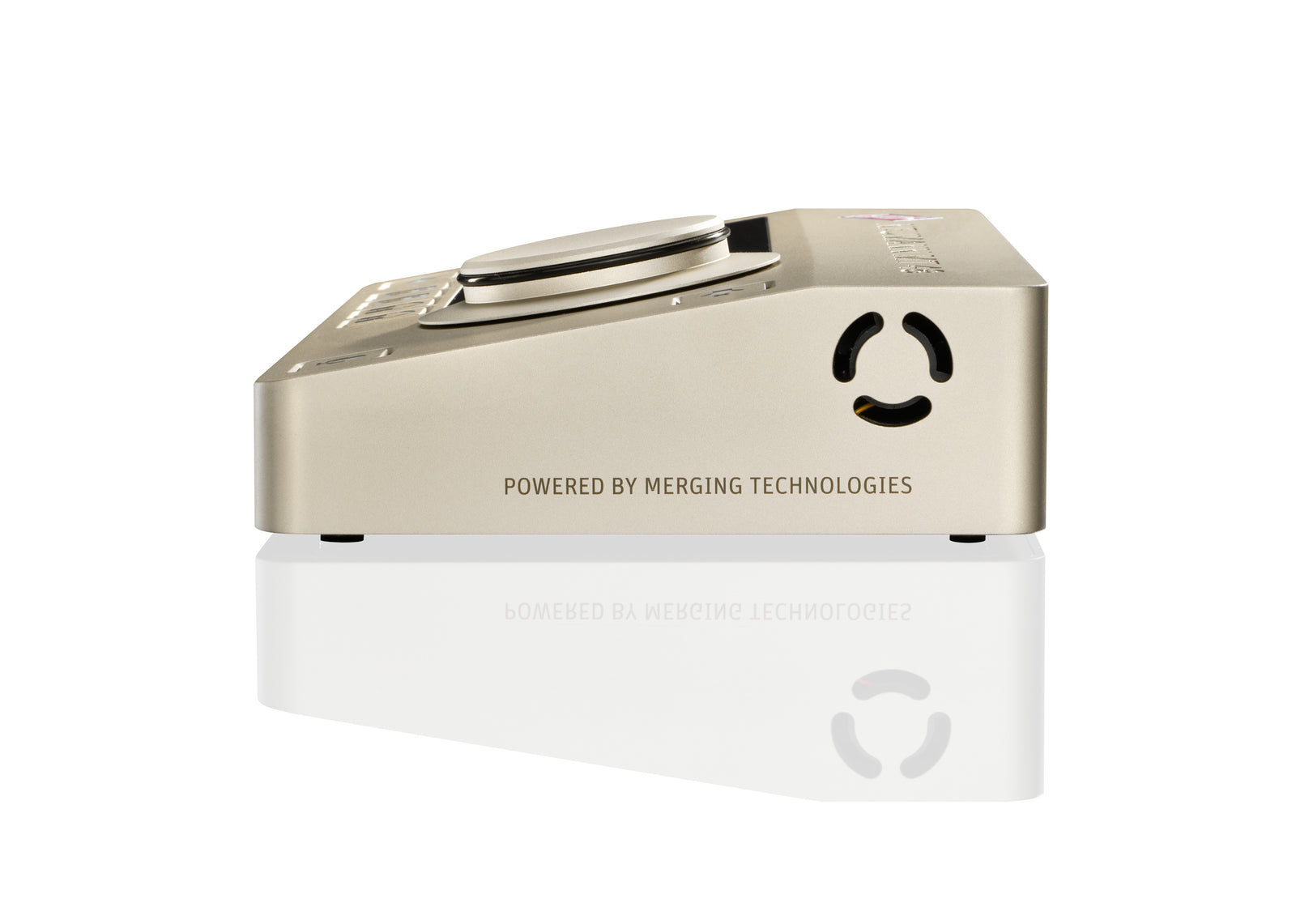

The MT 48 was developed in close cooperation with the Swiss manufacturer Merging Technologies, whose high-precision AD converters offer a staggering dynamic range of 136 dB. This gives the MT 48 four times the resolution of comparable audio interfaces.

Fully Equipped for the Reference-Class Personal Studio

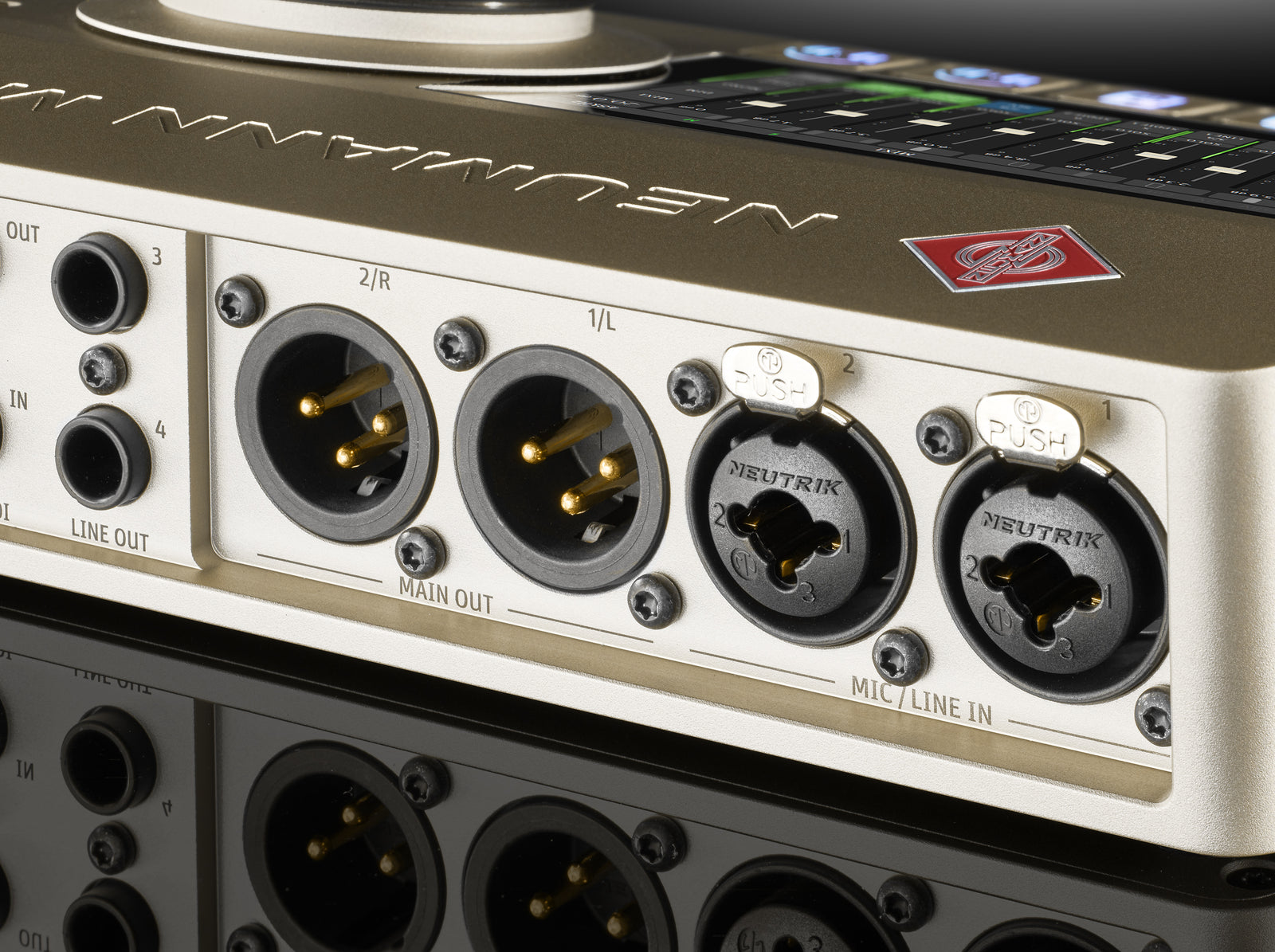

The MT 48 offers two extremely low-noise mic/line preamps with up to 78 dB gain, two line/instrument inputs, four monitor/line outputs and two superb headphone outputs, each with state-of-the-art AD/DA converters. The MT 48’s connectivity may be expanded via ADAT / S/PDIF and AES67; a MIDI interface is also integrated.

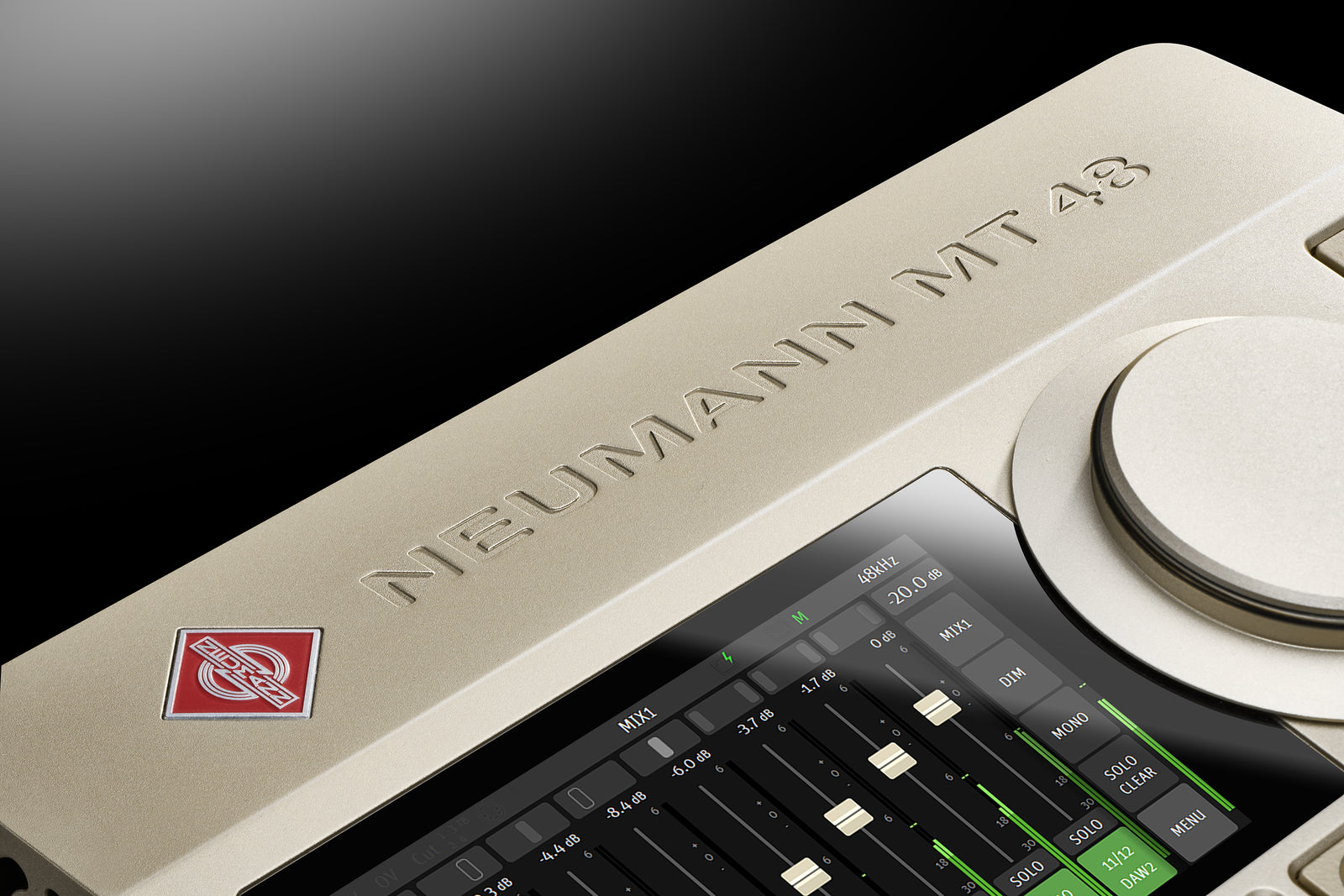

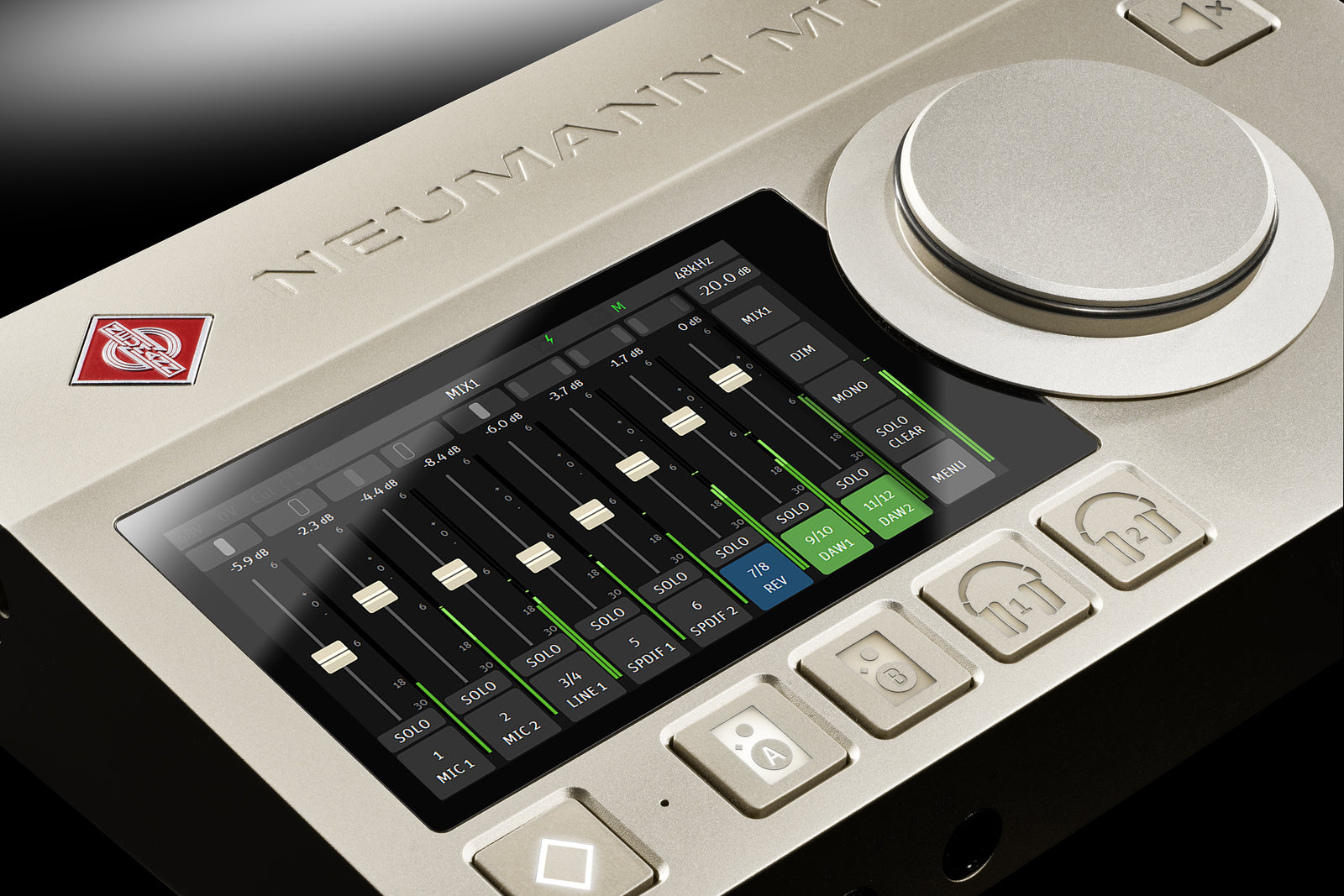

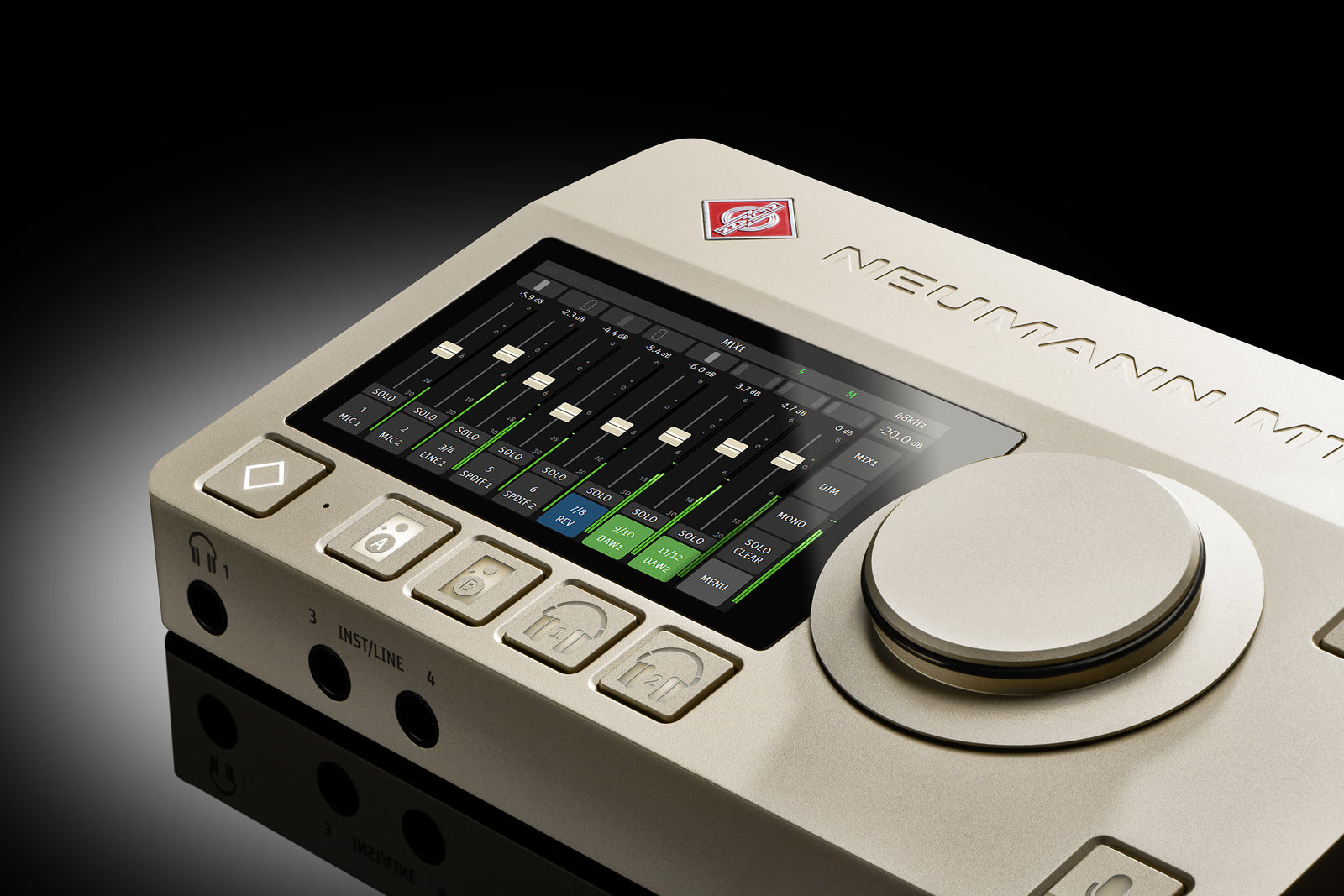

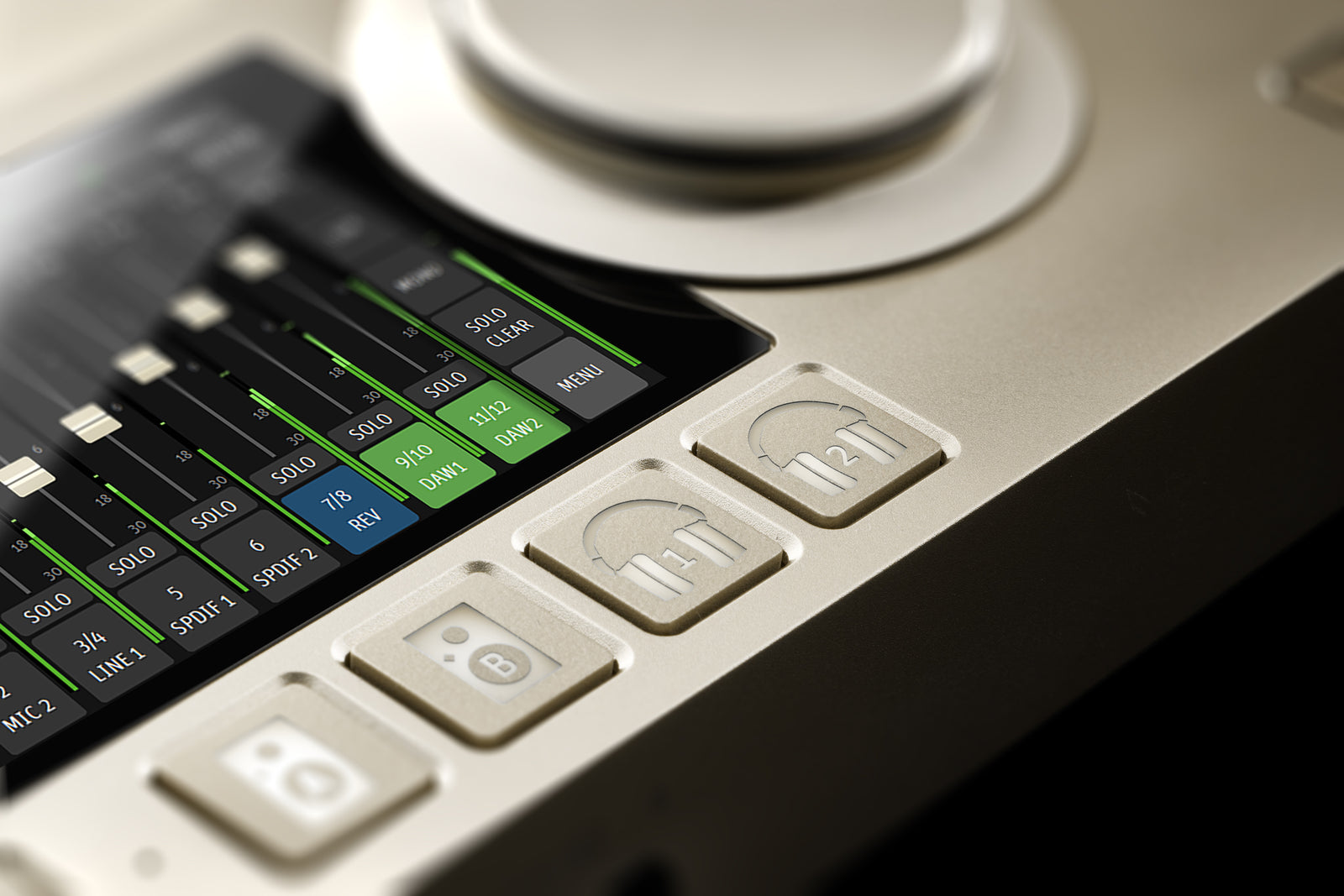

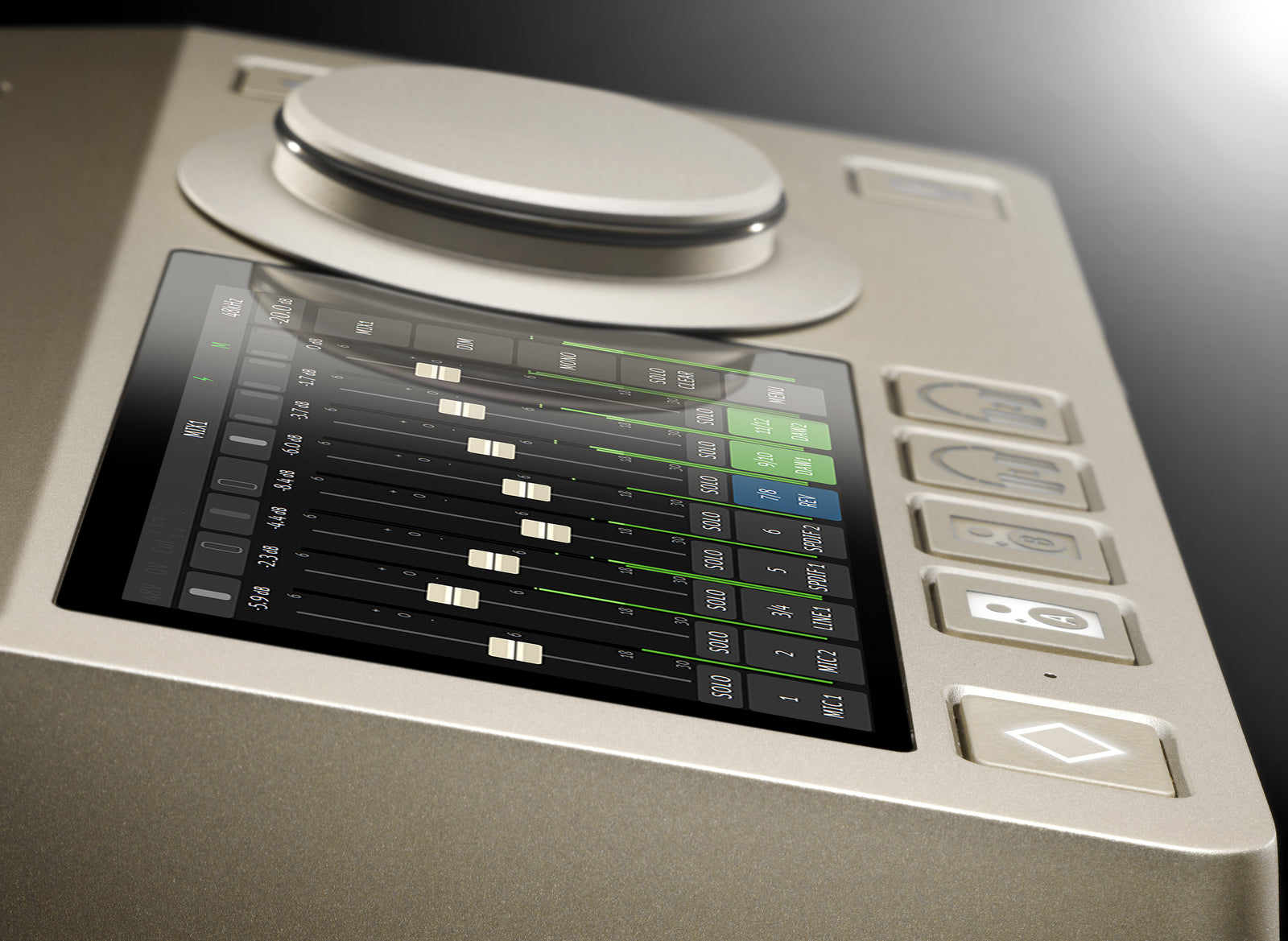

Intuitive Touchscreen Control

Four separate monitor mixes can be controlled directly on the unit via touchscreen. On-board processing includes a fully parametric 4-band EQ and a 3-way dynamics processor (gate/compressor/limiter) per channel as well as a high-quality reverb. So musicians get inspiring sound for top performances.

Dual Output Technology

You can use the MT 48’s DSP processing for monitoring only, or you can print effects while recording. Or both at the same time! Thanks to the unique Dual Output Technology, wet and dry signals can be recorded simultaneously via separate driver channels. So, if necessary, you can fall back on an unprocessed backup.

NEW: Monitor Mission for Mastering and Mixing Immersive Audio

Thanks to its touchscreen user interface, the MT 48 can be configured for various application scenarios using dedicated "Missions". The Monitor Mission transforms the MT 48 into a comprehensively equipped, highly flexible, state-of-the-art monitor controller. In addition to mono and stereo setups, any surround and immersive formats can be configured. On board are precise trim and delay functions to compensate for level and time-of-arrival differences, as well as EQs with up to 24 bands per output channel for room adjustment. Flexible bass management and downmix are also part of the Monitor Mission.

In use, speaker sets and headphone cues can be conveniently managed, speakers can be muted or monitored solo, and you can switch between mono, stereo and surround or immersive formats. The Monitor Mission is the ideal tool for mixing and mastering with the flexibility required today to ensure perfect sound for every medium and every playback device.

NEW: The MT 48 Becomes Dante Ready™

While the MT 48 has always supported the open standard RAVENNA/AES67 for networked audio, some users requested compatibility with the Dante protocol, developed and overseen by Audinate. Due to its ease of use and high compatibility, Dante is widely used in the live and installation sector.

Starting in Q4/2024, the MT 48 will ship Dante Ready™ (indicated by a sticker on the packaging). Ex factory, the MT 48 continues to be delivered with the RAVENNA/AES67 firmware preinstalled. For Dante operation, Neumann provides an alternative Dante firmware free of charge. In addition, an 8x8 or 64x64 I/O Dante channel license is required, which must be purchased from Audinate. This ensures there are no additional costs for users who do not require Dante.
  • Class-leading AD-converter resolution with a dynamic range of 136 dB
  • 2 premium-quality mic/line preamps, 2 pristine line/instrument inputs
  • 4 line/monitor outputs
  • 2 ultra-low impedance headphone outputs with adjustable crossfeed

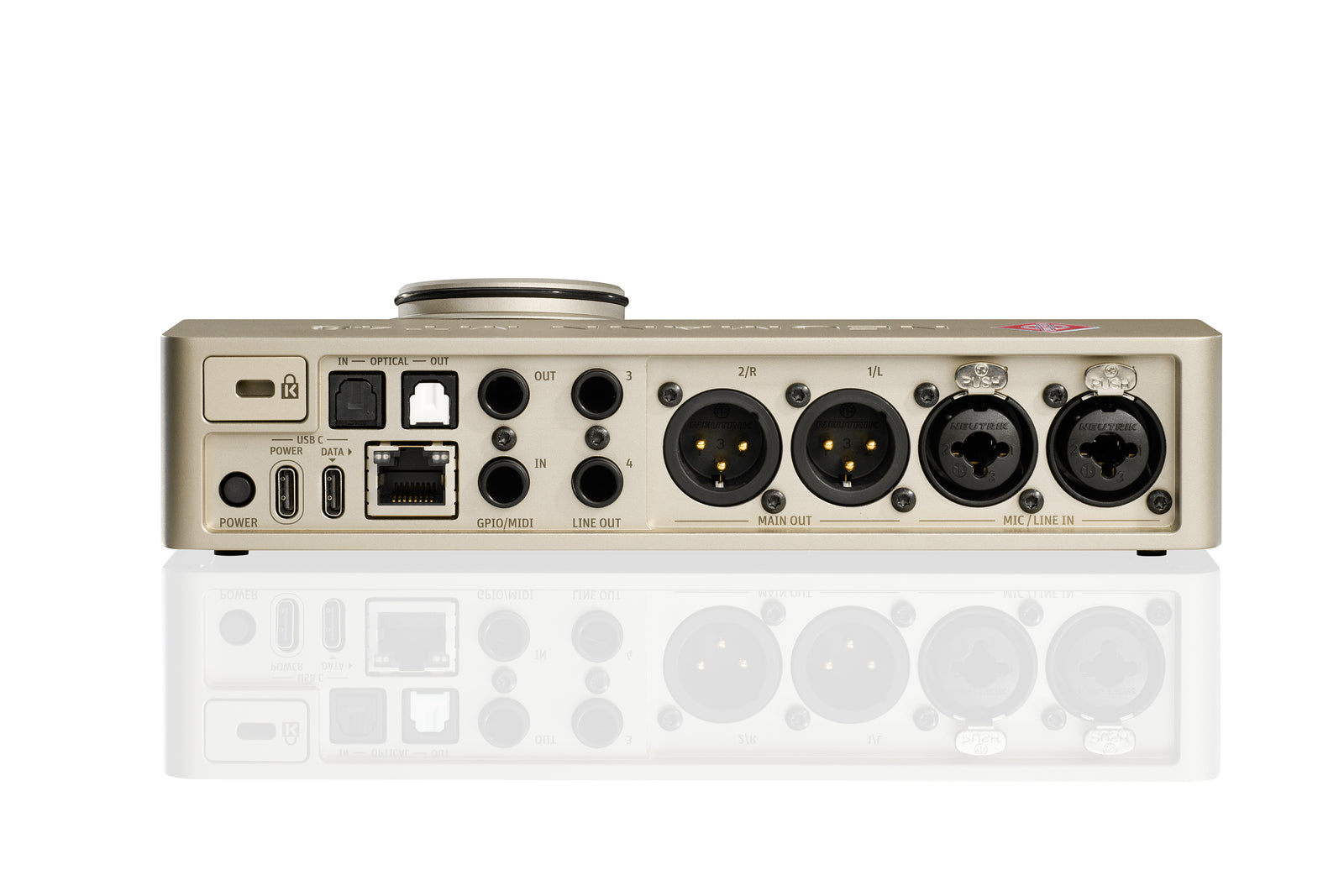

  • ADAT / S/PDIF optical I/O, MIDI/GPIO, RAVENNA/AES67, Dante Ready™
  • Two driver outputs per input channel for pre-FX and/or post-FX recording
  • Intuitive touchscreen user interface

In The Box

  • MT 48 Audio Interface

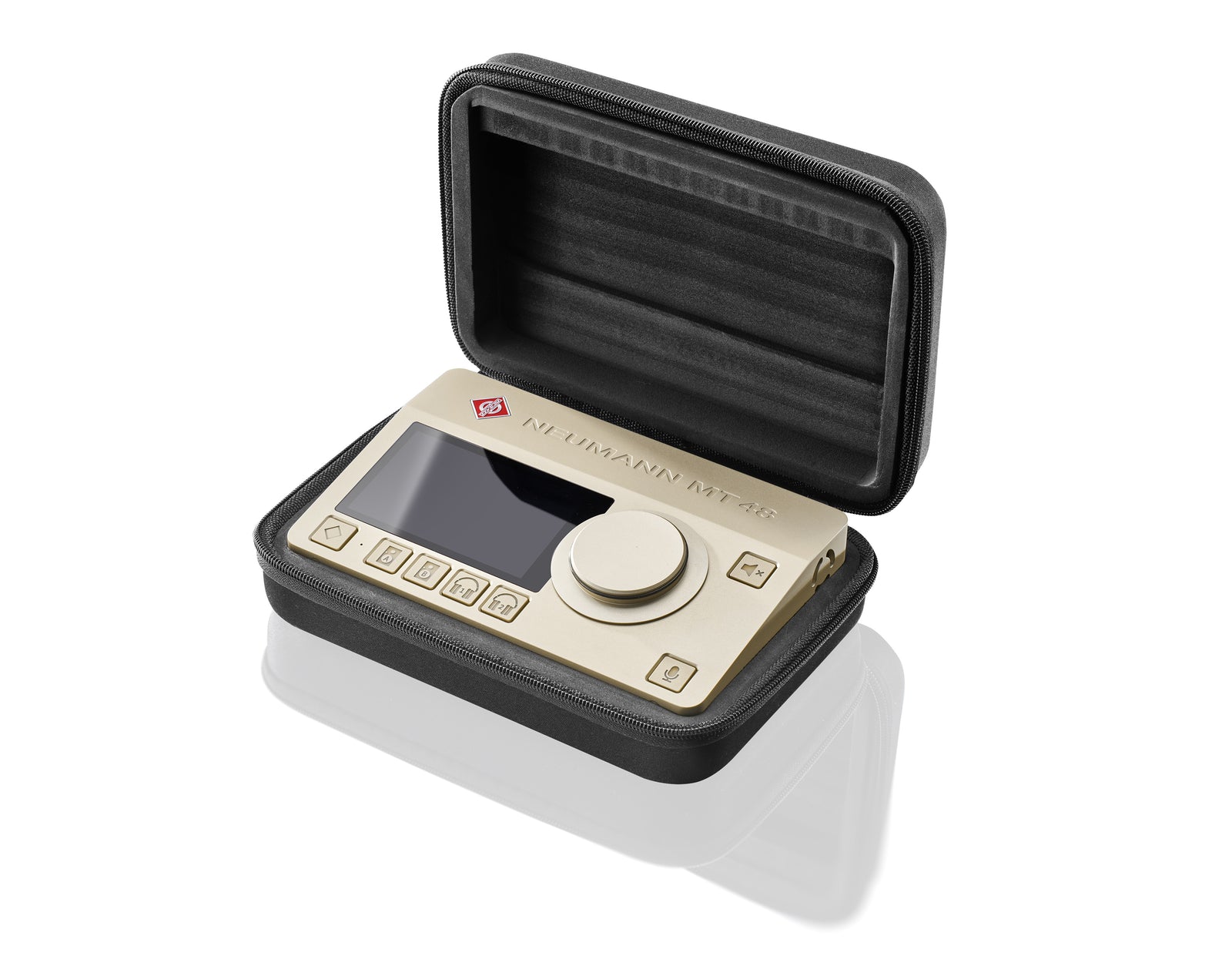

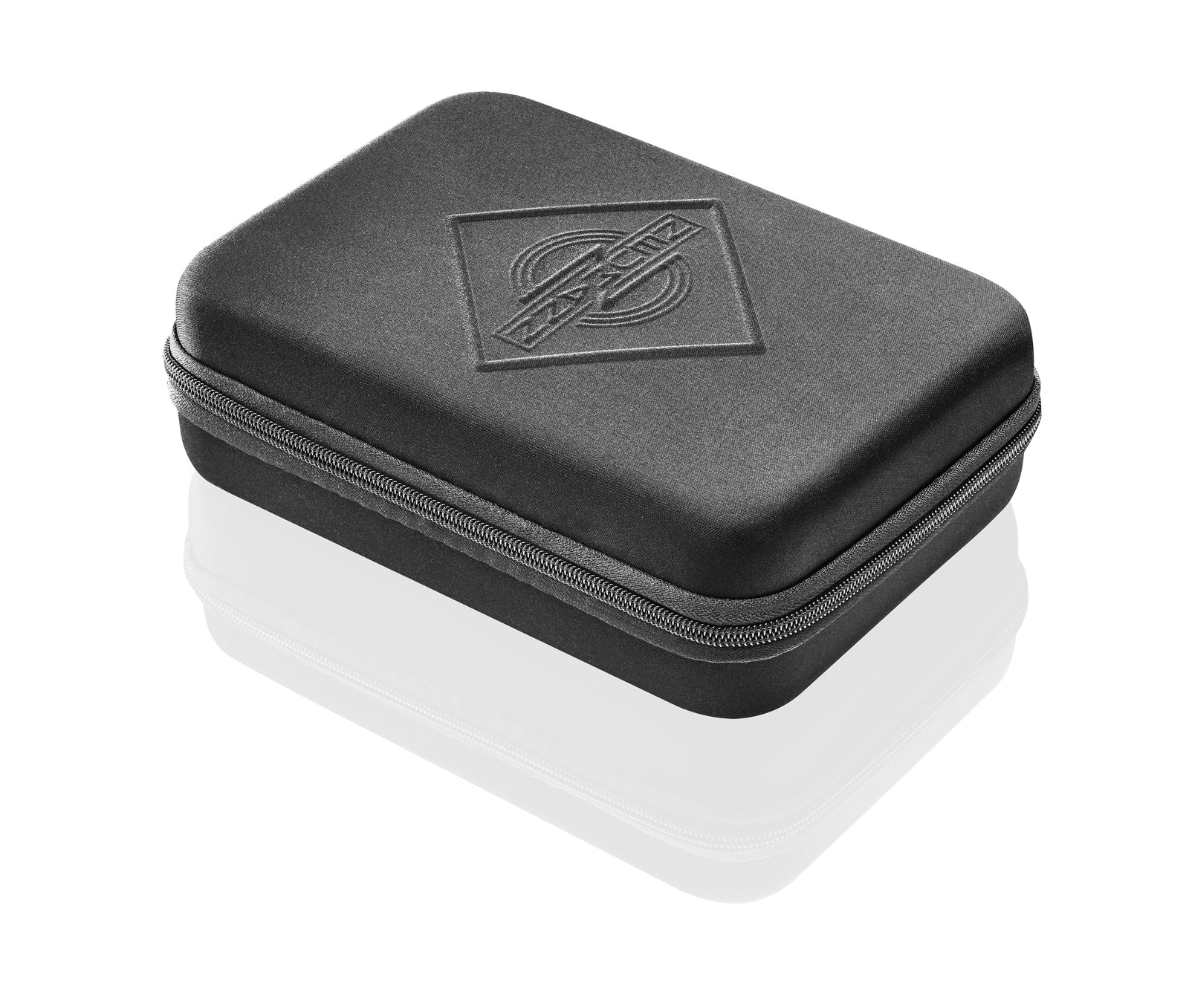

  • Softcase
  • Universal Power Supply incl. USB-C connection cable
  • USB-A data cable
  • USB-C data cable
  • Quick Guide
  • Safety Guide

Technical Specifications

Mic Inputs 1 -2

Dynamic Range

136 dB-A

Equivalent Input Noise (150 Ohm)

-128 dBu-A

Input Impedance

10 kΩ

Gain Range

+12…+78 dB in 0.5 dB steps or 0.1 dB (fine)

Pad

12 dB/24 dB

Max. Input Level

0 /+12/+24 dBu (without Pad/with Pad)

THD + N Preamp + ADC @ 1 kHz, 0 dBFS

< -110 dB (0.0003%)

Line Inputs 1-2

Dynamic Range

138.5 dB-A

Input Impedance

10 kΩ

Gain Range

0…+66 dB

Sensitivity

+24 dBu…-42 dBu

Max. Input Level

+24 dBu

THD + N Preamp + ADC @ 1 kHz, 0 dBFS

< -105 dB (0.0006%)

Instrument/Line Inputs 3 - 4

Dynamic Range

135 dB-A

Input Impedance

2 MΩ (balanced)  / 1 MΩ (unbalanced)

Gain Range

0…+66 dB

Sensitivity

+18 dBu … -48 dBu

Max. Input Level

+18 dBu

THD + N Preamp + ADC @ 1 kHz, 0 dBFS

< -112 dB (0.0003%)

Line/Monitor Outputs

Output Impedance

< 70 Ω

THD+N@ 1 kHz, 0 dBFS

< -110 dB (0.0003%)

Dynamic Range

123 dB-A

Max. Output Level

+24 dBu

Headphone Outputs

Output Impedance

0.035 Ω

Dynamic Range

122 dB-A (high) / 117 dB (low)

Max. Output Level

+16 dBu (high) /+8 dBu (low)





AES67/Ravenna

Standard RJ-45 Gigabit-Ethernet-Anschluss

Expansion Connectivity

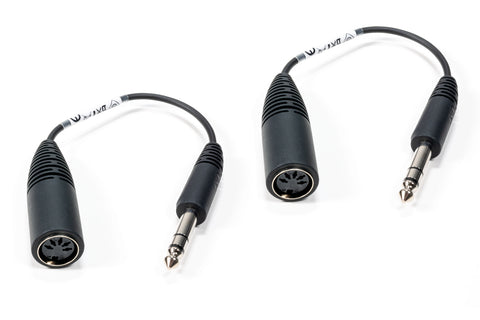

ADAT / S/PDIF optical I/O, MIDI I/O via 1/4” jack (DIN5 adapter set available from Neumann)

Computer Interface

USB-C, 2.0 High Speed (480 MB/s) or higher

Power Consumption

<25 W
