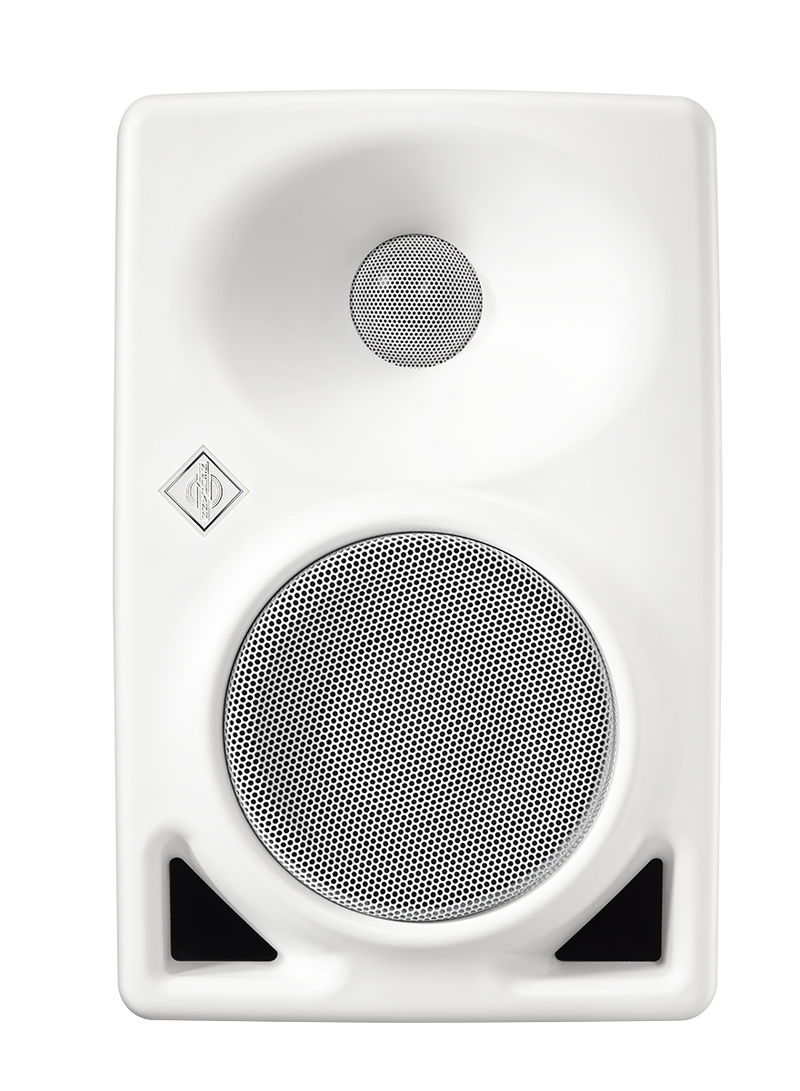

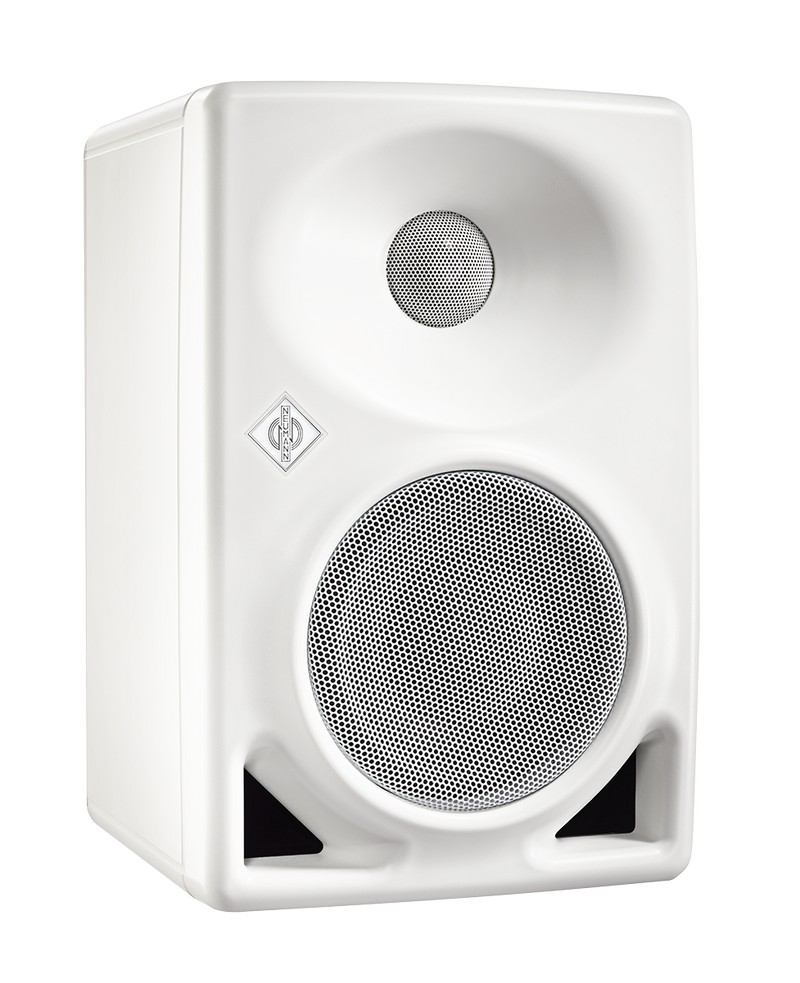

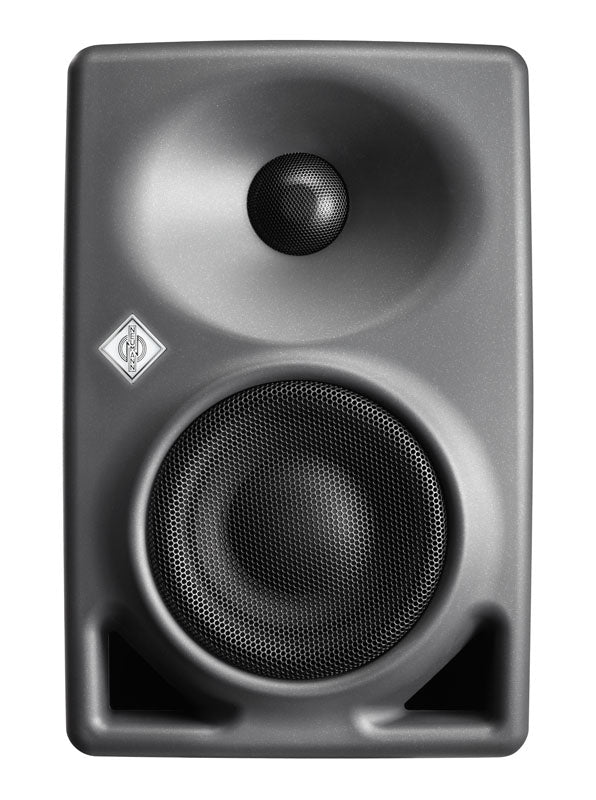

The KH 80 DSP two-way active bi-amplified monitor features a DSP engine with network control, a Mathematically Modeled Dispersion™ Waveguide (MMD™), an analogue input and an extensive range of mounting hardware. This allows the loudspeaker to be used in diverse acoustical conditions, with any source equipment and in a wide variety of physical locations. The KH 80 represents the latest in acoustic and electronic simulation and measurement technologies to ensure the most accurate sound reproduction possible.
The KH 80 DSP is designed for use as a near-field monitor, as a front loudspeaker in small multi-channel systems, or as a rear loudspeaker in a compact multi-channel systems. It can be used in project and music studios, broadcast centers, OB vans, and post production studios for tracking, mixing, and mastering. It is also well suited for use in domestic environments.
The KH 80 DSP is designed for use as a near-field monitor, as a front loudspeaker in small multi-channel systems, or as a rear loudspeaker in a compact multi-channel systems. It can be used in project and music studios, broadcast centers, OB vans, and post production studios for tracking, mixing, and mastering. It is also well suited for use in domestic environments.
| Free field frequency response ±6 dB | 53 Hz … 21 kHz |
| Free field frequency response ±3 dB | 57 Hz … 21 kHz |
| Free field frequency linearity deviation between 100 Hz and 10 kHz | ± 0.7 dB |
| Reproduction accuracy between 100 Hz and 10 kHz: 100%, 80%, 50% of loudspeakers produced | ±0.26; ±0.23; ±0.17 dB |
| Self-generated noise at 10 cm (with input gain set to 100 dB SPL for 0 dBu) | <20 dB(A) SPL |
| Sine wave output with a THD < 0.5 % at 1 m in half space | 90 dB SPL (>200 Hz) |
| Max. SPL calc. in half space at 3% THD at 1m (averaged between 100 Hz and 6 kHz) | 108.8 dB SPL |
| Max. SPL in full space at 3% THD at 1m (averaged between 100 Hz and 6 kHz) | 102.8 dB SPL |
| Bass capability: Max. SPL in half space at 3% THD at 1m (averaged between 50 Hz and 100 Hz) | 92.1 dB SPL |
| Max. short term SPL with IEC-weighted noise (IEC 60268-5) at 1 m, in typical listening conditions | 104 dB(C) SPL |
| Max. short term SPL with music material at 2.3 m in typical listening conditions (pair / full range) | 93 dB(C) SPL |
| Max. short term SPL with music material at 2.3 m, in typical listening conditions (pair with subwoofer) | 100 dB(C) SPL |
| Max. long term SPL with pink noise at 2.3 m, in typical listening conditions (single / pair full range) | 88 / 93 dB(C) SPL |
| Max. long term SPL with pink noise at 2.3 m, in typical listening conditions (single / pair with subwoofer) | 91 / 96 dB(C) SPL |

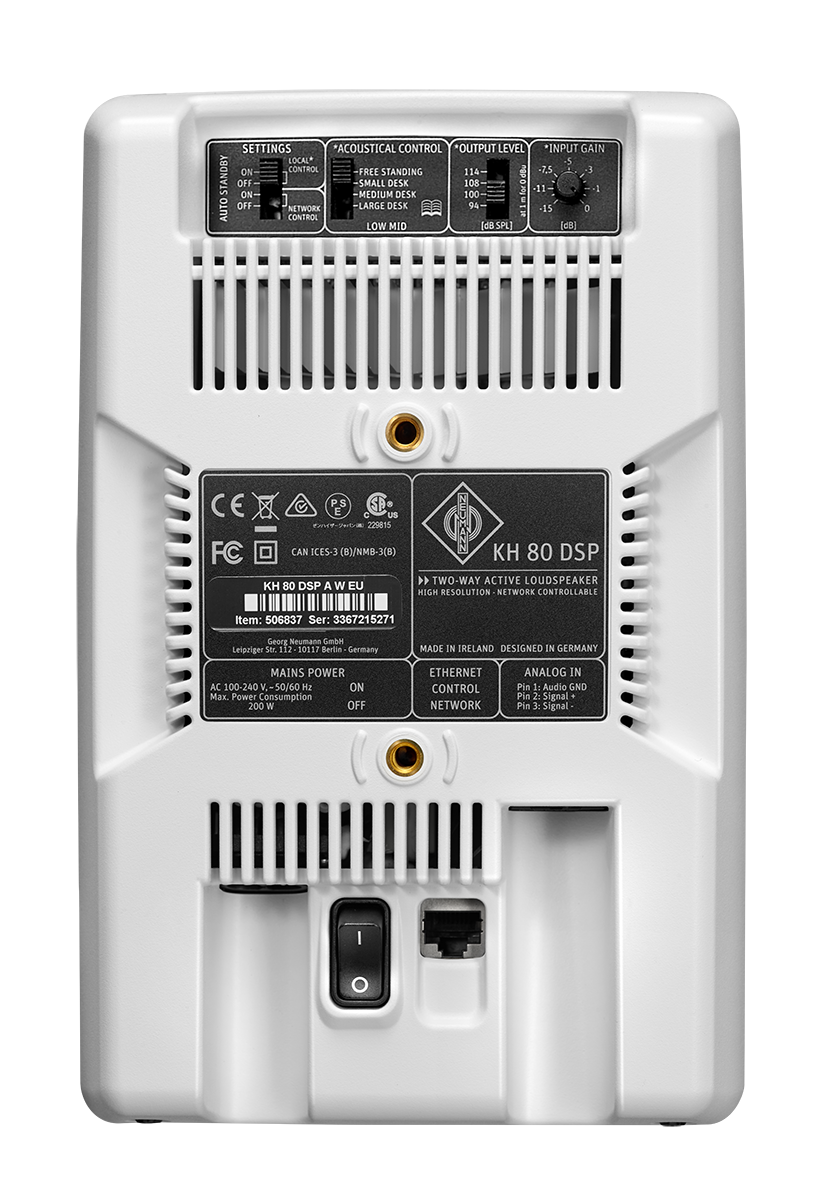

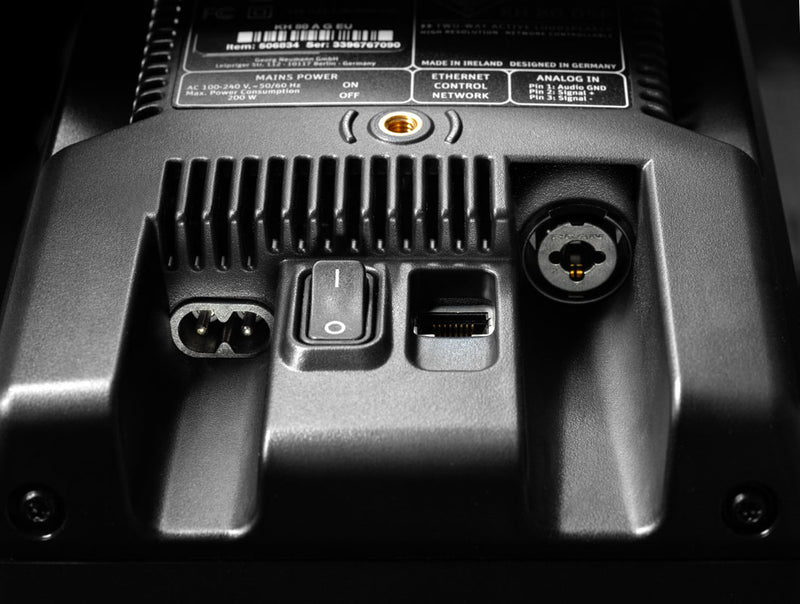

| Analog input(s) | XLR / 6.3 mm (¼”) Jack: analog electronically balanced |
| Analog input impedance | 14k Ohms |
| Max. input level | +24 dBu for 94 dB SPL setting; +18 dBu for 100 dB SPL setting; +10 dBu for 108 dB SPL setting; +4 dBu for 114 dB SPL setting |
| Common mode rejection ratio (CMRR) | >56 dB @ 15 kHz |

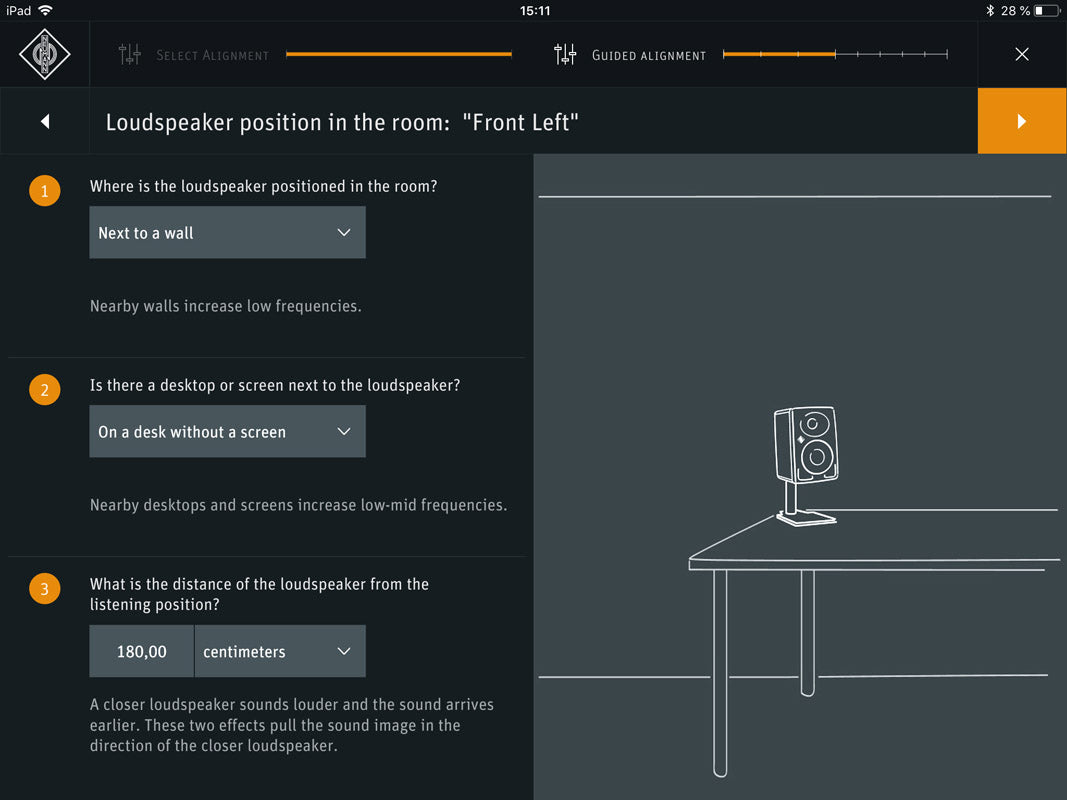

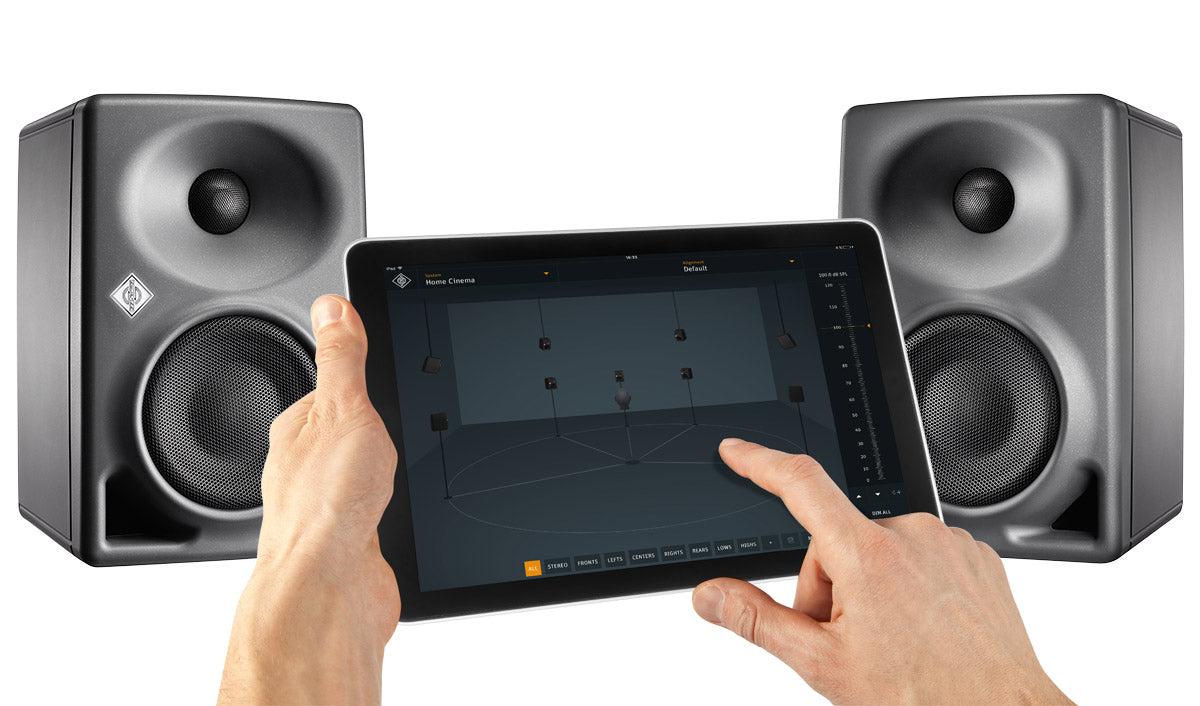

| Volume control | via Neumann.Control software |
| Volume control range; resolution | 0 … -∞ dB; 0.1 dB |

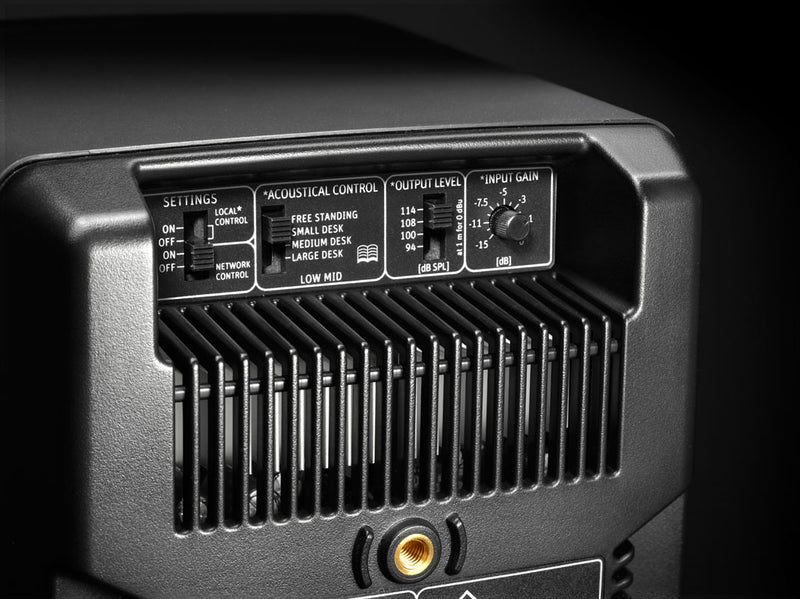

| Input gain control (sensitivity) | 0 dB ... -15 dB |
| Output level control (output level in 1 m based on 0 dBu input level) | 94; 100; 108; 114 dB SPL |
| Digital converter: resolution; design | 24-bit DAC; Δ∑ |
| Digital converter: sampling rate | 48 kHz |
| Digital internal sampling rate | 48 kHz |
| Dynamic range A-D | 114 dB(A) |
| Dynamic range A-D-A | 111 dB(A) woofer; 112 dB(A) tweeter |
| Dynamic range D-A | 114 dB(A) woofer; 117 dB(A) tweeter |
| Latency | 2 ms (A-D-A linear phase) |
| Delay: User adjustable delay range | 0 … 70 ms |
| Delay: Resolution: time; distance | 0.1 ms; 3.44 cm (1 3/8”) |
| Delay: Max. frames Audio-video synchronisation (lip sync) | 1.75 (40 ms frames); 2.1 (33 ms frames) |
| Delay: Time-of-flight maximum distance | 24 m (79 ft) |
| Controller design | Digital; active |
| Crossover frequency | 1.8 kHz |
| Crossover slope | 48 dB/oct; 8th order with phase correction |

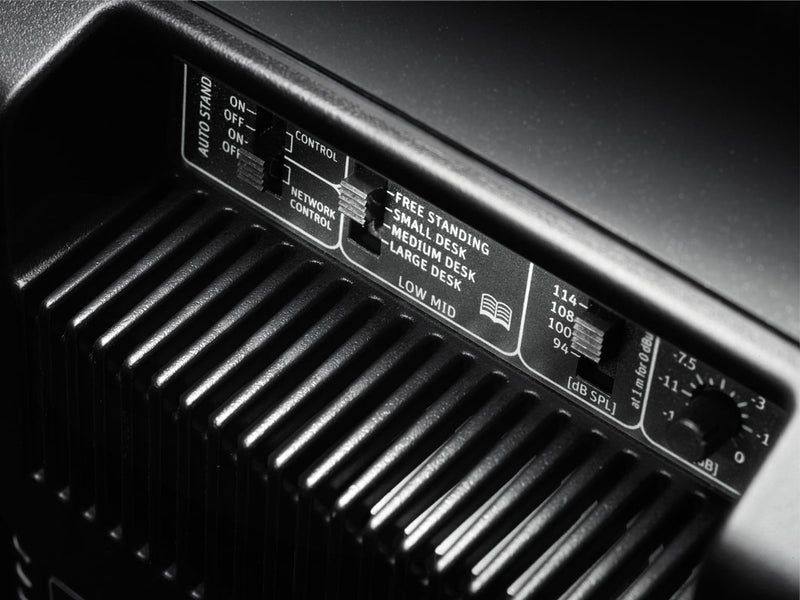

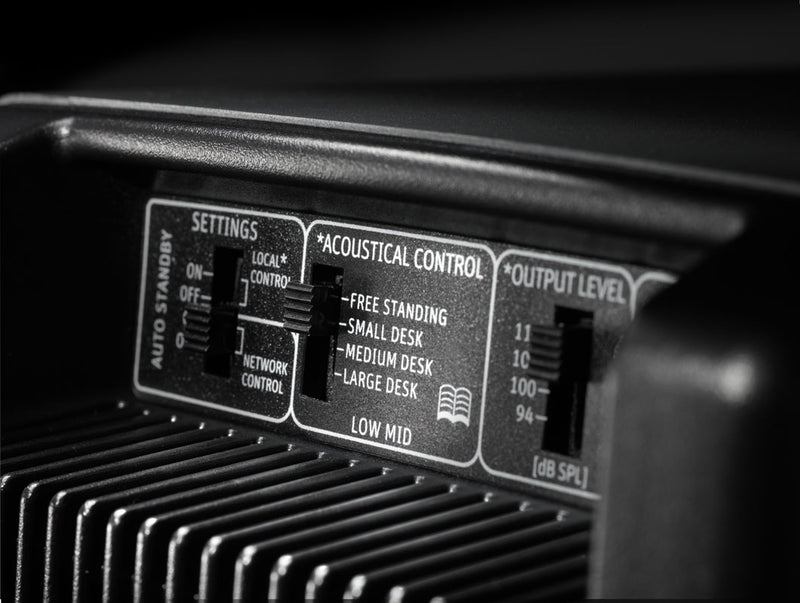

| Equalization: Low-Mid | 0; -1.5; -3; -4.5 dB |

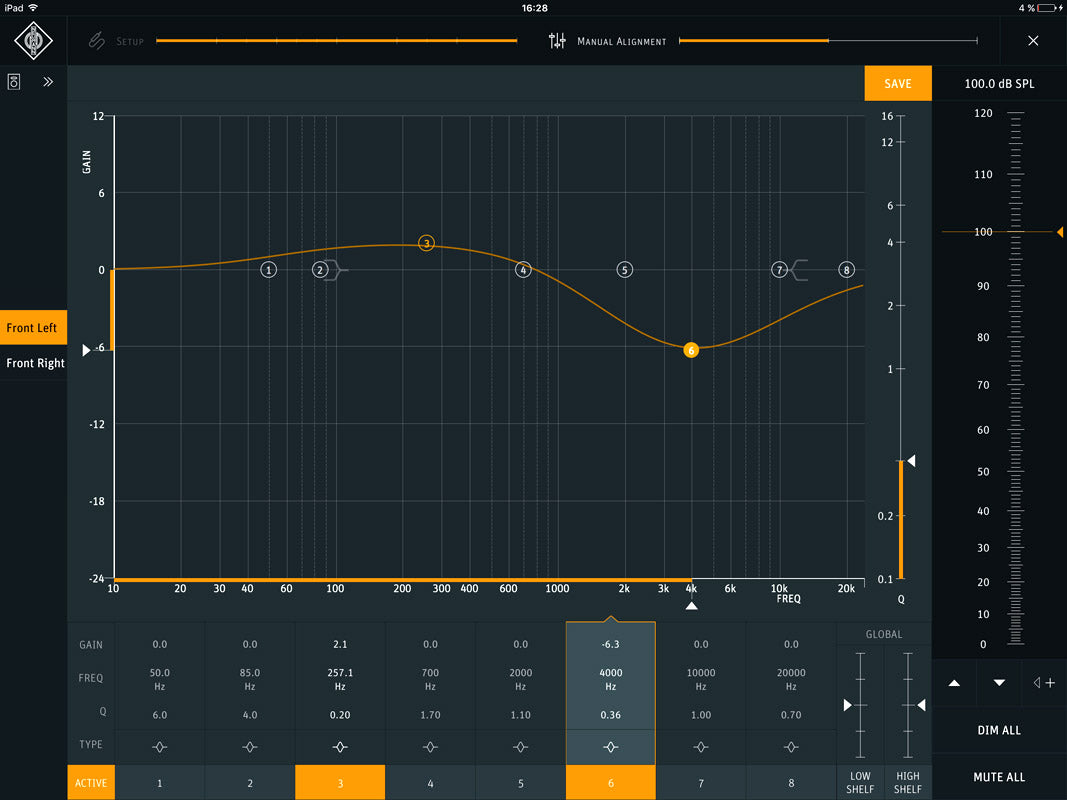

| Equalization: via Neumann.Control software | 8 x full parametric IIR + low / high shelf global balance |
| FIR phase correction | Linear phase (170 Hz ... 16 kHz; +/- 45°) |
| Protection circuitry | Independent soft clip, peak and thermo limiters for woofer and tweeter; Woofer excursion limiter; thermo limiter for the electronics and amplifiers |
| Infrasonic filter: frequency; slope | 61 Hz; 12 dB/Okt. |

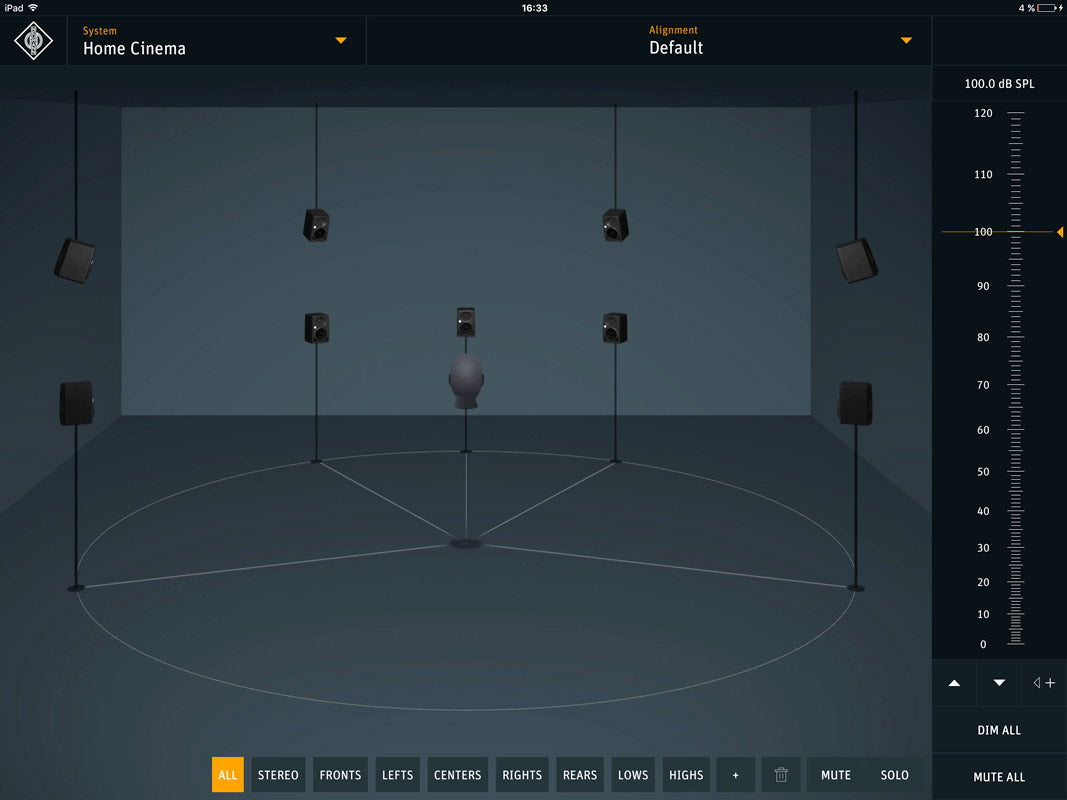

| Remote control | Neumann.Control software via an RJ45 connector carrying standard IP data |
| Display: On; Normal Operation | Neumann logo “White” |
| Display: Identification | Neumann logo “Rosé” |
| Display: Limit / Clip / Errors / Protection /Boot Mute / Shut Down Mute | Neumann logo “Red” |
| Display Brightness | via Neumann.Control |
| Output power woofer amplifier (THD+N with limiter deactivated: 10%) | 120 W |
| Output power tweeter amplifier (THD+N with limiter deactivated: 10%) | 70 W |
| Output power woofer amplifier (THD+N with limiter deactivated: 0.1%) | 90 W |
| Output power tweeter amplifier (THD+N with limiter deactivated: 0.1%) | 50 W |
| Mains Power Supply: input voltage; frequency | 100-240 V; 50/60 Hz |
| Power consumption (230 V / 100 V): Standby | <330 / <50 mW |
| Power consumption (230 V / 100 V): Idle | 9 / 8 W |
| Power consumption (230 V / 100 V): Full output | 180 W |
| In-rush current (Peak) | 20 A |
| Standby | Disabled; 90 mins (default); user defined in software |
| Cabinet material | Composite polycarbonate |
| Cabinet surface finish; color (front / back) | Painted; metallic anthracite (RAL 7021) / Black (RAL 9005) |
| Operating conditions | +10° C to +40° C (+50° F to +104° F); <75% RH; non-condensing |
| Transport/storage conditions | -25° C to +60° C (-13° F to 158° F); <90% RH; non-condensing |

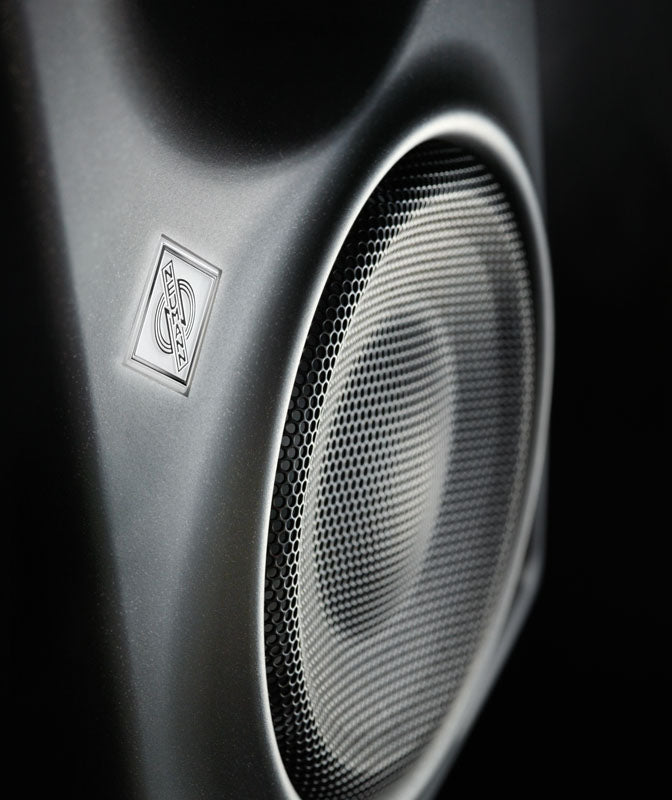

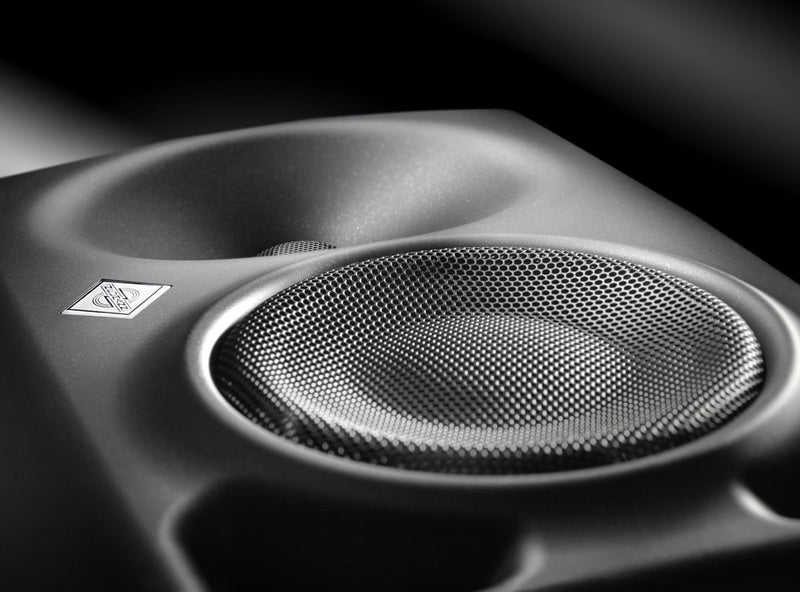

| Woofer | 100 mm (4") with protecting black metal grille |
| Tweeter | 25 mm (1") with protecting black metal grille |
| Mounting points | 2 x M6 threaded inserts with 70 mm spacing on back panel; thread depth 15 mm (5/8”) |
| Product dimensions (height x width x depth) | 233 x 154 x 194 mm (9 1/8" x 6" x 7 5/8") |
| External net volume | 6.7 liters |
| Product weight | 3.5 kg (7 lbs 8 oz) |
| Packed dimensions (height x width x depth), mm (inches) | 345 x 277 x 243 mm (13 5/8" x 10 7/8" x 9 5/8") |
| Packed weight | 4.1 kg (9 lbs 1 oz) |
| Packed cube | 0.023 m³ |
