For 20 years, MA-101 has been mass-produced, sold worldwide and it remains a market-leading system as MIPRO ensures product design, craftsmanship and reliability are second to none. Since 2012, upgraded rechargeable lithium battery replaces sealed lead-acid rechargeable battery for reducing weight significantly for portability as it also extends battery operating hours & increases battery lifespan.

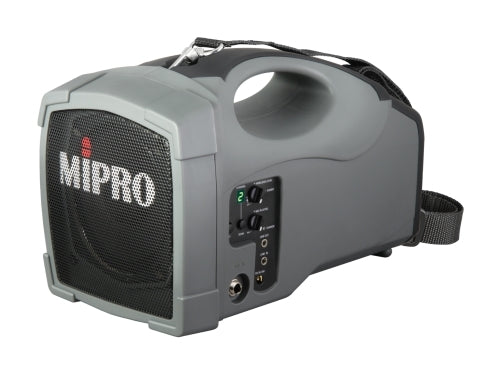

Lightweight, robust and battery operated, this popular system is simple to use and can be easily carried via the built-in handle, shoulder strap, or mounted on a microphone stand. The MA101 is a perfect PA for a small crowds.
Ideal applications include: School classrooms, Places of worship, Presentations, seminars and meetings, Day-care activities, playground duty, Indoor/outdoor gatherings, Tour guides & Paging, Fire fighters, law enforcement, search & rescue, Street performers, Factory or company tours.
Ideal applications include:
- School classrooms
- Places of worship
- Presentations, seminars and meetings
- Day-care activities; playground duty
- Indoor/outdoor gatherings
- Tour guides & Paging
- Fire fighters, law enforcement, search & rescue
- Street performers
- Factory or company tours
Key Features
- Lightweight, contoured and ultra-portable design.
- Built-in 1 UHF PLL diversity receiver module with 16 auto-scannable frequencies.
- Powerful and crystal-clear sound projection thanks to high efficiency amplifier driving a full-range speaker.
- Replaced sealed lead-acid battery to rechargeable lithium battery for improved reliability, longer life and reduced weight.
- AC and lithium rechargeable battery operation.
- Up to 10 hours of standby time per 4-hour charge.
- 3.5 mm line input accepts external MP3, iPod and CD player.
- Simple to use and can be easily carried via the built-in handle, shoulder strap, or mounted on a microphone stand.
|
Portable PA |
|
||
|
|
Max. Power Output |
45 Watts |
|
|
|
Amplifier |
Class AB |
|
|
|
Sensitivity |
Typical: 95 dB | Maximum: 107 dB |
|
|
|
T.H.D. |
< 1% |
|
|
|
Frequency Response |
60 Hz ~ 15 kHz |
|
|
|
Speaker |
5 " full-range, high efficiency |
|
|
|
Audio Inputs |
Wired: 6.3 mm (1/4 ") Line-In: 3.5 mm (1/8 ") |
|
|
|
Audio Output |
3.5 mm (1/8 ") |
|
|
|
Installation |
Microphone stand, table mounted, shoulder belt. |
|
|
|
Power Supply |
AC: External 100 ~ 240 V AC switching power supply (Max. Power Consumption: 60 W) DC & Battery: Built-in 14.8 V / 2.6 AH rechargeable lithium battery (MB-25 × 1) |
|
|
|
Charge Time |
4 hours (automatic charging management) |
|
|
|
Standby Time |
> 10 hours |
|
|
|
Battery Indicator |
Single LED indicator |
|
|
|
Color |
Grayish Black |
|
|
|
Dimensions (W×H×D) |
160 × 178 × 285 mm / 6.3 × 7 × 11.2 " |
|
|
|
Weight (battery included) |
Approx. 2.2 kg / 4.8 lbs |
|
|
|
Wireless System |
|
|
|
|
Receiver Channel |
UHF, Single |
|
|
|
Frequency Range |
UHF 480 ~ 934 MHz (country dependent) |
|
|
|
Bandwidth |
24 MHz |
|
|
|
Preset Channel |
16 |
|
|
|
Channel Set-up |
Scan & ACT sync |
|
|
|
Transmitters |

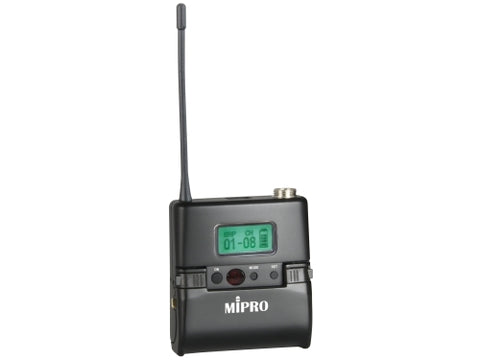

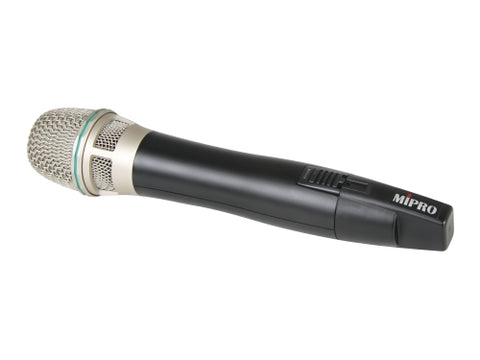

ACT-32H / ACT-32HC Handheld | ACT-32T / ACT-32TC Bodypack |
|
|
|
Microphone |
MM-107 Wired Dynamic Microphone |
|
|
|
Antenna |
Built-in |
|
|
|
Note |
Refer to actual product in the event of product description discrepancy. Frequency range and maximum deviation comply with the regulations of different countries. |
|
