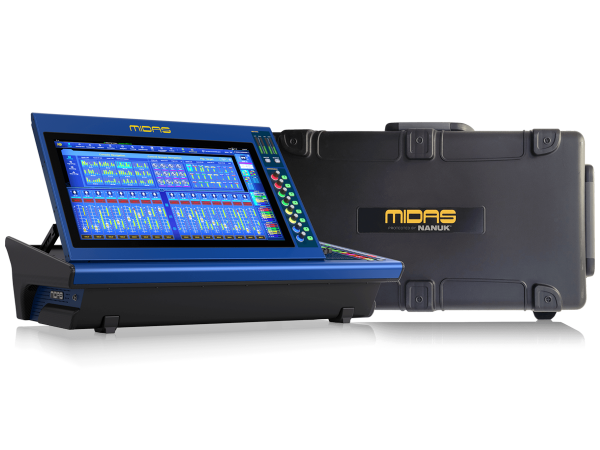

Live Digital Console with 144 Input Channels, 123 Mix Buses, 96 kHz Sample Rate, 21" Glare Resistant Touch Screen and Touring Grade Road Case
Midas’ HD96-AIR takes the next leap in digital console evolution — fusing the iconic sound of the H3K and engineering precision of the Heritage D Series with breakthrough portability. Finally, a Midas you can take anywhere. Designed for engineers who demand power without compromise, HD96-AIR features a stunning 21” high-brightness touchscreen with multi-gesture control, unlocking an ultra-intuitive workflow in a hyper-lightweight form factor. All the speed. All the detail. Now within arm’s reach.
Lightweight and Built to Perform
The HD96 platform was built with the future in mind — and HD96-AIR is just the beginning of that vision in action. Engineered for total control and maximum portability, it features a fully adjustable 21” full HD multi-touchscreen that puts every parameter — from faders to control groups to individual channels — right at your fingertips. The layout places user-assignable buttons exactly where you need them, enhancing speed and precision on the fly. And thanks to a smart, space-conscious design, HD96-AIR delivers all the power of the Heritage D Series in an ultra-lightweight chassis. Even with the flight case (sold separately), the full package weighs in at under 30 KG — ready for anywhere the show takes you.
The Graviton Mk 2 Processing Engine
At the heart of every Midas console is what matters most — sound. While others compromise, we’ve never wavered in our commitment to audio excellence. With the Heritage D series, we’ve taken the legendary Midas sound even further, with a next-generation 64-bit summing engine that delivers greater dynamic range, depth, and clarity than ever before.
The key to the Midas sound is in giving ultimate flexibility while still being delay compensated. Delivering a mix that breathes with natural warmth and stunning precision. No comb filtering. No inconsistencies. Just pristine audio, everywhere, all the time — whether you're pushing the mix to its limits or riding the smallest detail. Driving a Midas has never been easier.
Flexi-Aux
The Flexi-Aux system opens up powerful routing possibilities — including aux-to-aux sends for advanced group and stem-style mixing. Need to smash a drum kit with parallel compression and feed that exact sound to an artist’s in-ears? Now you can. Flexi-Aux gives you the tools to mix the way you hear it — fast, flexible, and fully under your control.
Variable Channel Phase
The new intuitive, easy to use Variable Phase per channel is a powerful tool that allows sound sources to be blended seamlessly with high or low phase changes to mix signals together in ways never achievable before. From subtle alignment tweaks to bold creative shifts, you can now seamlessly blend sound sources with precision, clarity, and control.
Tap Off Points
New tap off points on channels have been introduced – giving you the freedom to route audio from any stage in the signal chain. Perfect for sending raw signals to stage without affecting your main mix. It's all about precision control without compromise.
As per the HD96-24, AIR features post-insert fader tap points alongside fully customisable processing chains. Just drag, drop, and reorder your signal flow exactly how you want it. It's all about precision control without compromise.
Shout Mixer
The Shout Mixer allows complex communication groups to be effortlessly created and stored. With 16 independent shout inputs and 12 dedicated outputs, you can build flexible, powerful talkback systems that operate entirely outside your main I/O count.
Whether you’re in soundcheck or mid-show, instant recall lets you switch between shout configurations in a heartbeat — so your comms are always as sharp as your mix.
Specifications
Connections
Analogue / AES3 in, switchable |
8 x 3-pin XLR |
Analogue / AES3 out, switchable |
8 x 3-pin XLR |
AES50 |
4 x RJ45 |
Word clock 75R |
2 x BNC |
Talk |
1 x XLR, balanced |
HDMI 1 / 2 (monitor output) |
2 x HDMI |
Supported monitor formats |
1920 x 1080 p, 59.94 Hz / 60 Hz |
External (Ethernet) connector |
RJ45 XLR |
Snake 1 / 2 |
2 x optical |
USB port |
8 x USB 3.0, type A, 5 V = 900 mA power |
USB port (service) |
2 x USB, micro-USB |
USB (top panel) |
1 x USB 2.0, type A, 5 V = 500 mA power |
Expansion |
2 x expansion module slots |
MIDI in / out |
2 x 5-pin MIDI DIN sockets |
Lamp |
4-pin, 12 VDC / 150 mA max |
IEC mains socket with power switch |
2 |
Headphone output (side panel) |
1 x 1/4" TRS, stereo |
Input / Output Characteristics
Analogue input impedance |
10 kΩ |
Non-clip maximum input level |
+24 dBu |
Input gain |
Analogue stepped gain -2.5 dB to +45 dB plus -40 dB to +20 dB continuous digital trim |
Phantom power (switchable per input) |
+48 V |
Talk mic impedance |
5 kΩ |
Talk mic gain |
+15 dB to +60 dB |
Talk mic max level |
+6 dBu |
Analogue output impedance |
50 Ω |
Analogue output max level |
+21 dBu |
Dynamic range |
106 dB, 22 Hz to 22 kHz, unweighted |
Crosstalk @ 1 kH |
-100 dB physically adjacent input channels |
Crosstalk @ 10 kHz |
-90 dB physically adjacent input channels |
Crosstalk @ 10 kHz |
-90 dB physically adjacent input channels |
Headphones output impedance |
10 Ω |
Headphones maximum output level |
+21 dBu |
Displays
Display screen, |
21" LCD high brightness 1920 x 1080 px, captive touchscreen up to 10 simultaneous touches |
LCD info displays |
15 x full colour LCD info displays, |
Meters |
4 x 20 segment -36 dBu to +21 dBu |
Controls
100 mm motorized faders |
3 |
Fully assignable rotary controls |
8 |
Fully assignable backlit buttons |
8 |
Phones controls |
Min to max, mutable |
Talk |
Talk gain min to max |
Global assignal shortcut buttons |
24 |
Global assignal shortcut buttons (left / right) |
2 |
Physical
Operating temperature range |
5° C to 45° C (41° F – 113° F) |
Storage temperature range |
-20°C to 60°C (-4°F – 140°F) |
Dimensions (H x W x D) |
210.5 x 464.5 x 805.8 mm |
Weight without flight case |
16.74 kg (36.83 lbs) |
Weight with flight case |
29.90 kg (65.78 lbs) |
Wi-Fi
Antenna |
Internal & External dual-band |
IEEE 802.11a/b/g/n/ac |
Supports a/b/g/n/ac device |
Frequency range |
2.4 GHz (2.4 GHz - 2.4835 GHZ) and |
Max output power |
18 dBm (using 5 GHz range) |
Bluetooth
Version |
5.0 Dual Mode |
Power |
8 dBm |
Compatibility |
Supports GAP, SDN, PAN, SPP, IAP, HFP 1.5, GATT, ATTR, IAP, A2DP, ACRP. |
Maximum communication range |
30 m typical |
