Anubis Models:
SPS offers an additional network connection for either redundancy or to eliminate an external switch, while Anubis offers an EtherCon connector for extra connectivity reliability. Your choice of model depends on your usage profile. As with other Merging products, both versions are offered in Pro or Premium. If 192kHz is the limit for you, go for Pro. If you are into true Hi-Res Audio and work in DXD/384kHz or in DSD, you will need Premium.

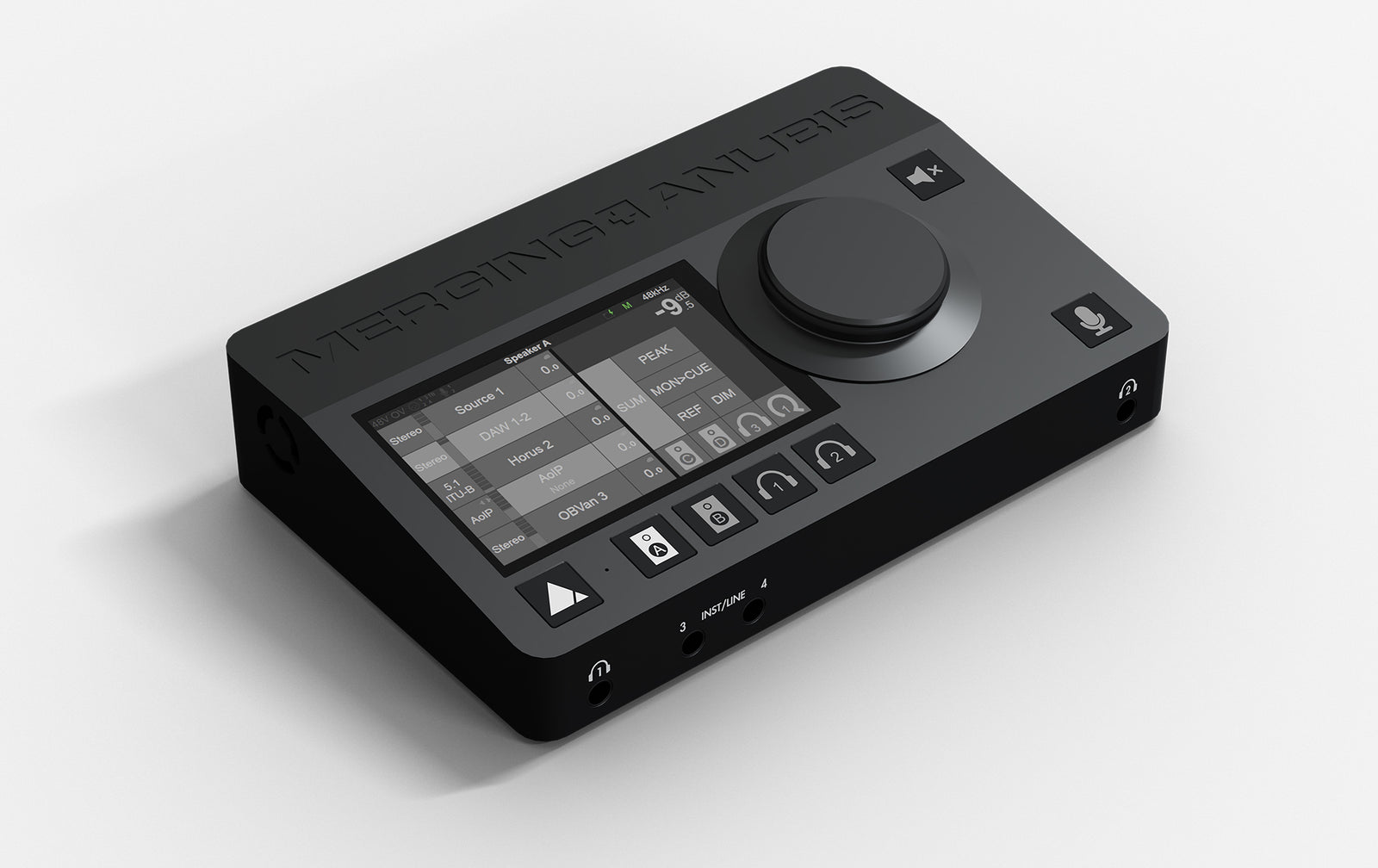

Whichever flavour you choose, you get the same beautiful unibody case crafted from a single piece of aluminium with the same multi-touch display with all the same control possibilities. ONE OF A KIND – whatever the flavour
Merging’s 30 years of developments are all concentrated into the Anubis. This compact AD/DA is unique in its configurability to perform your mission without changing the hardware. Included is our new 32bit dual PreAmp topology, incredible headphone amps, D/A converters derived from our years of audiophile experience, all combined with a powerful low-latency mixing engine evolved from our 25 years of DAW design.
Uniquely Modular by Software, Anubis is truly ONE OF A KIND.
MISSIONS - MODULAR APPLICATIONS
From the initial recording through to the final master, there are specific ‘missions’ that require precision and control. MERGING+ANUBIS gives you complete control to choose the ‘mission’ application to accomplish each stage - effortlessly.
If your mission of the day is to create a great mix, you need to be in complete control of your monitoring: reference monitors, nearfields, headphones, sources, surround mix, downmix, etc., so you will be in the Monitor Mission. If your mission is to record the band or rehearse for the next gig, you will be in the Music Mission controlling the extraordinarily powerful ultra-low-latency mixer and feeding individual cue mixes to each musician. Anubis gives you that “Mission Control” in a single, compact device that has unrivalled capabilities defined by the software application. MERGING+ANUBIS allows the user to choose the Mission Controller app that fits the task. ONE OF A KIND
Music Mission
Imagine having a powerful fully-featured low-latency mixer that you can take anywhere. Imagine touch control of all your I/O connections and all your mixer functions. imagine feeding individual cue mixes to each band member. Imagine this being the front and back end of your favourite DAW. Imagine all this capability on stage with no DAW. Imagine this all happening with the quality of audio you never dreamed possible, whatever the sample rate. Add your other Merging I/O units and see your system instantly expand into a monster while retaining full control from Anubis. This is what being on the "network" really means. There is no need to dream; Music Mission can do this and so much more.
Monitor Mission
The concept of software based Missions allows for designing very versatile and highly dedicated applications, upgradeable in time, and precisely targeting the requirements of today's professionals. The Monitor Mission is the central node of all Music and Recording studios, its extreme sound quality fulfills the essential requirement of all Mastering studios. The large number of supported surround formats will please all Film and TV Post Studios and its AOIP standards support makes it the perfect choice for Broadcast studios, OB vans or Editing rooms. The Anubis compactness and robustness makes it the ideal choice for Location Recording and Live Events monitoring.
Commentary Unit Mission
The Commentary Unit Mission focuses on providing a very easy to use implementation of a broadcast commentary box, targeted at journalists commenting on all kinds of live On-Air events such as sport, e-sport, radio programs and more.
Once running the Mission, the unit offers monitoring and commentary features for one single or two commentators, with all necessary microphone, headphone and speakers connectivity, best in class mic preamp and headphone amp and AD/DA directly in the box.
While giving access to traditional analog I/O, the Commentary Unit Mission implementation also focuses on purely AOIP network audio integration, offering all required standards such as AES67, Ravenna, ST2110, ST2022-7, NMOS as well as full remote access for operation and configuration through a full featured Web Interface and a Web Socket REST API.
The Commentary Unit Mission user interface is entirely customisable to allow immediate usage of the unit when in live environments with minimal training for the simplest, mistake proof operation.
Venue Mission
New from merging Technologies comes Venue Mission, a feature-rich and highly versatile software, designed to transform the management of audio workflows through Anubis.
Packed with features, including a 16-channel mixer, Venue Mission delivers precise control over four monitors. Supporting up to 16 mono or stereo inputs and accommodating a wide range of sample rates, it seamlessly handles local analogue inputs and incoming audio over IP streams.
With Venue Mission users can show or hide mixer inputs on each monitor, adjust input delay from 1.4ms to 20ms and customise input names with colour-coded labels, providing a new level of control and personalisation - and as with all Anusbis missions, Venue Mission remains fully compatible with AES67.
Designed for multiple users, Venue Mission is the ideal choice for applications across a broad spectrum of scenarios, from orchestral live performances to complex band monitor setups, smaller bands operating without designated monitor engineers, orchestral studio recording sessions and even speaking booths or ADR studios.
Performers can enjoy direct access to their tailored monitoring mixes while microphone and instrument inputs can be shared across the network, enabling remote control and monitoring by the PA mixer or recording engineer.
Enhancing Anubis' extensive software range, Venue Mission addresses the key concerns of professional musicians and audio technicians, offering powerful audio management and an unparalleled level of control across the Anubis ecosystem through a user-friendly interface.
ANUBIS PLUGINS
Optional plugins for MERGING+ANUBIS
Anubis can host optional plugins developed by Merging, such as:
- Merging+De-esser
- Merging+ Blackhole
Merging has a reputation for getting it right when it comes to audio quality and we have years of experience. It would be surprising if Anubis was any less than the best we can achieve. Great sound is only part of the story, just look at the performance measurements.
GENERAL SPECIFICATIONS |
|
Case Material |
Premium machined and anodised aluminium |
Dimensions |
200 x 128 x 40mm |
Weight |
950 g |

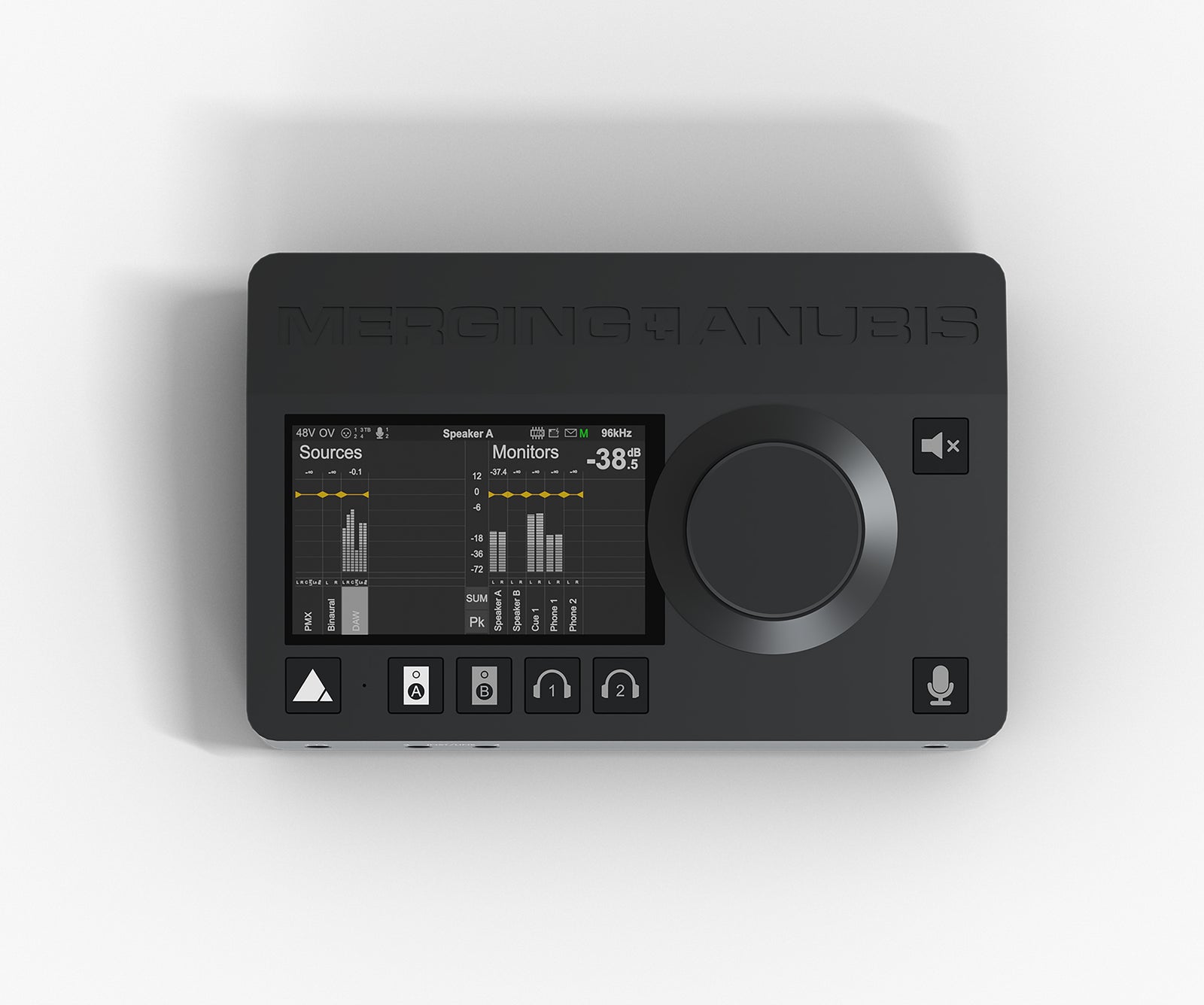

Top Panel Display |
Capacitive Touch, TFT LCD 800 x 480 pixels resolution 16:9 Aspect ratio |

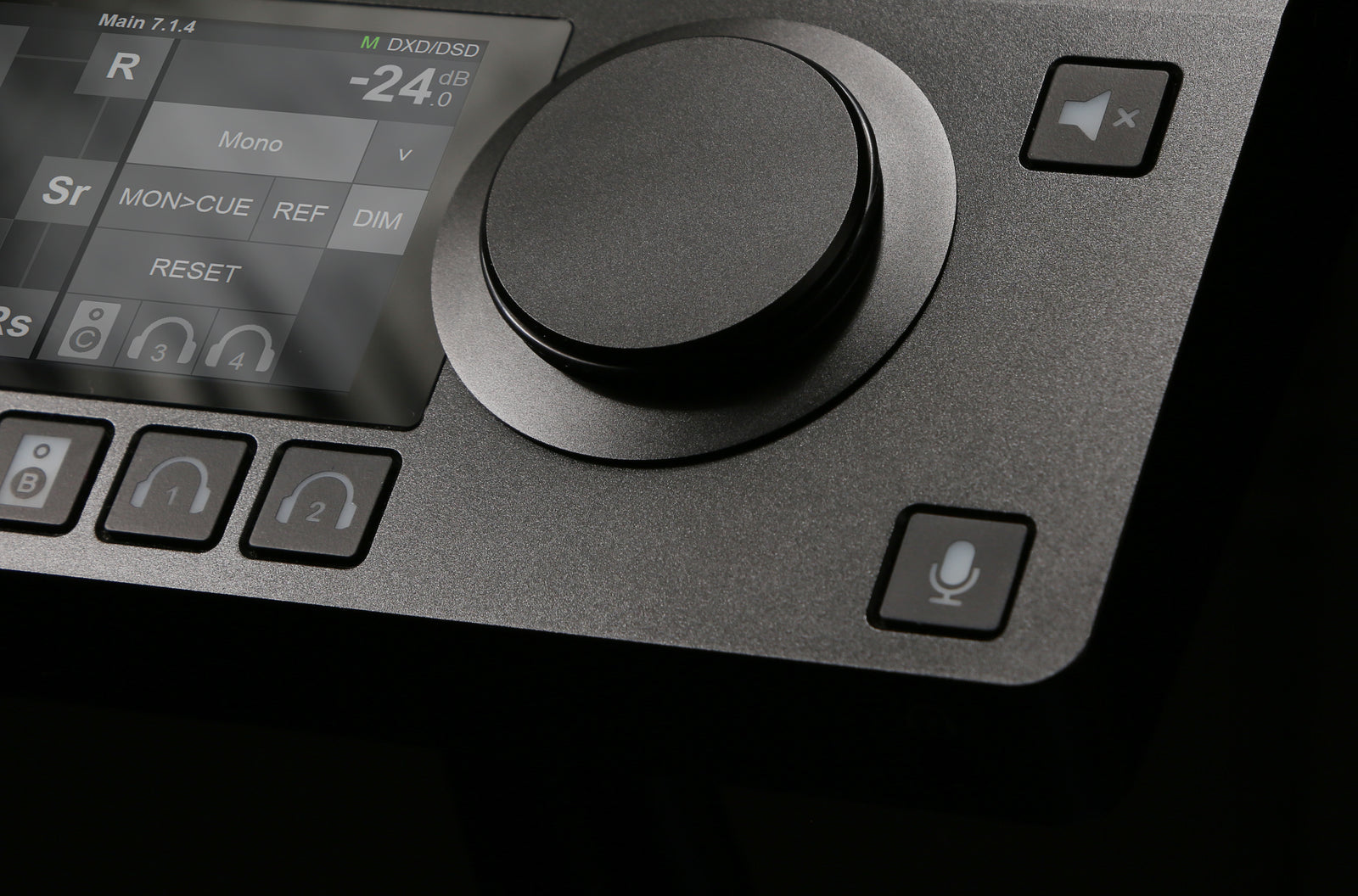

Rotary Encoder |
Anodised aluminium + Black rubber O-ring |
7 x Hardware + Soft buttons |
RGB LEDs |
Bottom Panel Mic stand thread |
3/8" 16BSW European thread incorporated Note: Americas 5/8" 27UN adaptor not included |
SOFTWARE SPECIFICATIONS |
|
Windows Driver/OS |
Windows 7 64bit / Windows 8.1 64bit: RAVENNA ASIO v12.0 (ASIO 2.2)
Windows 10 64bit: MAD v2.0 (Merging Audio Device) |
Mac Driver/OS |
VAD Core Audio for macOS 10.8.5 or higher (Intel & M1) |
Linux Driver/OS |
ALSA Linux driver for RAVENNA/AES67 |
ANEMAN |
Version 1.1.7 and above |
DEVICE CONNECTIVITY

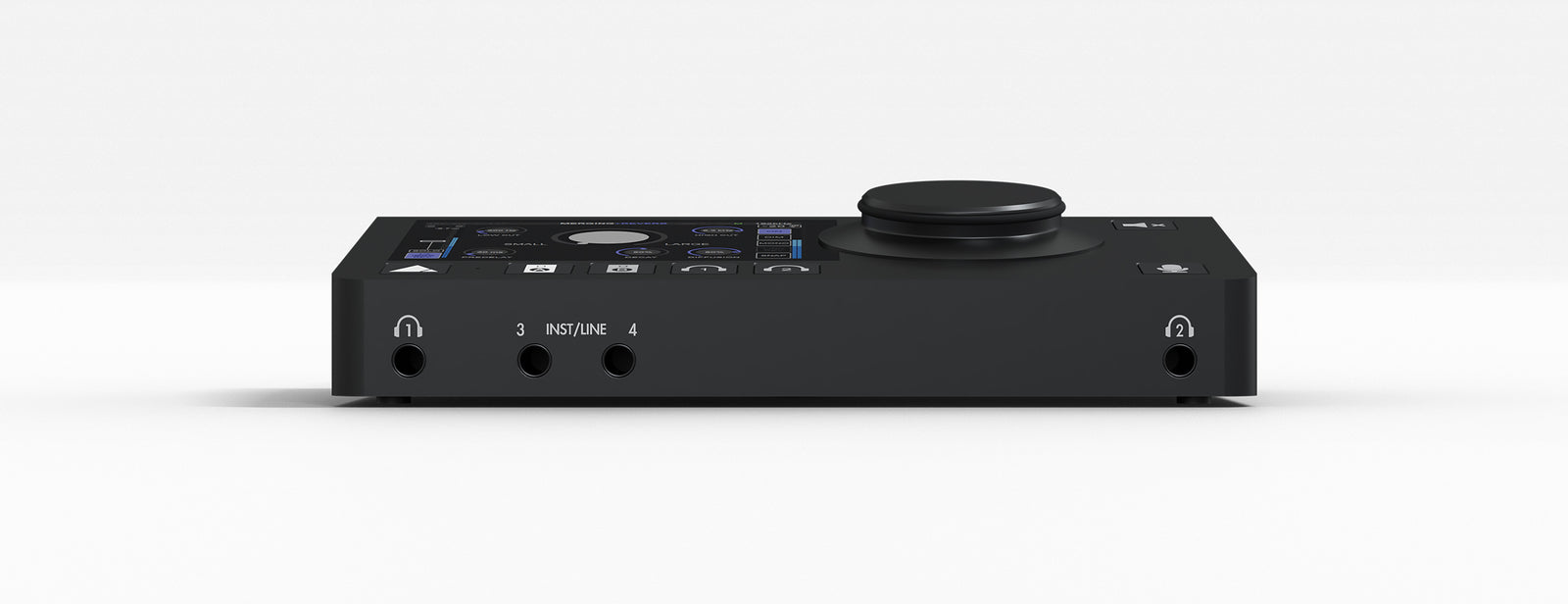

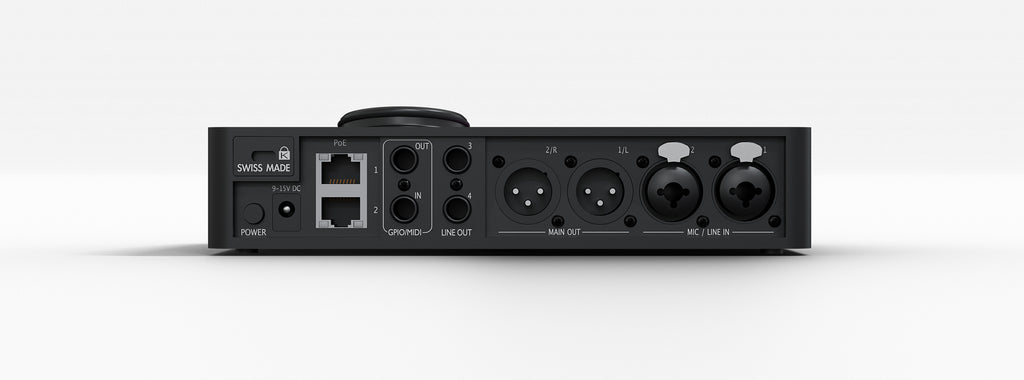

The Anubis interface has two analog high quality combo connectors, and an additional two front line/instrument analog inputs. On the output side, you get two gold plated XLR and two TRS jacks. In addition, there are two independent stereo headphone jacks with the best quality amplification we have ever done. There is also MIDI I/O or GPIO and the all-important AES67/RAVENNA connector.
MICROPHONE INPUTS 1-2 (COMBO) | |
---|---|
Connector Type | Combo Locking Neutrik XLR / TRS |
Dynamic Range Mic / Mic Boost | 137 dB / 128 dB (A-weighted, typ.) |
Max Input level Mic Pad / Mic / Mic Boost | +24 dBu / +12 dBu / +0 dBu |
Frequency response +0/-0.2dB @ fs = 48 kHz | 9 Hz – 22 kHz |
Frequency response +0/-3dB @ fs = 96 kHz | 9 Hz – 46 kHz |
Frequency response +0/-3dB @ fs = 192 kHz | 11 Hz – 94 kHz |
THD+N Preamp + A/D 1kHz @ 0 dBFS | < -110 dB (0.0003%) |
Interchannel Crosstalk @ 1kHz | < -130 dB |
Equivalent Input Noise Mic / Mic Boost (150Ω Source) | < -125 dBu / -128 dBu (A-weighted, typ.) |
Common Mode Rejection Rate (20 Hz – 20 kHz) | > 80 dB |
Input Impedance (Differential) | ~ 10kΩ |
Gain Range (Software controlled) | 0 dB to +66 dB |
Gain Step Coarse / Fine | 0.5 dB / 0.1 dB |
Phantom Power (Software Switchable Per Channel) | +48V |
Phase Reverse (Software Switchable Per Channel) | Yes |
Low Cut filter (Software Switchable Per Channel) | -12 dB/octave, 80 Hz |
5° low-end in-channel Ø deviation pt: Mic | 9 Hz |
Interchannel phase 10 Hz - 100 kHz | < ±2° |
LINE INPUTS 1-2 (COMBO) | |
---|---|
Connector Type | Combo Locking Neutrik XLR / TRS |
Dynamic Range, ref +24 dBu | 139 dB (A-weighted, typ.) |
Max Line Input Level | +24 dBu |
Input Impedance (Differential) | ~ 10kΩ |
THD+N Preamp + A/D 1kHz @ 0 dBFS | < - 104 dB (0.0006%) |
Interchannel Crosstalk @ 1kHz | < -140 dB |
Sensitivity Range for 0 dBFS (Software controlled) | +24 dBu to -42 dBu |
Common Mode Rejection Rate (20 Hz – 20 kHz) | > 80 dB |
5° low-end in-channel Ø deviation pt: Line | 9 Hz |
Interchannel phase 10 Hz - 100 kHz | < ±2° |
INSTRUMENTS / HI-Z & LINE INPUTS 3-4 | |
---|---|
Connector Type | ¼” TRS Female |
Dynamic Range, ref +18 dBu | 136 dB (A-weighted, typ.) |
Max Input Level | +18 dBu |
Input Impedance (Single ended / Differential) | ~ 1MΩ / ~ 2MΩ |
Gain Range (Software controlled) | 0 dB to +66 dB |
THD+N Preamp + A/D 1kHz @ 0 dBFS | < - 111 dB (0.0003%) |
Interchannel Crosstalk @ 1kHz | < -150 dB |
Sensitivity Range for 0 dBFS (software controlled) | +18 dBu to -48 dBu |
Common Mode Rejection Rate (20 Hz – 20 kHz) | > 70 dB |
5° low-end in-channel Ø deviation pt: Inst/Line | 2 Hz |
Interchannel phase 10 Hz - 100 kHz | < ±1° |
MAIN OUTPUTS 1-2 | |
---|---|
Connector Type | Neutrik XLR Male |
Dynamic Range | 123 dB (A-weighted, typ.) |
Max output Level (Differential / Single ended) | +24 dBu (12.2 Vrms) / +18 dBu (6.1 Vrms) |
Frequency response +0/-0.2dB @ fs = 48 kHz | 6 Hz – 22 kHz |
Frequency response +0/-3dB @ fs = 96 kHz | 2 Hz – 46 kHz |
Frequency response +0/-3dB @ fs = 192 kHz | 2 Hz – 92 kHz |
Output Impedance | < 70Ω |
THD+N 1 kHz @ 0 dBFS | < - 110 dB (0.0003%) |
Output Level Matching | ±0.01 dB |
Attenuation Range (Software controlled) | - ∞ dB to 0 dB |
Gain Step / Precision | 0.5 dB / ±0.05 dB |
LINE OUTPUTS 3-4 | |
---|---|
Connector Type | ¼” TRS Female |
Dynamic Range | 123 dB (A-weighted, typ.) |
Max output Level (Differential / Single ended) | +24 dBu (12.2 Vrms) / +18 dBu (6.1 Vrms) |
Output Impedance | < 70Ω |
THD+N 1 kHz @ 0 dBFS | < - 110 dB (0.0003%) |
Output Level Matching | ±0.01 dB |
Attenuation Range (Software controlled) | - ∞ dB to 0 dB |
Gain Step / Precision | 0.5 dB / ±0.05 dB |
HEADPHONES | |
---|---|
Headphone Jacks | 2 Independent ¼” TRS Female Stereo 6.3 mm |
Dynamic Range (A-weighted, typ.) High / Low | < -122 dB / - 117 dB |
Max output Level High / Low | 17.1 dBu / 7.8 dBu |
Frequency response +0/-0.2dB @ fs = 48 kHz | 6 Hz – 22 kHz |
Frequency response +0/-3dB @ fs = 96 kHz | 2 Hz – 46 kHz |
Frequency response +0/-3dB @ fs = 192 kHz | 2 Hz – 92 kHz |
Output Impedance | < 0.035Ω |
THD+N 1 kHz @ 0 dBFS High / Low | < -108 dB (0.00039%) / -110 dB (0.0003%) |
Attenuation Range (Software controlled) | - ∞ dB to 0 dB |
Gain Step / Precision | 0.5 dB / ±0.05 dB |
A/D – D/A CONVERSION | |
---|---|
Supported Sample Rates PRO | 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz and 192 kHz |
Supported Sample Rates PREMIUM | 44.1 kHz up to 352.8 kHz (DXD), 384 kHz, DSD64, DSD128 & DSD256 |
Bit Depth Per Sample | 32 |
A/D Latency Sharp Short delay @ 44.1kHz to 96kHz | 5 samples |
A/D Latency Sharp Short delay @ 174.6kHz to 192kHz | 6 samples |
A/D Latency Sharp Short delay @ 352.8kHz to 384kHz | 7 samples |
D/A Latency Sharp @ 44.1kHz to 384kHz | 35 samples |
D/A Latency Slow @ 44.1kHz to 384kHz | 9 samples |
D/A Latency Apodizing @ 44.1kHz to 384kHz | 35 samples |
D/A Latency Brickwall @ 44.1kHz to 384kHz | 35 samples |
COMPLEMENTARY I/O | |
---|---|
RAVENNA/AES67 (Gigabit Ethernet) | Locking EtherCON compatible with standard RJ45 connectors |
Built-in Talkback microphone | Mono omnidirectional CMOS/MEMS membrane technology |
GPI/MIDI Input | ¼” TRS Female |
GPO/MIDI Output | ¼” TRS Female |
REDUNDANT POWER OPTIONS.
Anubis is small and compact, it can be powered by its main PSU or/and from PoE (Power over Ethernet) making it a reliable redundant powered device. The input voltage range offers the possibility to use a wide range of power supply such as a battery.
POWER | |
---|---|
Power Supply Voltage (DC) | 9V to 15V DC |
Power Supply Connector Type | Barrel jack, int. 2.5mm/out. 5.5mm, with locking function |
Power Consumption (Typ.) | 15W |
P-o-E (Power Over Ethernet) | IEEE 802.3at (PoE+) class 0 Power-over-Ethernet standard |
