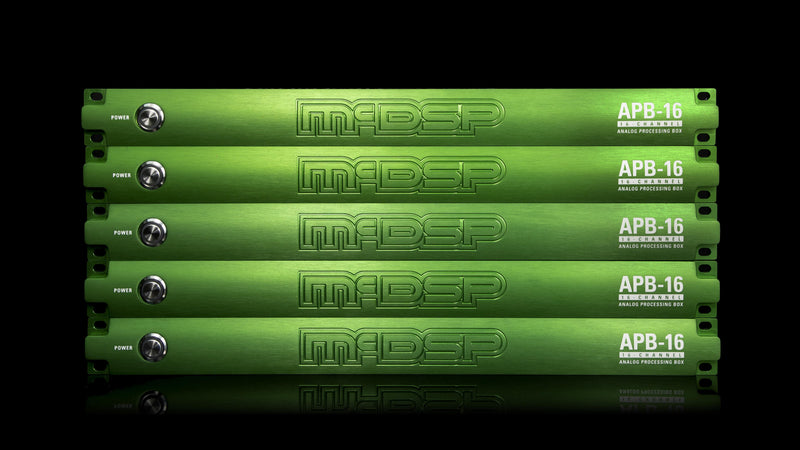

McDSP APB Programmable Analog Processors

The McDSP Analog Processing Box (APB) combines the flexibility of software with the fidelity of premium analog processing. Each channel can be controlled by a Pro Tools plug-in giving true digital workflow with genuine analog performance. Processing options include compressors, mastering limiters, transient enhancement devices, multi-channel and multi-band applications, and so much more... we're only getting started.

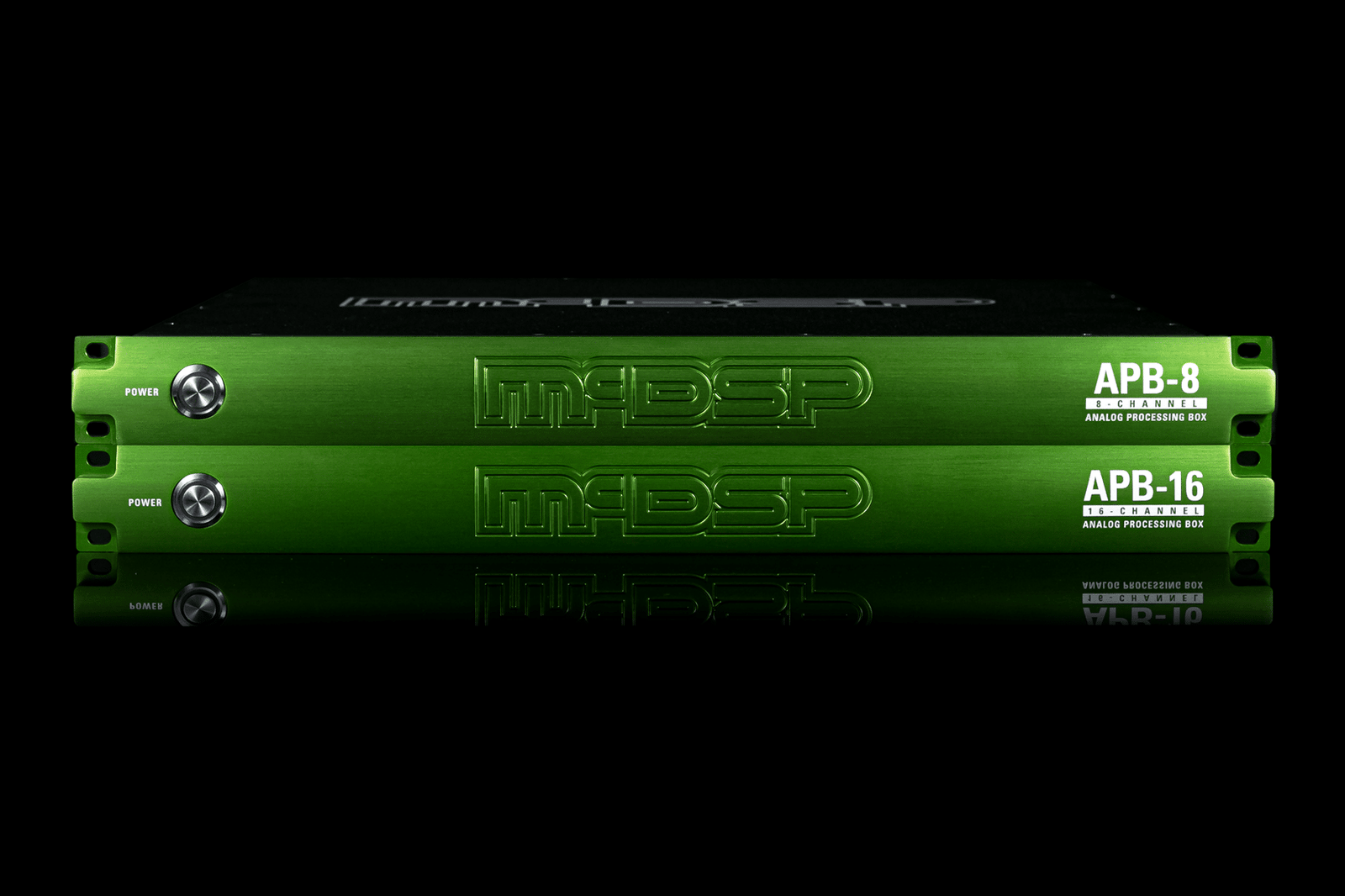

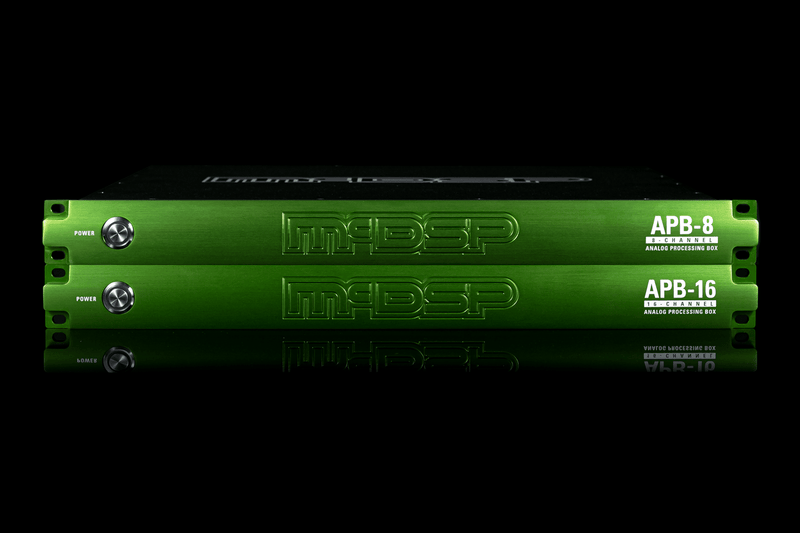

2 Models Available:

• APB-8: 8-Channel Analog Processing Box
• APB-16: 16-Channel Analog Processing Box

Software

• APB-ready software plug-in bundle included
• Sample accurate automation
• Full session recall and preset handling

PLUG-INS

The APB-8 and APB-16 come with a collection of APB plug-ins to route audio to the APB hardware and control the analog circuitry within. The user simply operates the APB plug-in like any other plug-in, but processing is done in the analog domain. Settings can be saved as a preset, plug-ins can be recalled with a session, and parameters can even be automated with sample level accuracy. APB plug-ins provide true digital workflow with genuine analog performance.

Moo-X Mixer

The Moo X mixer plug-in is the world’s first fully automated hybrid mixing console under total software control. Session recall is instant, and all mixer controls can be automated or saved as a preset. Features include channel equalization, analog compression and saturation, and a master section with stereo analog compression and saturation.

C673-A Dynamic Range Compressor

The C673-A served as the initial prototype for the concept of the world's first programmable analog processor. Based on McDSP's C670 and C671 modules from the McDSP 6000 series plug-ins, the C673-A model pushes the envelope further with all analog dynamics processing and a custom saturation circuit.

EL MOO Tube Limiter

One of two all-analog limiters in the APB plug-in lineup, the El Moo leverages the same design used in the MooTube compressor. An adjustable all-analog saturation stage with user control makes the El Moo an interesting choice as a sonic leveller.

MOO TUBE Compressor

The MooTube Compressor is the capstone of the collection of McDSP tube-based compression algorithms. Combining decades of software-side modeling experience with the world's first programmable analog processor, the MooTube delivers a soft touch to anything that goes through it.

ChickenHead Compressor

It may look familiar to some, but under the hood the ChickenHead is a completely unique processor on a completely unique platform. McDSP engineering sought to leverage the high end analog components and most aggressive saturation circuit in the APB hardware to create a compressor with attitude. If you are looking for the rooster in the hen house of dynamic range processors, the ChickenHead is it.

L-18 Limiter

The L-18 is designed to be a pristine all-analog limiter, useful for a variety of mixing styles. But if the track needs a touch up, a Colour control gives some subtle tone shaping options.

C-18 Compressor

The C-18 compressor, like the L-18 limiter, is designed to be a pristine, green, audio machine. Tribute is paid to the first McDSP dynamics plug-in, CompressorBank, with an all-analog version of the unique BITE control, and an advanced version of the AUTO feature for signal level dependent attack and release times. The C-18 can be a straight up utility processor, or introduce some new and unique twists to any track.

CONNECTIONS

An APB plug-in takes the input audio signal, combines it with a control signal, and sends both along a Thunderbolt connection to an APB hardware unit for processing. The control signal sets up the analog components to do the selected algorithm with all the parameter values, and the audio signal is processed in the analog domain, and then converted back to the digital domain, and appears at the output of the APB plug-in back inside the Pro Tools session.

System Requirements

McDSP APB plug-ins are compatible with Pro Tools , Logic Pro X, and Cubase. Other DAWs that support the AAX, AU, and/or VST3 plug-in formats will be qualified soon.

McDSP APB plug-ins support MacOS 10.10.x (Yosemite), 10.11.x (El Capitan), 10.12.x (Sierra), 10.13.x (High Sierra), 10.14.x (Mojave), 10.15.x (Catalina). McDSP APB plug-ins are not compatible with Windows, nor do they support the VENUE S6L systems.

McDSP APB plug-ins require an iLok2 or iLok3 USB Smart Key, or an iLok License Manager account and an iLok Cloud session for authorization.

McDSP APB plug-ins support Pro Tools 12.x, 2018.x, 2019.x, 2020.x or later, Logic Pro X 10.4.x or later, and Cubase 10.x or later.

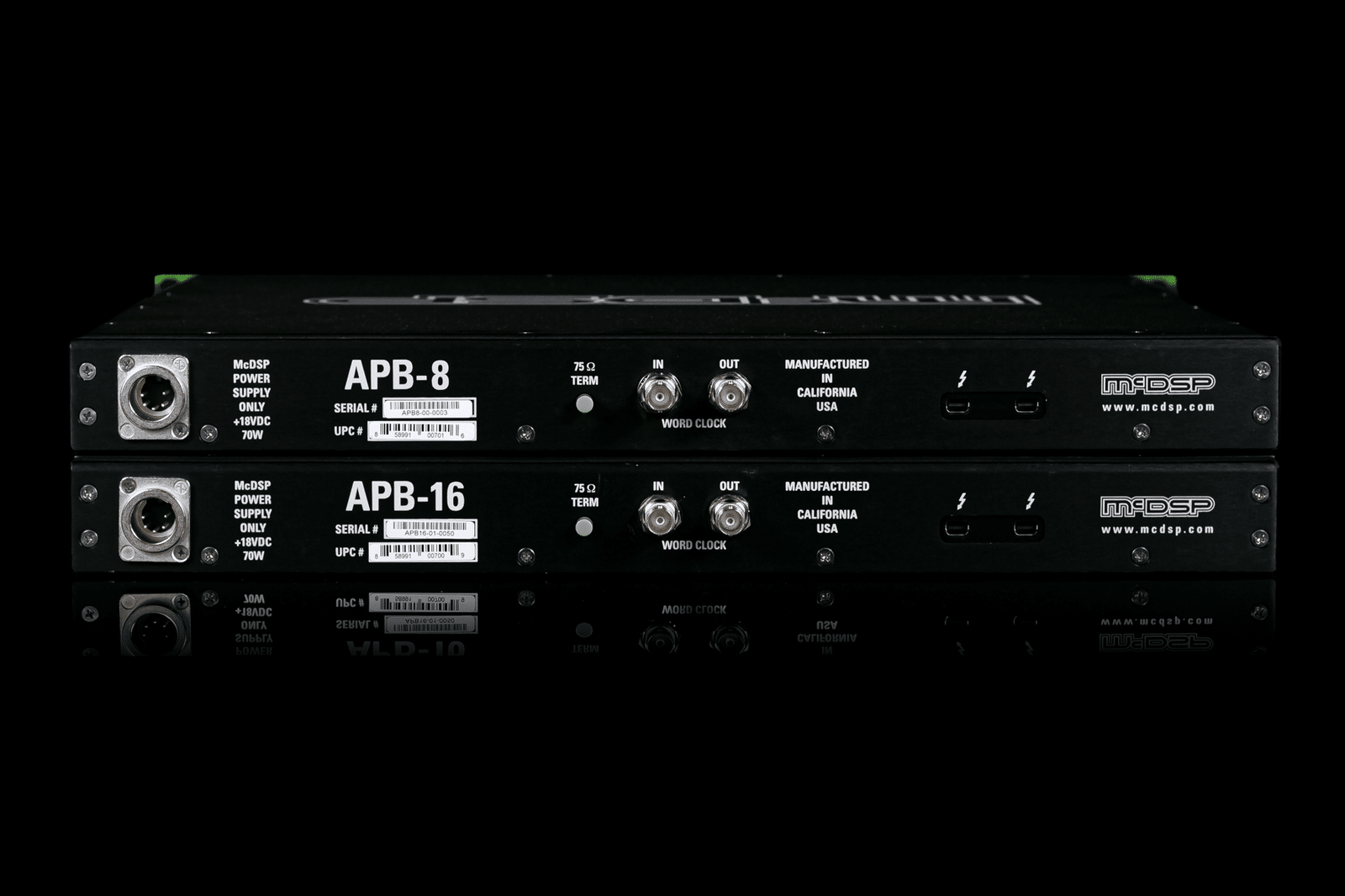

The APB-16 requires word clock connectivity from your audio interface. Refer to the Setup and Installation section for details on how to connect the APB unit to your system.
