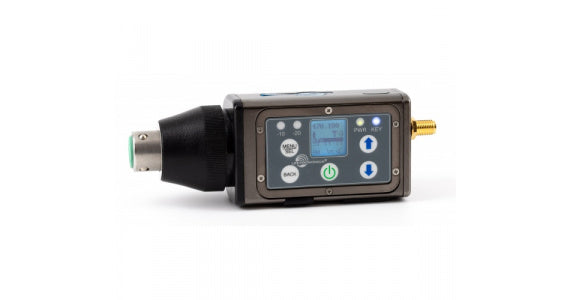

This unique plug-on transmitter design will ideally match any microphone or line level source via a standard XLR connector. The DPR-A can tune in 100 kHz or 25 kHz steps across the UHF television band, with a selectable output power of 10, 25 or 50 mW. The purely digital architecture utilizes AES 256-CTR encryption for high level security applications. The external antenna provides exceptional operating range.
The transmitter is specially designed with high efficiency digital circuitry for extended operating time on two AA batteries, with status indicated by a multi-color LED. An IR (infrared) port is included to simplify setup with IR enabled receivers. Updates can be made via SD card.
The input amplifier uses an ultra low noise op-amp for quiet operation. It is gain controlled with a wide range, dual envelope limiter, providing over 30 dB of headroom above full modulation. A 24-bit A-D converter digitizes the audio, then filters out supersonic noise above 21 kHz.
- Wideband UHF tuning range – Available in A1B1 and B1C1 bands
- Accepts microphone or line level signals
- Selectable 5, 15, 48 volt phantom power
- Selectable 10/25/50 mW RF output power
- Adjustable low frequency roll-off
- Powered by two AA batteries
- IR (infrared) port for fast setup
- Remote controlled “dweedle” tones (audio tone set-up control)
- Removeable SMA-mount antenna (required for operation)
- Solid machined aluminium housing
- On board recording with time code jam sync
- Encryption 256 Bit AES, CTR Mode with 4 key policies
Frequency Variants:
- A1B1: 470.100 - 614.375 Mhz
- B1C1: 537.600 - 691.175 Mhz
See Data Sheet in Downloads
