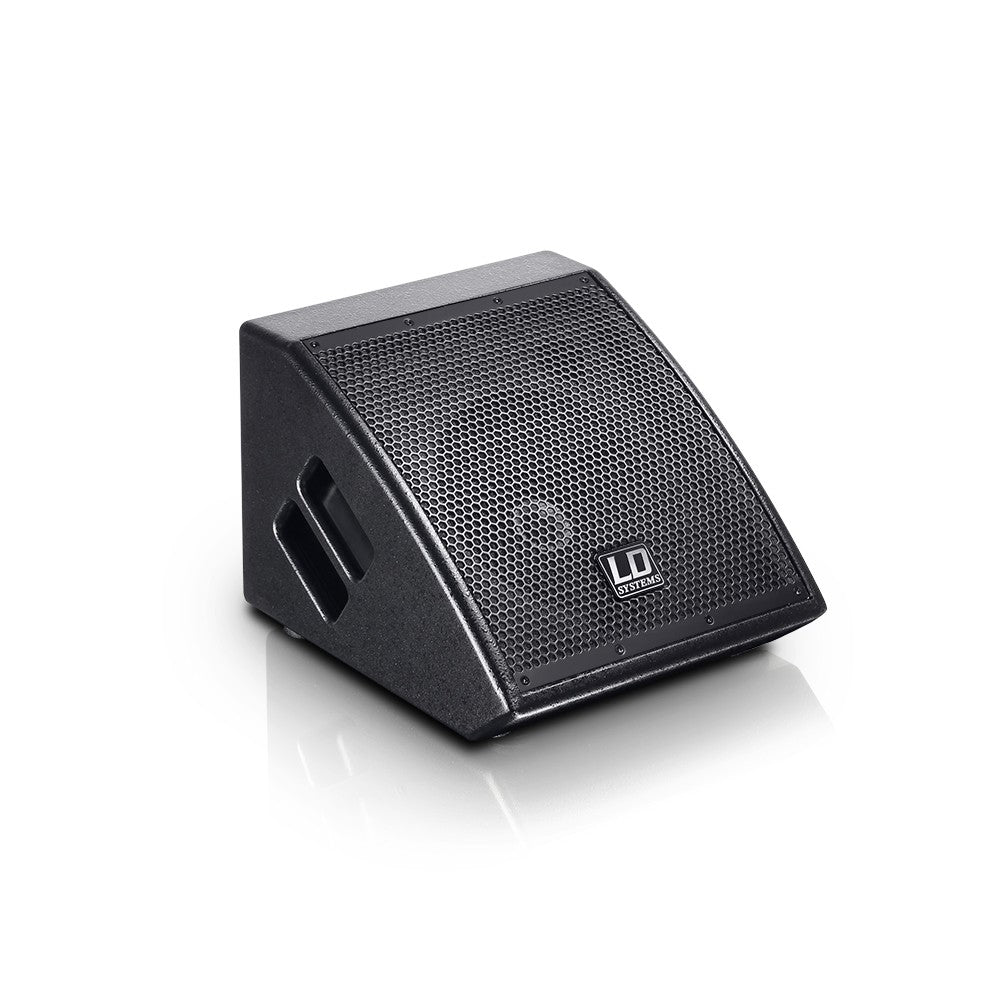

LD Systems Stinger MON81AG2 The LD Stinger MON81AG2 is an especially compact active monitor with broad frequency response and a maximum sound-level pressure of 116dB for versatile use on stage. The 8" coaxial speaker with an integral 1" HF driver attains a dispersion angle of 75°x75°, which is beneficial in multifaceted applications as a stage monitor. The coaxial configuration results in a very homogenous sound in the entire dispersion area plus very low susceptibility to feedback.

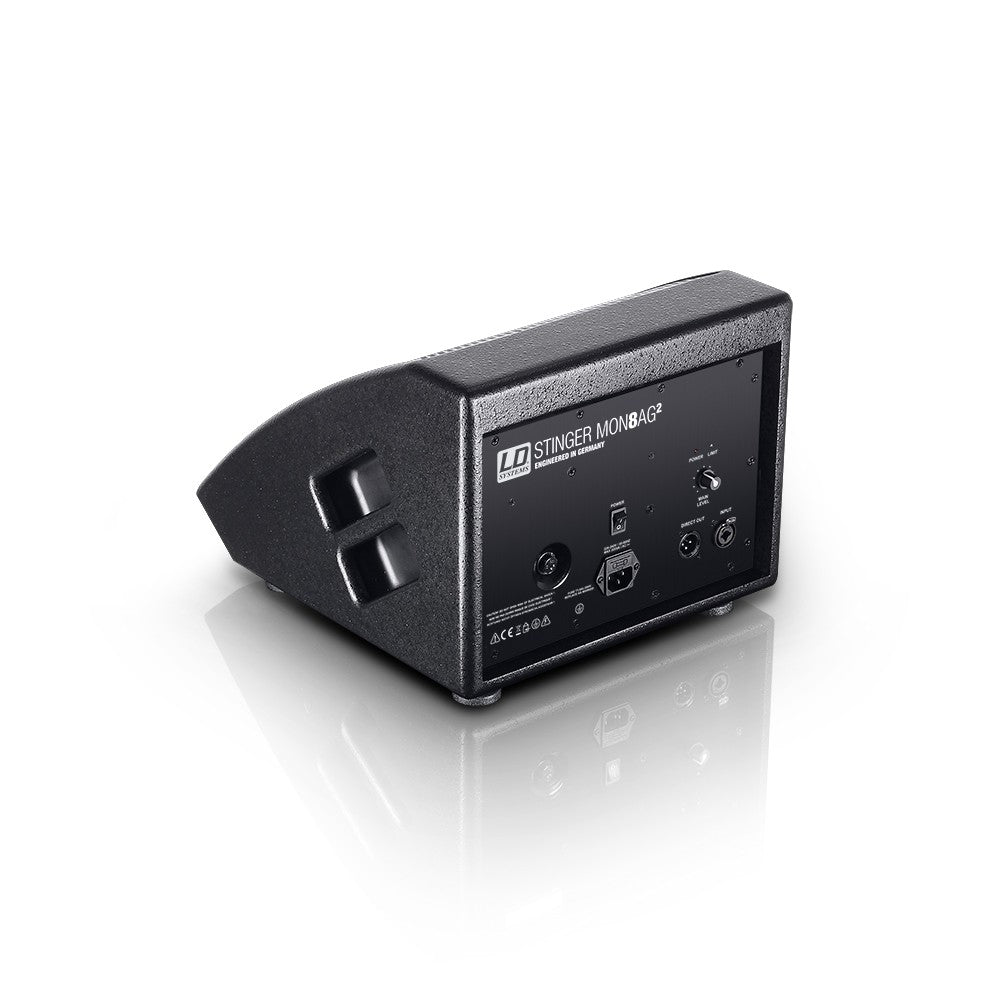

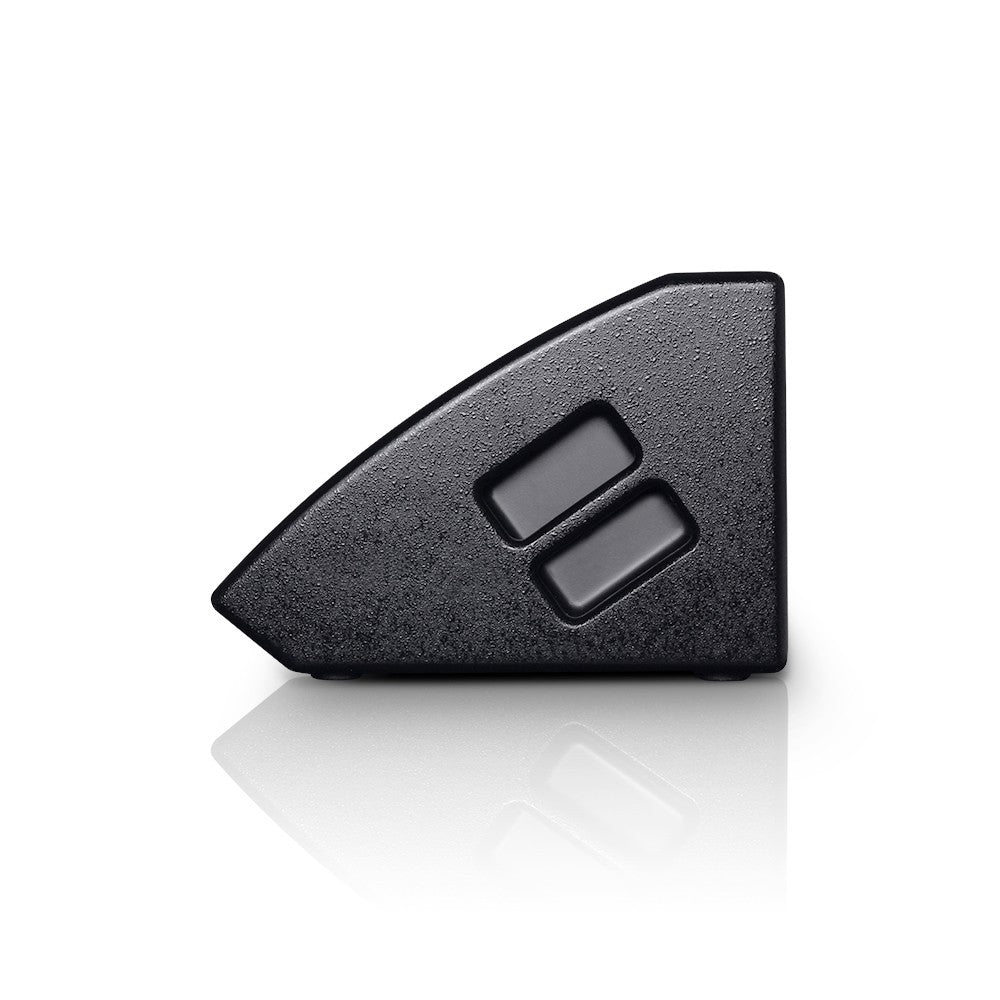

The active monitor is driven by a Class AB power amplifier with an output power of 320W Peak; short-circuit protection and a limiter ensure dependable operation. The signal is connected and looped through using an XLR/ jack combo socket and the XLR output. The rear connector panel is rounded out by a volume control, LED indicators, and the IEC power socket. The elegant bass-reflex housing made of 15mm multiplex is finished with a durable coating and has ergonomically milled handles and a metal grille to protect the speaker. The monitor angle is 35°.
Specifications
|
Product type |
PA loudspeaker |
|
Type |
Powered |
|
Low/mid driver dimensions |
8 " |
|
Woofer size |
203 mm |
|
Woofer type |
coaxial loudspeaker |
|
Woofer magnet |
Ferrite |
|
Woofer brand |
Custom-made |
|
Woofer voice coil |
2 " |
|
Woofer voice coil (mm) |
50.8 mm |
|
HF driver dimensions |
1 " |
|
HF Driver Size |
25.4 mm |
|
HF driver magnet |
Ferrite |
|
HF driver brand |
Custom-made |
|
HF driver voice coil |
1 " |
|
HF Driver Voice Coil |
25.4 mm |
|
Amplifier |
Class A/B |
|
Dispersion (H x V) |
75 x 75 ° |
|
RMS |
80 W |
|
Peak power |
320 W |
|
Frequency response |
90 - 20000 Hz |
|
Crossover frequency |
2400 Hz |
|
SPL (1W/1m) |
97 dB |
|
Max. SPL (continuous) |
111 dB |
|
Max. SPL (peak) |
116 dB |
|
Protection circuits |
limiter , short circuit |
|
Controls |
On / Off , volume |
|
Indicators |
Limit , Power |
|
Line Inputs |
1 |
|
Line input connectors |
6.3 mm jack , XLR |
|
Line Outputs |
1 |
|
Line output connectors |
XLR |
|
Operating voltage |
transformer |
|
Operating voltage |
230 V AC / 50-60 Hz |
|
Cabinet material |
15 mm Birch Plywood |
|
Cabinet construction |
Bass Reflex |
|
Monitor angle |
35 ° |
|
Width |
320 mm |
|
Depth |
250 mm |
|
Height |
361 mm |
|
Weight |
10,6 kg |
|
Features |
ergonomically shaped insert handles |
