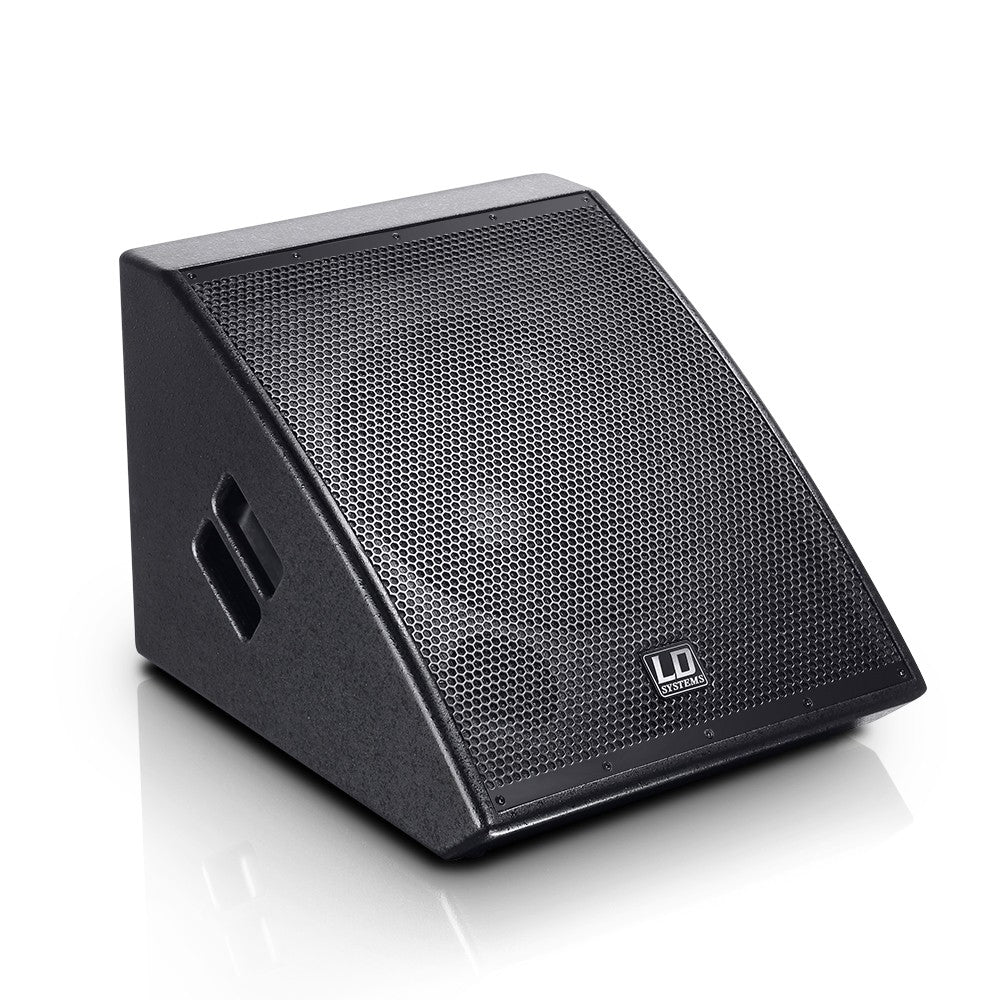

The LD Stinger MON121AG2 is a compact active stage monitor for all mobile applications. The specially developed 12" coaxial speaker with an integral 1" HF driver and powerful ferrite magnets stands out because of a precisely symmetrical dispersion over 75° x 75° and attains a maximum sound-level pressure of 124dB with maximum resistance to feedback. It is driven by a Class AB power amplifier with a power output of 1000W Peak. The frequency response curve is 80Hz - 20kHz.

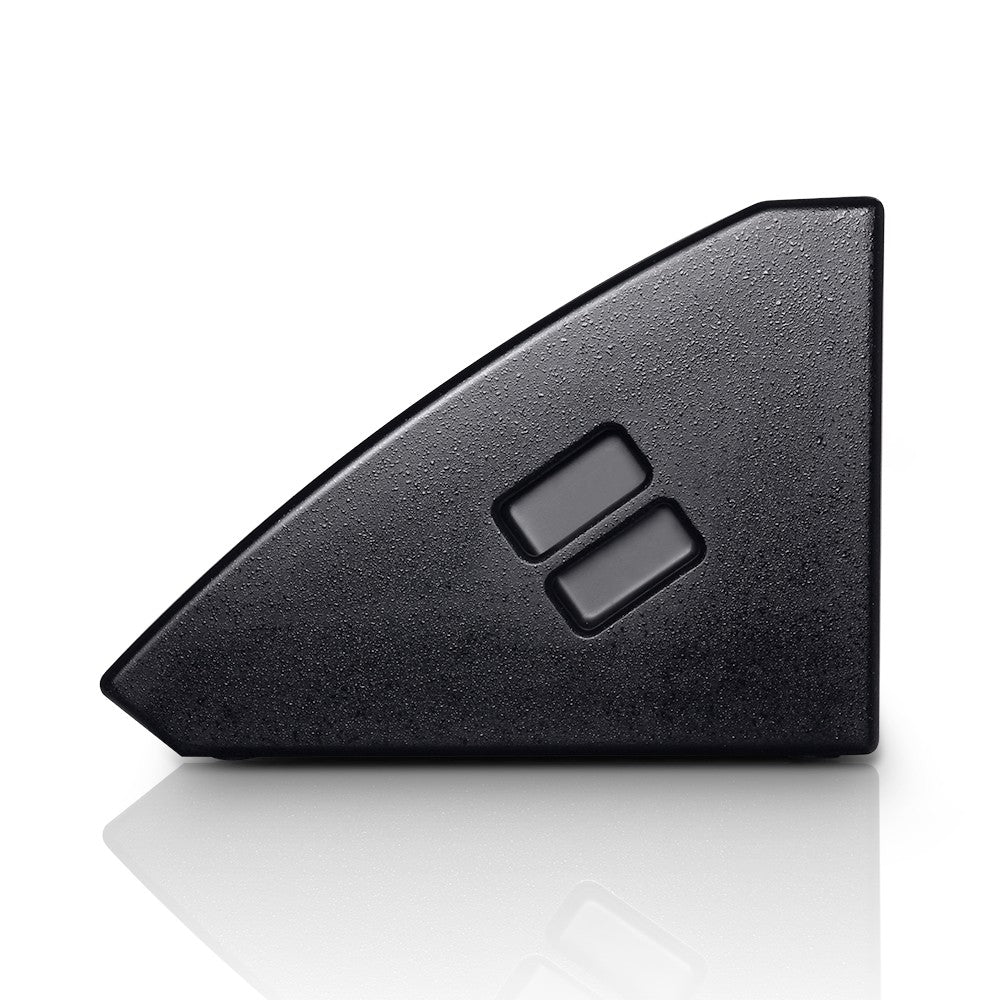

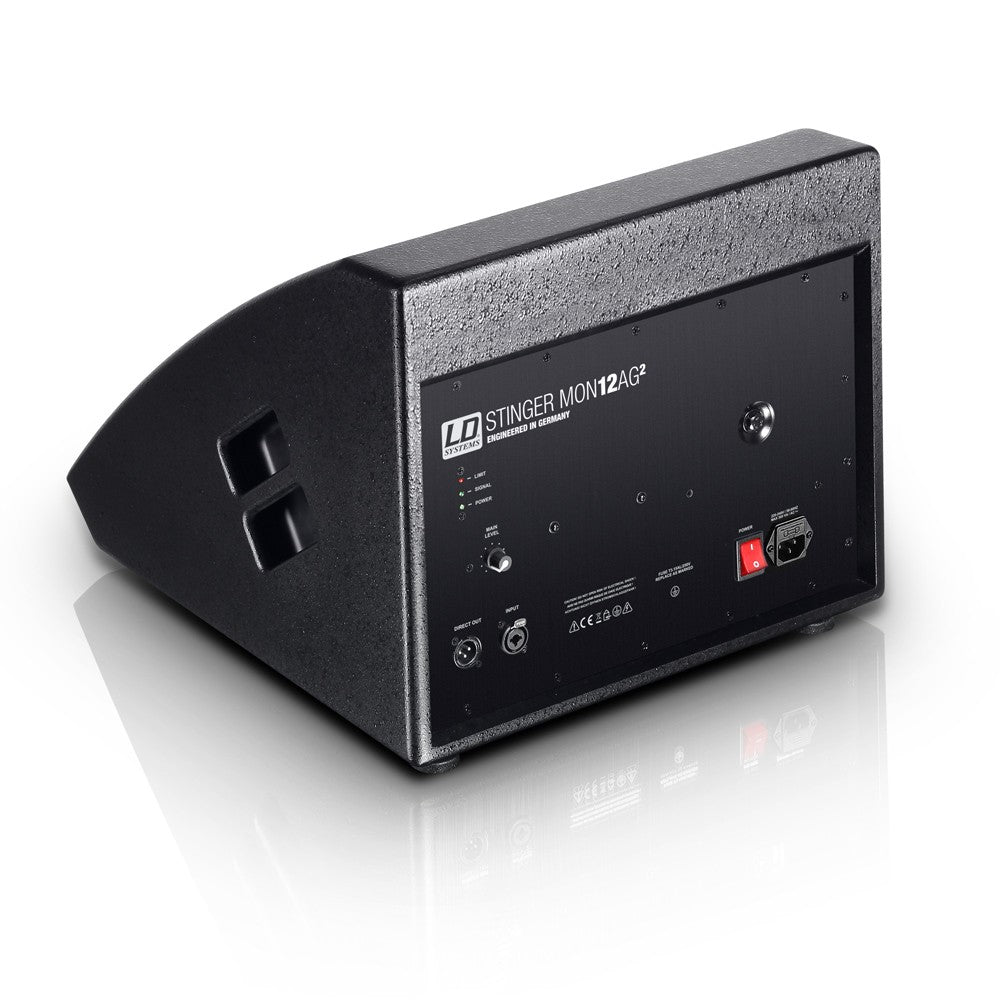

Dependable operation of the LD MON121AG2 is ensured by a limiter that prevents overloading of the speaker and a protection circuit that guards against short-circuiting. The input is a XLR-jack combo socket, an XLR output permits looping through of the signal. Other connector panel features include a volume control, IEC power socket, LED indicators of various colours for power, signal, and the limiter function. The elegant looking bass-reflex enclosure of the LD MON121AG2 is made of 15mm-thick multiplex finished with a durable coating. A sturdy metal grille guards against speaker damage, and ergonomically milled handles make transport easier. The monitor angle is 35°.
Specifications
|
Product type |
PA loudspeaker |
|
Type |
Powered |
|
Low/mid driver dimensions |
12 " |
|
Woofer size |
304 mm |
|
Woofer type |
coaxial loudspeaker |
|
Woofer magnet |
Ferrite |
|
Woofer brand |
Custom-made |
|
Woofer voice coil |
2 " |
|
Woofer voice coil (mm) |
50.8 mm |
|
HF driver dimensions |
1 " |
|
HF Driver Size |
25.4 mm |
|
HF driver magnet |
Ferrite |
|
HF driver brand |
Custom-made |
|
HF driver voice coil |
1 " |
|
HF Driver Voice Coil |
25.4 mm |
|
Amplifier |
Class A/B |
|
Dispersion (H x V) |
75 x 75 ° |
|
RMS |
250 W |
|
Peak power |
1000 W |
|
Frequency response |
80 - 20000 Hz |
|
Crossover frequency |
2200 Hz |
|
SPL (1W/1m) |
100 dB |
|
Max. SPL (continuous) |
116 dB |
|
Max. SPL (peak) |
124 dB |
|
Protection circuits |
limiter , short circuit |
|
Controls |
On / Off , volume |
|
Indicators |
Limit , Power , Signal |
|
Line Inputs |
1 |
|
Line input connectors |
6.3 mm jack , XLR |
|
Line Outputs |
1 |
|
Line output connectors |
XLR |
|
Operating voltage |
transformer |
|
Operating voltage |
230 V AC / 50-60 Hz |
|
Cabinet material |
15 mm Plywood |
|
Cabinet construction |
Bass Reflex |
|
Monitor angle |
35 ° |
|
Width |
440 mm |
|
Depth |
360 mm |
|
Height |
514 mm |
|
Weight |
17,8 kg |
|
Features |
ergonomically shaped insert handles |
