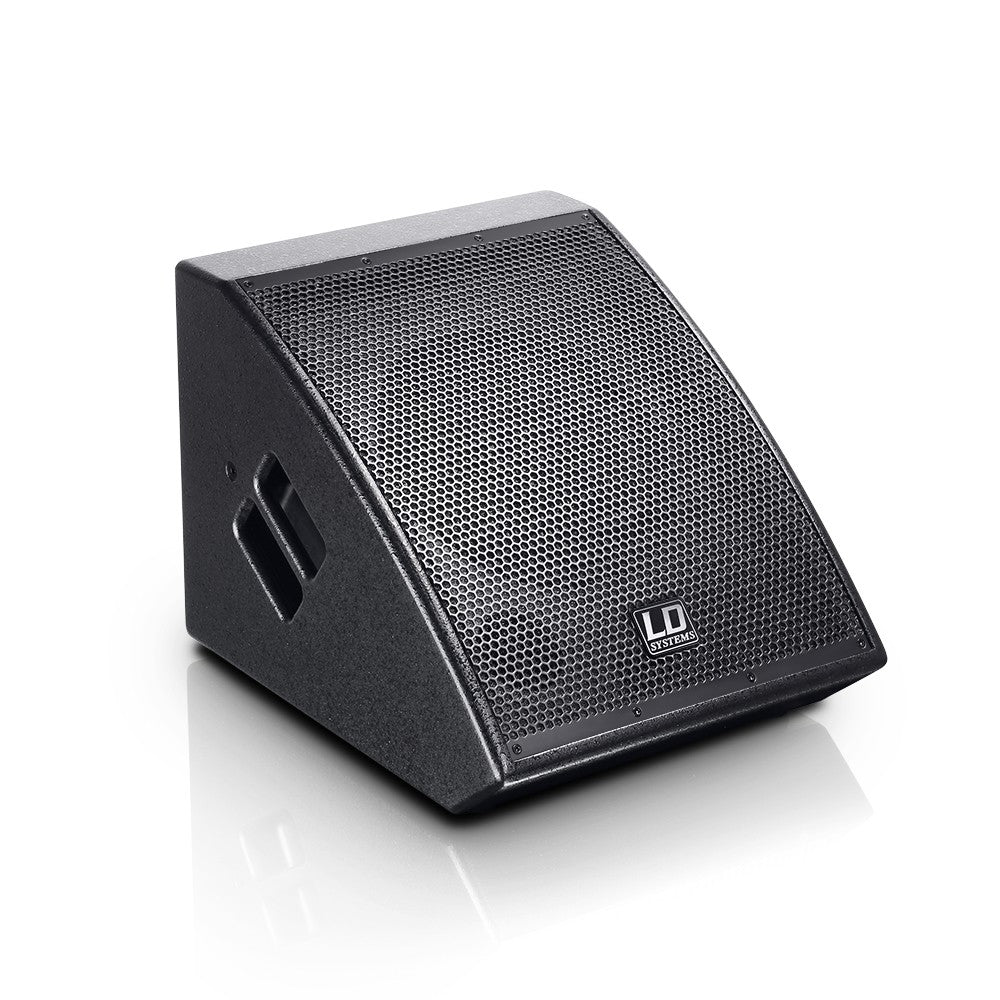

The LD Stinger MON101AG2 is an especially compact active monitor with broad frequency response and a maximum sound-level pressure of 121dB for versatile use on stage. The 10" coaxial speaker with an integral 1" HF driver attains a dispersion angle of 75°x75°, which is beneficial in multifaceted applications as a stage monitor. The coaxial configuration results in a very homogenous sound in the entire dispersion area plus very low susceptibility to feedback.

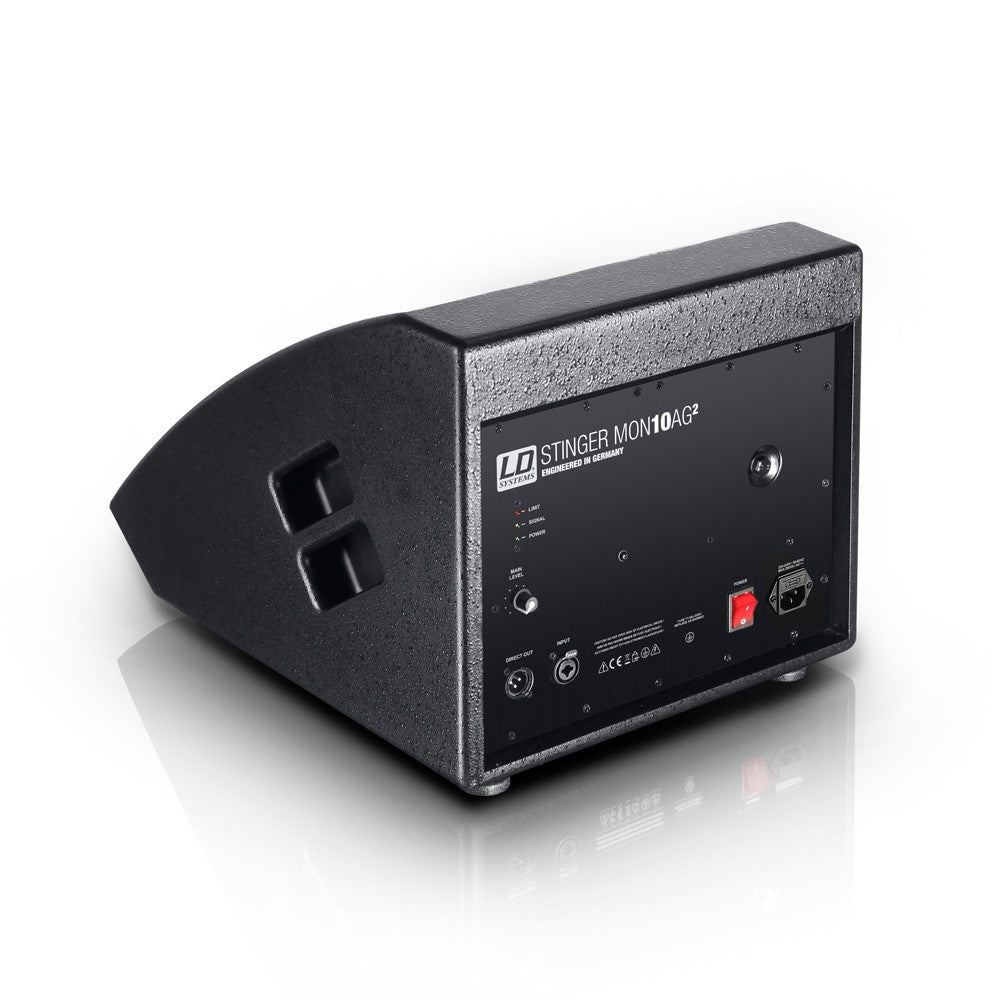

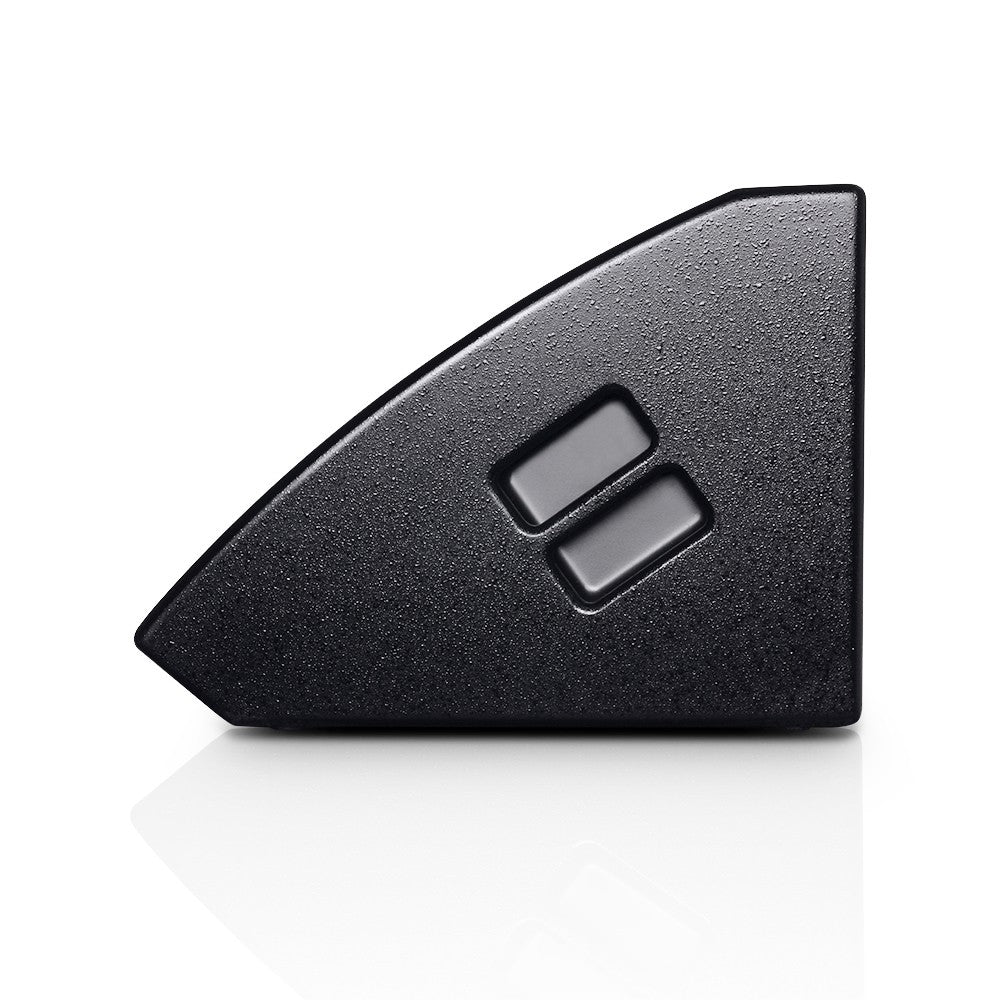

The active monitor is driven by a Class AB power amplifier with an output of 600W Peak. Short-circuit protection and a limiter ensure dependable operation. The rear connector panel offers an XLR-jack combo input and XLR output for looping through the signal; other features include a volume control, IEC power socket and switch, and LED indicators for power, signal, and limiter. The elegant bass-reflex housing made of 15mm multiplex is finished with a durable coating and has ergonomically milled handles and a metal grille to protect the speaker. The monitor angle is 35°.
Specifications
|
Product type |
PA loudspeaker |
|
Type |
Powered |
|
Low/mid driver dimensions |
10 " |
|
Woofer size |
254 mm |
|
Woofer type |
coaxial loudspeaker |
|
Woofer magnet |
Ferrite |
|
Woofer brand |
Custom-made |
|
Woofer voice coil |
2 " |
|
Woofer voice coil (mm) |
50.8 mm |
|
HF driver dimensions |
1 " |
|
HF Driver Size |
25.4 mm |
|
HF driver magnet |
Ferrite |
|
HF driver brand |
Custom-made |
|
HF driver voice coil |
1 " |
|
HF Driver Voice Coil |
25.4 mm |
|
Amplifier |
Class A/B |
|
Dispersion (H x V) |
75 x 75 ° |
|
RMS |
150 W |
|
Peak power |
600 W |
|
Frequency response |
90 - 20000 Hz |
|
Crossover frequency |
3300 Hz |
|
SPL (1W/1m) |
99 dB |
|
Max. SPL (continuous) |
113 dB |
|
Max. SPL (peak) |
121 dB |
|
Protection circuits |
limiter , short circuit |
|
Controls |
On / Off , volume |
|
Indicators |
Limit , Power , Signal |
|
Line Inputs |
1 |
|
Line input connectors |
6.3 mm jack , XLR |
|
Line Outputs |
1 |
|
Line output connectors |
XLR |
|
Operating voltage |
transformer |
|
Operating voltage |
230 V AC / 50-60 Hz |
|
Cabinet material |
15 mm Plywood |
|
Cabinet construction |
Bass Reflex |
|
Monitor angle |
35 ° |
|
Width |
380 mm |
|
Depth |
335 mm |
|
Height |
466 mm |
|
Weight |
15,3 kg |
|
Features |
ergonomically shaped insert handles |
