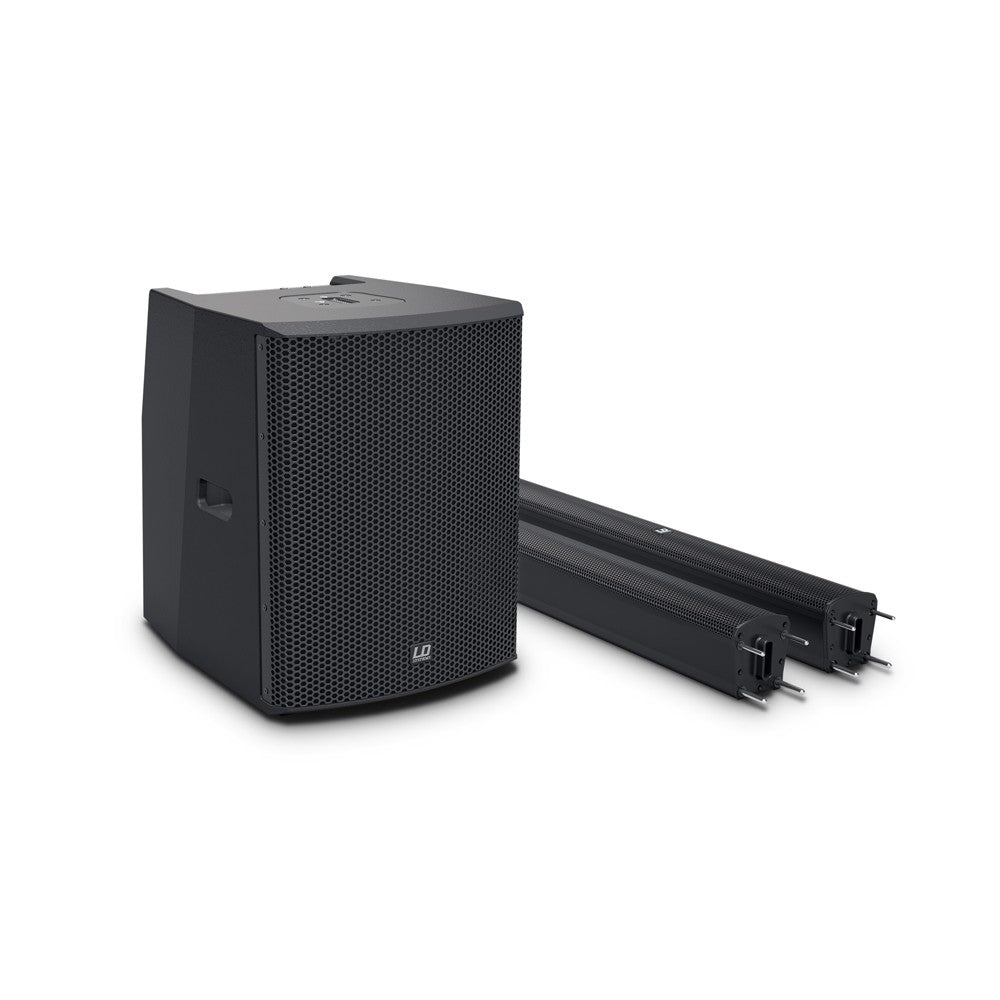

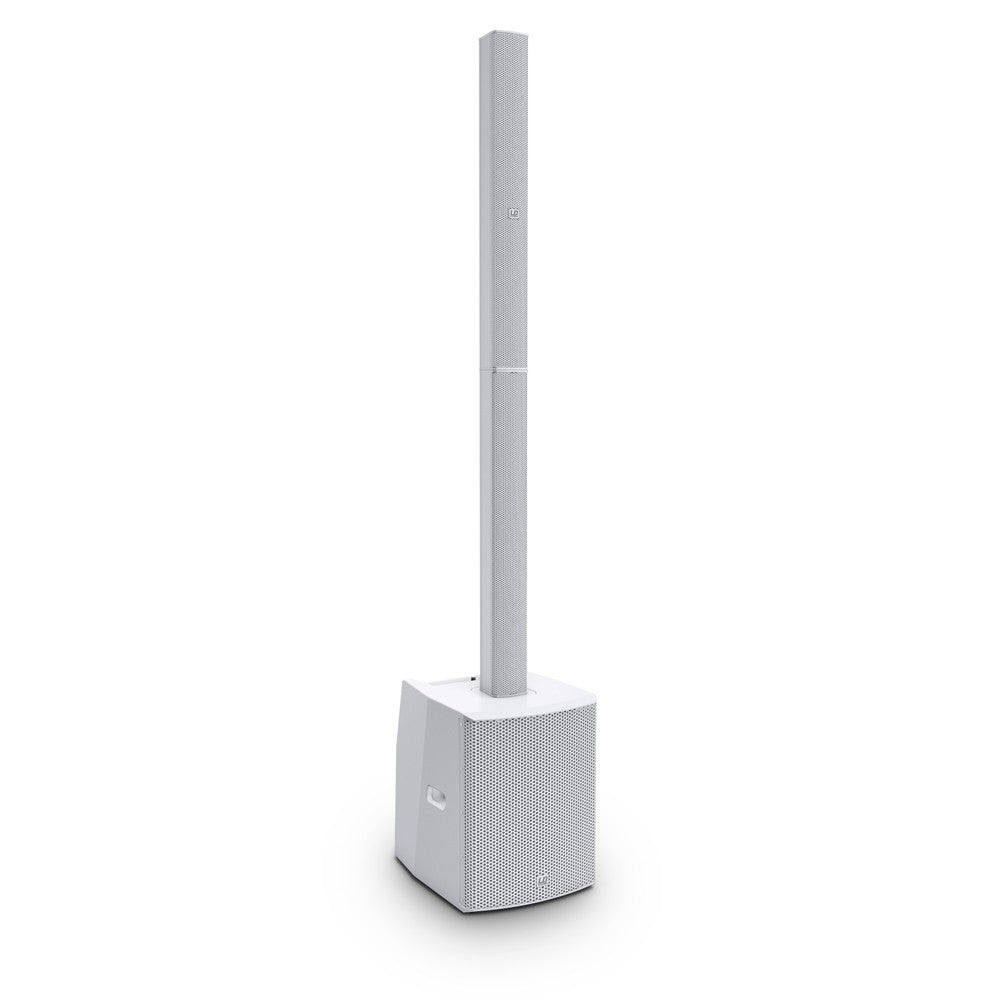

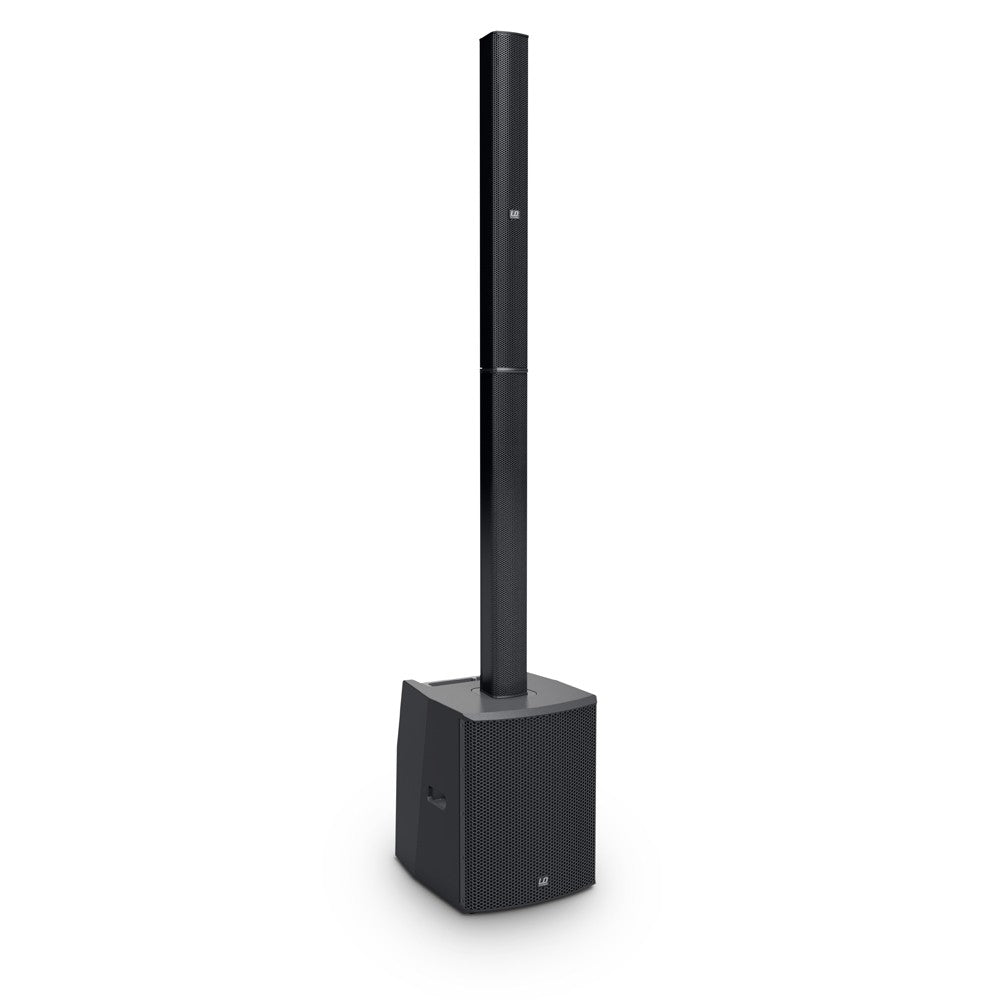

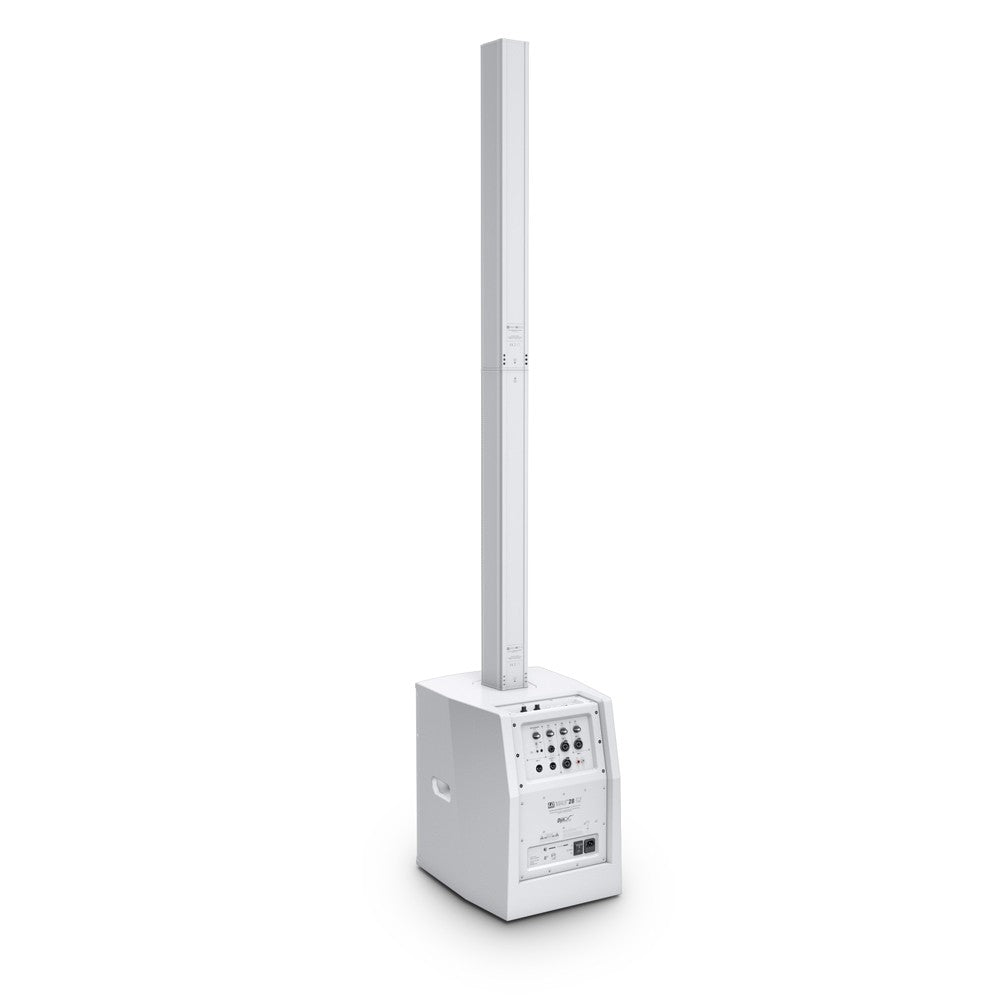

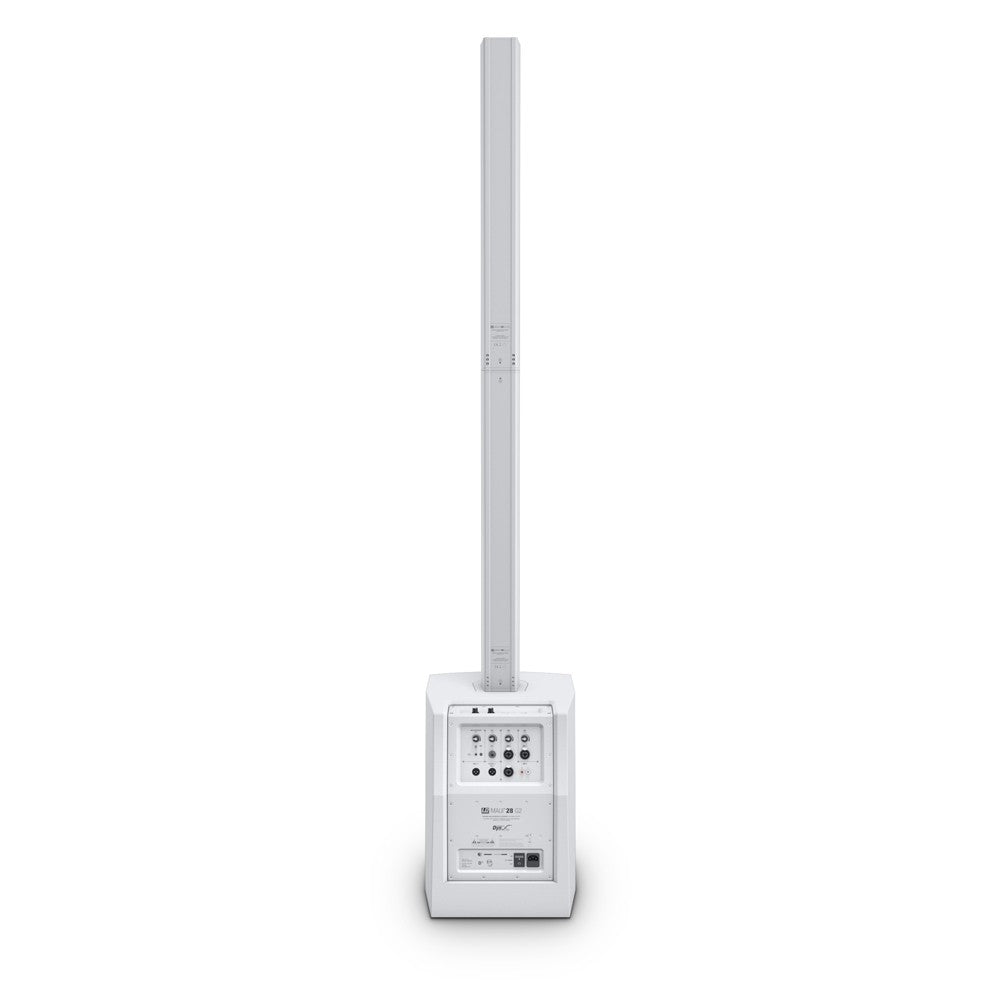

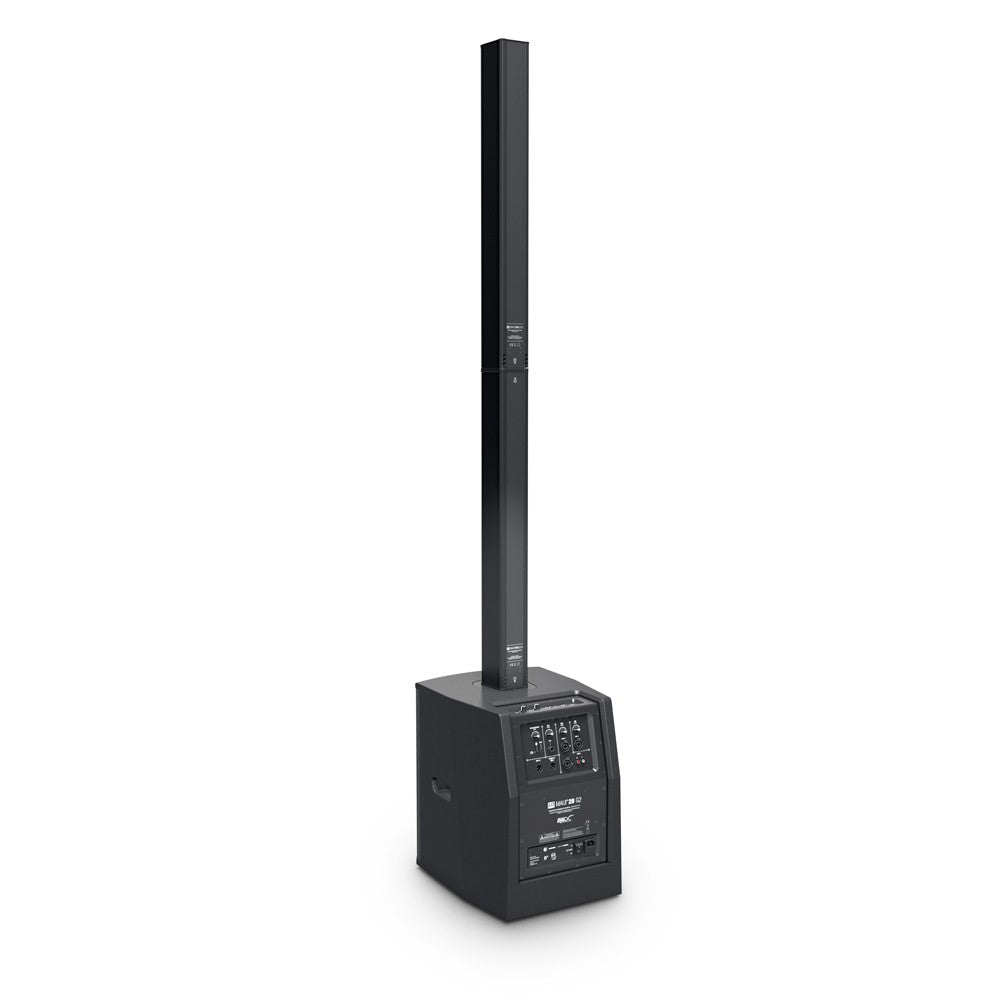

A complete sound system that you can carry together with your instrument: introducing the MAUI 28 G2. The two column elements in the padded shoulder bag, the subwoofer in one hand and the guitar or keyboard in the other - and off you go! Setting up the complete system, which doubles as PA and monitor system is just as easy thanks to the special multi-pin cable plugs. The compact and elegant MAUI 28 G2 offers an unbeatable sound quality and wide-ranging sound distribution. It was developed with year-long experience in the design of the column systems as a user-friendly solution for medium sized gigs and fixed installations.

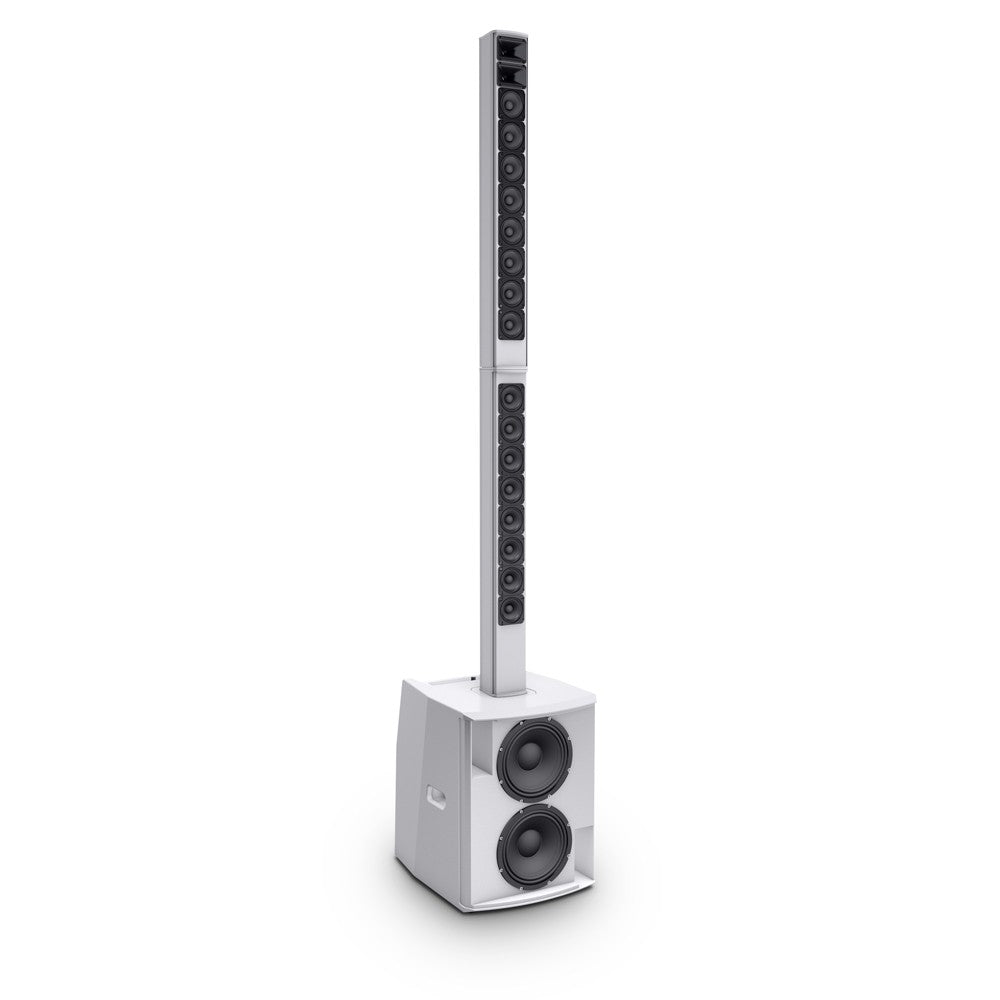

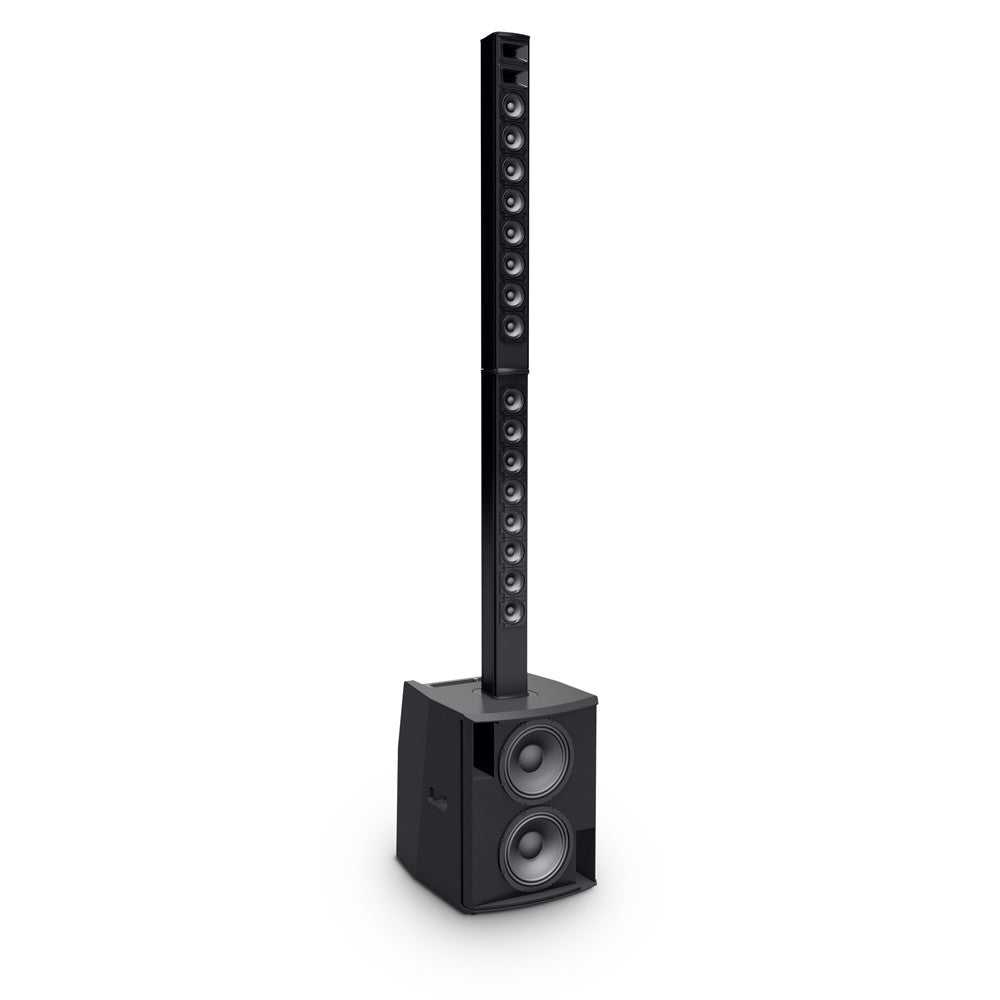

The MAUI 28 G2 is equipped with two 8" woofers, sixteen 3" full-range speakers and two 1" neodymium HF drivers. They are driven by a light Class-D power amplifier with an enormous 2,000 watts peak power and produce a grunty bass, balanced mids and precise and silky highs. The DynX® DSP technology from LD Systems provides a top-class performance every time and the highest level of freedom from distortion. It includes a multiband limiter which protects against overloading, an EQ, a compressor and a 3-way crossover with run time correction.
The design of the MAUI 28 G2 line array achieves a longer range, increased resistance to feedback and a wider space coverage, which makes separate monitor speakers superfluous. The wave guide of the tweeters has been developed using the Boundary Element Method (BEM), a numerical simulation of the sound radiation and dispersion. It reduces reflections from the floor and ceiling and prevents sidelobe levels and thus achieves an homogeneous dispersion - Your audience hears you in the back row just as clearly as in the front.

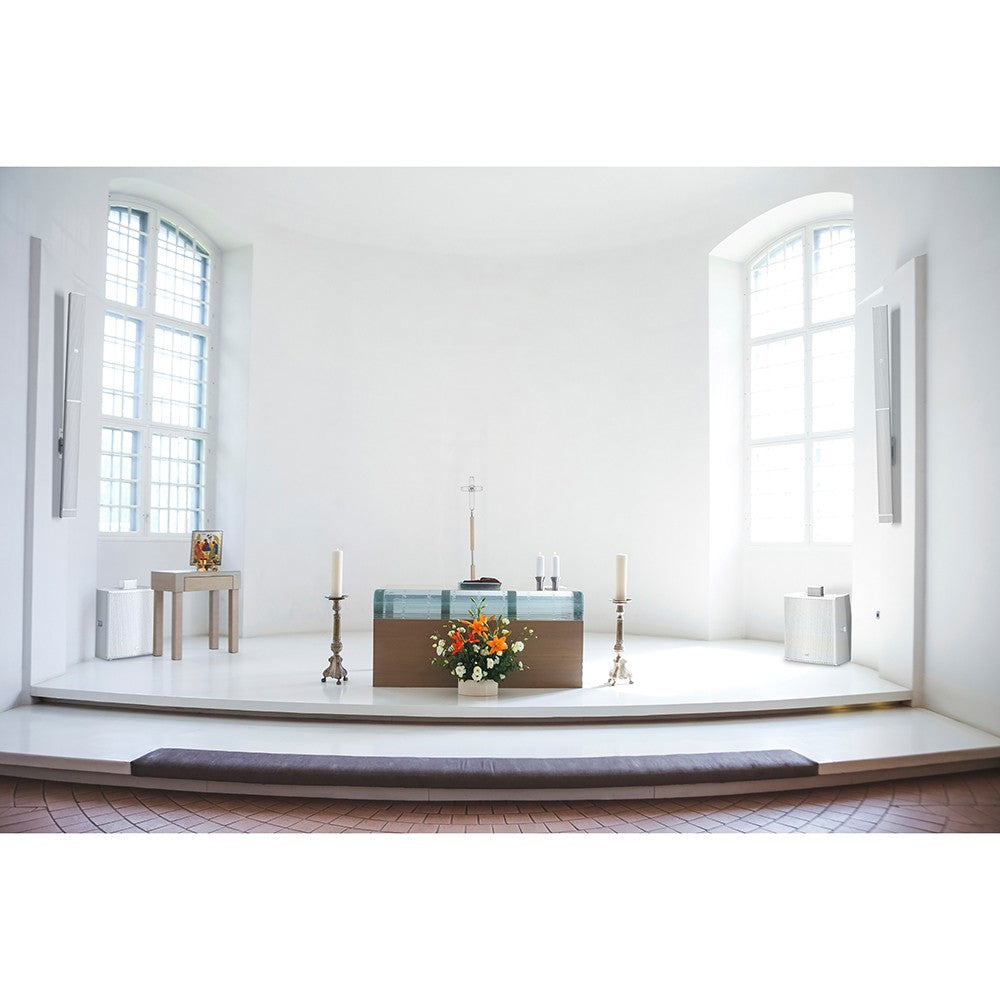

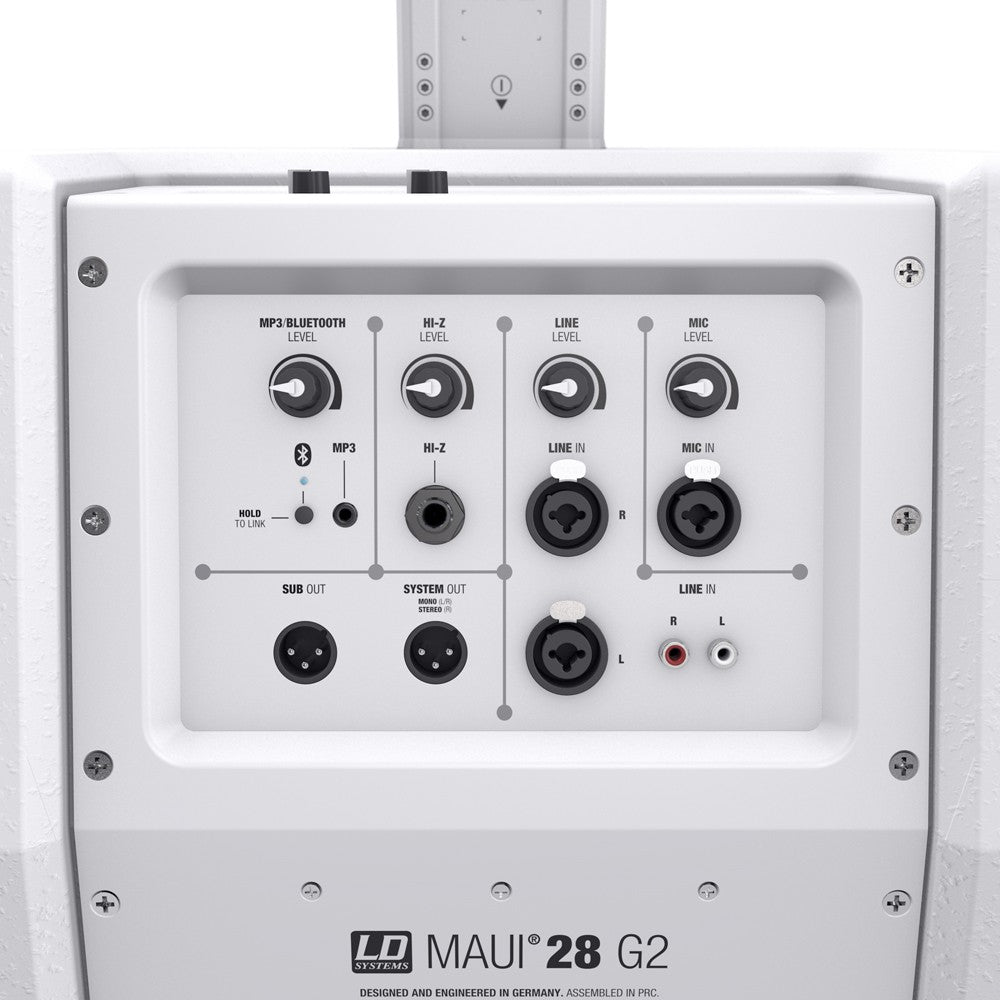

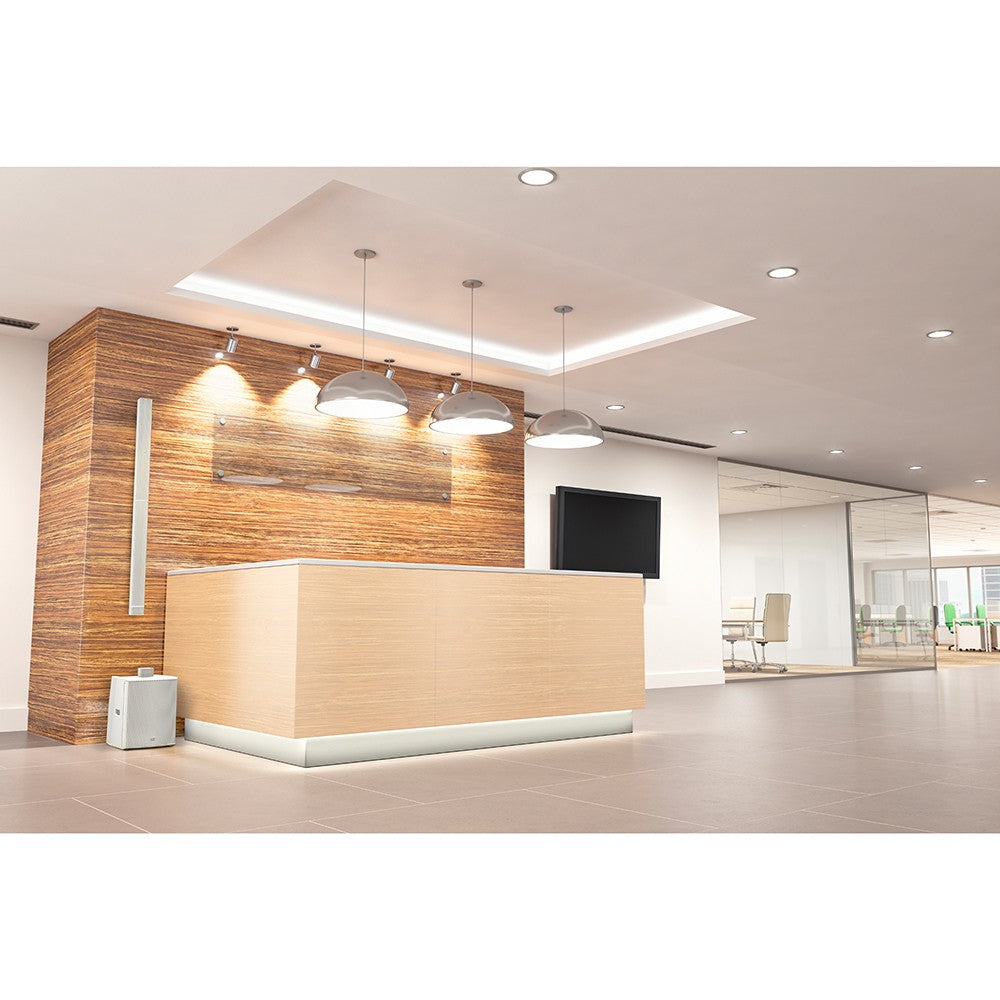

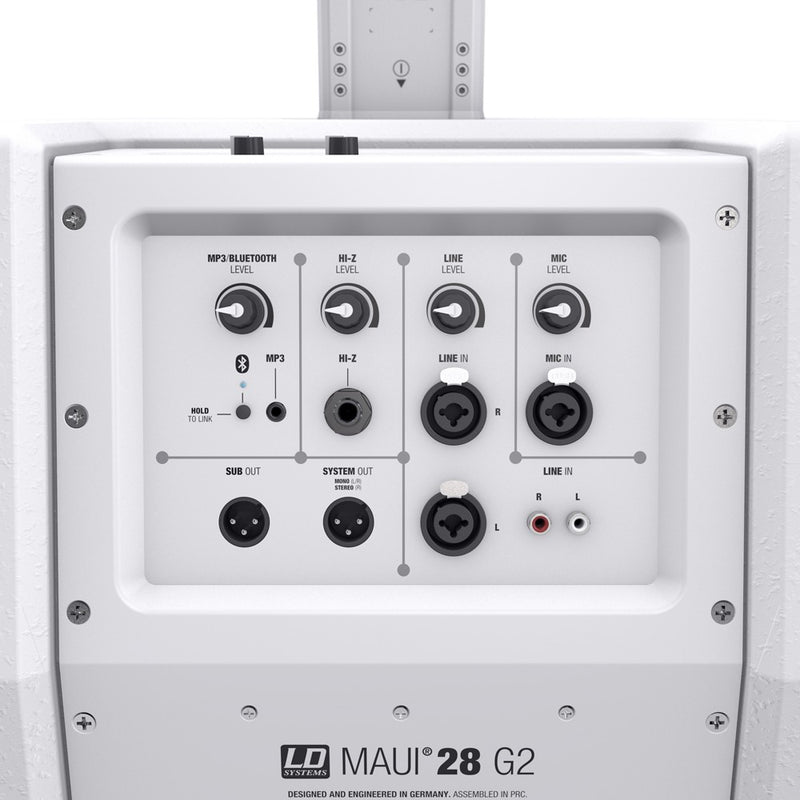

With the integrated 4-channel mixer, system presets for mono or stereo configuration and Bluetooth® Audio Streaming, you have full control over the system. Whether you are a singer-songwriter, solo entertainer, DJ or musician in a small band, you will be thrilled with the extraordinary sound and portability of the MAUI 28 G2. The column and the subwoofer can be set up separately: thus, the system is extremely flexible and is also an excellent choice for fixed installations. With a selection of clever transport accessories and special mounting hardware, the MAUI 28 G2 is a well thought out overall solution, down to the last details.
FEATURES:
- All-in-one column speaker for PA and monitor applications
- 2,000 watts peak Class-D system power offer high performance with a low weight
- Powerful bass reproduction with 2 x 8" woofers
- Balanced mids thanks to the 16 x 3" full-range speakers
- Precise and silky highs with 2 x 1" high-frequency drivers
- Increased range and wider coverage through the array arrangement
- Homogeneous dispersion pattern through a BEM-optimised tweeter wave guide
- Distortion-free sound even at the highest volume thanks to LD Systems DynX® DSP technology
- Full control through a 4-channel mixer including Bluetooth® Stereo Audio Streaming

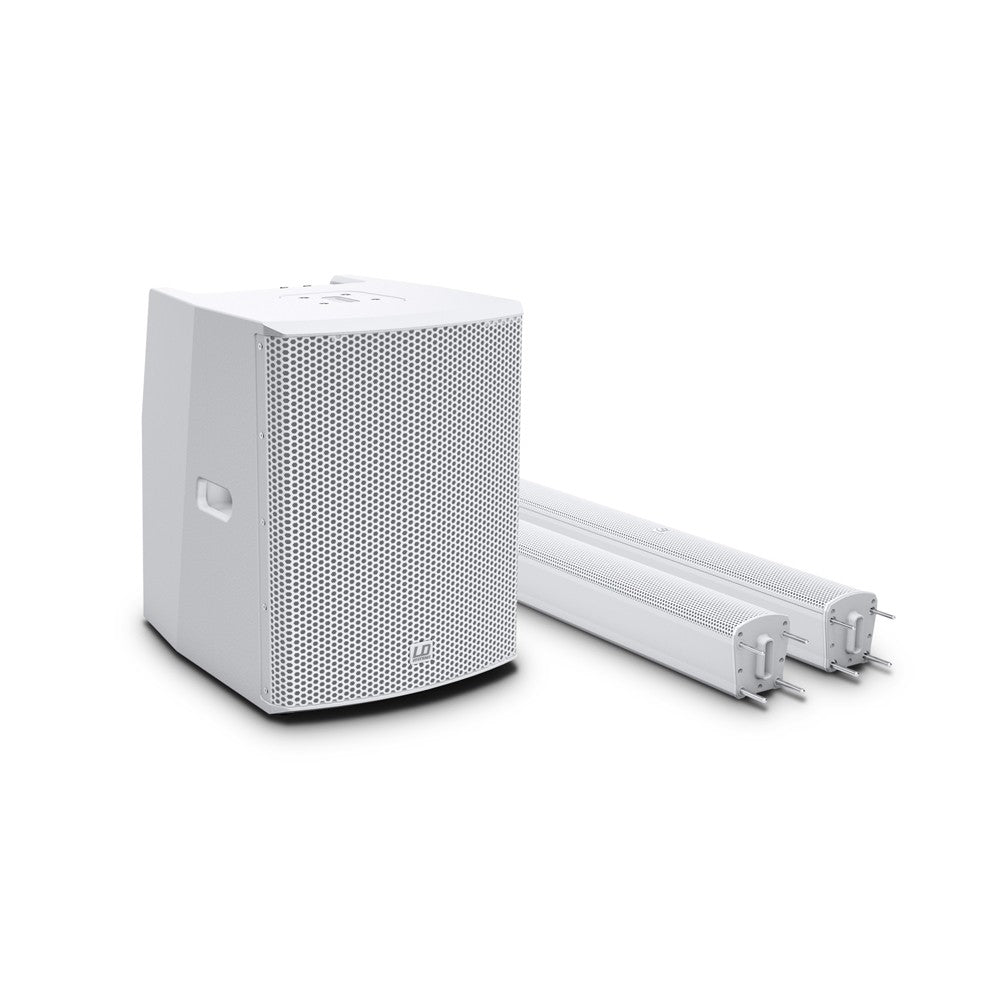

- Two-piece column for compact transport
- Secure plug-and-play connection thanks to the wireless multi-pin mechanism
- A wide range of application options through dismountable columns
- Easy operation with presets for mono or stereo configuration
- Extensive and smart accessories for installation and transport
Specifications
| Weight | 30,9 kg |
| Product type | PA Complete Systems |
| Type | active |

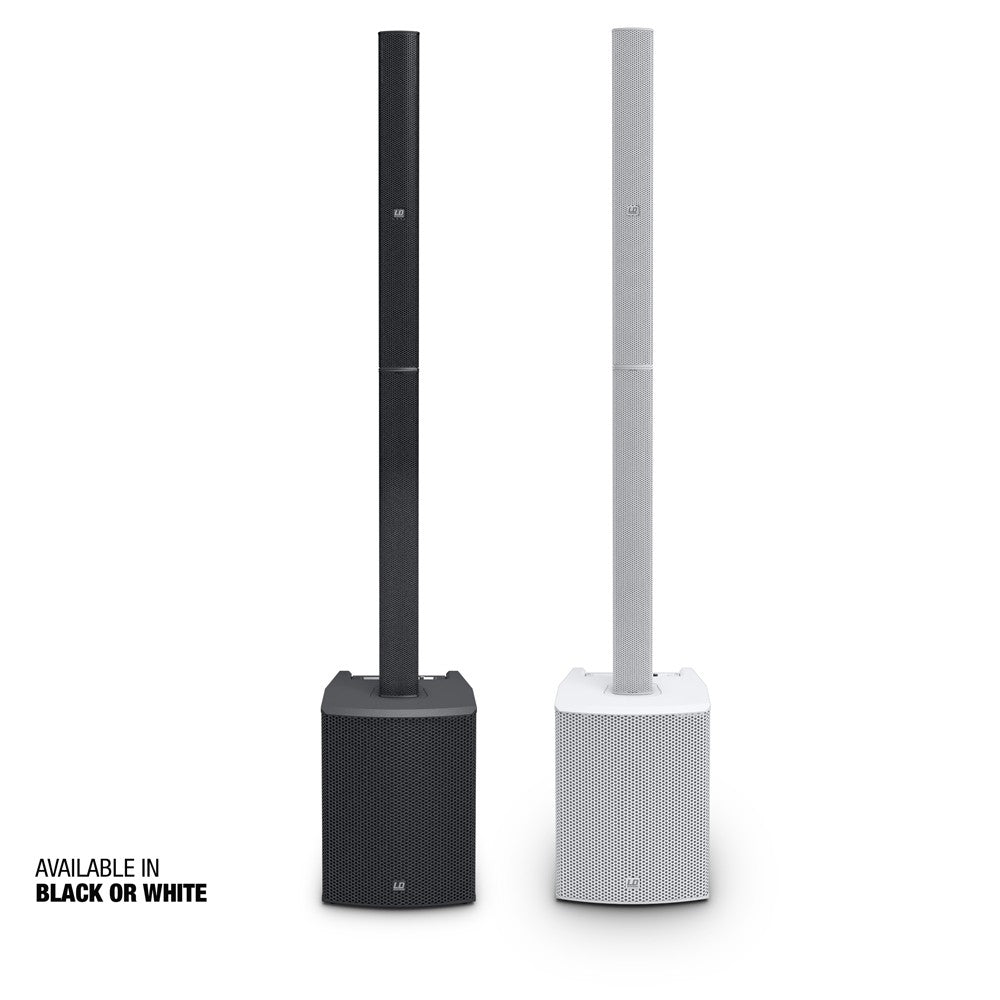

| Colour | Black |
| Max. SPL (peak) | 126 dB |
| Frequency response | 45 - 20000 Hz |
| Dispersion (H x V) | 120° x 20 ° |
| Overall height | 2059 mm |

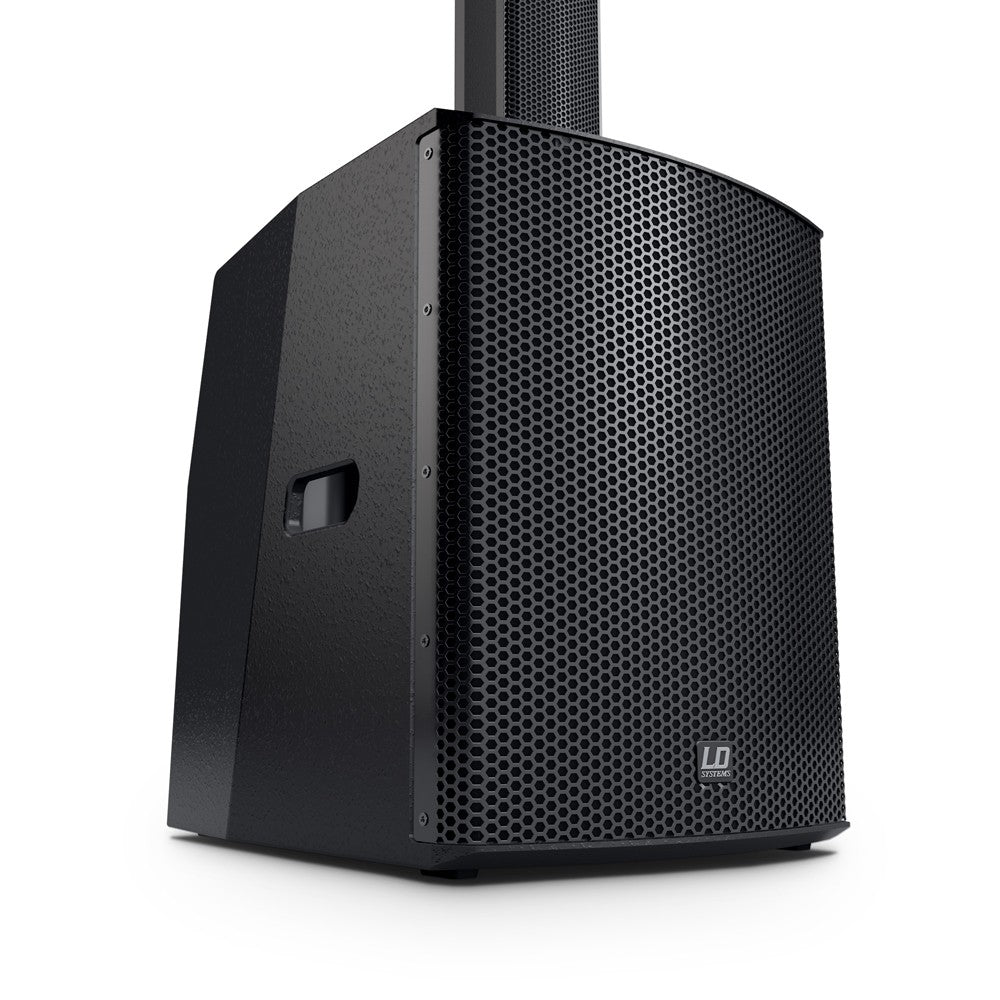

Woofer characteristics
| Low/mid driver dimensions | 2 x 8 " |
| Woofer size | 2 x 203 mm |
| Woofer magnet | Ferrite |
| Woofer brand | Custom-made |
| Woofer voice coil | 2 " |
| Woofer voice coil (mm) | 50.8 mm |
| Cabinet construction | Bass Reflex |
| Cabinet material | 15 mm Plywood |
| Cabinet surface | texture paint |

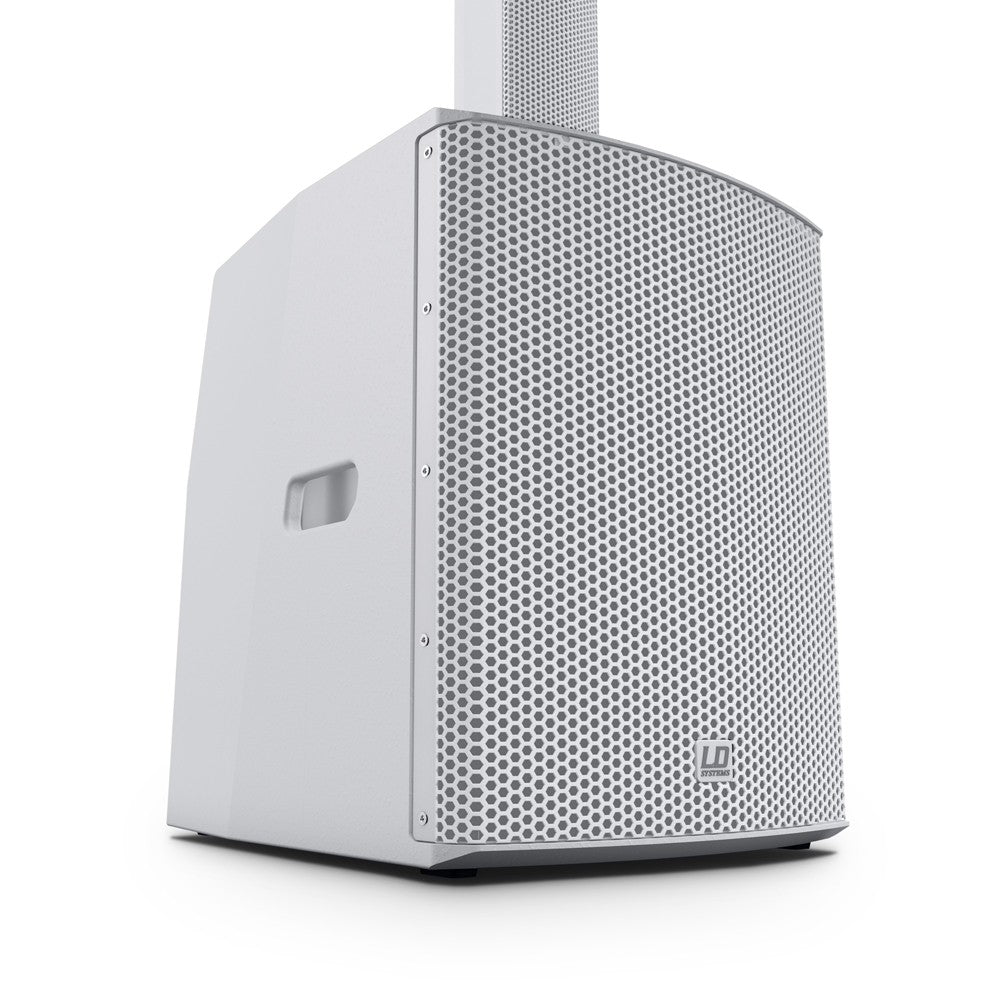

| Subwoofer width | 370 mm |
| Subwoofer height | 484 mm |
| Subwoofer depth | 480 mm |
| Subwoofer weight | 19.7 kg |

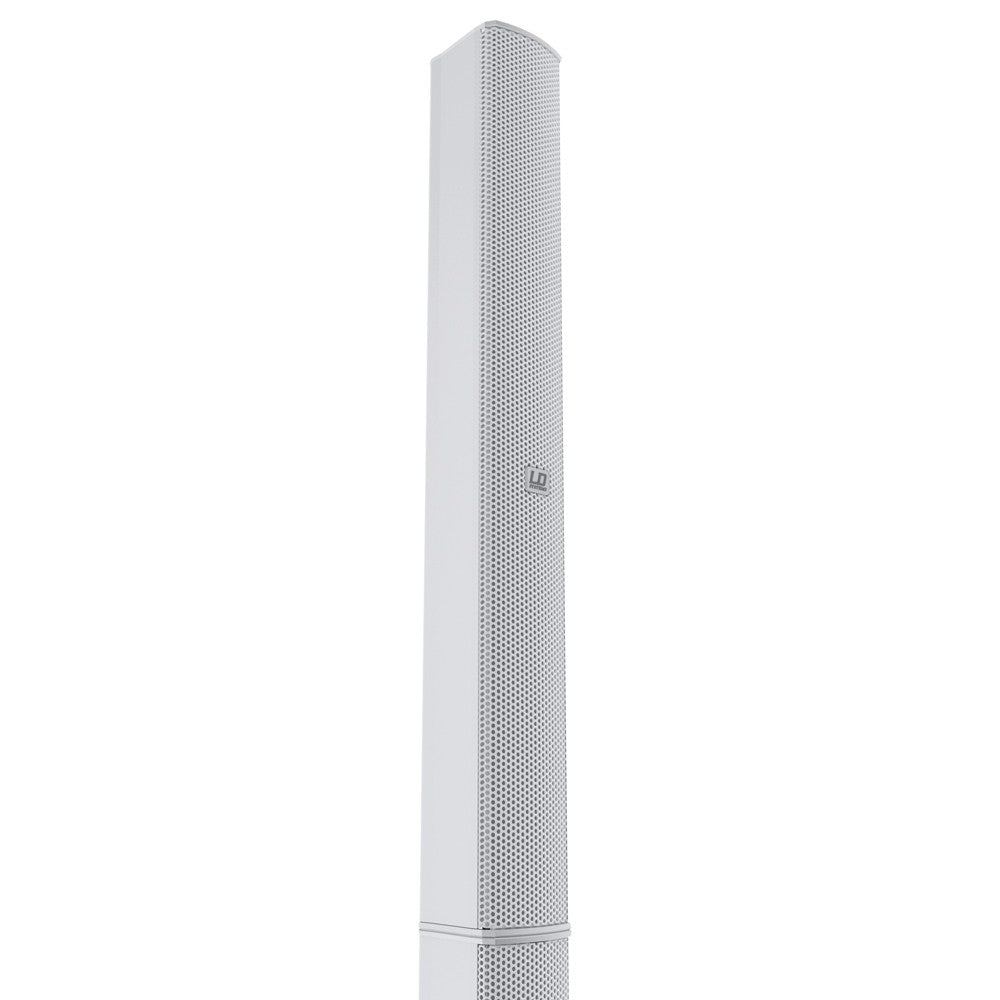

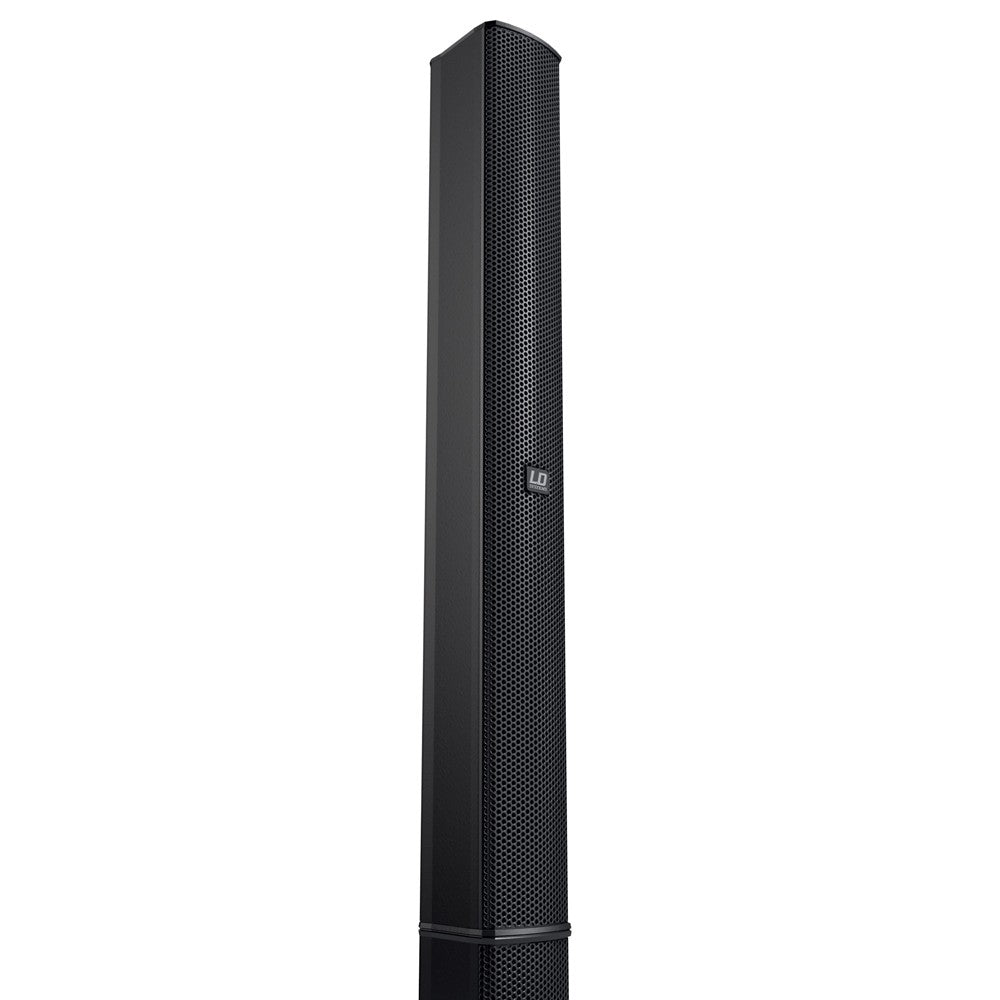

Mid/Hi System
| Midrange size | 16 x 3 " |
| Midrange size | 16 x 76.2 mm |
| Midrange magnet | Ferrite |
| Midrange brand | Custom-made |
| Midrange voice coil | 1 " |
| Midrange voice coil | 25.4 mm |
| Horn | Waveguide |
| Tweeter dimensions | 2 x 1 " |
| Tweeter dimensions (mm) | 25.4 mm |
| Tweeter magnet | Neodymium |
| Tweeter brand | Custom-made |
| Tweeter voice coil | 1 " |
| Tweeter voice coil (mm) | 25.4 mm |
| Loudspeaker inputs | 1 |
| Speaker input connections | Custom-made multipin |
| Cabinet construction mid/high | Closed |
| Mid/Hi system cabinet material | Aluminum |
| Mid/Hi system cabinet surface | HD coating |
| Mid/Hi system width | 96 mm |
| Mid/Hi system height | 780 / 795 mm |
| Mid/Hi system depth | 104 mm |
| Mid/Hi system weight | 5.6 / 5.6 kg |

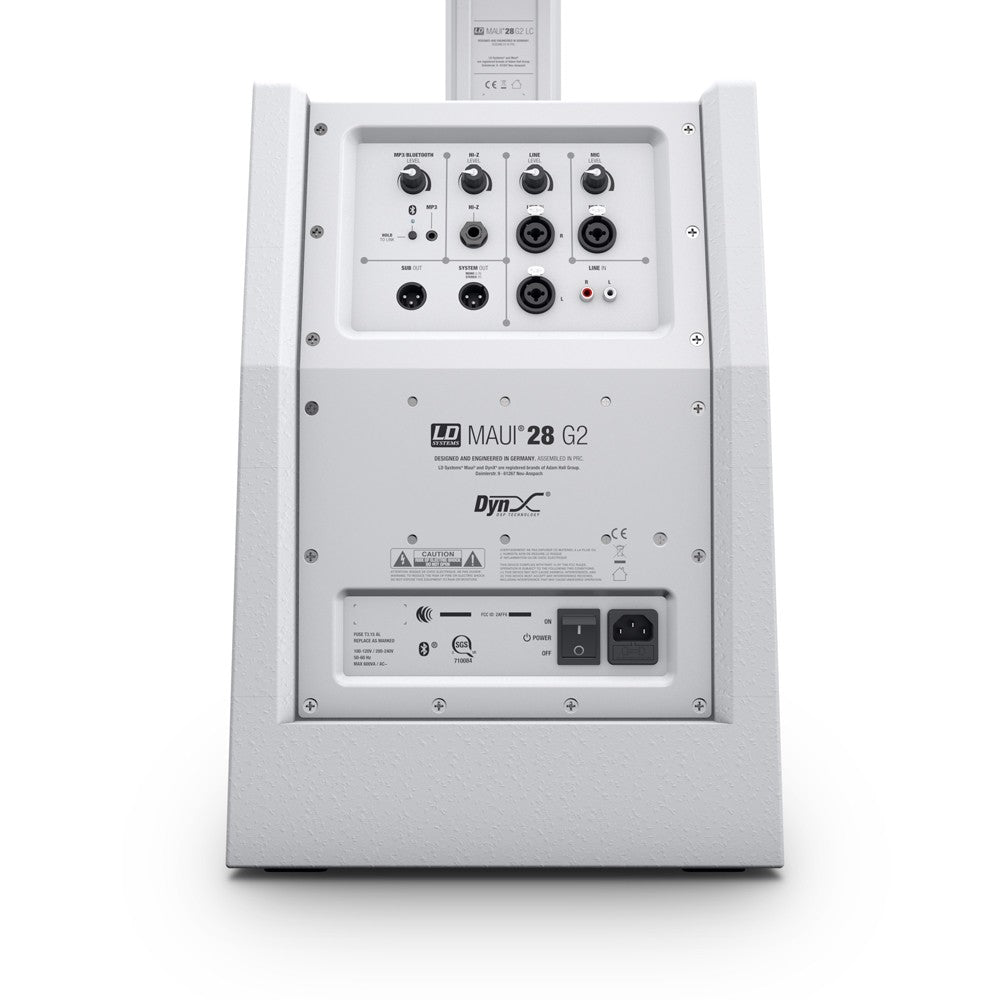

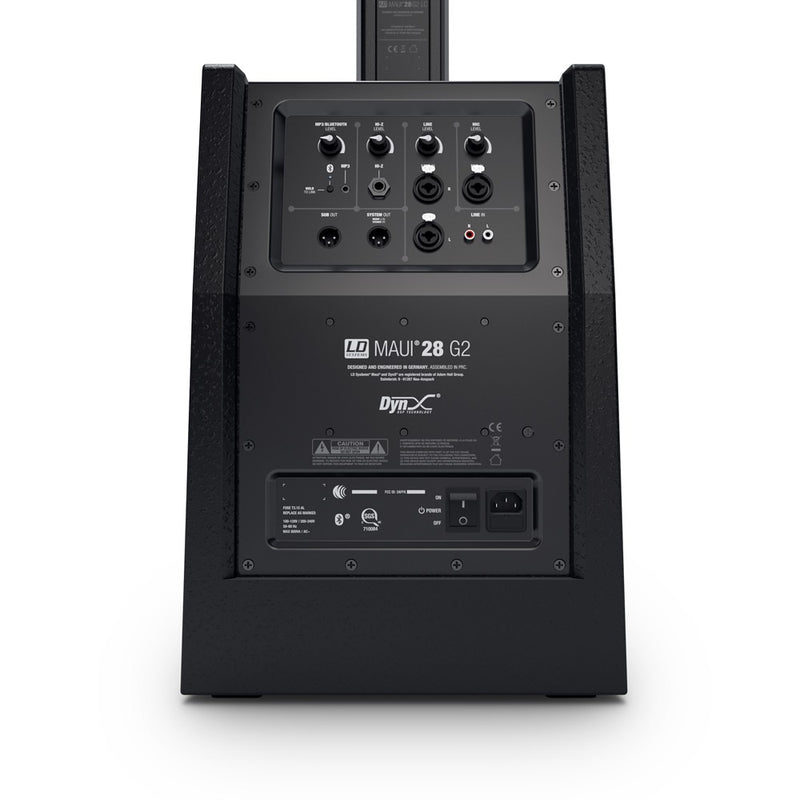

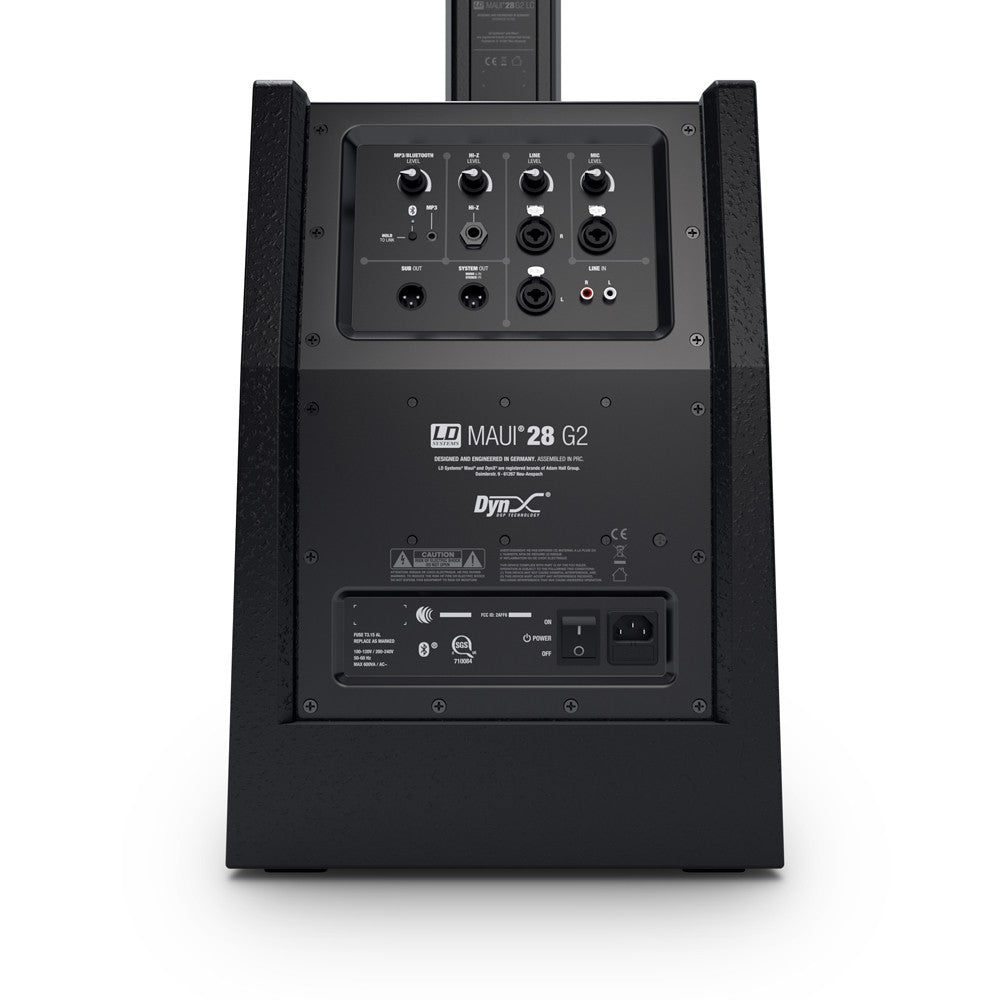

Amplifier module (integrated in subwoofer)
| Amplifier | Class D |
| Amplifier output system (RMS) | 1000 W |
| Amplifier output system (peak) | 2000 W |
| Protection circuits | DC protection , Multiband limiter , short circuit , thermal overload |
| Cooling | Convection |
| Operating Temperature | 0 - 40 °C |
| Humidity Range | 10% to 80%, (non-condensing) |

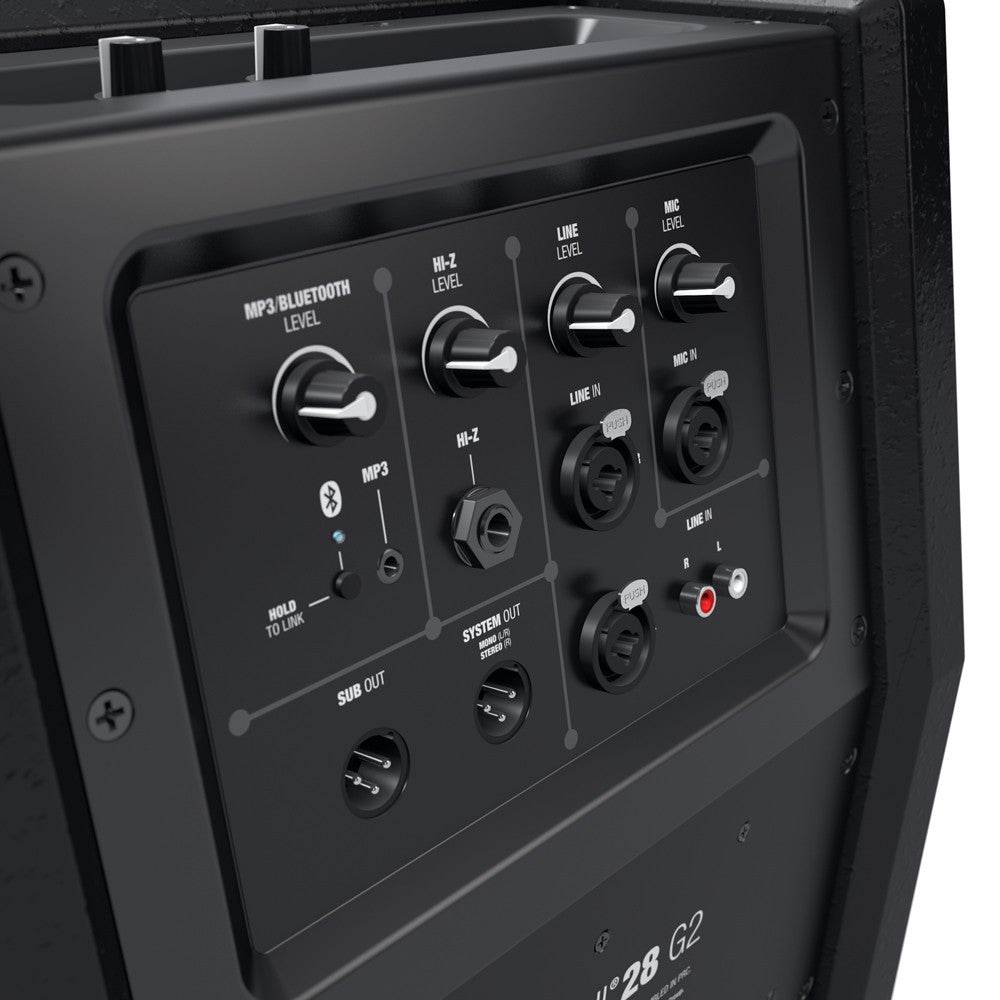

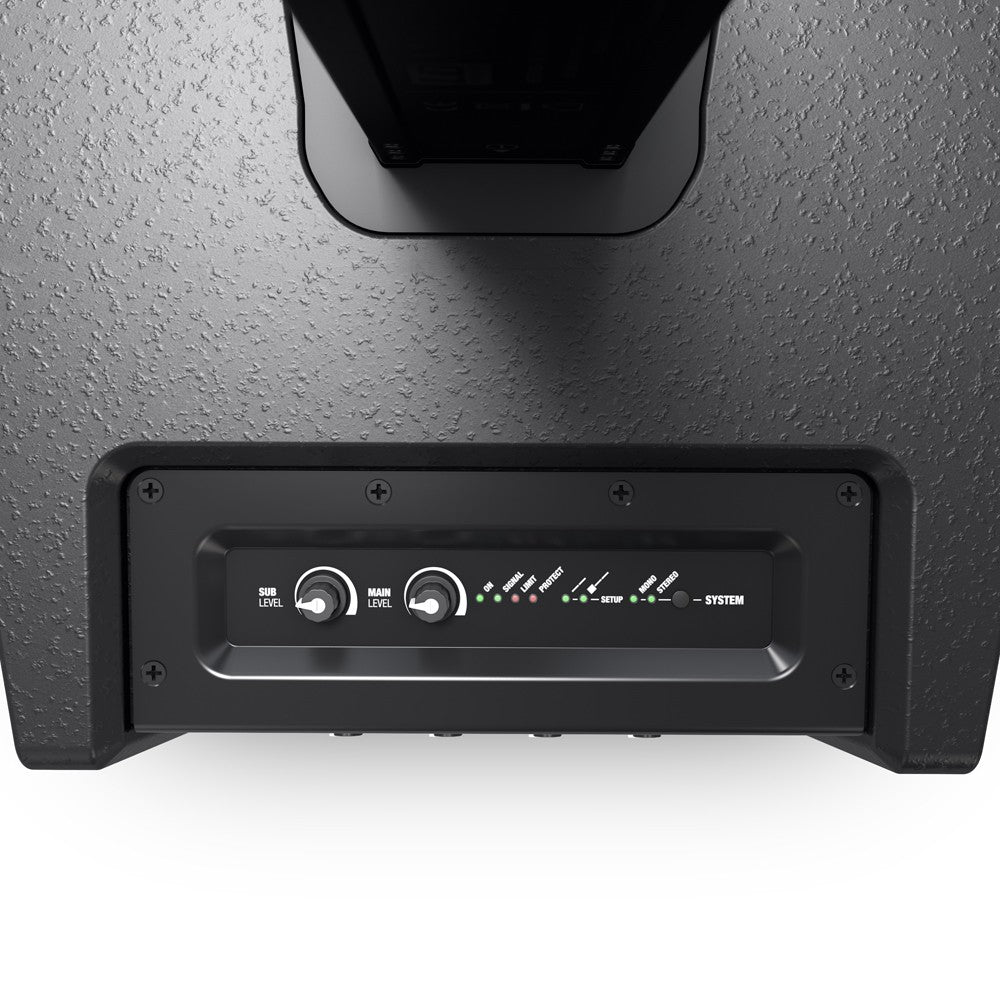

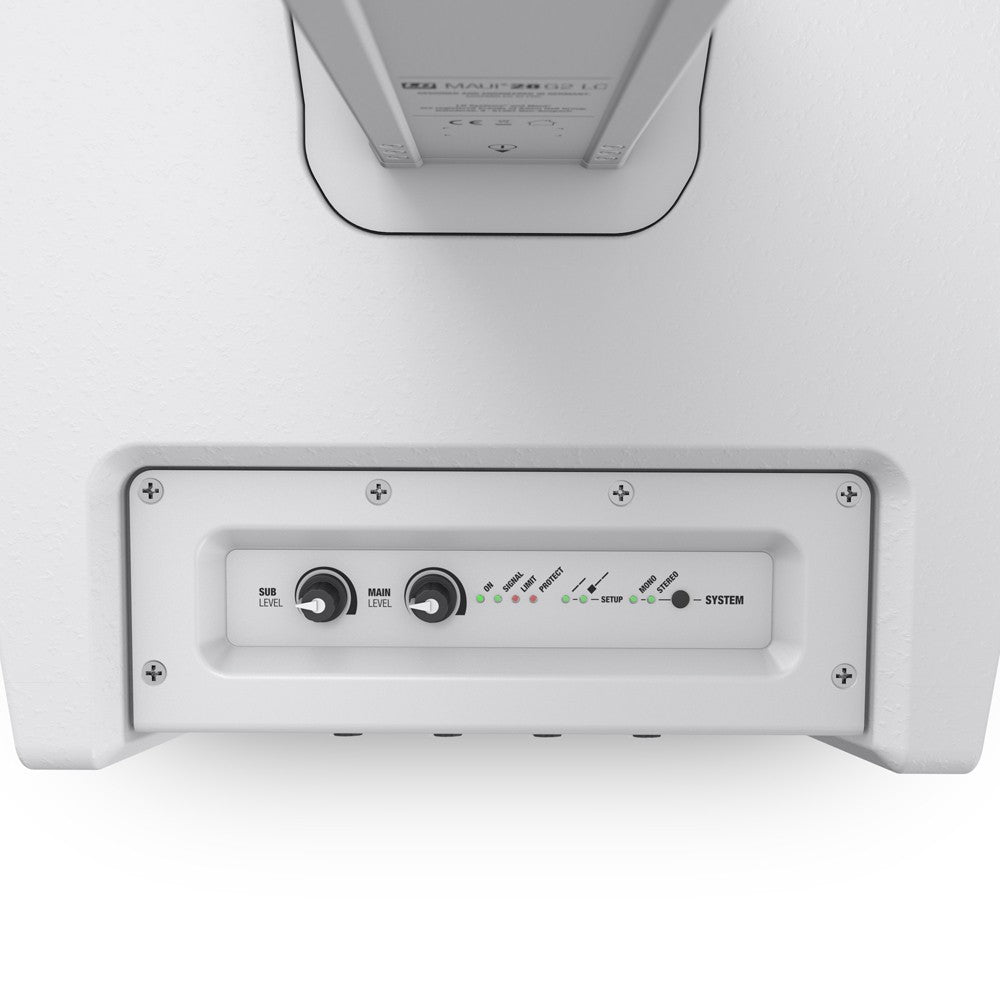

| Controls | Bluetooth switch , Hi-Z Level , Line level , Main level , Mono/stereo switch , MP3/Bluetooth Level , Power , Sub level |
| Indicators | Limit , mono , On , Protect (protection circuit engaged) , Setup , Signal , stereo |
| Power connector | IEC power cable (included) |
| Operating voltage | 100 - 120 V / 50 - 60 Hz or 200 - 240 V / 50 - 60 Hz (automatic switching) |
| Power consumption Off / On / Max. | 0/11/600 W |

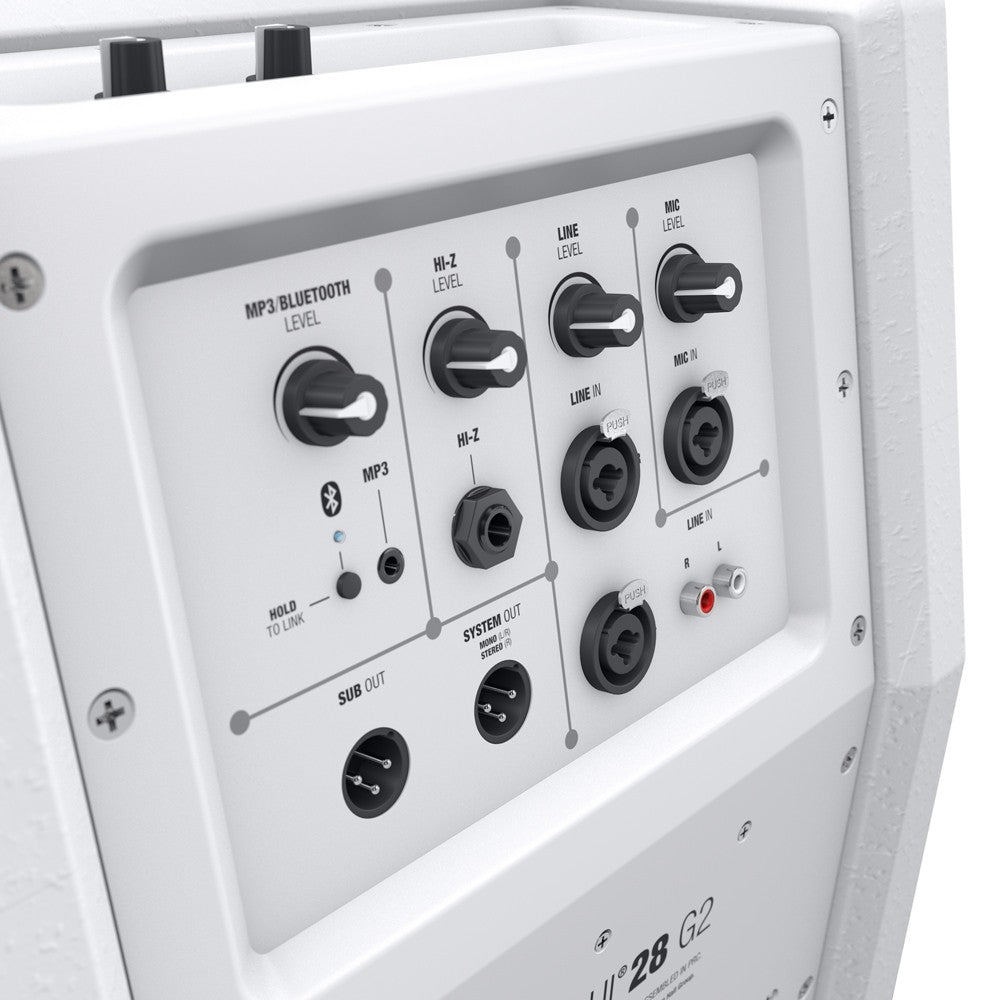

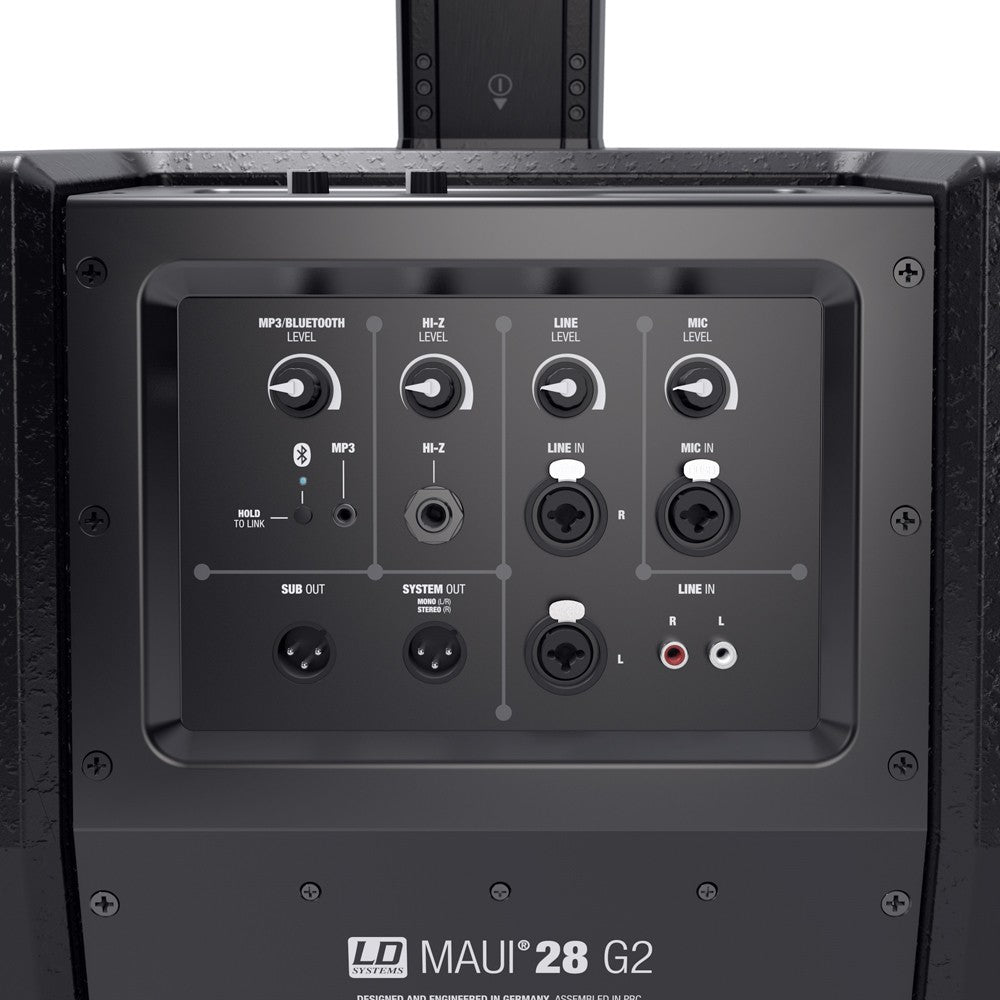

| Line inputs | 2 x stereo |
| Line input connectors | RCA , XLR/6.3 mm jack |
| Line outputs | 2 (1x System Out, 1x Sub Out) |
| Line output connectors | XLR |
| Mic inputs | 1 |
| Mic inputs | XLR/6.3 mm jack |
| MP3 inputs | 1 |
| MP3 input connectors | 3.5 mm jack |
| Hi-Z inputs | 1 |
| Hi-Z input connectors | 6.3 mm jack |
| Loudspeaker outputs | 1 |
| Speaker output connections | Custom-made multipin |
DSP characteristics
| Bit depth AD/DA converter | 24 bit |
| Internal sampling frequency | 48 kHz |
| Signal/noise ratio | 100 dB |
