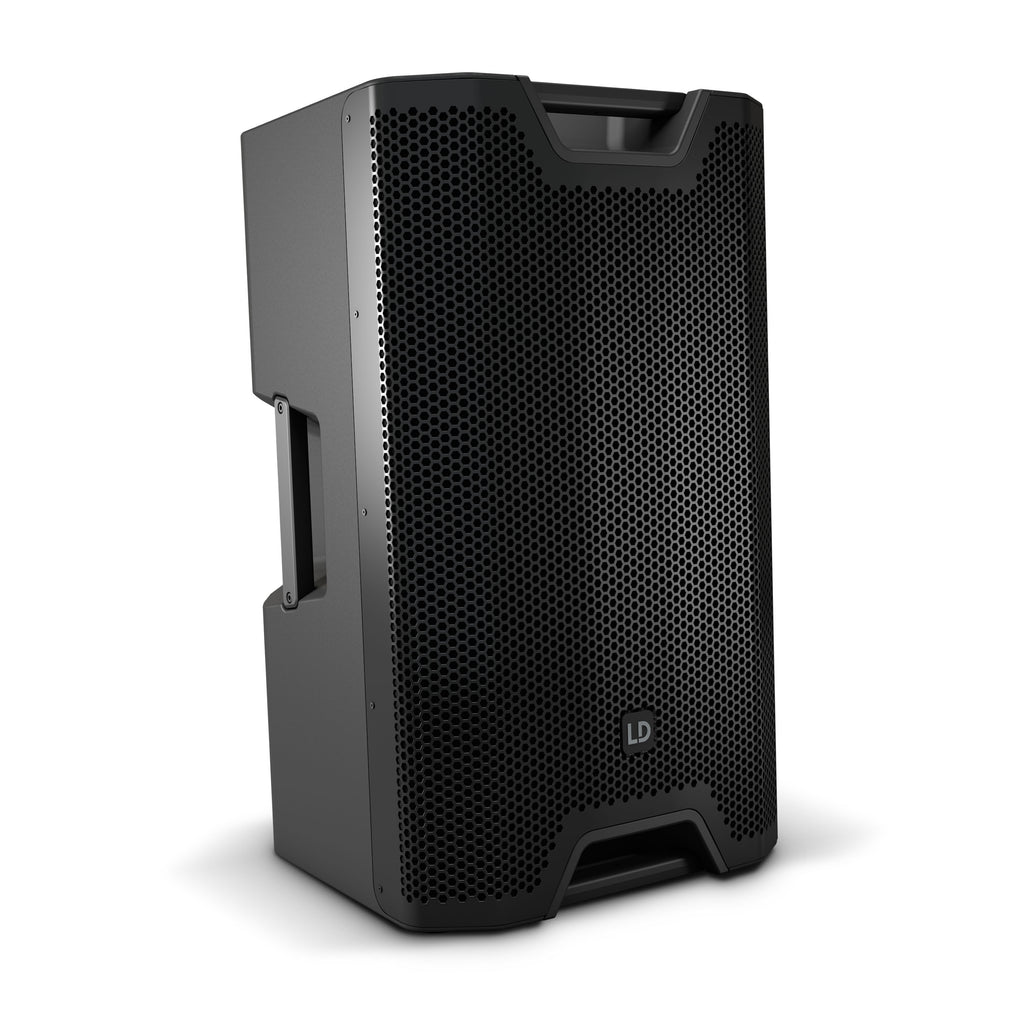

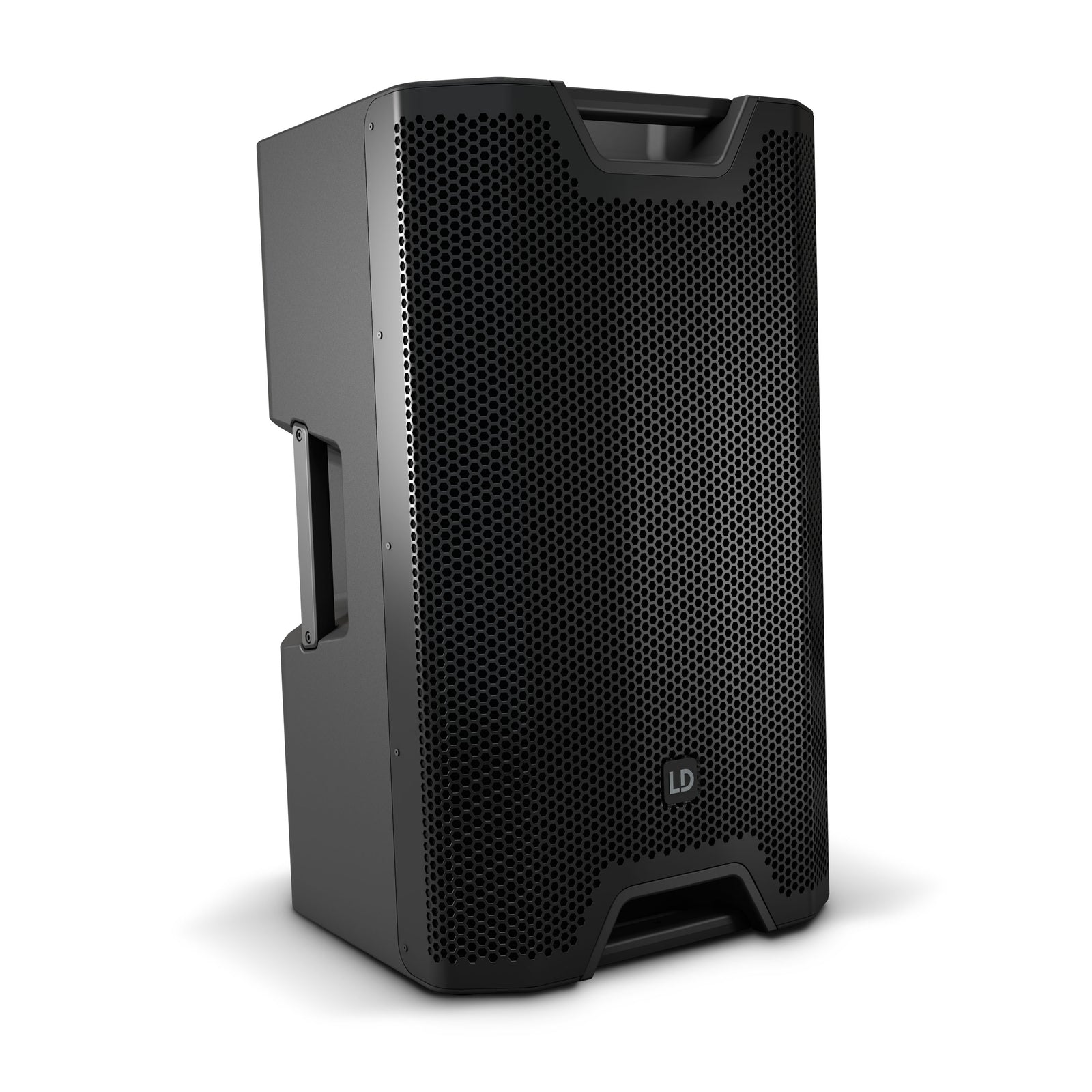

This full-range loudspeaker impresses with its outstanding sound, even at low frequencies. The ICOA 15 A BT by LD Systems is a genuine all-rounder that offers unparalleled features for its class. Its coaxial design, rotating, BEM-optimised CD horn and extensive and precisely calibrated DynX DSP presets make this active 15" loudspeaker exceptionally flexible.

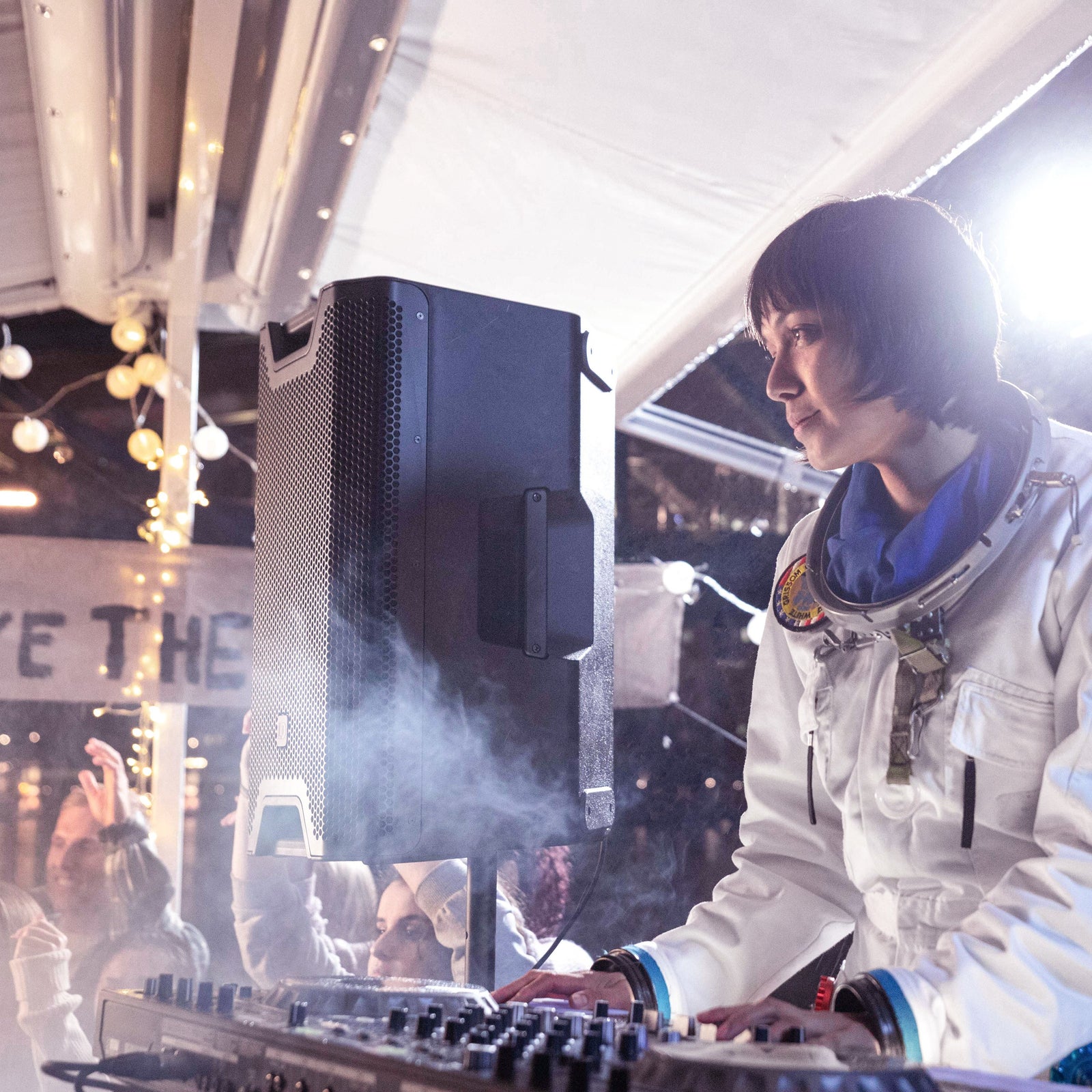

The outstanding bass reproduction from the horn-loaded woofer makes the LD ICOA 15 A BT the ideal choice for musicians, bands, entertainers and dance schools. It also allows DJs to play sets without the need for a subwoofer. Deployed vertically, the speaker impresses as a satellite; horizontally, it's excellent in suspended systems or as a floor monitor. The efficient class-D power amplifier delivers 128 dB max. SPL and 300 W RMS performance.
Drawing on DynX DSP technology by LD Systems, the speaker delivers perfect performance with maximum clarity and power under all conditions. 4 presets, a 3-band EQ and a delay function facilitate optimal adjustment of the sound to the venue conditions. The 2 line/mic input channels with individual gain controllers, plus mono mix output, allow a variety of signal sources to be connected. The BT version offers Bluetooth® streaming and the wireless connection of playback devices - ideal for playing content from a phone or tablet.

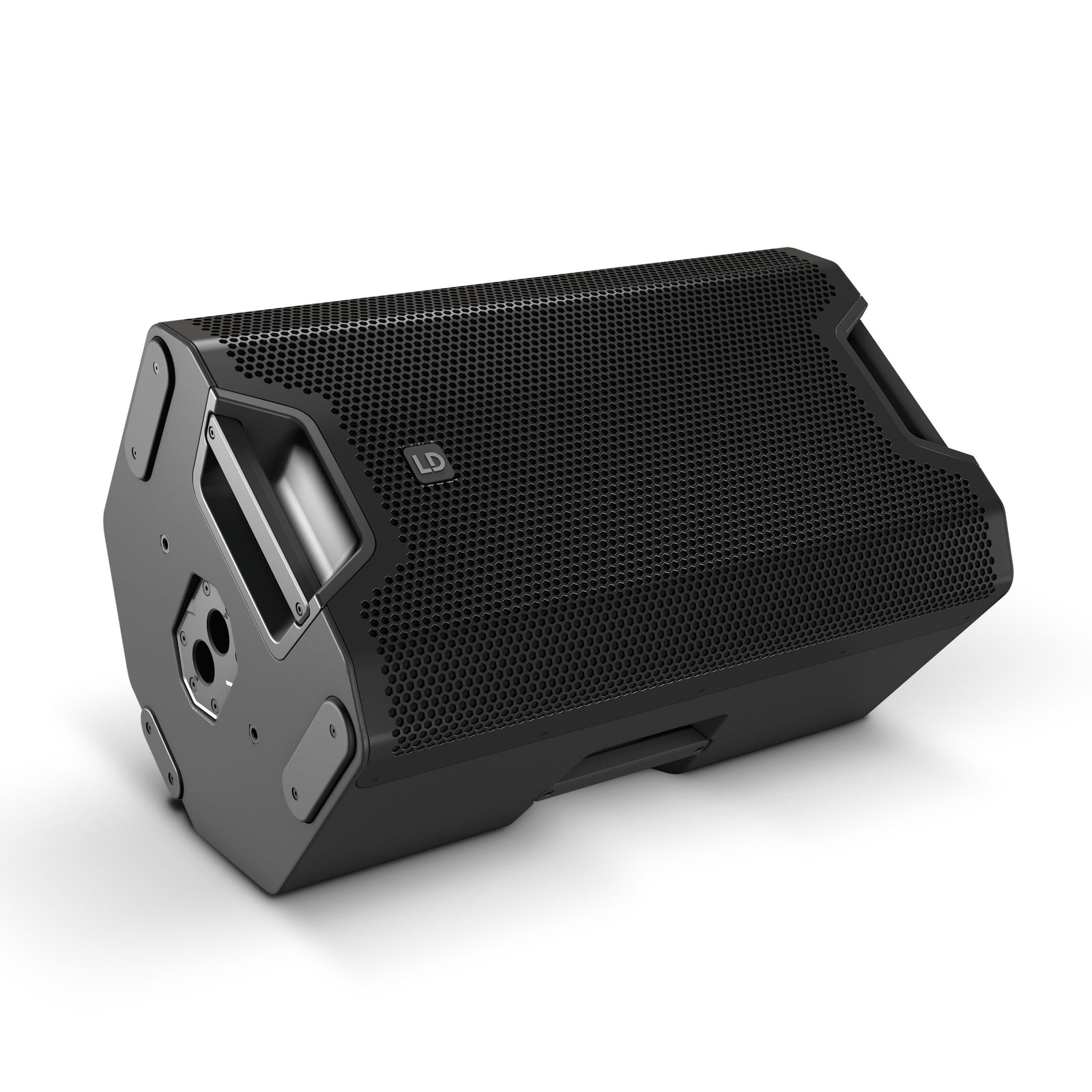

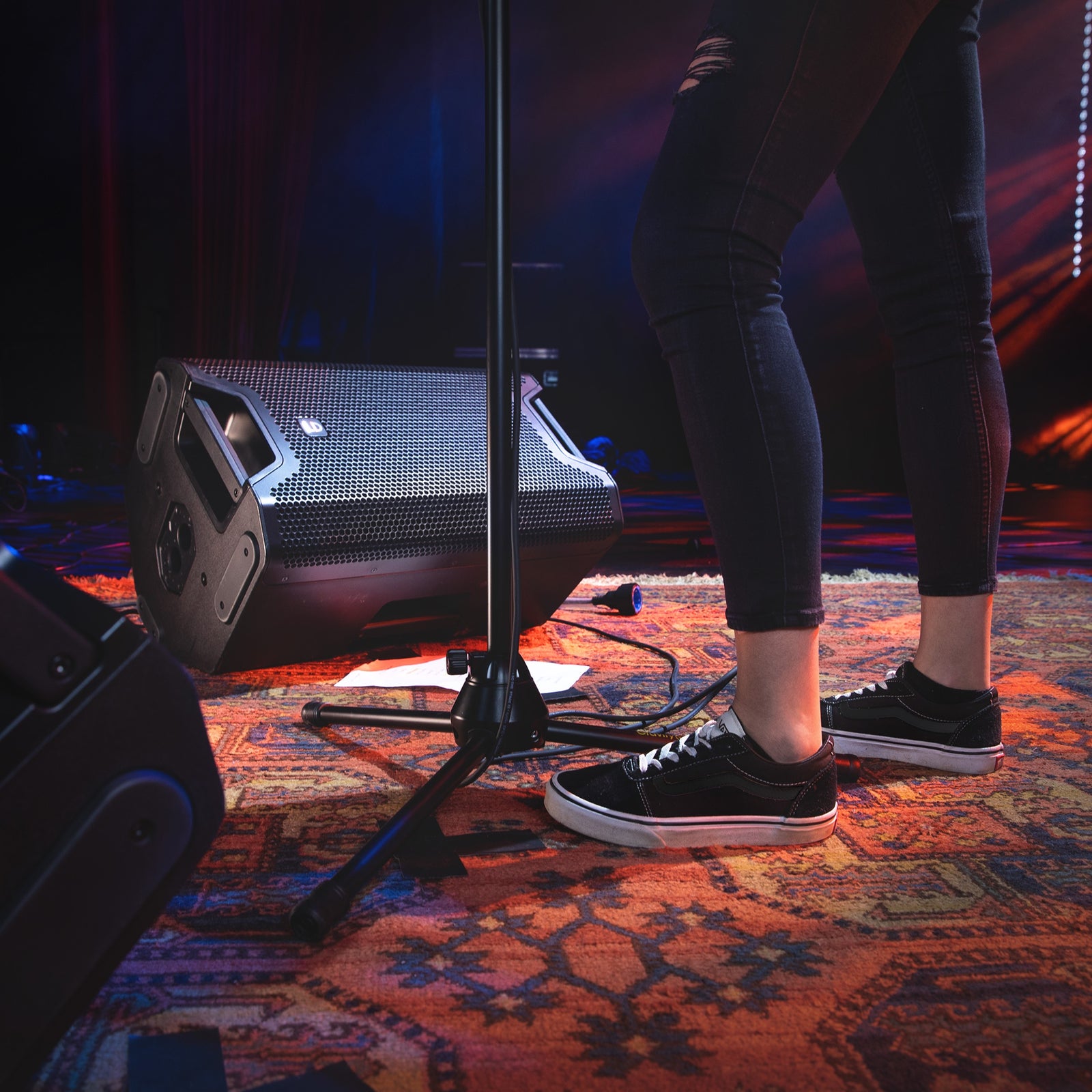

Thanks to its shock-resistant front grille and ideal 55° tilt angle, the LD ICOA 15 A BT is also outstanding as a floor monitor. Placed vertically, the 36 mm dual tilt stand attachment offers the choice of a 0° or 5° tilt angle for optimally adapting the system to the local acoustic environment.
Extensive and smart accessories for installation and transport are optionally available. 4 aluminium handles with an ergonomic rubber surface provide optimal grip when carrying the speaker.
FEATURES:
- A genuine all-rounder for full-range, satellite and monitor applications
- 128 dB max. SPL and 1200 W peak power

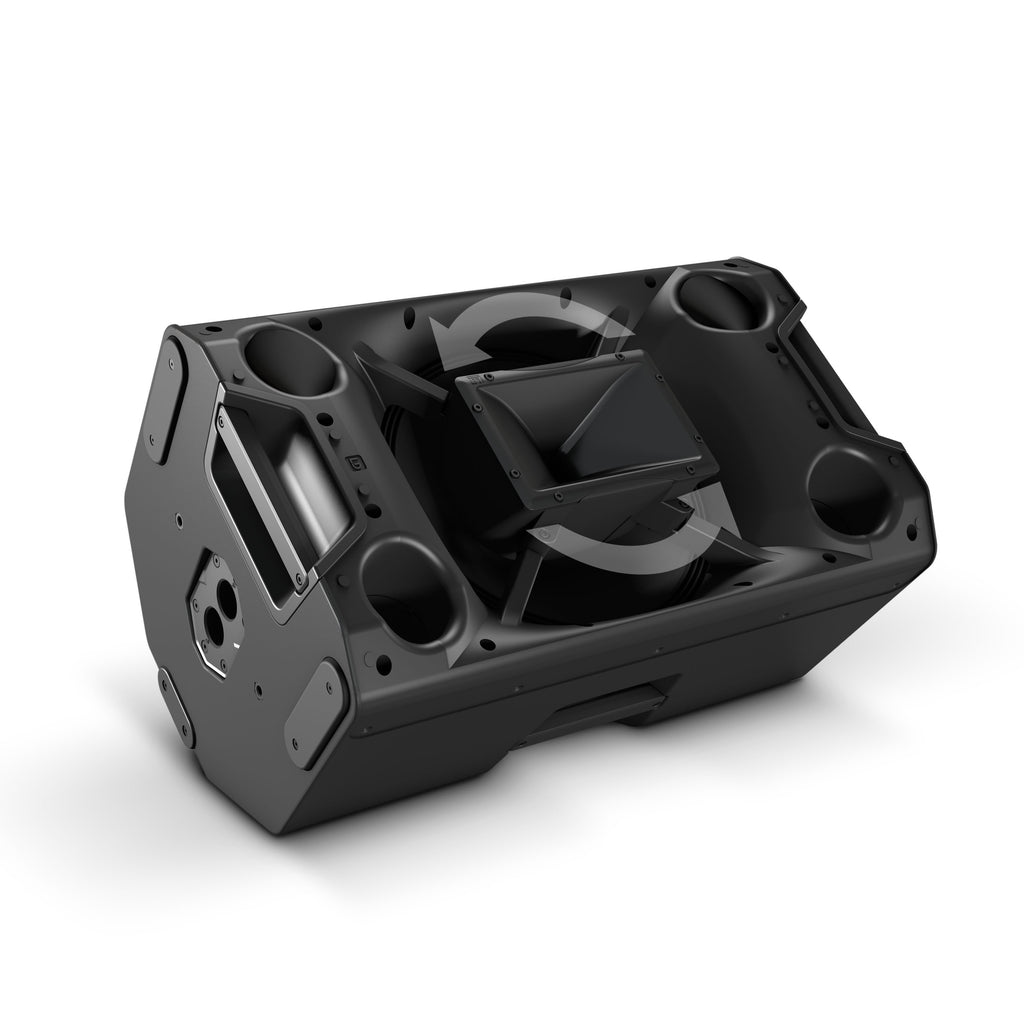

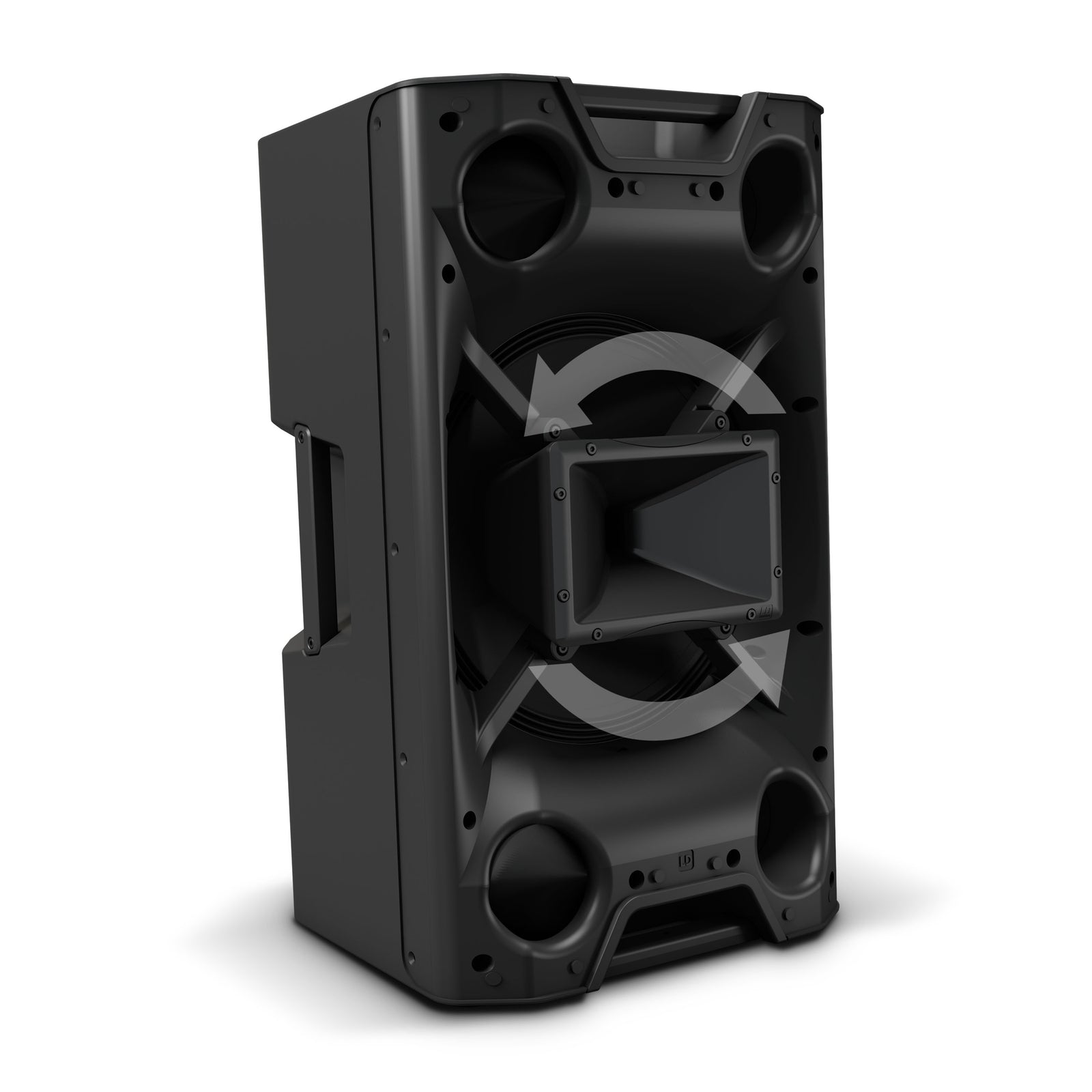

- Vertical and horizontal use thanks to coaxial design with rotating, BEM-optimised CD horn (Patent pending)
- Horn-loaded woofer
- DynX DSP with 4 presets, 3-band EQ and delay function

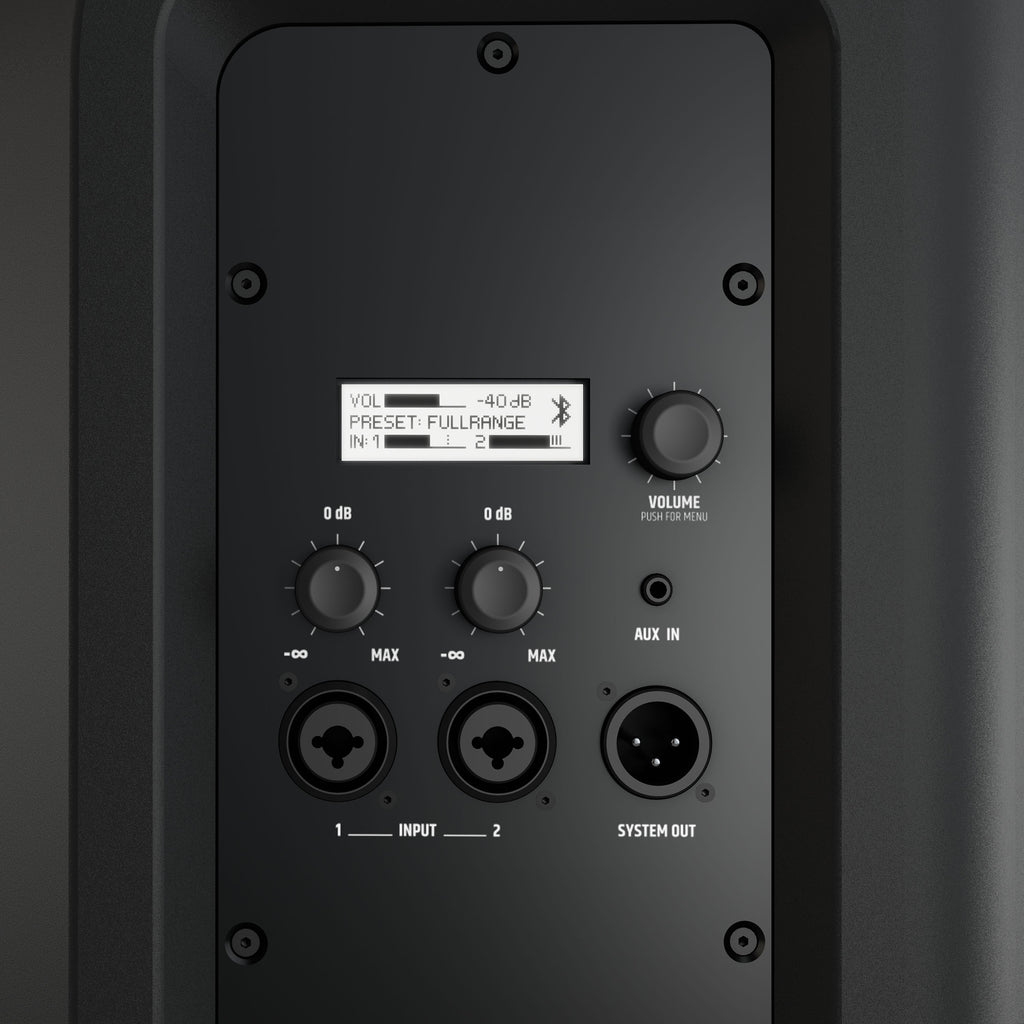

- 2 line/mic input channels with individual gain controllers plus mono mix output; Bluetooth® streaming with the BT model

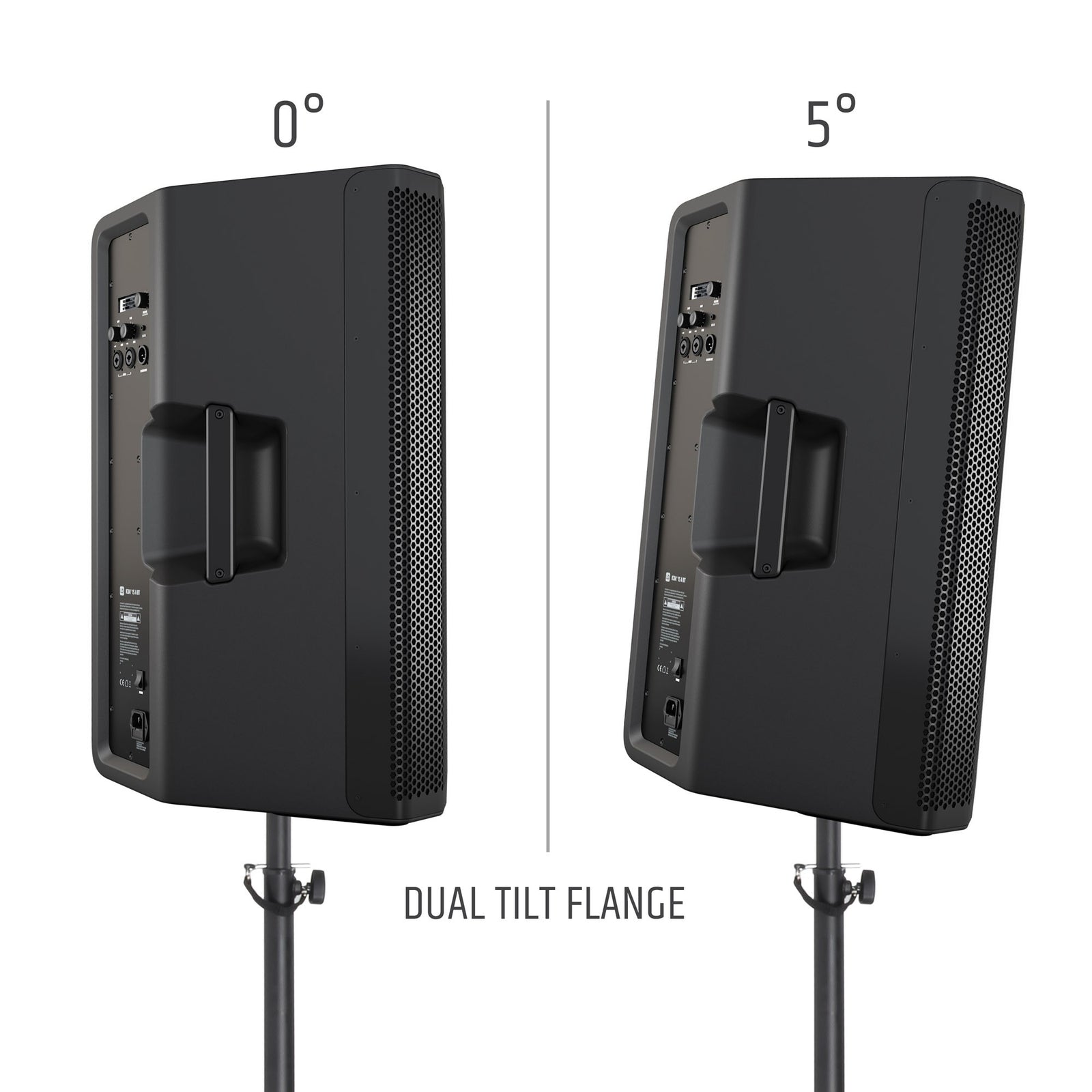

- 36 mm dual tilt stand attachment with 0° and 5° tilt angle, 55° monitor angle with sturdy stand

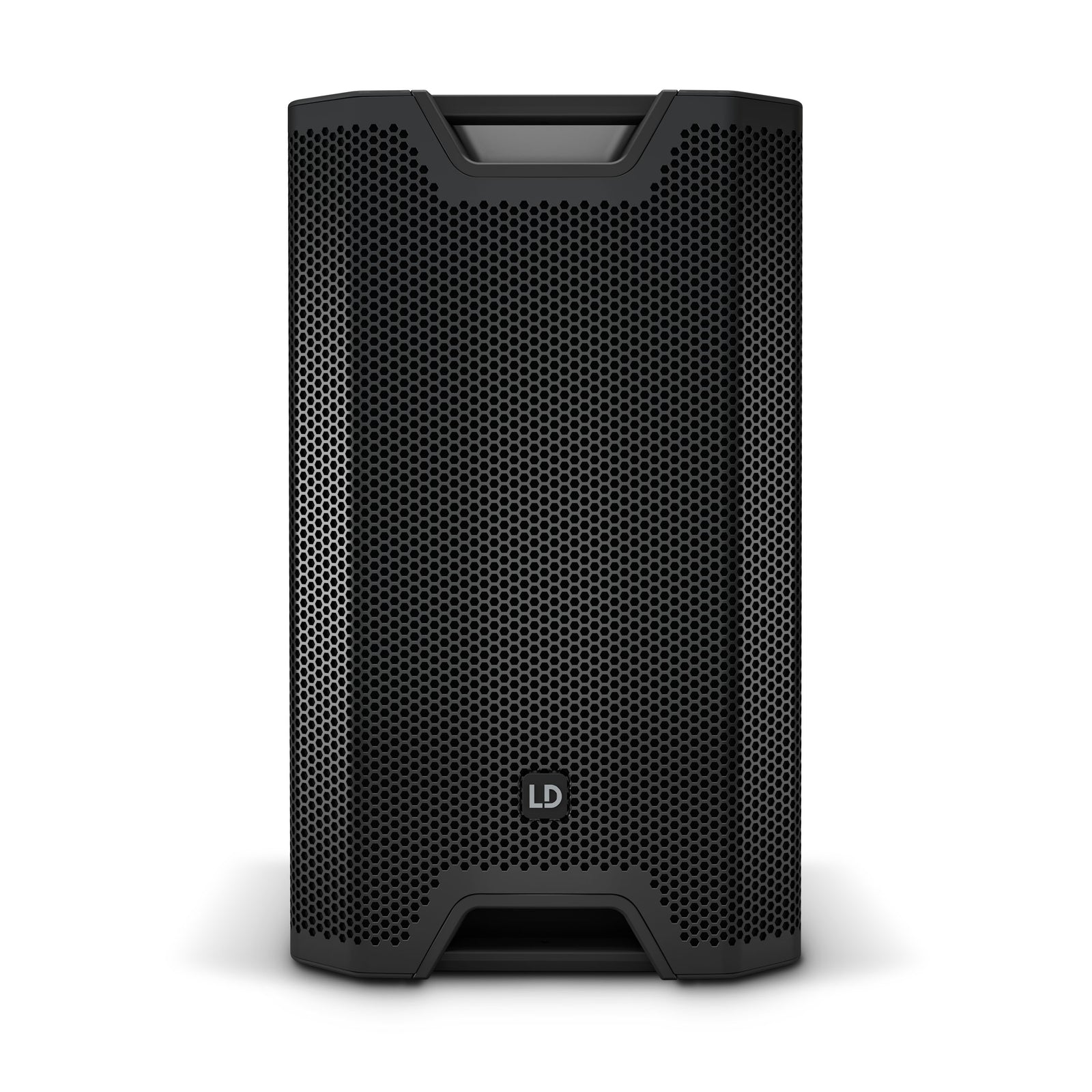

- Shock-resistant front grille for optimal protection of the speaker

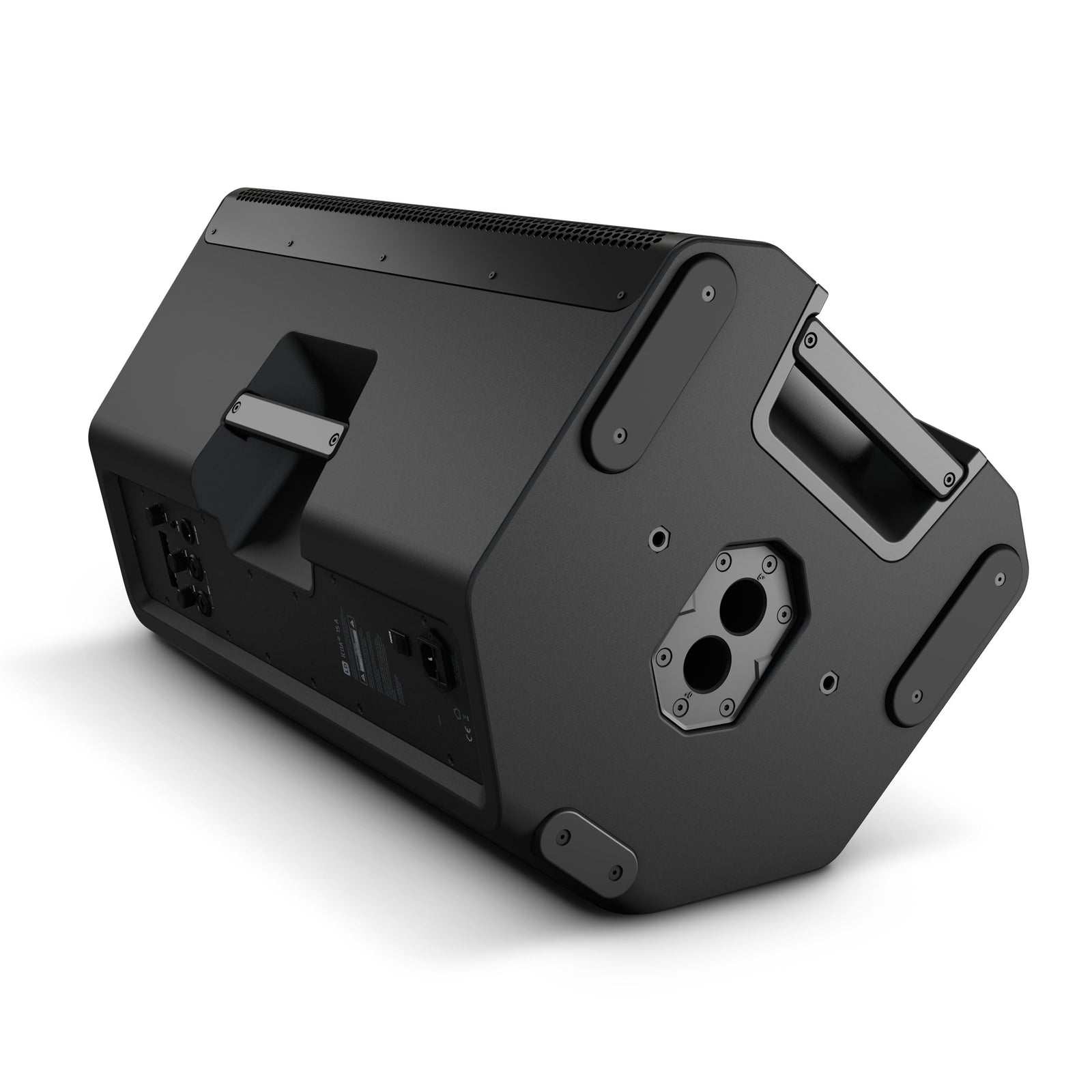

- 4 aluminium grips with ergonomic, rubber surface
- Extensive, optionally available accessories for installation and transport
Specifications
| Product type | PA loudspeaker |
| Type | Powerd |
| Bluetooth Audio Decoder | Bluetooth 4.0 |
| Low/mid driver dimensions | 15 " |
| Woofer size | 381 mm |
| Woofer magnet | Ferrite |
| Woofer brand | Custom-made |
| Horn | BEM optimized CD Horn |
| HF driver dimensions | 1 " |
| HF Driver Size | 25.4 mm |
| HF driver magnet | Ferrite |
| HF driver brand | Custom-made |
| HF driver voice coil | 1 " |
| HF Driver Voice Coil | 25.4 mm |
| Amplifier | Class D |
| Dispersion (H x V) | 90 ° x 50 ° |
| RMS | 300 W |
| Peak power | 1200 W |
| Frequency response | 48 - 20000 Hz |
| Crossover frequency kHz | 2 kHz |
| Max. SPL (peak) | 128 dB |
| Protection circuits | Multiband limiter , over voltage , over-current , thermal overload |

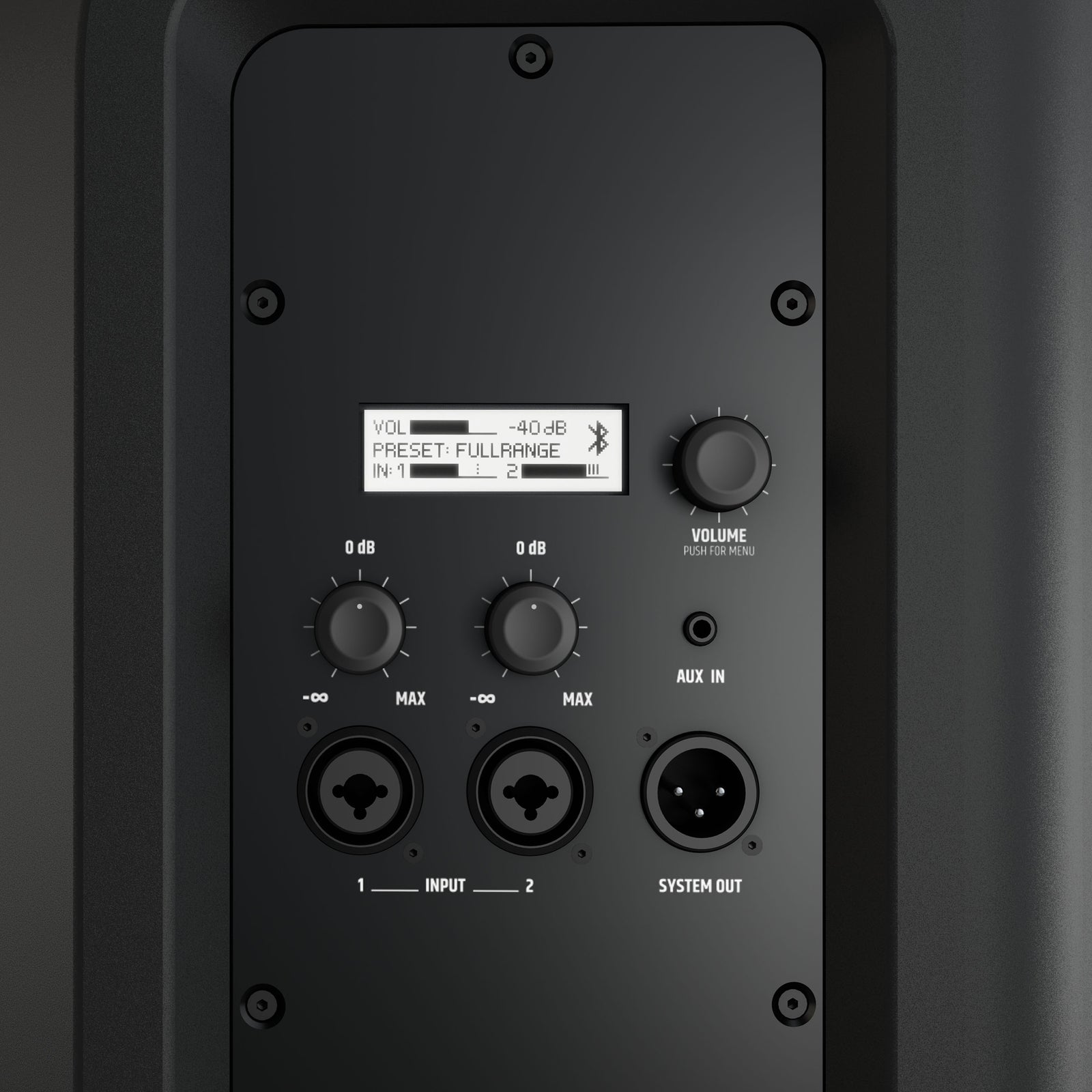

| Controls | 2 x gain , On / off switch , Rotary/push encoder |
| Indicators | LC display |
| Mic/ line inputs | 2 |
| Mic-/ Line Input Connectors | 6.3 mm jack Combination sockets (symmetrical) , XLR |
| Line inputs | 1 |
| Line input connectors | 3.5 mm TRS |
| Line outputs | 1 |
| Line output connectors | XLR |
| Operating voltage | SMPS |
| Power consumption | 150 W |
| Ambient temperature ( in operation ) | 0 - 40 °C |
| Operating voltage | 100 V - 240 V AC / 50 - 60 Hz |
| Relative Humidity | < 80 %, not condensing |
| Fuse | T4AL 250 V |
| Cabinet material | Polypropylene |
| Cabinet construction | Bass Reflex |
| tripod flange | 32 °F , 36mm flange , 5° |
| Monitor angle | 55 ° |
| Width | 416 mm |
| Height | 695 mm |
| Depth | 415 mm |
| Features | Bluetooth |
| Weight | 24,3 kg |
| Accessories (included) | Power cord |
