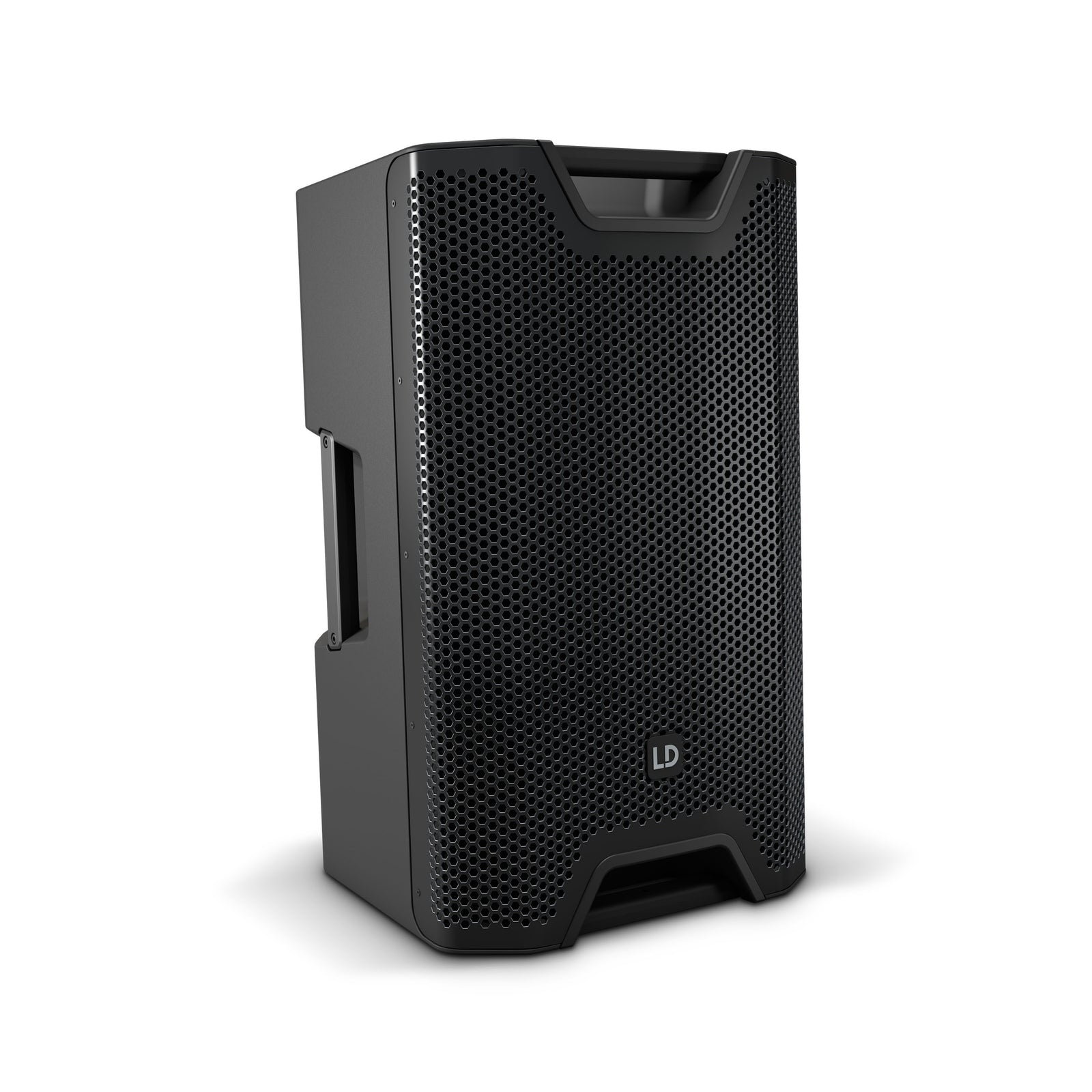

This full-range loudspeaker impresses with its outstanding sound, even at low frequencies. The ICOA 12 A by LD Systems is a genuine all-rounder that offers unparalleled features for its class. Its coaxial design, rotating, BEM-optimised CD horn and extensive and precisely calibrated DynX DSP presets make this powered 12" loudspeaker exceptionally flexible.
The outstanding bass reproduction from the horn-loaded woofer makes the LD ICOA 12 A the ideal choice for musicians, bands, entertainers and dance schools. It also allows DJs to play sets without the need for a subwoofer. Deployed vertically, the speaker impresses as a satellite; horizontally, it's excellent in suspended systems or as a floor monitor. The efficient class-D power amplifier delivers 126 dB max. SPL and 300 W RMS performance.

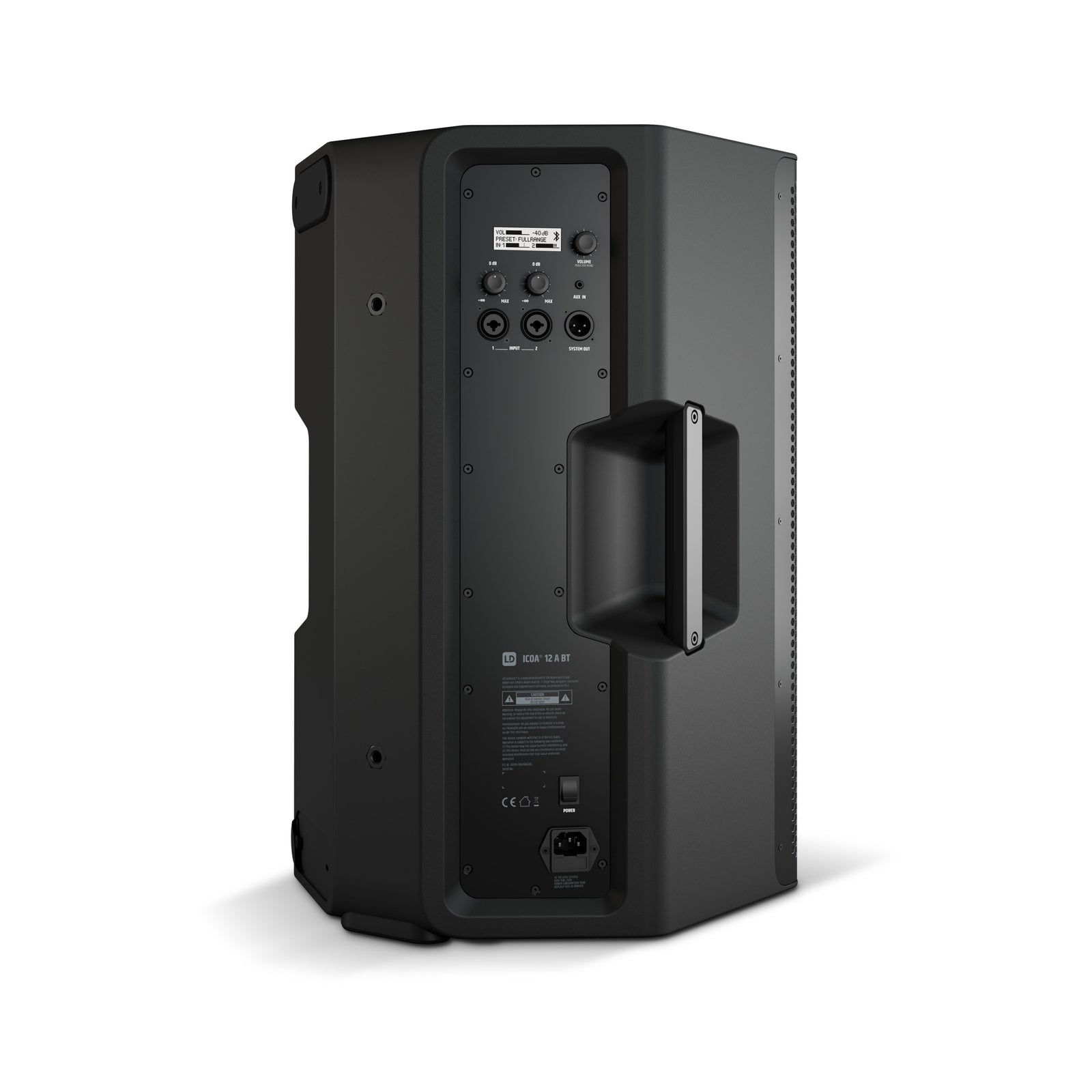

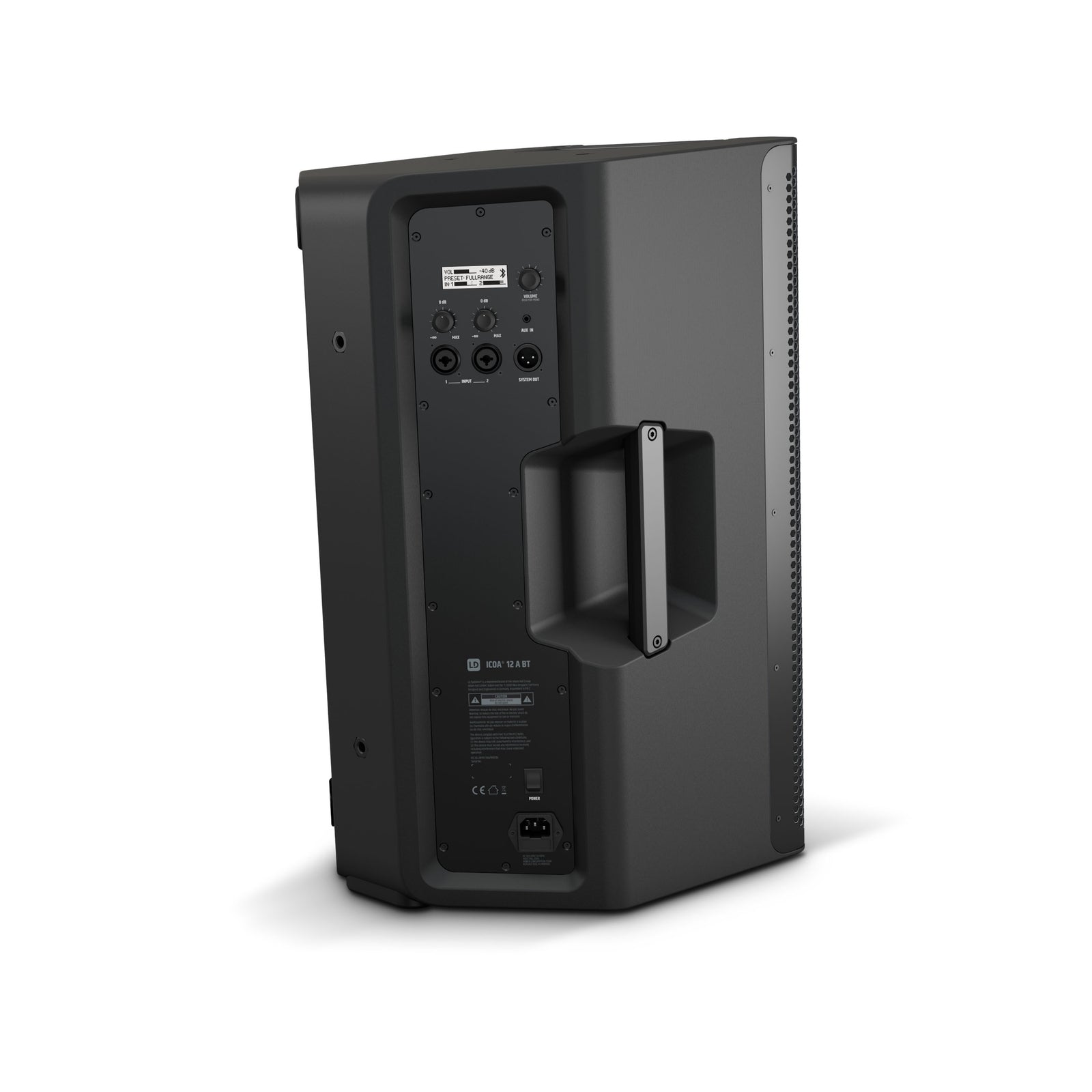

Drawing on DynX DSP technology by LD Systems, the speaker delivers perfect performance with maximum clarity and power under all conditions. 4 presets, a 3-band EQ and a delay function facilitate optimal adjustment of the sound to the venue conditions. The 2 line/mic input channels with individual gain controllers, plus mono mix output, allow a variety of signal sources to be connected.

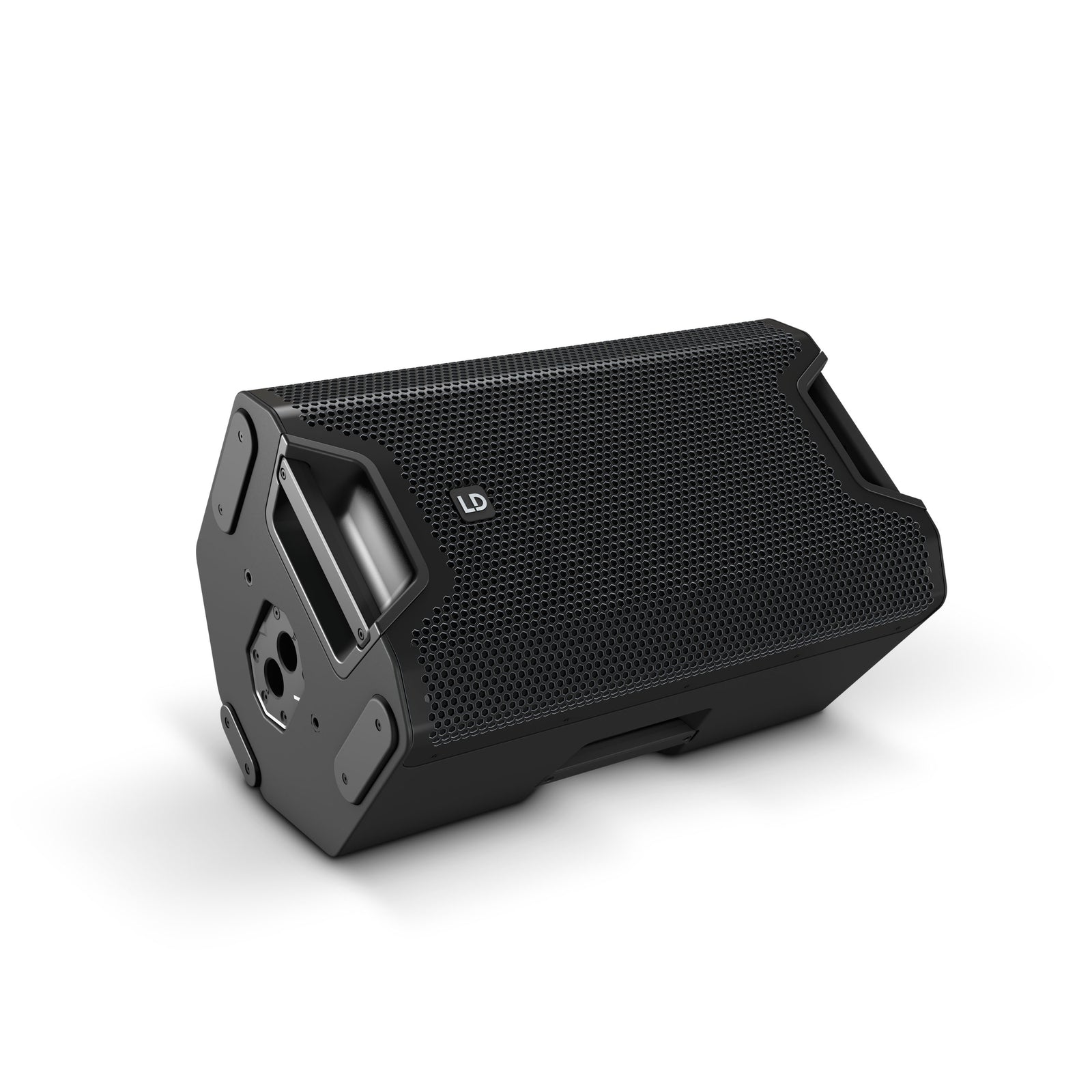

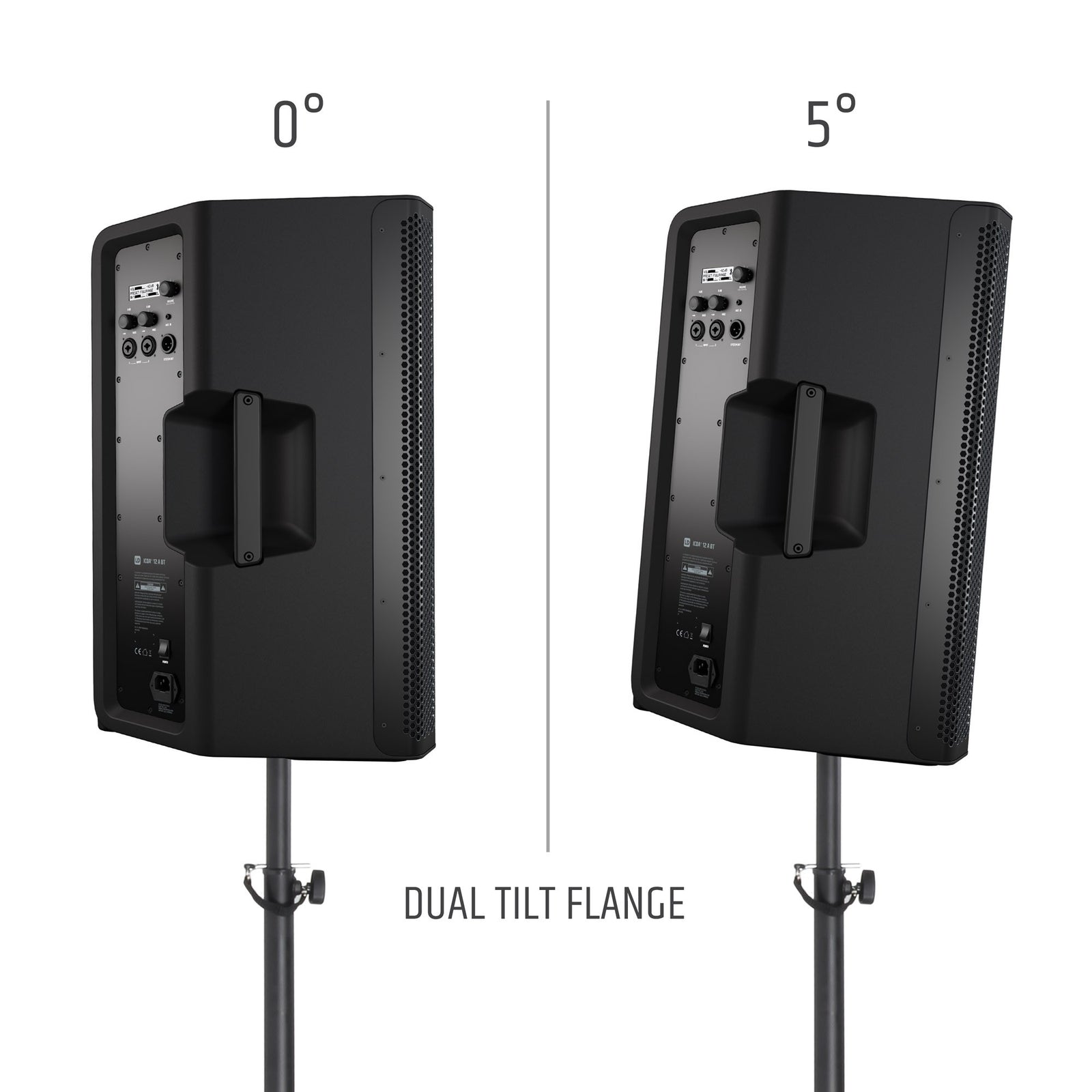

Thanks to its shock-resistant front grille and ideal 55° tilt angle, the LD ICOA 12 A is also outstanding as a floor monitor. Placed vertically, the 36 mm dual tilt stand attachment offers the choice of a 0° or 5° tilt angle for optimally adapting the system to the local acoustic environment.
Extensive and smart accessories for installation and transport are optionally available. 4 aluminium handles with an ergonomic rubber surface provide optimal grip when carrying the speaker.
FEATURES:
- A genuine all-rounder for full-range, satellite and monitor applications
- 126 dB max. SPL and 1200 W peak power

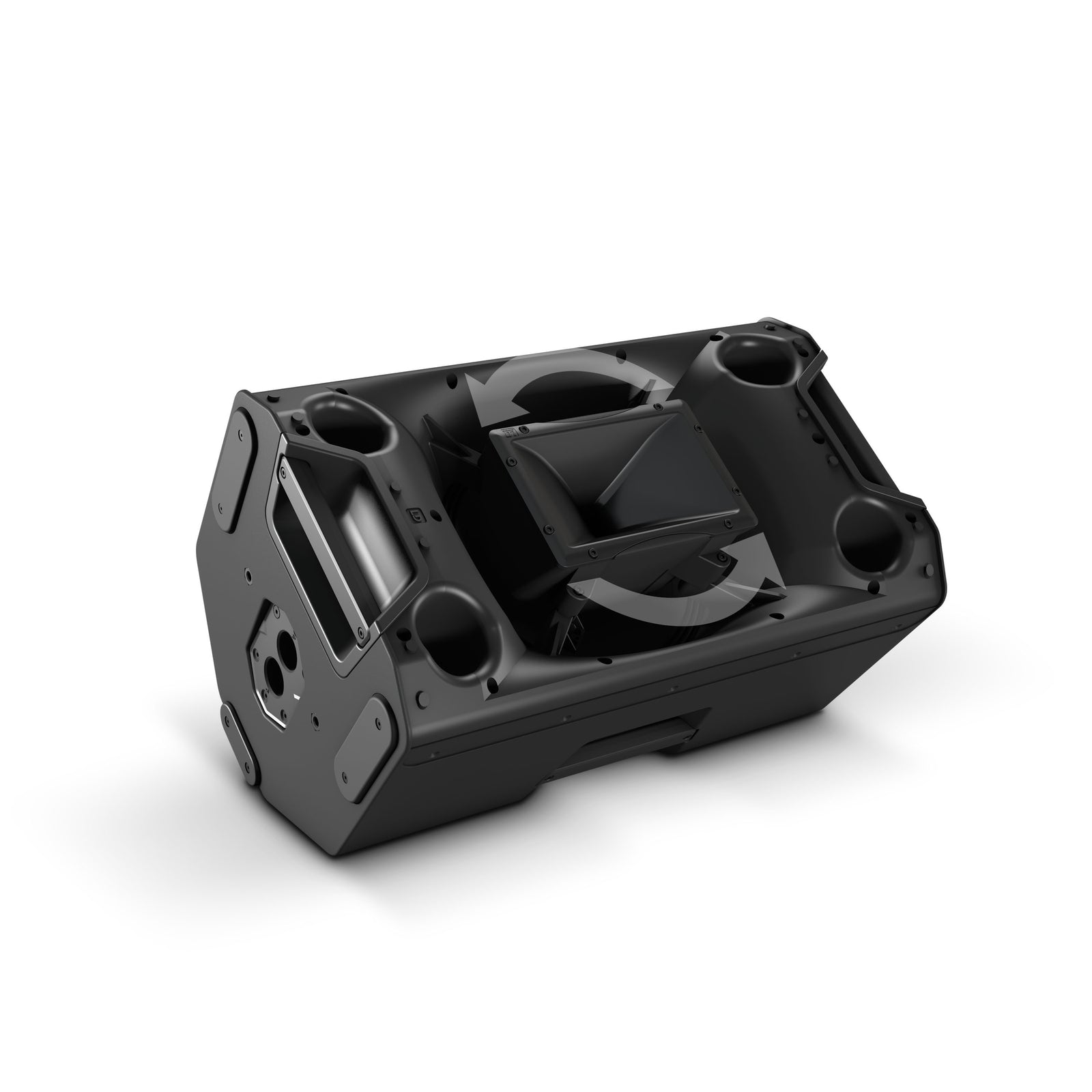

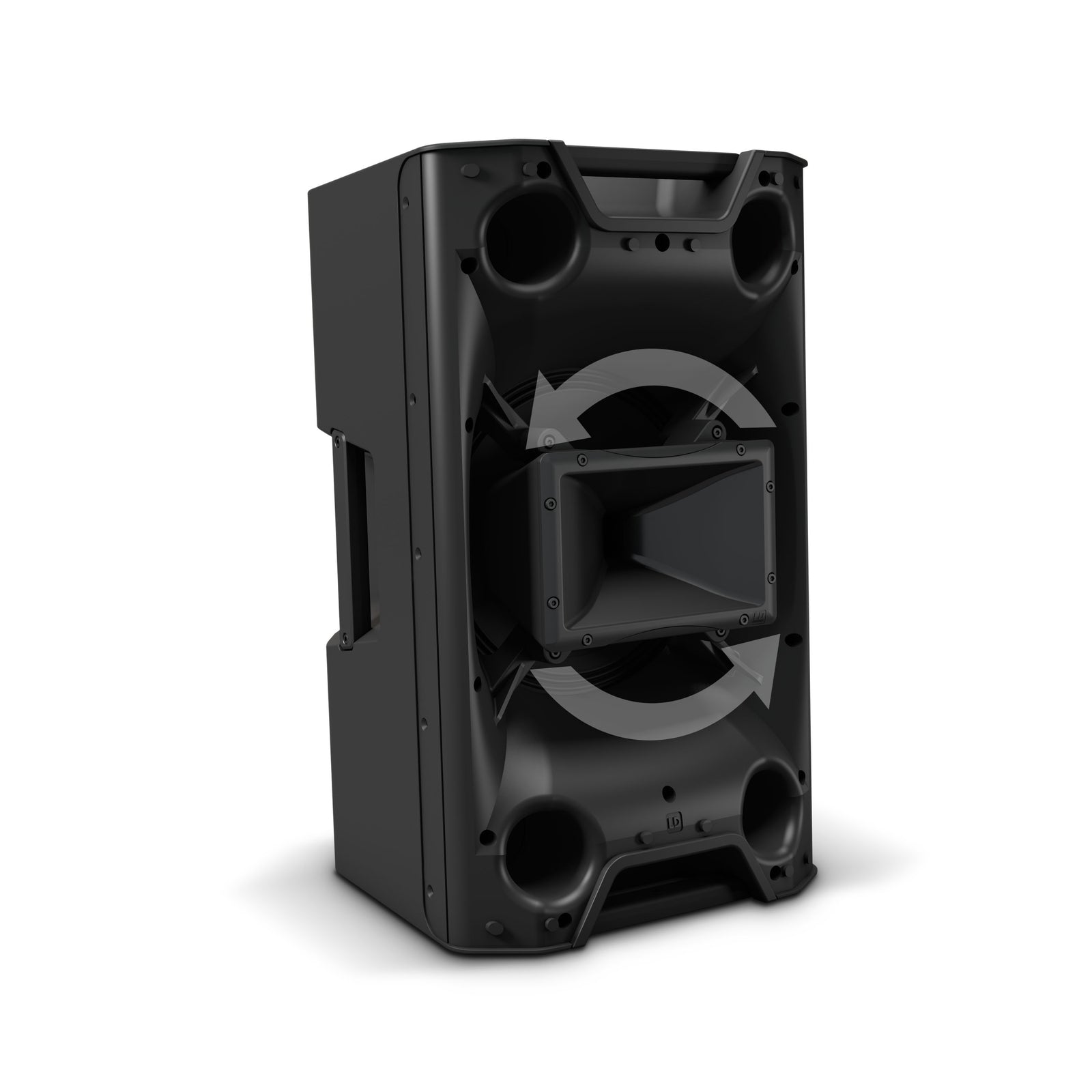

- Vertical and horizontal use thanks to coaxial design with rotating, BEM-optimised CD horn (Patent pending)
- Horn-loaded woofer
- DynX DSP with 4 presets, 3-band EQ and delay function
- 2 line/mic input channels with individual gain controllers plus mono mix output; Bluetooth® streaming with the BT model
- 36 mm dual tilt stand attachment with 0° and 5° tilt angle, 55° monitor angle with sturdy stand

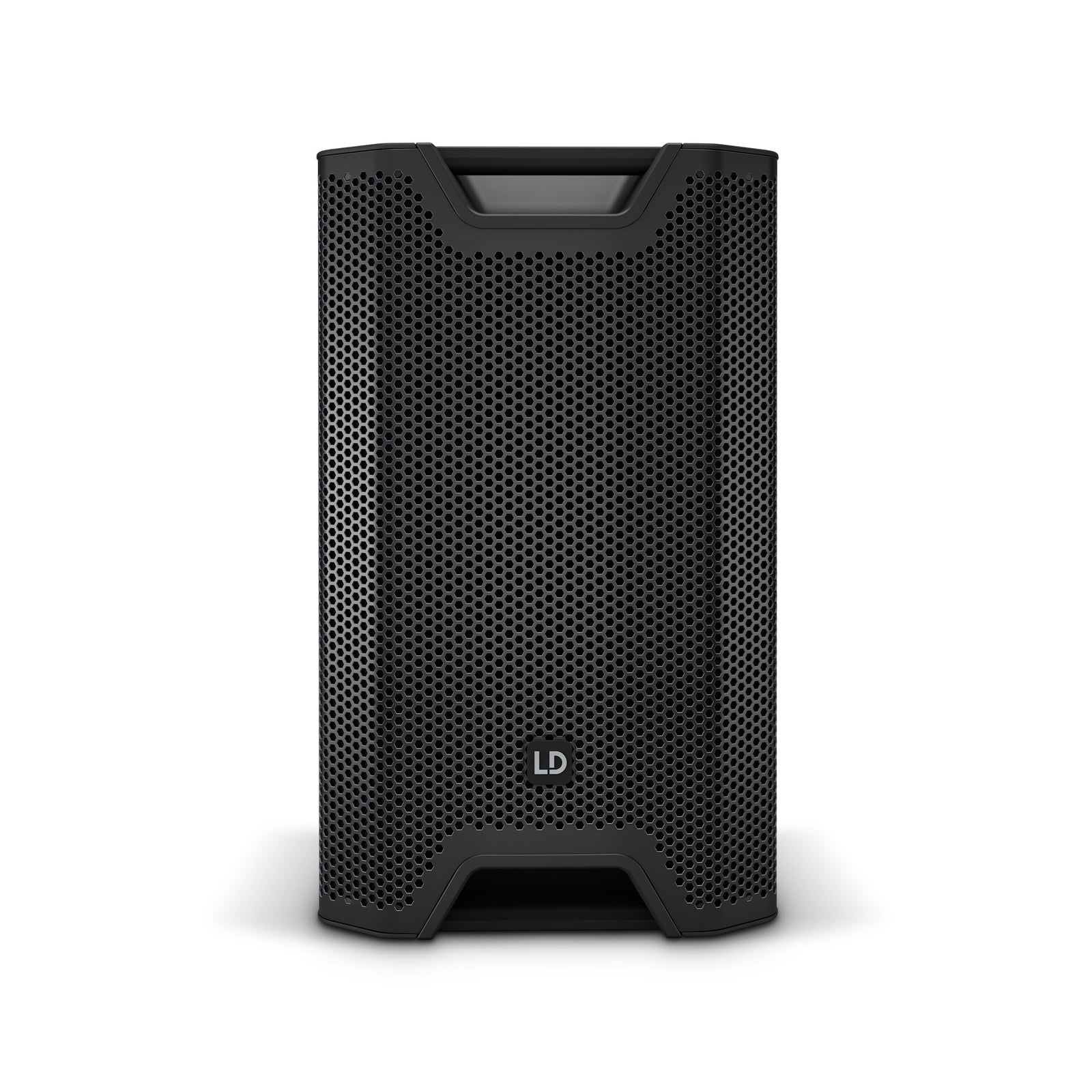

- Shock-resistant front grille for optimal protection of the speaker
- 4 aluminium grips with ergonomic, rubber surface
- Extensive, optionally available accessories for installation and transport
Specifications
|
Product type |
PA loudspeaker |
|
Type |
Powerd |
|
Bluetooth Audio Decoder |
Bluetooth 4.0 |
|
Low/mid driver dimensions |
12 " |
|
Woofer size |
304.8 mm |
|
Woofer magnet |
Ferrite |
|
Woofer brand |
Custom-made |
|
Horn |
BEM optimized CD Horn |
|
HF driver dimensions |
1 " |
|
HF Driver Size |
25.4 mm |
|
HF driver magnet |
Ferrite |
|
HF driver brand |
Custom-made |
|
HF driver voice coil |
1 " |
|
HF Driver Voice Coil |
25.4 mm |
|
Amplifier |
Class D |
|
Dispersion (H x V) |
90 ° x 50 ° |
|
RMS |
300 W |
|
Peak power |
1200 W |
|
Frequency response |
50 - 20000 Hz |
|
Crossover frequency kHz |
2 kHz |
|
Max. SPL (peak) |
126 dB |
|
Protection circuits |
Multiband limiter , over voltage , over-current , thermal overload |
|

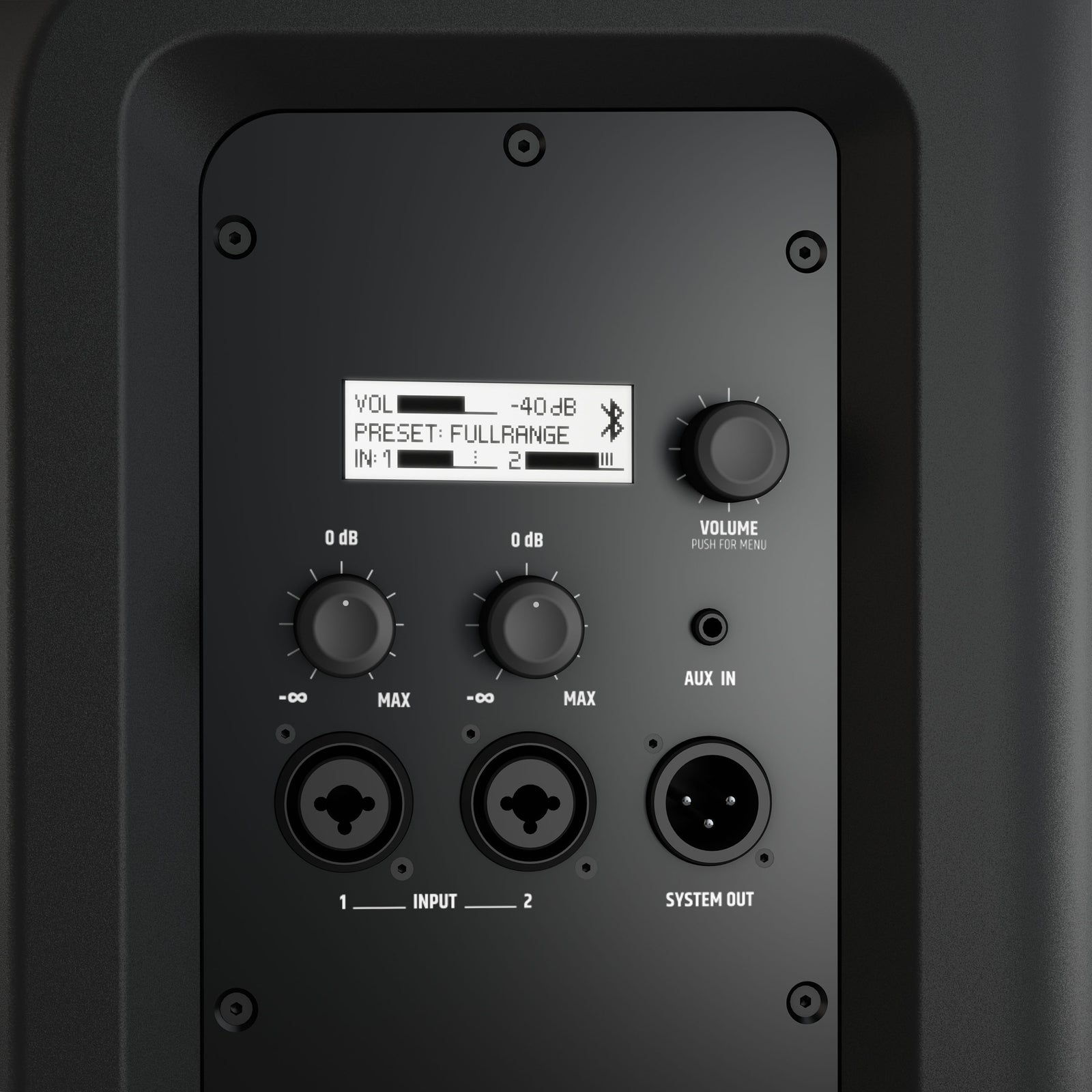

Controls |
2 x gain , On / off switch , Rotary/push encoder |
|
Indicators |
LC display |
|
Mic/ line inputs |
2 |
|
Mic-/ Line Input Connectors |
6.3 mm jack Combination sockets (symmetrical) , XLR |
|
Line inputs |
1 |
|
Line input connectors |
3.5 mm TRS |
|
Line outputs |
1 |
|
Line output connectors |
XLR |
|
Operating voltage |
SMPS |
|
Power consumption |
150 W |
|
Ambient temperature ( in operation ) |
0 - 40 °C |
|
Operating voltage |
100 V - 240 V AC / 50 - 60 Hz |
|
Relative Humidity |
< 80 %, not condensing |
|
Fuse |
T4AL 250 V |
|
Cabinet material |
Polypropylene |
|
Cabinet construction |
Bass Reflex |
|
tripod flange |
32 °F , 36mm flange , 5° |
|
Monitor angle |
55 ° |
|
Width |
375 mm |
|
Height |
635 mm |
|
Depth |
396 mm |
|
Features |
Bluetooth |
|
Weight |
19,95 kg |
|
Accessories (included) |
Power cord |
