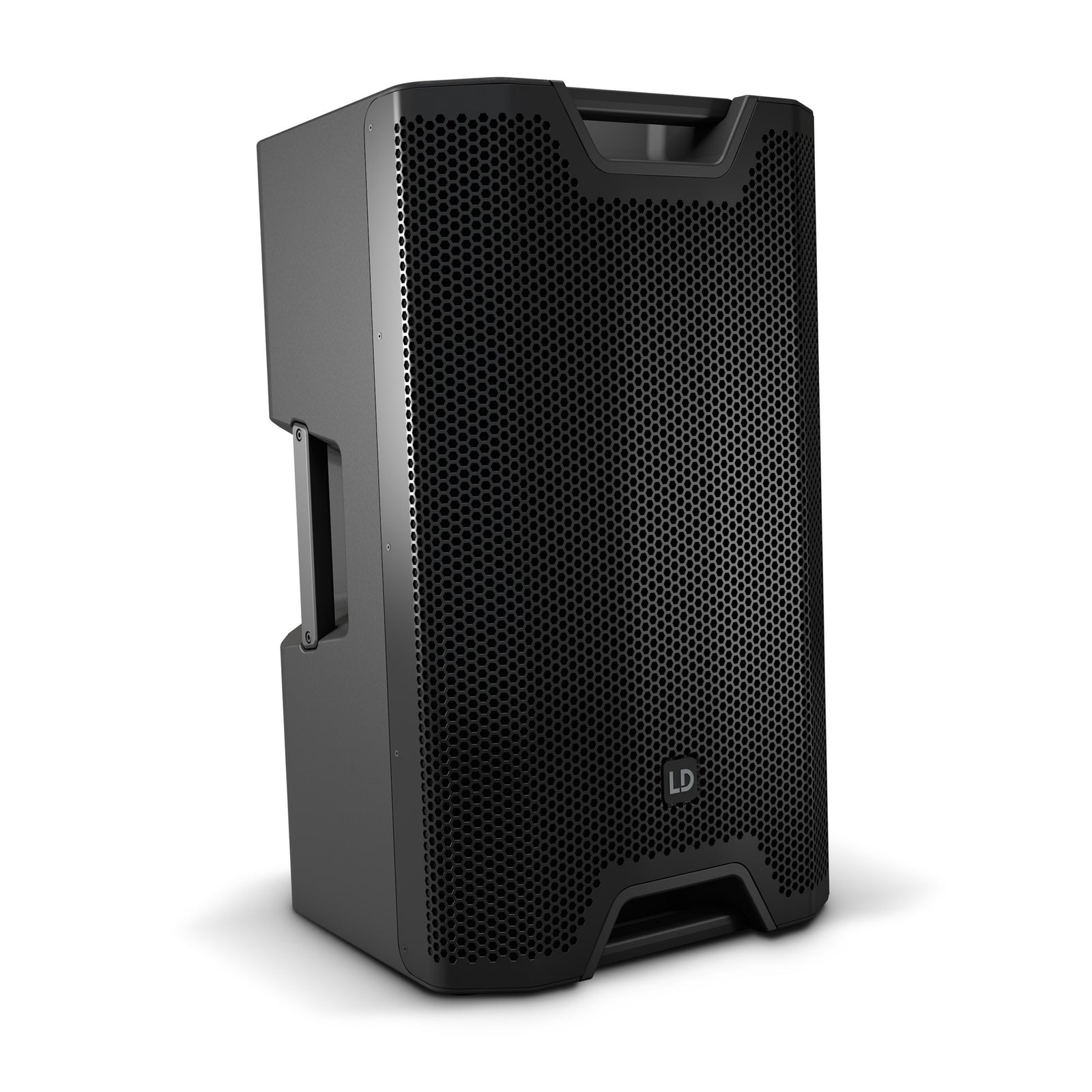

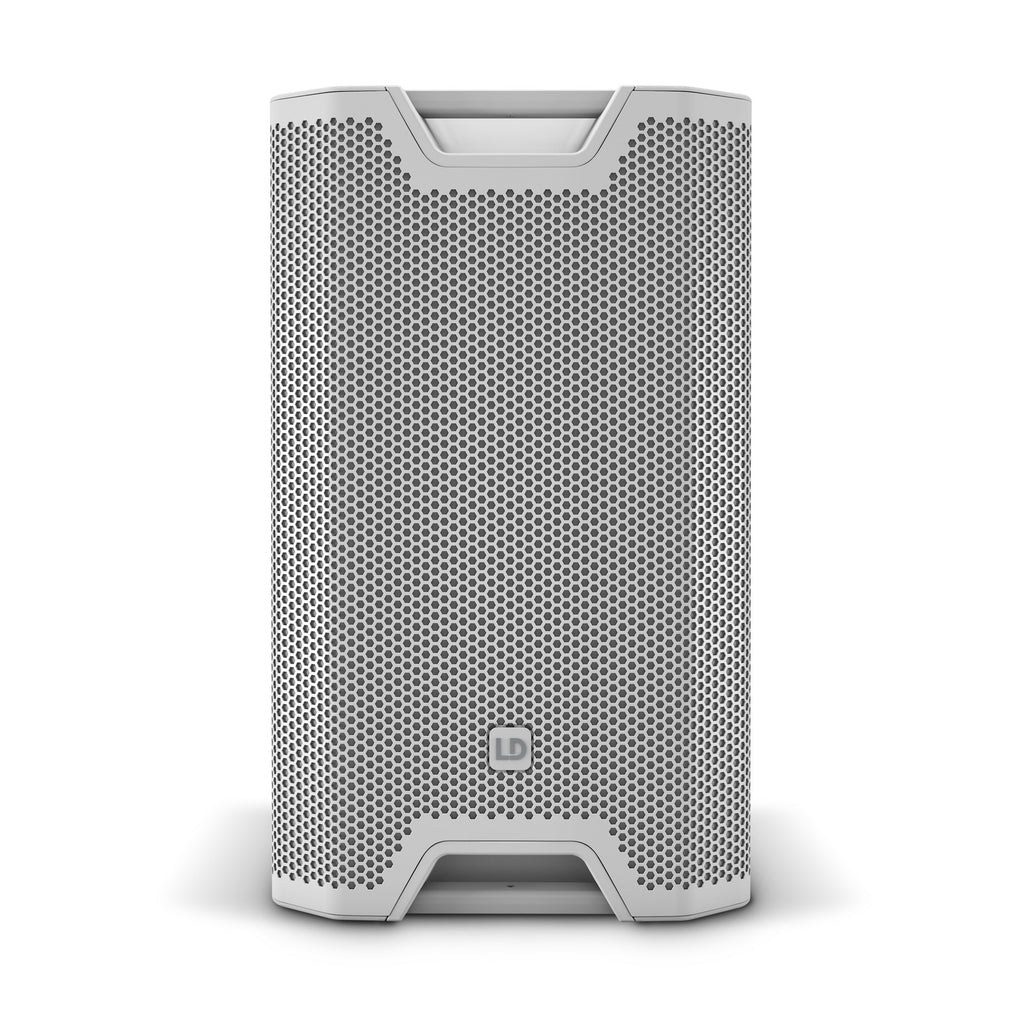

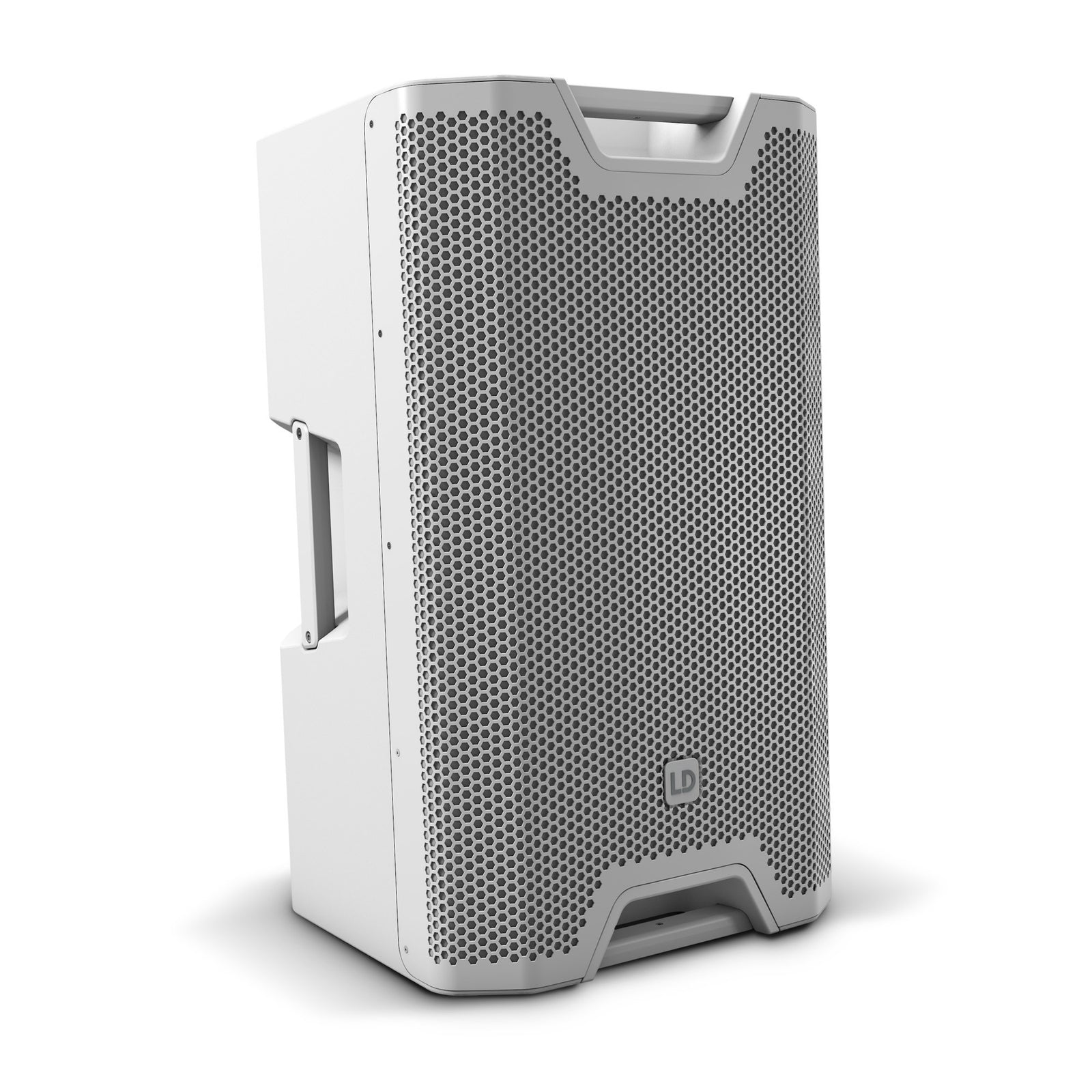

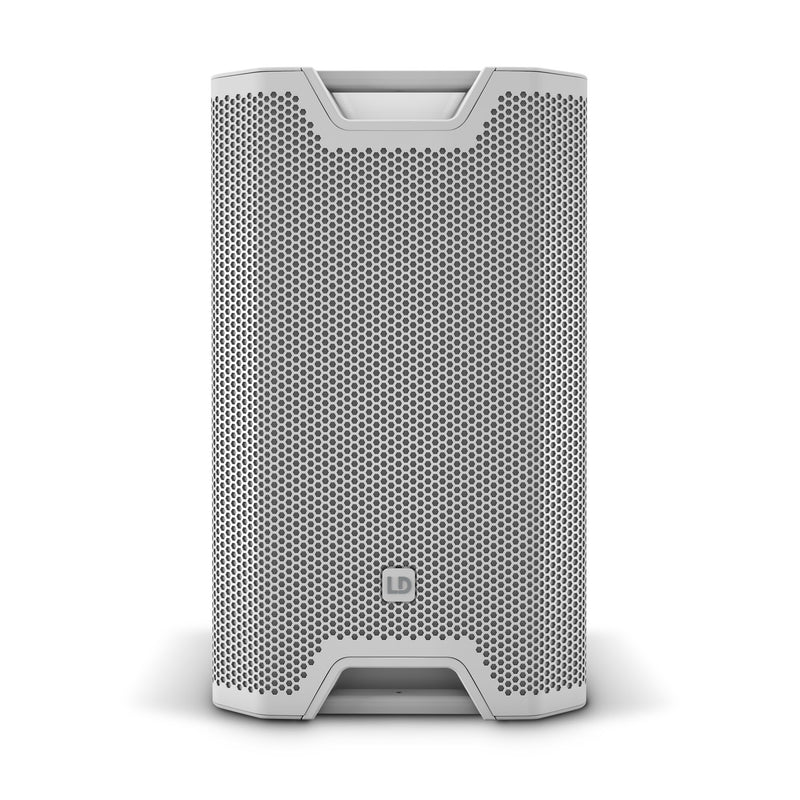

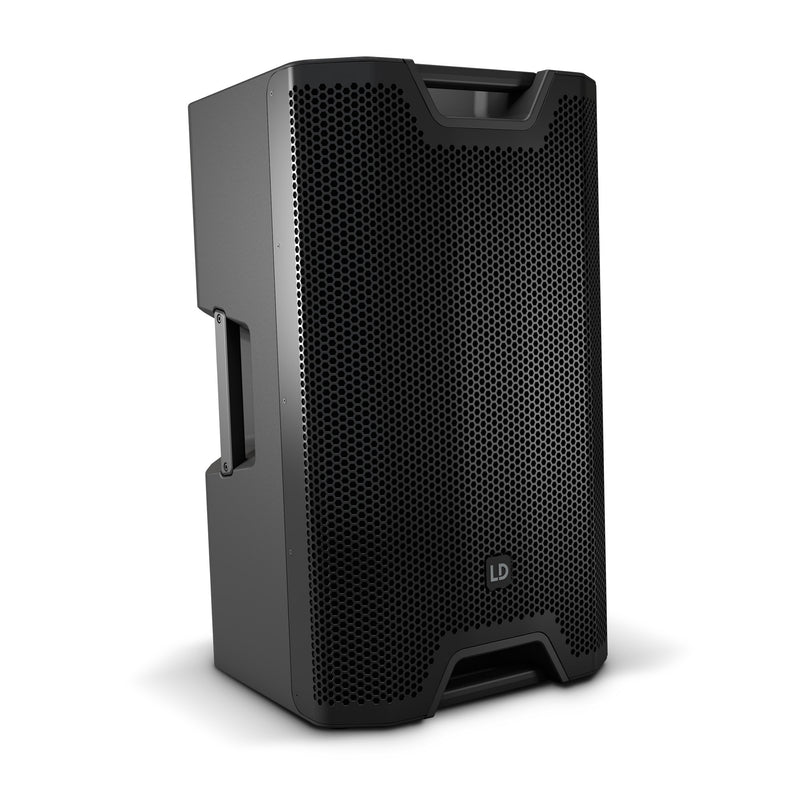

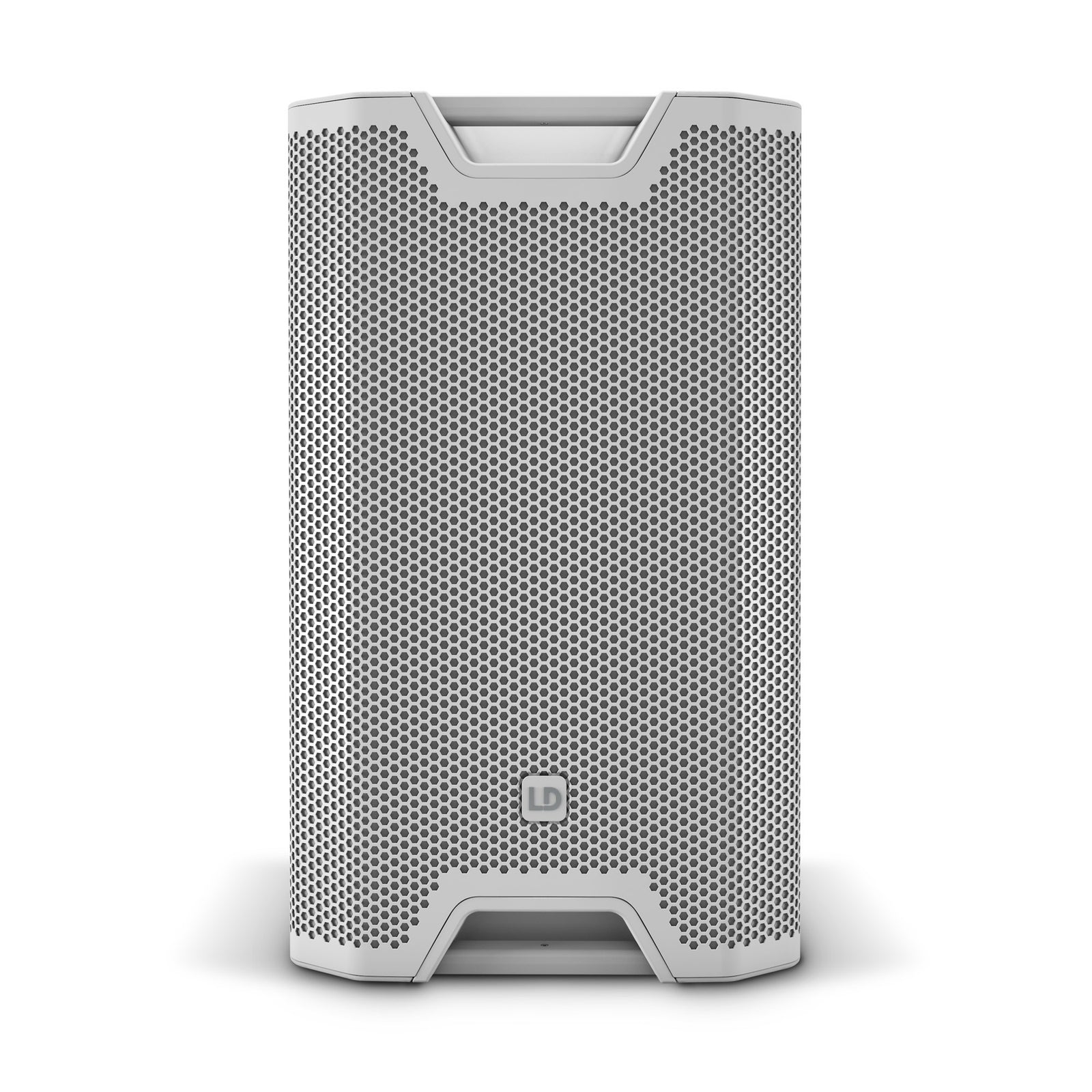

This 15" full-range loudspeaker stands out with impressive sound even at low frequencies. As a jack-of-all-trades, the unpowered ICOA 15 speaker by LD Systems and its design with a coaxial design and rotating, BEM-optimised CD horn means it is extremely flexible.
The horn-loaded woofer's outstanding bass reproduction makes the ICOA 15 the ideal choice for dance schools, musicians, bands and entertainers. It also allows DJs to play sets without the need for a subwoofer. The speaker also makes a good impression in fixed installations due to its freedom of flexibility.
Deployed vertically, the speaker impresses as a satellite; horizontally, it's excellent in suspended systems or as a floor monitor. It Delivers a maximum sound pressure level of 125 dB peak and has 1000 Watt peak perfomance.

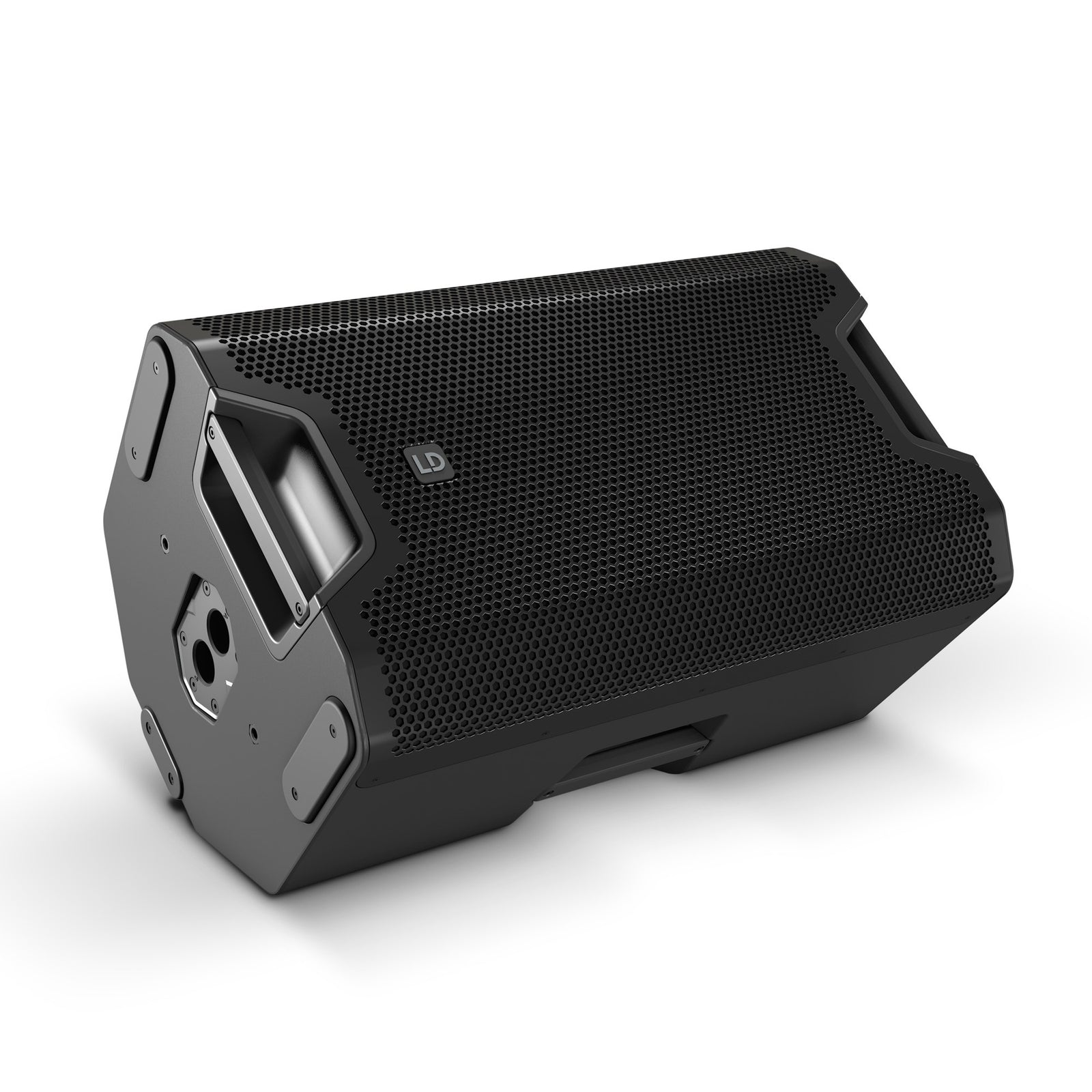

Thanks to its shock-resistant front grille and ideal 55° tilt angle make the ICOA 15 outstanding as a floor monitor. Placed vertically, the 36 mm dual tilt stand attachment offers the choice of a 0° or 5° tilt angle for optimally adapting the system to the local acoustic environment. Extensive and smart accessories for installation and transport are optionally available. Four aluminium handles with an ergonomic rubber surface provide optimal grip when carrying the speaker.
FEATURES:
- A genuine all-rounder for full-range, satellite and monitor applications as well as fixed installations
- Passive loudspeaker with 125 dB max. SPL and 1000 W peak power

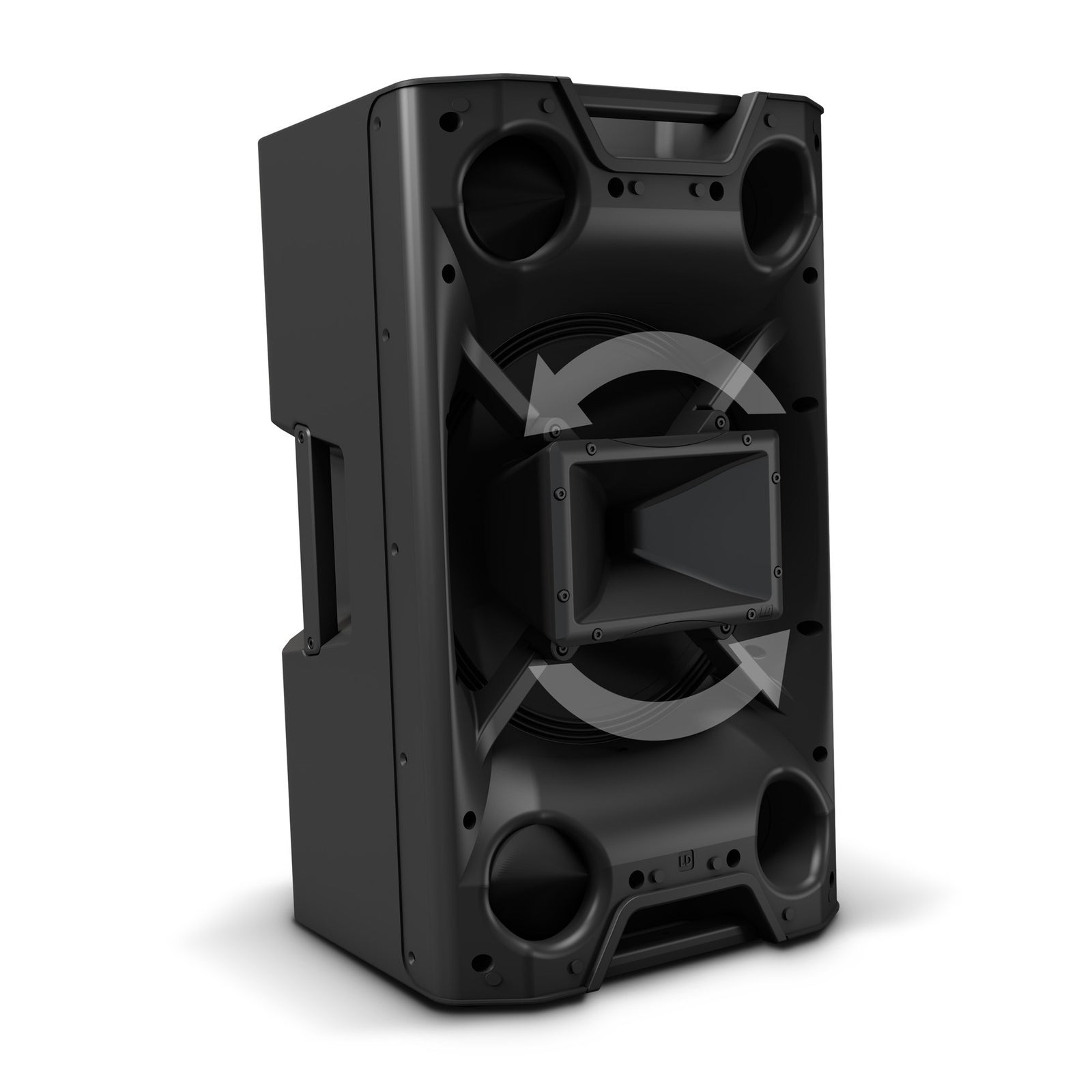

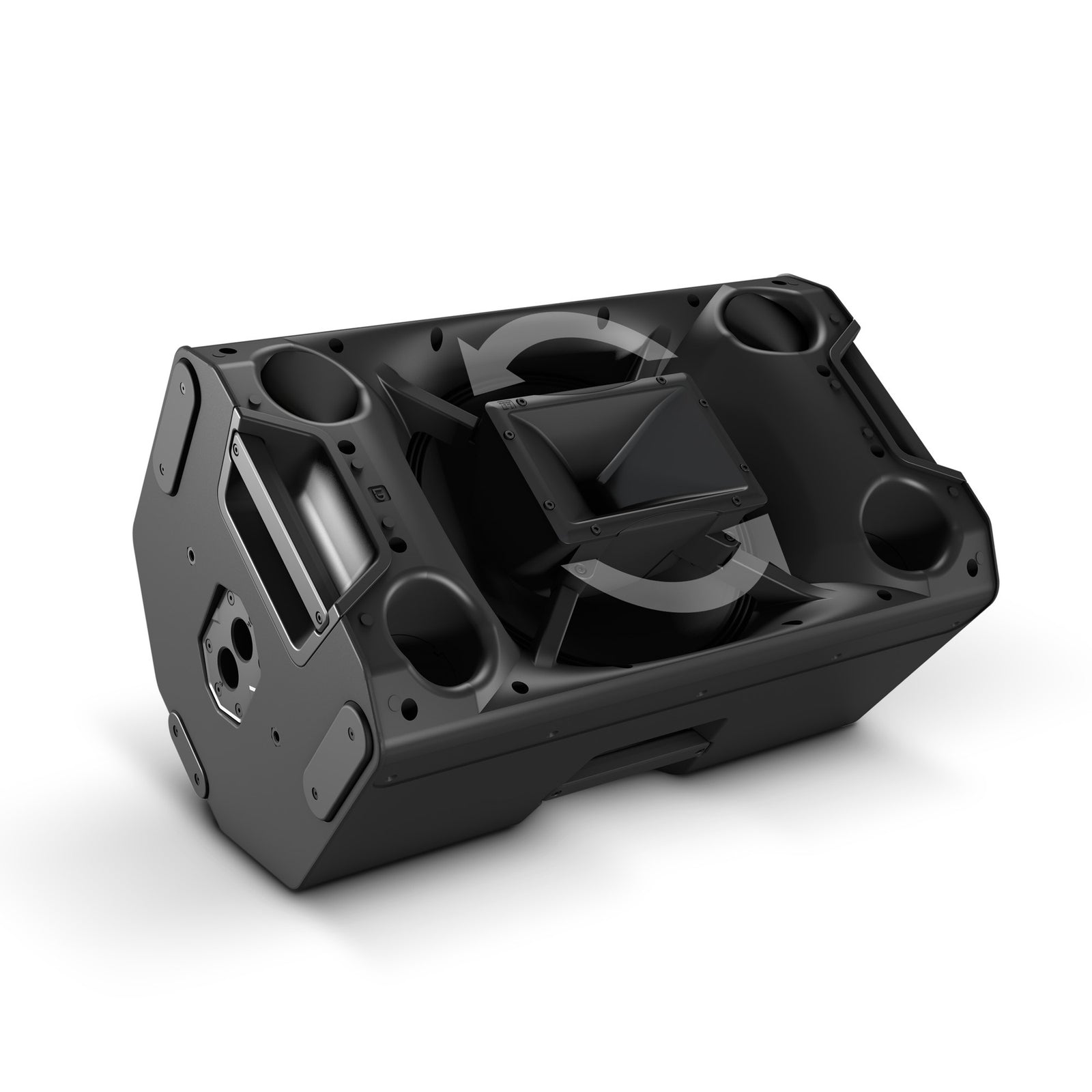

- Vertical and horizontal use thanks to coaxial design with rotating, BEM-optimised CD horn (Patent pending)
- Horn-loaded woofer

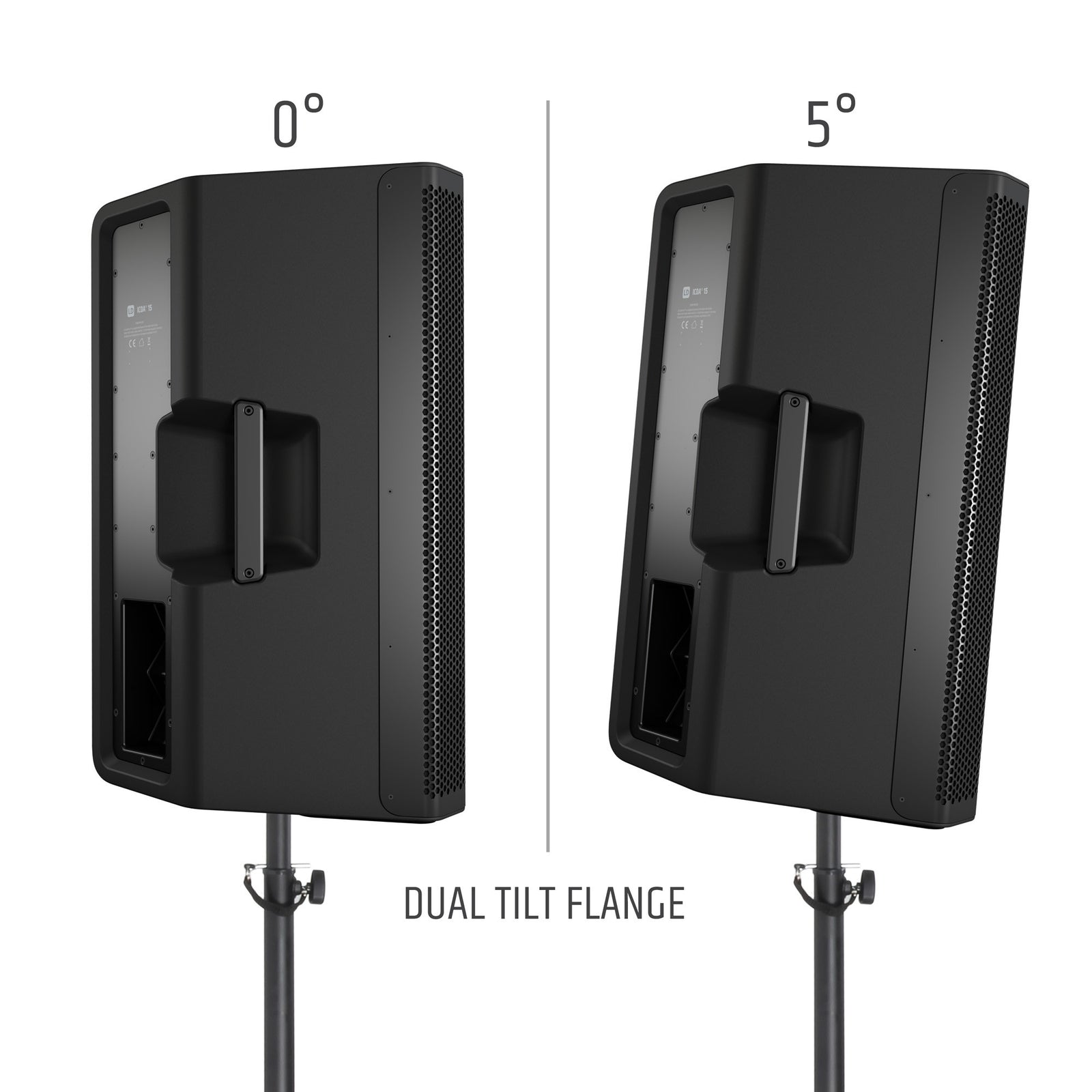

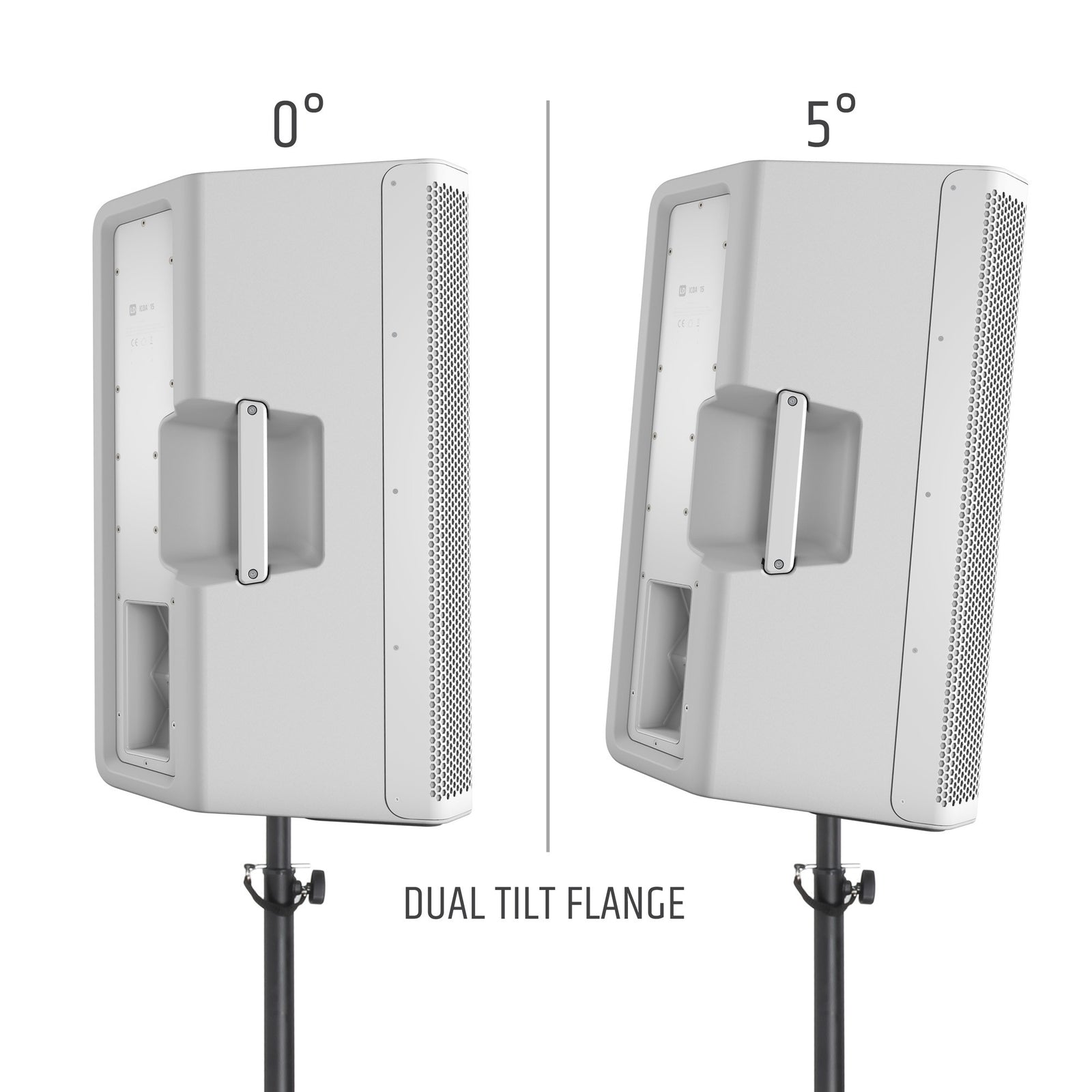

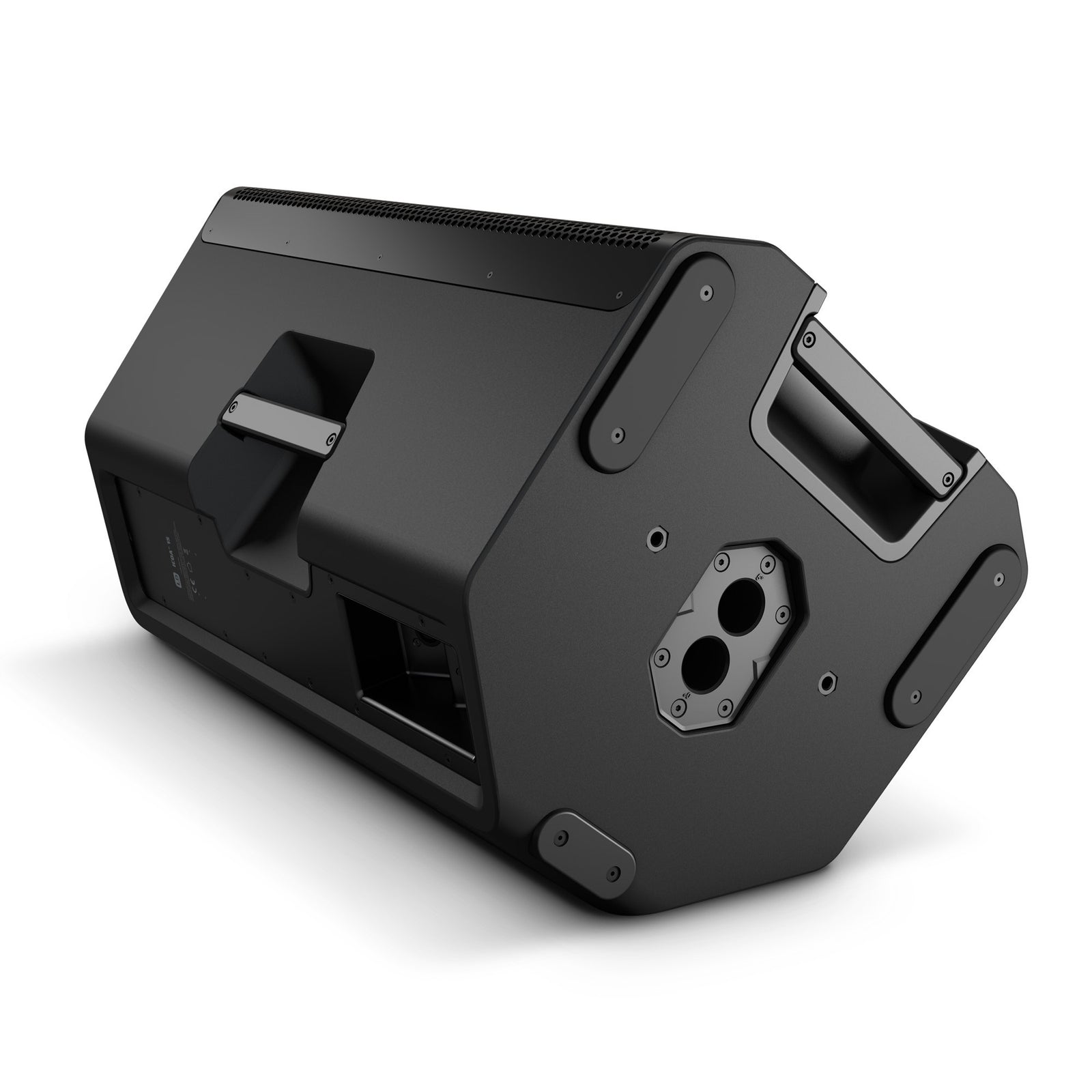

- 36 mm dual tilt stand attachment with 0° and 5° tilt angle, 55° monitor angle with sturdy stand

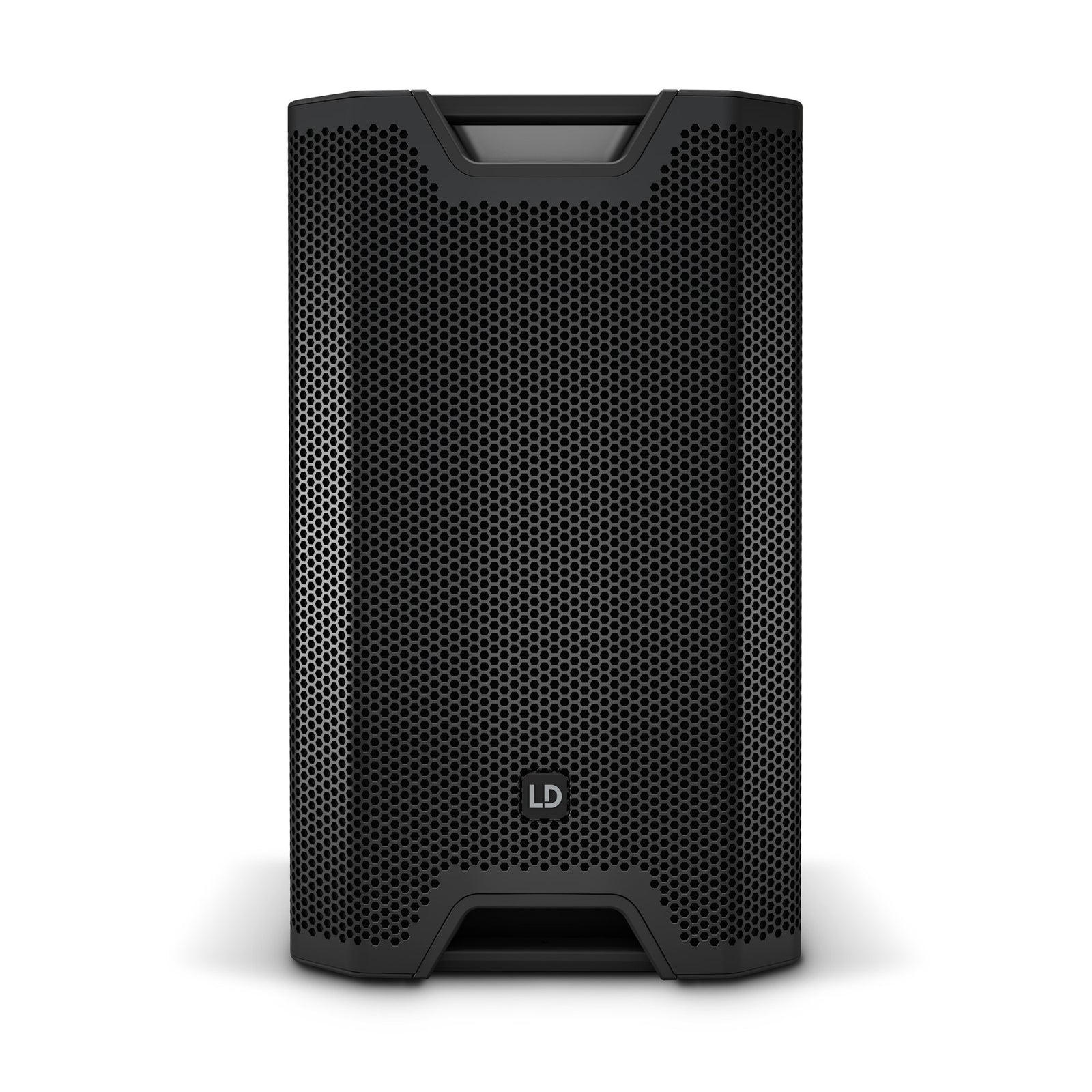

- Shock-resistant front grille for optimal speaker protection

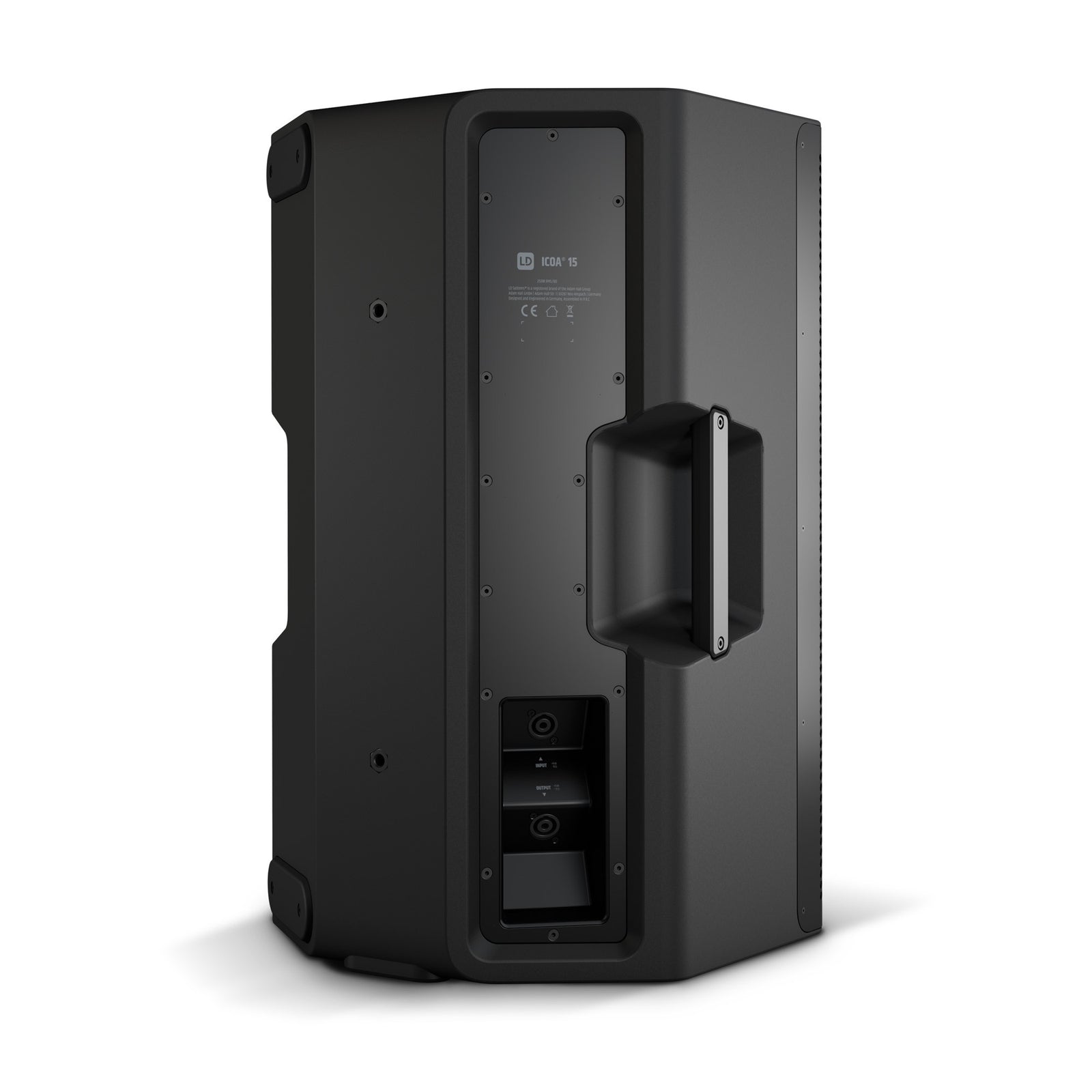

- Four aluminium grips with ergonomic, rubber surface
- Extensive range of optionally available accessories for installation and transport
Specifications
|
Product type |
PA loudspeaker |
|
Type |
Passive |
|
Low/mid driver dimensions |
15 " |
|
Woofer size |
381 mm |
|
Woofer magnet |
Ferrite |
|
Woofer brand |
Custom-made |
|
Horn |
BEM optimized CD Horn |
|
HF driver dimensions |
1 " |
|
HF Driver Size |
25.4 mm |
|
HF driver magnet |
Ferrite |
|
HF driver brand |
Custom-made |
|
HF driver voice coil |
1 " |
|
HF Driver Voice Coil |
25.4 mm |
|
Dispersion (H x V) |
90 ° x 50 ° |
|
Load rating (RMS) |
250 W |
|
Peak power |
1000 W |
|
Frequency response |
48 - 20000 Hz |
|
Crossover frequency |
2000 Hz |
|
SPL (1W/1m) |
95 dB |
|
Max. SPL |
125 dB |
|

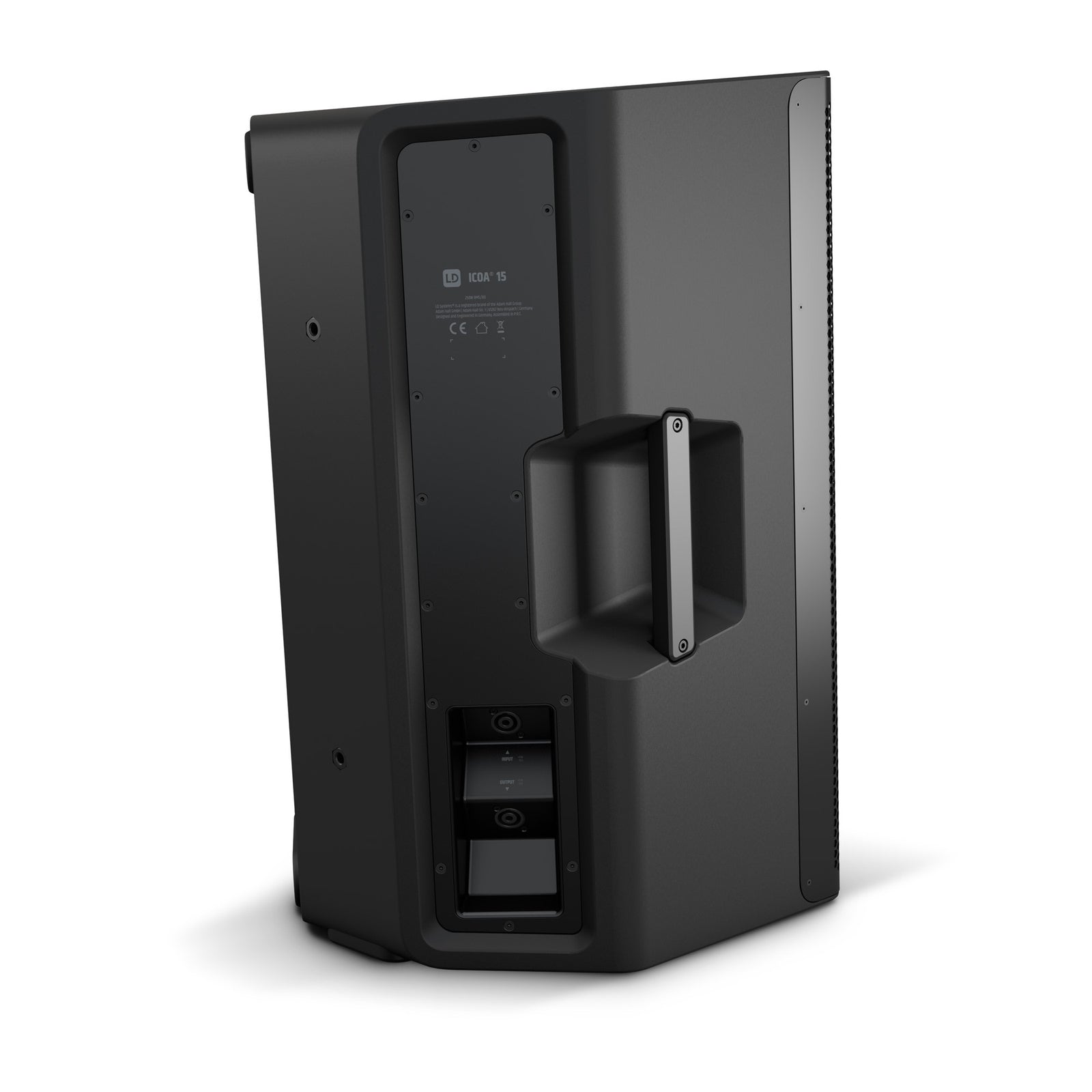

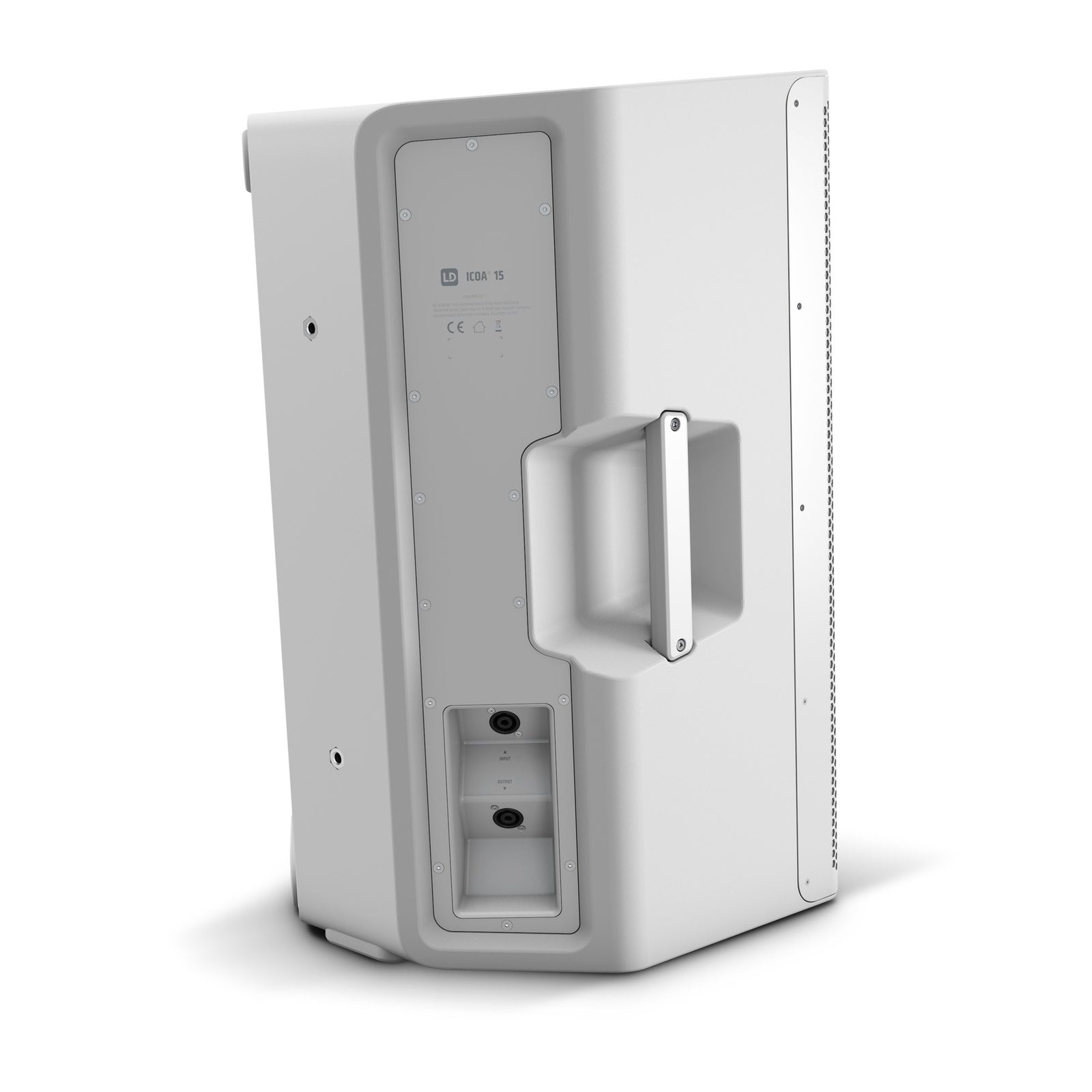

Loudspeaker inputs |
1 |
|
Speaker input connections |
Speakon compatible |
|
Loudspeaker outputs |
1 |
|
Speaker output connections |
Speakon compatible |
|
Cabinet material |
Polypropylene |
|
Cabinet construction |
Bass Reflex |
|
tripod flange |
0° and 5° , 36mm flange |
|
Monitor angle |
55 ° |
|
Width |
416 mm |
|
Height |
695 mm |
|
Depth |
415 mm |
|
Weight |
24,7 kg |
