The 24 channel BBR1A multi-track ADAT recorder brings the benefits of multi-track audio capture with the BLACKBOX Recorder to digital desks and D-A converters which are equipped with Lightpipe (TOSlink) inputs and outputs.
Three 8-channel Lightpipe inputs can be connected from the mixer while three Lightpipe outputs can return the signals back to the mixer. All other BLACKBOX multi-track recorder features remain unchanged, and the full analogue I/O capability of the standard BBR1 is still available for situations where the Lightpipe interface is not suitable.
All BLACKBOX recorders are designed and built to exacting standards with rugged construction and a suite of unique features. The choice of professional users, the BBR1A multi-track recorder is the solution the professional audio industry chooses and trusts. For more information, see below to download the BLACKBOX ADAT Recorder brochure, for full information on the entire BLACKBOX range.
Note: Due to limitations in the Lightpipe format, use of this option restricts 24-track recording to single speed sample rates (44.1kHz and 48kHz). At double sample rates the unit employs the SMUXII protocol reducing the I/O count to 12 channels. However, the full 24/24/96kHz facility is still available in the analogue domain.
iXML Option:
iXML support is now available for the BLACKBOX RECORDER. iXML is an open standard developed to simplify the transfer of recorded digital audio files through the post production process. Invaluable to both sound recordists and post production personnel in the film and broadcast industry, it allows for the inclusion of location sound metadata in Broadcast WAV audio files, ensuring that important information which would have traditionally been noted on the tape box does not get separated from the audio it pertains to. This includes data like Scene, Take and Notes information, which can be logged during location sound recording in the film and TV industry and subsequently utilised by post production editors.
When enabled for iXML, the BLACKBOX RECORDER allows the user to enter and edit typical iXML data fields, which are accessed via the main menu. A standard QWERTY keyboard can be connected to the recorder for rapid data entry, with most frequently used items accessible via a series of keyboard shortcuts. The iXML menu consists of three screens that enable the user to include a range of location sound metadata in Broadcast WAV files, from project names through to scene, take and notes information. The data is then embedded into the BWAV file at the end of the recording to be recalled later in the production chain.
The iXML implementation also enables the BLACKBOX RECORDER to remember different headphone monitor mixes that have been set up during the recording process. This data is stored as part of the iXML chunk in the Default Mix section, allowing the user to quickly refer to an earlier recording, for example a previous scene that may have had different monitoring requirements. It is also possible to adjust the monitor mix via standard MIDI controllers. A further benefit of the iXML implementation is the ability for the recorder to capture PolyWAV files (in addition to standard mono BWAVs). This feature enables TV and film location recordists to better serve the needs of post production facilities, or systems where audio material is ingested in single large files.
BBR1A

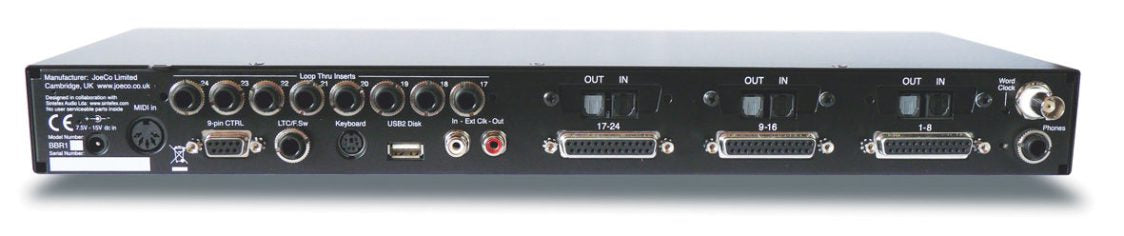

Lightpipe i/o via 3 x TOSLINK inputs and 3 x TOSLINK outputs (24 channels @ 48k, 12 channels @ 96k). Word clock input on BNC. Unbalanced analogue as BBR1U (cable looms not supplied).
Loop through outputs as BBR1U available on analogue i/o only. Other connectors as BBR1U.
