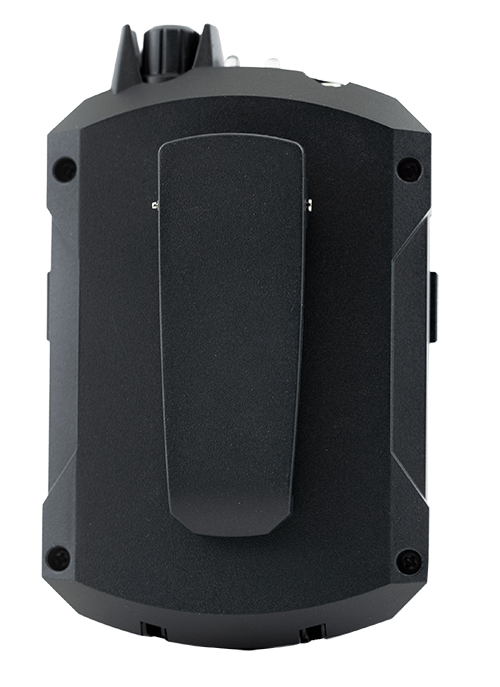

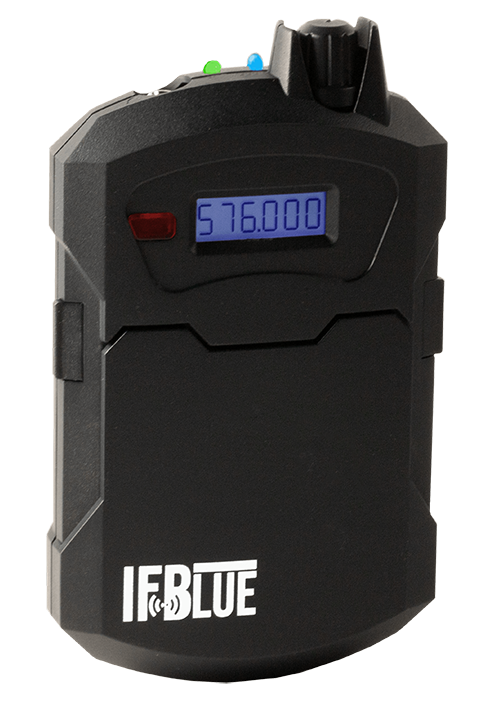

IFBlue IFBR1C IFB Beltpack Receiver

IFBlueSKU: IFBR1C-1

Frequency Band: VHF (174-216 MHz)
Price:
Sale price €449.00

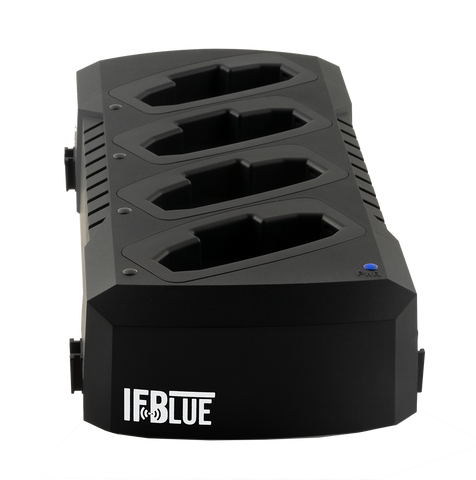

The IFBlue receiver provides simplicity and flexibility in a tough package that is intuitive for untrained users to operate. In spite of its small size, the receiver pack offers excellent performance and convenience. The dock charging feature and supplied rechargeable batteries make daily use a snap, while 10 programmable preset frequencies give you excellent flexibility on set or in the studio.

The IFBlue receiver pack is offered in five different frequency ranges to match existing T4 transmitters: VHF (174-216 MHz), A1 (470-537 MHz), B1 (537-614 MHz), C1 (614-692 MHz) and 941 (941-960 MHz).Transmitters available from Lectrosonics include the IFBT4, IFBT4-VHF, or any Digital Hybrid Wireless transmitter in IFB compatibility mode.

Features:

  • PRESETS: Stores up to 10 frequency presets in memory
  • INTERFACE: LCD interface for programming and operation
  • RANGE: High sensitivity for extended operating range indoors or outdoors
  • CONNECTIVITY: USB port for firmware updates
  • DURABLE: Compact, rugged injection moulded ABS housing

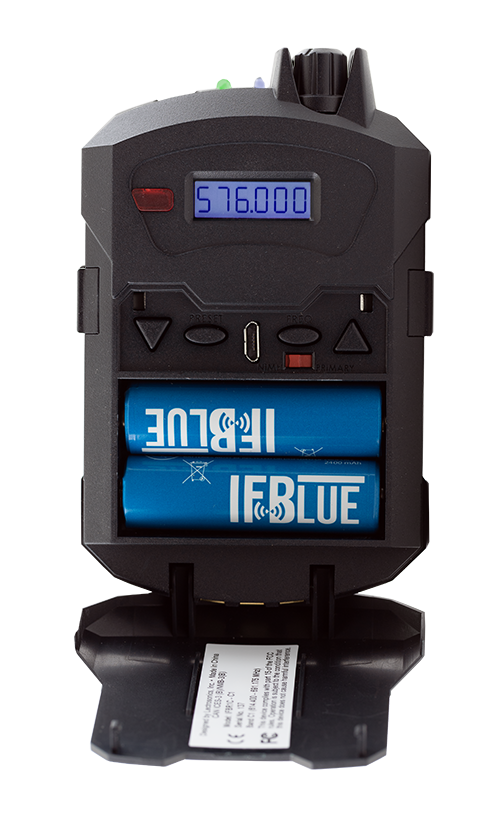

  • POWER: 2 AA batteries; alkaline, lithium, or NiMH rechargeables (supplied)

Operating Frequencies (MHz):


Band A1: 470.100 - 537.575
Band B1: 537.600 - 614.375
Band C1: 614.400 - 691.175

NOTE: It’s the user’s
responsibility to select
the approved frequencies
for the region where the
transmitter is operating.
Block 941: Locale - - Locale CA
941.525 - 951.975
952.875 - 956.225
956.475 - 959.825

941.525 - 951.975
953.025 - 956.225
956.475 - 959.825

VHF: 174.100 - 215.750


Frequency Selection Steps:

25 kHz, selectable; VHF: 125 kHz

Sensitivity:

1 uv (20 dB SINAD)

Signal/Noise ratio:

95 dB A-weighted

Squelch quieting:

90 dB

AM rejection:

50 dB, 10 uV to 100 mV

Modulation acceptance:

±20 kHz

Spurious rejection:

Greater than 70 dB

Operating temperature range:

-20 to 50 degrees C.

Third order intercept:

0 dBm

Frequency response:

100 Hz to 10 kHz, (+/-1 dB)

Audio output:

1V RMS into 50 ohms minimum

Antenna:

Headphone cable

Min. headphone impedance:

16.0 Ohms

Programmable memory:

10 frequencies can be stored as presets

Controls:



Top Panel:

Single knob controls Audio Output Level and Power On

Side Panel:

Membrane switches with LCD interface for Frequency Selection and Preset function

Indicators:

Multi-color LED indicator for power on and battery status

Battery:

Two AA batteries

Battery Life:

10+ hours (Alkaline)

12+ (NiMh)

20+ (Lithium)

Current consumption:

120 mA

Weight:

4.6 oz (130 g) with batteries

Size:

4.25 x 2.75 x 1.125 in.
  108 x 70.0 x 28.5 mm
