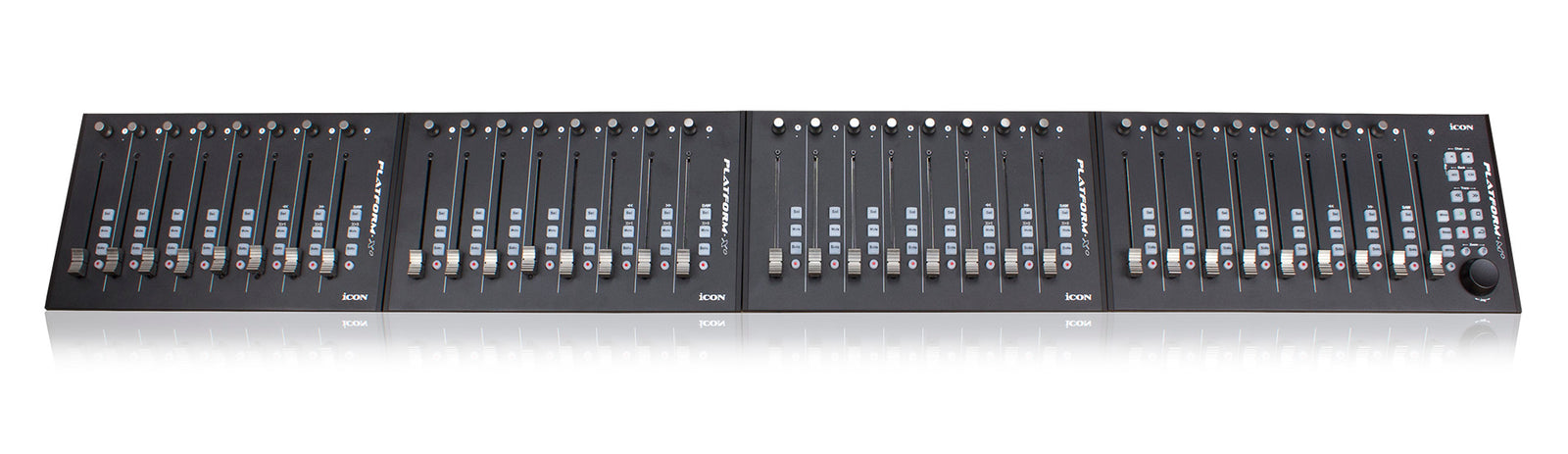

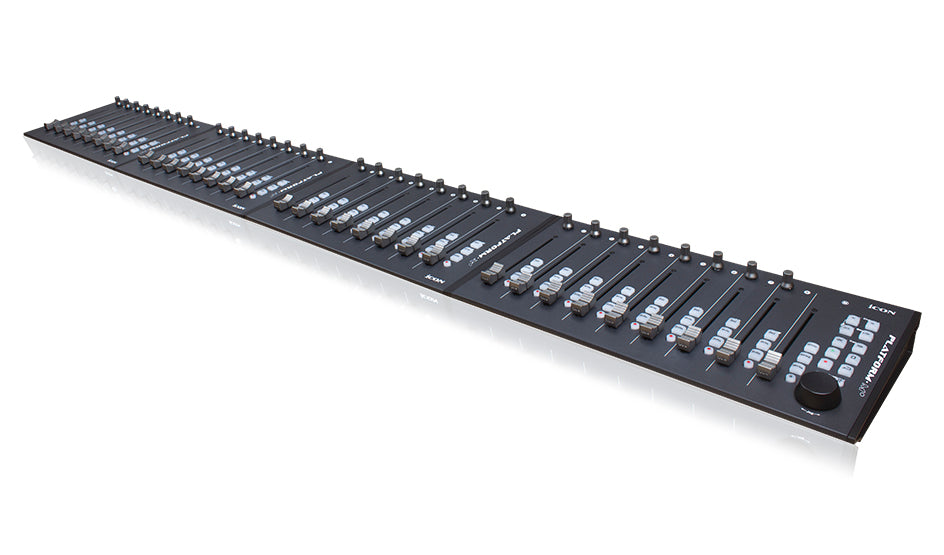

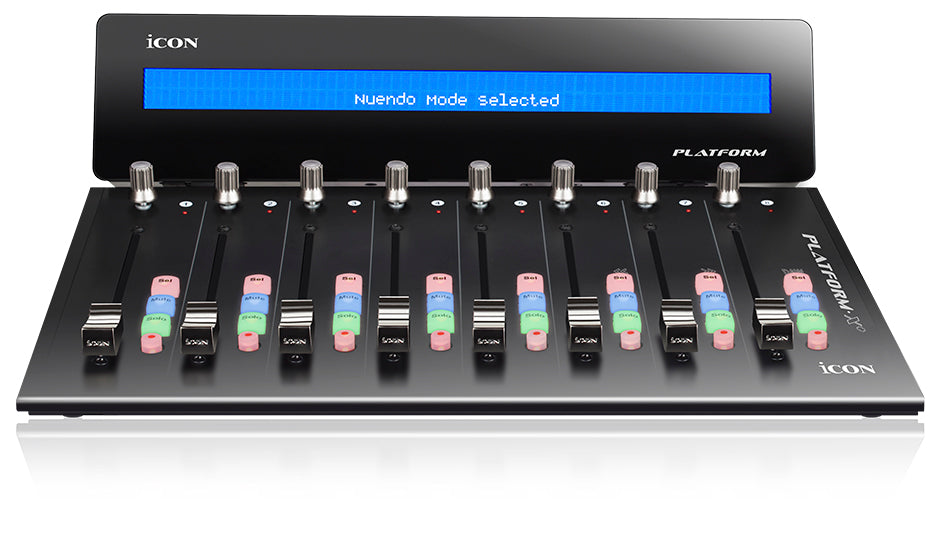

Expand your Platform M+ modular DAW control system by up to 32 channels using up to three Platform X+ units from iCON Pro Audio. Each Platform X+ houses eight touch-sensitive motorised channel faders with 10-bit resolution, eight dual function encoder knobs, and mute, solo, select, and record buttons. The iCON universal DAW mode on Platform X+ controls Cubase, Nuendo, Samplitude, Logic Pro, Studio One, Bitwig, Reason, Sonar, Digital Performer, Reaper, FL Studio, Adobe Audition, Ableton Live, and Pro Tools. Add the optional Platform D2 display to better view track names and parameters.
FEATURES
- 8-channel extender for Platform M+ (TM)
- Expandable to 32-channels control surface with 3 units of Platform X+ and a Platform M+
- Extremely compact, durable and versatile
- Customise the perfect setup with a variety of Platform extension modules
- 8 touch-sensitive motorised faders with 10-bit resolution
- 8 dual-functions encoder knobs (Rotate and enter)
- Illuminated buttons for each channel including Sel, Mute, Solo and Record
- Controls most popular DAWs including Cubase, Nuendo, Samplitude, Logic Pro, Bitwig, Studio One, Ableton Live, Pro Tools, Reason, Sonar, FL Studio, Digital Performer, Reaper and Adobe Audition
- iMapTM software included for easy mapping of MIDI functions
- Firmware upgrade available simply via USB connection and iMap software
- Class-compliant with Windows XP, Vista (32-bit), Windows 7 (32-bit & 64-bit),Windows 8 (32-bit 7 64-bit), Windows 10 and Mac OS X (IntelMac)
- USB 2.0 high speed connectivity
- Superior build quality and robust metal casing with Kensington lock port
- 12V/2.5A power adapter included
OS COMPATIBILITY
| iOS 7-11 | Yes |
| Mac OS 10.8(Intel CPU/32-bit) | Yes |
| Mac OS 10.8(Intel CPU/64-bit) | Yes |
| Mac OS X 10.9 | Yes |
| Mac OS X 10.10 | Yes |
| Mac OS X 10.11 | Yes |
| Mac OS X 10.12 | Yes |
| Mac OS X 10.13 | Yes |
| Windows XP (32-bit) | Yes |
| Windows XP (64-bit) | Yes |
| Vista (32-bit) | Yes |
| Vista (64-bit) | Yes |
| Windows 7 (32-bit) | Yes |
| Windows 7 (64-bit) | Yes |
| Windows 8 (32-bit) | Yes |
| Windows 8 (64-bit) | Yes |
| Windows 10 (32-bit) | Yes |
| Windows 10 (64-bit) | Yes |
TECH SPECS
| Connector | To computer: USB connector |
| Power supply | 12V2.5A DC |
| Current consumption | 2.0A or less |
| Weight | 1.53kg (3.37lb) |
| Dimensions | 335(L) x 198(W) x 55(H)mm |
| Dimensions | 13.2”(L) x 7.8”(W) x 2.2”(H) |
