Hear Back’s OCTO Mixer allows control of up to eight individual channels as well as a master volume to control the user's overall level. Powered by state-of-the-art 24-bit DA converters, the Mixer integrates seamlessly into Hear Technologies’ Hear Back OCTO range via lightning fast Cat5e/6 RJ45 connectivity. Balanced line outs are available with a mono/stereo link and an extra auxiliary input allows for mixers to be expanded, or accommodates the addition of an extra instrument (e.g. metronome) where required.
The OCTO Mixer features intelligent fault monitoring and alerts users whenever bus status or headphone amplifier channels are not working correctly. The unit can also be fully stand mounted using any microphone stand featuring a universal thread.
Main Features

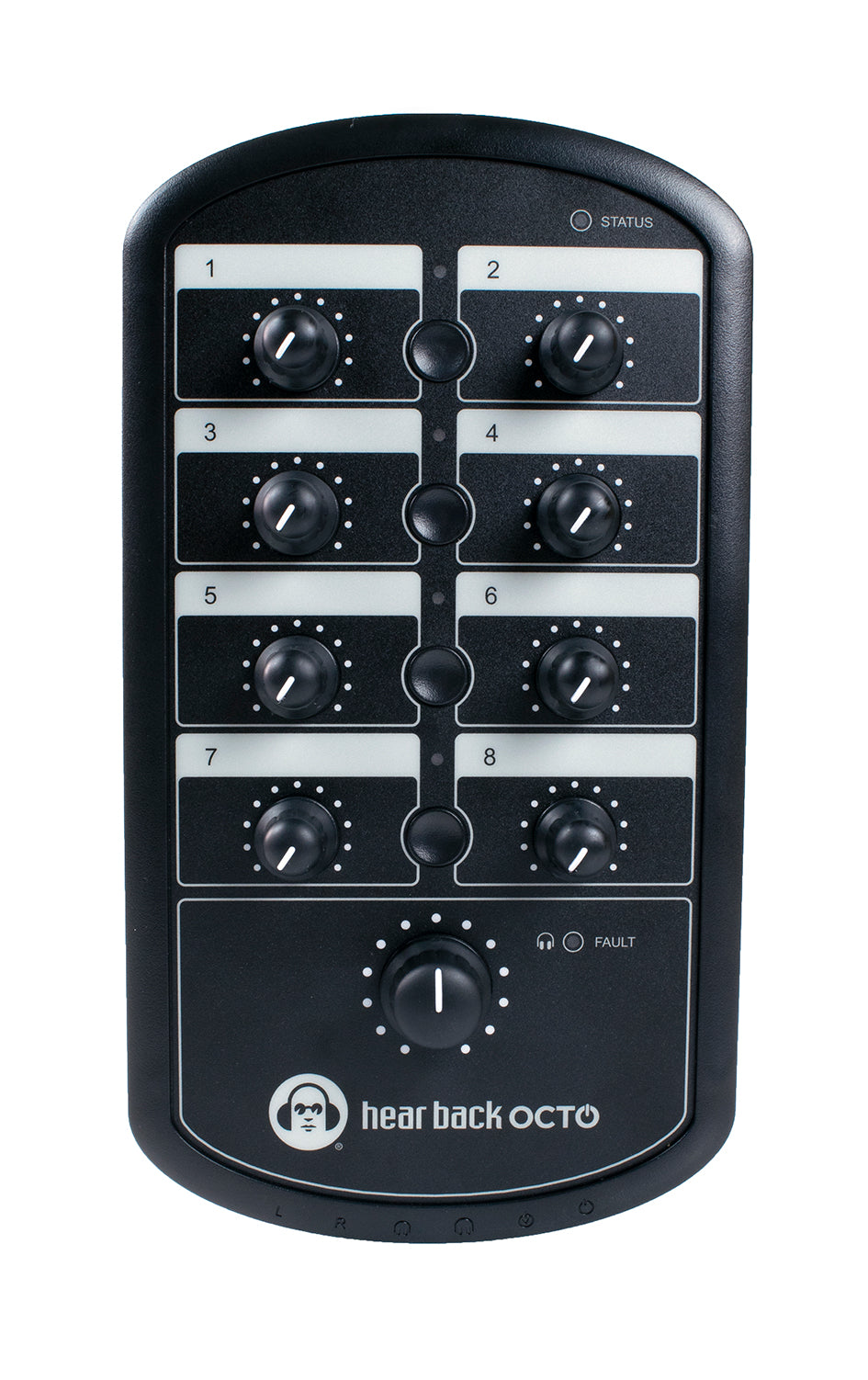

- Local control of up to 8 channels
- Local master volume control
- 24-bit D/A conversion

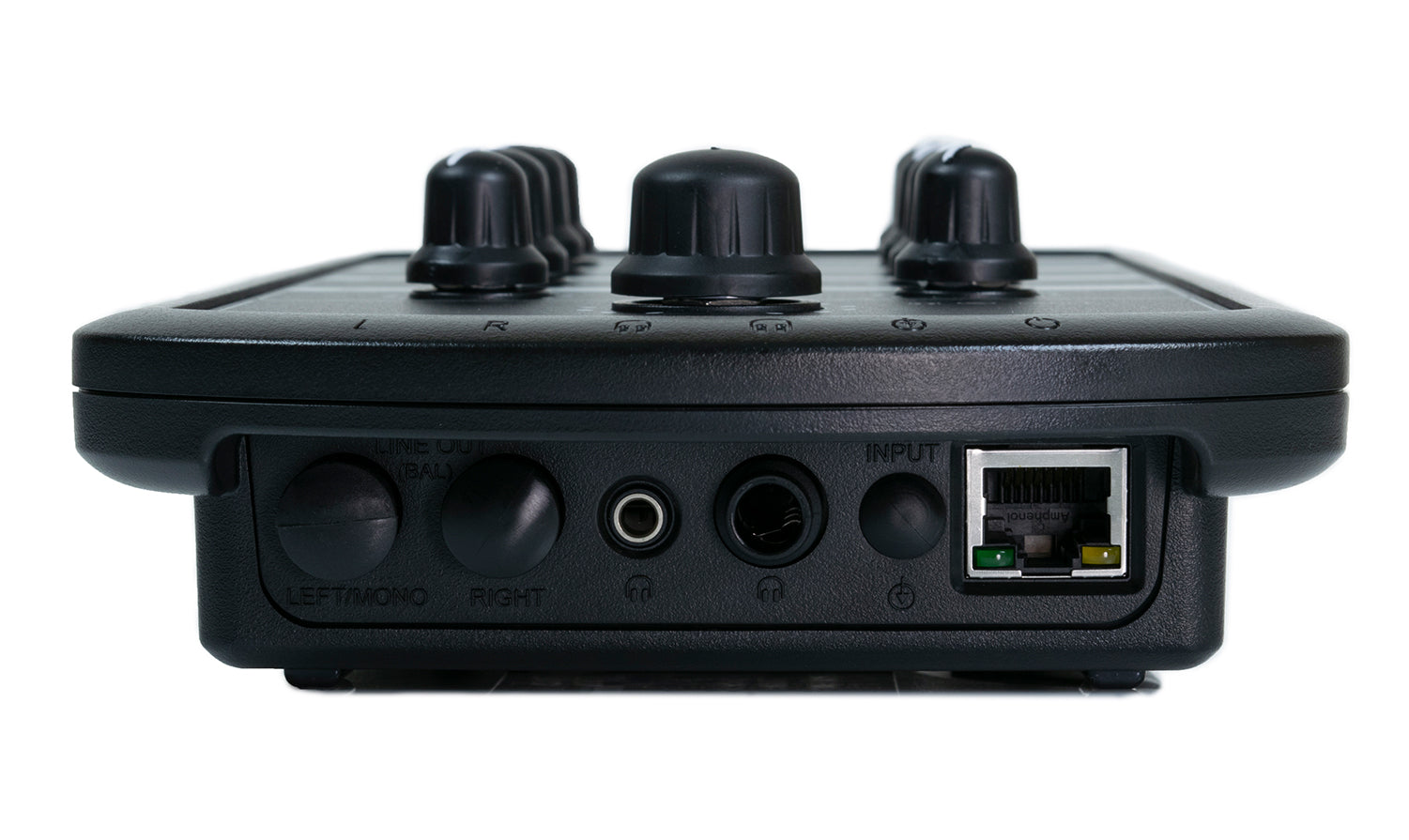

- Balanced line outs
- Mono/stereo link
- Mini-jack stereo auxiliary input

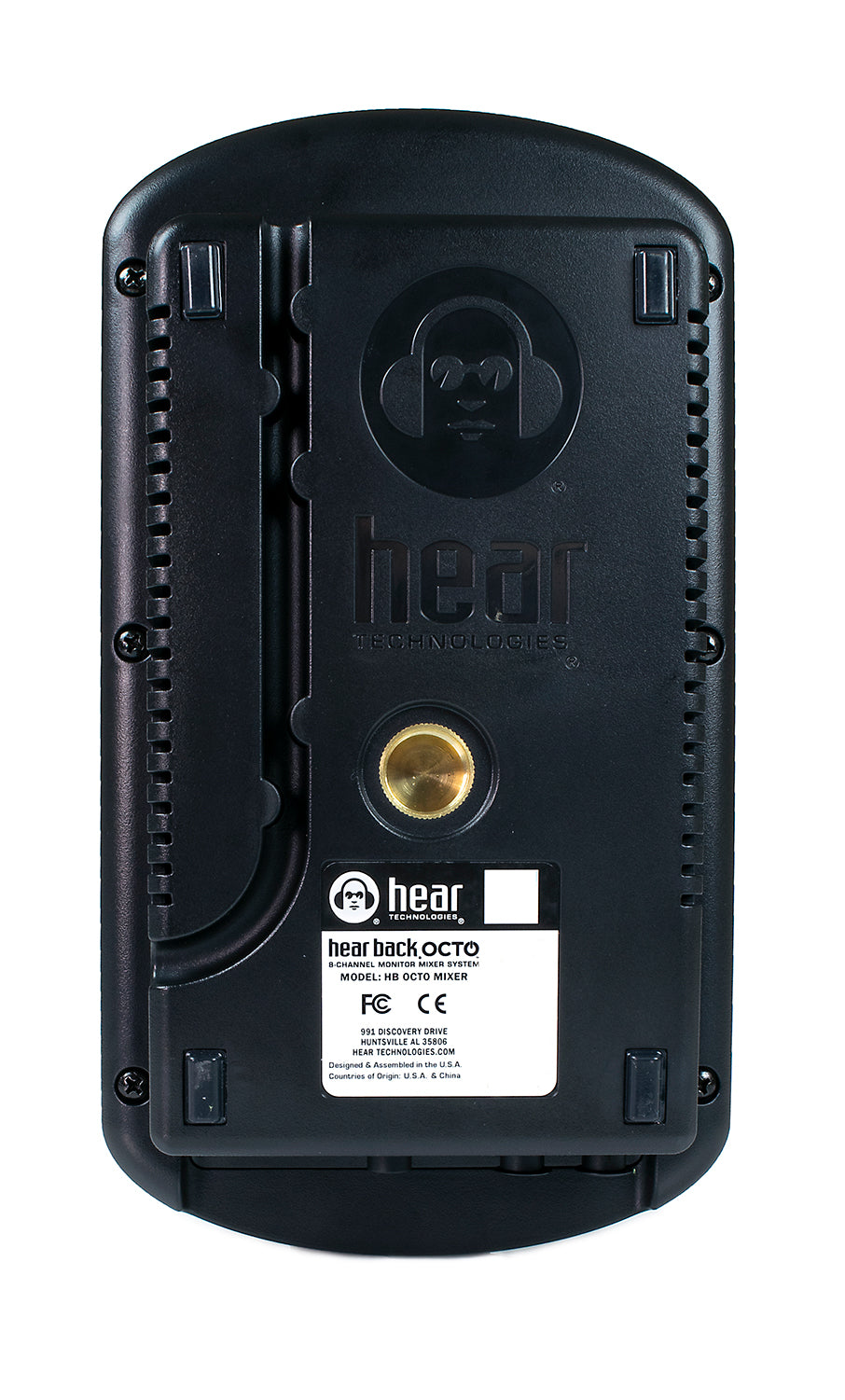

- Microphone stand mountable
- Connects to hub via Cat5e/Cat6 via RJ45 ports
- Bus status/headphone amplifier fault indicators
|
Mixer Aux Input |
||
|
Line Input Configuration / Impedance: |
Stereo, unbalanced, 10 Kohms typical |
|
|
Line Input Level: |
+4 dBu optimal, +22 dBu max |
|
|
Mixer Headphone Power (Per Channel) |
||
|
Load Impedance: |
THD less than 0.01%* |
THD less than 0.1% |
|
8 Ohms: |
342 mW |
412 mW |
|
16 Ohms: |
731 mW |
783 mW |
|
25 Ohms: |
1.07 W |
1.25 W |
|
32 Ohms: |
1.37 W |
1.6 W |
|
50 Ohms: |
1.26 W |
1.88 W |
|
100 Ohms: |
971 mW |
1.03 W |
|
200 Ohms: |
512 mW |
537 mW |
|
600 Ohms: |
185 mW |
190 mW |
|
IMD: |
Typically Less than 0.02% |
|
|
Mixer Line Output |
||
|
Freq Response: |
20 Hz to 20 KHz, +/-0.16 dB |
|
|
THD+N: |
0.004% typical at 1 kHz, +18 dBu |
|
|
|
0.008% typical, 20 Hz - 20 kHz, +4 dBu |
|
|
IMD: |
0.02% typical at +4 dBu, 60 Hz / 7 kHz |
|
|
Crosstalk: |
Less than -85 dB @ 1 kHz |
|
|
Latency: |
Less than 1.5 mSec |
|
