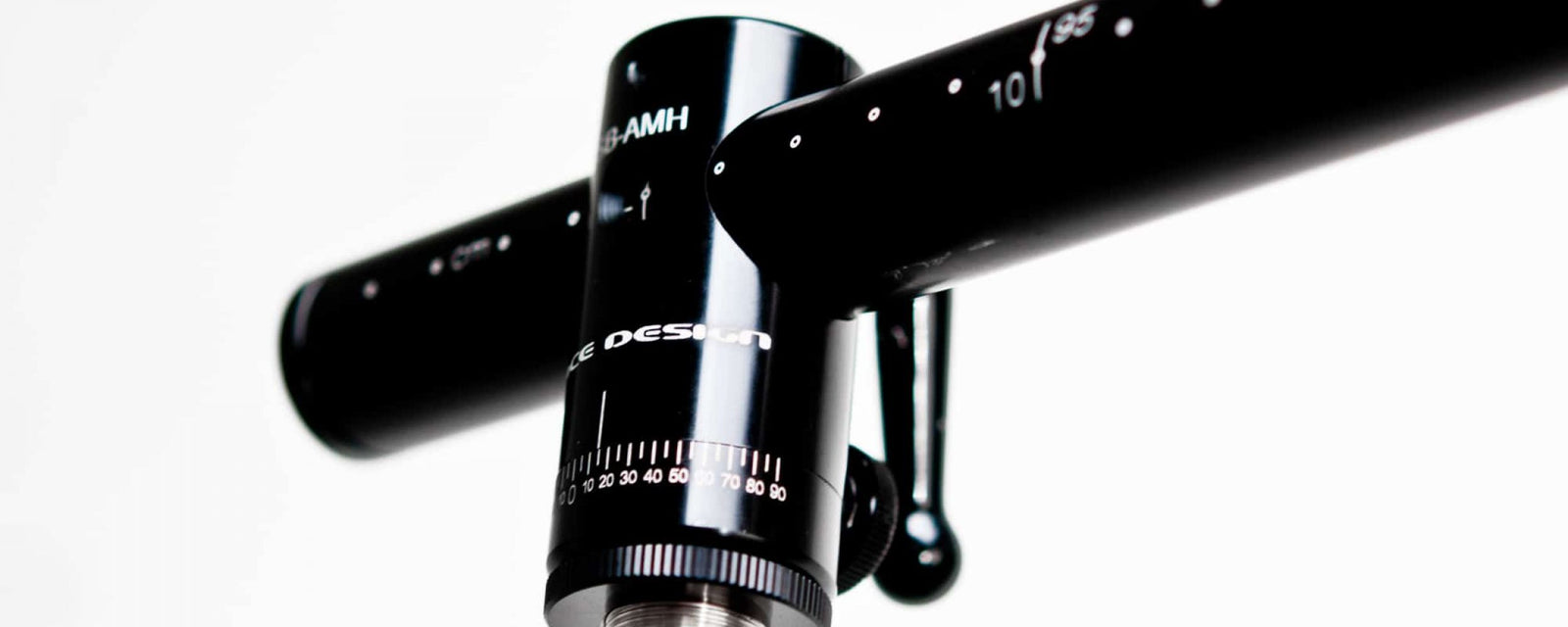

5 channel surround tree kit, 1m x 1m x 0.5m. Includes 5 x SB-AMH adjustable mic holders.

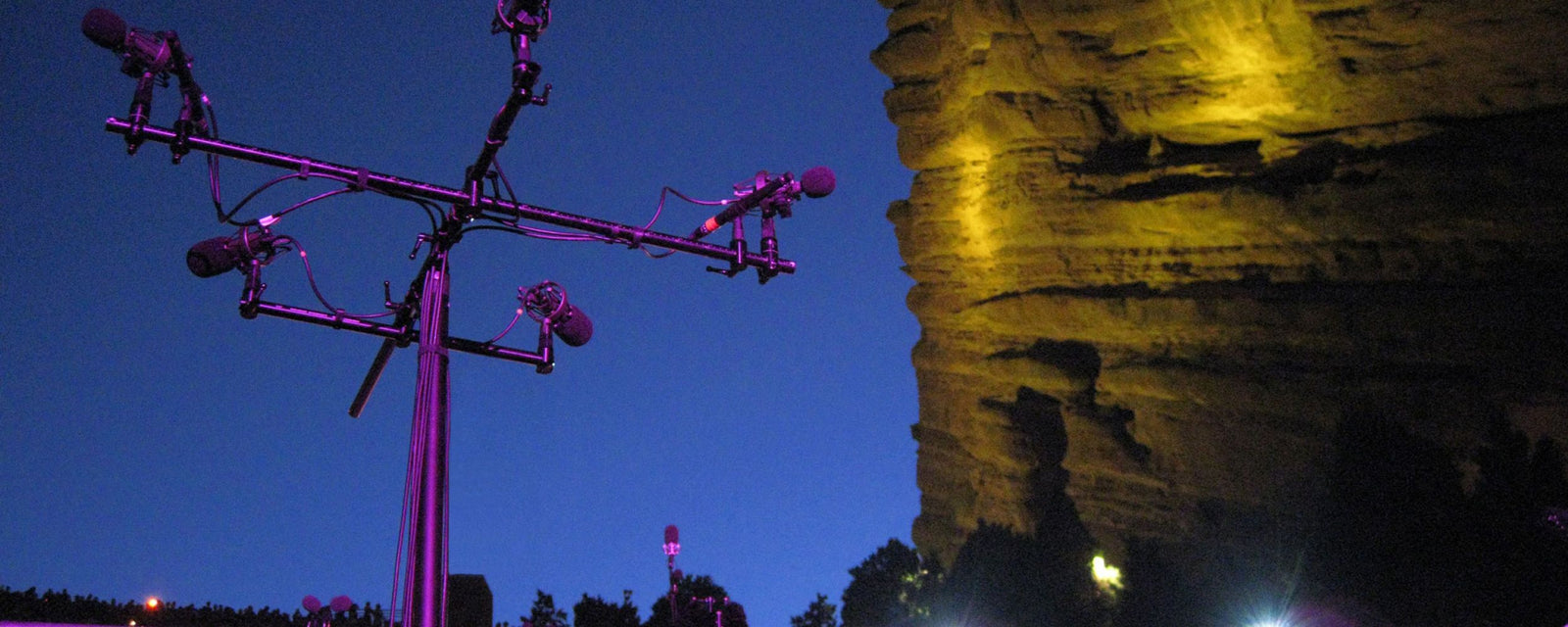

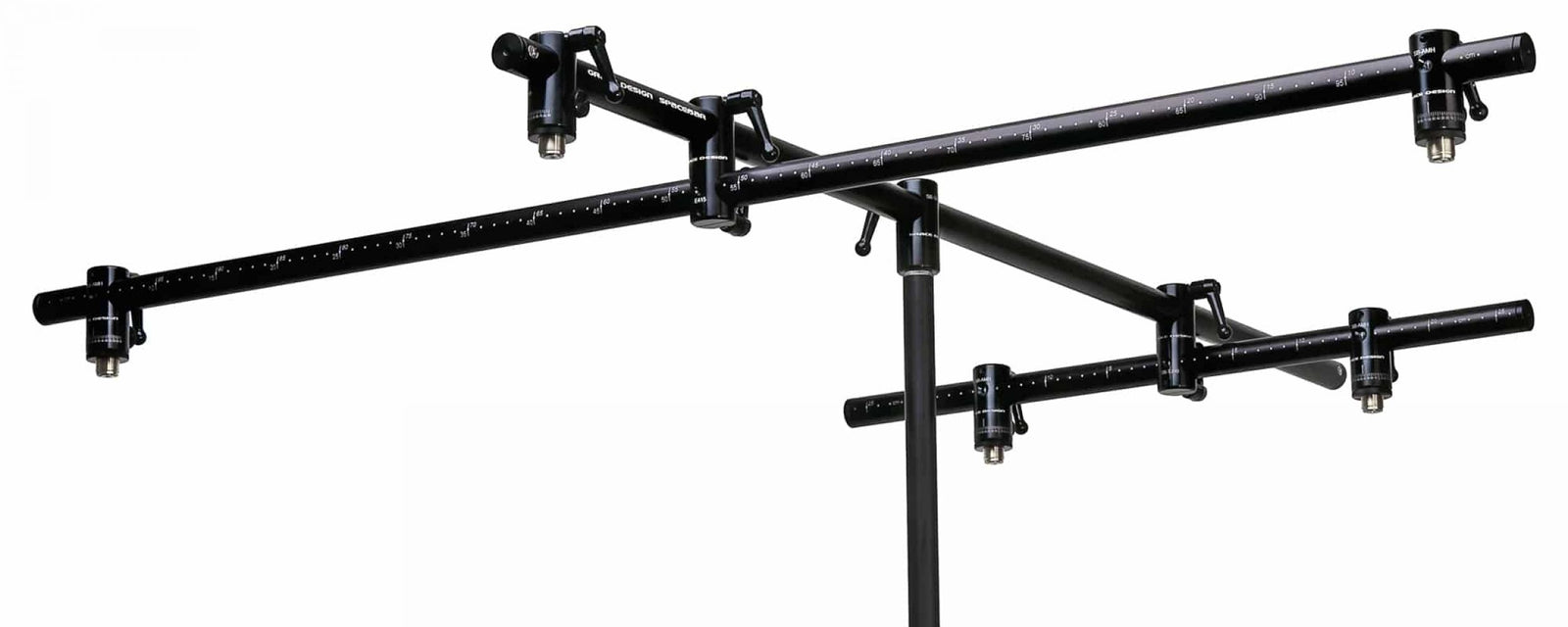

The SB-SUR system allows for mounting of 5 microphones. In its standard configuration three microphones can be mounted as a “front triplet” and two microphones can be mounted as a rear pair. All microphone spacings can be precisely adjusted using the engraved centimetre scales on the bars. Also, all microphone angles of incidence can be precisely adjusted in 5 degree increments.
The front left and right microphone holder spacing can be adjusted from 6cm to 102cm if using the E420 105cm bar and 6cm to 50cm E407 53cm bar.
Spacebar modular microphone positioners are designed to make any multi-microphone setup simple and precise. Clearly engraved scales for angle and distance make setting capsule spacing, angle of incidence, and X axis rotation easy and repeatable.
The Spacebar modular system components can be purchased in pre-configured assemblies for several standard microphone arrays, or you may build a virtually limitless range of microphone holding structures to meet any need.
All components which feature microphone mounts come with American standard 5/8-27 threads, or can be ordered with European standard 3/8-16 Whitworth threads.
The Spacebar modular system components are precision fabricated from machined aircraft aluminium, brass, and stainless steel. They are light, strong, and if properly cared for will last a lifetime.
Thorough technical, setup and maintenance instructions can be found in the Manual in the Downloads section.
See User Manual in Downloads
