Grace Design SB-DT Decca Tree Kit

Grace DesignSKU: SB-DT

Thread Type: Standard 5/8-27 (USA)
Price:
Sale price €1,099.00

Decca tree kit, 2m x 1m. Includes 3 x SB-AMH adjustable mic holders.

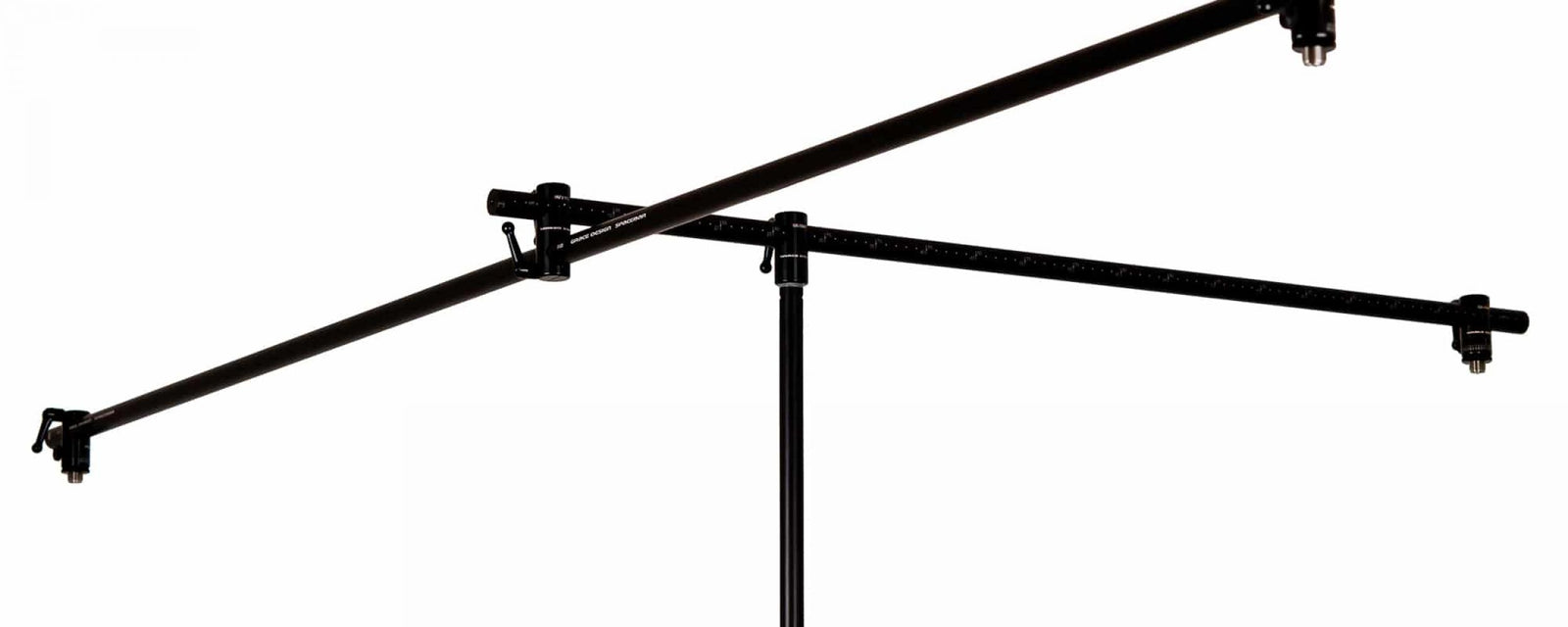

This classic microphone configuration was developed by Decca Records engineers in the 1950s. The Spacebar Decca Tree configuration provides a simple, precise, and easy to set up solution for this technique. The standard Spacebar Decca Tree comes with three E420 1 meter tubes, an SB-SMA 5/8”-27stand mount adapter and three SB-AMH adjustable mic holders. These are configured to provide a 2 meter spacing between left and right microphones and a centre microphone 1 meter forward. Since the stand mount adapter can move front to back on the 1 meter tube it should be located at the balance point for maximum stability.

Spacebar modular microphone positioners are designed to make any multi-microphone setup simple and precise. Clearly engraved scales for angle and distance make setting capsule spacing, angle of incidence, and X axis rotation easy and repeatable.

The Spacebar modular system components can be purchased in pre-configured assemblies for several standard microphone arrays, or you may build a virtually limitless range of microphone holding structures to meet any need.

All components which feature microphone mounts come with American standard 5/8-27 threads, or can be ordered with European standard 3/8-16 Whitworth threads.

The Spacebar modular system components are precision fabricated from machined aircraft aluminium, brass, and stainless steel. They are light, strong, and if properly cared for will last a lifetime.

Thorough technical, setup and maintenance instructions can be found in the Manual in the Downloads section.

See User Manual in Downloads
