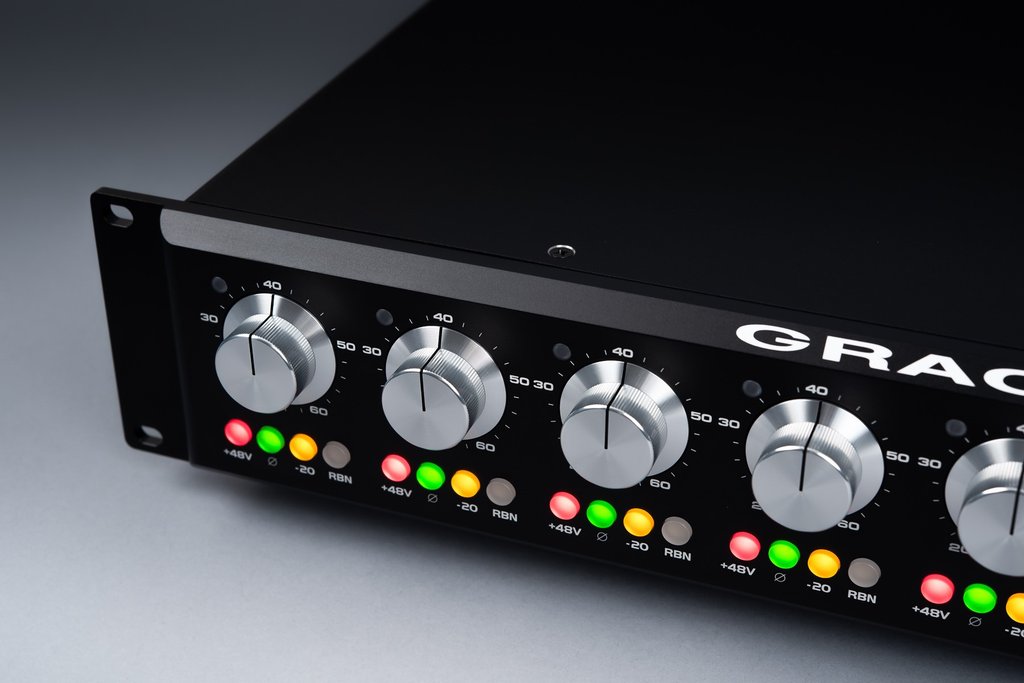

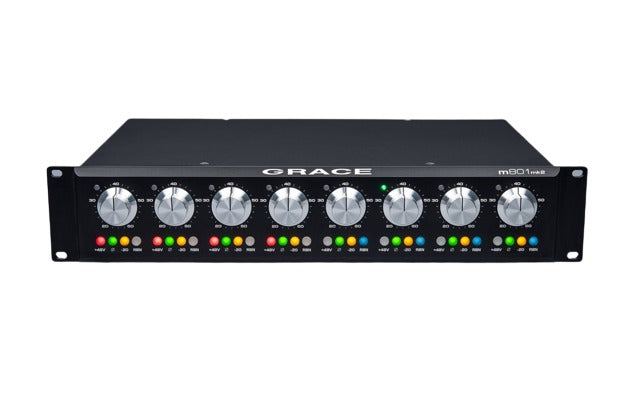

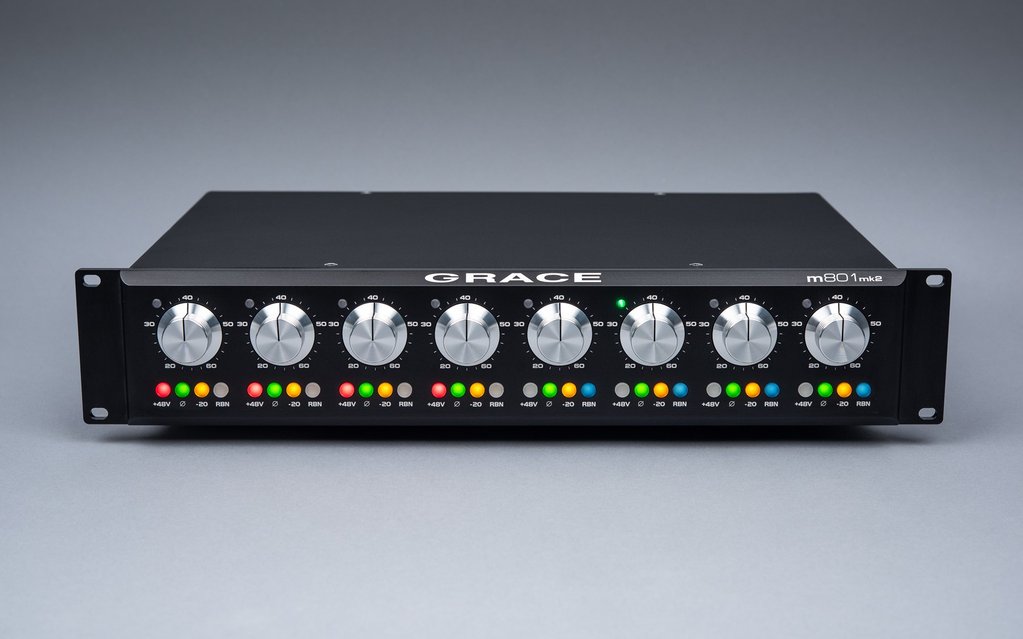

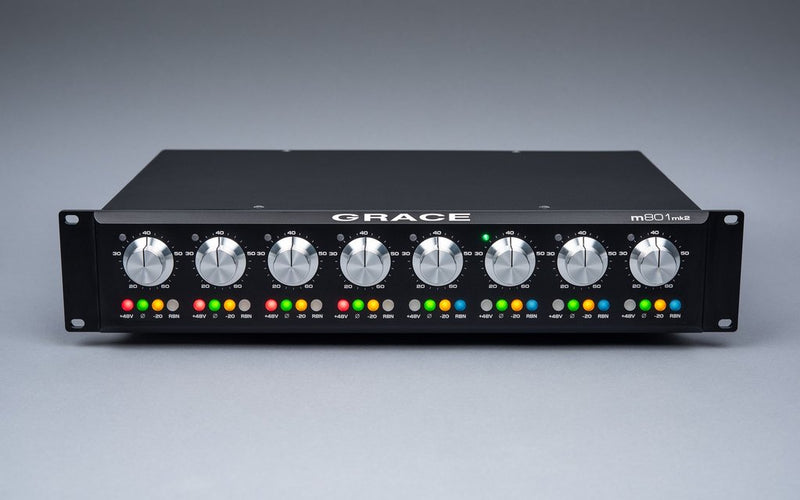

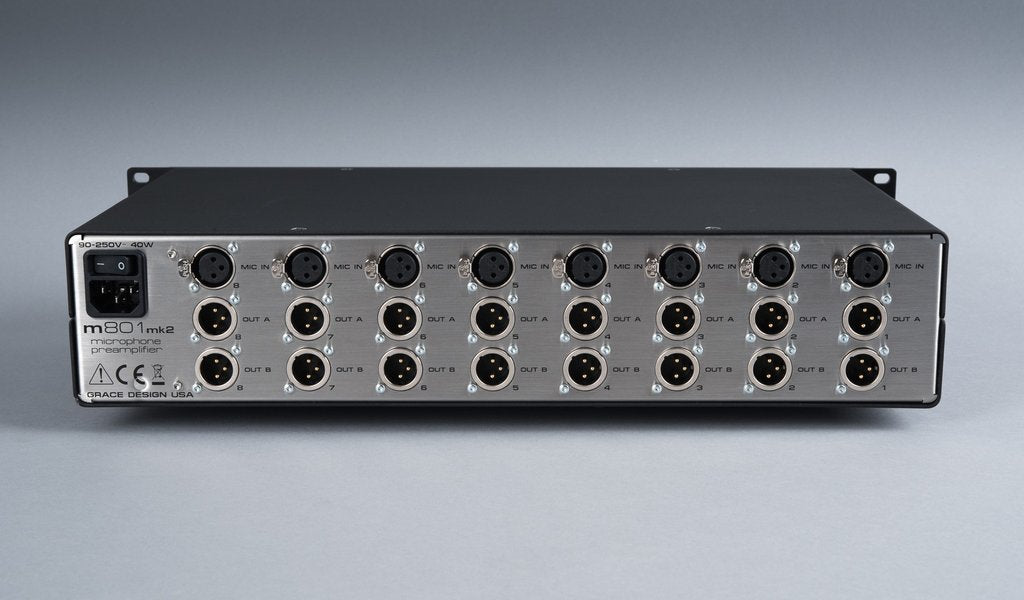

Grace Design m801 mk2 8-Channel Microphone Preamp

Grace DesignSKU: m801mk2

Price:
Sale price €5,699.00

In 1994 we released the Model 801 microphone preamplifier,¹ which was the first production model for Grace Design. It set a new standard of sonic quality and reliability for microphone preamplifiers, providing much better performance than the built-in circuits in the recording consoles of the day. It featured independent circuit boards for each channel, gold contact rotary gain controls wired with precision metal film resistors, a musical sounding transimpedance (current feedback) gain stage, gold contact sealed relay signal switching, and there were NO electrolytic capacitors in the signal path.²

12 years later, we released the next generation of this preamplifier, renamed the m801,³ which refined the design features of the previous version, and added a fully differential signal path and Ribbon Mic mode, which optimised the signal path for low output ribbon microphones.

Now 20 years later, the next generation is here, now named the m801mk2. Newly designed amplifier circuitry adds to the features of the previous versions while significantly improving noise performance at low gains, increasing low frequency bandwidth for improved phase response, improving RFI/EMI immunity for today’s ever noisier world,⁴and eliminating the external DC power supply for a cleaner, simpler design.⁵

Today’s modern recording studio is invariably loaded with incredible sonic processing capability, making the opportunity to add great sounding colour routine. But capturing the magic at the front end is still the job of skilfully designed analog hardware, for which there is no substitute. This makes our preamps more relevant than ever. If your source sounds great and your mic is plugged into the m801mk2, you’ll be rewarded with a recording of breathtaking depth and realism. If you choose to colour it up from there, you’ll be starting with the best possible raw material you can get.

1. We’re seriously dating ourselves here, which is fine because nearly every single Model 801 we built back then is still in service today.
2. Electrolytic capacitors sound bad, and contribute to the dreaded, hard edged ‘solid state sound’. Grace preamps sound impressively musical and open.
3. Bored lawyers at a big audio company informed us the word ‘model’ in front of the number ‘801’ was a copyright infringement, so we changed it to just ‘m’.
4. Your cell phone, WiFi antennas, bluetooth thingies, the odd transmission from Mars to your cat - that stuff can sneak into your audio and cause problems.
5. The new, carefully designed universal switch mode power supply is quiet, light and conveniently operates on mains voltages from 100-240VAC.

FREQUENCY RESPONSE

@ 20dB gain ± 3dB 150Ω source

3.2Hz-530kHz

@ 20dB gain ± 0.2dB 150Ω source

14.8Hz-109kHz

@ 40dB gain ± 3dB 150Ω source

3.2Hz-500kHz

@ 40dB gain ± 0.2dB 150Ω source

15.4Hz-103kHz

THD+N 22-22kHz

@ 20dB gain +20dBu out, 1kHz

<.0004%

@ 40dB gain +20dBu out, 1kHz

<.0008%

@ 60dB gain +20dBu out, 1kHz

<.0070%

INTERMODULATION DISTORTION

@40dB gain +20dBu out

SMPTE/DIN 1:1 (50Hz, 7kHz)

<.0015%

SMPTE/DIN 4:1 (50Hz, 7kHz)

<.0020%

NOISE - REFERRED TO INPUT

@60dB gain 50Ω source

-130dB

@60dB gain 150Ω source

-127dB

@60dB gain 600Ω source

-123dB

PHASE DEVIATION

100-20KHz @40dB gain

<3°

CROSSTALK

Any Channel @40dB gain 1kHz

-140dB

Any Channel @40dB gain 10kHz

-130dB

CMRR

@60dB gain, 3.5Vcm, 1KHz

>85dB

@60dB gain, 3.5Vcm, 10KHz

>75dB

PHANTOM POWER

Voltage +48V

+0.9/ -0.0

6.8kΩ resistor match tolerance

+/- 0.1%

MAXIMUM OUTPUT LEVEL

1kHz, 100KΩ load

+28dBu

IMPEDANCE

Input

8100Ω

Input, Ribbon Mode

20KΩ

Input, Pad Engaged

1.3KΩ

Output

150Ω

DIMENSIONS

Weight

13lbs (5.9kg)

Height

2U

Width

19”

Depth

10”

POWER CONSUMPTION

100-240VAC 50/60Hz

40 Watts max
