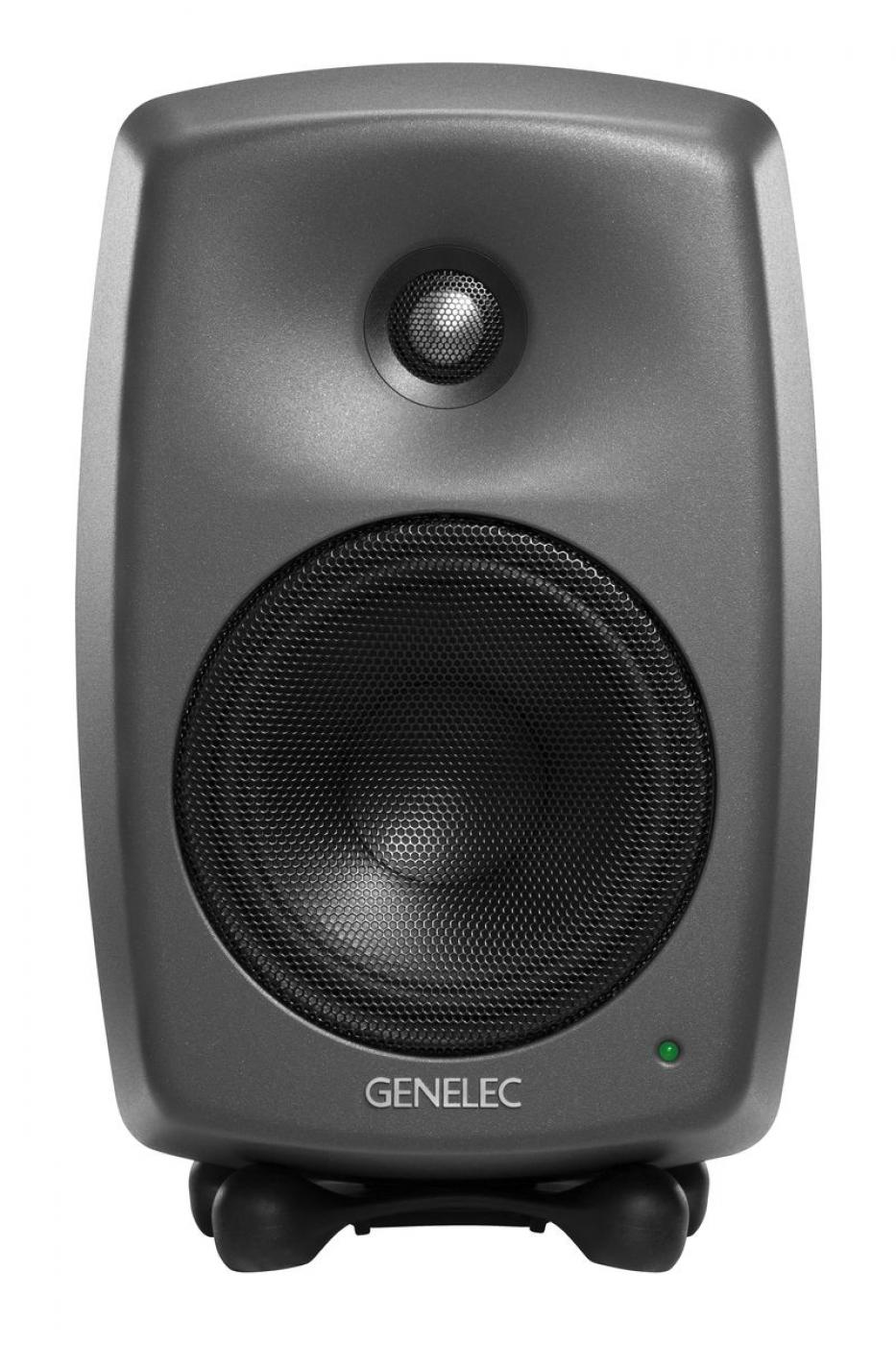

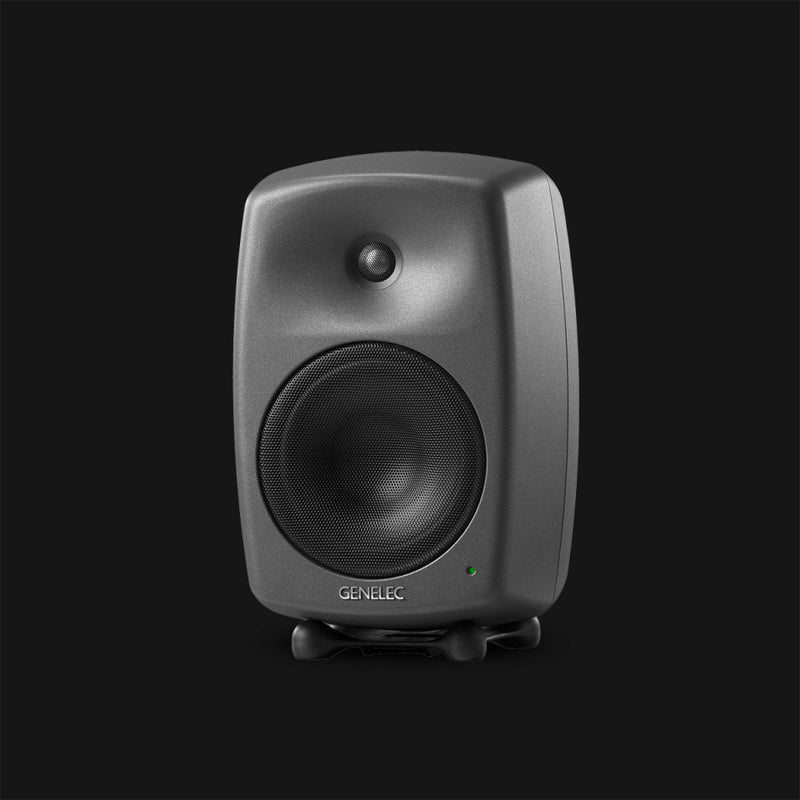

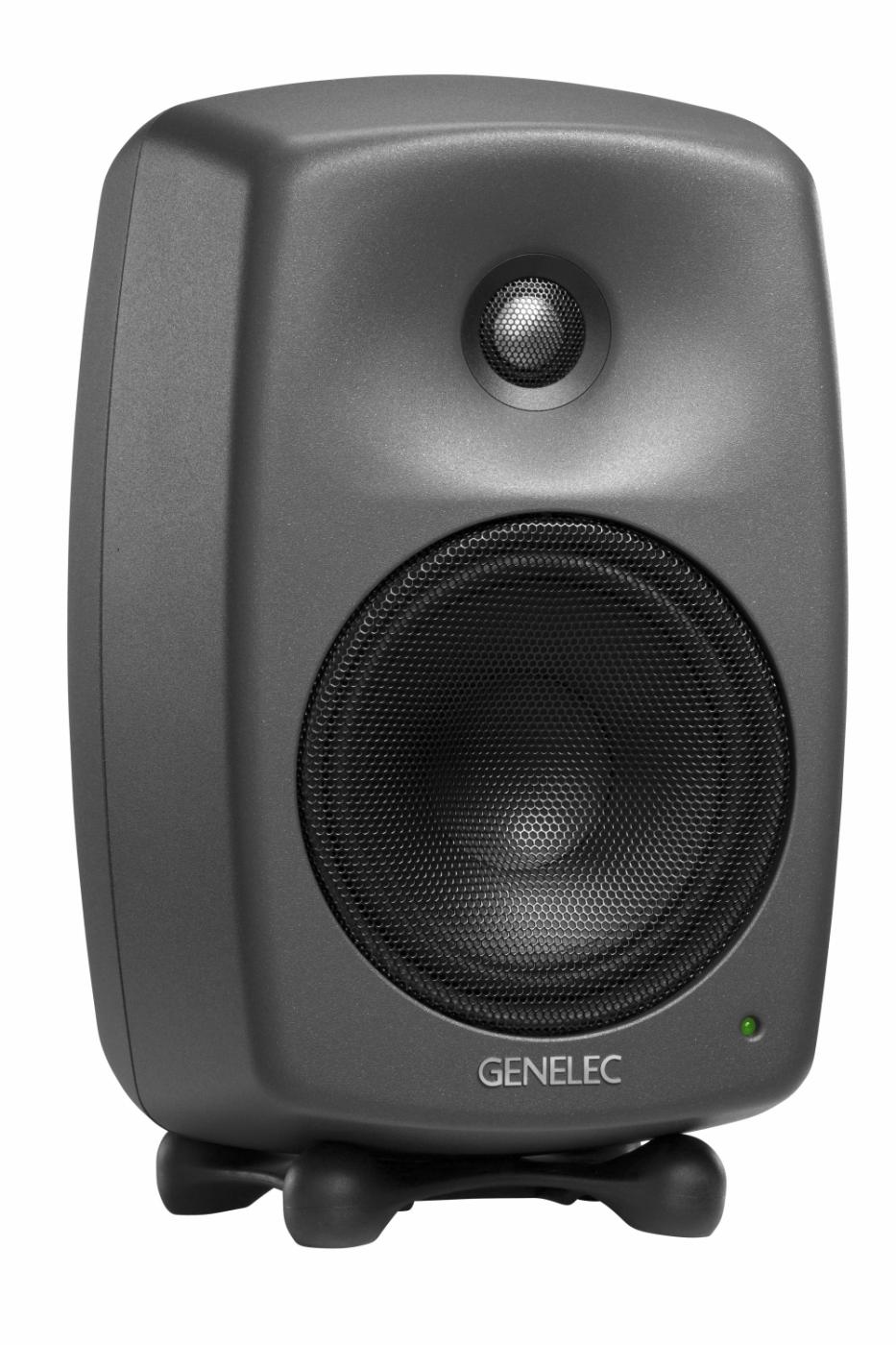

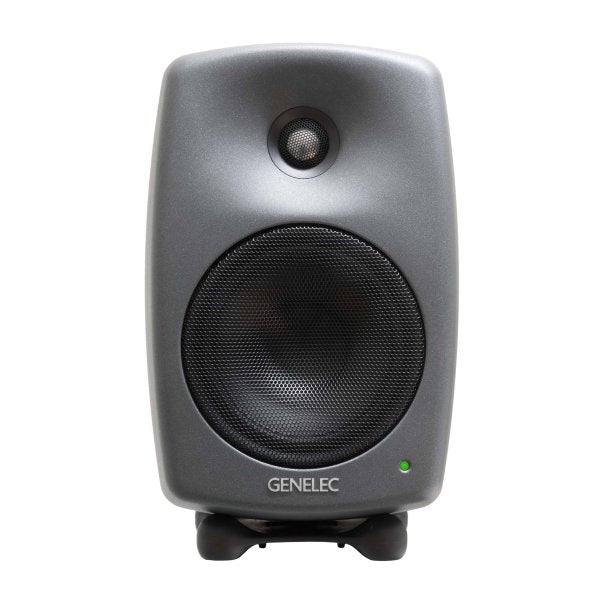

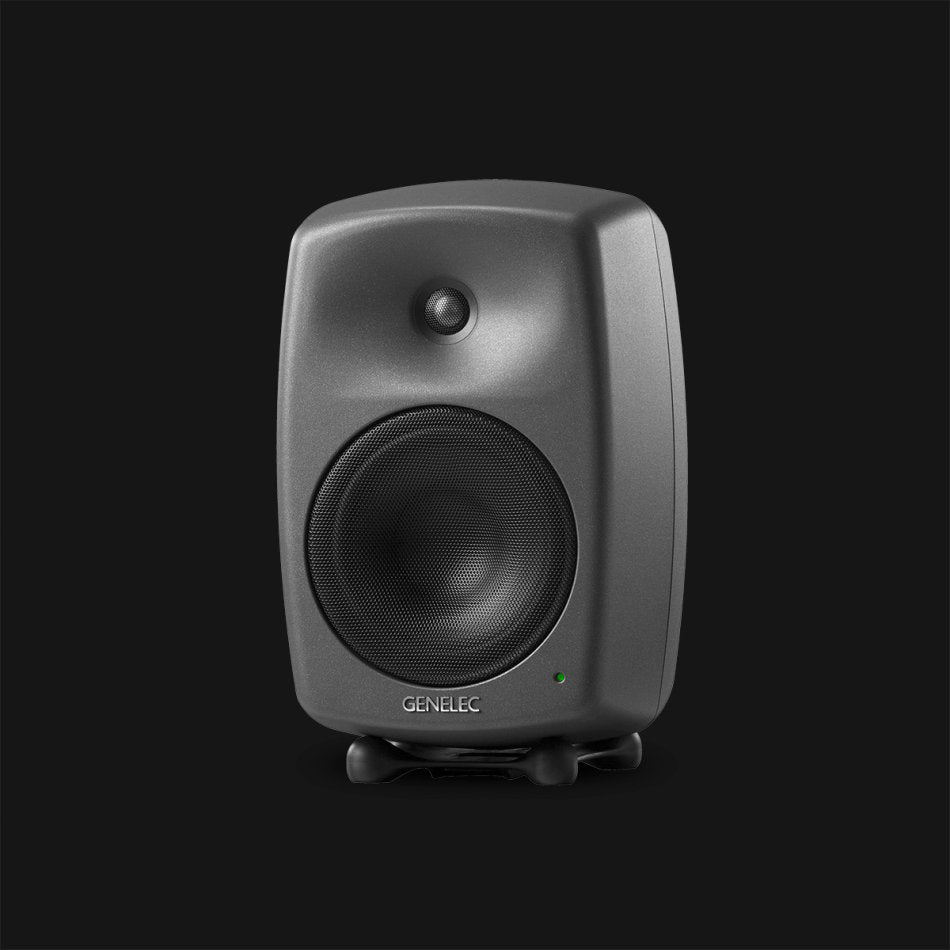

In the 8430A IP, Genelec invites you to meet the future in a compact monitor equipped for the most modern of workflows.
With Smart Active Monitoring (SAM™), Genelec created the most advanced and adaptable monitoring system available today. Now, with the 8430A IP monitor, Genelec has opened the door to audio-over-IP (AoIP) workflows.
A world first, the 8430A IP is based on the Ravenna IP protocol, with full AES67 support for ultimate compatibility. It is also a fully-fledged member of the SAM family, working with Genelec Loudspeaker Manager (GLM™) 2.0 to allow for the fine adjustment of all monitor settings, while AutoCal™ compensates for detrimental room influences to perfectly calibrate your IP-based monitoring set-up for your listening environment. Perhaps most importantly, the 8430A IP is instantly recognisable as a Genelec monitor, with features including the Minimum Diffraction Enclosure (MDE™) for colour-free accuracy, a flow optimised reflex port, and the Directivity Control Waveguide (DCW™) for on- and off-axis precision.
A pioneering product for a fast-evolving audio world, the 8430A blends ground-breaking connectivity with adaptability and a performance you can rely on.
Key Technologies:
- Smart Active Monitor (SAM™) Systems
- Directivity Control Waveguide (DCW™) Technology
- Minimum Diffraction Enclosure (MDE™) Technology
- Reflex Port Design
- Optimized Amplifiers
- Active Crossovers
- Protection Circuitry
- Intelligent Signal Sensing (ISS™) Technology
- Iso-Pod™ Stand
- Versatile Mountings
Special Order Item - contact us for more details.
Visit the Genelec Virtual Showroom
Genelec has introduced its online Virtual Showroom, where you can explore a wide range of active loudspeaker systems and technologies in a set of stunningly realistic room settings. This allows customers across the Studio, AV, and Home Audio segments to instantly access valuable Genelec information and resources in a unique and visually engaging interactive environment.
Hosted on the Genelec website, visitors to the Virtual Showroom can experience the latest in VR technology to navigate separate and distinct areas for Professional Audio Monitoring, AV Installation and Home Audio, which showcase both stereo and immersive systems that comprise a carefully selected range of key loudspeaker and subwoofer models. Visitors can then access detailed product information, video content and valuable learning resources, at any time of day and from the comfort of their own environment.
Technical Specifications
SPL
104 dB
Amplifier Power
50 W Bass (Class D) + 50 W Treble (Class D)
Frequency Response
45 Hz - 23 kHz ("-6 dB")
Accuracy of Frequency Response
± 1.5 dB (58 Hz - 20 kHz)
Driver Dimensions
⌀ 130 mm Bass + ⌀ 19 mm Treble
Dimensions
H 299 x W 189 x D 178 mm, with Iso-Pod™
Weight
5.5 kg / 12.1 lb

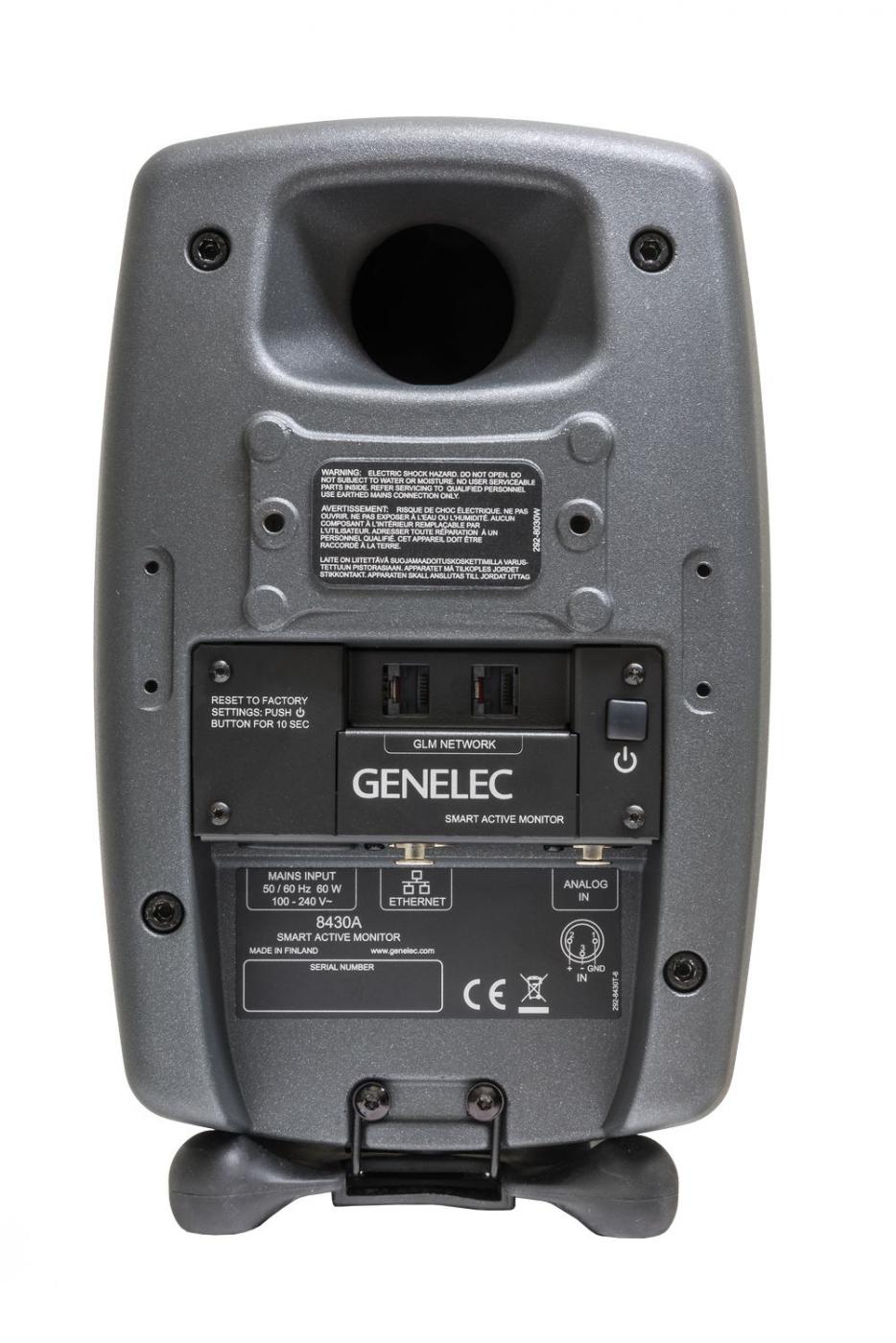

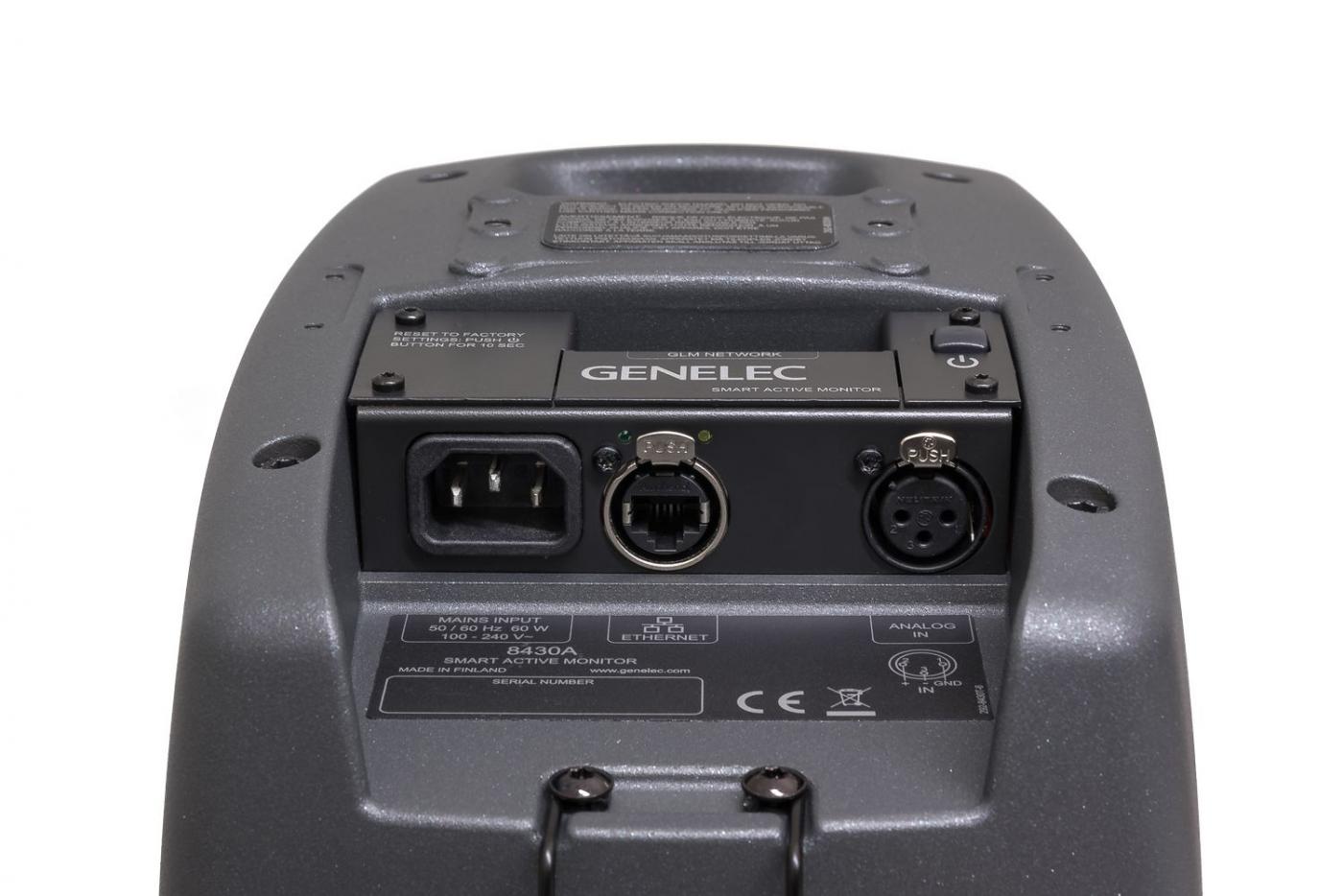

Connections
1 x XLR Analog Input
1 x RJ45 AES67 Input
2 x RJ45 Control
