With a frequency response down to 15 Hz, and a maximum SPL capability in excess of 130 dB, the 7382A is Genelec's most powerful subwoofer to date.
Combining power and clarity with flexible calibration and bass management features, the 7382 is designed for use in recording studios, film mixing facilities, mastering suites, post-production houses, EDM playback and premium home theatres, and integrates perfectly into any system from simple stereo to 40+ channels of immersive audio.

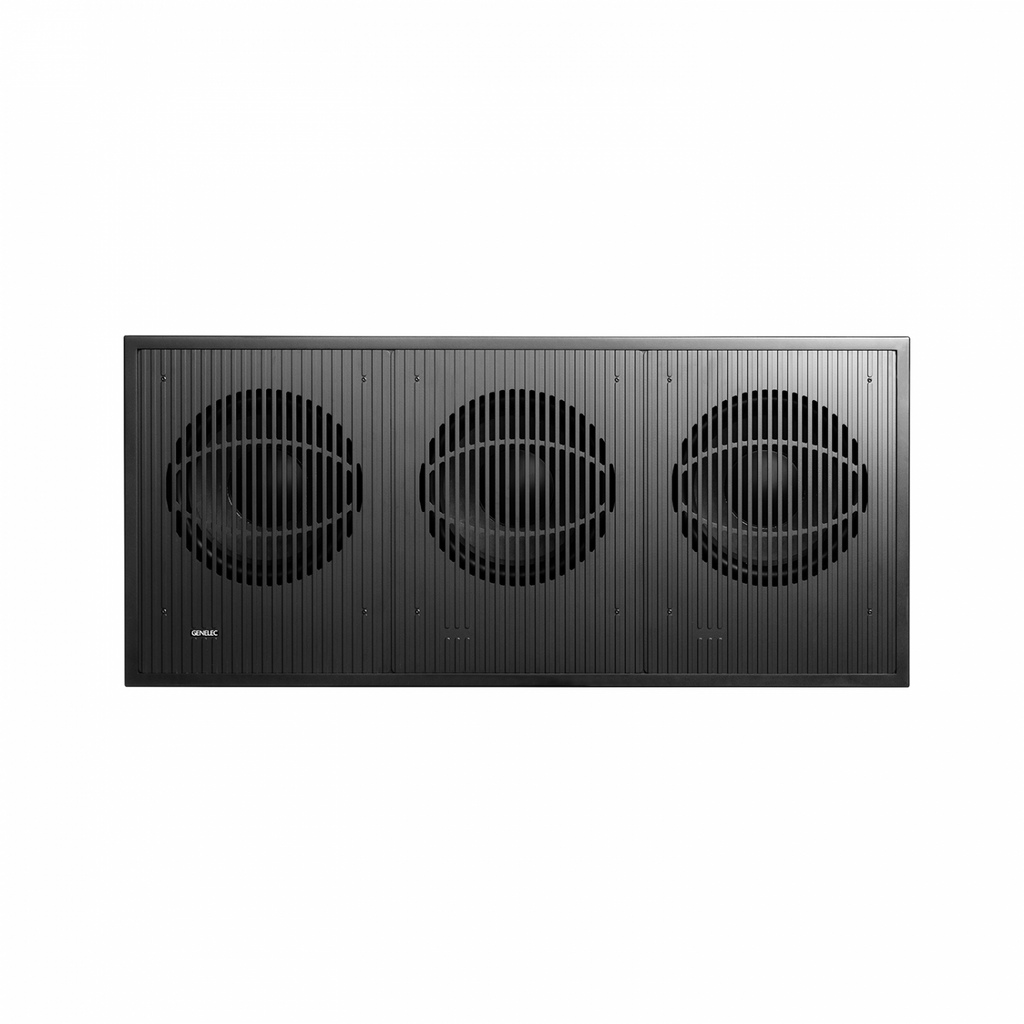

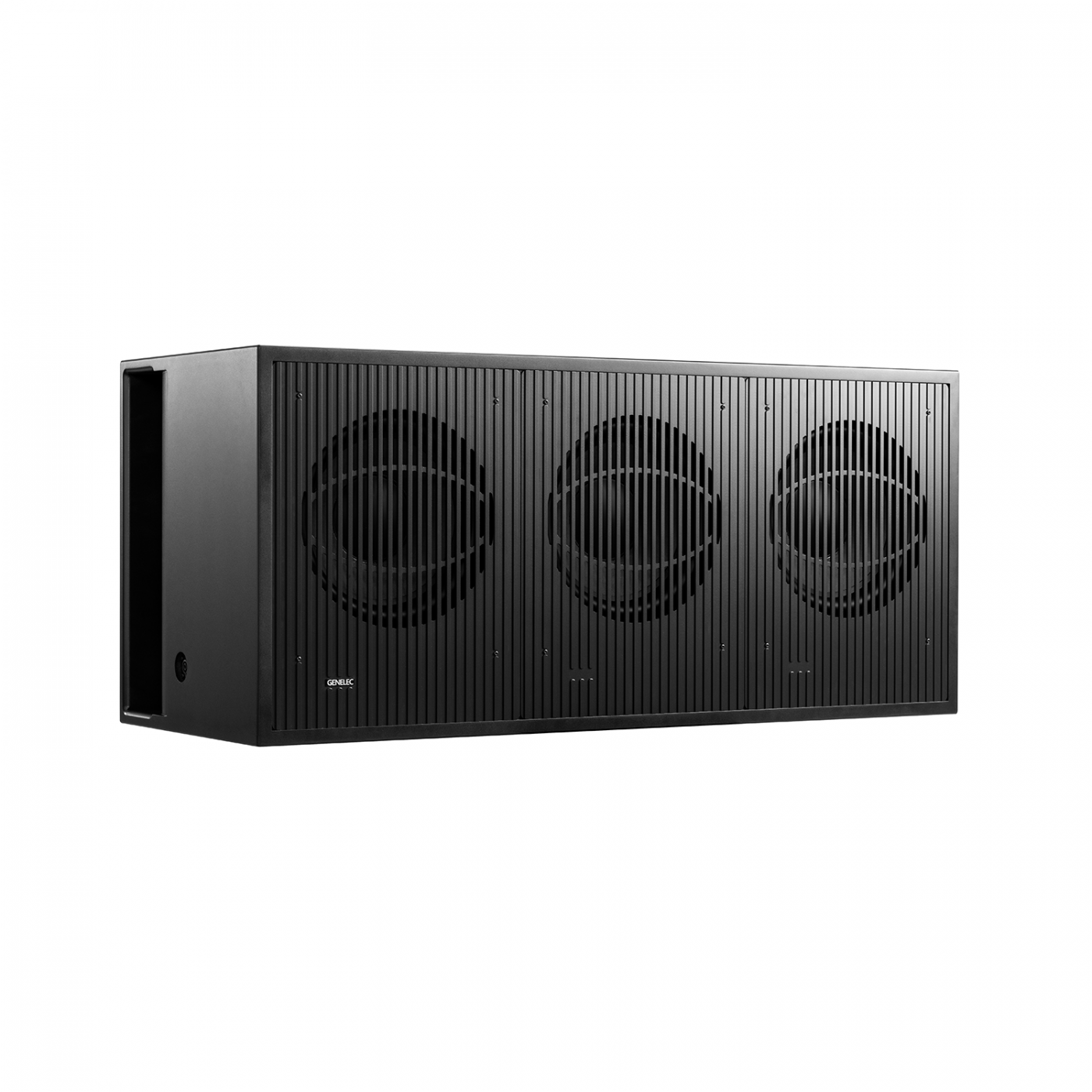

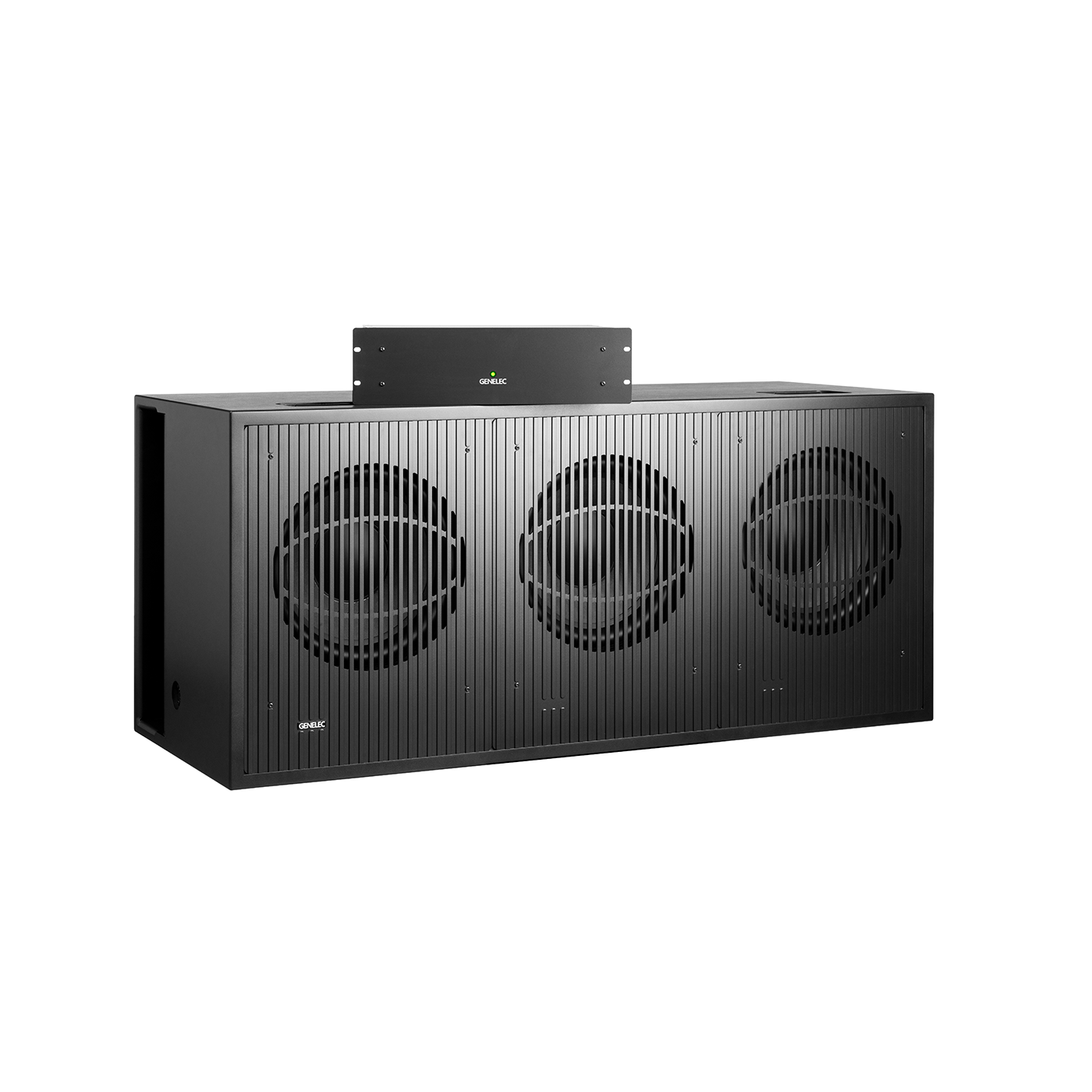

The 7382 enclosure contains three 15-inch custom-designed high-performance woofers driven by a powerful Class D amplifier section and a laminar flow bass reflex port running along its entire rear wall. This combination enables high SPL, low frequency cutoff and low distortion performance – resulting in precise bass articulation even at the very lowest frequencies.
As part of the growing SAM family of Genelec monitors and subwoofers, the 7382 tightly integrates with GLM software, via which it can be configured, calibrated and controlled. GLM offers control of bass management, solves issues of subwoofer placement in unpredictable rooms, and even allows the creation of entire arrays of Genelec subwoofers where required.
GLM also doubles as a comprehensive Mac or PC-based monitor controller, allowing you to calibrate your listening level to accepted loudness standards, switch between formats, monitoring systems and primary listening positions – and much more.
Key Technologies
- Smart Active Monitor (SAM™) Systems
- Bass Management System
- Optimized Amplifiers
- Protection Circuitry
- Intelligent Signal Sensing (ISS™) Technology
- Active Crossovers
Visit the Genelec Virtual Showroom
Genelec has introduced its online Virtual Showroom, where you can explore a wide range of active loudspeaker systems and technologies in a set of stunningly realistic room settings. This allows customers across the Studio, AV, and Home Audio segments to instantly access valuable Genelec information and resources in a unique and visually engaging interactive environment.
Hosted on the Genelec website, visitors to the Virtual Showroom can experience the latest in VR technology to navigate separate and distinct areas for Professional Audio Monitoring, AV Installation and Home Audio, which showcase both stereo and immersive systems that comprise a carefully selected range of key loudspeaker and subwoofer models. Visitors can then access detailed product information, video content and valuable learning resources, at any time of day and from the comfort of their own environment.
Package contains:
- 1 x 7382A subwoofer

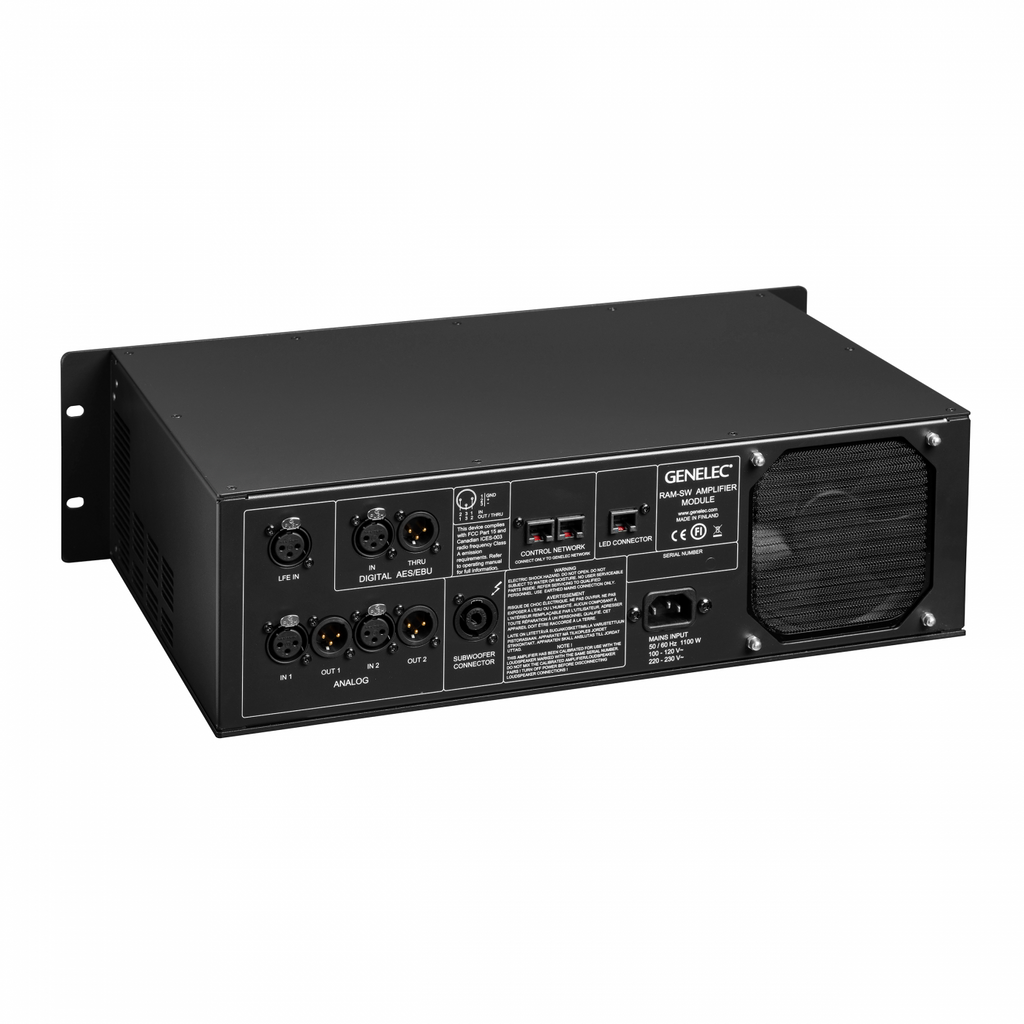

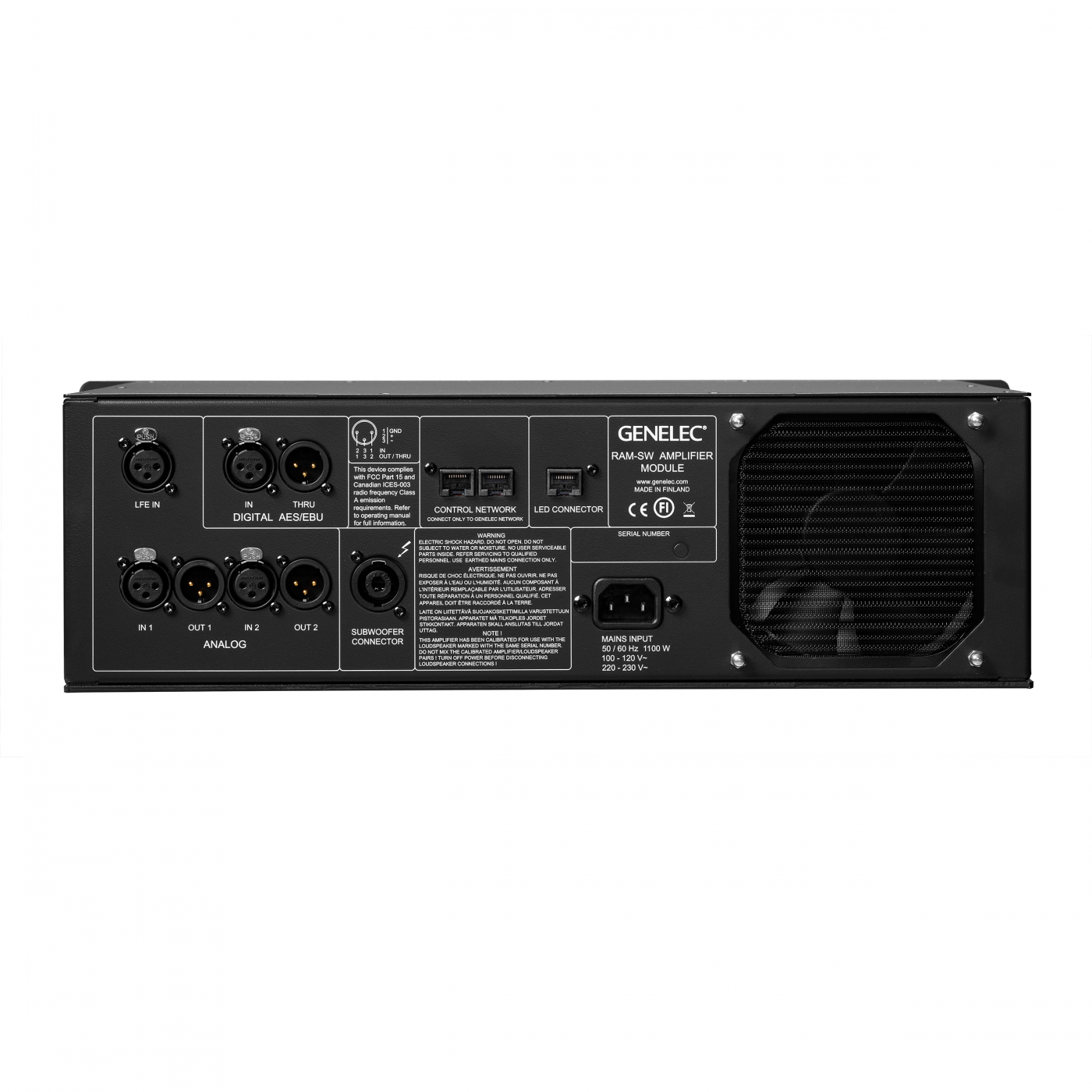

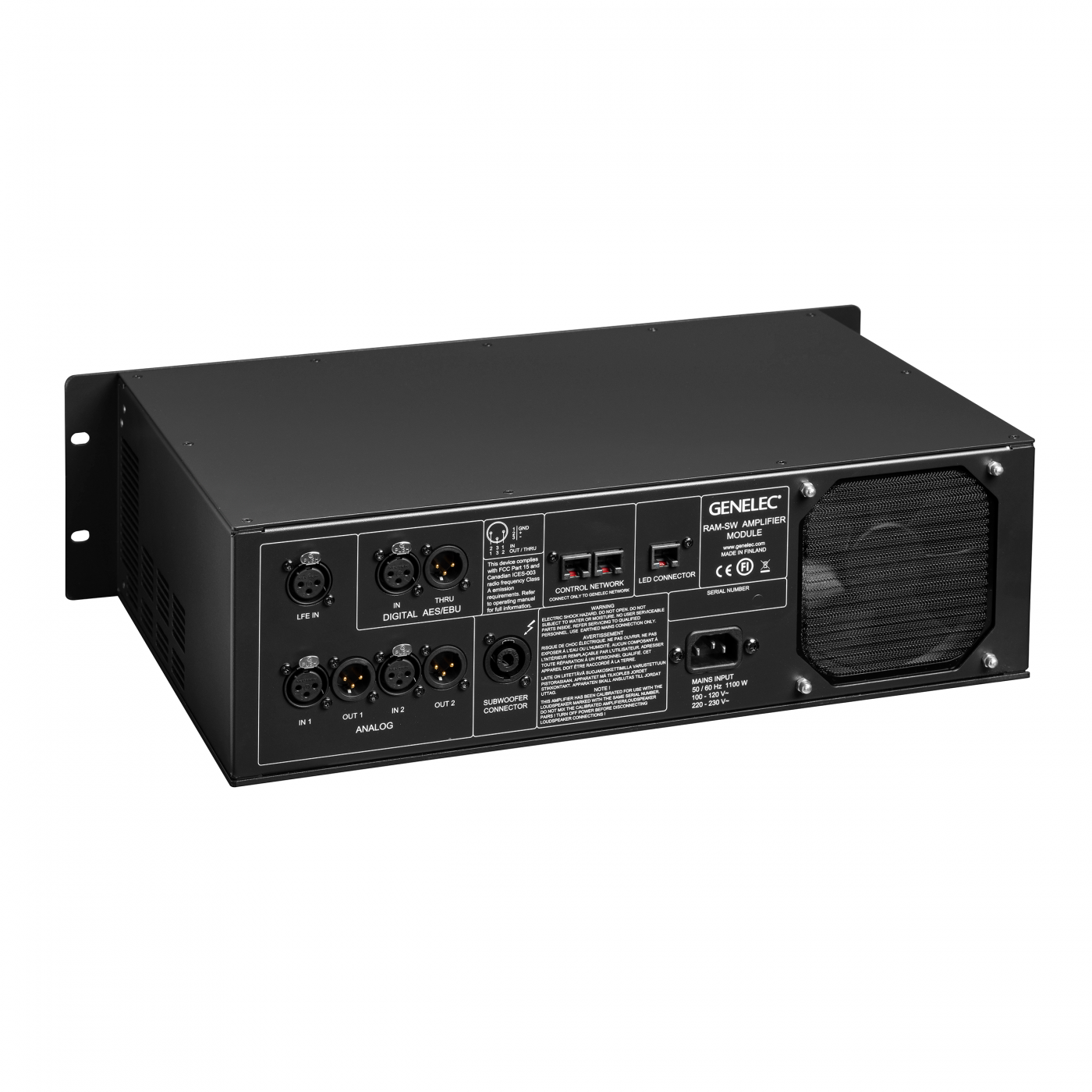

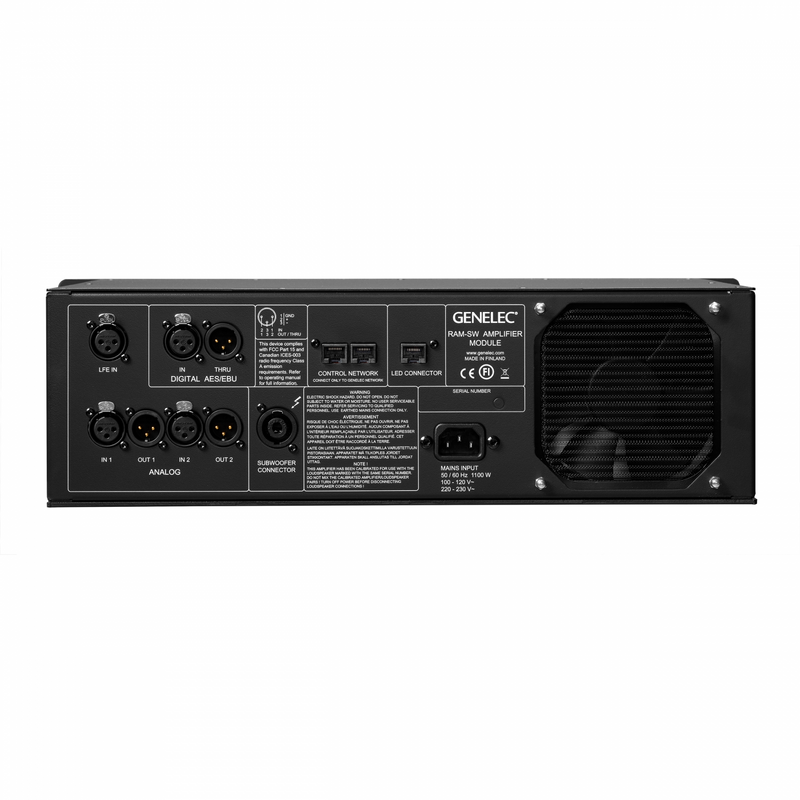

- 1 x individually calibrated RAM-SW amplifier unit
- 1 x mains cable 1,8 m
- 1 x RJ45 cable 5 m
- 1 x Speakon signal cable 10 m
- 1 x operating manual
Warranty:
- 2 years parts-and-labour (extended to 5 years with free registration).
GLM Calibration:
- Requires free GLM software and either our 9320A SAM™ Reference Controller or GLM Calibration Kit device (both sold separately) for calibration.
Technical Specifications
SPL
129 dB
Amplifier Power
2500 W Bass (Class D)
Frequency Response
15 Hz - 100 Hz ("-6 dB")
Driver Dimensions
3 x ⌀ 381 mm Bass
Dimensions
H 625 x W 1400 x D 558 mm
Weight
145 kg / 319.7 lb
Connections
3 x XLR Analog Input
2 x XLR Analog Output
1 x XLR AES/EBU Input
1 x XLR AES/EBU Output
2 x RJ45 Control
