Our flagship subwoofer now brings even more LF muscle to the SAM family.
Delivering a level of performance normally associated with much larger enclosures, the 7380 subwoofer offers both high power and high SPL, with an extended low-distortion LF response and flexible bass management options.
As part of the SAM family, the 7380 works closely with the GLM software application, allowing all monitors and subwoofers in a system to be configured, calibrated and controlled. Offering access to advanced system auto-calibration and management, GLM’s powerful room compensation features enable the 7380 to be optimised for a wide range of acoustic environments, also allowing both centralised and distributed bass management modes to be employed.
Via its front-panel DIP switches, the 7380 can happily operate in standalone mode to bring advanced calibration features to a hybrid system comprised of traditional non-SAM main monitors.
The 7380 boasts 7.1 channel XLR analogue I/O, while an AES/EBU digital connection allows both stereo operation – or full 7.1 digital, with the addition of Genelec’s optional 9301 Digital Interface.
The 7380 is tailor made for discerning professionals in music, post, film or broadcast that demand powerful, dependable LF reproduction in a surprisingly compact form factor.
Key Technologies:
- Smart Active Monitor (SAM™) Systems
- Laminar Spiral Enclosure (LSE™) Technology
- Bass Management System
- Intelligent Signal Sensing (ISS™) Technology
- Optimized Amplifiers
- Active Crossovers
- Protection Circuitry
Visit the Genelec Virtual Showroom
Genelec has introduced its online Virtual Showroom, where you can explore a wide range of active loudspeaker systems and technologies in a set of stunningly realistic room settings. This allows customers across the Studio, AV, and Home Audio segments to instantly access valuable Genelec information and resources in a unique and visually engaging interactive environment.
Hosted on the Genelec website, visitors to the Virtual Showroom can experience the latest in VR technology to navigate separate and distinct areas for Professional Audio Monitoring, AV Installation and Home Audio, which showcase both stereo and immersive systems that comprise a carefully selected range of key loudspeaker and subwoofer models. Visitors can then access detailed product information, video content and valuable learning resources, at any time of day and from the comfort of their own environment.
Package contains:
- 1 x 7380A subwoofer
- 1 x mains cable 1,8 m
- 1 x RJ45 cable 5 m
- 1 x operating manual
Warranty:
- 2 years parts-and-labour (extended to 5 years with free registration).
GLM Calibration:
- Requires free GLM software and either our 9320A SAM™ Reference Controller or GLM Calibration Kit device (both sold separately) for calibration.
Technical Specifications
SPL
119 dB
Amplifier Power
800 W Bass (Class D)
Frequency Response
16 Hz - 100 Hz ("-6 dB")
Driver Dimensions
⌀ 381 mm Bass
Dimensions
H 685 x W 718 x D 492 mm
Weight
69 kg / 152.1 lb

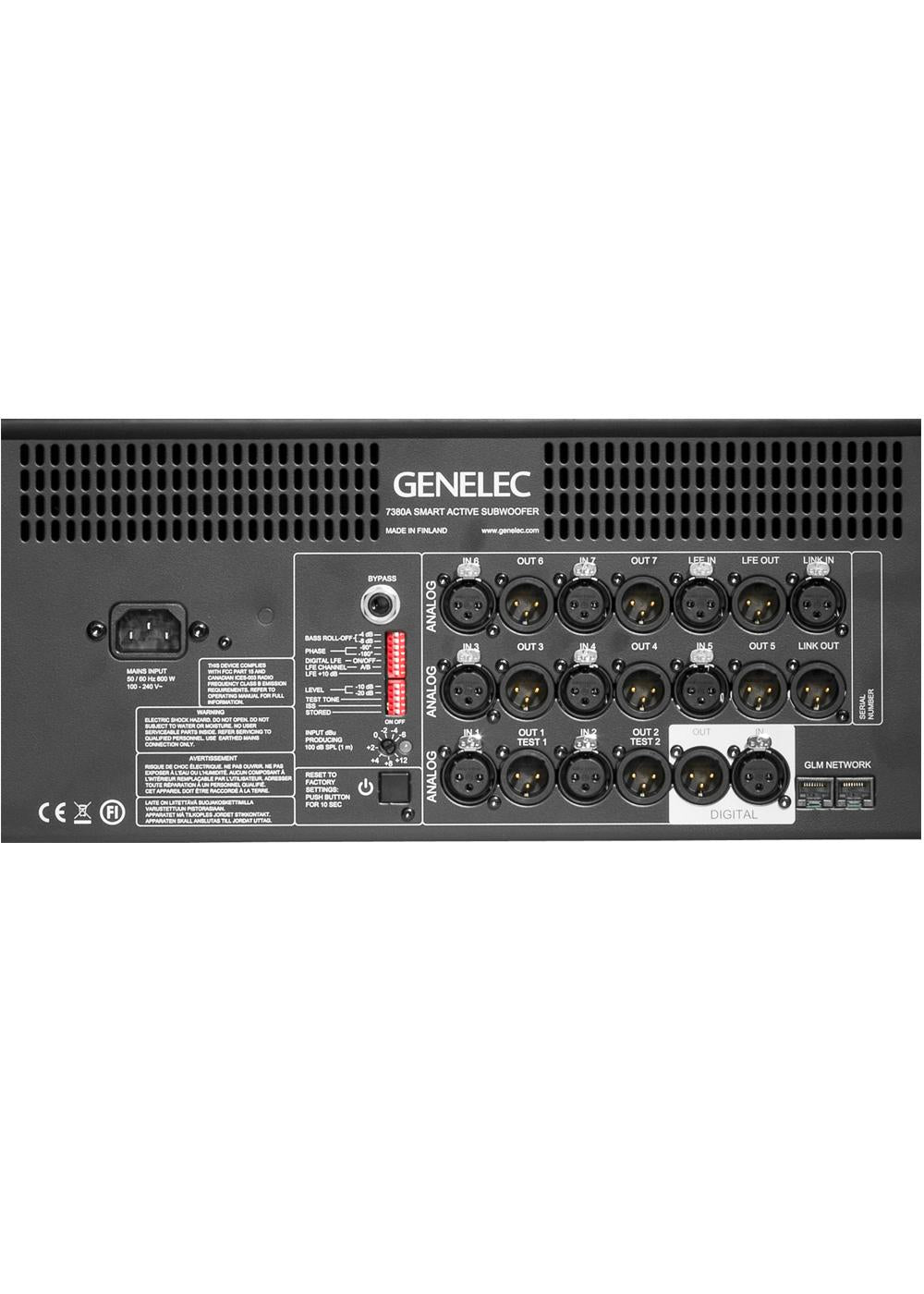

Connections
8 x XLR Analog Input
8 x XLR Analog Output
1 x XLR Analog Input
1 x XLR Analog Output
1 x XLR AES/EBU Input
1 x XLR AES/EBU Output
2 x RJ45 Control
