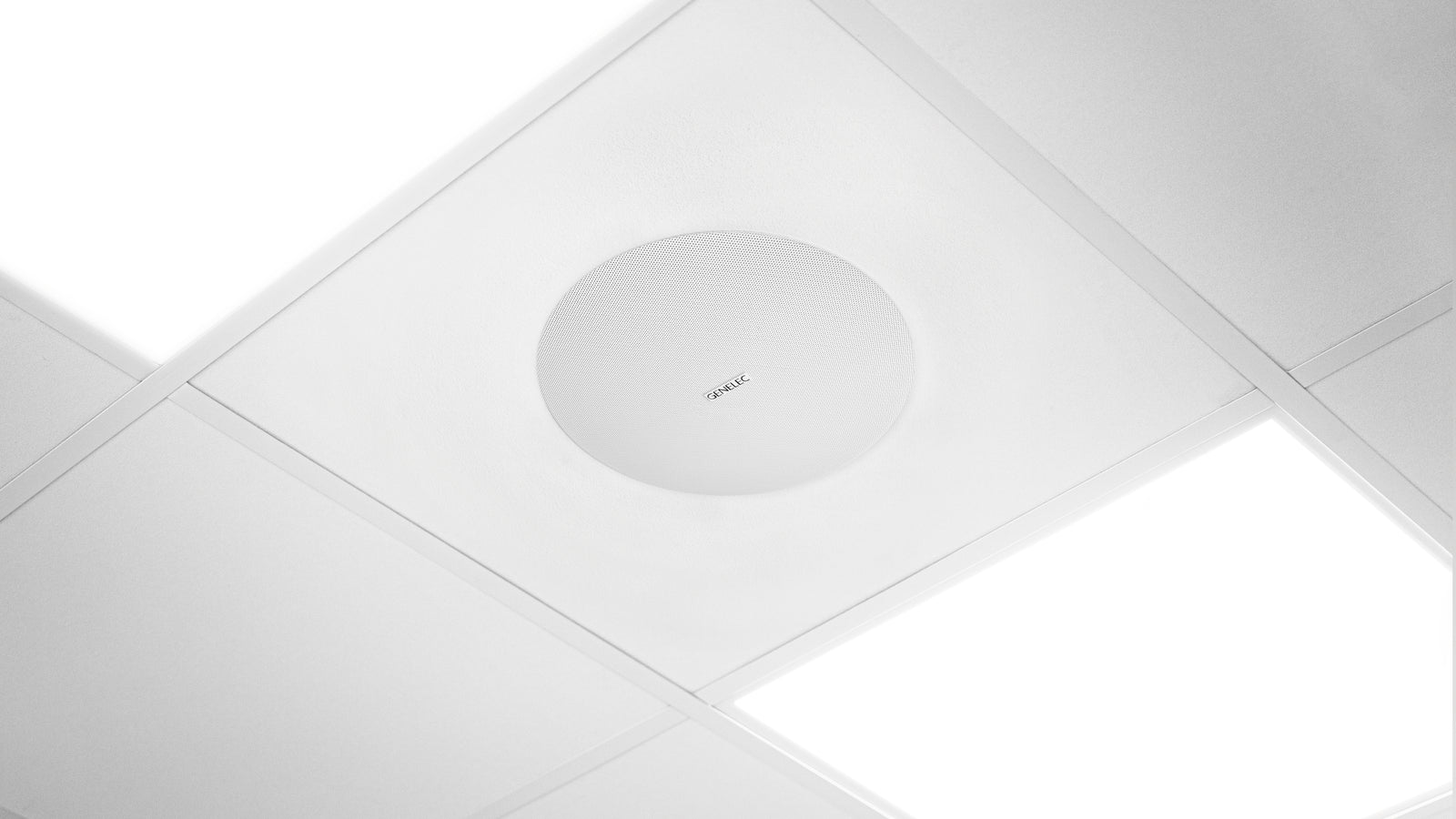

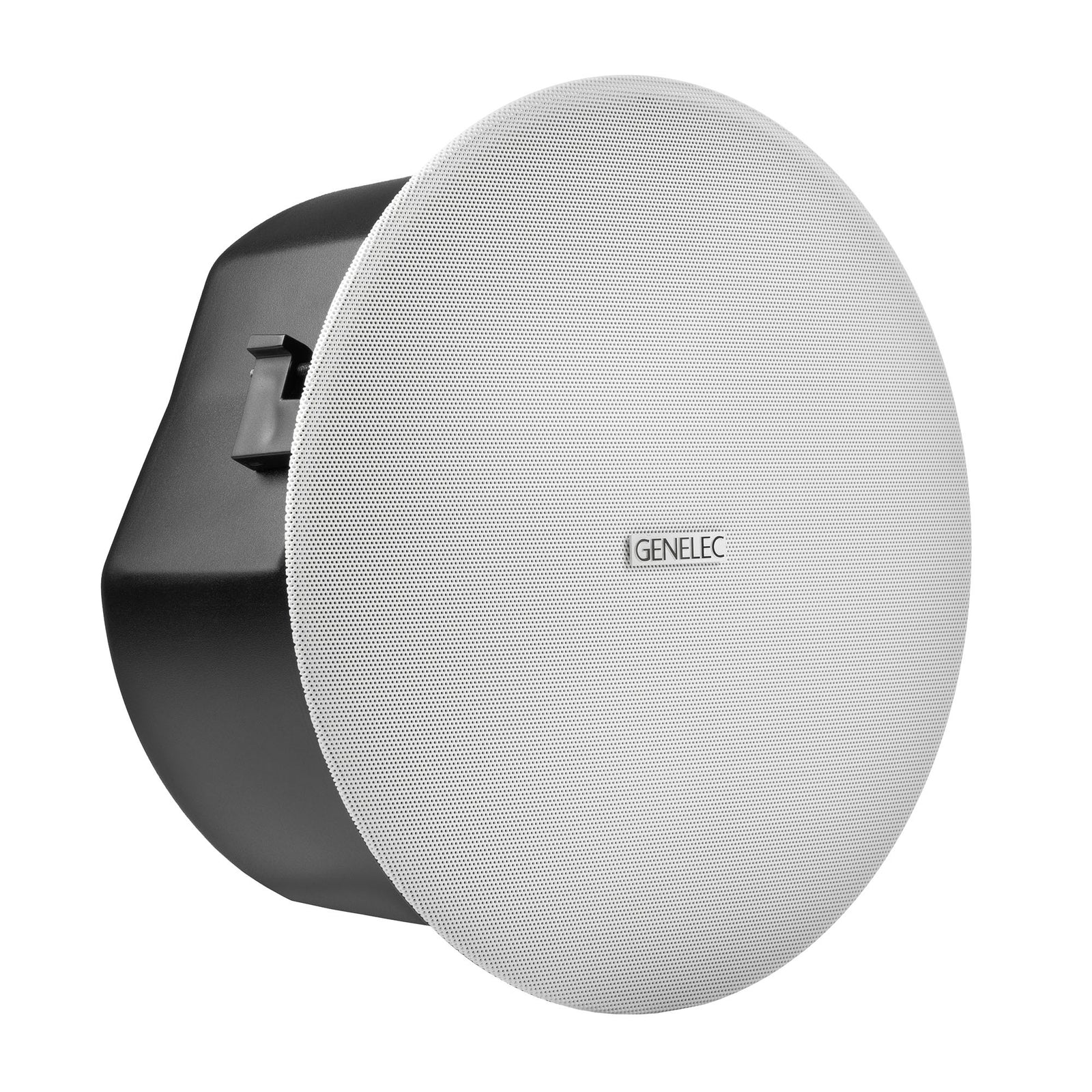

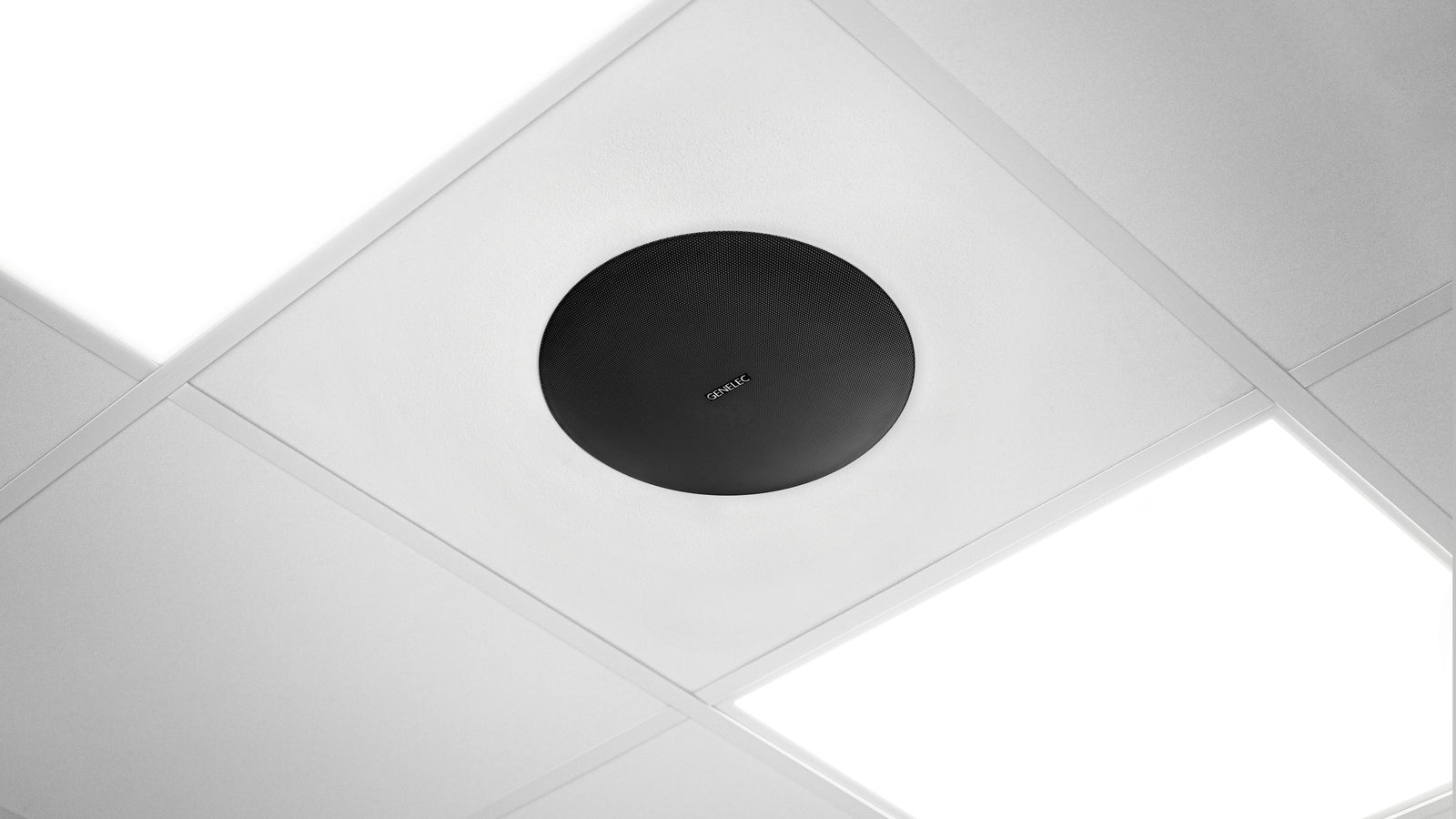

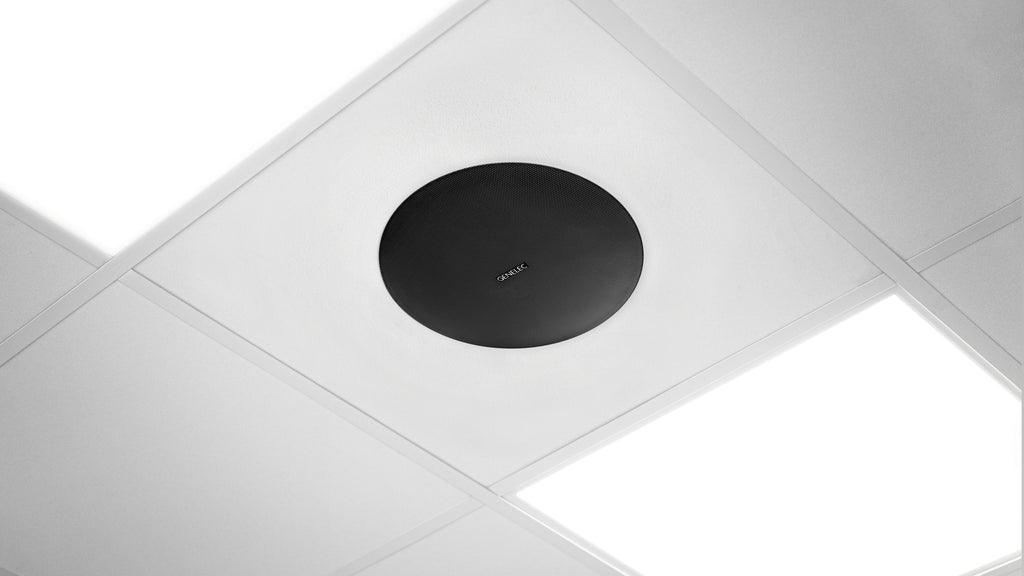

The 4435A joins our Smart IP product line to provide an in-ceiling loudspeaker solution of the highest quality, with the added ease of installation, system scalability and simple operation of Smart IP's single-cable networked technology. Designed for discreet in-ceiling installation, the durable and functional 4435A provides exceptional long-term value for premium AV installations. The two-way 4435A is delivered with a choice of easy-fit round or square grilles in either a black or white finish.
Smart IP
Smart IP is Genelec's scalable Open IP networking technology platform, deriving power (PoE or PoE+ Power-over-Ethernet), audio and management all via a single standard CAT cable. The technology offers detailed loudspeaker configuration, supervision and calibration on an individual, room, zone and system level - without performance sacrifice. Each model, including the 4435A, reproduces audio with the highest level of uniform coverage, clarity and intelligibility, and can be freely networked with other Smart IP models to flawlessly play back Dante and AES67 streams.
Uncompromised sound quality
With over four decades as the world's leading provider of professional monitoring loudspeakers, Genelec is uniquely placed to offer AV loudspeaker solutions with the highest quality of truthful, detailed and rich sound. Whenever audio is intended to create an attractive experience that visitors enjoy, Genelec's Smart IP product line assures a robust and flexible system that's designed and manufactured to meet the highest sustainability standards, giving decades of reliable daily use.
Ease of installation
The 4435A is simple and easy to install, requiring only a single CAT cable for power, audio and management, fastening in place with a simple latch system and hiding away with its low-profile magnetically attached grilles. Genelec Smart IP Manager software takes care of device discovery and allows the detailed configuration and status monitoring of loudspeakers, rooms, zones and audio channels. Day-to-day control of basic system functions is made even simpler by our intuitive Smart IP Controller app for iOS and Android devices. Additionally, our Smart IP solutions benefit from a public API command set and a series of freely available drivers that allow easy integration with a range of common control automation systems.
Loudspeaker Qualities

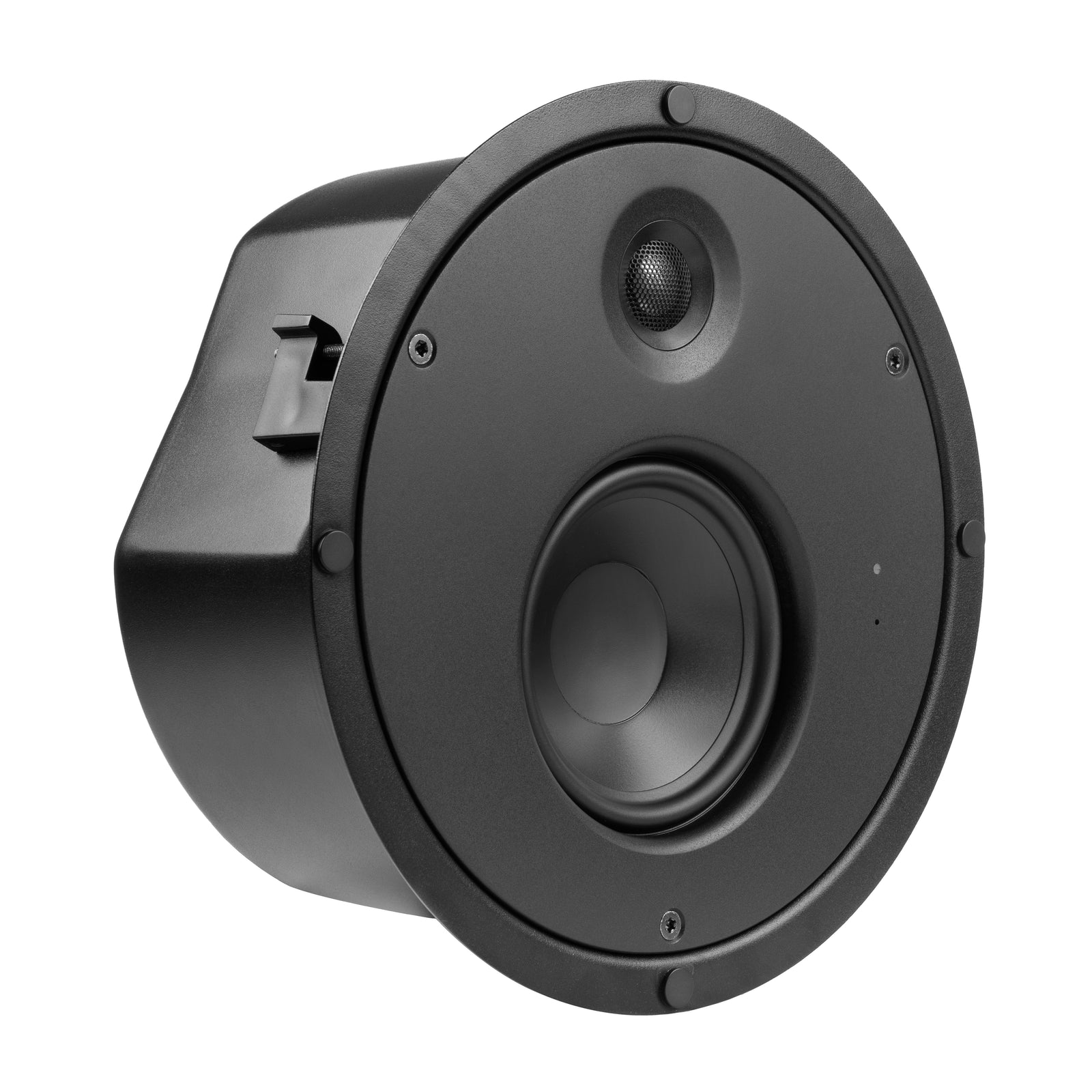

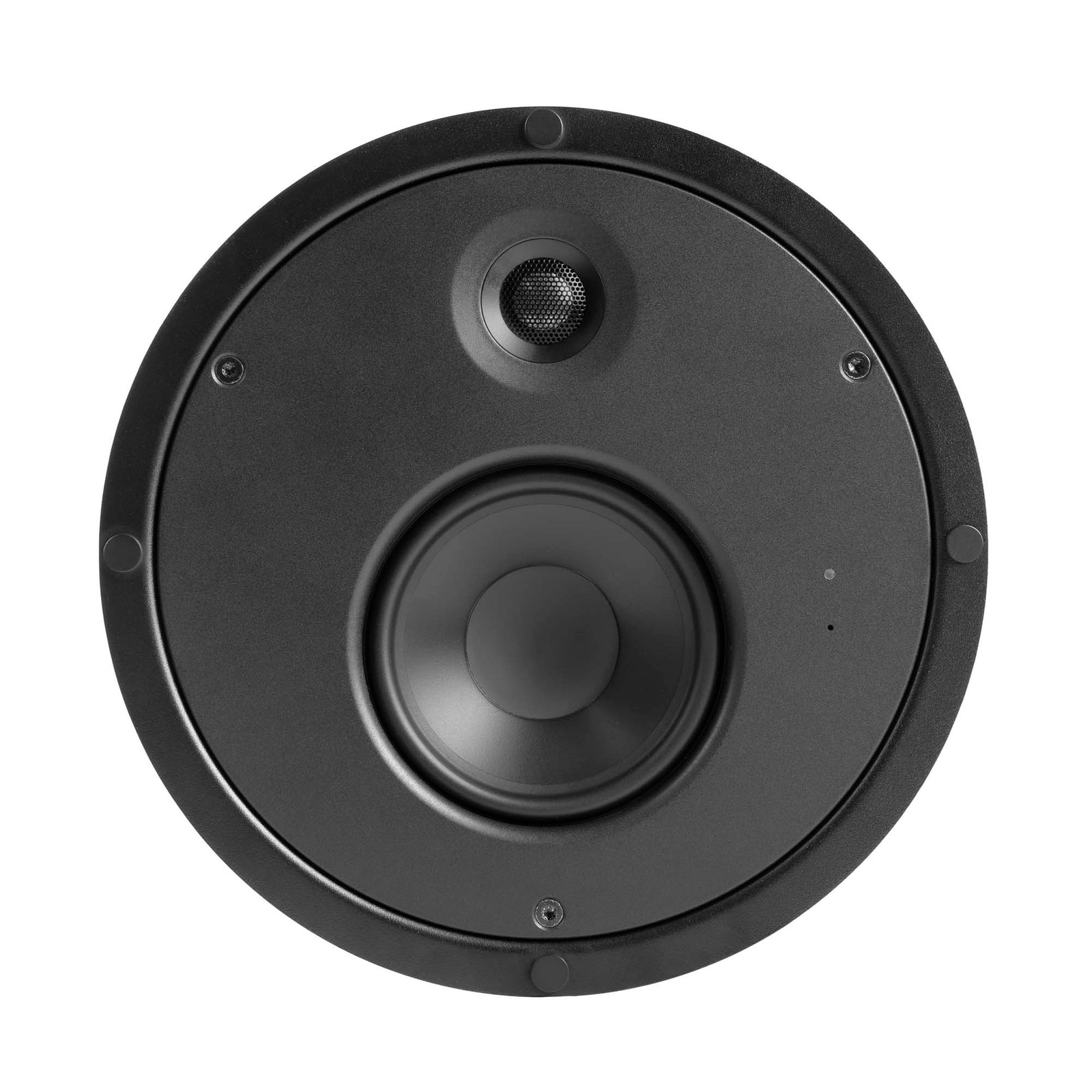

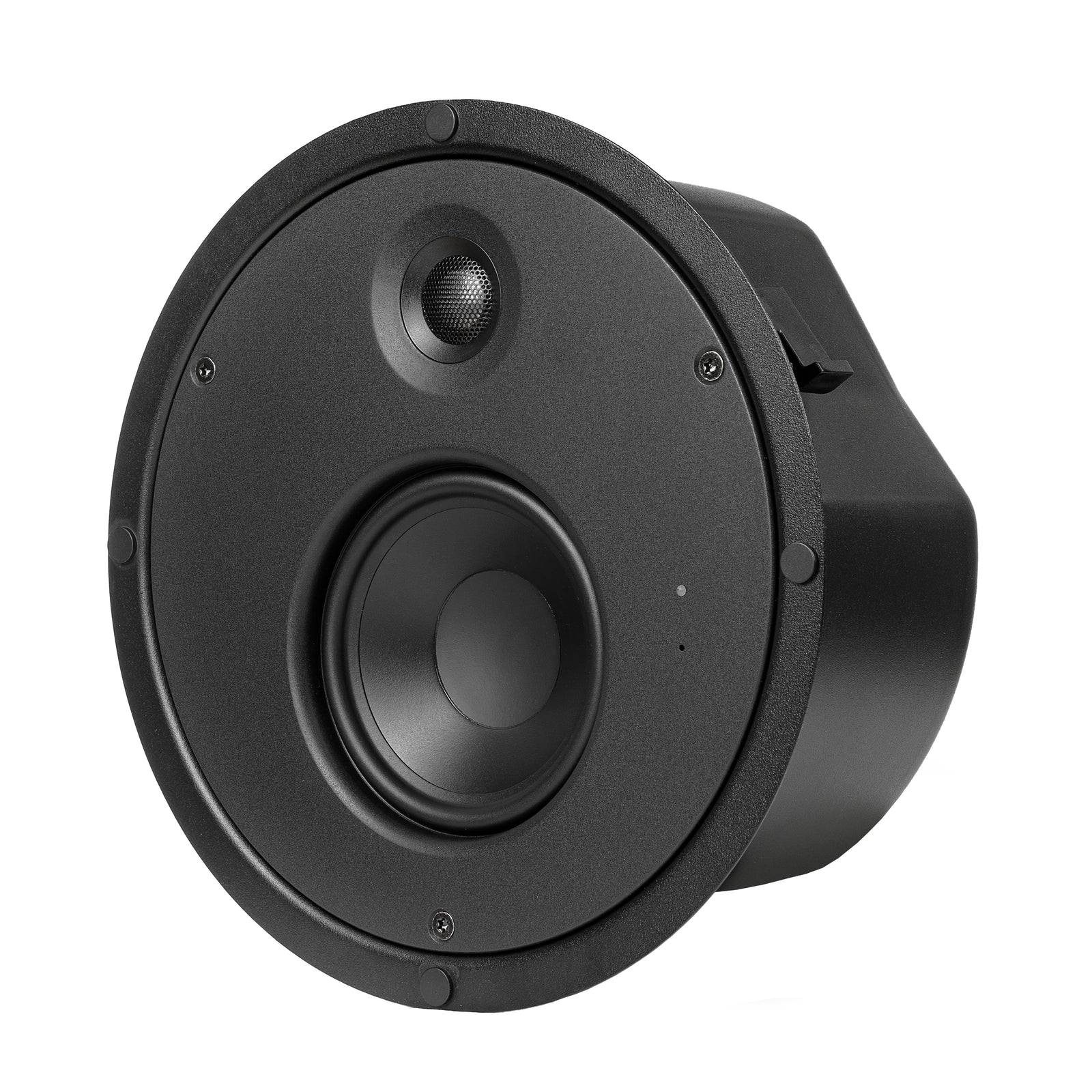

The 4435A supports uncompressed low-latency audio over IP with loudspeaker synchronisation to sub-microsecond level for solid acoustic imaging, and delivers a response of 58 Hz - 39 kHz via two independent internal 50 W Class D amplification stages – which drive a 130 mm (5 1/8 inch) woofer and 19 mm (3/4 inch) metal dome tweeter.
The two-way 4435A features proprietary internal power supply technology that stores power in order produce an impressive 104 dB of short term SPL whenever needed.
Design
This active design provides both optimum audio performance and removes the need for bulky racks of external amplifiers and their associated cabling.
Designed and manufactured sustainably in Finland under strict quality systems and backed up by Genelec’s well-earned reputation for unrivalled technical support. Considering reliability, flexibility, and ease of installation to guarantee decades of reliable service.

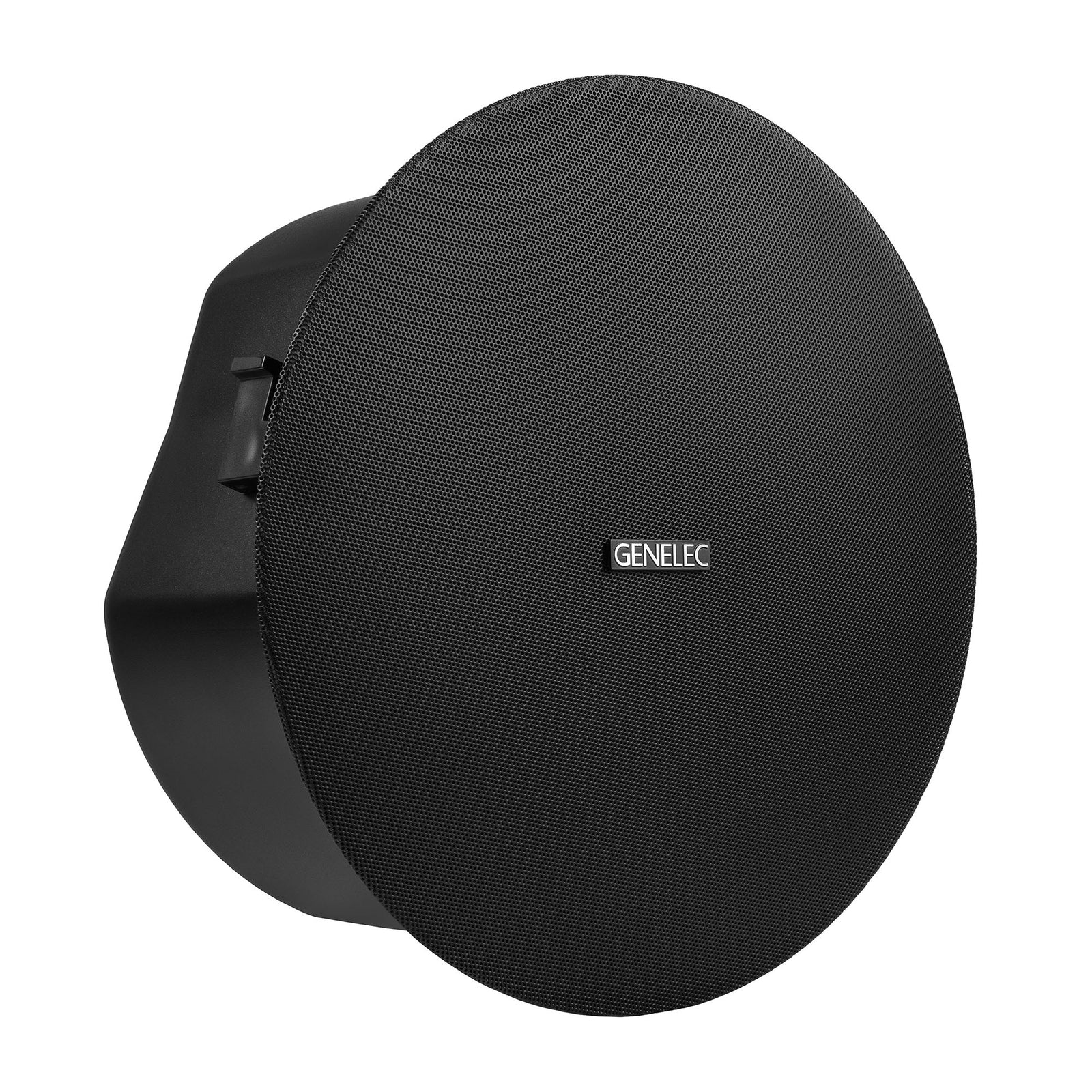

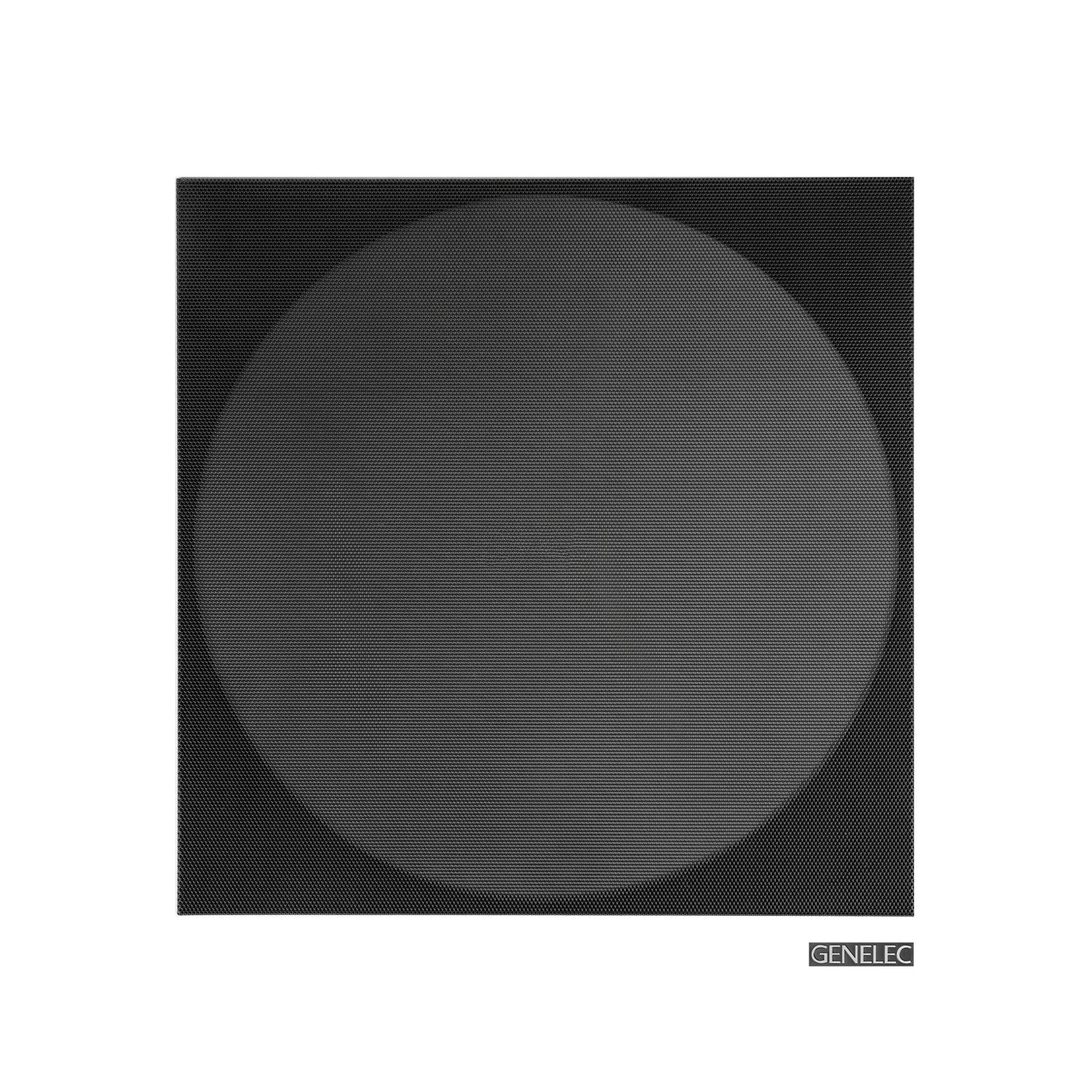

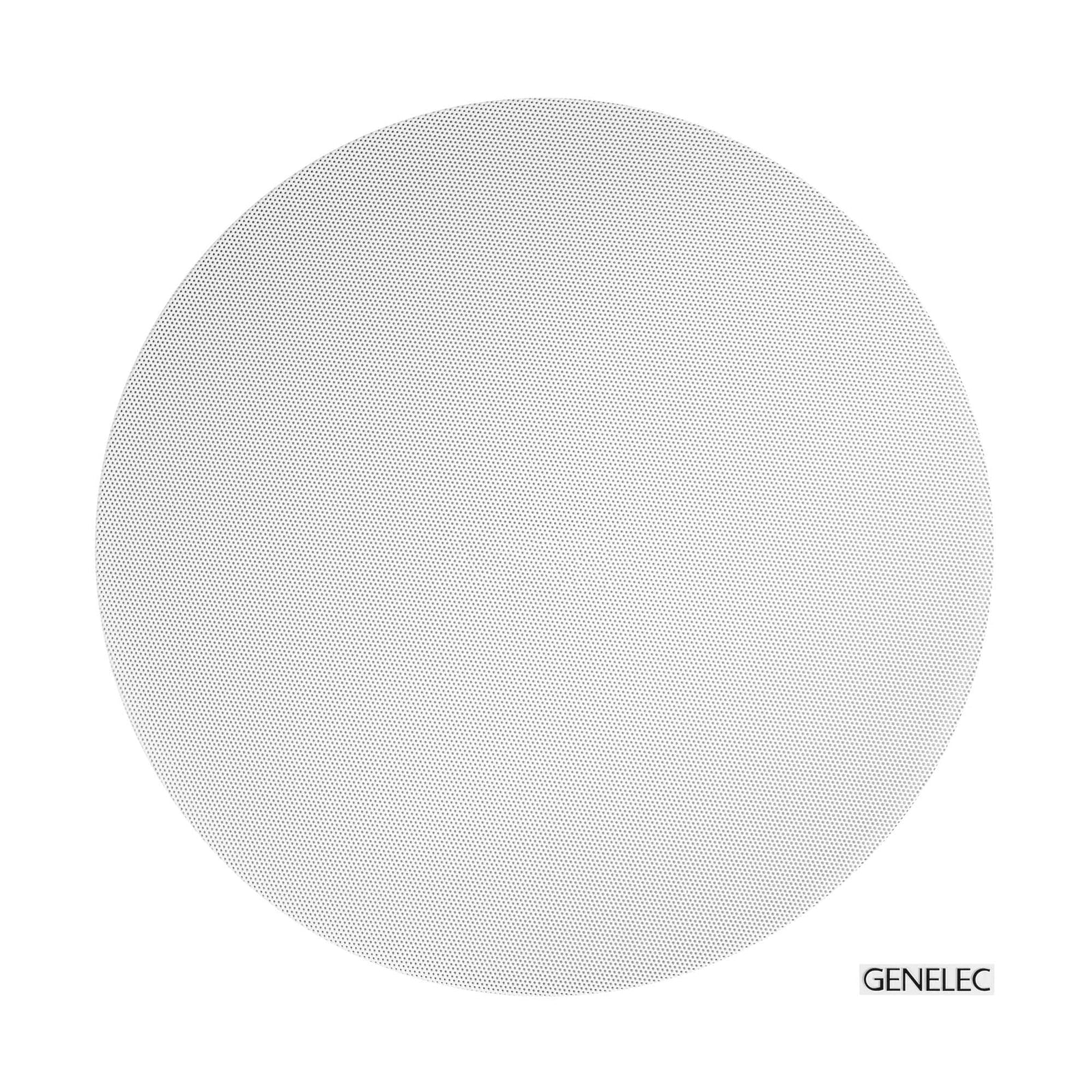

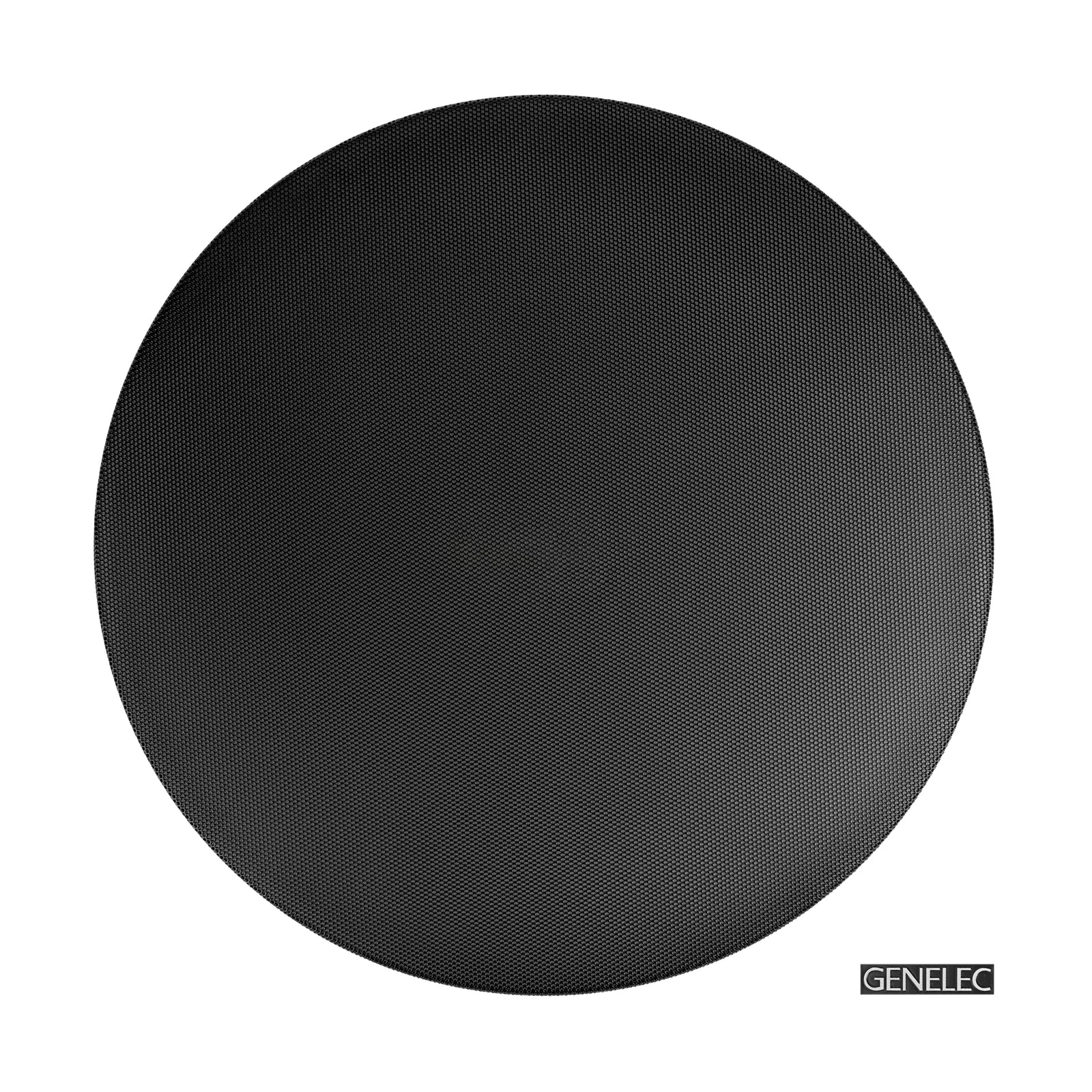

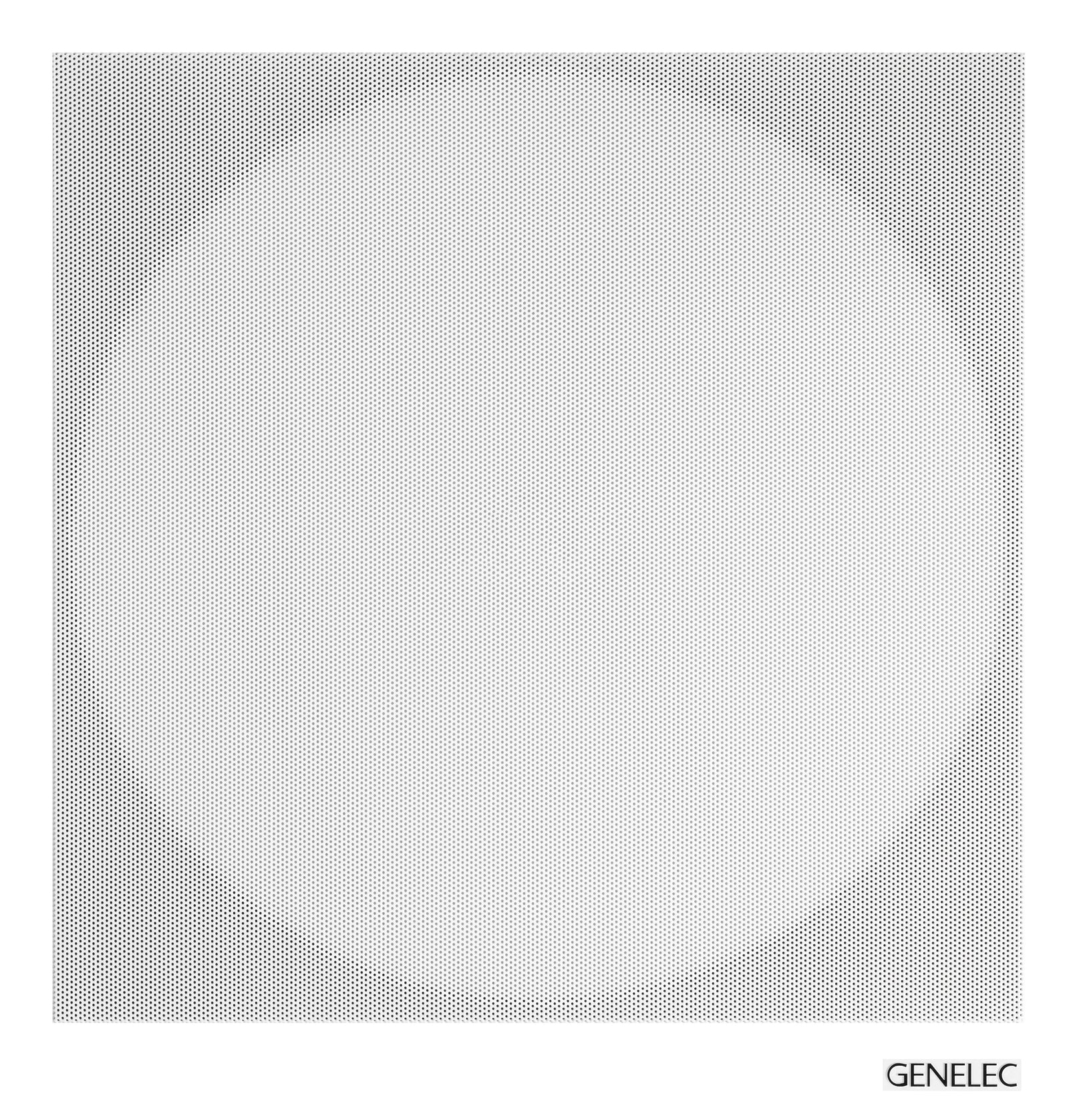

The 4435A supersedes the well-established AIC25 analogue in-ceiling model. The loudspeaker is easily installed with a simple latch system and low-profile magnetically attached grilles that can be ordered as circular or square shapes, with a choice of black or white colour schemes.
What makes Smart IP unique?
- Single-cable connectivity using PoE and PoE+ without performance sacrifice.
- Support for open audio and IP standards, and compatible with both Dante and AES67 streams
- Uncompromising uncompressed low-latency audio streaming directly into each loudspeaker.
- Loudspeaker synchronisation to sub-microsecond level for solid acoustic imaging.
- Full set of acoustic room compensation and alignment tools built into each loudspeaker.
- Complete public API command set for easy integration with third party automation systems.
- Access to Genelec’s Smart IP Manager software and Smart IP Controller mobile app.
- Renowned Genelec audio and build quality.
- Installation loudspeaker, with simple latch system and safety wire attachment point
- Cut-out template
- Magnetically attached grille, in selected shape and colour
- Operating manual
- NO safety wire included
System Specifications
Frequency Response
70 Hz - 20 kHz (± 2.5 dB)
Low cutoff -6dB
58 Hz
High cutoff -6dB
39 kHz
SPL
Short term max SPL
≥104 dB
Maximum short term sine wave acoustic output on axis in half space, averaged from 100 Hz to 3 kHz at 1 m.
Self-generated noise
Weight
Weight
3.5 kg (7.7 lb)
Dimensions
Height
0 mm ( in)
Width
288 mm (11 11/32 in)
Depth
165 mm (6 1/2 in)
-Dimensions with round grille: Ø 288 mm (11 3/8 in) x Depth 165 mm (6 1/2 in).
-Dimensions with square grille: Length 288 mm (11 3/8 in) x Width 288 mm (11 3/8 in) x Depth 159 mm (6 1/4 in).
-Protrusion of round grille with logo out of the ceiling surface: 13 mm (1/2 in) and square grille: 7 mm (1/4 in).
-Minimum installation depth: 162 mm (6 3/8 in). 10 mm clearance included.
Drivers
Woofer
Driver type
Cone
Diameter
130 mm (5 1/8 in)
Tweeter
Driver type
Metal dome
Diameter
19 mm (3/4 in)
Harmonic distortion
Amplifier Section
Amplifiers
4435A bass amplifier
50 W Class D
4435A tweeter amplifier
50 W Class D
Mains voltage
PoE+/PoE
Power consumption
Signal processing section

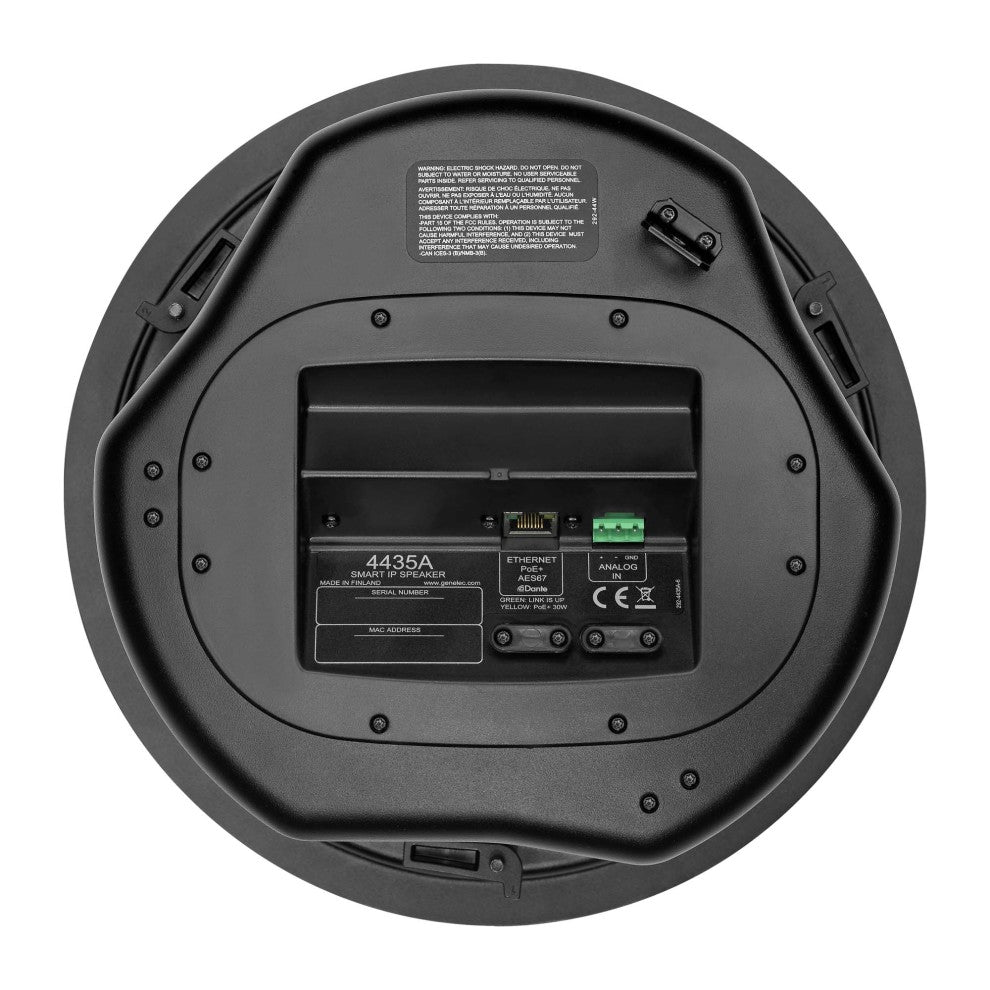

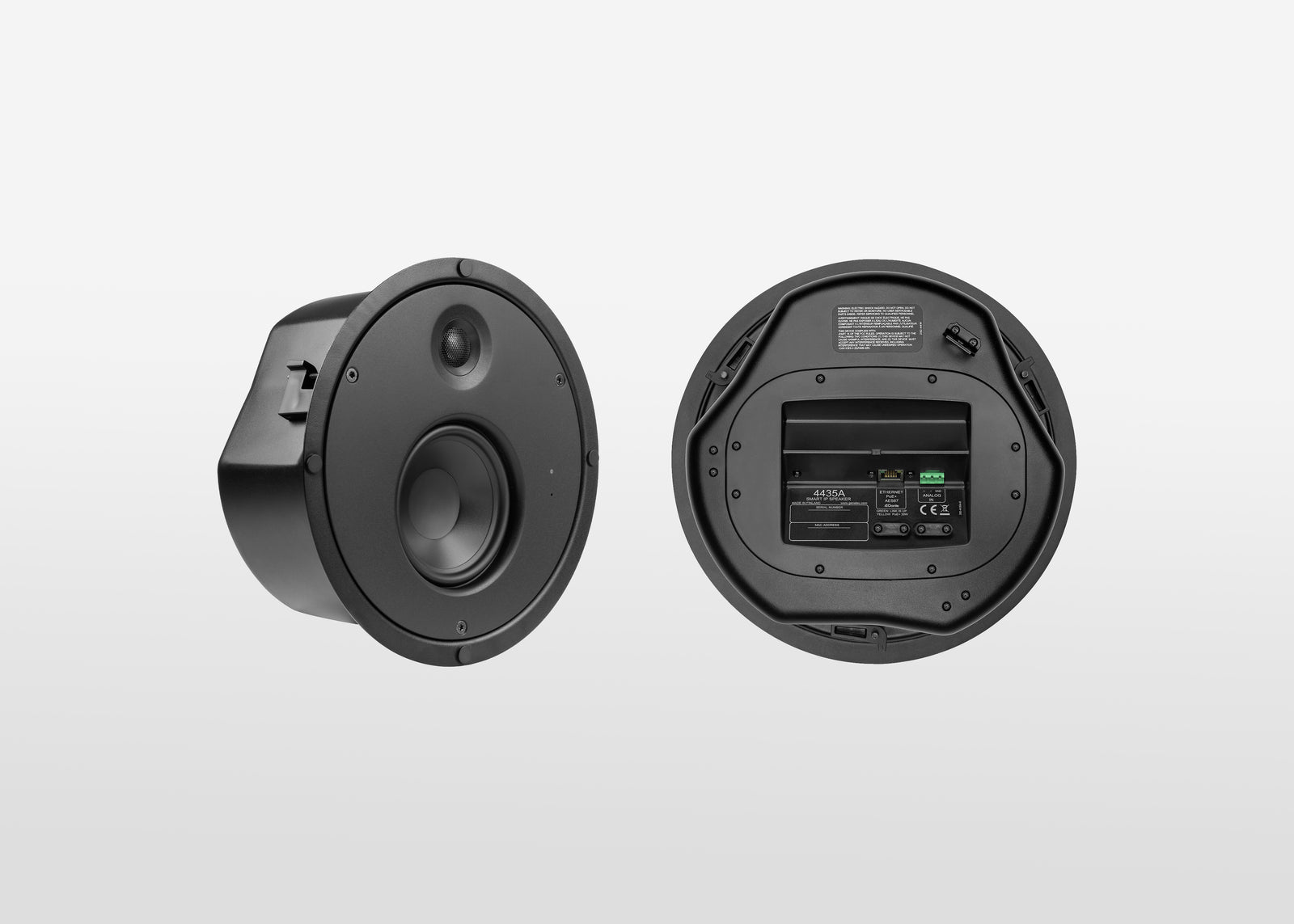

Connectors
Input
1 x RJ45 IP network interface (Power over Ethernet and Audio over IP)
Input
1 x Euroblock analog input. Audio input is via a 10 kOhm balanced connector.
