PRICE ON APPLICATION - Contact us for details

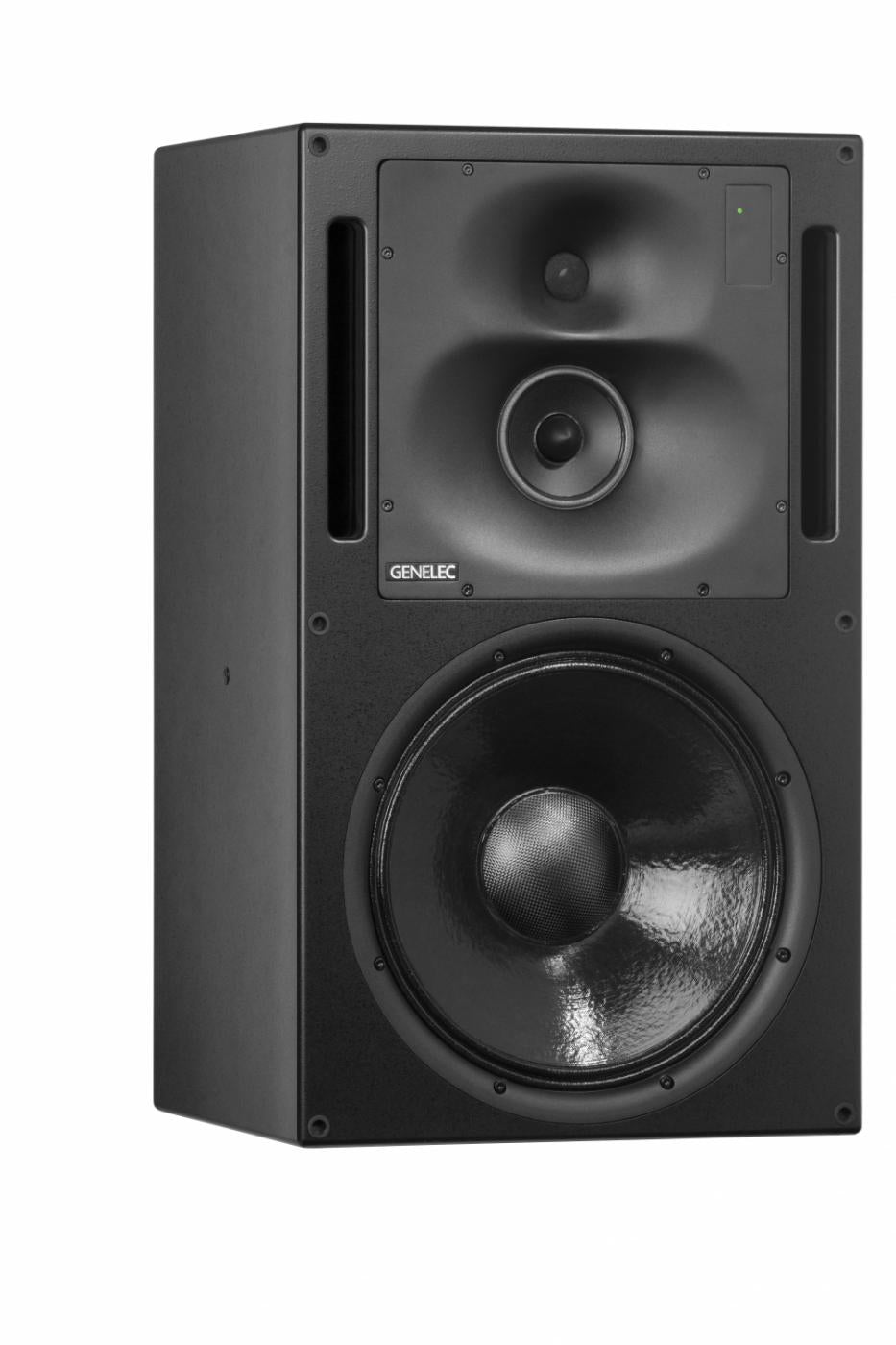

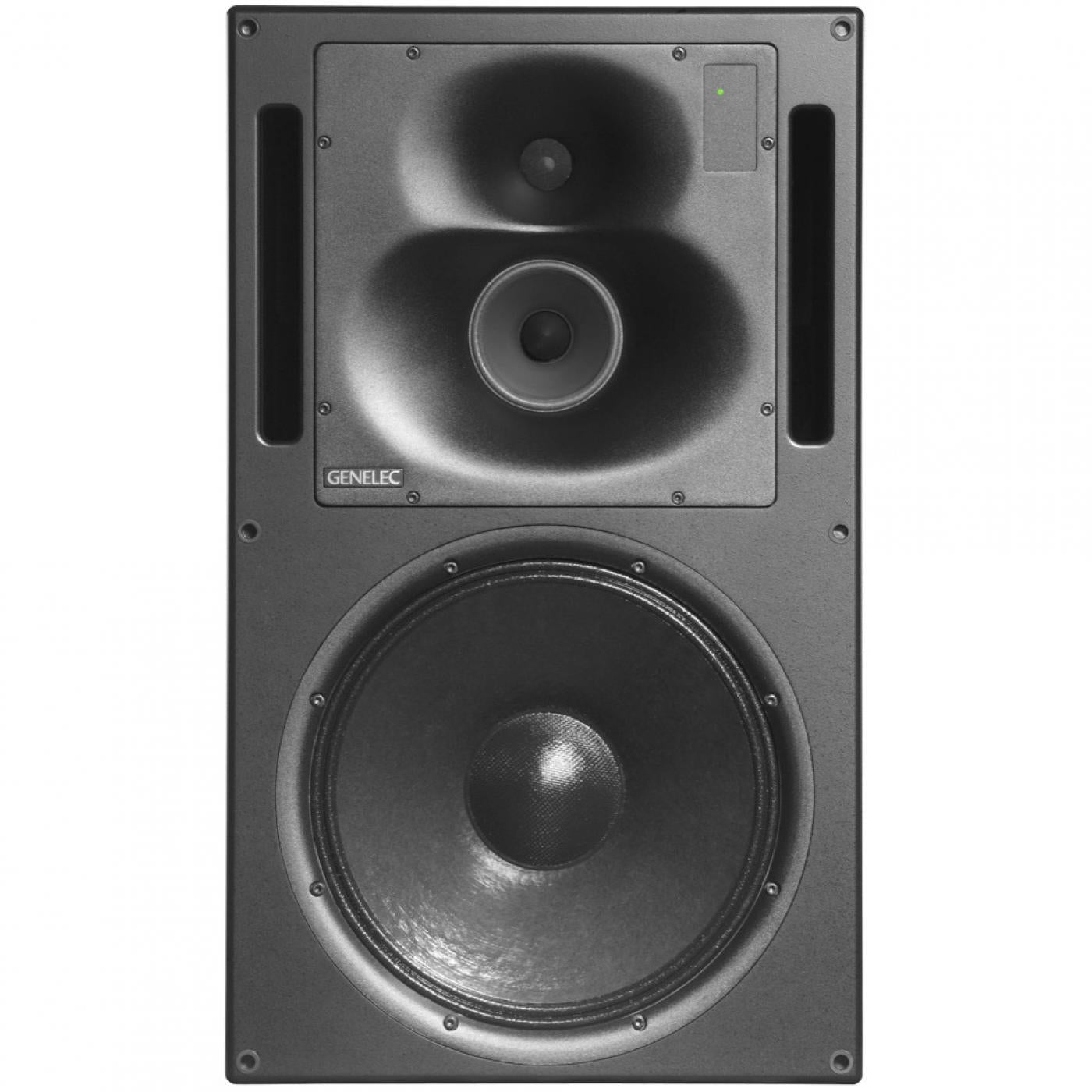

Our largest three-way midfield design, the 1238A adapts to your acoustic space to deliver high-SPL reference precision.
The great legacy of the Genelec 1038 is brought straight to the cutting edge of monitoring technology with the 1238A. The large format, three-way system combines Genelec’s acoustic expertise with the extraordinary adaptability of Smart Active Monitoring (SAM™).

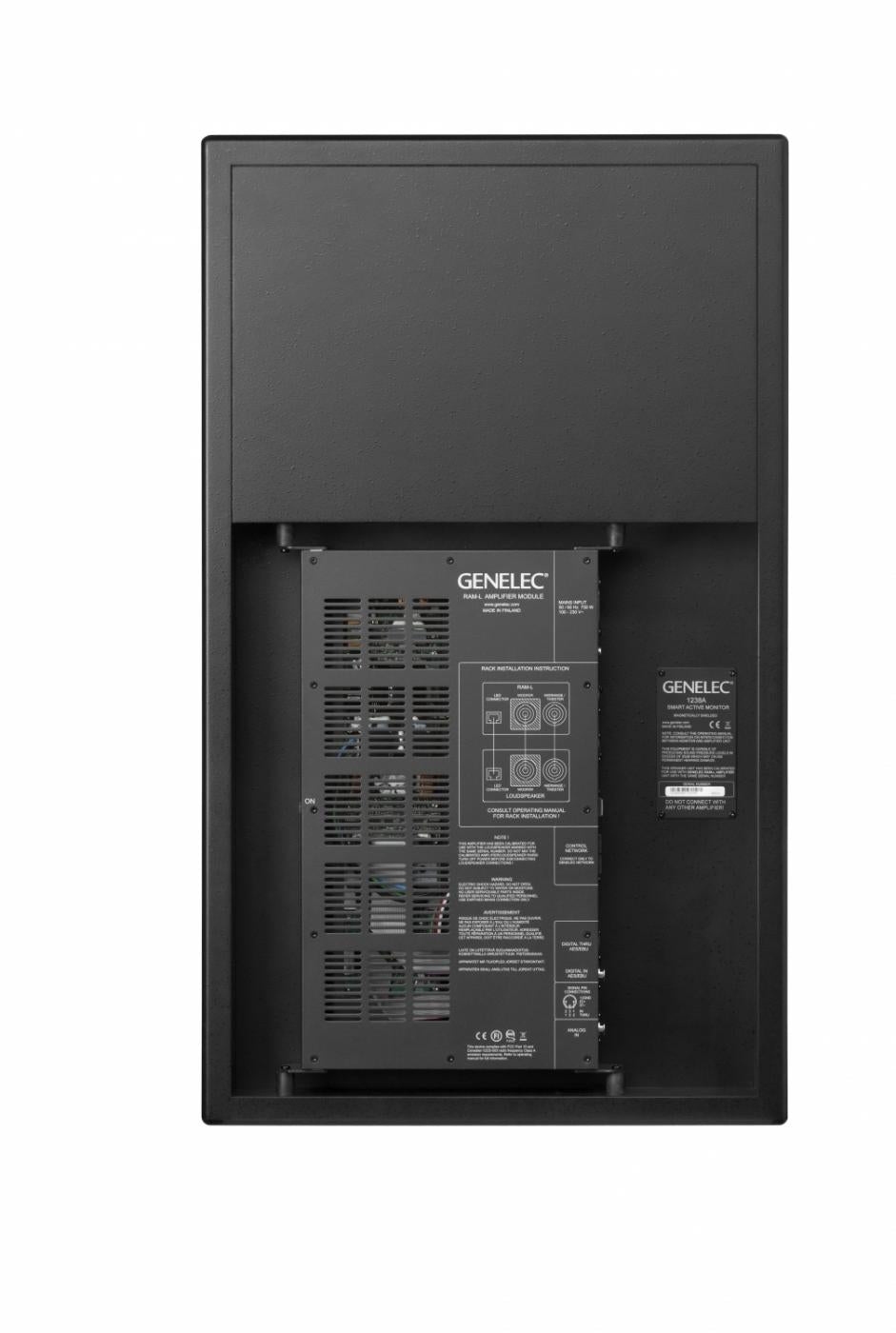

Building on the success of a legend, the 1238A draws on more than 35 years of experience to produce a three-way system that’s second to none. Flush-mounting the 1238A is now easier than ever before thanks to its RAM-L integrated amplifier module, which can be rack-mounted away from the enclosure. A 15 inch woofer, 5 inch midrange driver (both with Class D amplification) and 1 inch metal dome tweeter (Class AB amplification for ultra-wide bandwidth) combine to produce a peak SPL of 121dB, with a large Directivity Control Waveguide (DCW™) ensuring excellent on- and off-axis imaging. Engineering excellence then meets the power of SAM. Genelec Loudspeaker Manager (GLM™) software allows for the fine adjustment of up to 30 individual Smart monitors and Smart subwoofers, while AutoCal™ compensates for detrimental room influences to perfectly calibrate your set-up for your listening environment.
A new reference point for large format, three way monitors, the 1238A represents the optimum balance between experience and innovation.
Key Technologies
- Smart Active Monitor (SAM™) Systems

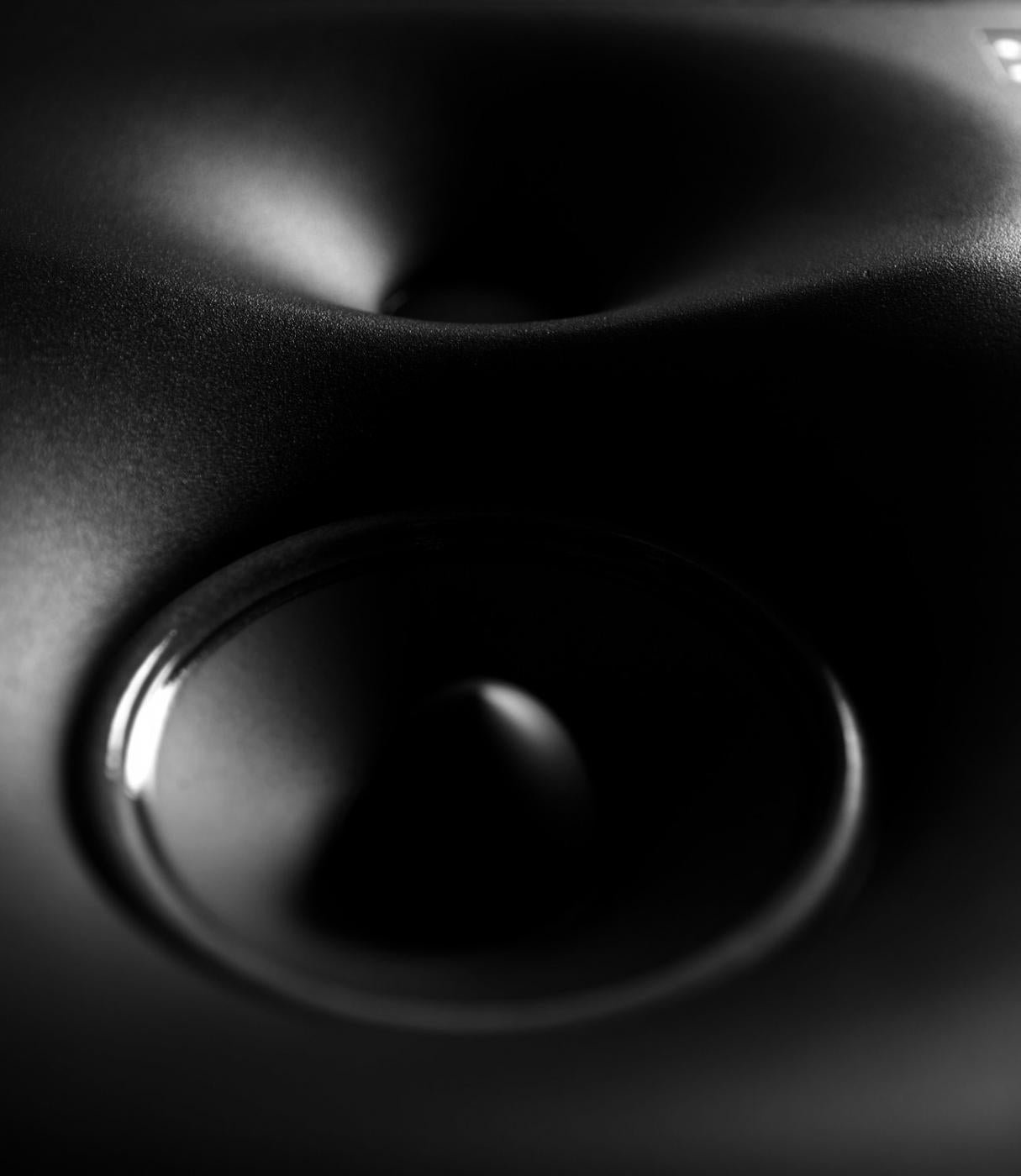

- Directivity Control Waveguide (DCW™) Technology
- Optimized Amplifiers
- Active Crossovers
- Intelligent Signal Sensing (ISS™) Technology
- Protection Circuitry
Visit the Genelec Virtual Showroom
Genelec has introduced its online Virtual Showroom, where you can explore a wide range of active loudspeaker systems and technologies in a set of stunningly realistic room settings. This allows customers across the Studio, AV, and Home Audio segments to instantly access valuable Genelec information and resources in a unique and visually engaging interactive environment.
Hosted on the Genelec website, visitors to the Virtual Showroom can experience the latest in VR technology to navigate separate and distinct areas for Professional Audio Monitoring, AV Installation and Home Audio, which showcase both stereo and immersive systems that comprise a carefully selected range of key loudspeaker and subwoofer models. Visitors can then access detailed product information, video content and valuable learning resources, at any time of day and from the comfort of their own environment.
Package contains:
- 1 x 1238A main monitor
- 1 x mains cable 1,8 m
- 1 x RJ45 cable 5 m
- 1 x front plate
- 2 x rack mount ears
- 1 x operating manual
Warranty:
- 2 years parts-and-labour (extended to 5 years with free registration).
GLM Calibration:
- Requires free GLM software and either our 9320A SAM™ Reference Controller or GLM Calibration Kit device (both sold separately) for calibration.
Technical Specifications
SPL
121 dB
Amplifier Power
500 W Bass (Class D) + 250 W Midrange (Class D) + 200 W Treble (Class AB)
Frequency Response
30 Hz - 22 kHz ("-6 dB")
Accuracy of Frequency Response
± 2.5 dB (35 Hz - 20 kHz)
Driver Dimensions
⌀ 385 mm Bass + ⌀ 125 mm Midrange + ⌀ 25 mm Treble
Dimensions
H 810 x W 480 x D 420 mm
Weight
57 kg / 125.7 lb
Connections
1 x XLR Analog Input
1 x XLR AES/EBU Input
1 x XLR AES/EBU Output
2 x RJ45 Control
