PRICE ON APPLICATION - Contact us for details

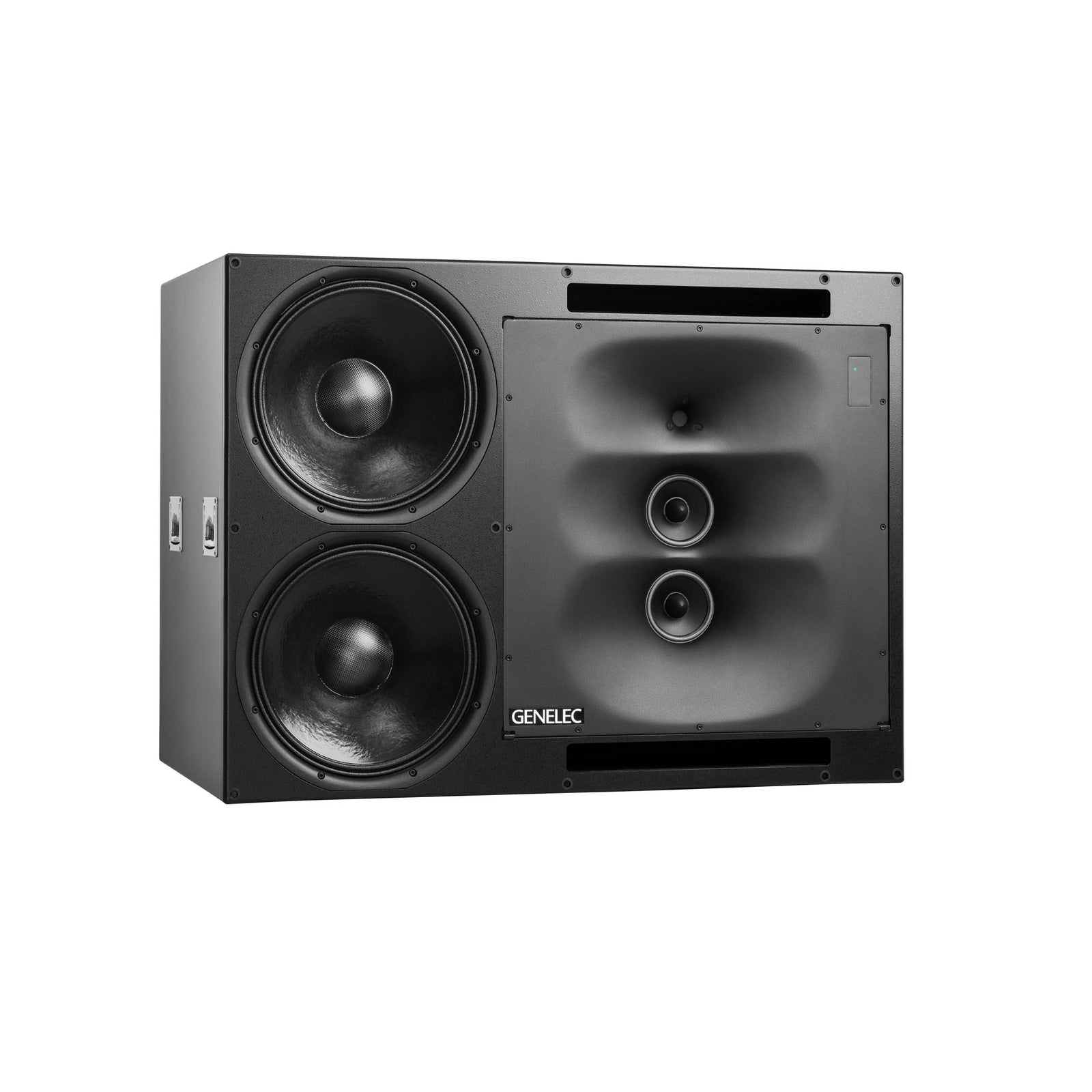

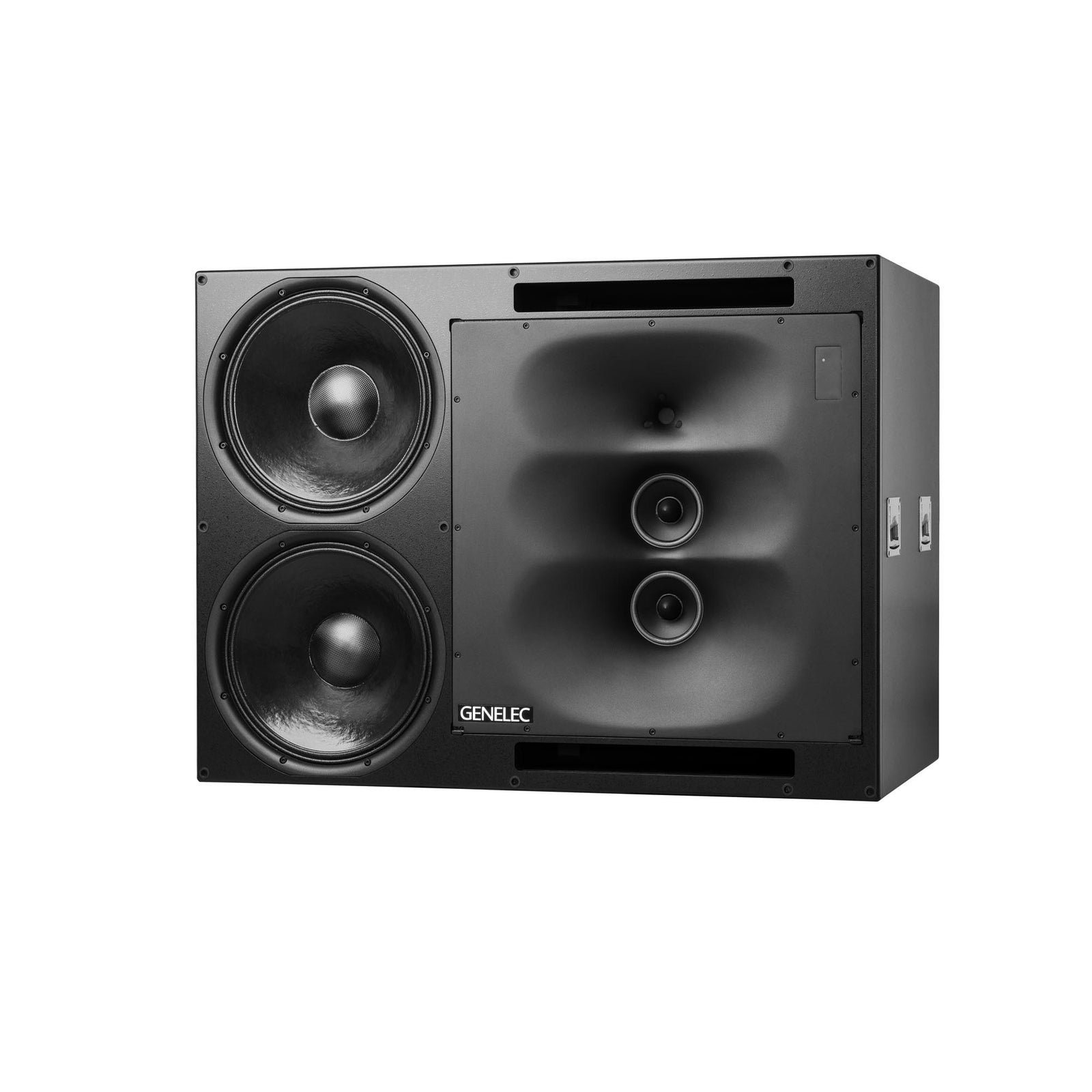

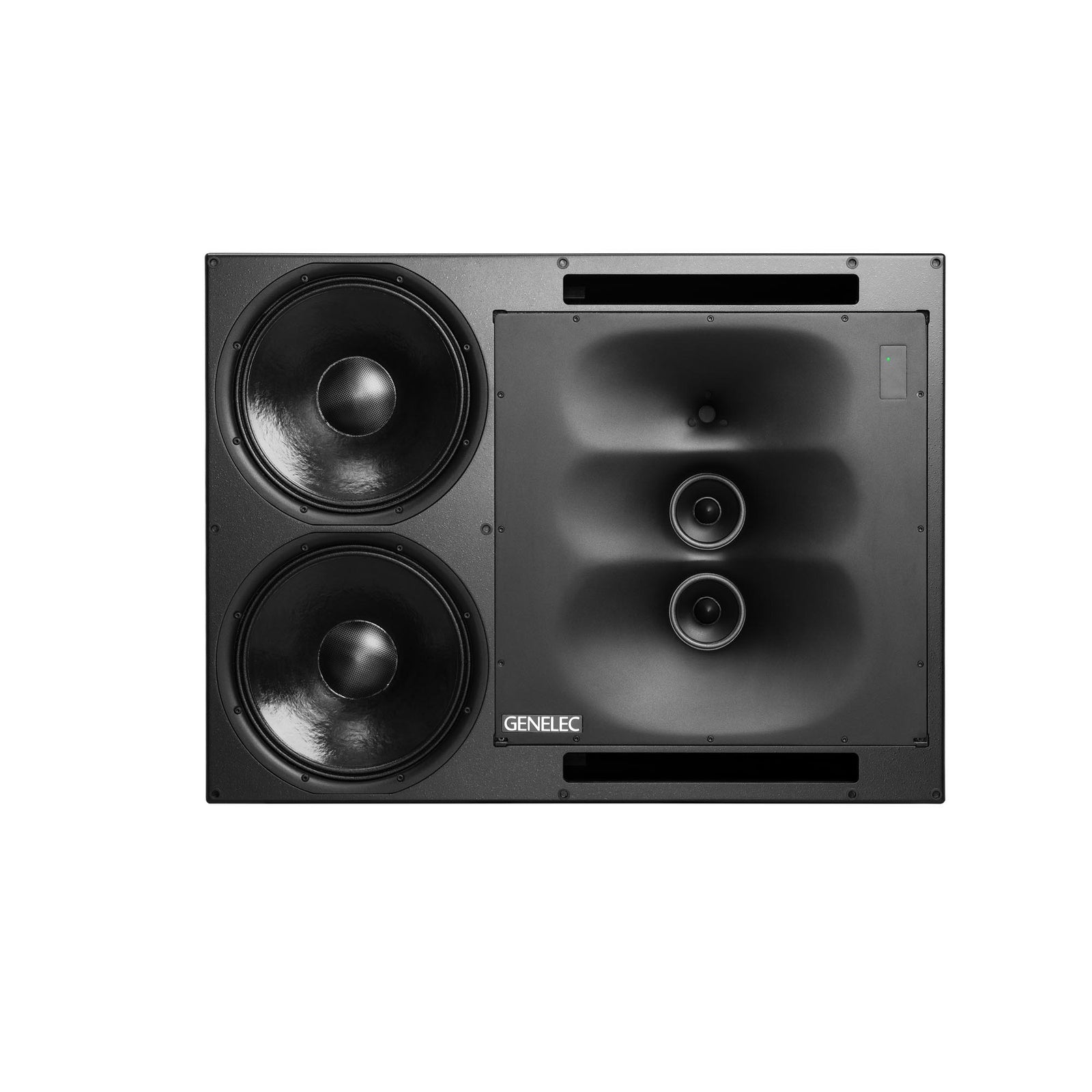

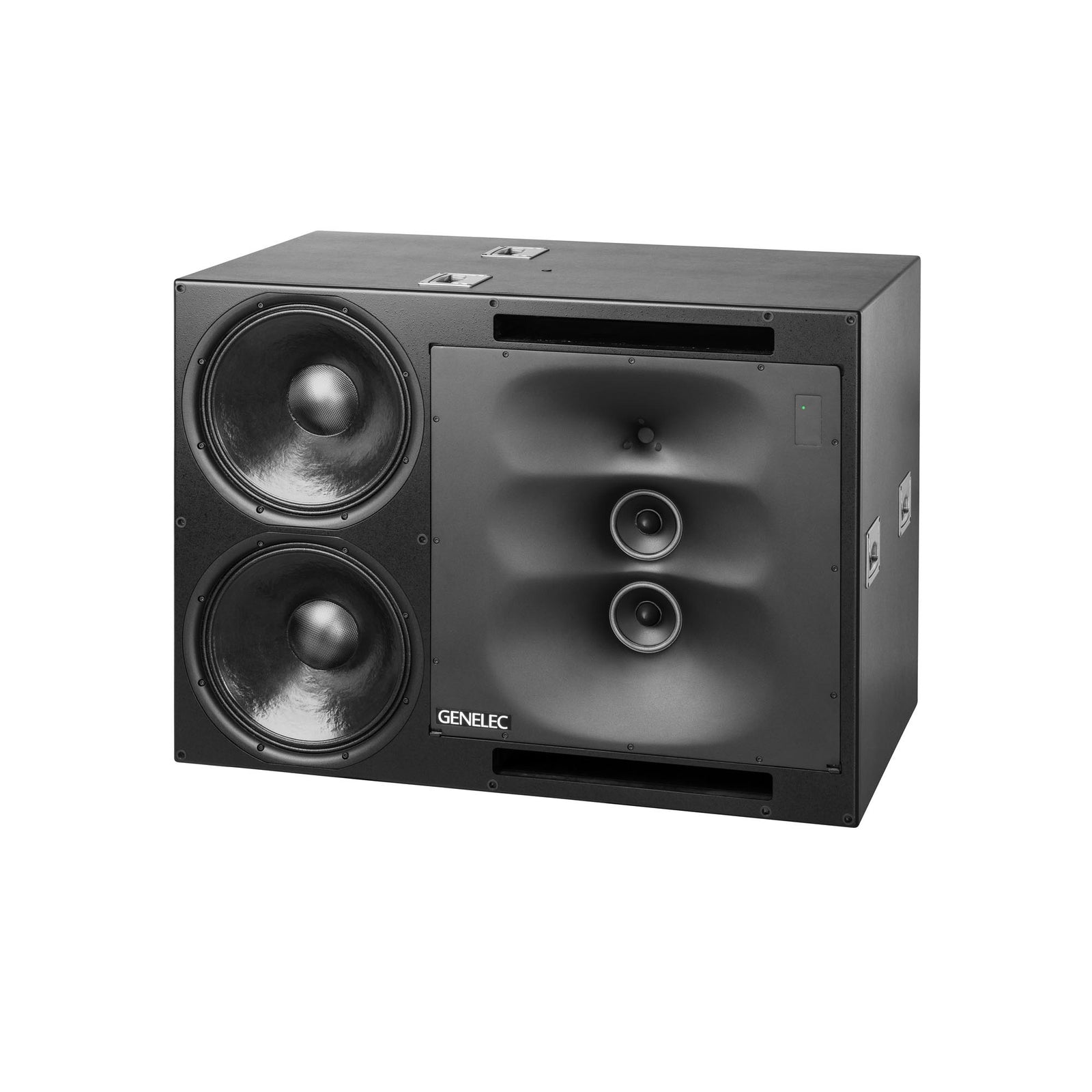

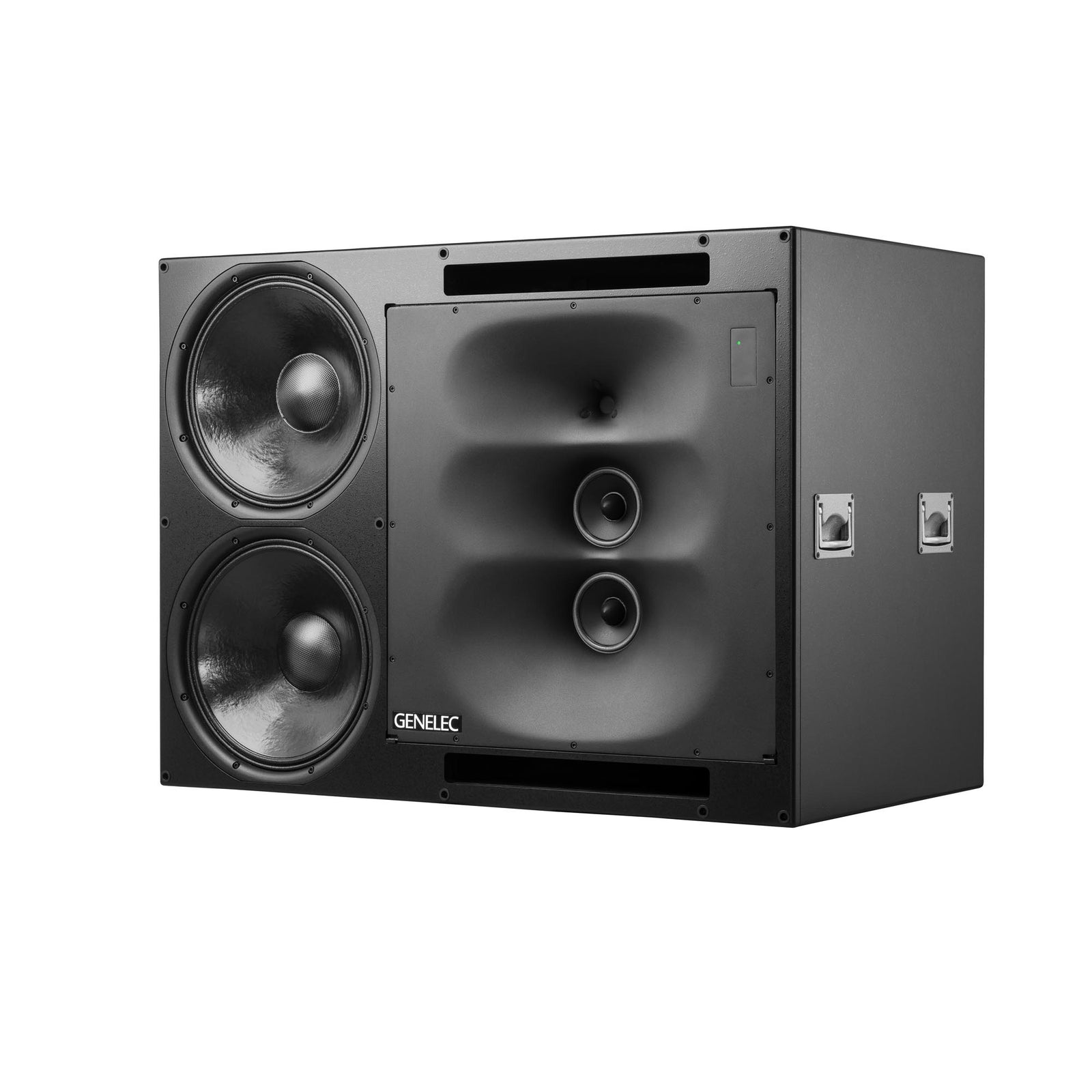

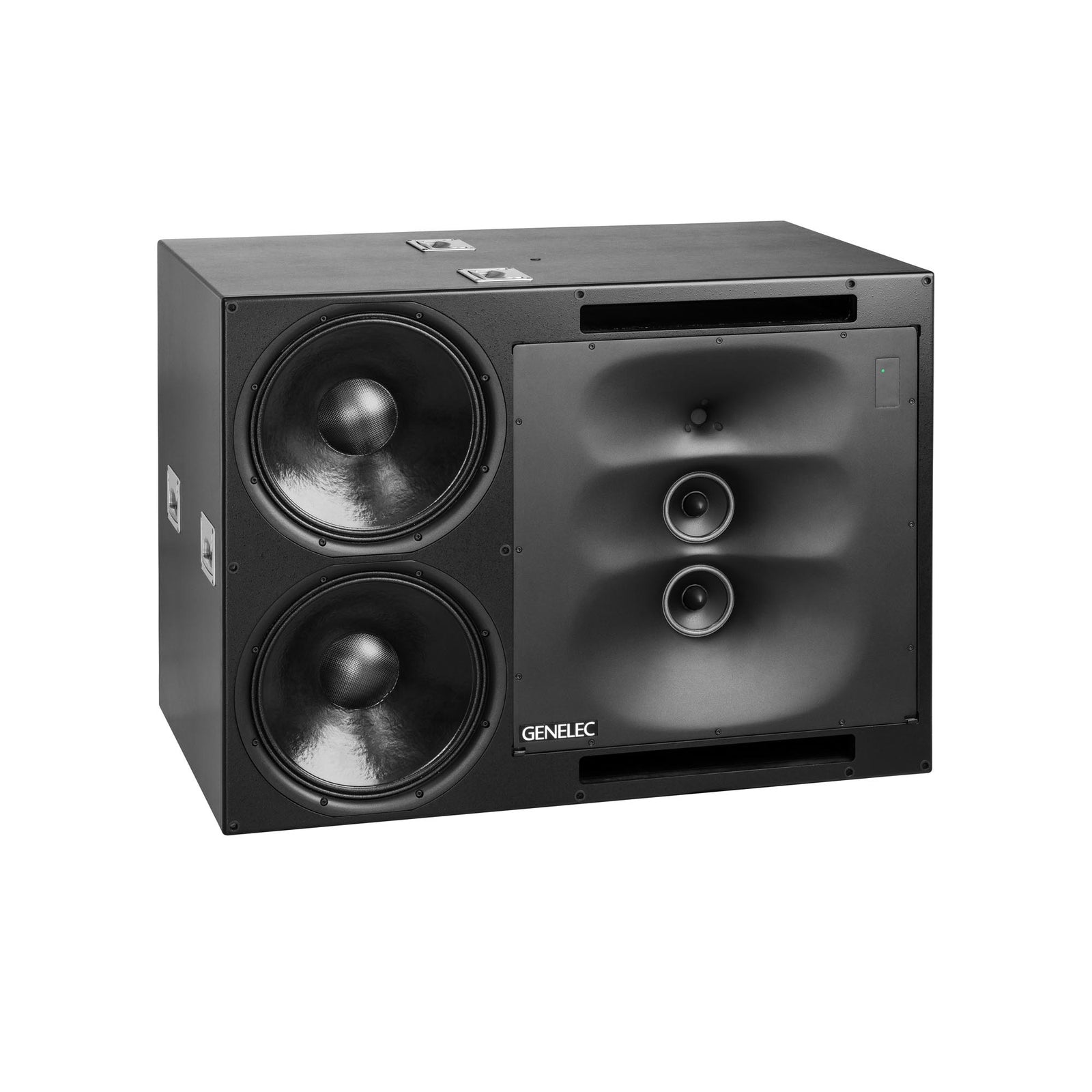

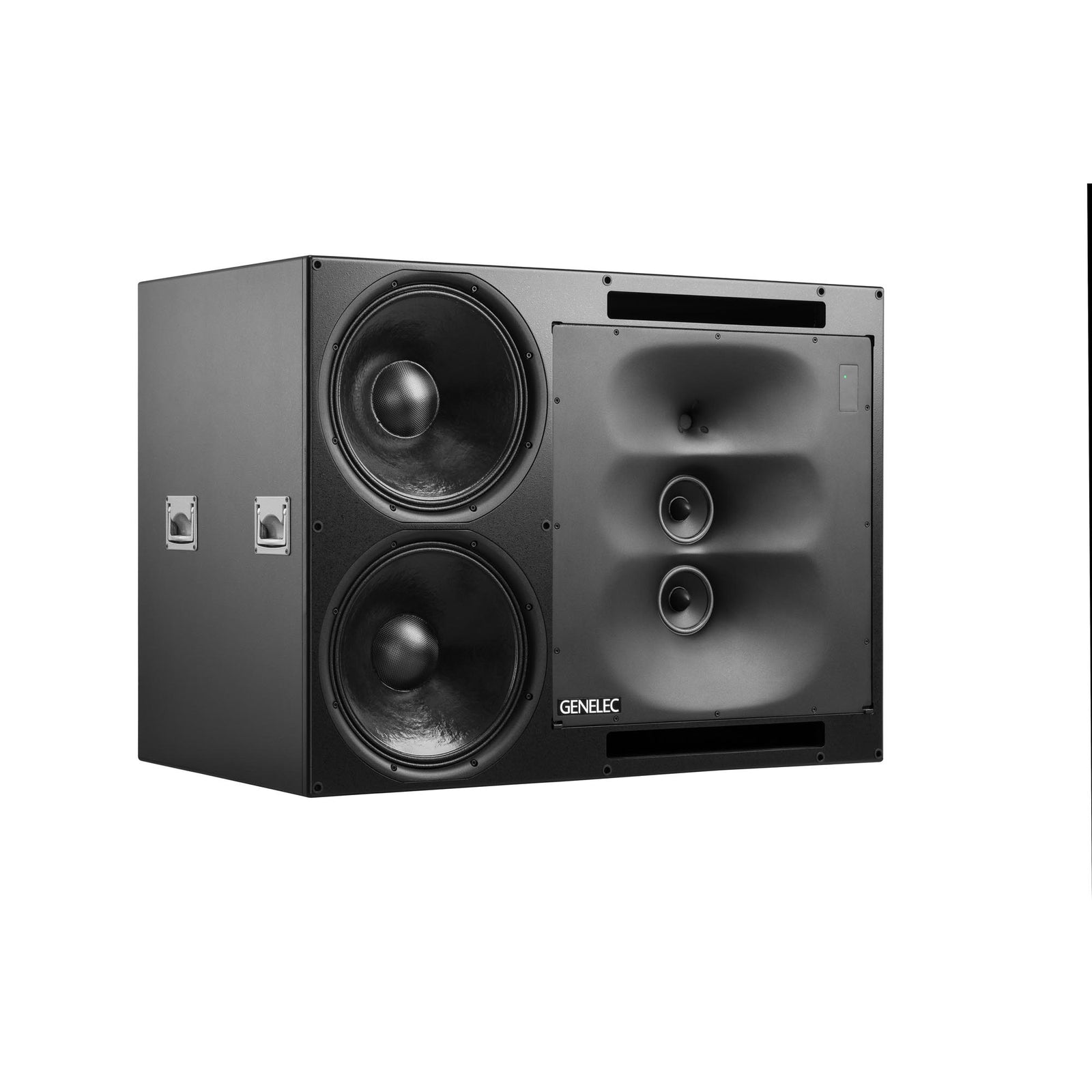

The 1235A brings the sound and heritage of the iconic 1035 into the modern recording age. High SPL capability and precise imaging come together in a main monitor that adapts to your room.
Classic heritage
The original 1035 became the hallmark of prestigious studios around the world who demanded a wall-mountable full-range monitor that could deliver true reference performance at high SPLs and over long listening distances. Now, with 96 kHz processing and all the power of our Smart Active Monitoring technology, the 1235A is available both complete or as a retro-fittable upgrade kit for owners of 1035A or B models.
Cutting edge performance
With outstanding on and off-axis response and superb directivity, the 1235A delivers a very wide and stable sweet spot that can be trusted by multiple listeners within a room. And through its integration with GLM software, the 1235A can be configured, controlled and calibrated for any type of acoustic environment, providing a truly optimised listening experience – and mixes that translate perfectly to other rooms and systems.
Key Technologies
- Active Crossovers
- Directivity Control Waveguide (DCW™) Technology
- Protection Circuitry
- Smart Active Monitoring (SAM™) and GLM™ calibration technology
- Intelligent Signal Sensing (ISS™) Technology
- Optimised Amplifiers
- Room Response Compensation
Package contains:
- 1 x 1235A main monitor

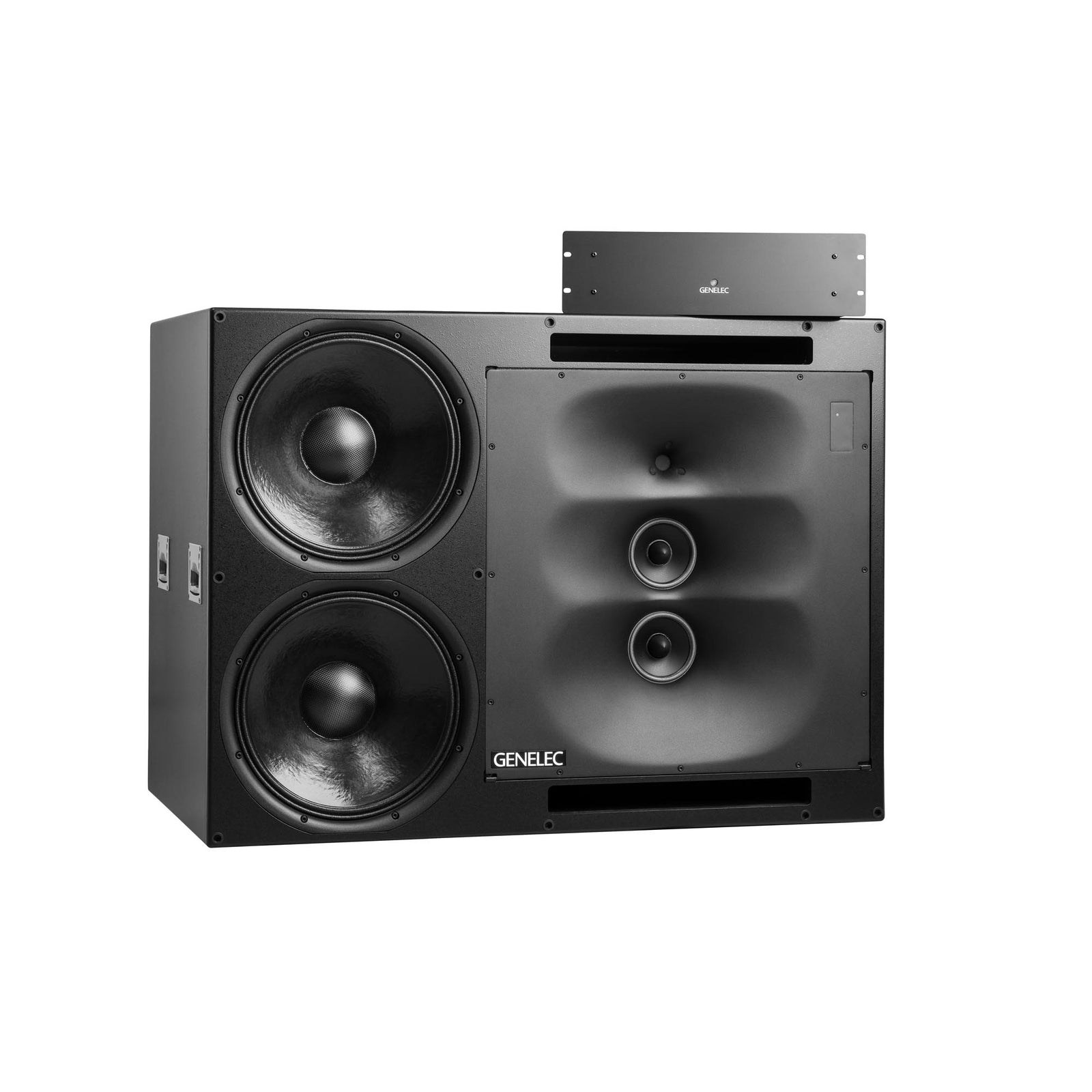

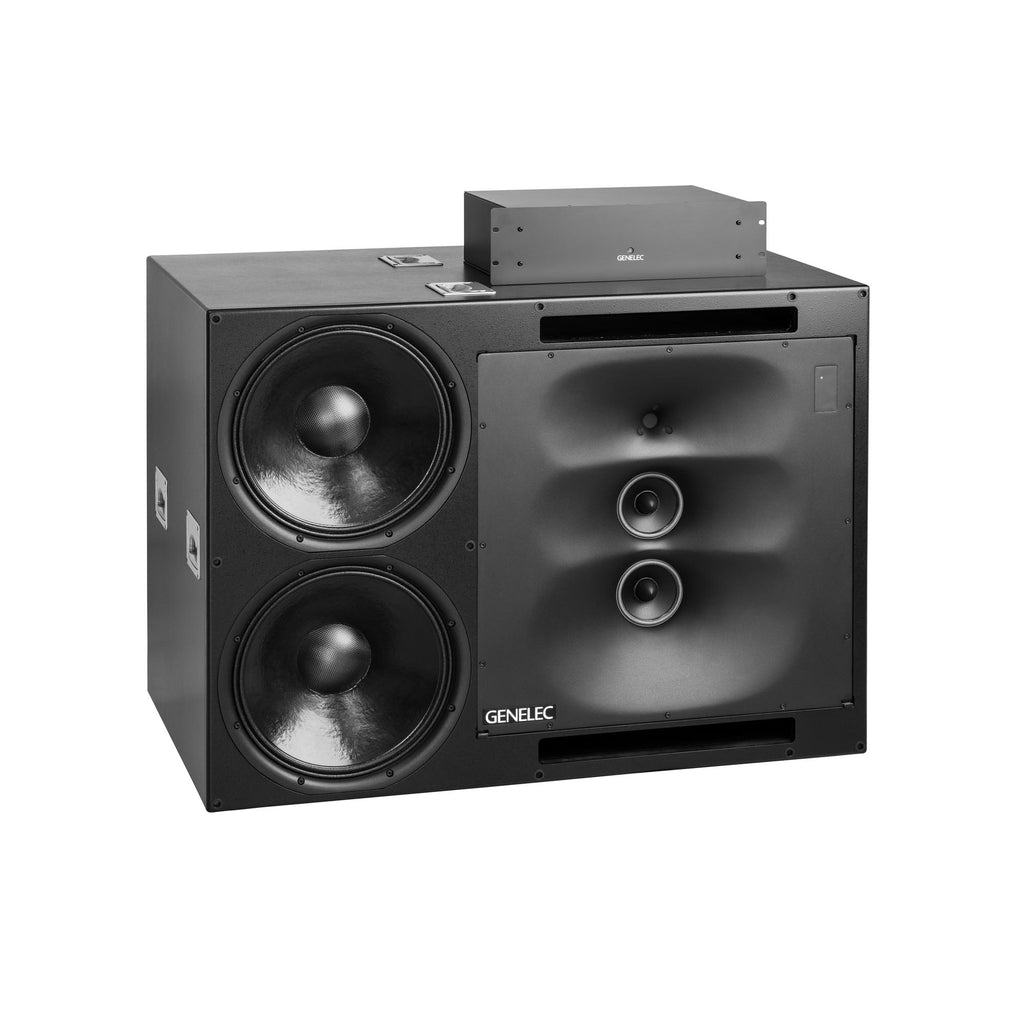

- 1 x individually calibrated RAM-XL amplifier unit
- 1 x mains cable 1,8 m
- 1 x RJ45 cable 5 m
- 1 x RJ45 cable 10 m
- 2 x 4-pole Speakon cable 10 m
- 1 x operating manual
Warranty:
- 2 years parts-and-labour (extended to 5 years with free registration).
GLM Calibration:
- Requires free GLM software and either our 9320A SAM™ Reference Controller or GLM Calibration Kit device (both sold separately) for calibration.
System Specifications
Frequency Response
31 Hz - 20 kHz (± 2 dB)
Low cutoff -6dB
29 Hz
High cutoff -6dB
26 kHz
SPL
Peak SPL
≥135 dB
Maximum peak acoustic output per pair in a listening room with music material at 2 m.
Short term max SPL
≥130 dB
Maximum short term sine wave acoustic output on axis in half space, averaged from 100 Hz to 3 kHz at 1 m.
Long term max SPL
≥124 dB
Maximum long term RMS acoustic output in the same conditions with IEC weighted noise (limited by driver protection circuit) at 1 m.
Self-generated noise
Self-generated noise
≤5 dB SPL
Self-generated noise level in free space at 2 m on axis (A-weighted).
Weight
Weight
164 kg (361.6 lb)
Dimensions
Height
820 mm (32 1/4 in)
Width
1105 mm (43 1/2 in)
Depth
650 mm (25 5/8 in)
Drivers
Bass
Driver type
Cone
Count
2
Diameter
381 mm (15 in)
Midrange
Driver type
Cone
Count
2
Diameter
125 mm (4 7/8 in)
Treble
Driver type
Compression
Compression tweeter 50 mm (2 in) into 25 mm (1 in) throat
Diameter
25 mm (1 in)
Directivity
Vertical directivity

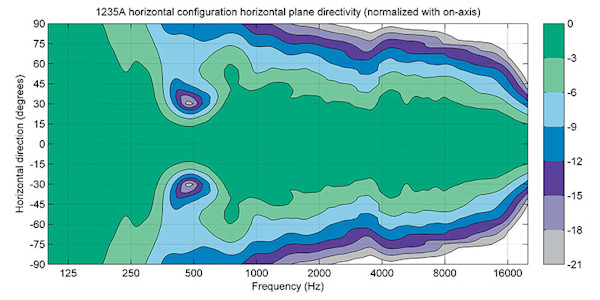

Horizontal directivity
Harmonic distortion
50 - 100 Hz ≤1 %
100 Hz - 3 kHz ≤0.5 %
> 3 kHz ≤3 %
Group delay
The latency at high frequencies from the input to the acoustic output, measured in the analog input:
Extended Phase Linearity in GLM set to OFF
5.2 ms
In Genelec performance graphics, the time of converting the from an electronic input signal to the acoustic output in a Genelec monitor is described by two factors – latency and group delay. The group delay factor can be read in the graphics for a specific frequency. The total frequency-specific input-to-output delay is a sum of the latency and group delay factors. To understand the significance of this total delay, consider that moving a loudspeaker away by 1 meter creates an additional delay of about 3 ms.
Amplifier Section
Amplifiers
1235A Bass Amplifier
2 x 1000 W Class D
3U Rack mounted amplifier
Height
132 mm (5 1/4 in)
Width
483 mm (19 in)
Depth
286 mm (11 1/4 in)
Weight
11.2 kg (24.7 lb)
1235A Midrange Amplifier
2 x 400 W Class D
3U Rack mounted amplifier
Height
132 mm (5 1/4 in)
Width
483 mm (19 in)
Depth
286 mm (11 1/4 in)
Weight
11.2 kg (24.7 lb)
1235A Treble Amplifier
250 W Class D
3U Rack mounted amplifier
Height
136 mm (5 3/8 in)
Width
483 mm (19 in)
Depth
286 mm (11 1/4 in)
Weight
11.2 kg (24.7 lb)
Mains voltage
100-120VAC / 220-230VAC 50/60Hz
Power consumption
ISS Active
≤6 W
Idle
≤40 W
Full output
2400 W
Signal processing section
Connectors
Input
Analog signal input connector XLR female, balanced 10 kOhm.
Input
Digital signal input connector XLR female 110 Ohm.
Output
Digital signal output / Thru connector XLR male 110 Ohm.
2 x Control
Two CAT5 (RJ45) GLM Network connectors for computer control using the Genelec Loudspeaker Manager (GLM) software.
